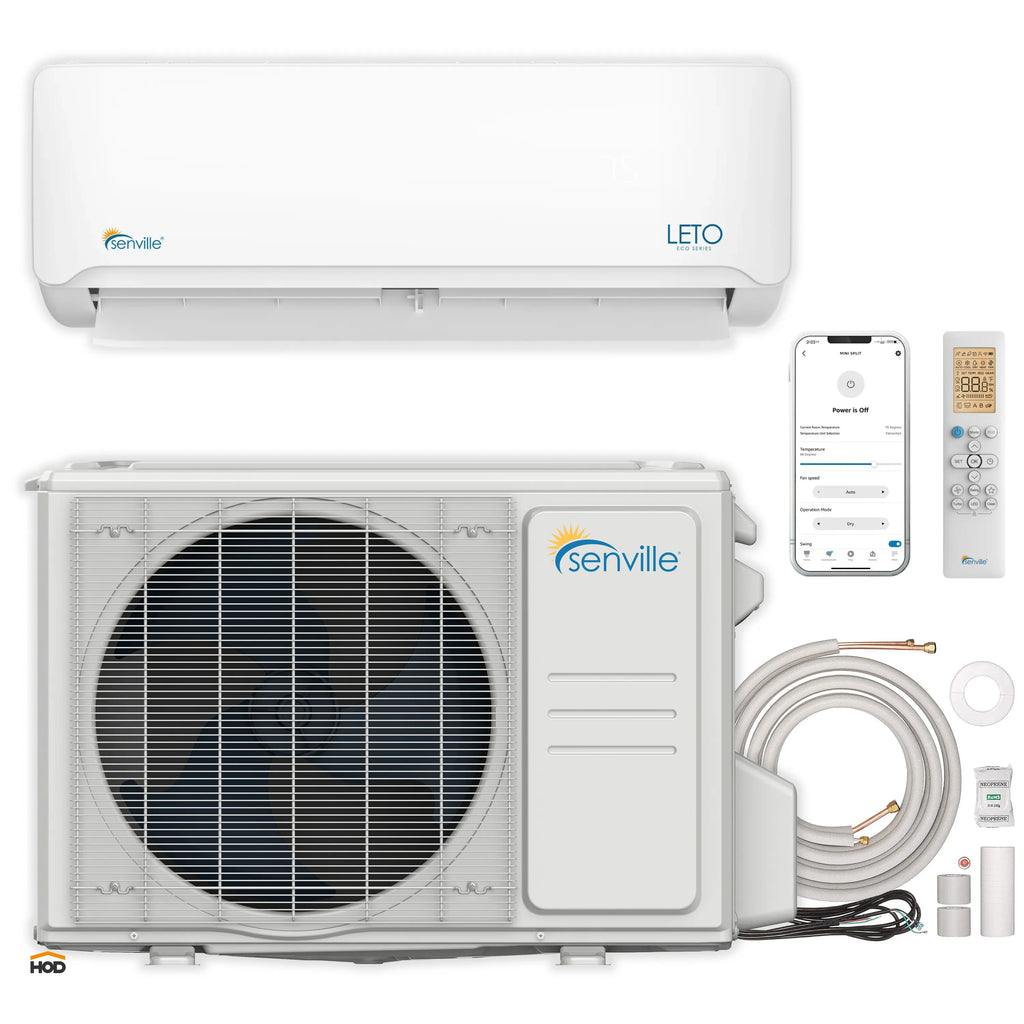

The Senville SENL-12CD/220 is a 12000 BTU mini split air conditioner and heat pump that offers a versatile and affordable solution to cooling and heating your home or business.

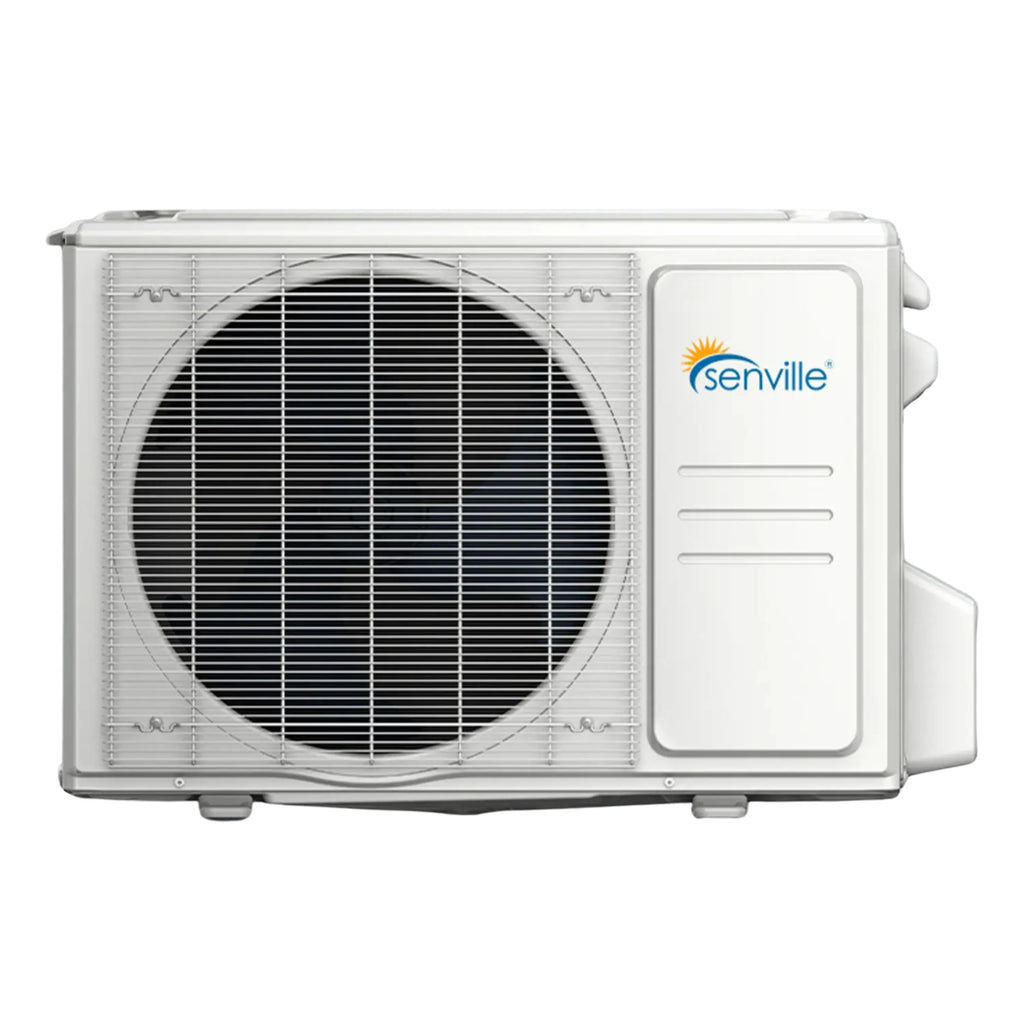

| Condenser | |
| Dimensions (WxDxH) (in.) | 30.12 x 11.93 x 21.85 |
| Weight | 59.08 lbs. |
| Air Flow (Max) CFM | 1235.3 |
| Noise Level dB | 54.0 |

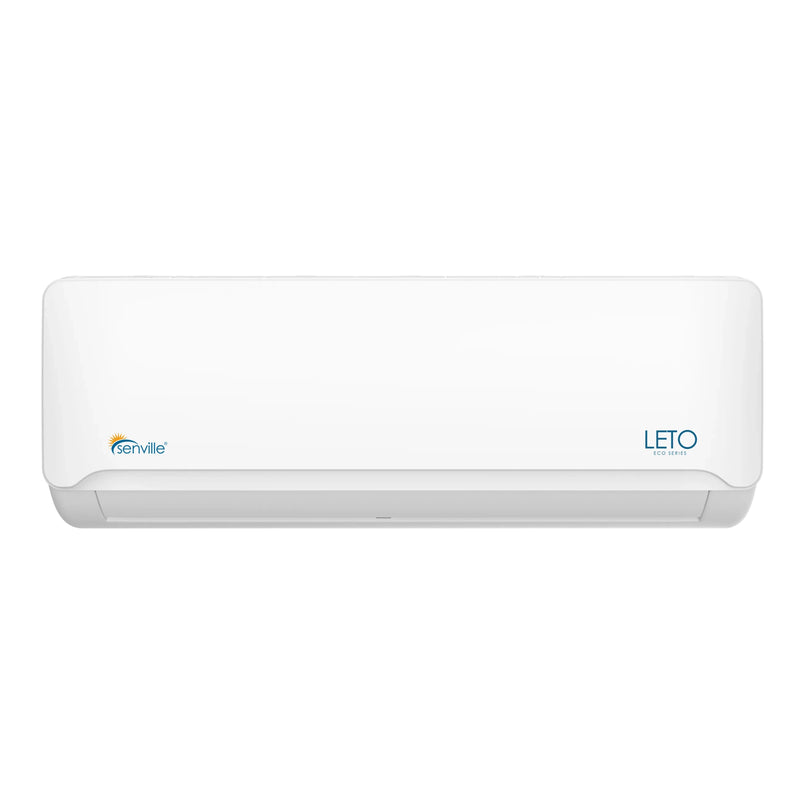

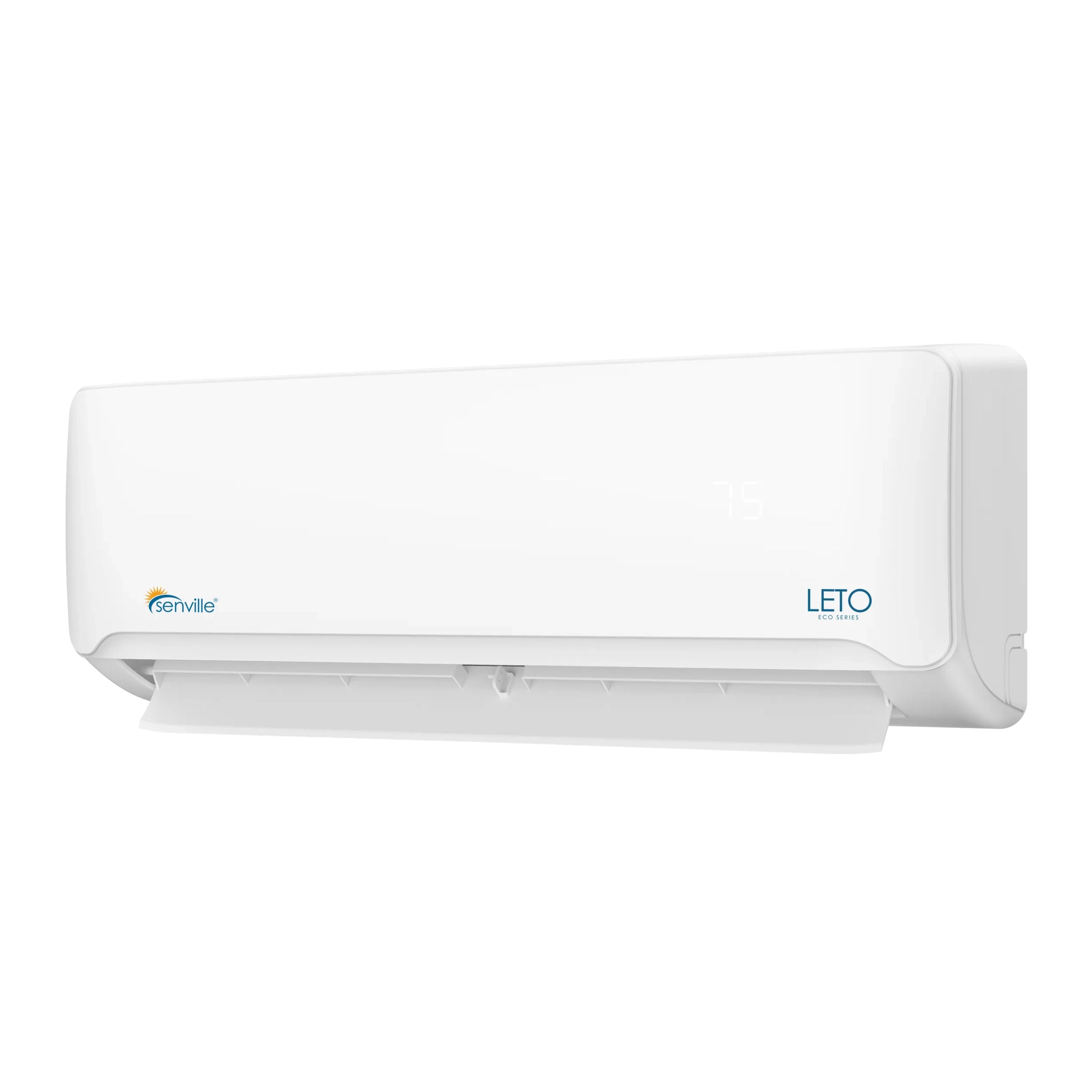

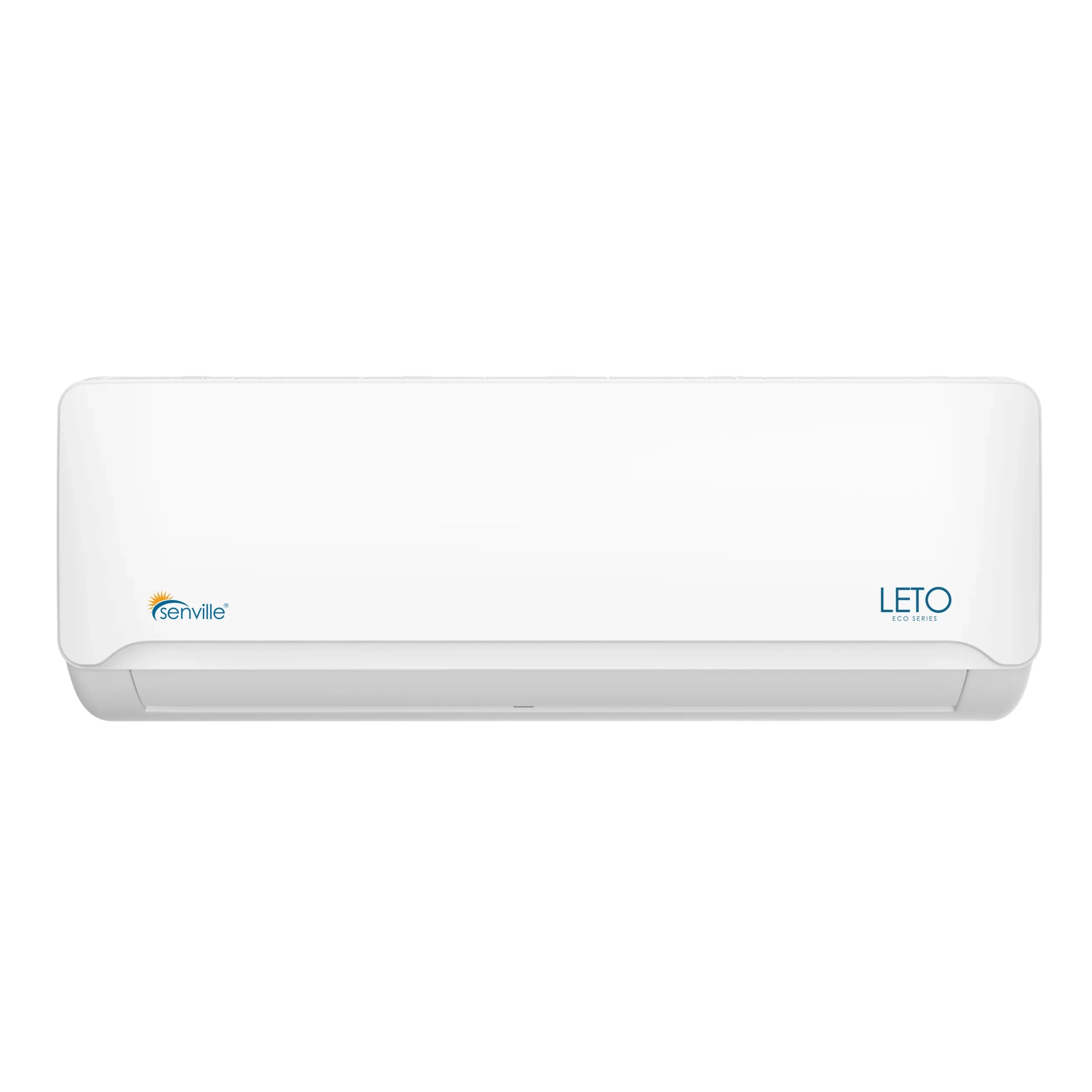

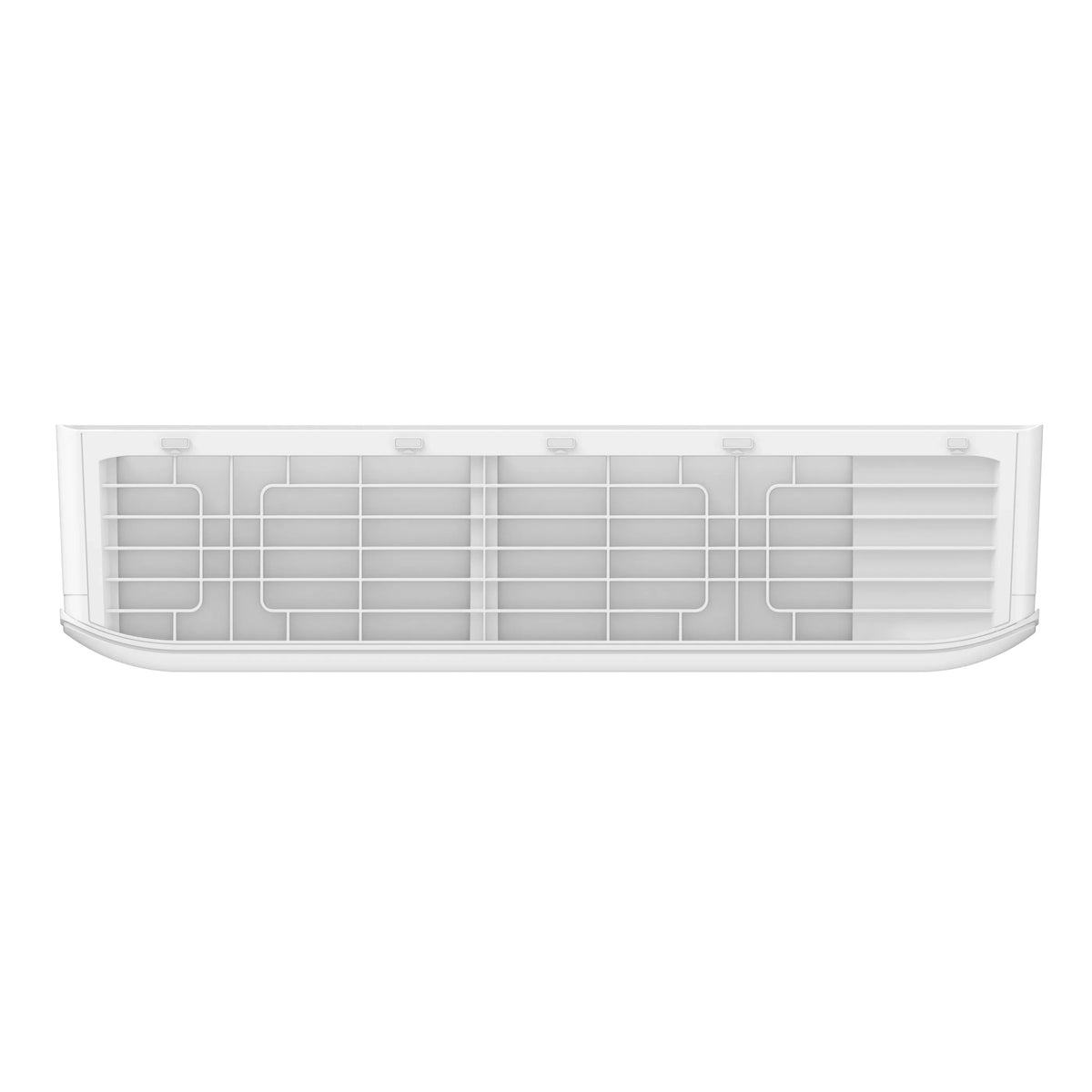

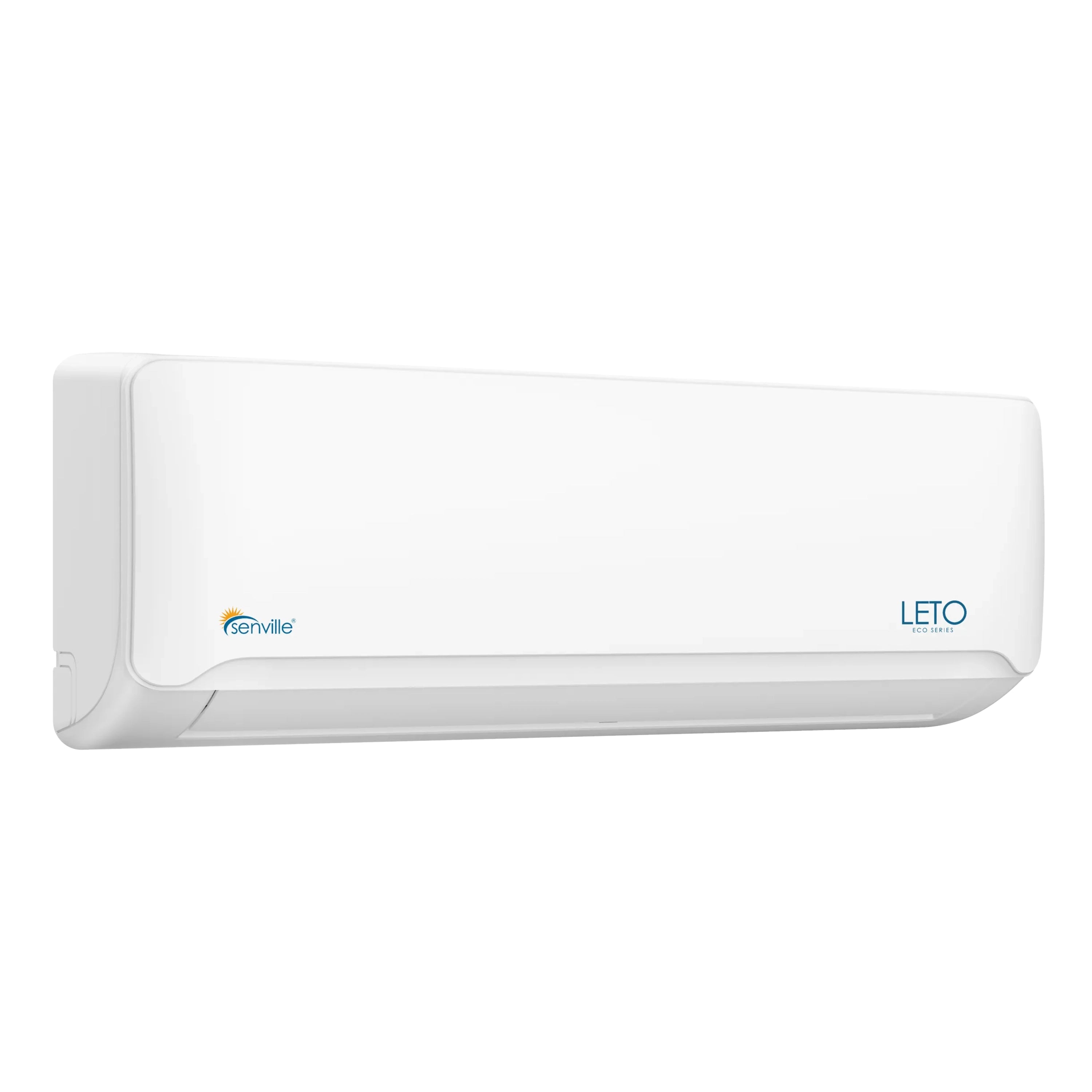

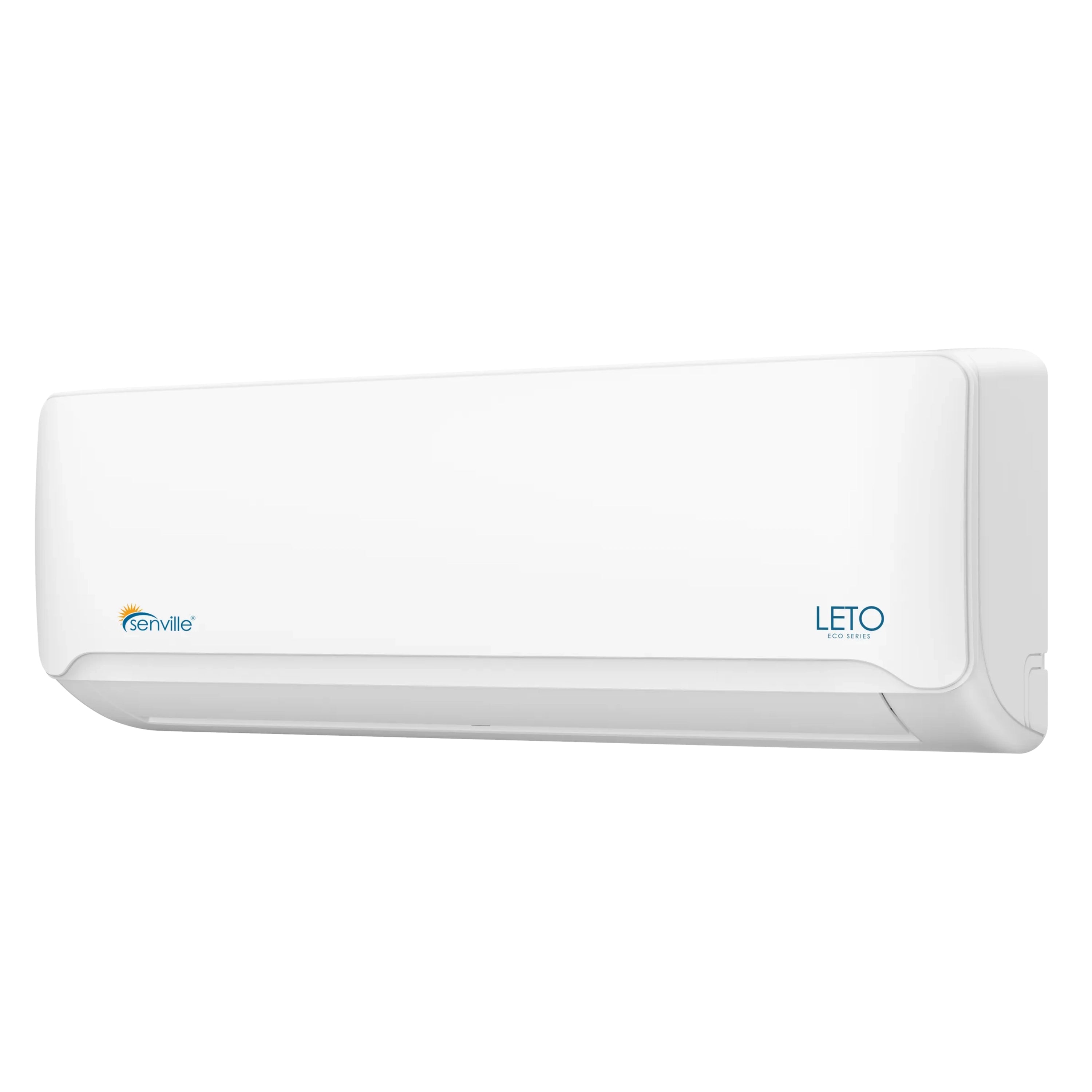

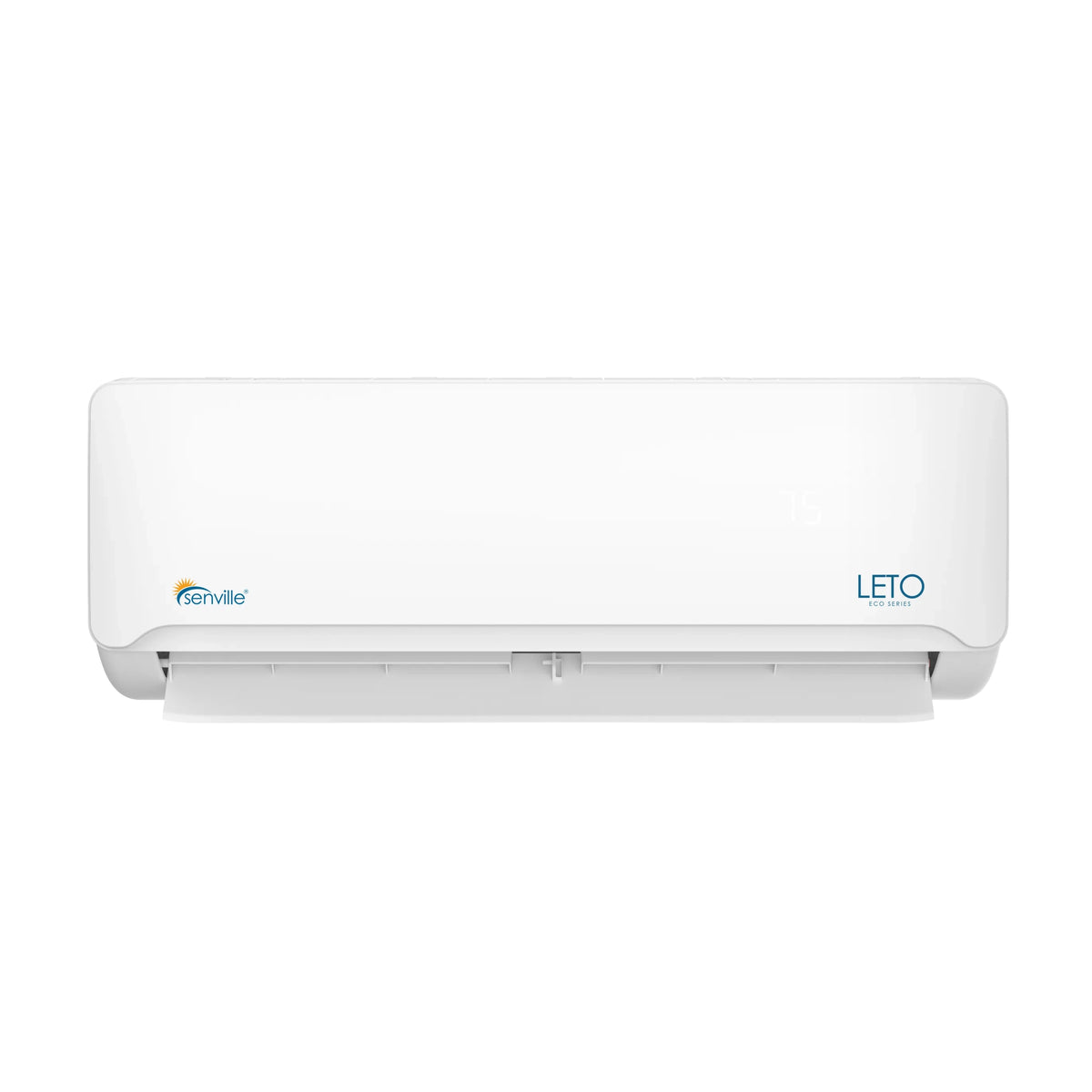

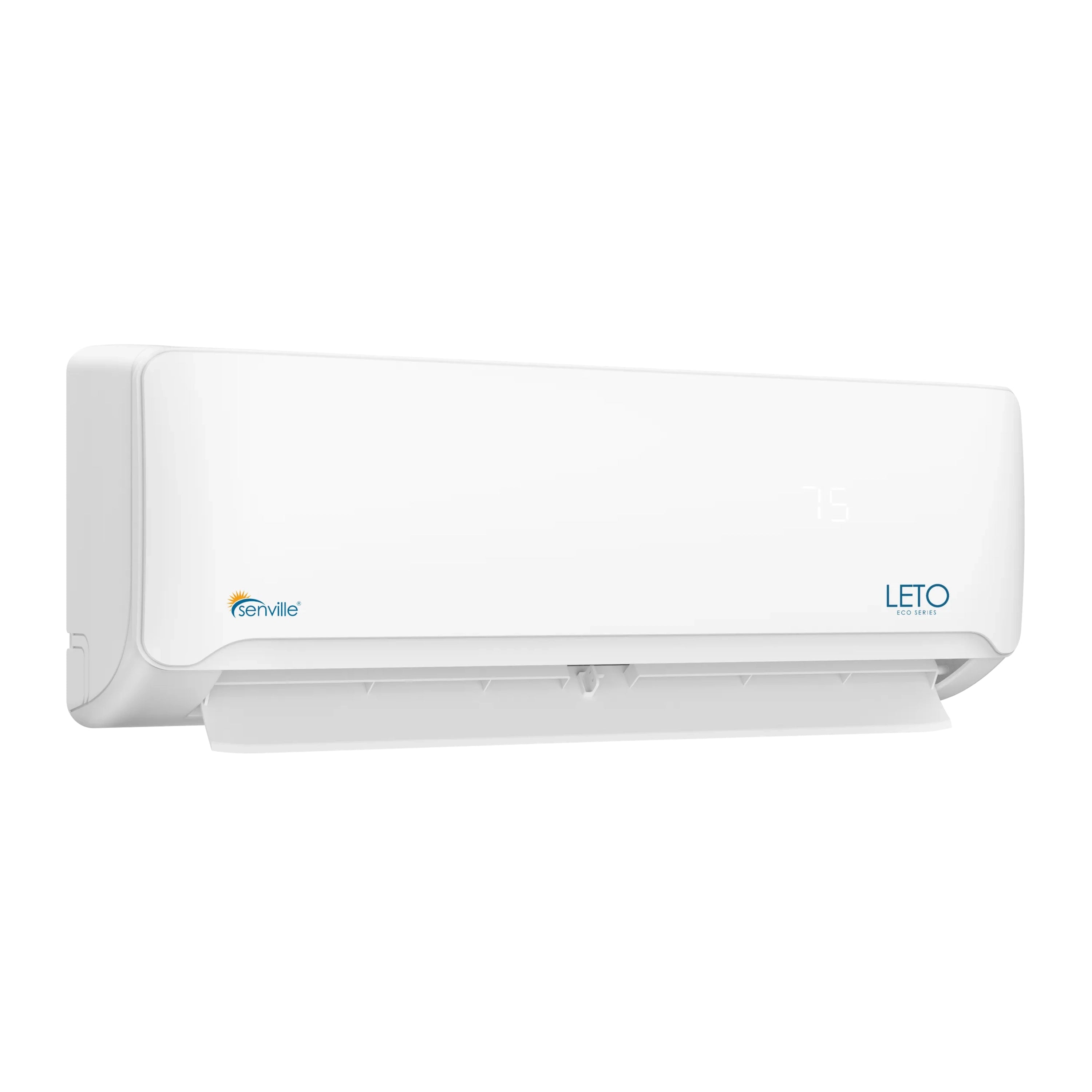

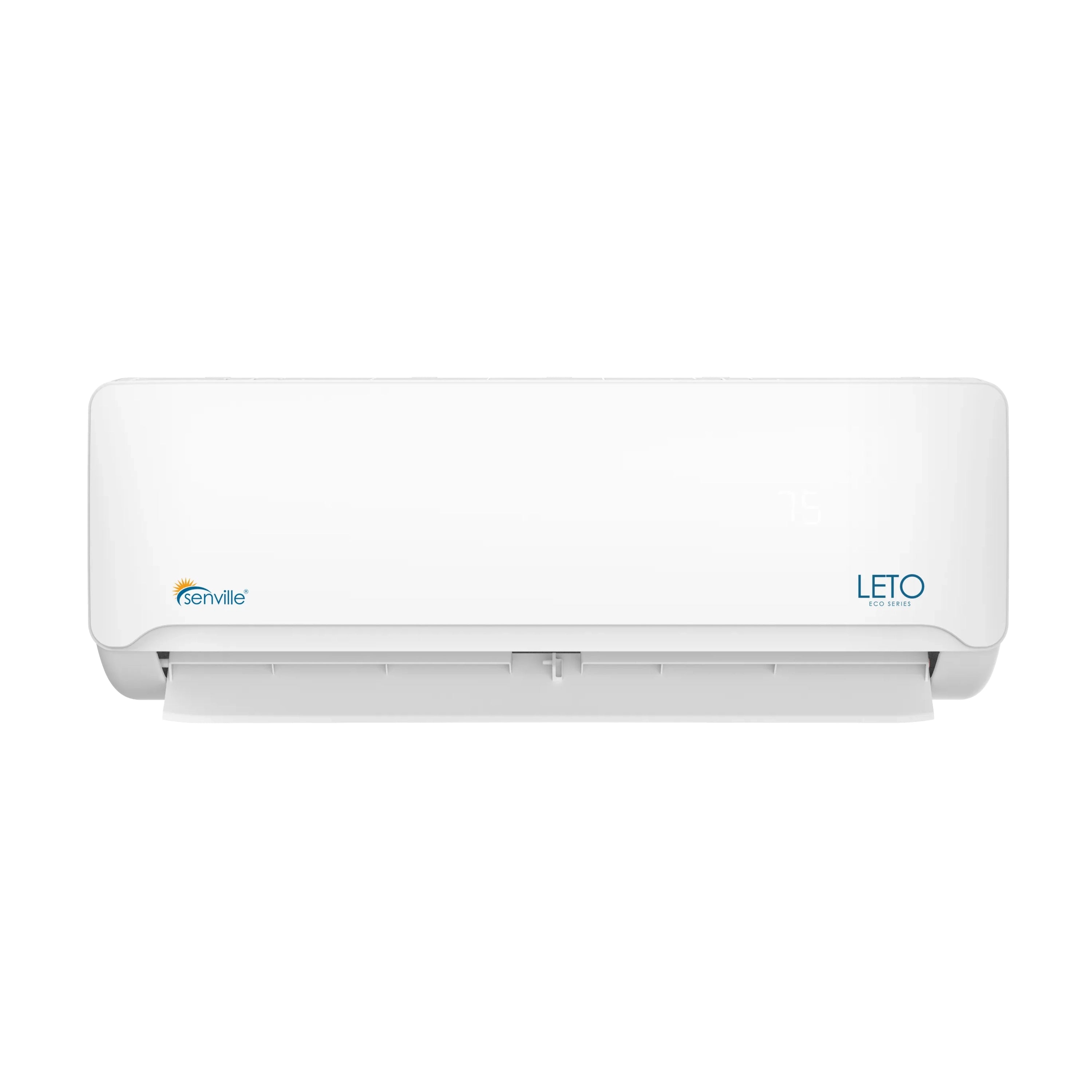

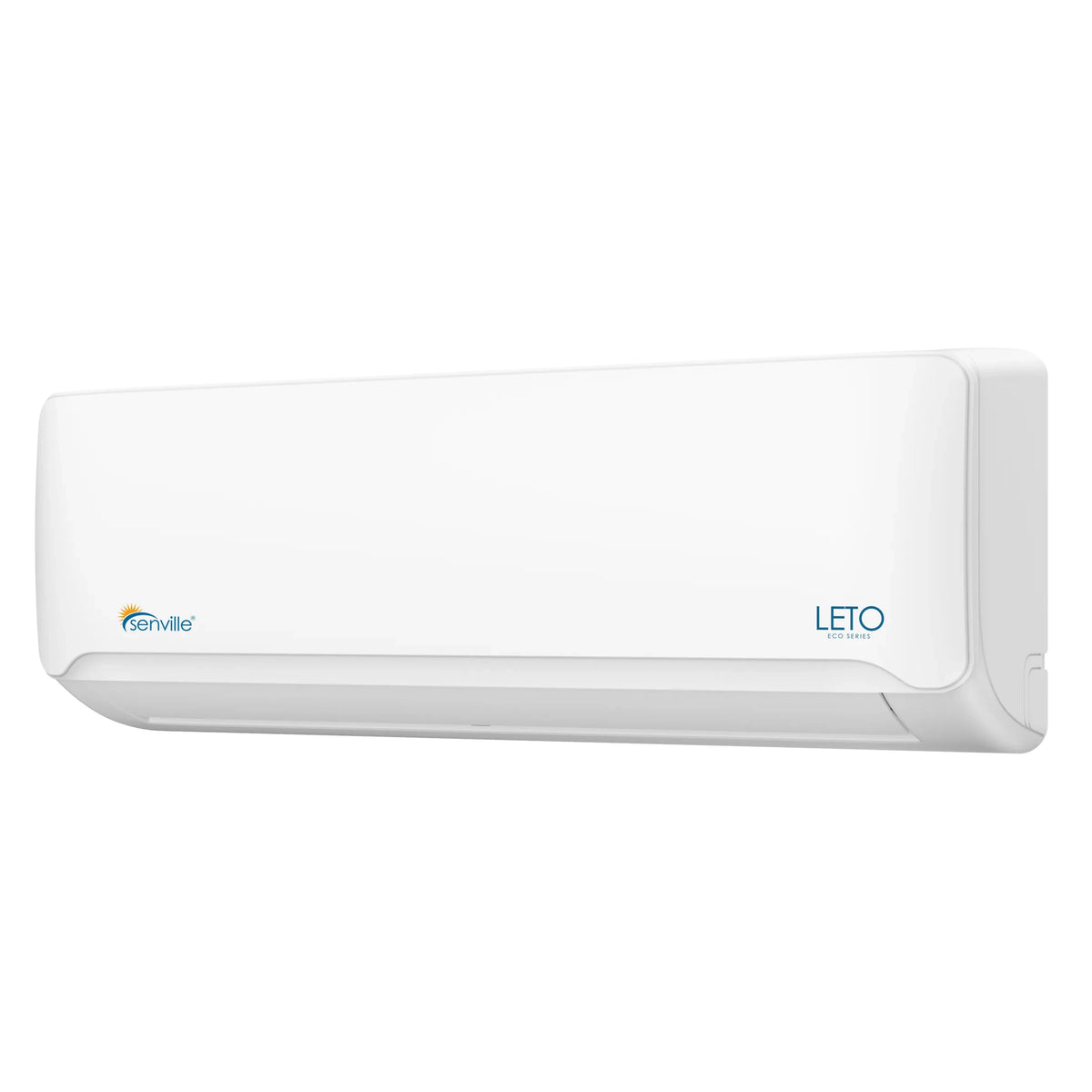

| Air Handler | |
| Dimensions (WxDxH) (in.) | 31.57 x 7.44 x 11.69 |
| Weight | 19.4 lbs. |
| Air Flow (Turbo/H/M/L) CFM | 359.0 / 306.1 / 206.0 / 144.2 |
| Noise Level (Turbo/H/M/L) dB | 44.0 / 38.0 / 32.0 / 22.5 |
| Technical Specifications | |
| SEER2 | 21.3 |
| EER2 | 10.8 |
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| Cooling Capacity (BTU) | 12000 |
| Cooling Range (BTU) | 1700~13300 |
| Cooling Input Range (W) | 140~1400 |
| Cooling Current Range (A) | 1.3~6.2 |
| Heating Capacity (BTU) | 12000 |
| Heating Range (BTU) | 2400~12200 |
| Heating Input Range (W) | 200~1230 |
| Heating Current Range (A) | 1.1~13.2 |
| HSPF2-4 | 9.1 |
| HSPF2-5 | 7.0 |
| COP W/W | 3.18 |
| Minimum Circuit Ampacity (A) | 13 |
| Max. Fuse (A) | 15 |
| Moisture Removal (L/H) | 2.5 |
| Refrigerant Type | R454B |
| Refrigerant Pre-charge | 25 ft. |
| Connection Wiring | 14*4 AWG |

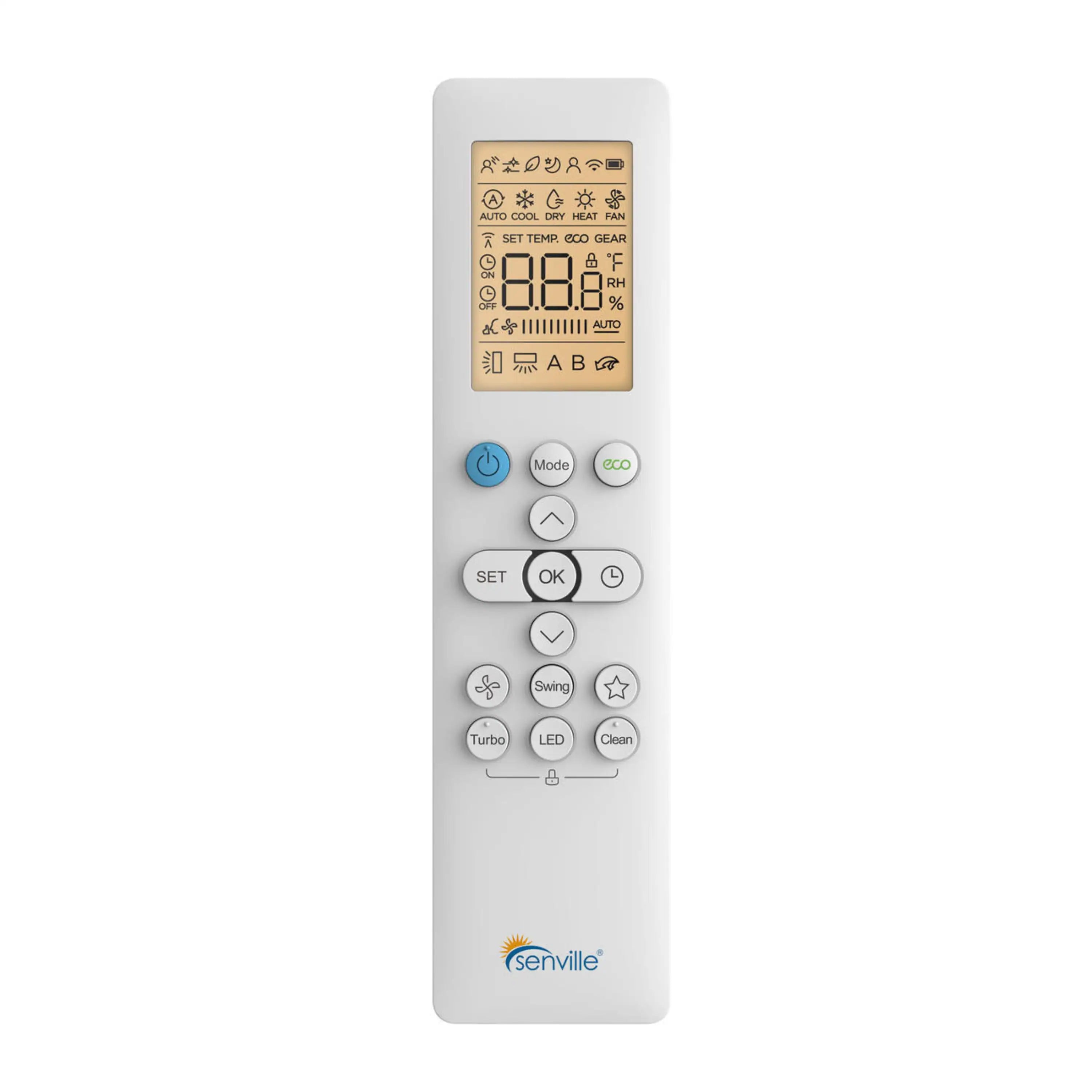

| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 5 Years Compressor / 5 Years Parts |
| Certification | ETL Certified/ AHRI Certified |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
