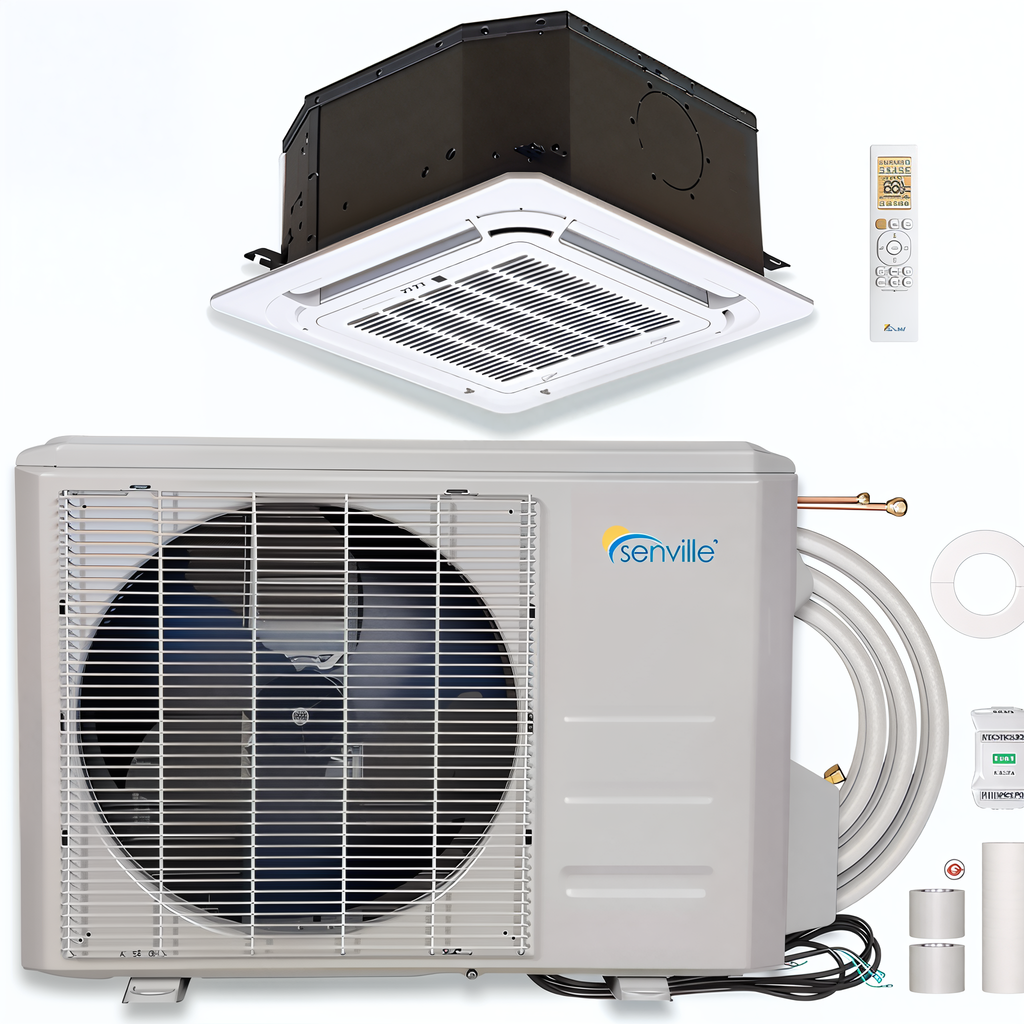

Mini split air conditioner kit with ceiling cassette air handler and outdoor condenser

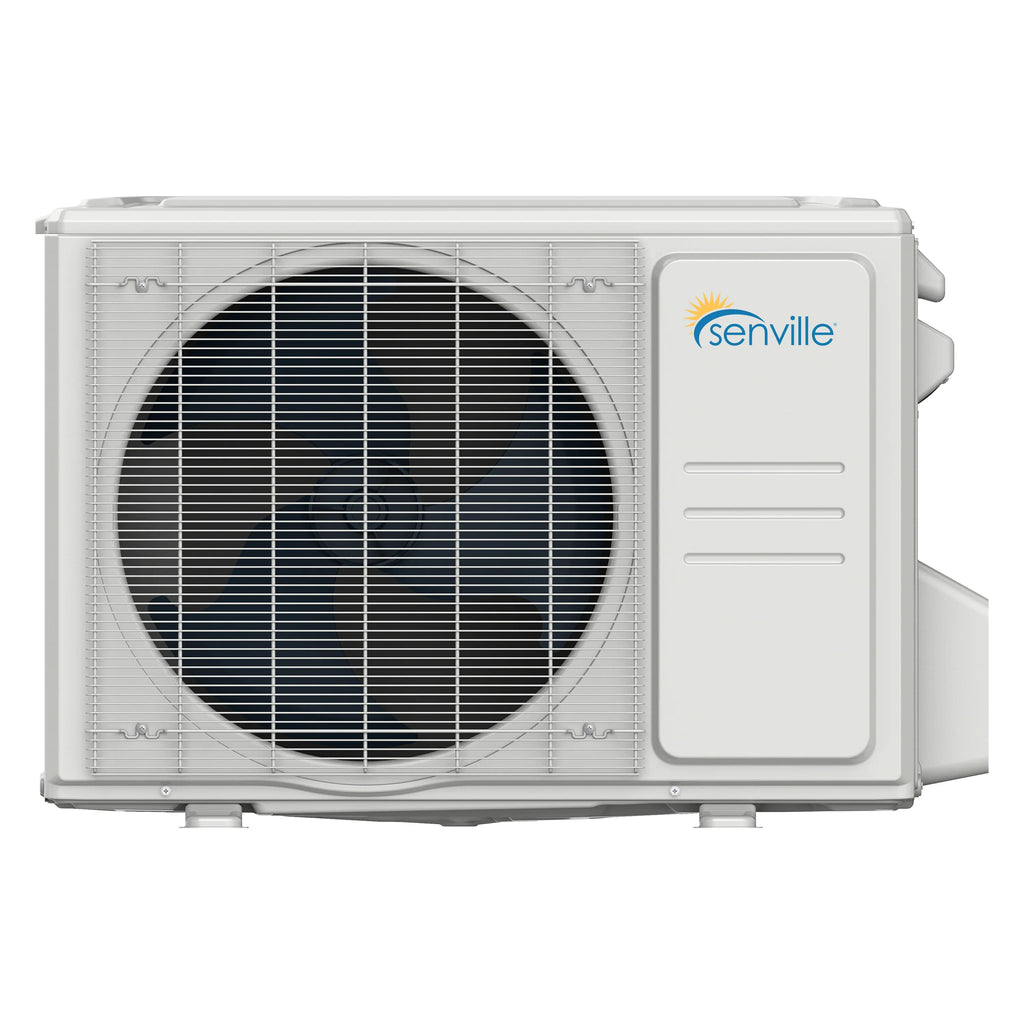

Outdoor mini split condenser unit with circular fan grille and sealed control panel

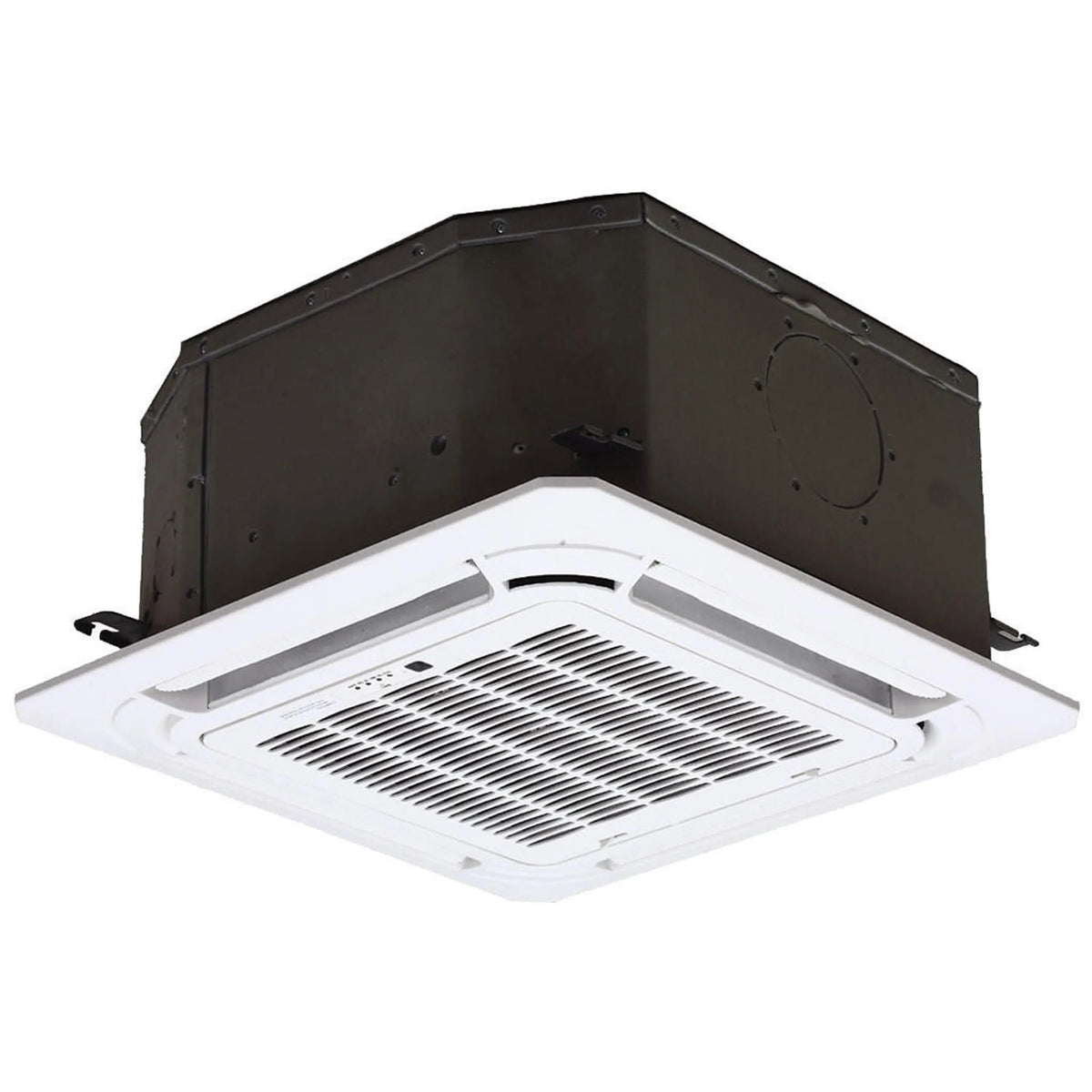

Ceiling cassette air handler with vented grille and dark mounting panel

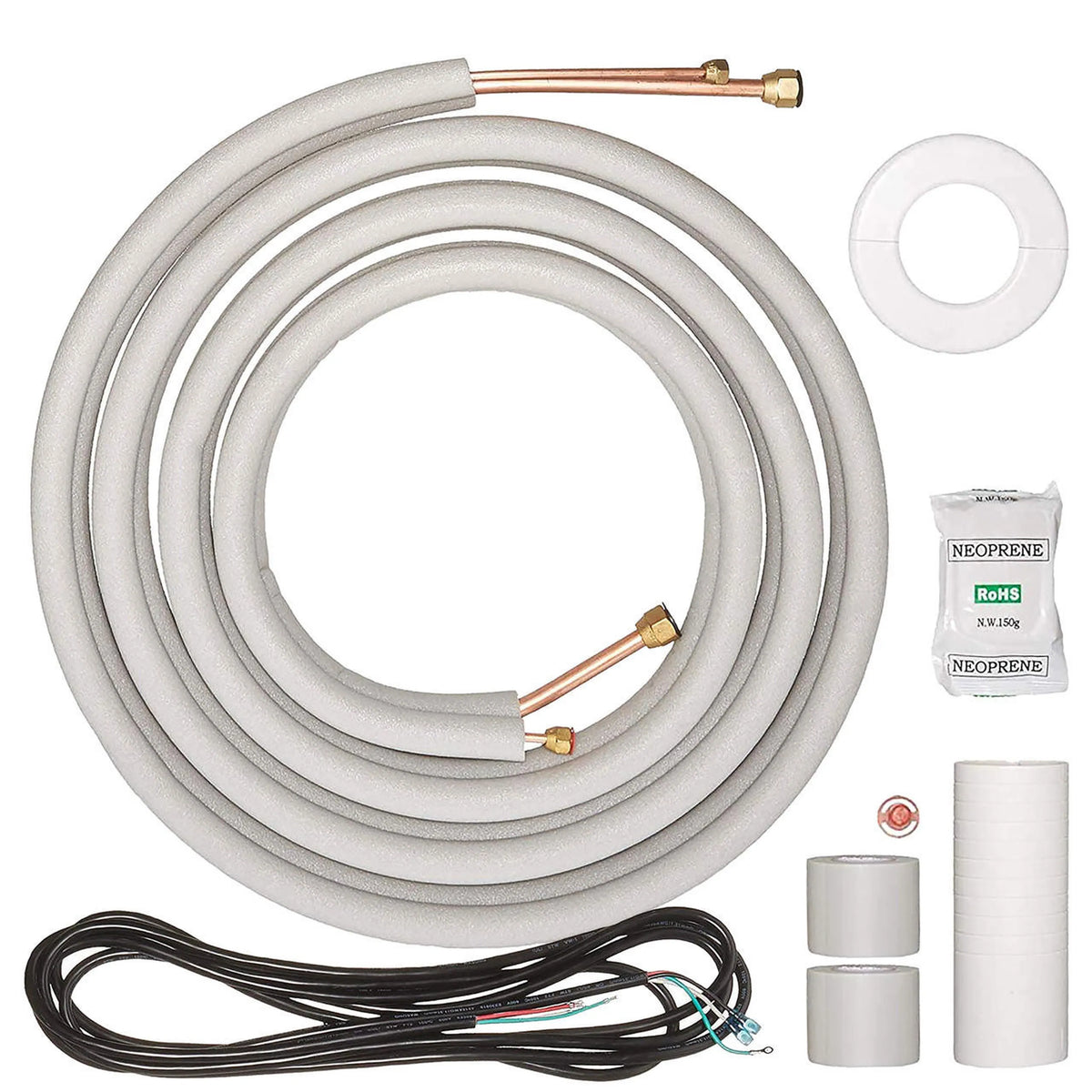

Ductless mini split line set with insulated copper tubing, fittings, and black power leads
Roll over image to zoom in Click on image to zoom
Mini split air conditioner kit with ceiling cassette air handler and outdoor condenserOutdoor mini split condenser unit with circular fan grille and sealed control panelCeiling cassette air handler with vented grille and dark mounting panelDuctless mini split line set with insulated copper tubing, fittings, and black power leads
Click on image to zoom

Senville 12K BTU Mini Split with 22.2 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Ceiling Cassette Air Handler (SENA-12HF-IC)

SenvilleSKU: SENA-12HF-IC-16
2 reviews
Price:
$1,399.99 $1,819.99SAVE 23%
Type:
BTU:
In Stock
Estimated delivery: Oct 9th-23rd
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Senville SENA-12HF/IC is a high-efficiency 12000 BTU ceiling cassette ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

  • 22.2 SEER2 ENERGY STAR - Save up to 40% on energy costs annually.
  • Heating down to -30°C (-22°F) - Reliable performance in extreme cold.
  • Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.
  • Professional Installation - Required to maintain warranty coverage.
  • ENERGY STAR Certified - Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
  • Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
  • Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
  • 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
  • Installation Kit + Accessories Included - Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

  • Indoor Unit (Ceiling Cassette)
  • Outdoor Unit
  • Wireless Remote Control
  • 16 ft. Installation Kit
  • Indoor-Outdoor Wiring Harness
  • Installation Manual
  • User’s Manual
  • 10-Year Manufacturer Warranty
DIMENSIONS & WEIGHT
Dimensions (WxDxH) (in.)
31.69 x 12.99 x 21.81
Weight
72.75 Lbs
GENERAL INFORMATION
Style
Ceiling Cassette Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)
208/230V, 1Ph, 60Hz
Max. Fuse (A)
15
Moisture Removal (L/H)
1.45
CAPACITY & PERFORMANCE
Air Flow (Max) CFM
1471.5
Air Flow (Turbo/H/M/L) CFM
417.9 / 364.9 / 306.1 / 194.2
SEER2
22.2
EER2
12.5
Cooling Capacity (BTU)
12000
Cooling Range (BTU)
3800~15100
Cooling Input Range (W)
210~1260
Cooling Current Range (A)
1.5~5.6
Heating Capacity (BTU)
12000
Heating Range (BTU)
5300~16200
Heating Input Range (W)
285~1330
Heating Current Range (A)
1.5~5.9
HSPF2-4
11.6
HSPF2-5
8.9
COP W/W
3.7
Minimum Outdoor Heating Temperature
-22°F / -30°C
NOISE LEVELS
Noise Level dB
57
Noise Level (Turbo/H/M/L) dB
46 / 43.5 / 40.5 / 27.5
ELECTRICAL REQUIREMENTS
Voltage Range
187-253
Minimum Circuit Ampacity (A)
15
REFRIGERANT & PIPING
Refrigerant Type / Charge oz
R454B / 35.27
Refrigerant Pre-charge
25 Ft.
CONTROLS & CONNECTIVITY
Connection Wiring
14*4 AWG
Thermostat Type
Remote Control
WARRANTY
Warranty
10 Years Compressor / 5 Years Parts
