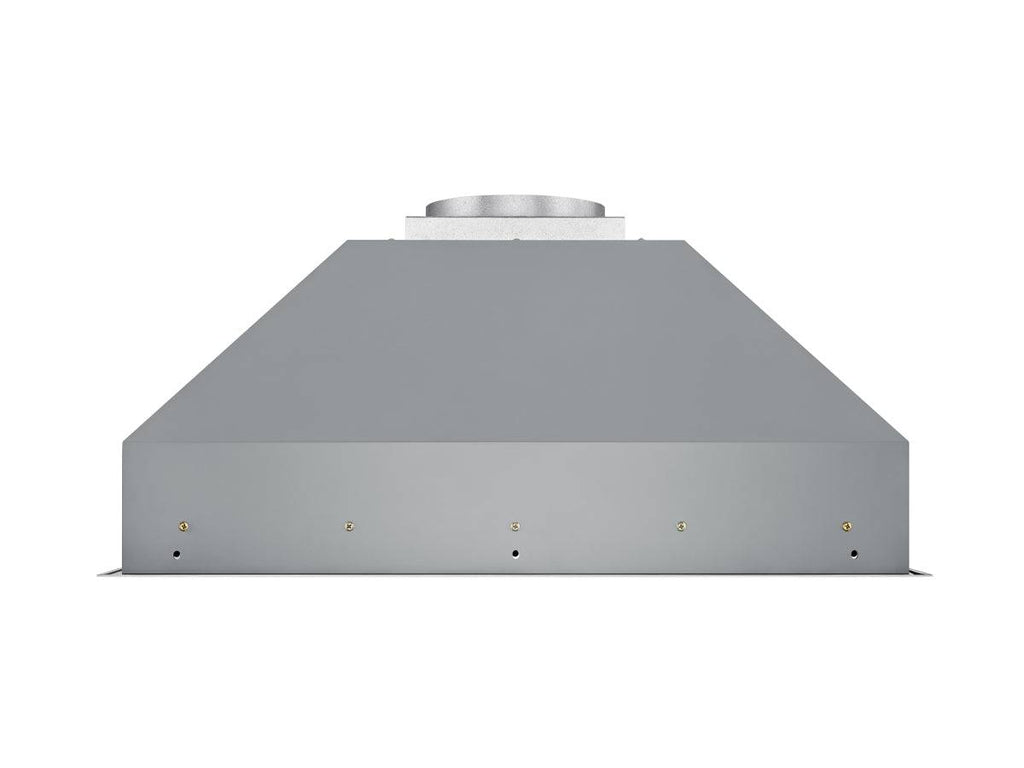

Stainless steel 36-inch range hood insert with vertical baffle filters and vent hood cover

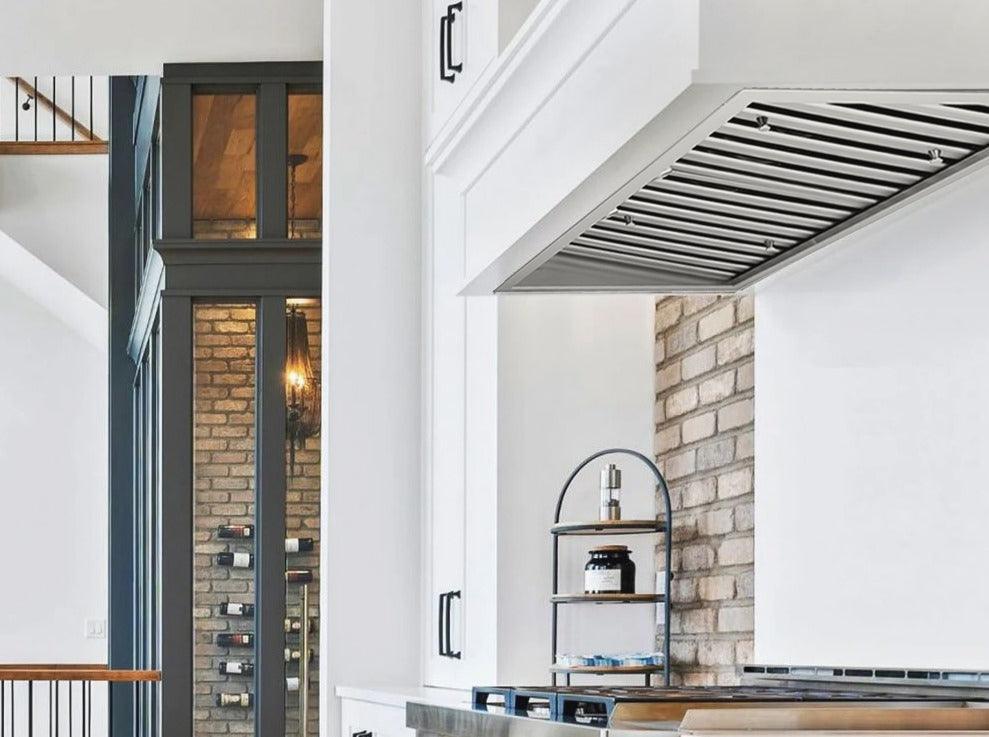

Stainless steel range hood insert installed under cabinet with slatted baffle intake

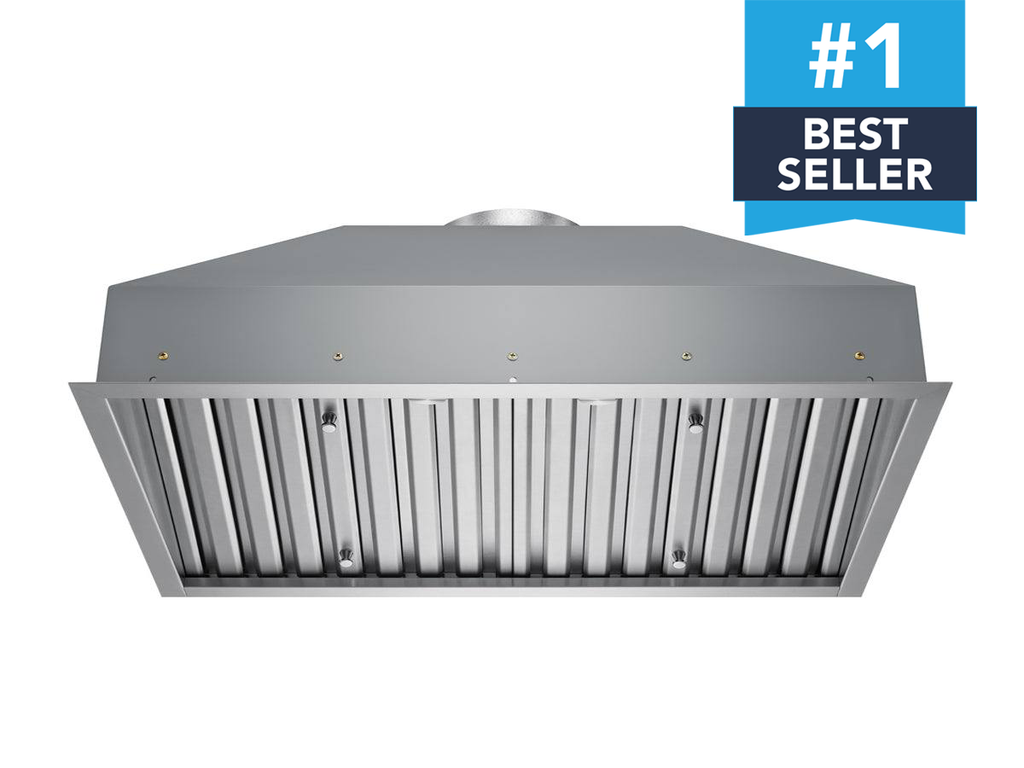

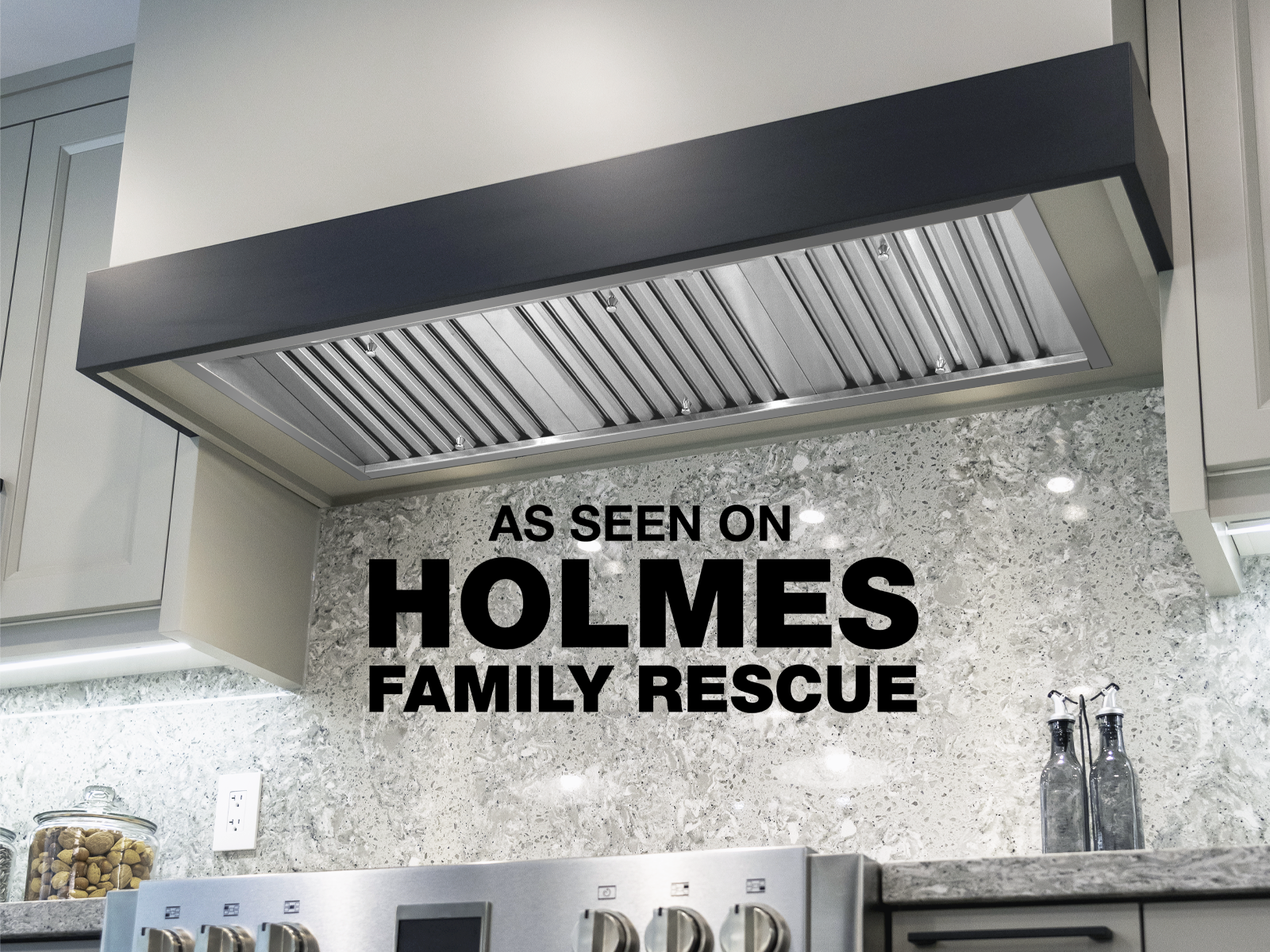

Stainless steel range hood insert with underside vent grille and vertical baffle filter rows

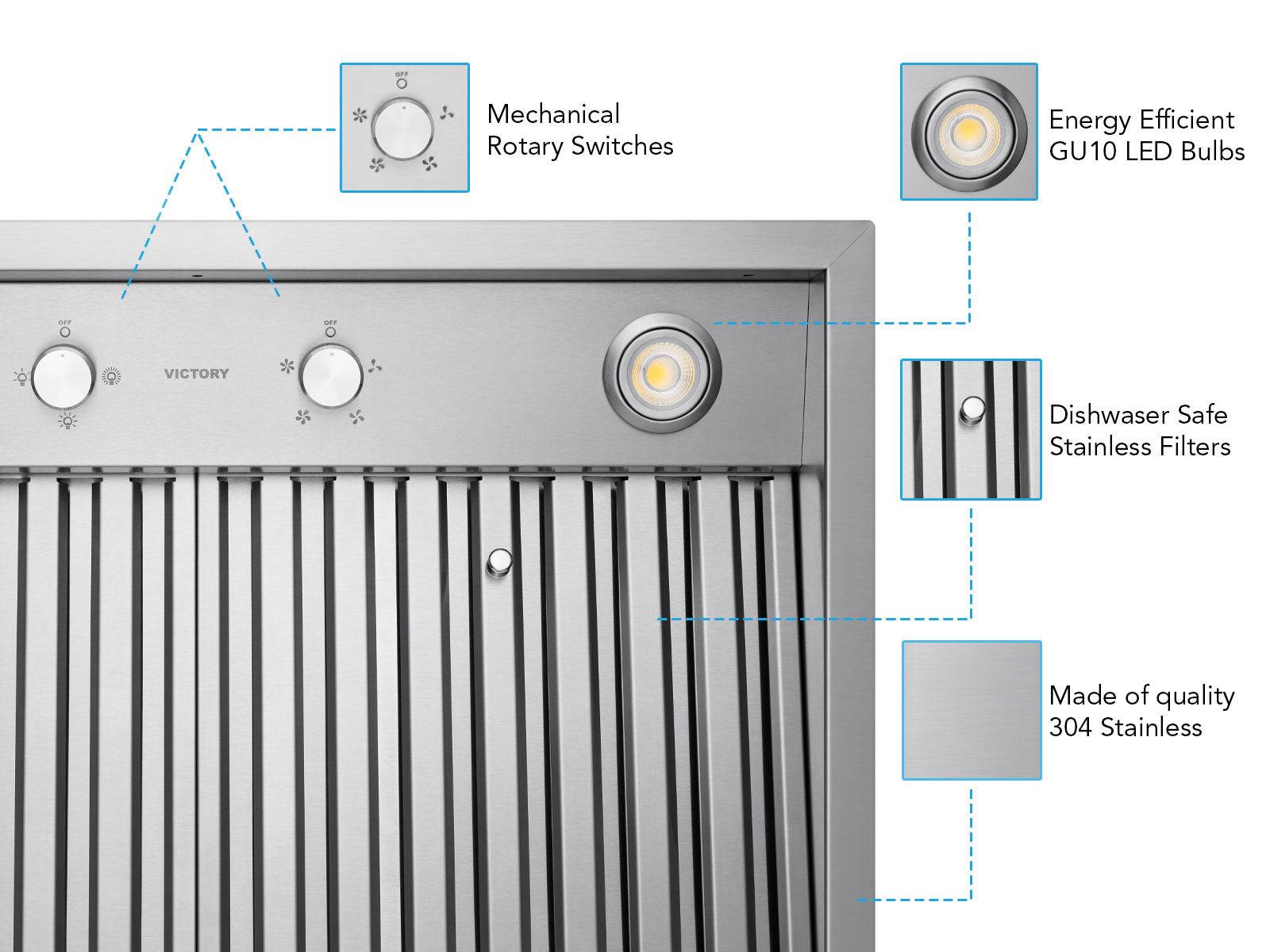

Stainless steel range hood insert control panel with knob switches and visible baffle filters

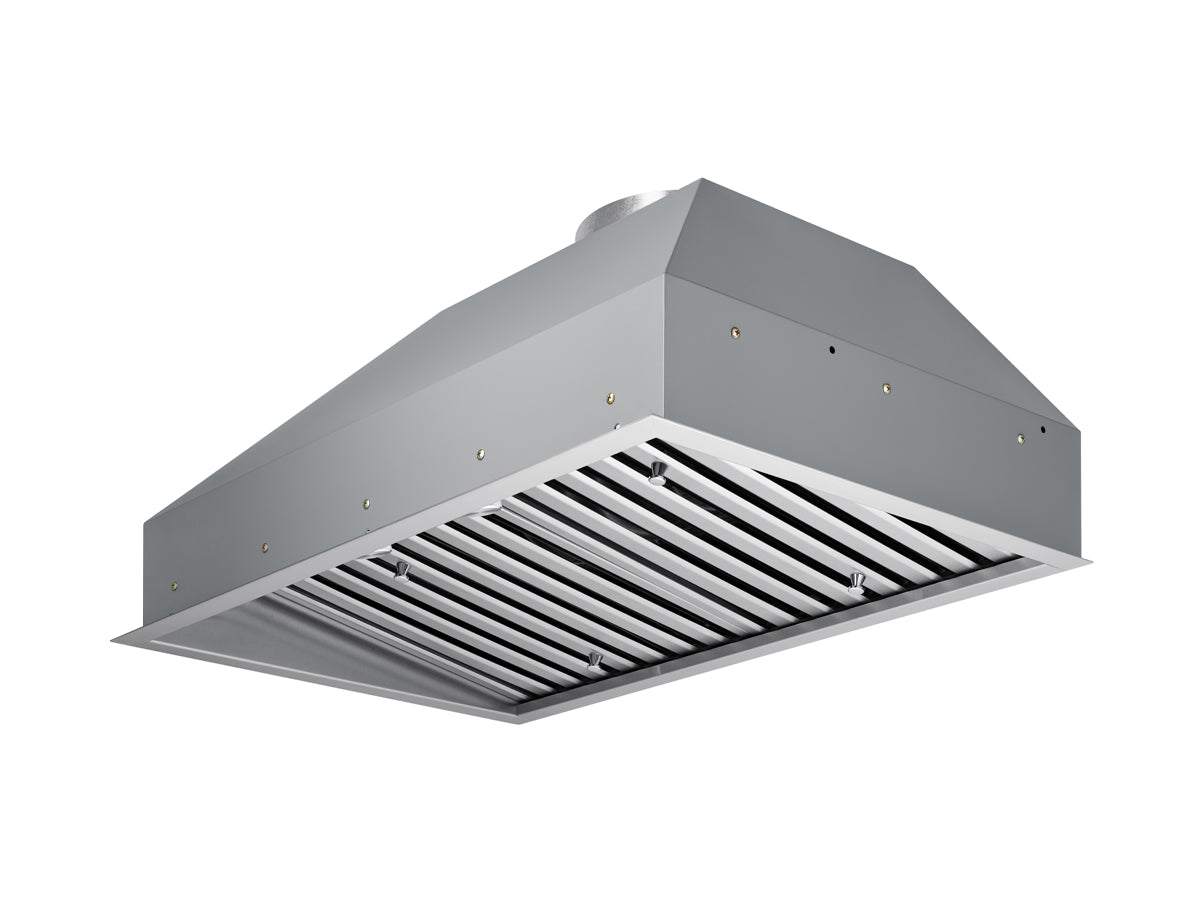

Stainless steel range hood insert with angled duct collar and front slatted baffle intake

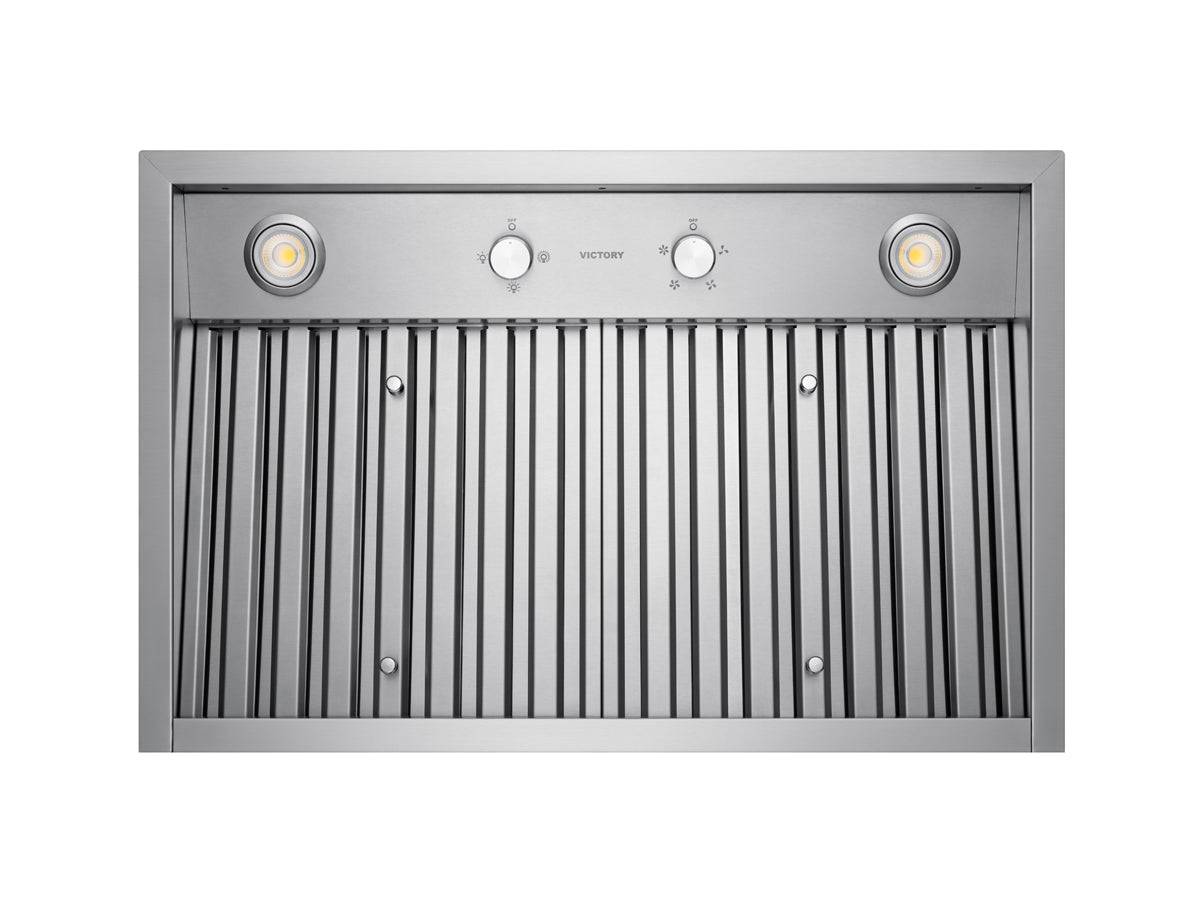

Stainless steel range hood insert with front grille, two round lights, and baffle filter vanes

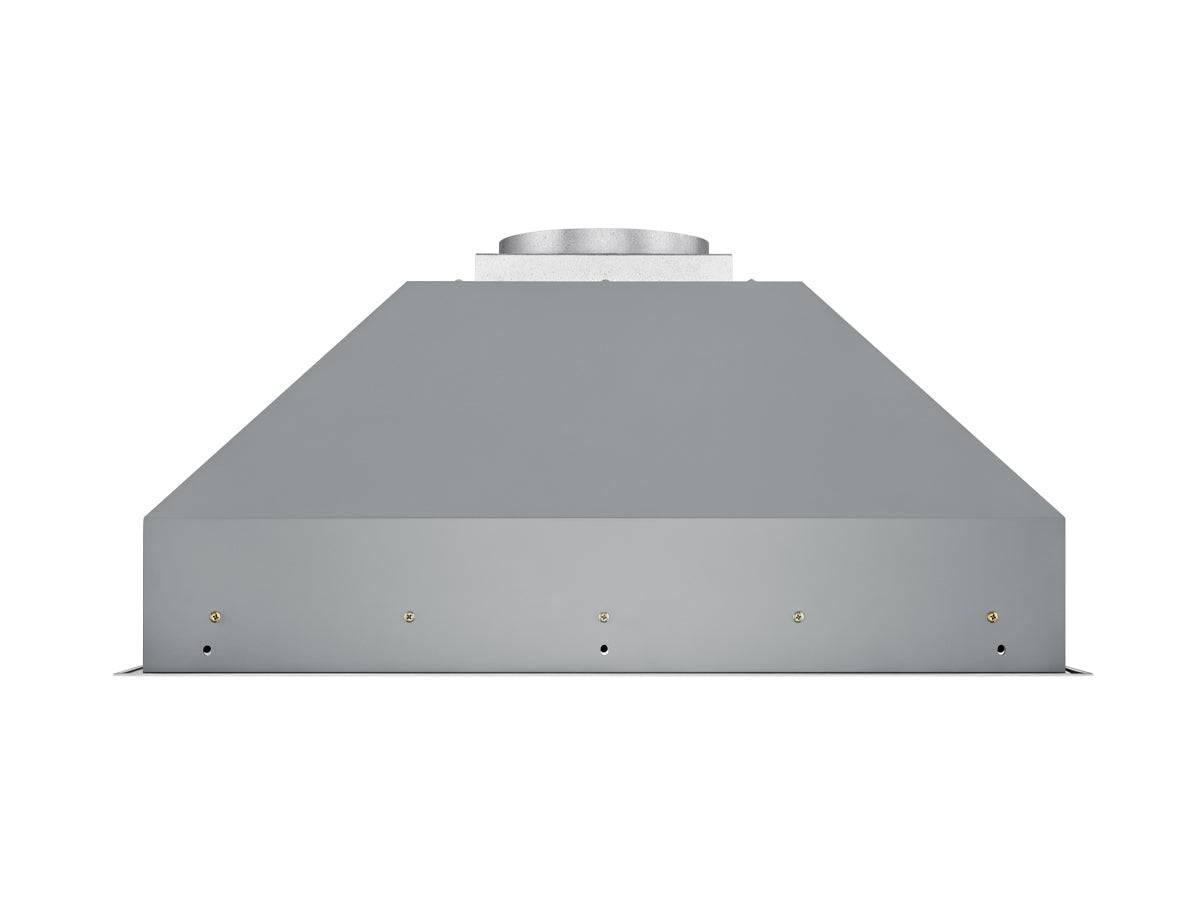

Stainless steel range hood insert top view with central round vent outlet

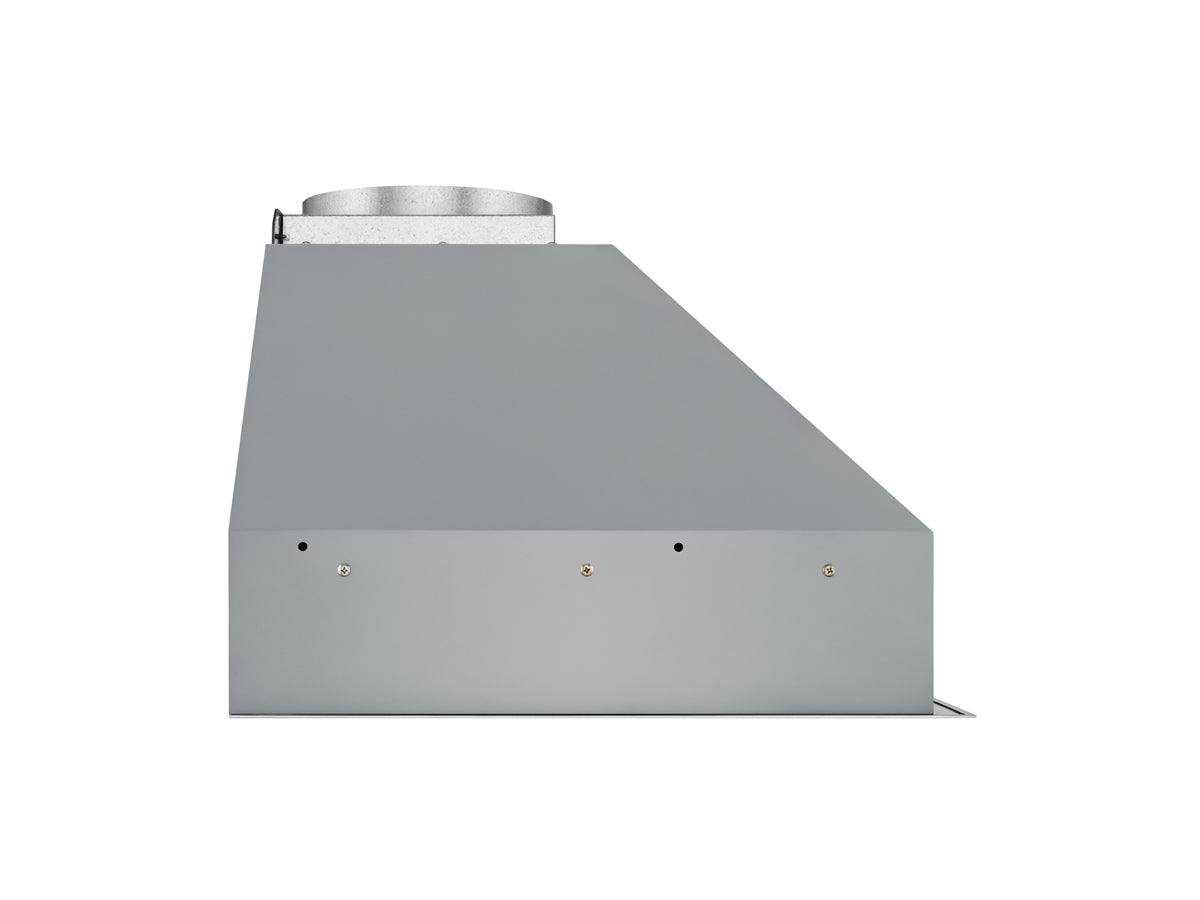

Stainless steel range hood insert side view with vent collar and mounting corner details

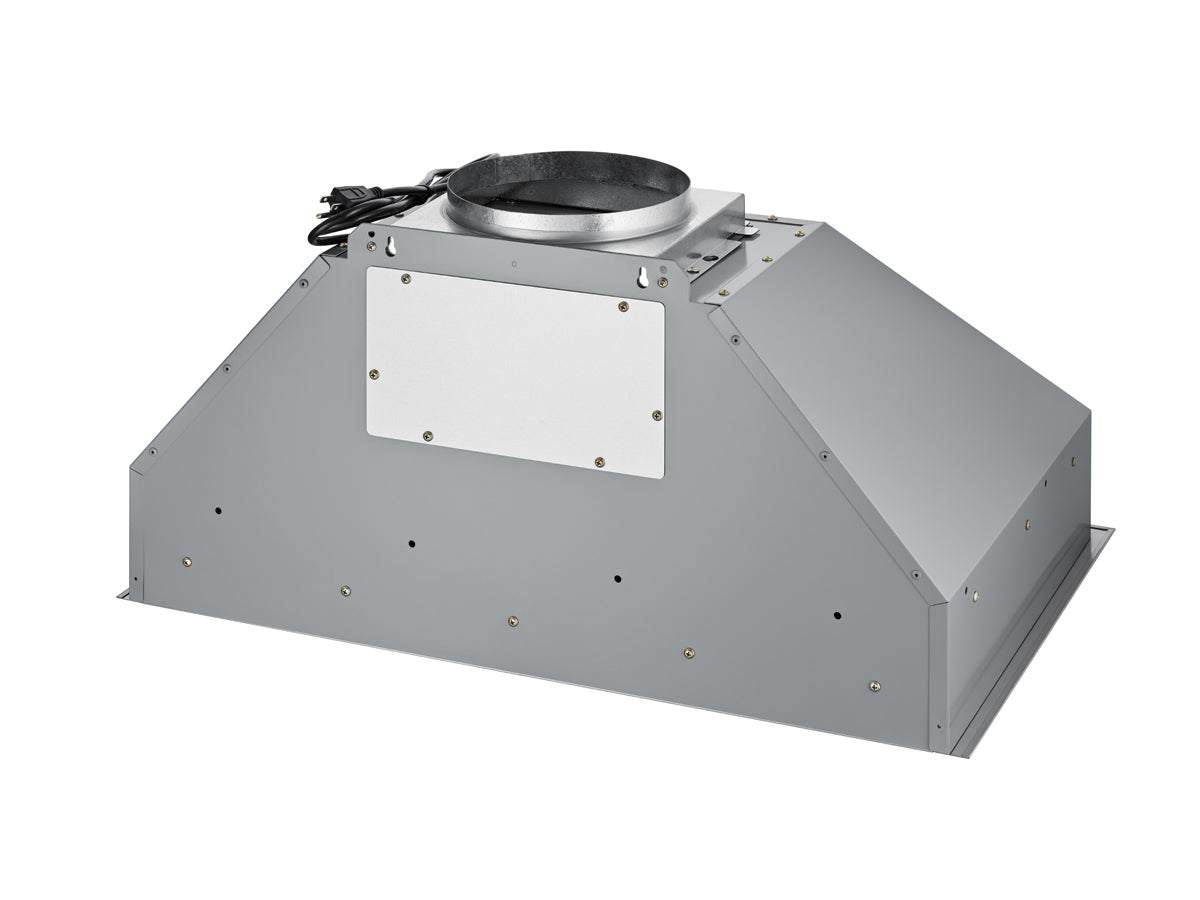

Stainless steel range hood insert underside with rectangular access plate and round duct outlet

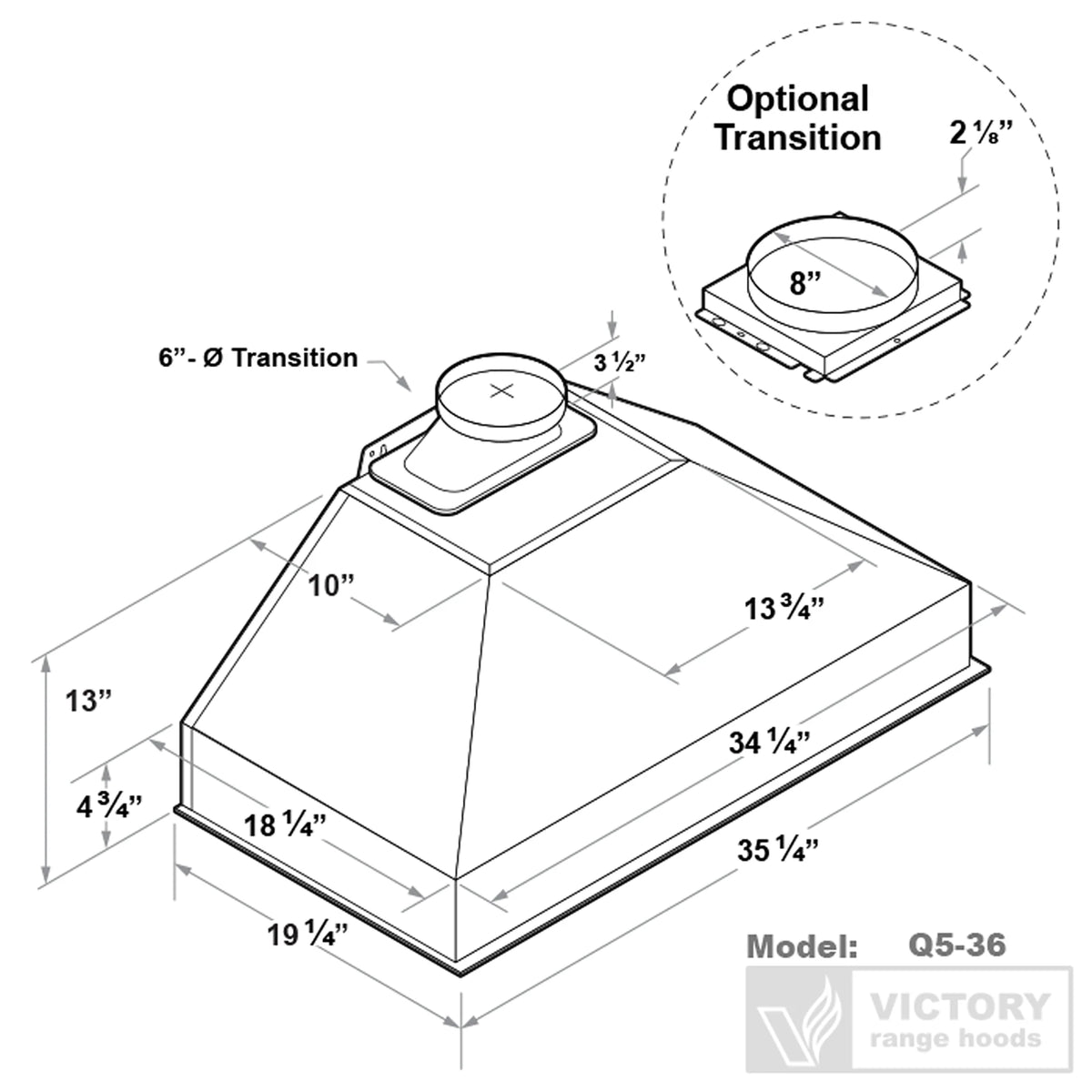

Range hood insert size diagram showing dimensions and 6-in transition and 8-in optional transition
Roll over image to zoom in Click on image to zoom
Stainless steel 36-inch range hood insert with vertical baffle filters and vent hood coverStainless steel range hood insert installed under cabinet with slatted baffle intakeStainless steel range hood insert with underside vent grille and vertical baffle filter rowsStainless steel range hood insert control panel with knob switches and visible baffle filtersStainless steel range hood insert with angled duct collar and front slatted baffle intakeStainless steel range hood insert with front grille, two round lights, and baffle filter vanesStainless steel range hood insert top view with central round vent outletStainless steel range hood insert side view with vent collar and mounting corner detailsStainless steel range hood insert underside with rectangular access plate and round duct outletRange hood insert size diagram showing dimensions and 6-in transition and 8-in optional transition
Click on image to zoom

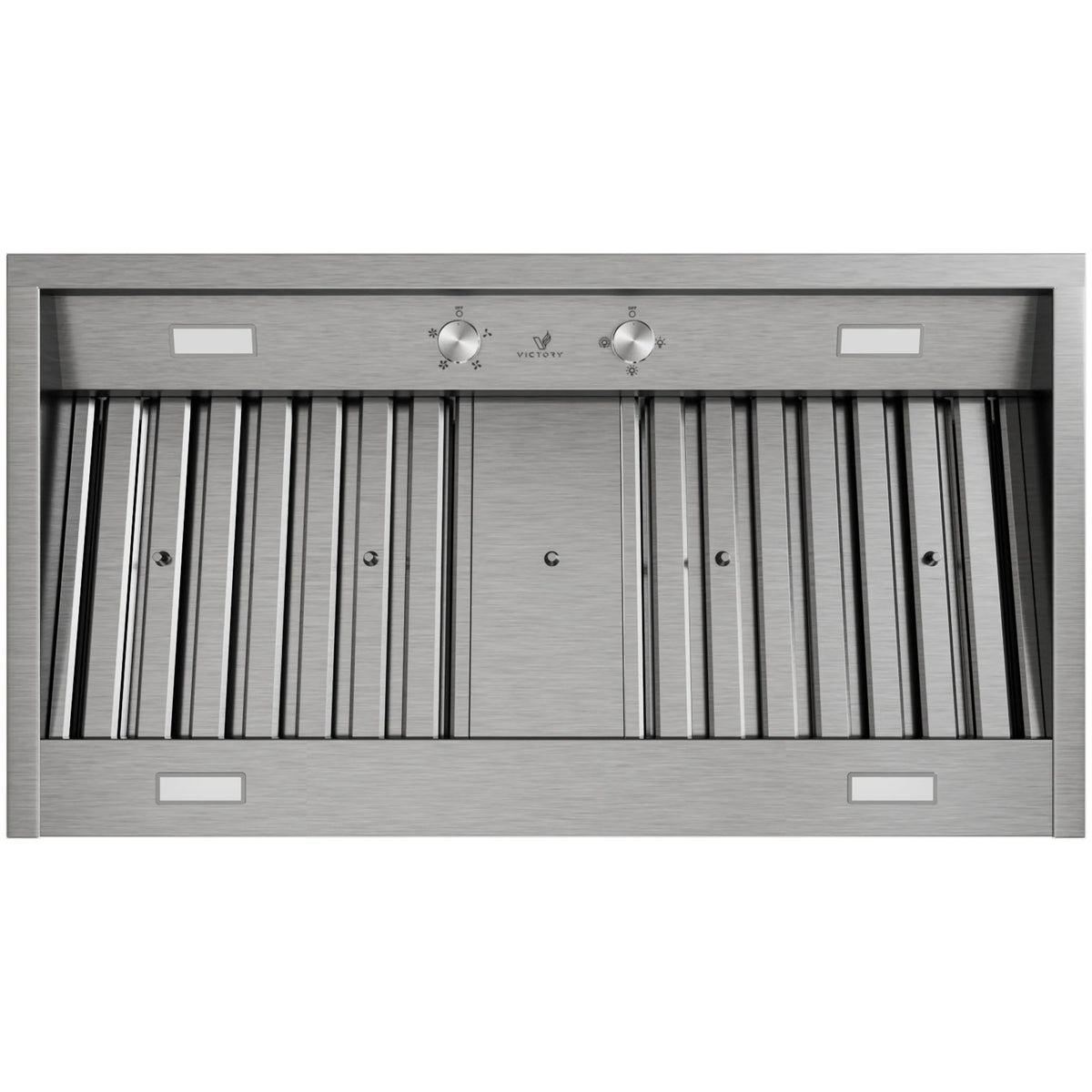

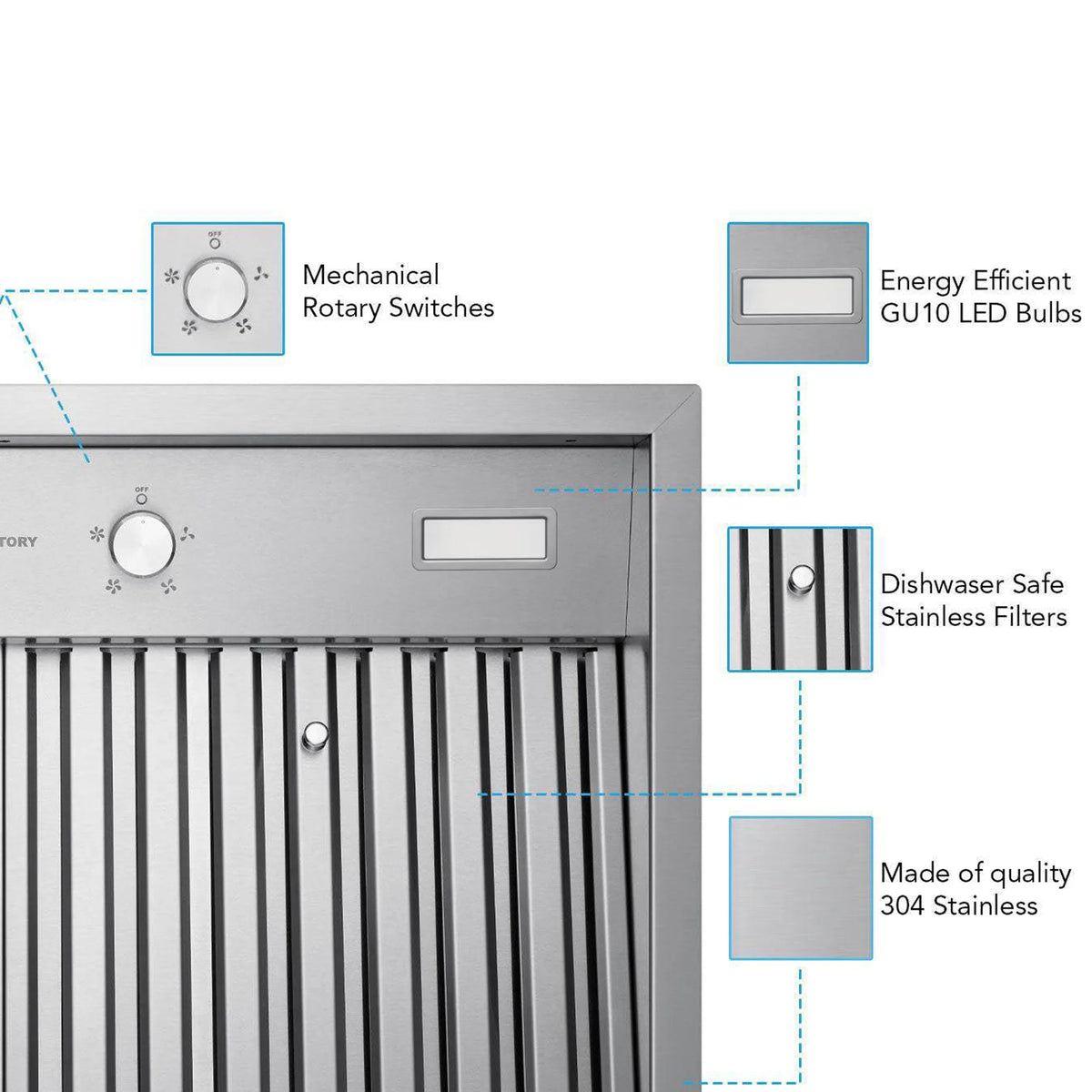

Victory Q5 36-Inch 750 CFM Insert Range Hood in Stainless Steel (Q5-36)

Victory Range HoodsSKU: Q5-36
8 reviews
Price:
$1,614.05 $1,699.00SAVE 5%
Size:
Low Stock
Estimated delivery: Sep 8th-13th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Q5 range hood insert is designed and assembled in Canada, this range hood insert is made with high quality mechanical switches, an all metal blower and stainless steel filters making it efficient, easy to use and easy to clean.

Our range hood insert can be used with a standard 8" round duct for better performance and a quieter experience. The incredible 19" depth provides better coverage over your cooktop making this range hood insert more efficient at removing harmful odors and smoke to prevent your cabinets from discoloring. This range hood insert is also equipped with warm dimmable LED lights to provide great visibility while cooking. For the best range hood insert on the market, choose VICTORY.

Highlights

  • Quiet Operation - Enjoy the silence of clean air
  • Stainless Baffle Filters - Easy to clean, dishwasher safe
  • Lifetime Warranty - Lifetime motor & 5 year parts
  • Powerful Internal Blower - up to 750 CFM
  • All-Metal Impeller with LIFETIME Warranty - Reliable motor with a Lifetime Warranty: The Ultimate Choice for Long-lasting Performance. It's true that what's inside matters most.
  • Dishwasher Safe Stainless Steel Filters - Discover the Advantages of our Easy-to-Clean, Dishwasher Safe Stainless Steel Filters. Never replace a filter again.
  • Fully Mechanical - Enjoy Unbeatable Reliability with our Mechanical Rotary Knob Controls. A simpler, less complicated experience.

Features

  • Made in Canada
  • 600 CFM Metal Blower (750 CFM with 8" Duct)
  • 6" or 8" Round Duct
  • 1 - 4.5 Sones
  • Top Exhaust
  • 4 Speed Mechanical Rotary Switch
  • Hidden Switch Design
  • Bright, long-lasting, dimmable LEDs (3000K)
  • 19" Deep for Effective Coverage
  • Made with 20 Gauge 304 Stainless Steel
  • Dishwasher Safe Stainless Steel Baffle Filters and Spacer
  • Lifetime Motor Warranty + 5 Year Parts

Includes

  • Includes 6" and 8" Exhaust Connectors
  • Quiet 750 CFM 4-speed All Metal Motor
  • Dishwasher Safe Stainless Steel Baffle Filters
DIMENSIONS
Body Width
35 1/2"
Cutout / Opening Width
34 1/4"
Depth
19 1/4"
Weight
45 lbs
GENERAL INFORMATION
Brand
Victory
Model
Q5
Product Type
Range Hood Insert
Size
36"
Installation
Insert / Built-In (custom hood or cabinetry)
Electrical Connection
Plug-In
Country of Origin
Made in Canada
DESIGN & FINISH
Finish
Stainless Steel
Body Construction
304 Stainless Steel (1mm)
Blower Construction
All-Metal Blower (no plastic parts)
Filters
Stainless Steel, dishwasher-safe + grease trap
Lighting
2 x 5W Dimmable LED
Controls
Mechanical Rotary Controls (blower + dimmable lights)
TECHNICAL DETAILS
Power Rating
120V / 60Hz
General Input Power
190W (180W motor + 5W x2 lights)
Motor Input Power
180W
Motor Revolution
800 – 1300 RPM (±10%)
Blower Speeds
4 Levels
Airflow (6" Ø duct)
  • 170 CFM
  • 310 CFM
  • 429 CFM
  • 600 CFM
Airflow (8" Ø duct)
  • 180 CFM
  • 370 CFM
  • 560 CFM
  • 750 CFM
Noise Level
1.0 – 5.5 Sones
Exhaust
6" or 8" Ø — Top or Back Vent
VENTILATION FEATURES
Max Airflow
Up to 750 CFM (8" duct)
Blower
All-Metal Blower, no loss of suction
Fan Speeds
4-Speed
Filters
304 Stainless Steel baffle filters (dishwasher-safe) + grease trap
Lighting
2 x 5W Dimmable LED
Controls
Mechanical Rotary Knobs
WARRANTY & CERTIFICATIONS
Warranty
  • Lifetime Motor Warranty
  • 5-Year Parts Warranty
Certifications
  • cETLus (US & Canada)
  • UL 507
  • CSA C22.2 No. 113
Shipping
  • Free Shipping on all orders.
  • Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
  • Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
Full shipping policy
Returns
  • 30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
  • Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
  • Restocking Fee: A restocking fee may apply and varies by brand.
Full returns policy
Authorized Victory Range Hoods Dealer
Full manufacturer warranty on every Victory Range Hoods product we sell.
