Description

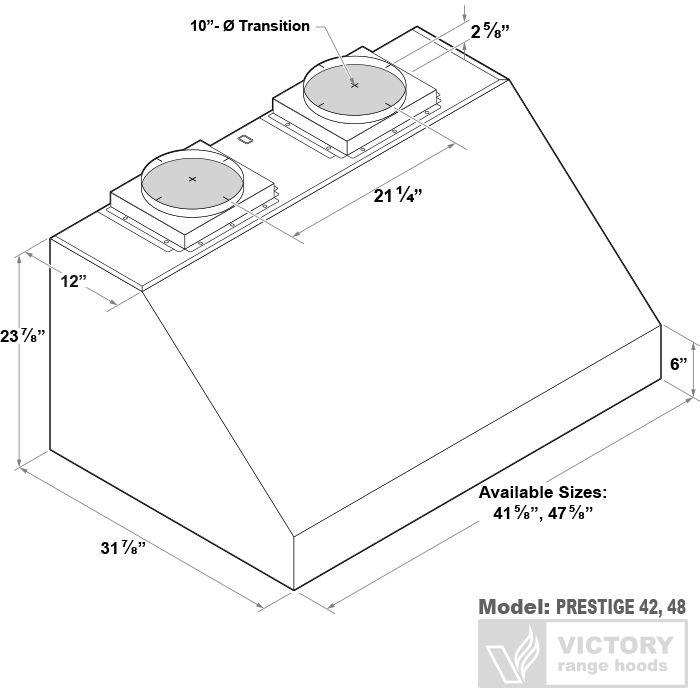

DIMENSIONS
- Dimensions
- 47 ⅝" W x 31 ⅞" D x 23 ⅞" H
- Weight
- 135 lbs. - Increase by 15 lbs. every size up
GENERAL INFORMATION
- Body
- Stainless Steel (304) (1mm)
DESIGN & FINISH
- Controls
- Mechanical Switches with Hidden Design
TECHNICAL DETAILS
- Maximum Airflow
- 2300 CFM
- Power Rating
- 120 V / 60 Hz (USA & Canada standard)
- General Input Power
- 600 W + (# of Lights x 5W)
- Motor Input Power
- 300 W + 300 W
- Motor Revolution
- 800 RPM to 1300 RPM (±10%)
- Noise Level (Each Motor)
- 1.5 Sones - 7.0 Sones
- Duct Direction
- Top Exhaust
- Duct Type
- 10" Round
FEATURES
- Filtration Type
- Stainless Steel Filters + Grease Trap
- Dishwasher-safe
- Yes
- Light Type
- LED
WARRANTY & CERTIFICATIONS
- Certifications
- cETLus
- Warranty
- 5 Year Parts
