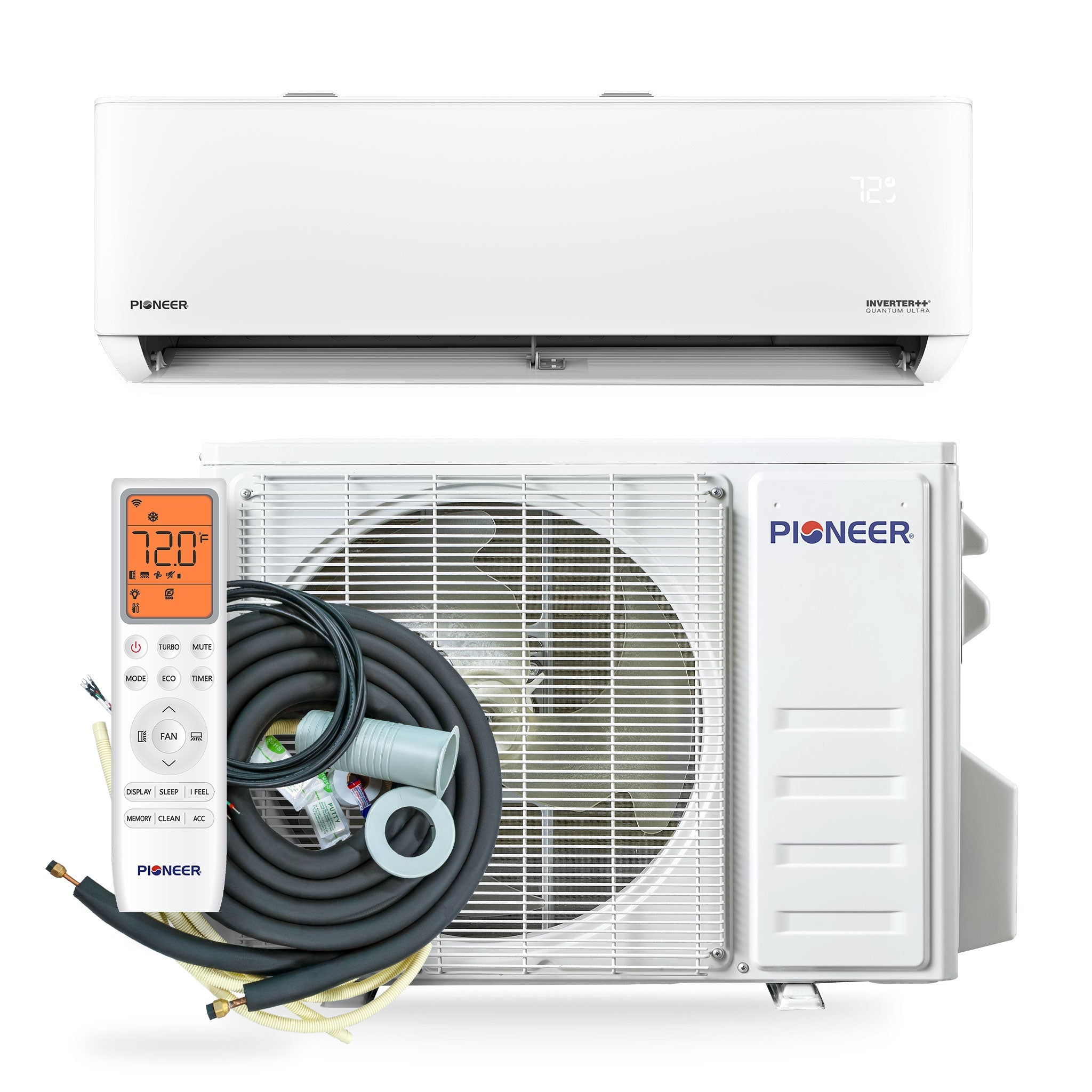

Ductless mini-split air conditioner indoor unit, outdoor unit, and bundled lineset
White Pioneer outdoor condenser unit with large front fan grille
Ductless mini-split installation parts: coiled tubing, connectors, and insulation pieces
Ductless mini-split air conditioner indoor and outdoor units with remote control
White ductless mini-split indoor wall unit in side view

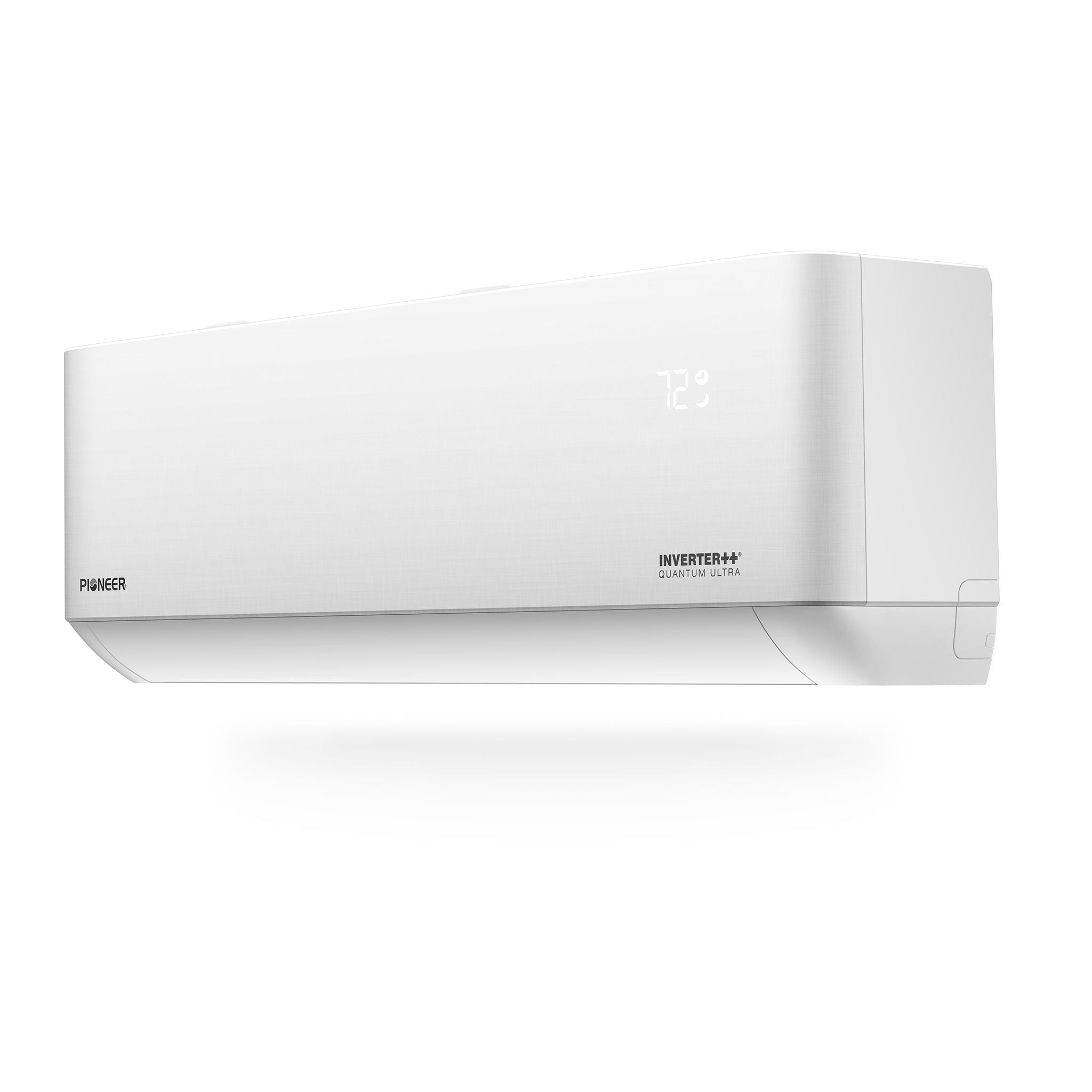

White ductless mini-split indoor wall unit back and side profile
White outdoor condenser unit for ductless mini-split air conditioner
Hand holding smartphone showing app control for ductless mini-split air conditioner
Ductless mini-split AC remote control with orange display and button panel
Compact wireless module with USB plug and certification label
Pioneer outdoor air conditioner condenser with fan grille
Roll over image to zoom in Click on image to zoom
White ductless mini-split air conditioner indoor and outdoor units with wall remoteInsulated copper lineset with black tubing and electrical connectors for ductless mini-splitDuctless mini-split air conditioner indoor unit, outdoor unit, and bundled linesetWhite Pioneer outdoor condenser unit with large front fan grilleDuctless mini-split installation parts: coiled tubing, connectors, and insulation piecesDuctless mini-split air conditioner indoor and outdoor units with remote controlWhite ductless mini-split indoor wall unit in side viewWhite ductless mini-split indoor wall unit back and side profileWhite outdoor condenser unit for ductless mini-split air conditionerHand holding smartphone showing app control for ductless mini-split air conditionerDuctless mini-split AC remote control with orange display and button panelCompact wireless module with USB plug and certification labelPioneer outdoor air conditioner condenser with fan grille
Click on image to zoom

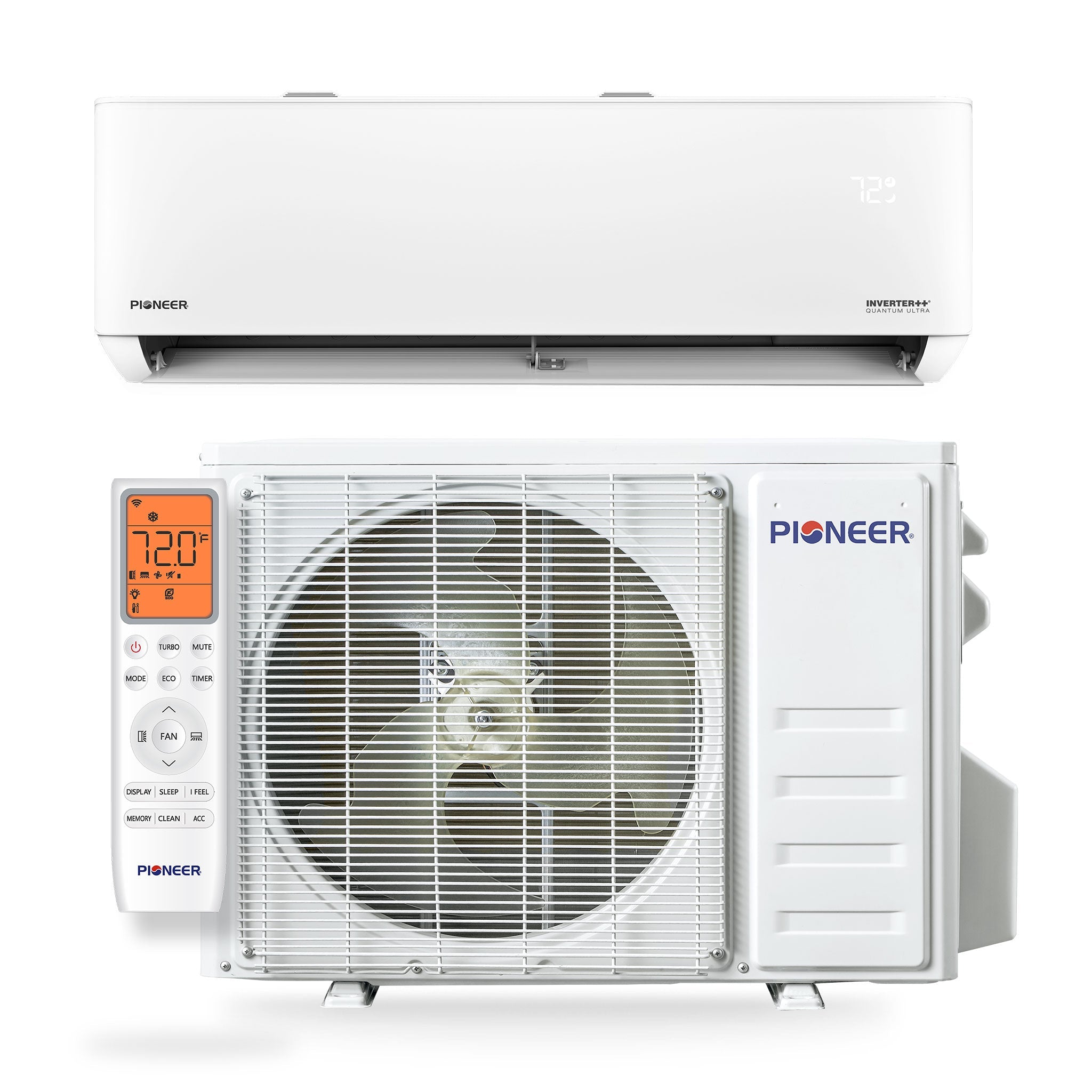

Pioneer® Quantum Ultra™ 9,000 BTU 24 SEER2 115V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set (WYT009ALSI24RL)

PioneerSKU: WYT009ALSI24RL-10S
3 reviews
Price:
$1,083.00 $1,549.00SAVE 30%
Voltage:
BTU:
In Stock
Estimated delivery: Sep 7th-14th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • Ultra Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
  • Cooling capacity: 9,000 BTU/H with 24 SEER2 / 13 EER2 efficiency
  • Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
  • Voltage: 110/120V, 60Hz, 1Ph
  • High Wall Mounted Ductless Air Conditioning & Heating System

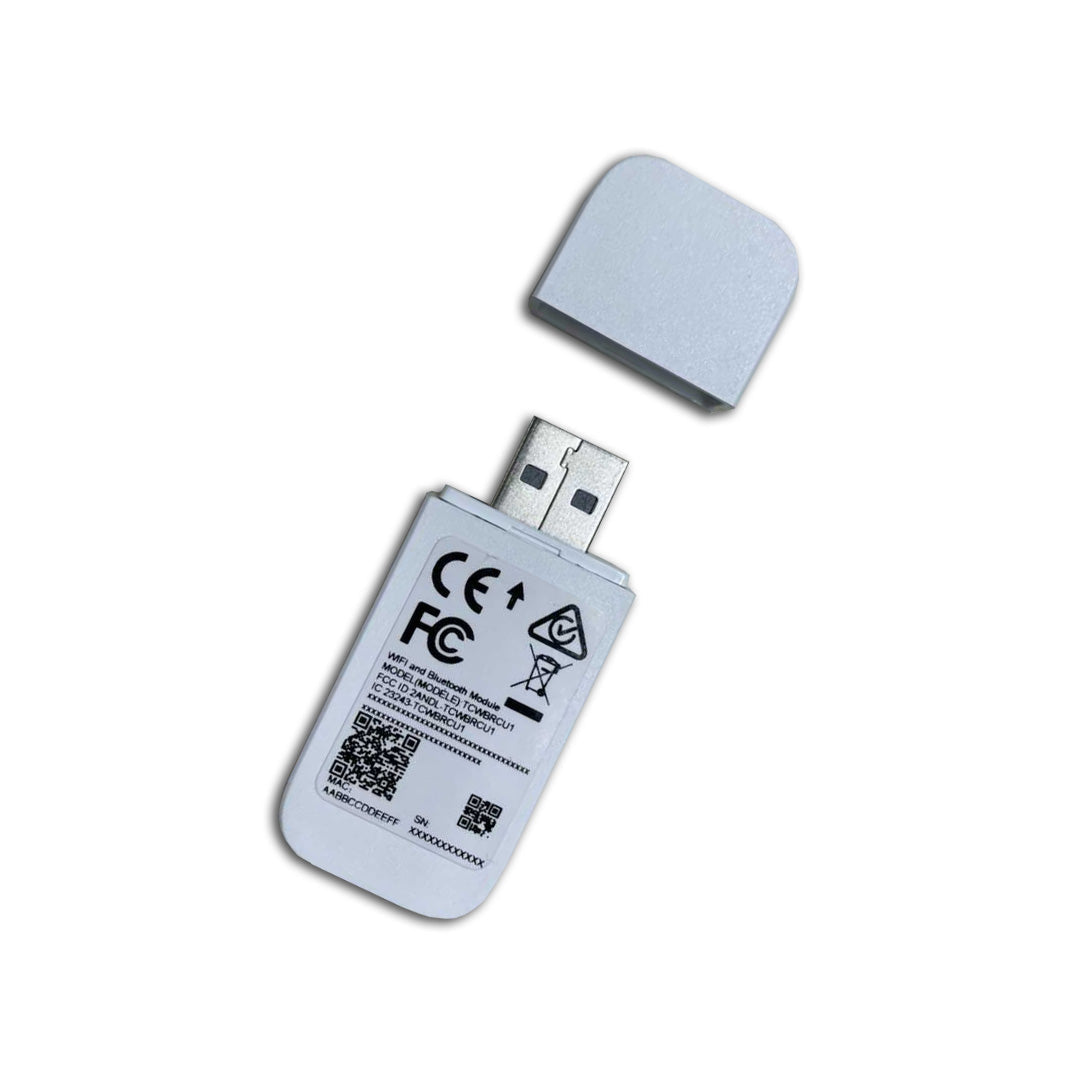

  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Ultra™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

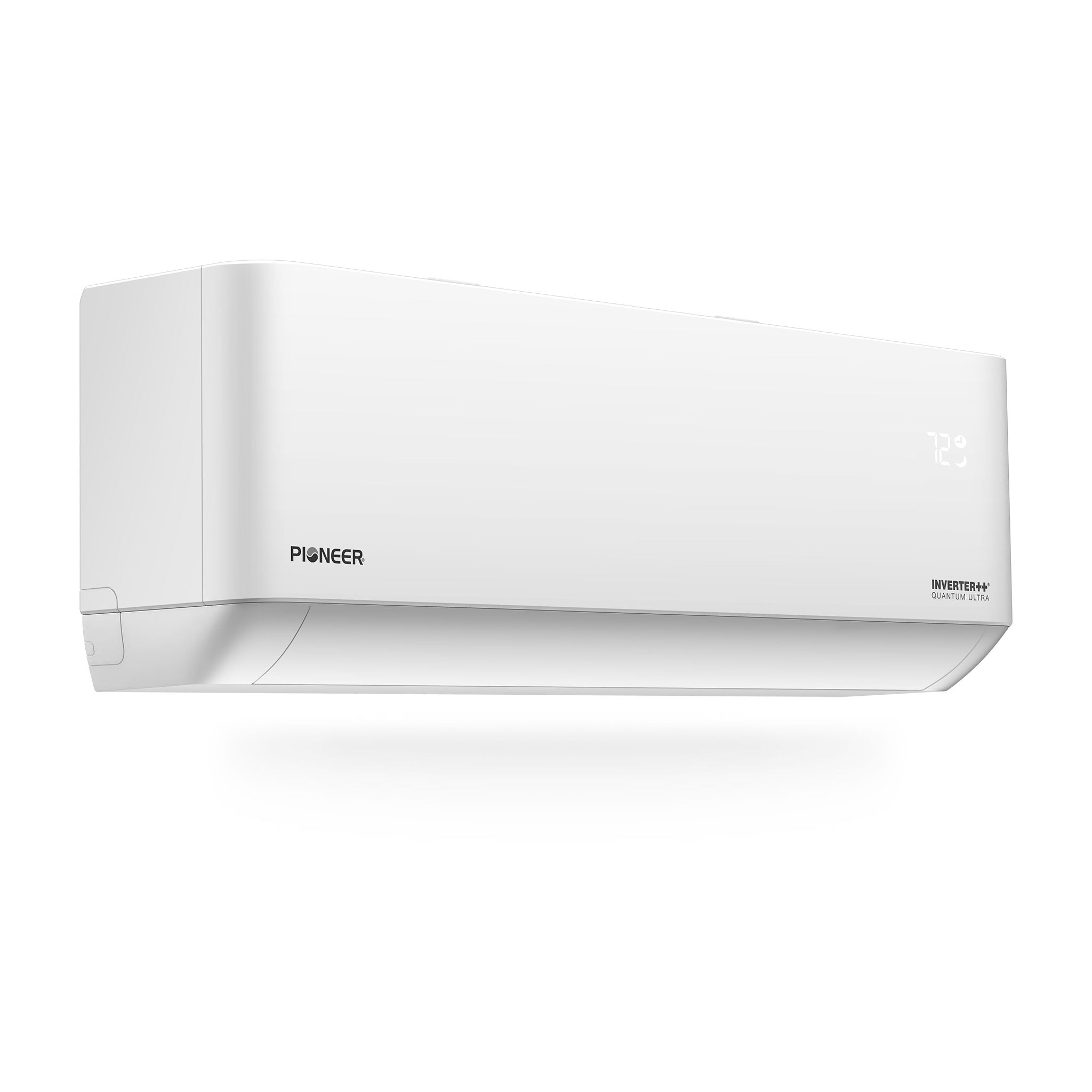

  • Indoor Unit

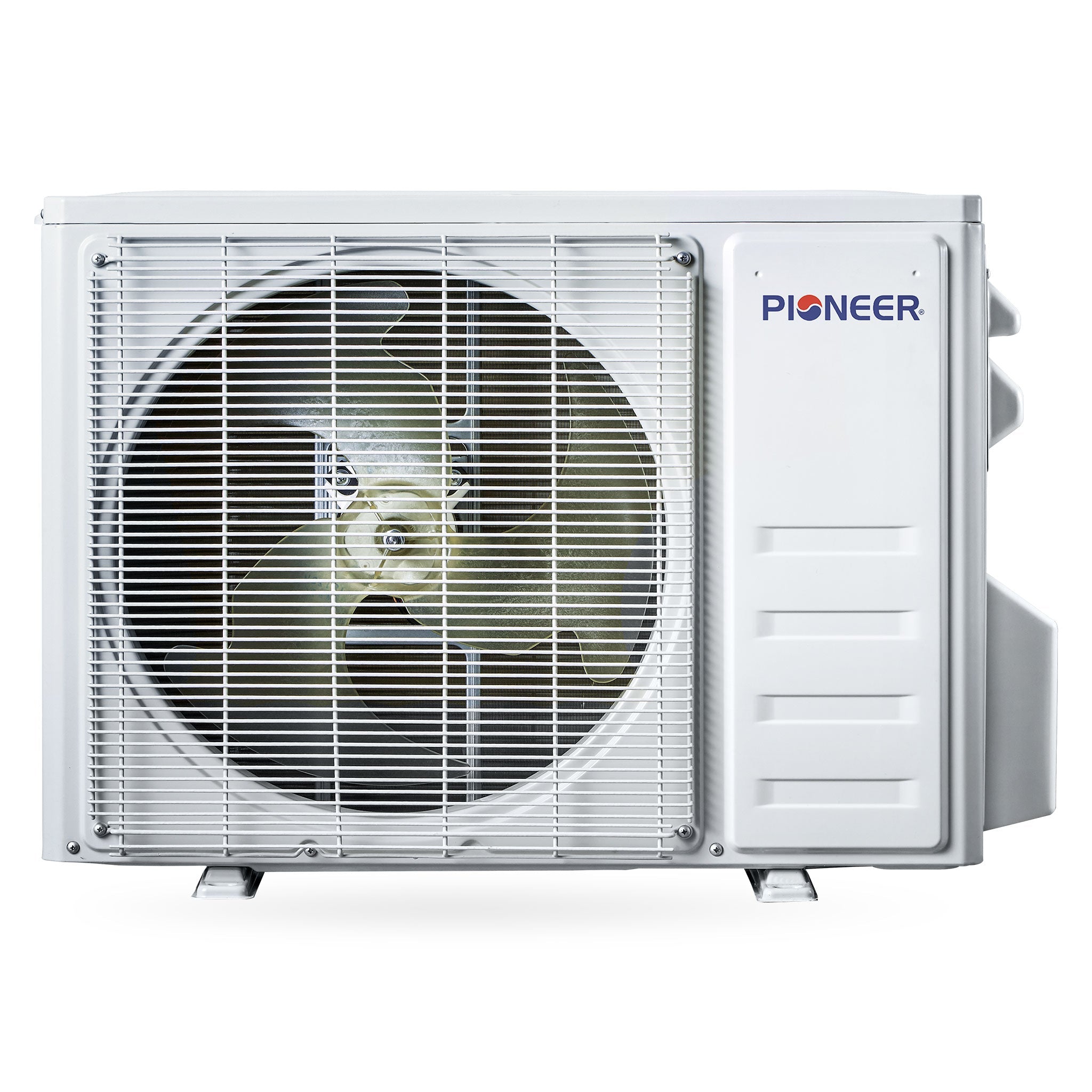

  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries

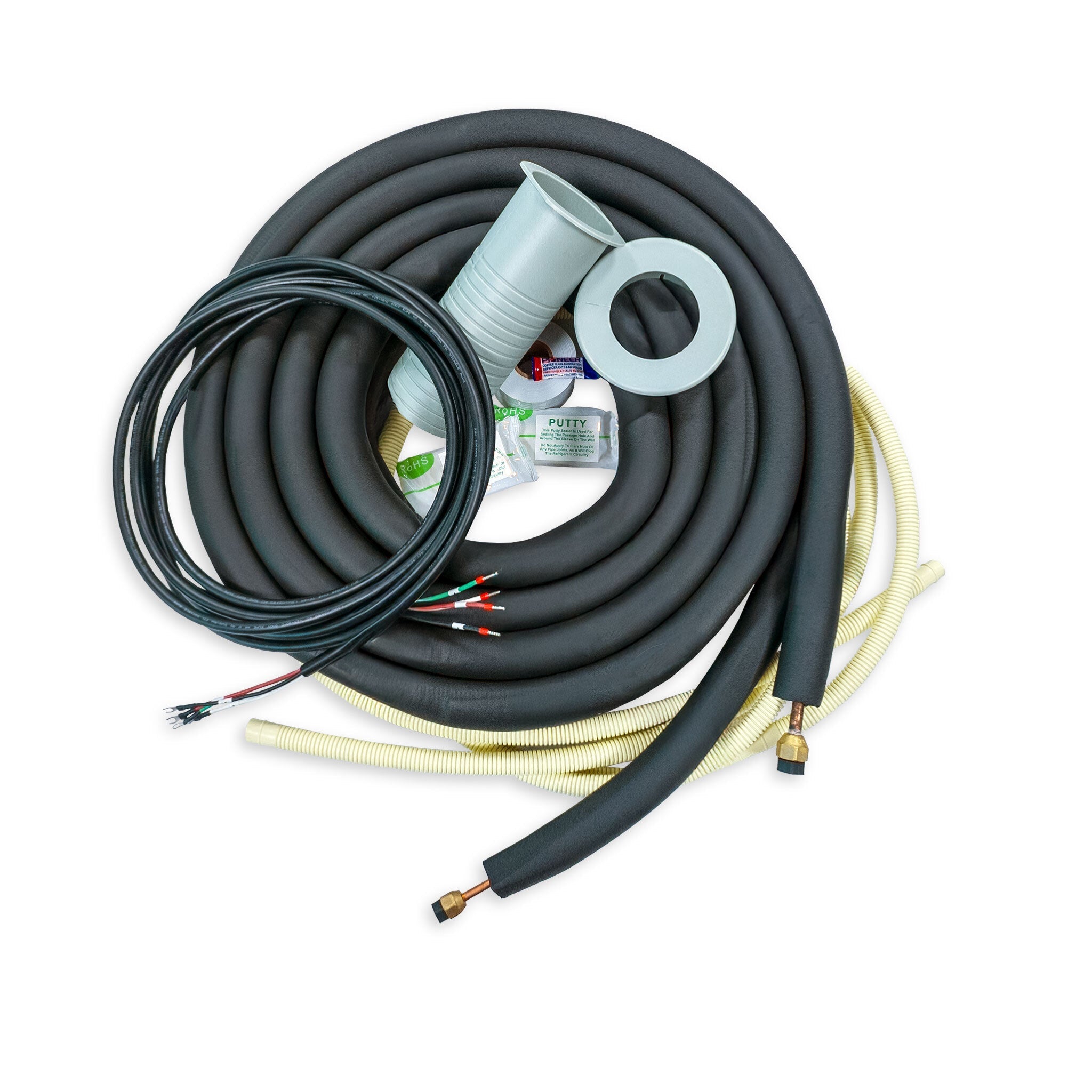

  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Minimum Installation Height
6 ft
Product Dimensions (WDH)
32"-1/4 x 7"-5/8 x 12" Inches
Carton Dimensions (WDH)
35" x 10"-1/2 x 15" Inches
Net / Gross Weight
20.7 / 25.1 lbs.
Net Dimensions (WDH)
31"-7/8 x 12" x 21"-5/8 Inches
GENERAL INFORMATION
Power Supply
110~120V, 60Hz, 1Ph
Recommended Room Size
150~350 Sq.F
Minimum Room Size
28 sq ft
Part Number
WT009ALSI24HLG
Air Flow (Turbo/Hi/Med/Lo/Mute)
326/283/235/188/153 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
43/40/33/31/30 dB(A)
Sound Level
50 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
9,000 BTU/h
Cooling Capacity Range
2,400~11,000 BTU/h
Cooling SEER2
24.0 BTU/W.h
Cooling EER2
13.0 BTU/W.h
Heating Rated Capacity
10,000 BTU/h
Heating Capacity Range
2,400~11,000 BTU/h
Heating HSPF2 (Region IV)
10.0 / 8.6 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.81 / 2.1 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
20A (single-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
1/4 x 3/8"
SAFETY
AHRI Reference
217048748
