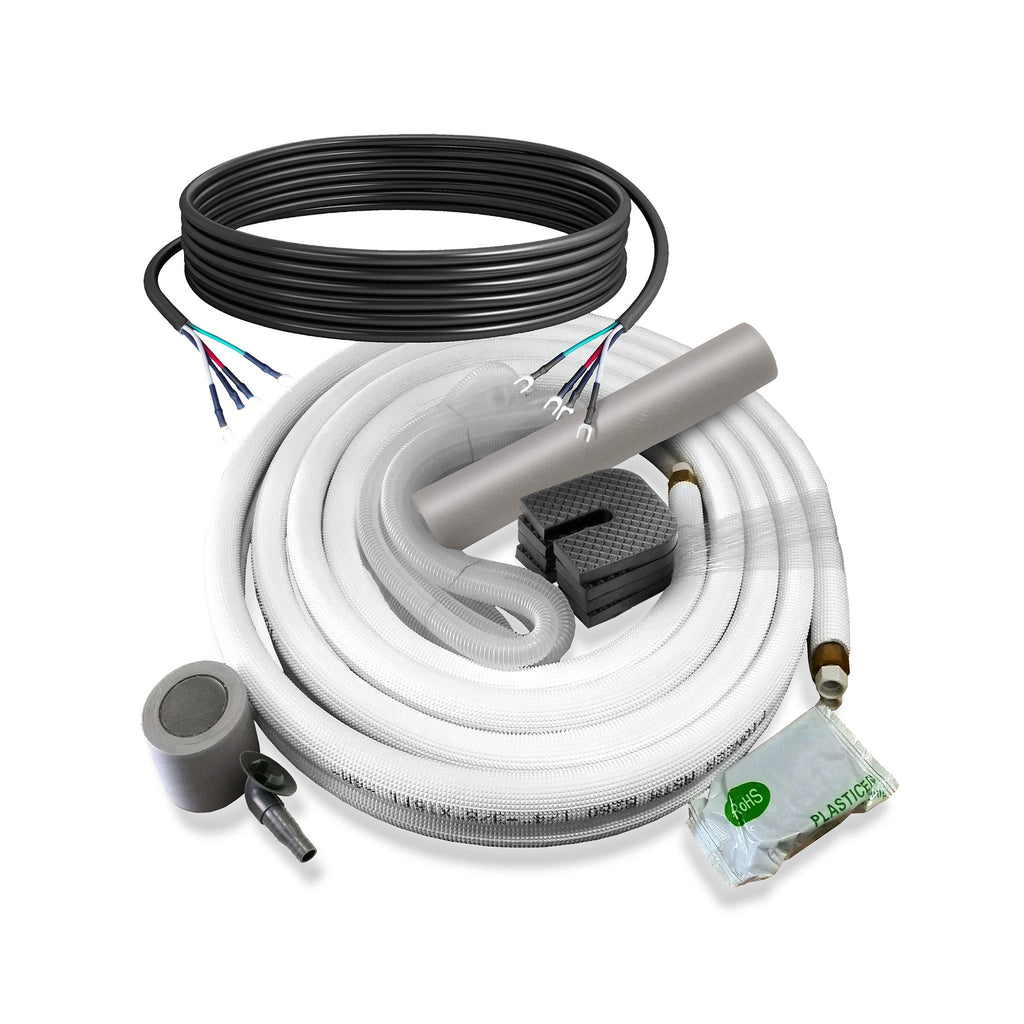

Refrigerant lineset kit with white insulated tubing, sensor wire, and fittings

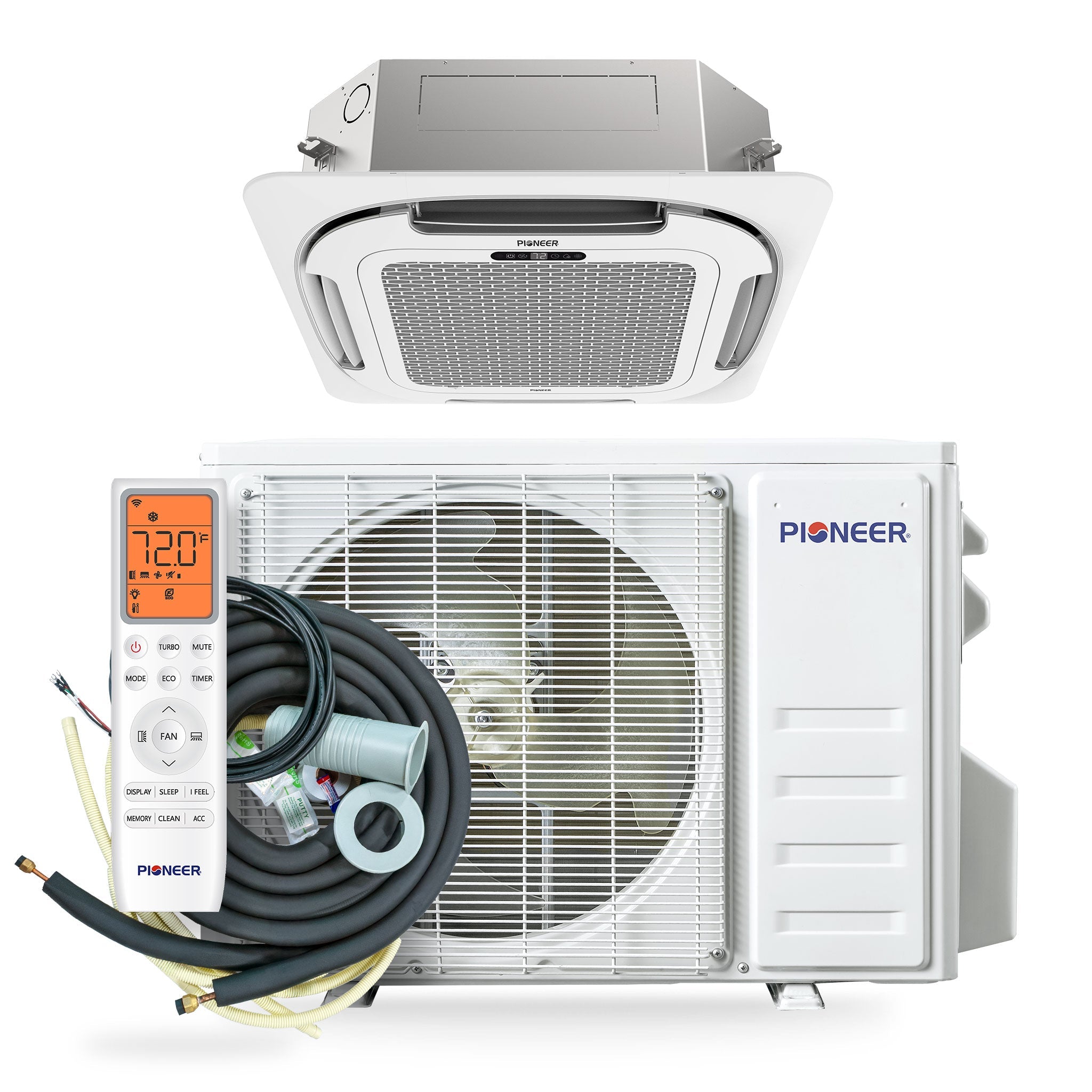

Ceiling cassette mini-split kit with outdoor unit, remote, and bundled cables/lines

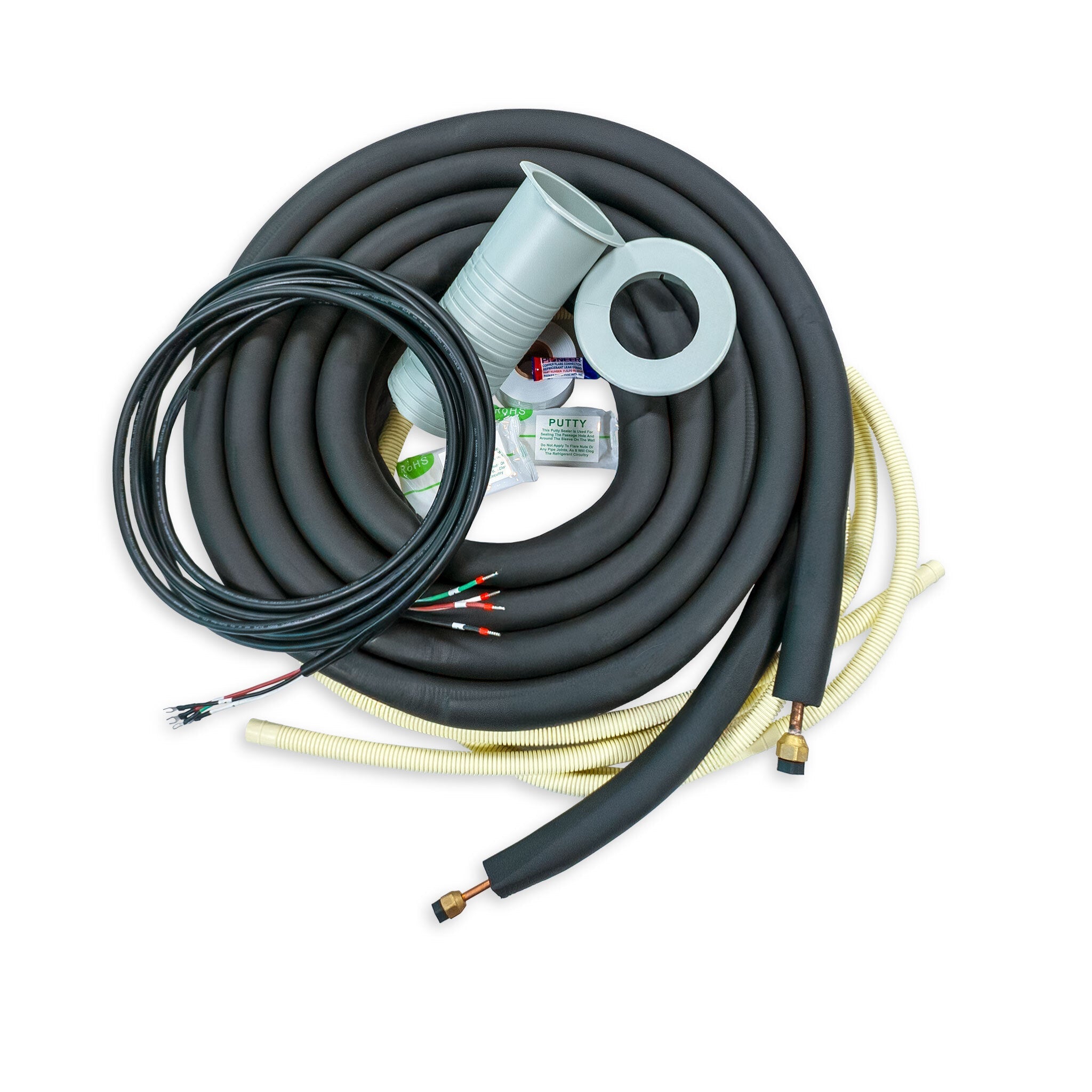

Refrigerant lineset kit with gray insulated hoses, mounting rings, and fittings

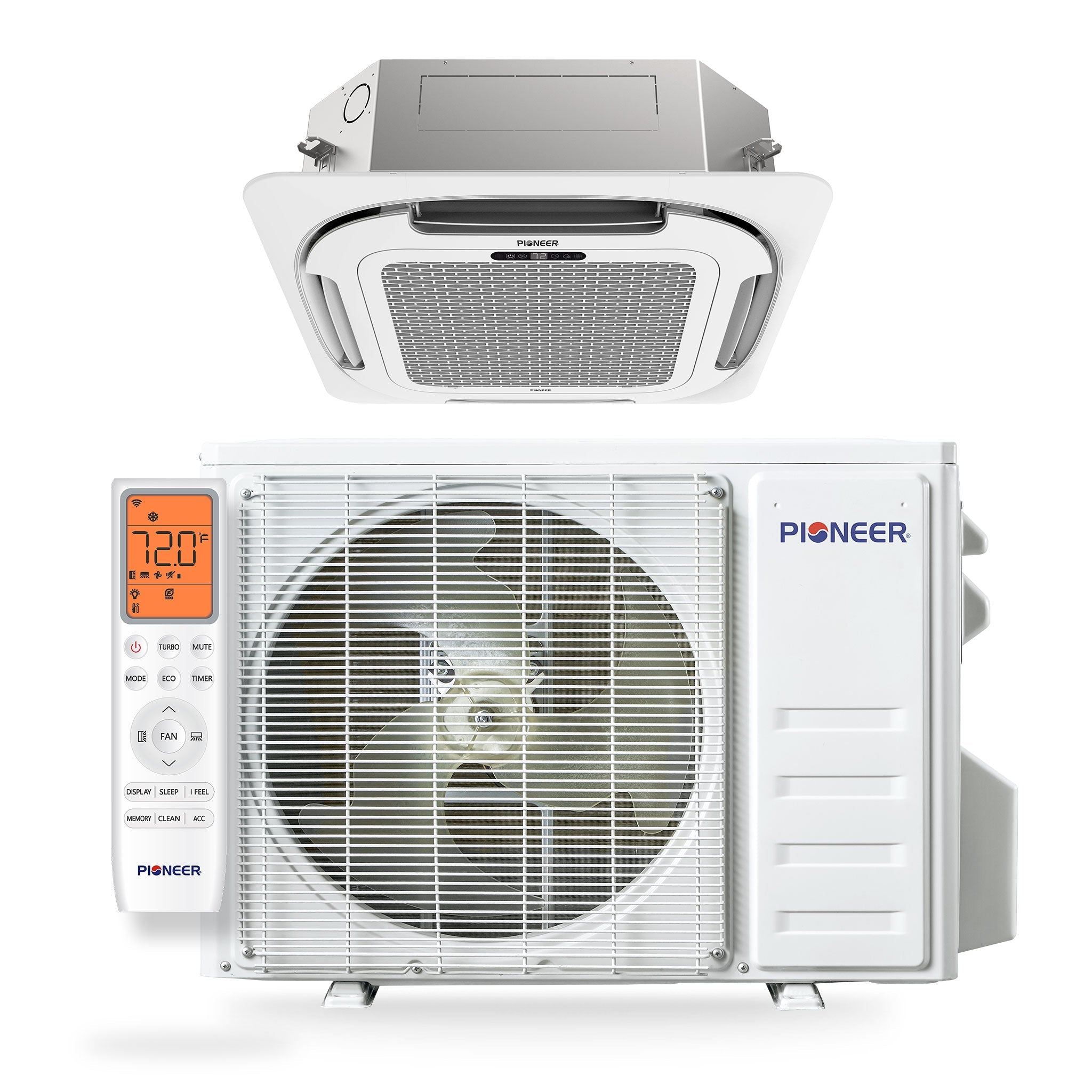

Ceiling cassette mini-split air conditioner with outdoor condenser unit

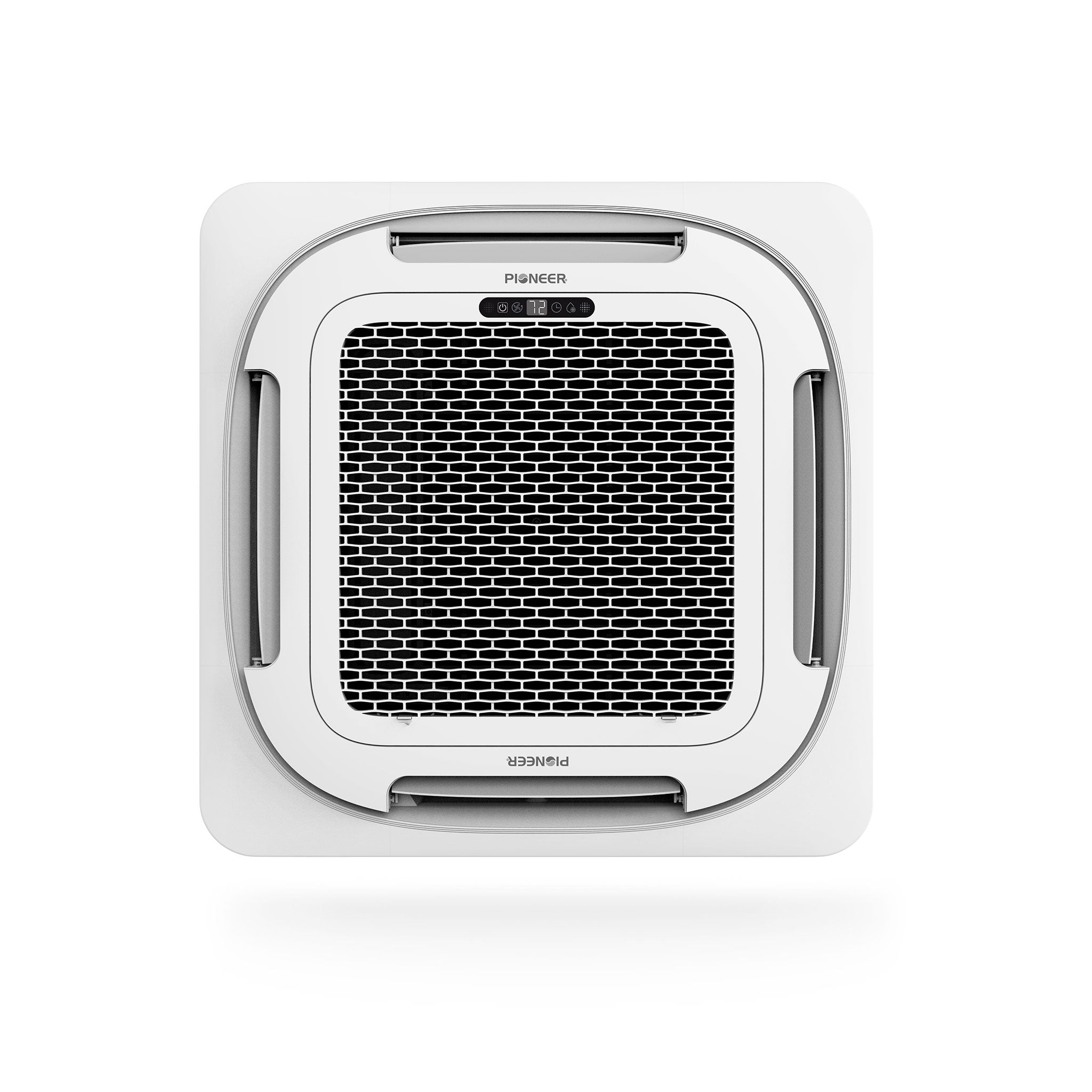

Ceiling cassette mini-split air conditioner grille, square white faceplate

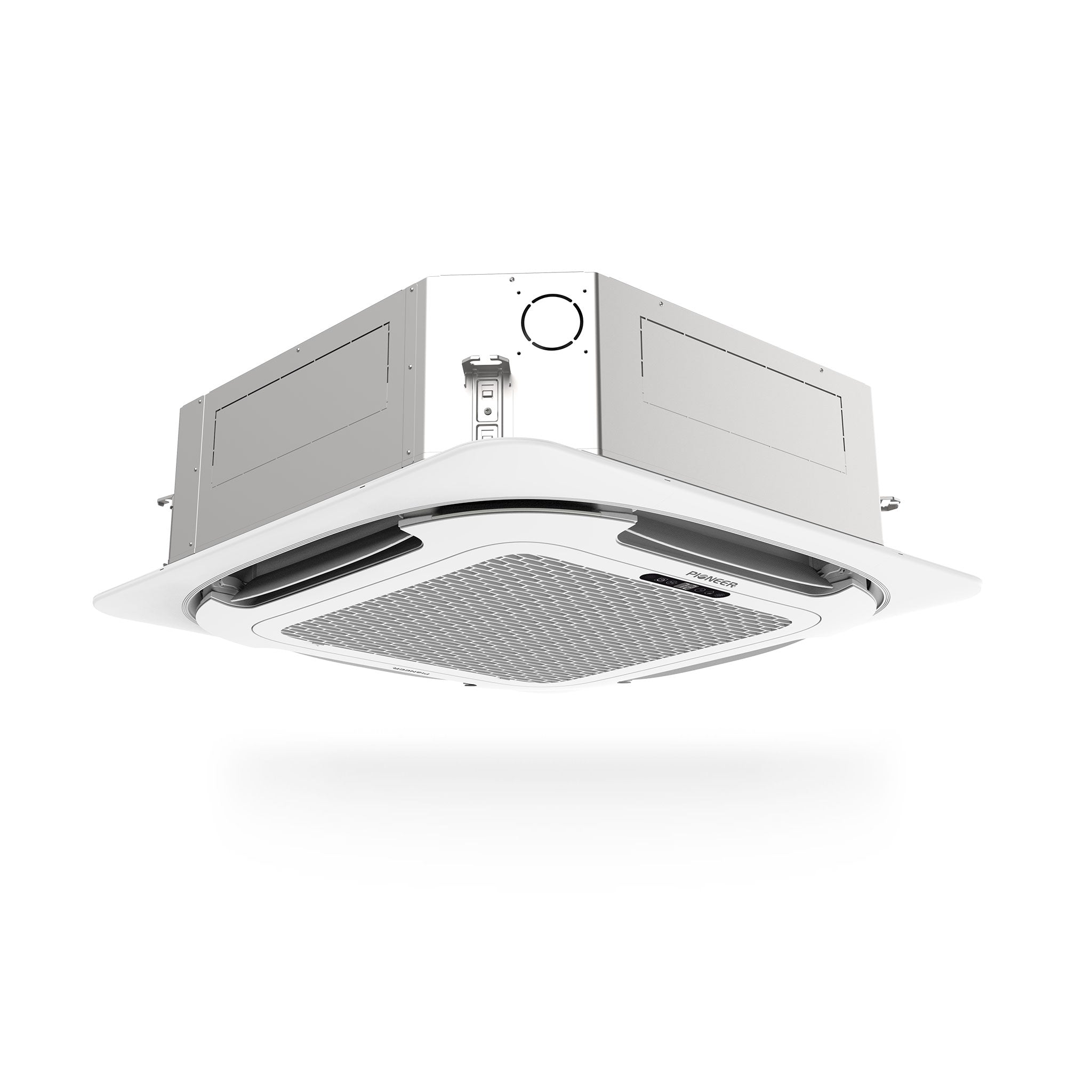

Ceiling cassette mini-split indoor unit with circular intake grille, white housing

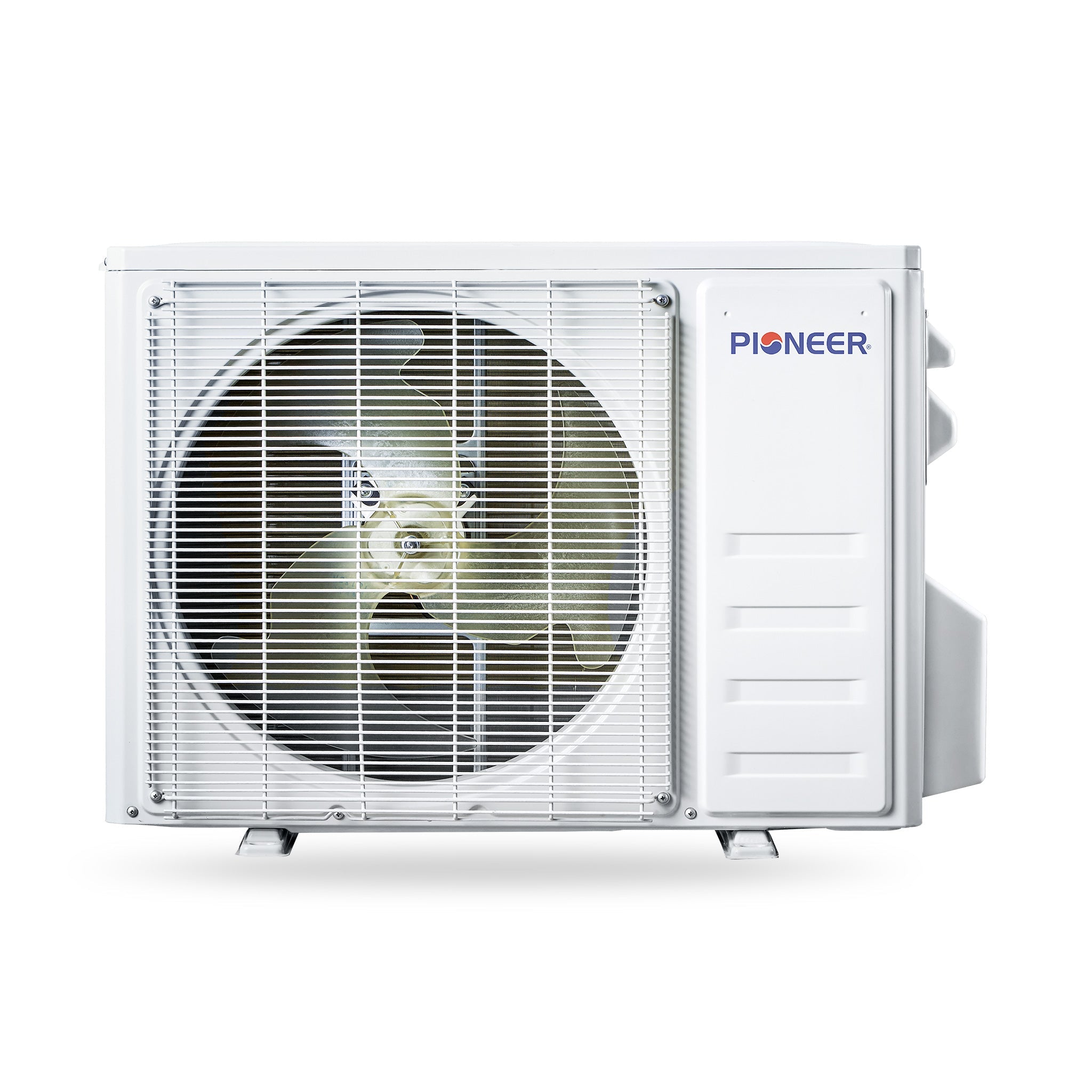

Outdoor condenser unit for ceiling cassette mini-split, white housing
Pioneer mini-split remote control with orange display and button panel
Roll over image to zoom in Click on image to zoom
Ceiling cassette mini-split air conditioner full set with outdoor unit and remoteRefrigerant lineset kit with white insulated tubing, sensor wire, and fittingsCeiling cassette mini-split kit with outdoor unit, remote, and bundled cables/linesRefrigerant lineset kit with gray insulated hoses, mounting rings, and fittingsCeiling cassette mini-split air conditioner with outdoor condenser unitCeiling cassette mini-split air conditioner grille, square white faceplateCeiling cassette mini-split indoor unit with circular intake grille, white housingOutdoor condenser unit for ceiling cassette mini-split, white housingPioneer mini-split remote control with orange display and button panel
Click on image to zoom

Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set (CYT009GLSI24RL)

PioneerSKU: CYT009GLSI24RL-10S
4 reviews
Price:
$1,443.00 $2,059.00SAVE 29%
Air Handler Type:
BTU:
In Stock
Estimated delivery: Oct 18th-25th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
  • Cooling capacity: 9,500 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 9,500 BTU/H with 10.0 HSPF2 / 4.0 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant

  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Ultra™ Ceiling Cassette

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Indoor Panel
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Product Dimensions (WDH)
22"-1/2 x 22"-1/2 x 9"-5/8 Inches
Carton Dimensions (WDH)
28"-1/4 x 25"-7/8 x 11"-7/8 Inches
Net / Gross Weight
32.0 / 38.6 lbs
Net Dimensions (WDH)
31"-7/8 x 12" x 21"-5/8 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Suitable Area
250~350 Sq.F
Part Number
CT009GLSILCFHG
Air Flow (Turbo/Hi/Med/Lo/Mute)
326/282.5/235/188/153 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
43/40/33/31/30 dB(A)
Sound Level
50 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
9,500 BTU/h
Cooling Capacity Range
2,000~10,400 BTU/h
Cooling SEER2
23.0 BTU/W.h
Cooling EER2
12.5 BTU/W.h
Heating Rated Capacity
9,500 BTU/h
Heating Capacity Range
2,500~12,500 BTU/h
Heating HSPF2 (Region IV)
10.0 / 9.0 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
4.0 / 2.0 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
15A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
SAFETY
AHRI Reference
217048758

Pioneer Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
48K BTU
36K BTU
30K BTU
24K BTU
18K BTU
12K BTU
9K BTU
9K BTU up to 350 sq ft · Bedroom, home office
12K BTU up to 500 sq ft · Large bedroom, den
18K BTU up to 750 sq ft · Living room, master suite
24K BTU up to 1000 sq ft · Open living area
30K BTU up to 1200 sq ft · Large open area
36K BTU up to 1400 sq ft · Great room, small home
48K BTU up to 1800 sq ft · Whole floor, large open space
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
