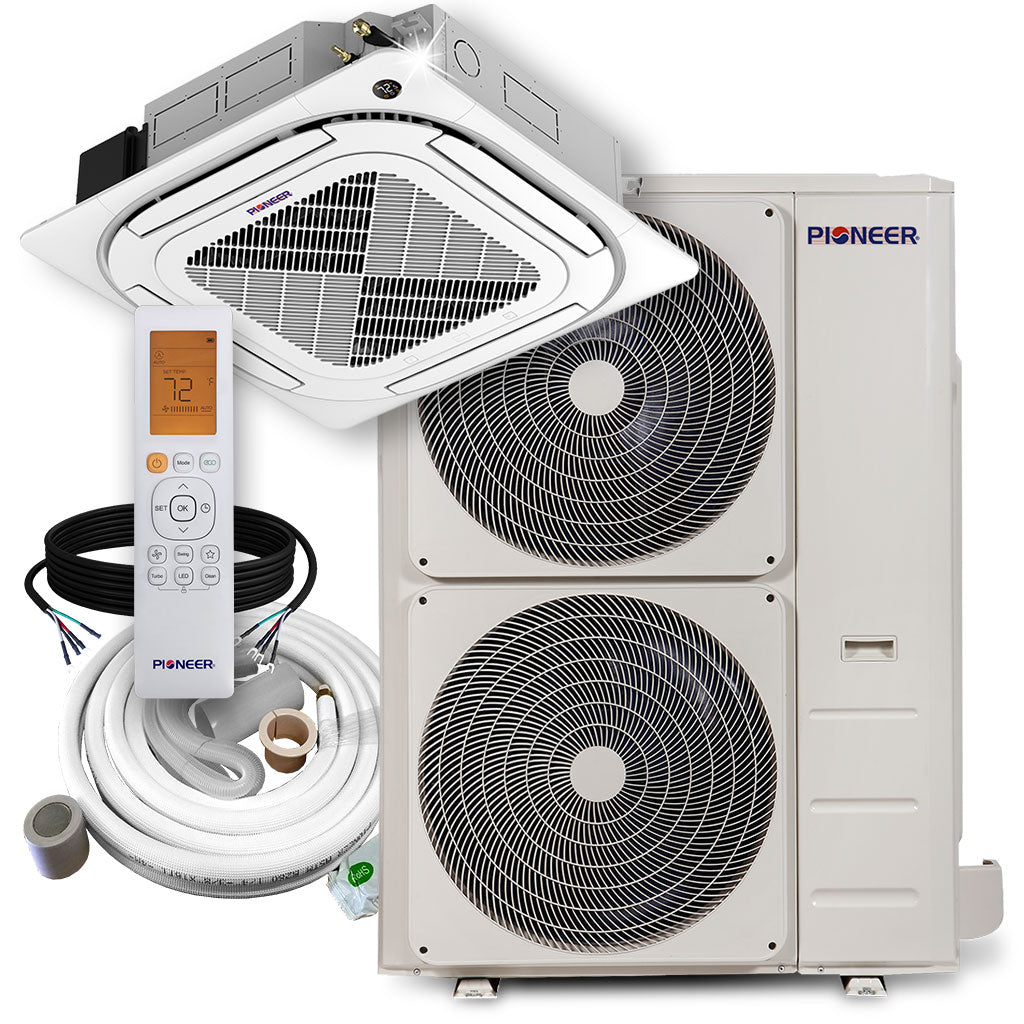

White outdoor air conditioner condenser unit with dual fan grilles and included tubing

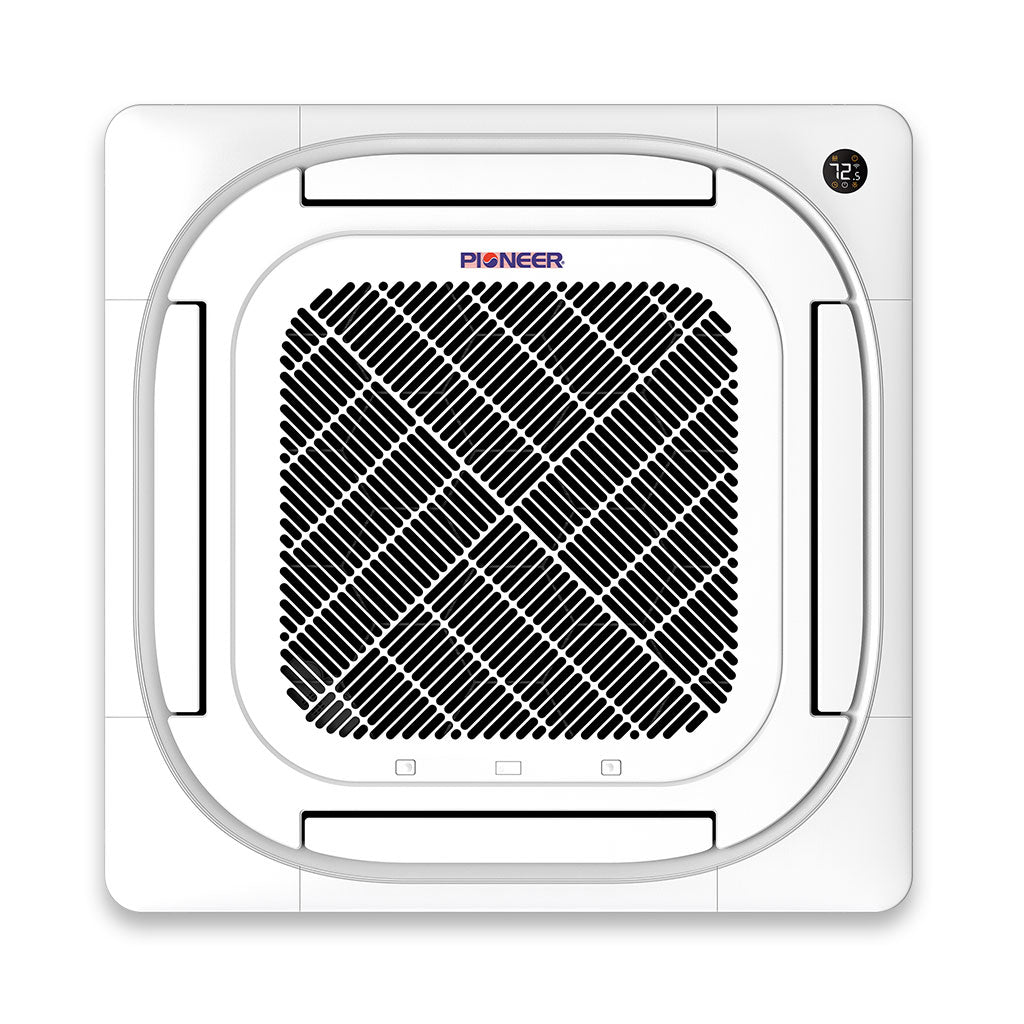

Square white ceiling air conditioner indoor unit with louvered grille and center display

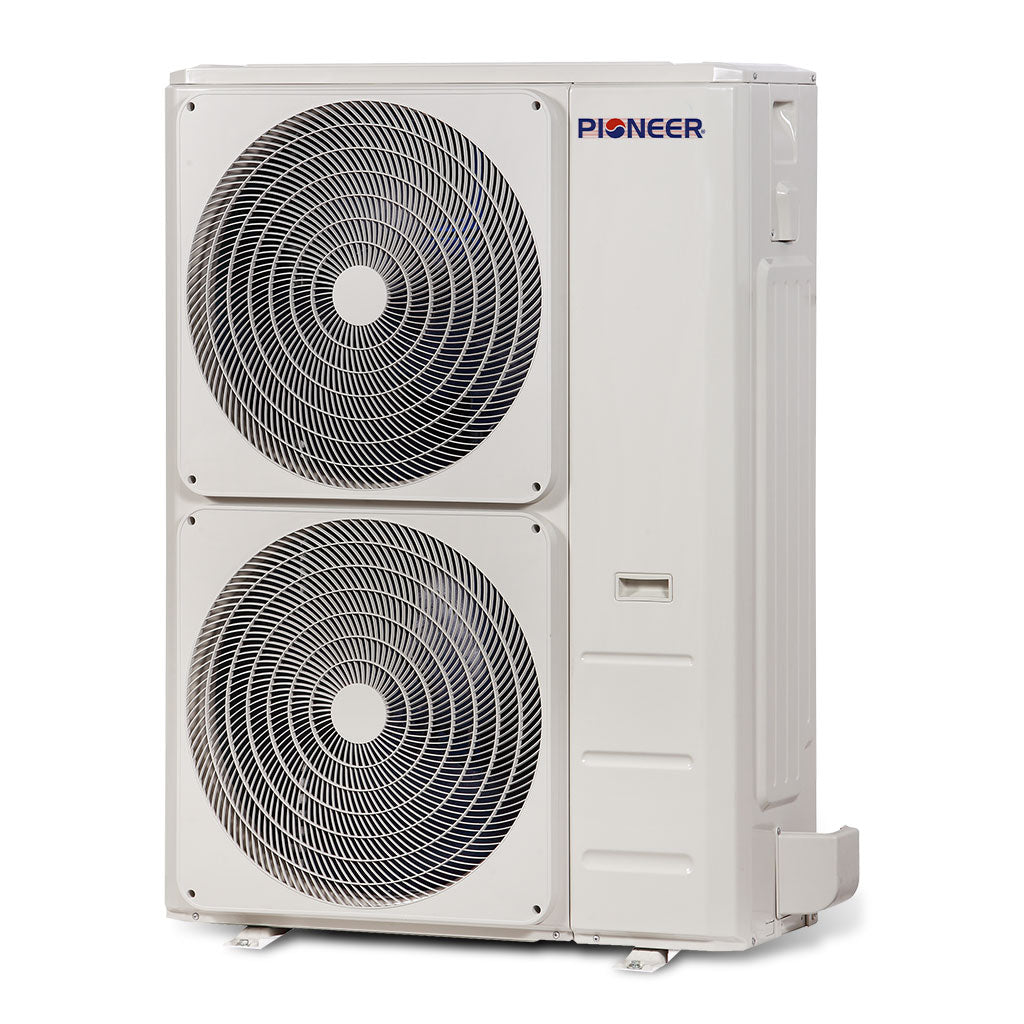

White outdoor air conditioner condenser unit with two round fan grilles and side access panel

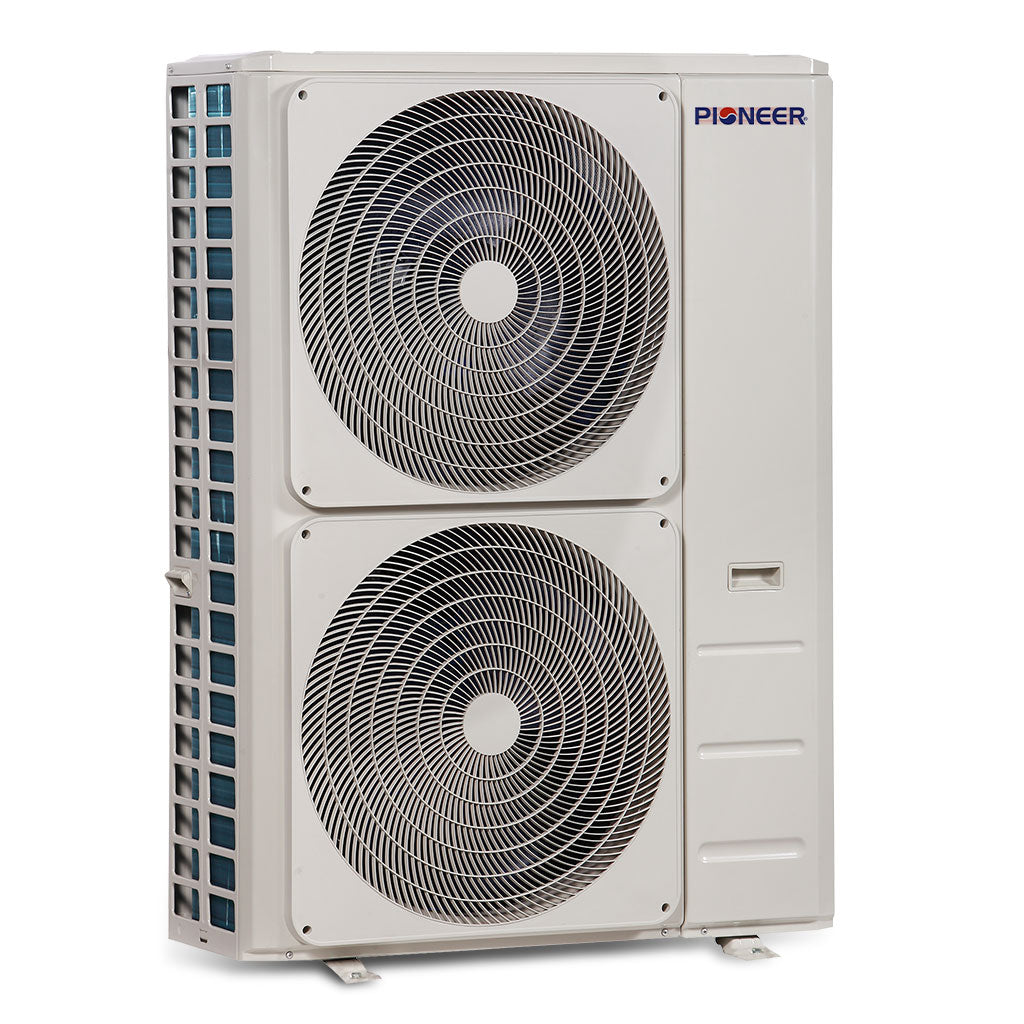

White outdoor air conditioner condenser unit with two fan grilles and blue fin accents

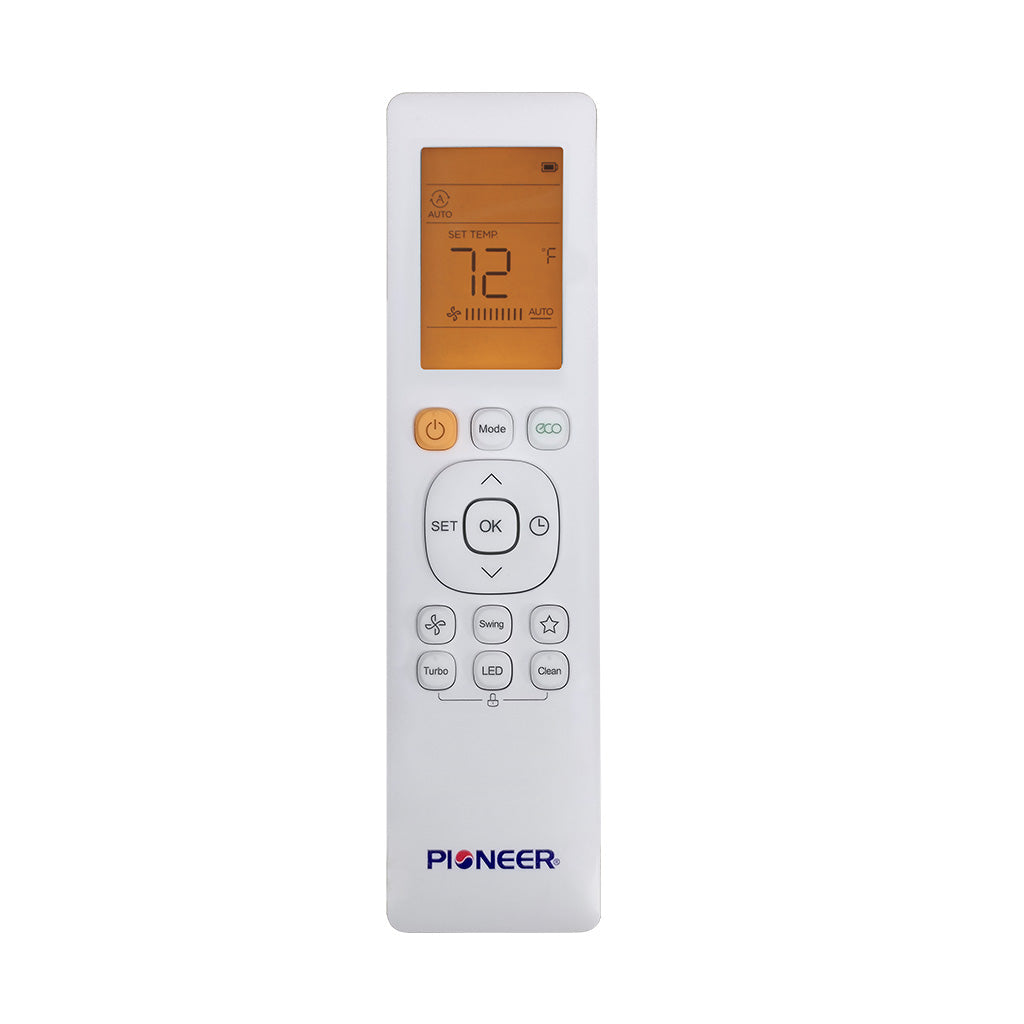

White Pioneer Quantum Ultra air conditioner remote control with LCD display and buttons

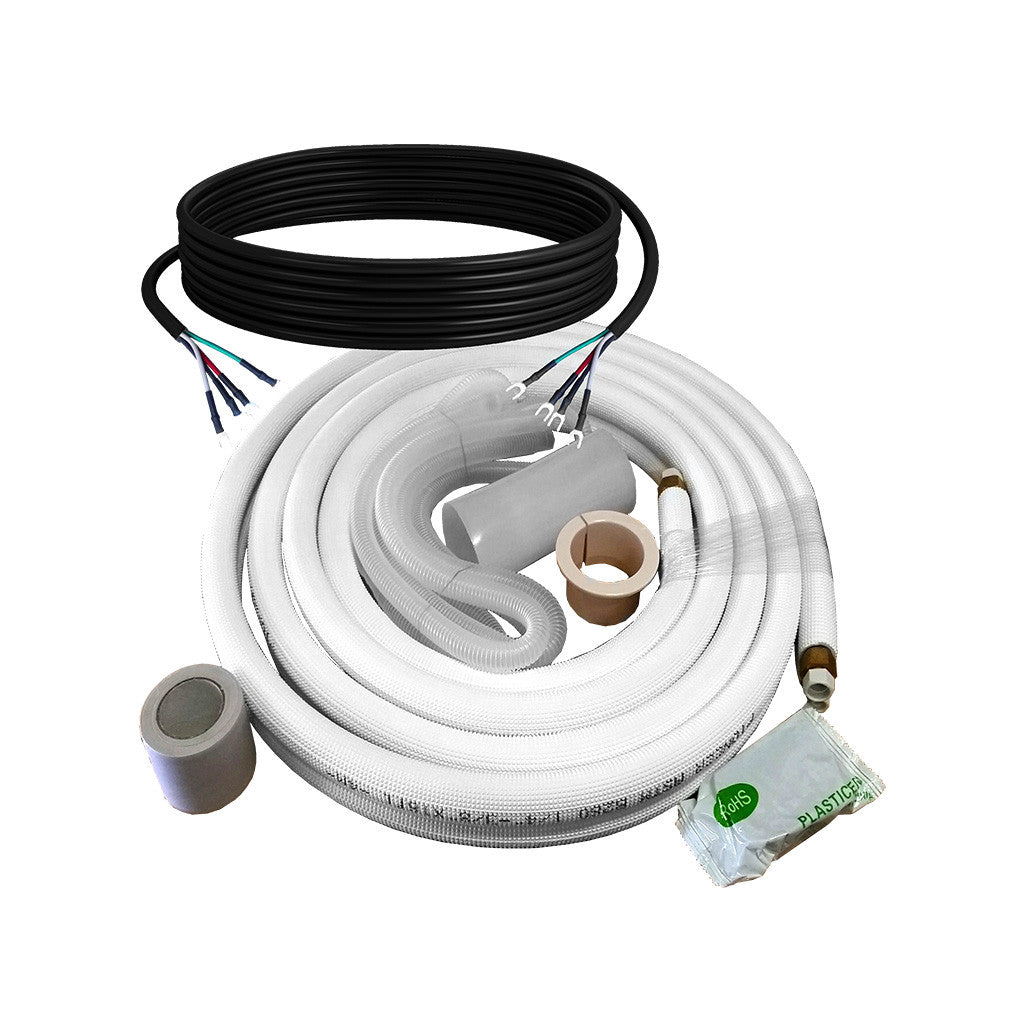

Coiled white refrigerant line set with black cable and insulation sleeves
Roll over image to zoom in Click on image to zoom
White outdoor air conditioner condenser unit with dual fan grilles and included tubingSquare white ceiling air conditioner indoor unit with louvered grille and center displayWhite outdoor air conditioner condenser unit with two round fan grilles and side access panelWhite outdoor air conditioner condenser unit with two fan grilles and blue fin accentsWhite Pioneer Quantum Ultra air conditioner remote control with LCD display and buttonsCoiled white refrigerant line set with black cable and insulation sleeves
Click on image to zoom

Pioneer® Quantum Ultra™ 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump

PioneerSKU: CYB048GMSI20RL-10S
3 reviews
Price:
$4,993.00 $7,129.00SAVE 29%
Air Handler Type:
BTU:
Low Stock
Estimated delivery: Sep 7th-14th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Pioneer Quantum Ultra 48,000 BTU 4-Way Ceiling Cassette Mini-Split delivers powerful whole-home or commercial-grade comfort with sleek 360° airflow distribution from a single recessed ceiling unit. Variable-speed DC inverter technology powers 48,000 BTU of cooling at 19.0 SEER2 and 50,000 BTU of heating at 9.9 HSPF2, performing reliably from -13°F to 131°F.

 Factory-precharged with low-GWP R454b refrigerant, this 208/230V heat pump features cooling, heating, dry, and ventilation modes, dual-drainage ports, washable filters, and dual-axis motorized airflow. The included remote unlocks ECO, SLEEP, TURBO, MEMORY, FOLLOW ME, Timer, and Self-Clean for intelligent year-round comfort.

Summary

  • High Efficiency Quantum Ultra Four-Way Ceiling Recessed Cassette Split Heat Pump System
  • Cooling capacity: 48,000 BTU/H with 19.0 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 50,000 BTU/H with 9.9 HSPF2 / 2.96 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Four-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • FOLLOW ME, to Detect and Adjust to Local Temperature

Dimension Chart

32⅝ 32⅝ 11⅜ 37⅜ 37⅜ 2⅛ 37½ 16⅜ 52½ 2¼ ¾ 8½
DIMENSIONS & WEIGHT
Product Dimensions (WDH)
32-5/8 x 32-5/8 x 11-3/8 Inches
Carton Dimensions (WDH)
35-7/8 x 35-7/8 x 13 Inches
Net / Gross Weight
64.5 / 76.1 lbs
Net Dimensions (WDH)
37-1/2 x 16-3/8 x 52-1/2 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
1,400~1,800 sq ft
Minimum Room Size
143 sq ft
Part Number
CB048GMSILDFHG
Air Flow (Turbo/Hi/Med/Lo/Mute)
1,236 / 1,124 / 1,018 / 800 / 689 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
56 / 52 / 50 / 42 / 38 dB(A)
Sound Level
64 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
48,000 BTU/h
Cooling Capacity Range
10,600~50,400 BTU/h
Cooling SEER2
19.0 BTU/W.h
Cooling EER2
9.5 BTU/W.h
Heating Rated Capacity
50,000 BTU/h
Heating Capacity Range
19,900~61,700 BTU/h
Heating HSPF2 (Region IV/V)
9.9 / 7.7 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
2.96 / 2.11 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
40A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
  • 3/4" (Gas)
  • 3/8" (Liquid)
SAFETY
AHRI Reference
218010992
