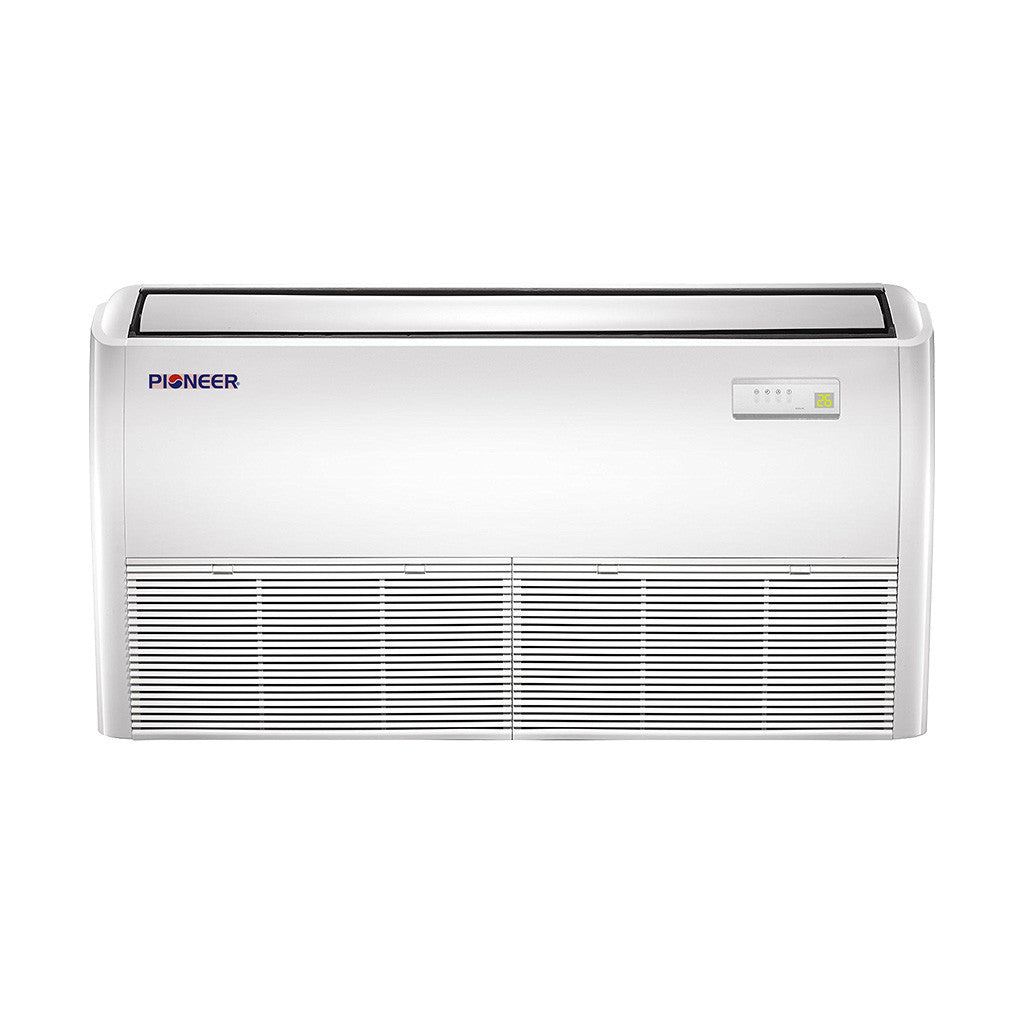

Pioneer Quantum Ultra wall/window unit with front air intake grille and control display

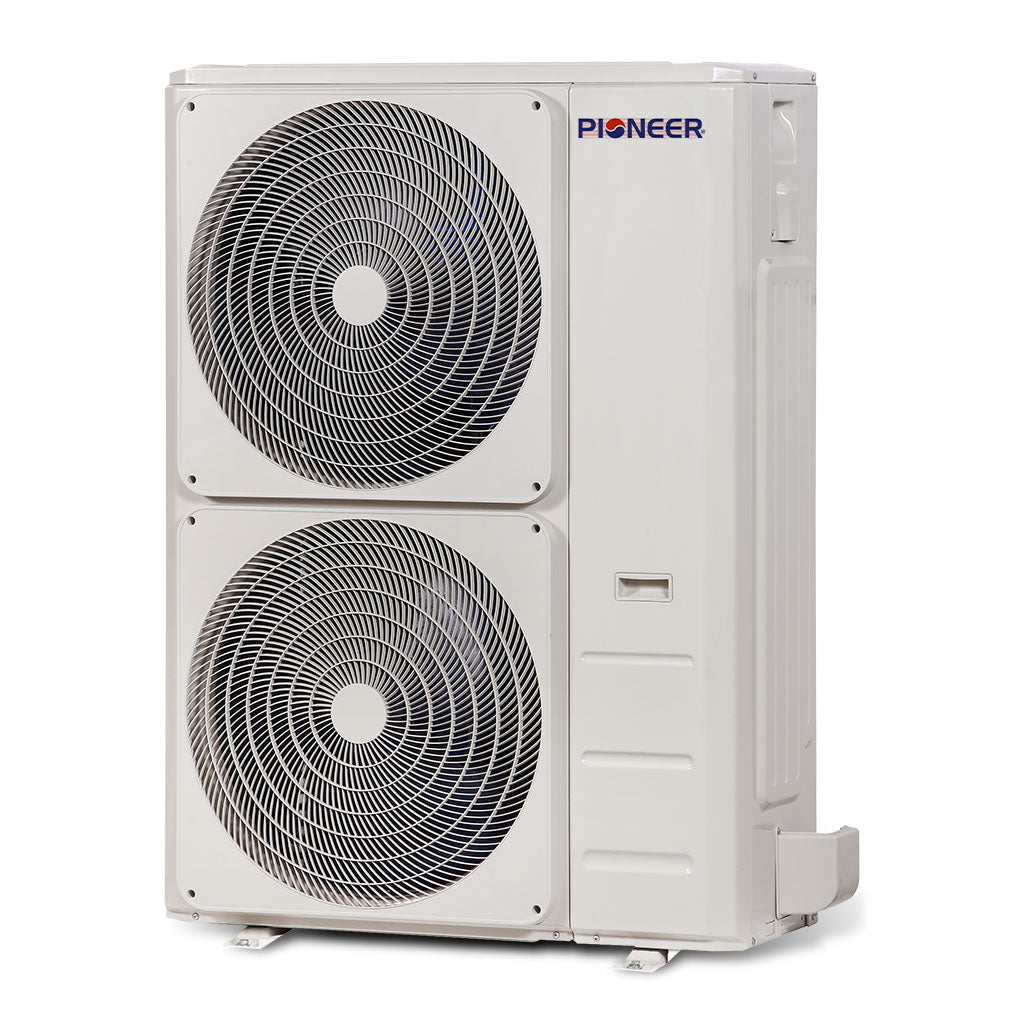

Pioneer Quantum Ultra outdoor air conditioner condenser with dual fan grills

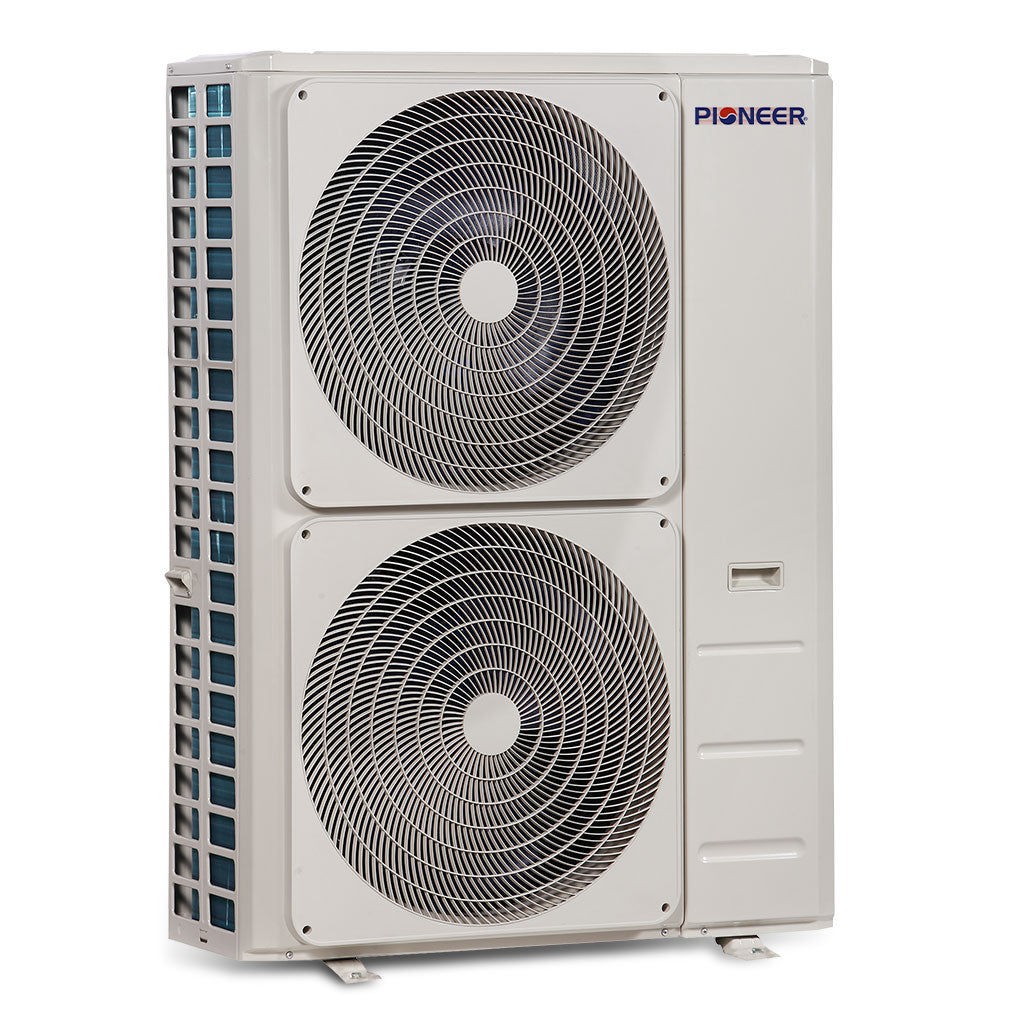

Pioneer Quantum Ultra outdoor condenser with dual fan grills and blue side panel vents

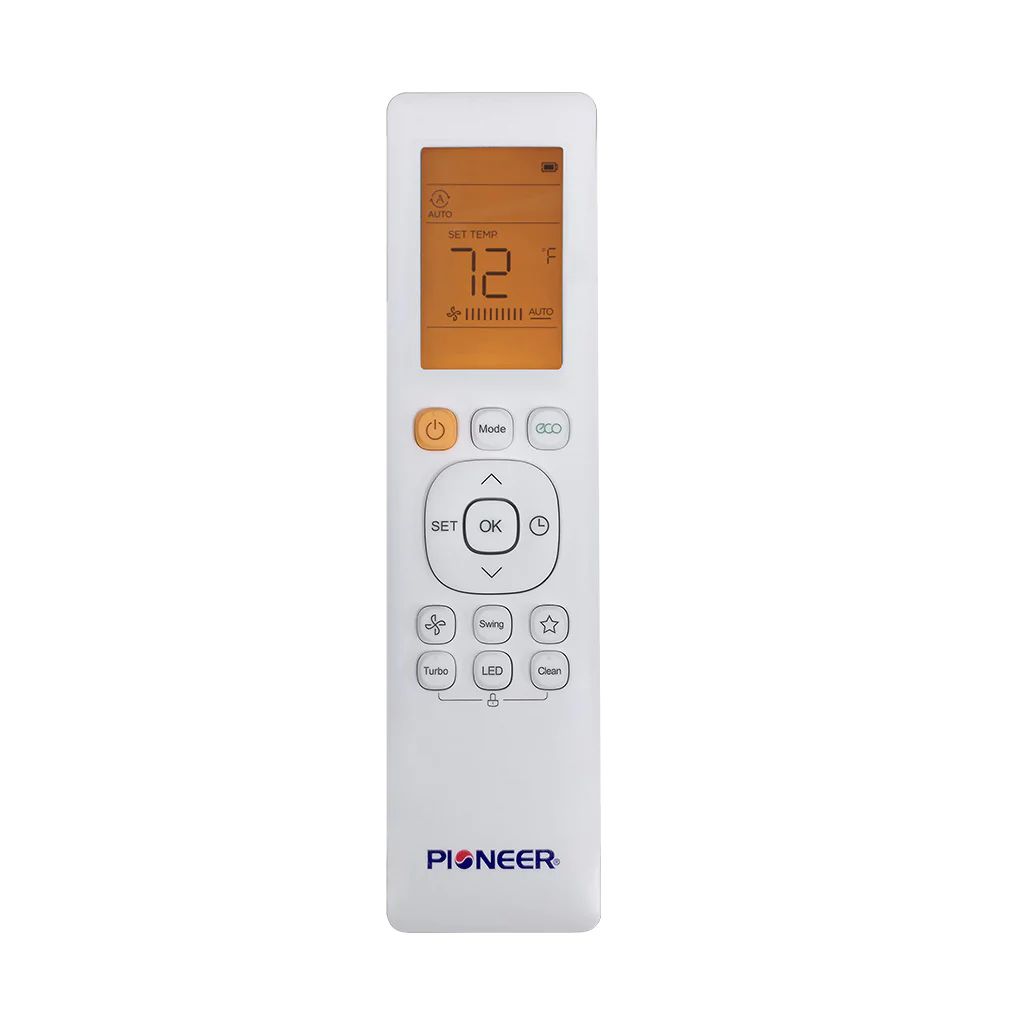

Pioneer Quantum Ultra air conditioner remote control with LCD screen and button keypad

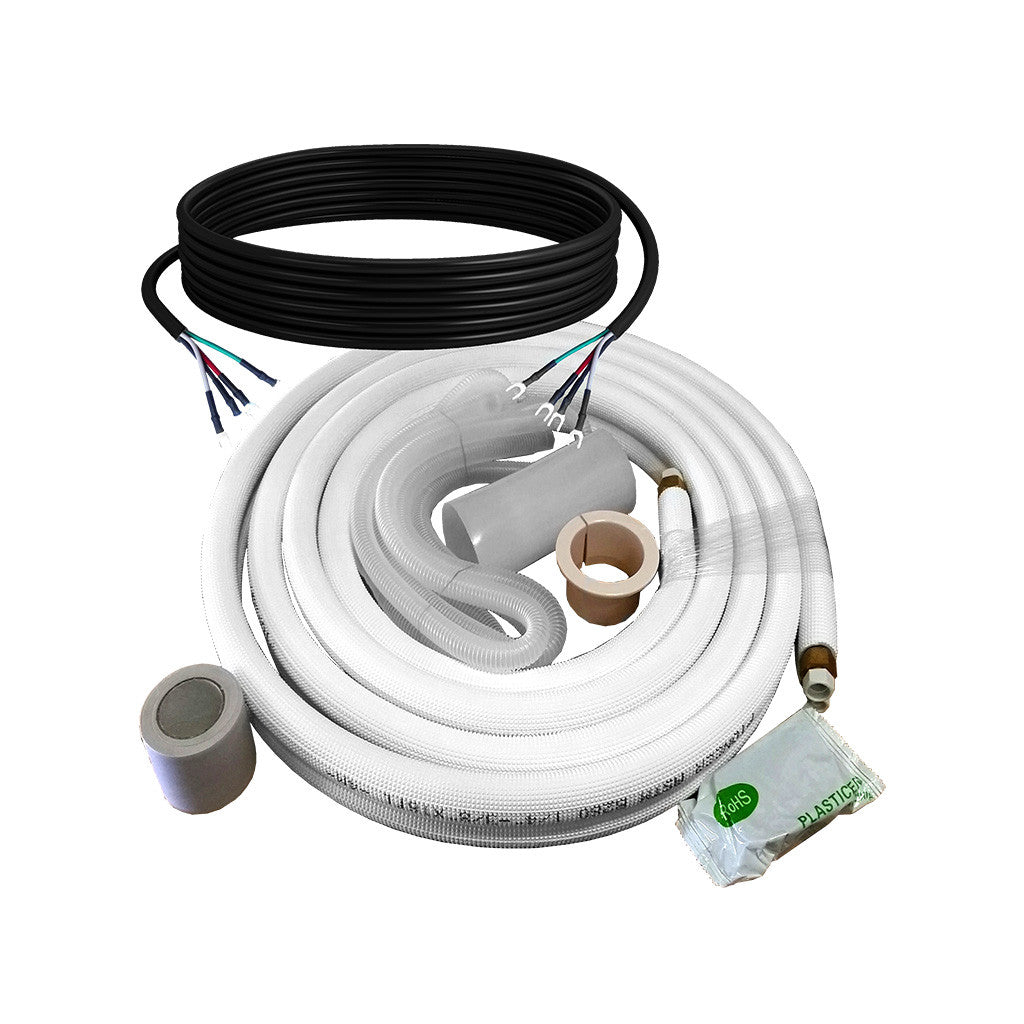

Air conditioner installation kit: coiled refrigerant lines with insulation, connectors, and accessories
Roll over image to zoom in Click on image to zoom
Pioneer Quantum Ultra split air conditioner with indoor unit, outdoor unit, remote, and tubing kitWall-mounted split air conditioner indoor unit installed above a living room seating areaPioneer Quantum Ultra wall/window unit with front air intake grille and control displayPioneer Quantum Ultra outdoor air conditioner condenser with dual fan grillsPioneer Quantum Ultra outdoor condenser with dual fan grills and blue side panel ventsPioneer Quantum Ultra air conditioner remote control with LCD screen and button keypadAir conditioner installation kit: coiled refrigerant lines with insulation, connectors, and accessories
Click on image to zoom

Pioneer® Quantum Ultra™ 48,000 BTU 19.8 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump

PioneerSKU: UYB048GMSI20RL-10S
3 reviews
Price:
$4,943.00 $7,059.00SAVE 29%
Air Handler Type:
BTU:
In Stock
Estimated delivery: Sep 7th-14th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Pioneer Quantum Ultra 48,000 BTU Floor/Ceiling/Low-Wall Mini-Split combines maximum capacity with versatile installation flexibility, offering a single indoor unit that mounts horizontally on the ceiling, vertically against a low wall, or at floor level to fit any room configuration. Variable-speed DC inverter technology powers 48,000 BTU of cooling at an impressive 19.8 SEER2 and 50,000 BTU of heating at a remarkable 12.0 HSPF2, performing reliably from -13°F to 131°F.

Factory-precharged with low-GWP R454b refrigerant, this 208/230V heat pump features cooling, heating, dry, and ventilation modes, dual-drainage ports, washable filters, and dual-axis motorized airflow. The included remote unlocks ECO, SLEEP, TURBO, MEMORY, FOLLOW ME, Timer, and Self-Clean for intelligent year-round comfort.

Summary

  • High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
  • Cooling capacity: 48,000 BTU/H with 19.8 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 50,000 BTU/H with 12.0 HSPF2 / 2.82 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • FOLLOW ME, to Detect and Adjust to Local Temperature

Dimension Chart

65 26⅝ 9¼ 37½ 16⅜ 52½ 2¼ ¾ 8½
DIMENSIONS & WEIGHT
Product Dimensions (WDH)
65 x 26-5/8 x 9-1/4 Inches
Carton Dimensions (WDH)
68-3/8 x 30 x 12-1/4 Inches
Net / Gross Weight
89.0 / 105.0 lbs
Net Dimensions (WDH)
37-1/2 x 16-3/8 x 52-1/2 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
1,400~1,800 sq ft
Minimum Room Size (Ceiling Suspended)
143 sq ft
Minimum Room Size (Floor/Low Wall)
700 sq ft
Part Number
UB048GMSILDFHG
Air Flow (Turbo/Hi/Med/Lo/Mute)
1,354 / 1,236 / 1,083 / 800 / 665 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
55 / 53 / 49 / 39 / 34 dB(A)
Sound Level
64 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
48,000 BTU/h
Cooling Capacity Range
10,100~50,000 BTU/h
Cooling SEER2
19.9 BTU/W.h
Cooling EER2
9.5 BTU/W.h
Heating Rated Capacity
50,000 BTU/h
Heating Capacity Range
15,800~59,100 BTU/h
Heating HSPF2 (Region IV/V)
12.0 / 7.8 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
2.82 / 1.95 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
45A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
  • 3/4" (Gas)
  • 3/8" (Liquid)
SAFETY
AHRI Reference
218010996
