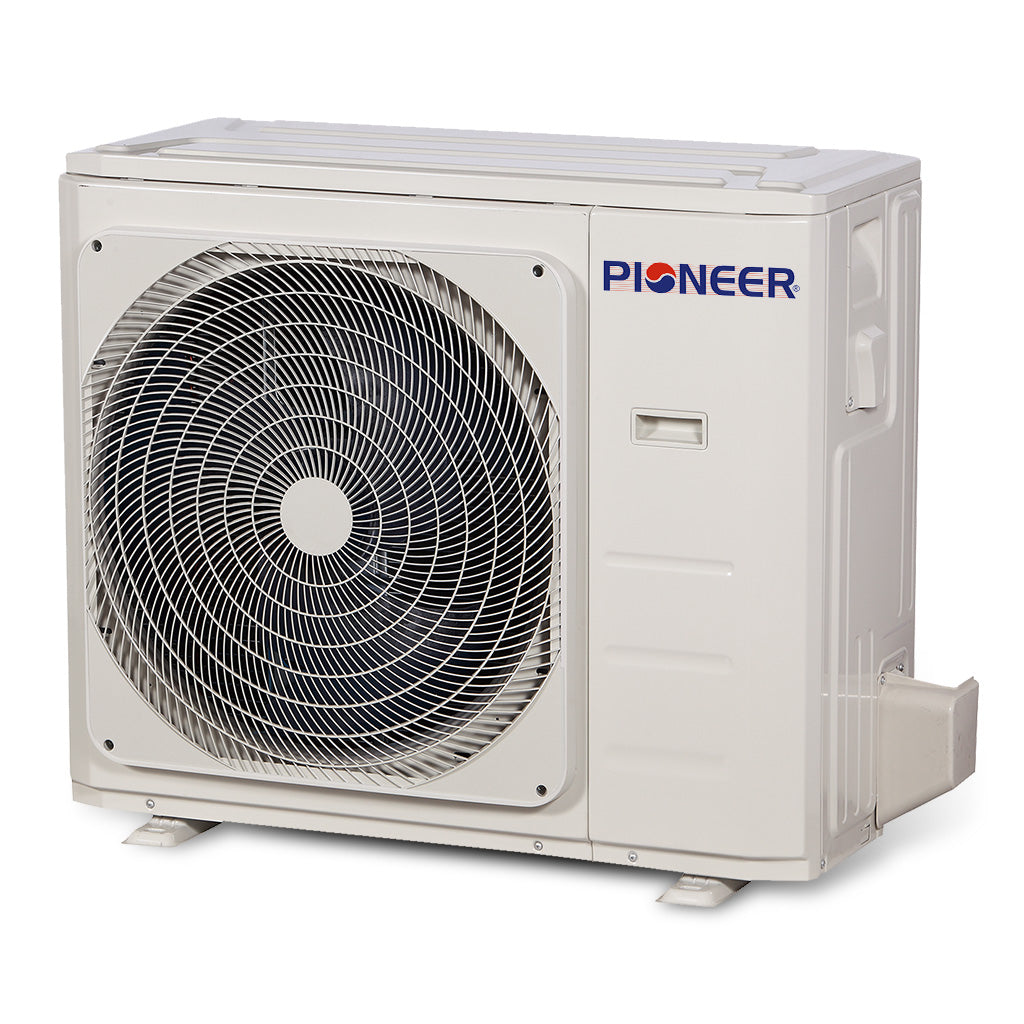

Pioneer mini-split outdoor condenser unit with fan and Pioneer logo

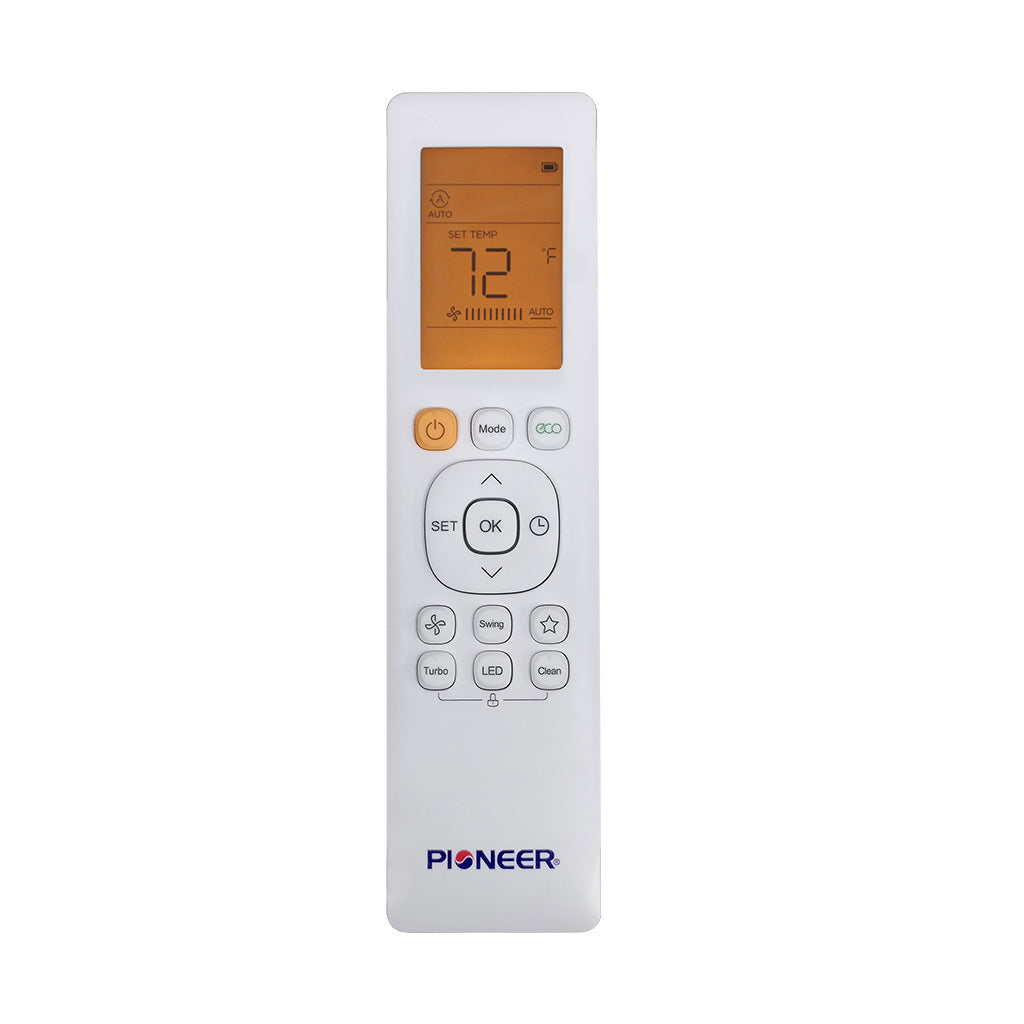

Pioneer mini-split remote control with LCD screen and button panel

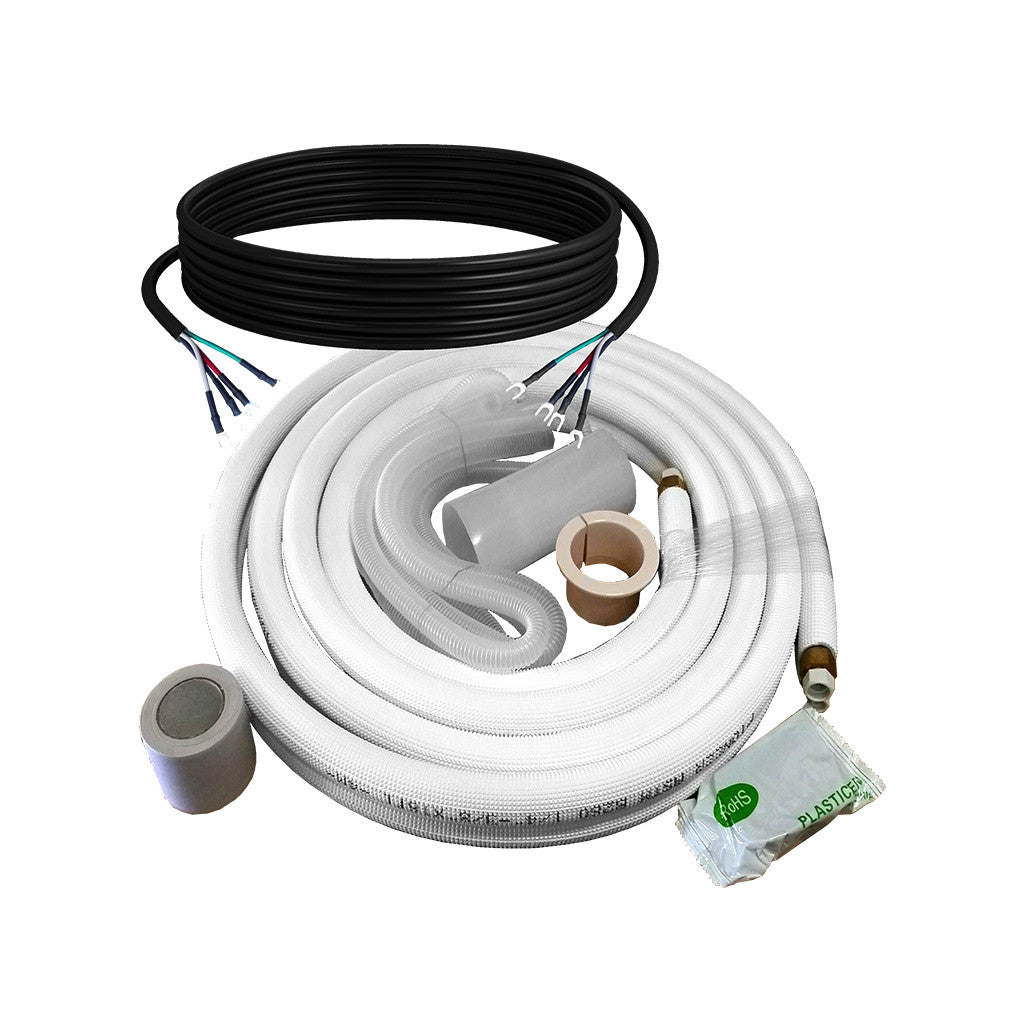

Pioneer mini-split installation kit hoses and wiring bundle with insulated connectors
Roll over image to zoom in Click on image to zoom
Pioneer 4-way ceiling cassette mini-split indoor unit with display and grillePioneer 4-way ceiling cassette mini-split indoor unit front view with louver patternPioneer mini-split outdoor condenser unit with fan and Pioneer logoPioneer mini-split remote control with LCD screen and button panelPioneer mini-split installation kit hoses and wiring bundle with insulated connectors
Click on image to zoom

Pioneer® Quantum Ultra™ 36,000 BTU 20 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump

PioneerSKU: CYB036GMSI20RL-10S
4 reviews
Price:
$3,858.00 $5,509.00SAVE 29%
Air Handler Type:
BTU:
In Stock
Estimated delivery: Nov 8th-15th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Pioneer® Quantum Ultra™ 36,000 BTU 4-Way Ceiling Cassette Mini-Split delivers powerful, whisper-quiet comfort for large spaces with 20 SEER2 cooling efficiency and 10.3 HSPF2 heating performance down to -13°F. Its variable-speed DC inverter and recessed ceiling-mounted design provide 360° dual-axis airflow through motorized up-down and left-right louvers, ensuring even temperature distribution across every corner of the room.

Factory-precharged with eco-friendly R454b refrigerant and packed with smart features—ECO, SLEEP, TURBO, Self-Clean, MEMORY, and Follow-Me temperature sensing—this 230V heat pump system combines premium efficiency, reliable year-round operation, and effortless convenience for residential and light commercial applications.

Summary

  • High Efficiency Quantum Ultra Four-Way Ceiling Recessed Cassette Split Heat Pump System
  • Cooling capacity: 36,000 BTU/H with 20.0 SEER2 / 9.6 EER2 efficiency
  • Heating capacity: 38,000 BTU/H with 10.3 HSPF2 / 3.31 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Four-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • FOLLOW ME, to Detect and Adjust to Local Temperature

    Dimension Chart

    32⅝ 32⅝ 9⅝ 37⅜ 37⅜ 2⅛ 37¼ 16¼ 31⅞ 2¼ ¾ 8½
    DIMENSIONS & WEIGHT
    Product Dimensions (WDH)
    32-5/8 x 32-5/8 x 9-5/8 Inches
    Carton Dimensions (WDH)
    35-7/8 x 35-7/8 x 11-3/8 Inches
    Net / Gross Weight
    59.3 / 71.5 lbs
    Net Dimensions (WDH)
    37-1/4 x 16-1/4 x 31-7/8 Inches
    GENERAL INFORMATION
    Power Supply
    208~230V, 60Hz, 1Ph
    Recommended Room Size
    1,000~1,400 sq ft
    Minimum Room Size
    103 sq ft
    Part Number
    CB036GMSILDFHG
    Air Flow (Turbo/Hi/Med/Lo/Mute)
    1,042 / 948 / 853 / 753 / 659 CFM
    Sound Level (Turbo/Hi/Med/Lo/Mute)
    54 / 52 / 47 / 40 / 36 dB(A)
    Sound Level
    63 dB(A)
    CAPACITY & PERFORMANCE
    Cooling Rated Capacity
    36,000 BTU/h
    Cooling Capacity Range
    6,400~39,800 BTU/h
    Cooling SEER2
    20.0 BTU/W.h
    Cooling EER2
    9.6 BTU/W.h
    Heating Rated Capacity
    38,000 BTU/h
    Heating Capacity Range
    14,400~42,200 BTU/h
    Heating HSPF2 (Region IV/V)
    10.3 / 7.9 BTU/W.h
    Heating C.O.P.2 (47°F/5°F)
    3.31 / 2.2 W/W
    ELECTRICAL REQUIREMENTS
    Breaker Needed
    35A (double-pole)
    REFRIGERANT & PIPING
    Refrigerant Type
    R454b
    Piping Diameter
    • 3/4" (Gas)
    • 3/8" (Liquid)
    SAFETY
    AHRI Reference
    218010991

    Pioneer Mini Split BTU Guide

    Drawn to scale — 1 square = 2 × 2 ft
    48K BTU
    36K BTU
    30K BTU
    24K BTU
    18K BTU
    12K BTU
    9K BTU
    9K BTU up to 350 sq ft · Bedroom, home office
    12K BTU up to 500 sq ft · Large bedroom, den
    18K BTU up to 750 sq ft · Living room, master suite
    24K BTU up to 1000 sq ft · Open living area
    30K BTU up to 1200 sq ft · Large open area
    36K BTU up to 1400 sq ft · Great room, small home
    48K BTU up to 1800 sq ft · Whole floor, large open space
    Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
