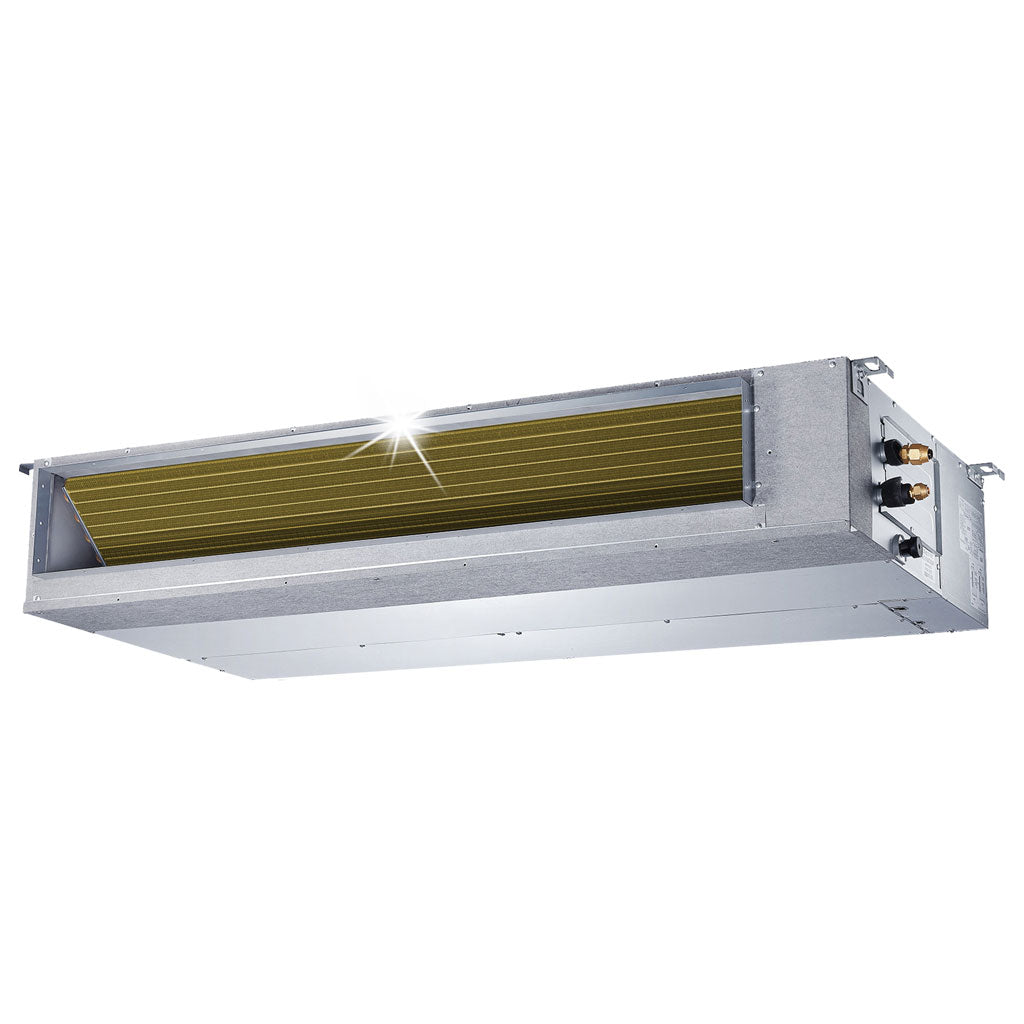

Slim-duct indoor air handler unit with side service ports, gray metal housing

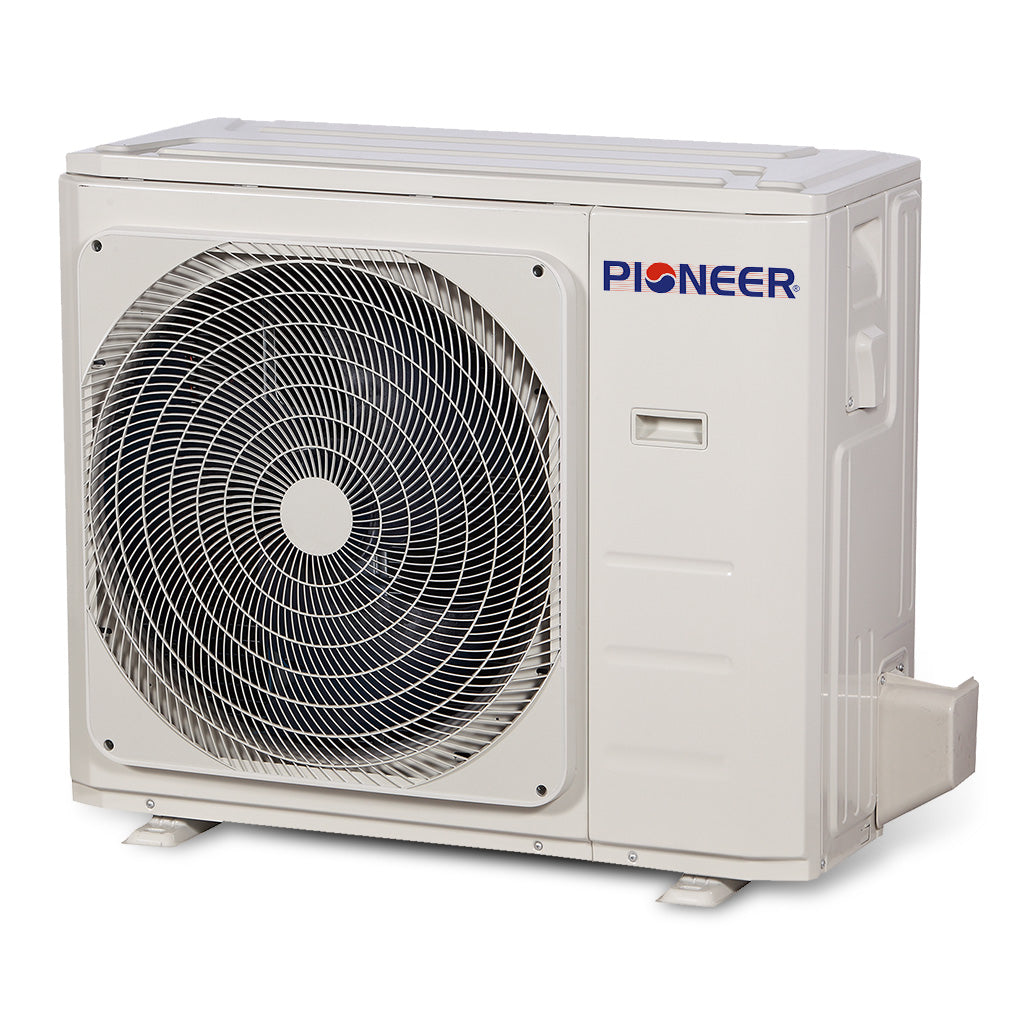

Pioneer outdoor air conditioner compressor unit with fan grille, white metal casing

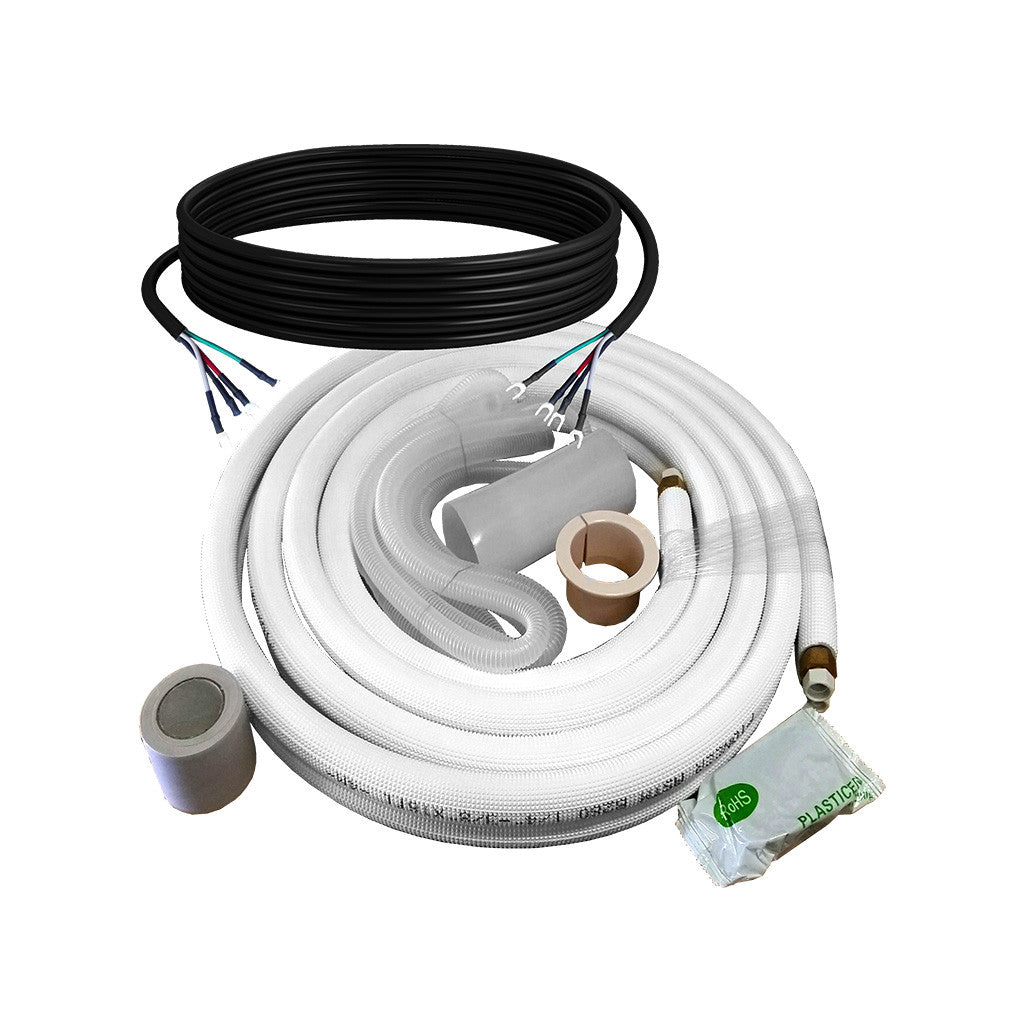

Refrigerant line set with insulated tubing and fittings, white hoses with black tubing

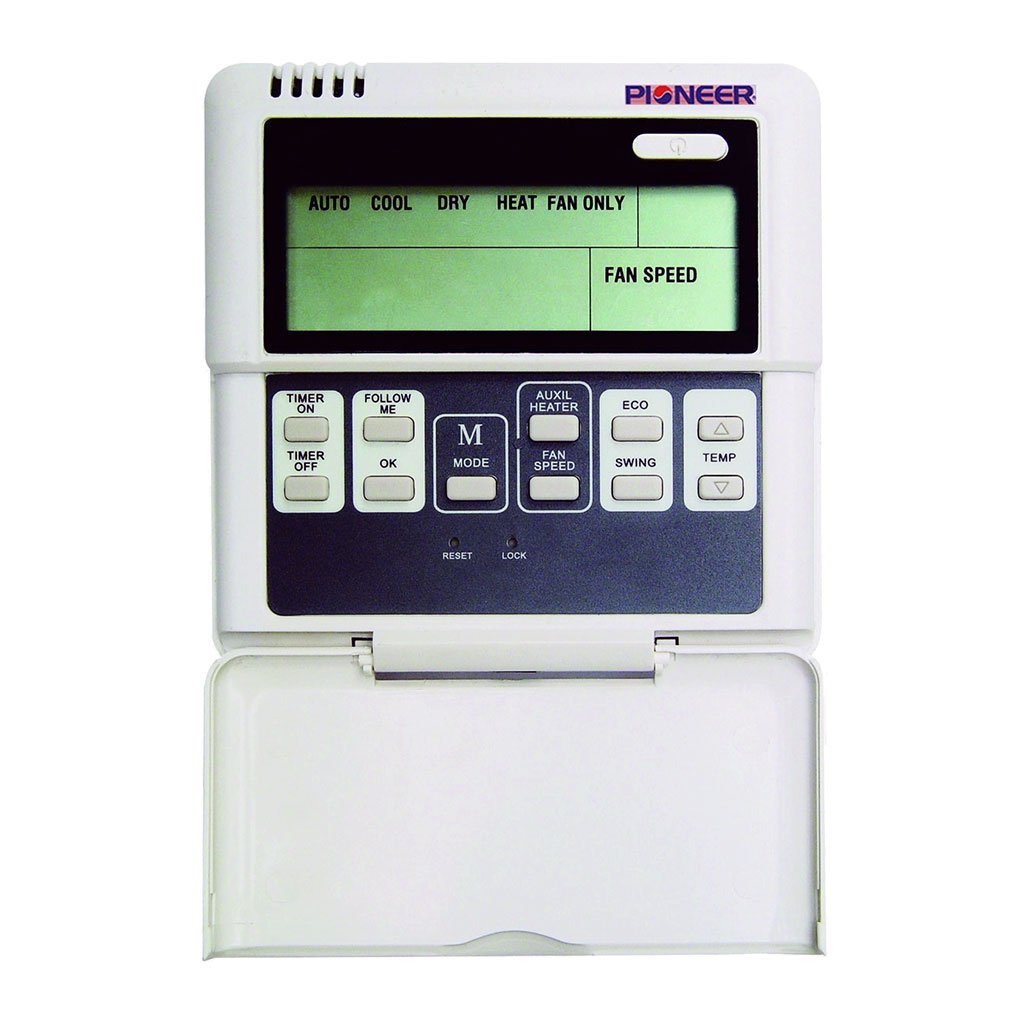

Pioneer slim-duct mini split wall controller with LCD screen and button panel
Roll over image to zoom in Click on image to zoom
Slim-duct indoor air handler unit with front grille and service connections, gray metalConcealed mini split system layout with indoor units and outdoor compressor, Pioneer-brandedSlim-duct indoor air handler unit with side service ports, gray metal housingPioneer outdoor air conditioner compressor unit with fan grille, white metal casingRefrigerant line set with insulated tubing and fittings, white hoses with black tubingPioneer slim-duct mini split wall controller with LCD screen and button panel
Click on image to zoom

Pioneer® Quantum Ultra™ 36,000 BTU 18.7 SEER2 230V Slim-Duct Ceiling Concealed Mini-Split Air Conditioner Inverter Heat Pump Full Set

PioneerSKU: RYB036GMSI20RL-10S
3 reviews
Price:
$3,833.00 $5,479.00SAVE 30%
Air Handler Type:
BTU:
In Stock
Estimated delivery: Sep 7th-14th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Pioneer Quantum Ultra 36,000 BTU Slim-Duct Ceiling Concealed Mini-Split delivers high-efficiency whole-home comfort for spaces up to 1,400 sq ft, hidden cleanly above the ceiling for a seamless architectural finish. Variable-speed DC inverter technology powers 36,000 BTU of cooling at 18.7 SEER2 and 40,000 BTU of heating at 10.2 HSPF2, performing reliably from -13°F to 131°F on a single 40A 208/230V circuit.

Factory-precharged with low-GWP R454b refrigerant, this heat pump features cooling, heating, dry, and ventilation modes, dual-drainage ports, washable filters, and dual-axis motorized airflow. The included remote unlocks ECO, SLEEP, TURBO, MEMORY, FOLLOW ME, Timer, and Self-Clean for intelligent year-round comfort.

Summary

  • High Efficiency Quantum Ultra Slim-Duct Ceiling Concealed Split Heat Pump System
  • Cooling capacity: 36,000 BTU/H with 18.7 SEER2 / 10.1 EER2 efficiency
  • Heating capacity: 40,000 BTU/H with 10.2 HSPF2 / 3.7 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Slim-Duct Ceiling Concealed Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • FOLLOW ME, to Detect and Adjust to Local Temperature

Dimension Chart

47¼ 29½ 11⅞ 37¼ 16¼ 31⅞ 2¼ ¾ 8½
DIMENSIONS & WEIGHT
Product Dimensions (WDH)
47-1/4 x 29-1/2 x 11-7/8 Inches
Carton Dimensions (WDH)
56-1/8 x 33-7/8 x 14-1/8 Inches
Net / Gross Weight
106.3 / 120.3 lbs
Net Dimensions (WDH)
37-1/4 x 16-1/4 x 31-7/8 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
1,000~1,400 sq ft
Minimum Room Size
104 sq ft
Part Number
RB036GMSILDFHG
Air Flow (Turbo/Hi/Med/Lo/Mute)
1,235 / 1,059 / 941 / 765 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
45 / 39.5 / 33 / 30 dB(A)
Sound Level
63 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
36,000 BTU/h
Cooling Capacity Range
7,900~42,500 BTU/h
Cooling SEER2
18.7 BTU/W.h
Cooling EER2
10.1 BTU/W.h
Heating Rated Capacity
40,000 BTU/h
Heating Capacity Range
8,100~43,500 BTU/h
Heating HSPF2 (Region IV/V)
10.2 / 7.8 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.7 / 2.1 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
40A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
  • 3/4" (Gas)
  • 3/8" (Liquid)
SAFETY
AHRI Reference
218010993
