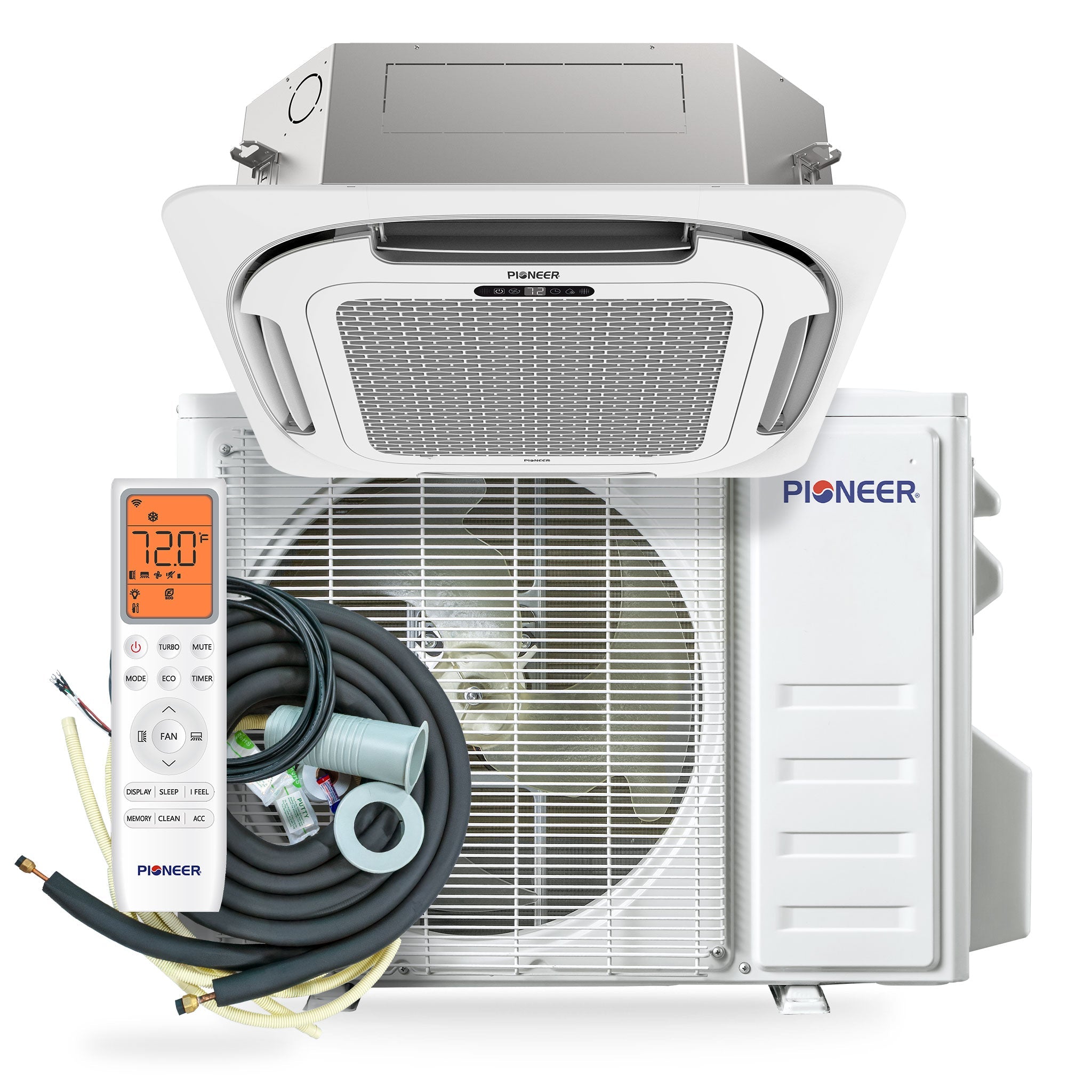

Ceiling cassette mini-split AC set with remote and coiled refrigerant lines

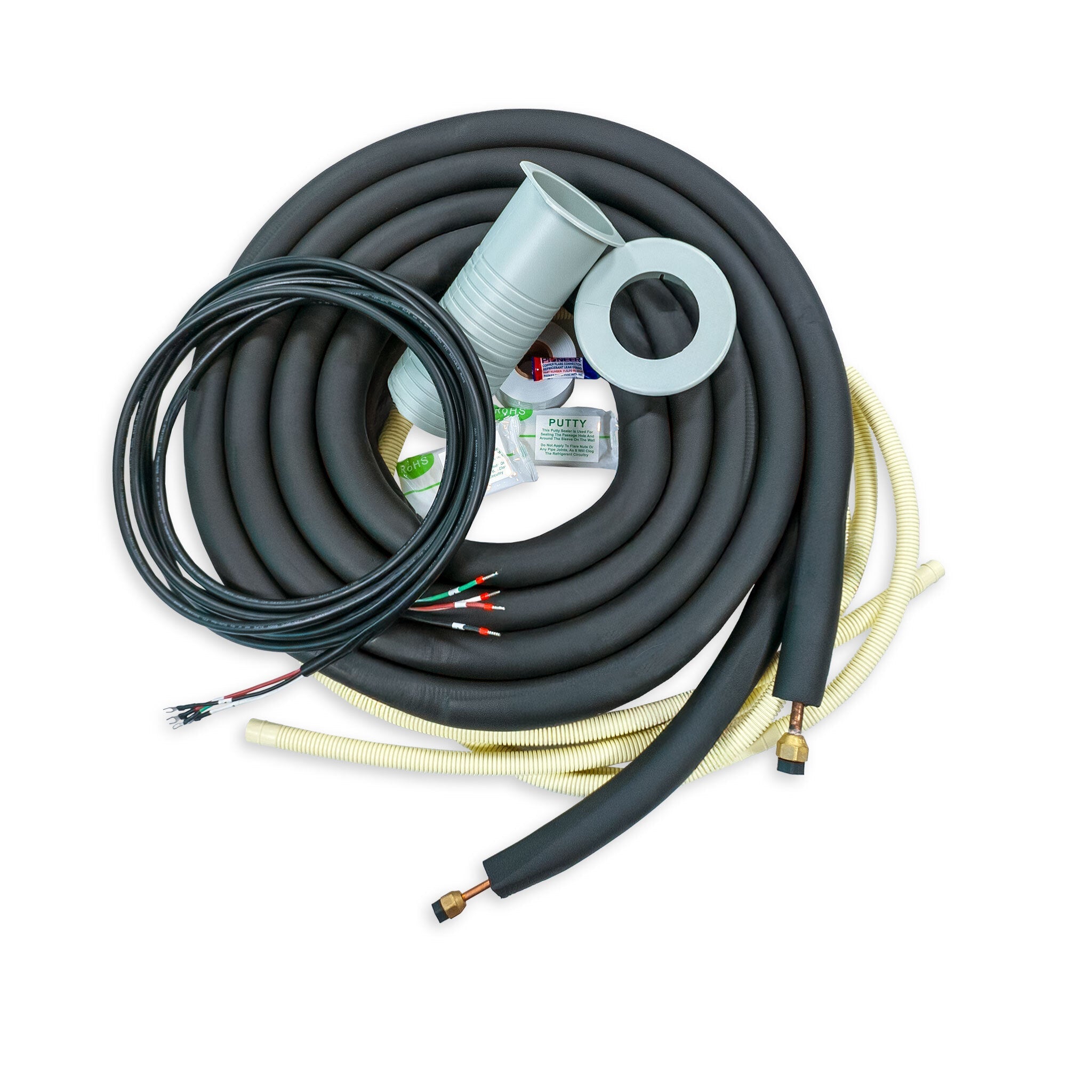

Refrigerant lineset installation kit with fittings and coiled cables

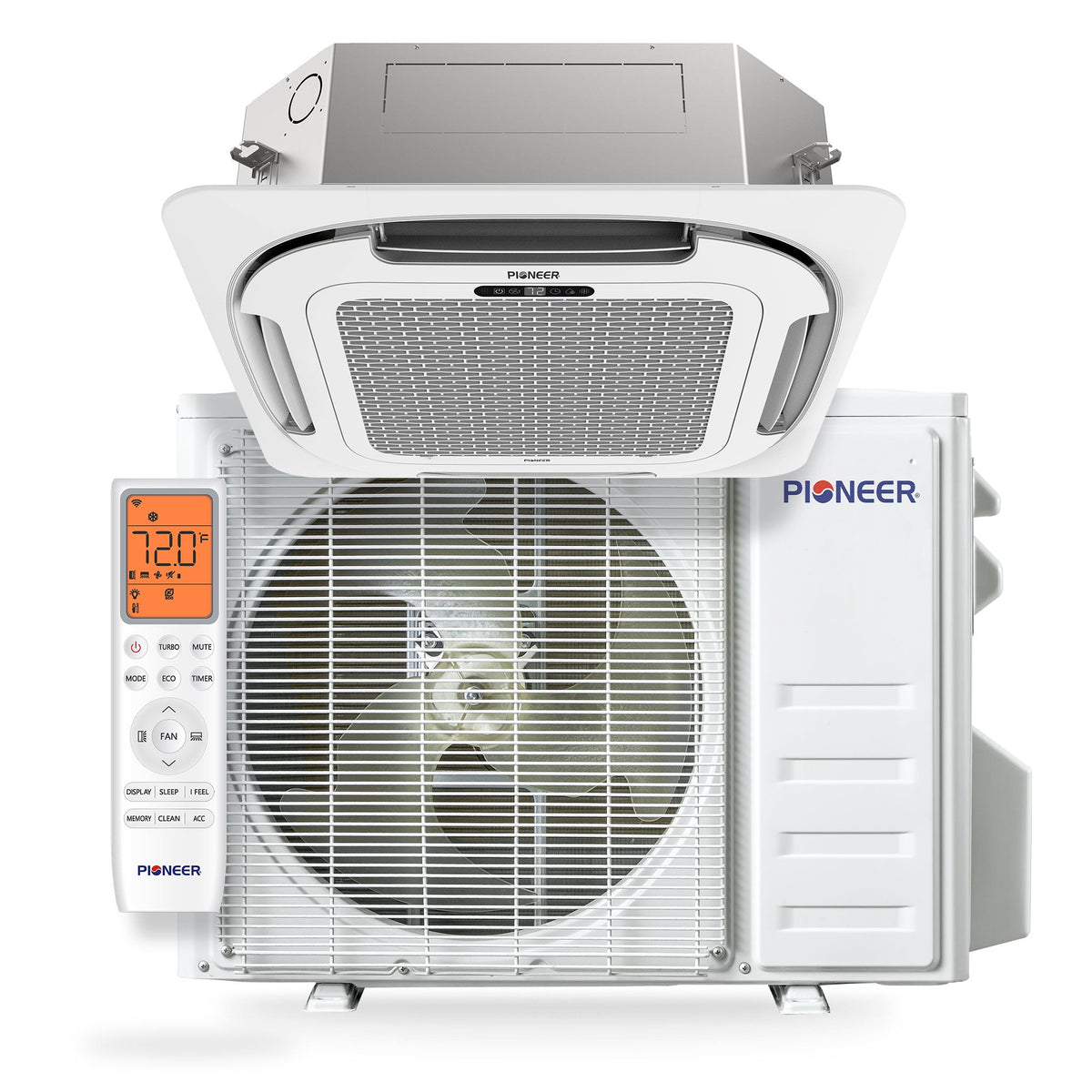

Ceiling cassette mini-split AC set with indoor cassette and outdoor condenser

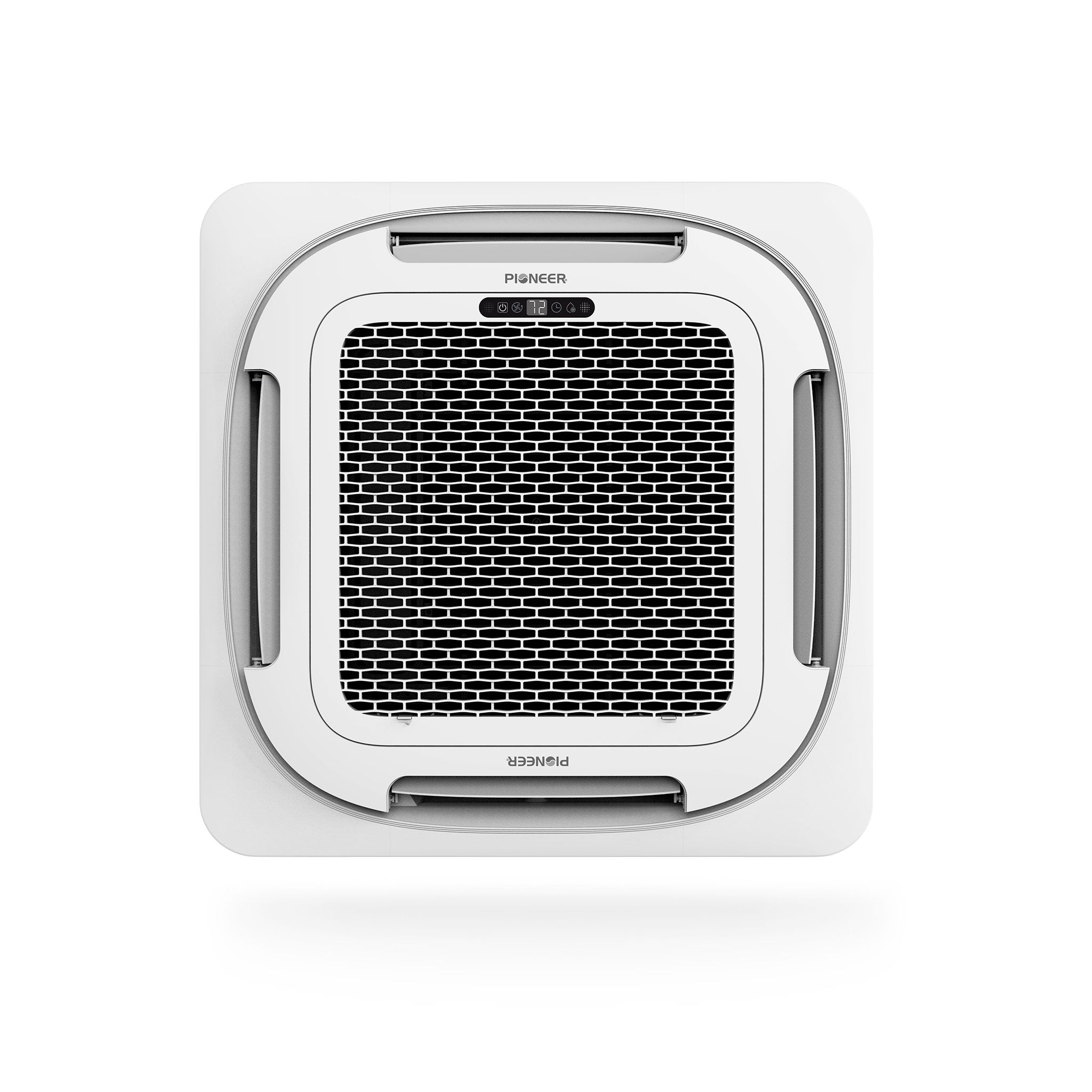

White ceiling cassette mini-split indoor unit air intake grille

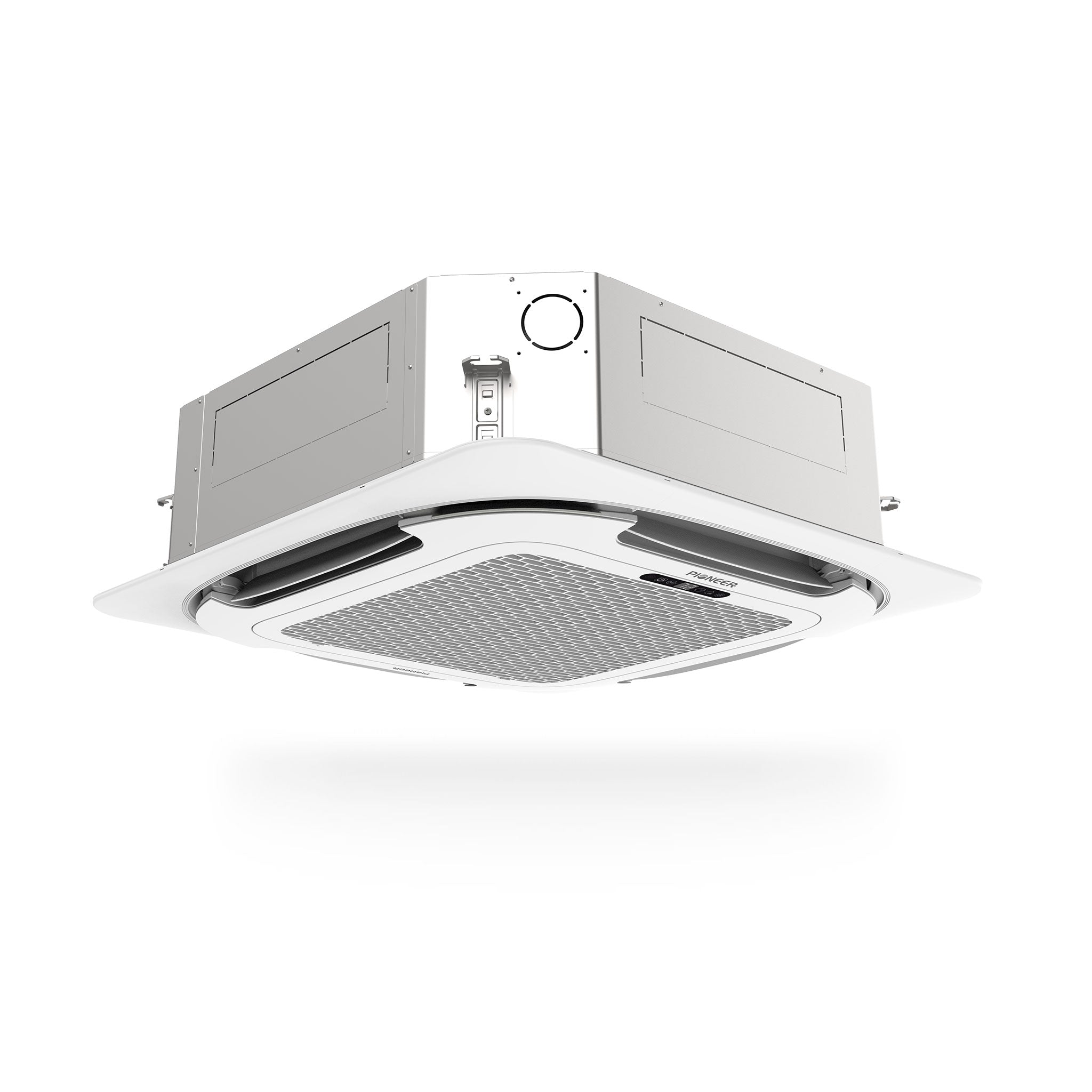

Ceiling cassette mini-split indoor unit with vented front panel

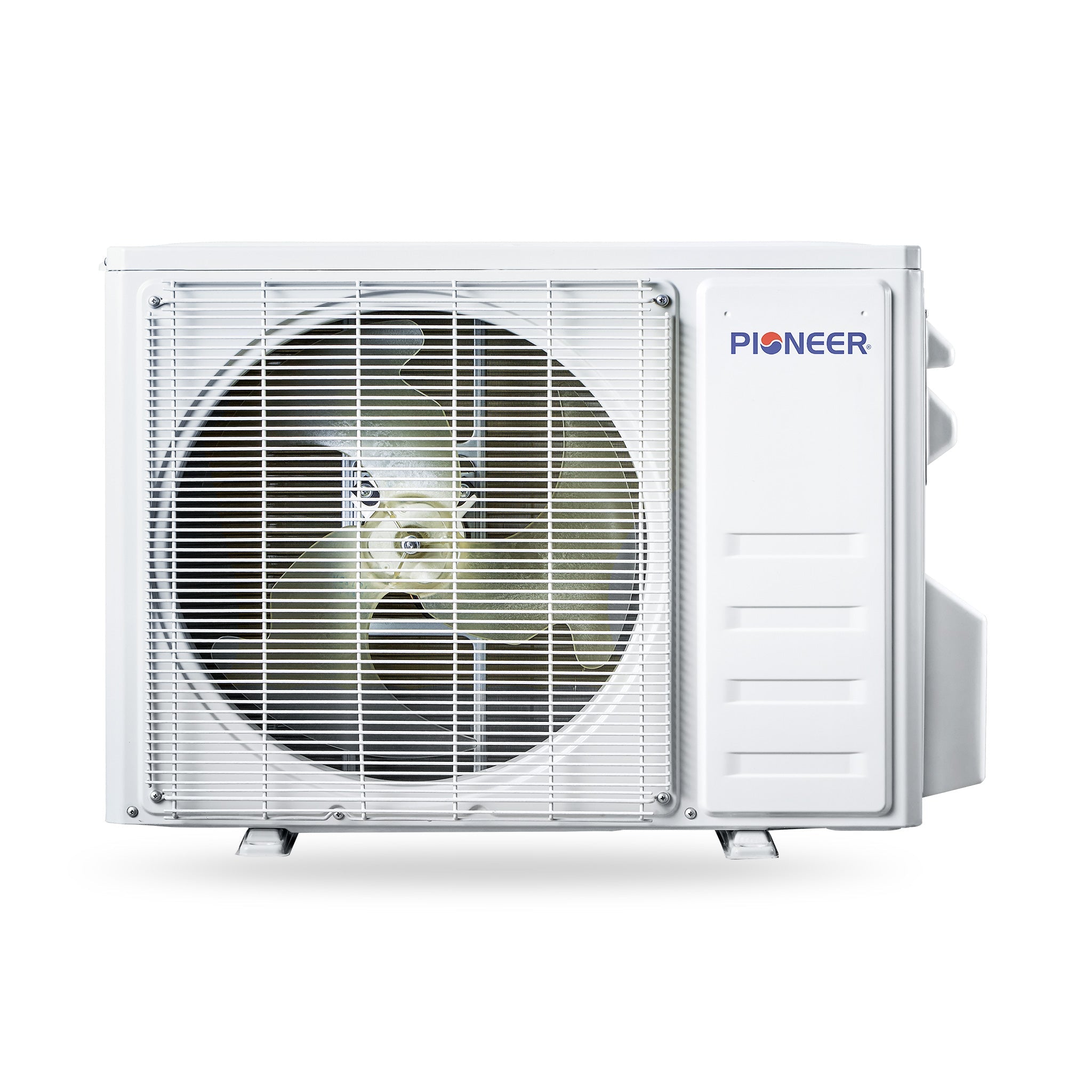

Outdoor mini-split condenser with fan grille and side service panel
White Pioneer mini-split remote control with orange LCD display
Roll over image to zoom in Click on image to zoom
Ceiling cassette mini-split AC set with remote, indoor cassette, and linesetWhite refrigerant lineset with insulation, wiring bundle, and end connectorsCeiling cassette mini-split AC set with remote and coiled refrigerant linesRefrigerant lineset installation kit with fittings and coiled cablesCeiling cassette mini-split AC set with indoor cassette and outdoor condenserWhite ceiling cassette mini-split indoor unit air intake grilleCeiling cassette mini-split indoor unit with vented front panelOutdoor mini-split condenser with fan grille and side service panelWhite Pioneer mini-split remote control with orange LCD display
Click on image to zoom

Pioneer® Quantum Ultra™ 24,000 BTU 22.5 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set (CYT024GLSI24RL)

PioneerSKU: CYT024GLSI24RL-10S
3 reviews
Price:
$2,286.00 $3,129.00SAVE 26%
Air Handler Type:
BTU:
Out of Stock
Estimated restock: Restock Estimate 2-6 Weeks
Free Curbside Delivery — carrier calls to schedule
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
  • Cooling capacity: 23,000 BTU/H with 22.5 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 25,000 BTU/H with 10.4 HSPF2 / 3.6 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Ultra™ Ceiling Cassette

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Indoor Panel
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Product Dimensions (WDH)
33"-1/8 x 33"-3/4 x 10"-3/4 Inches
Carton Dimensions (WDH)
36"-7/8 x 36"-7/8 x 11"-1/2 Inches
Net / Gross Weight
51.8 / 59.5 lbs
Net Dimensions (WDH)
38"-1/2 x 16"-5/8 x 31"-5/8 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Suitable Area
750~1,000 Sq.F
Part Number
CT024GLSILSFHG
Air Flow (Turbo/Hi/Med/Lo/Mute)
735/676/529/423/394 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
50/47/43/38/34 dB(A)
Sound Level
54 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
23,000 BTU/h
Cooling Capacity Range
7,550~25,200 BTU/h
Cooling SEER2
22.5 BTU/W.h
Cooling EER2
11.7 BTU/W.h
Heating Rated Capacity
25,000 BTU/h
Heating Capacity Range
8,700~28,300 BTU/h
Heating HSPF2 (Region IV)
10.4 / 8.4 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.6 / 2.0 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
20A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
SAFETY
AHRI Reference
217048761
Shipping
  • Free Shipping on all orders.
  • Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
  • Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
Full shipping policy
Returns
  • 30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
  • Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
  • Restocking Fee: A restocking fee may apply and varies by brand.
Full returns policy
Authorized Pioneer Dealer
Full manufacturer warranty on every Pioneer product we sell.
Explore Pioneer

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
L
Lascelles B. (Spring, TX)
It is a good unit i like it.

Working good for me i like it.

S
Steve (Davie, FL)
Happy

Happy so far, the system was easy to install and start up and settings were straight forward to navigate.
Cools great on the lowest settings and very quite.

W
William W. (Deltaville, VA)
Split System

I really like the system easy to use and perfect for our needs but one thing i have noticed there needs to be a startup sheet in with the instructions todays contractors do not seem to understand the concept of them when I was in the trade we did them on every system we installed now I am trying to get one from them so I can register the unit before time runs out
