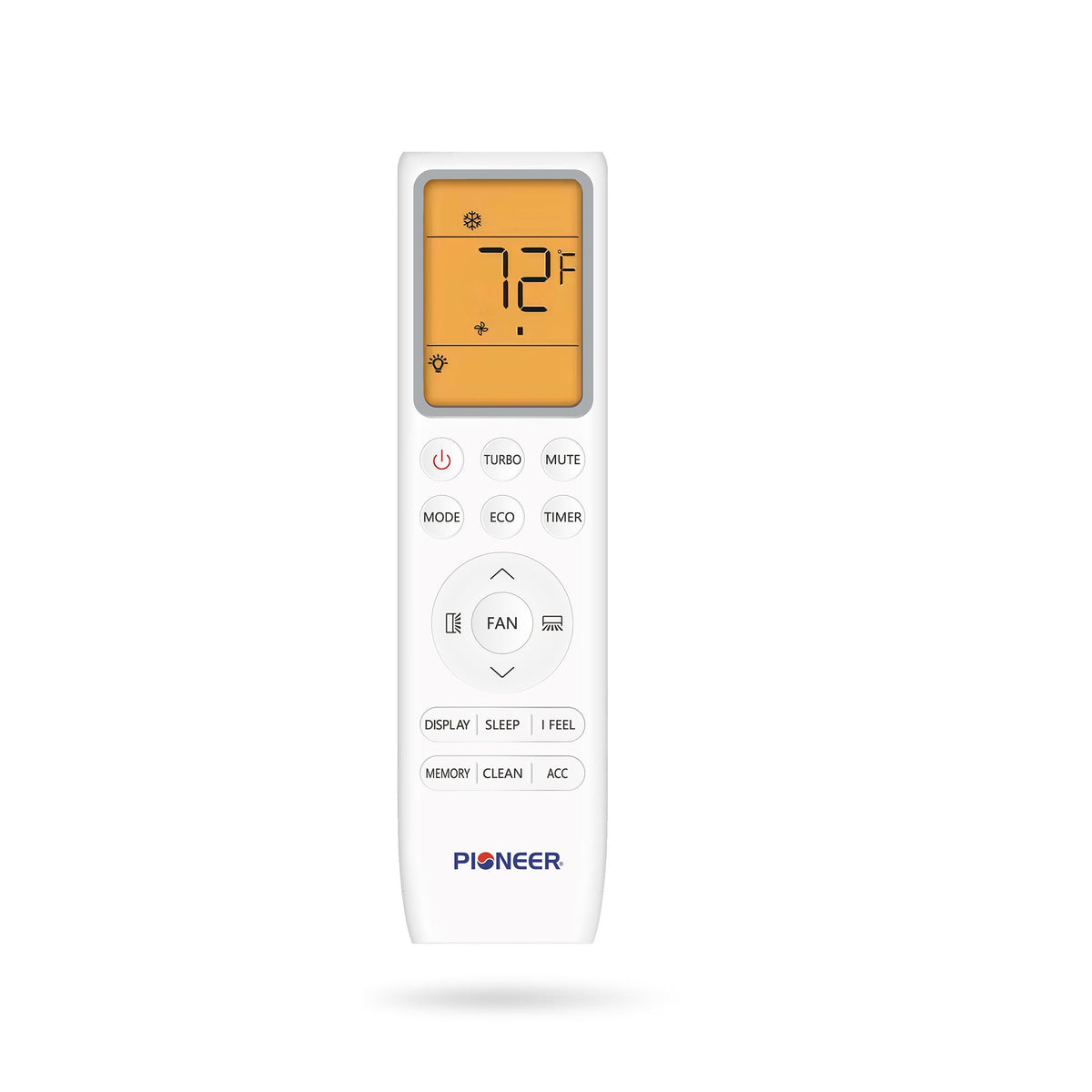

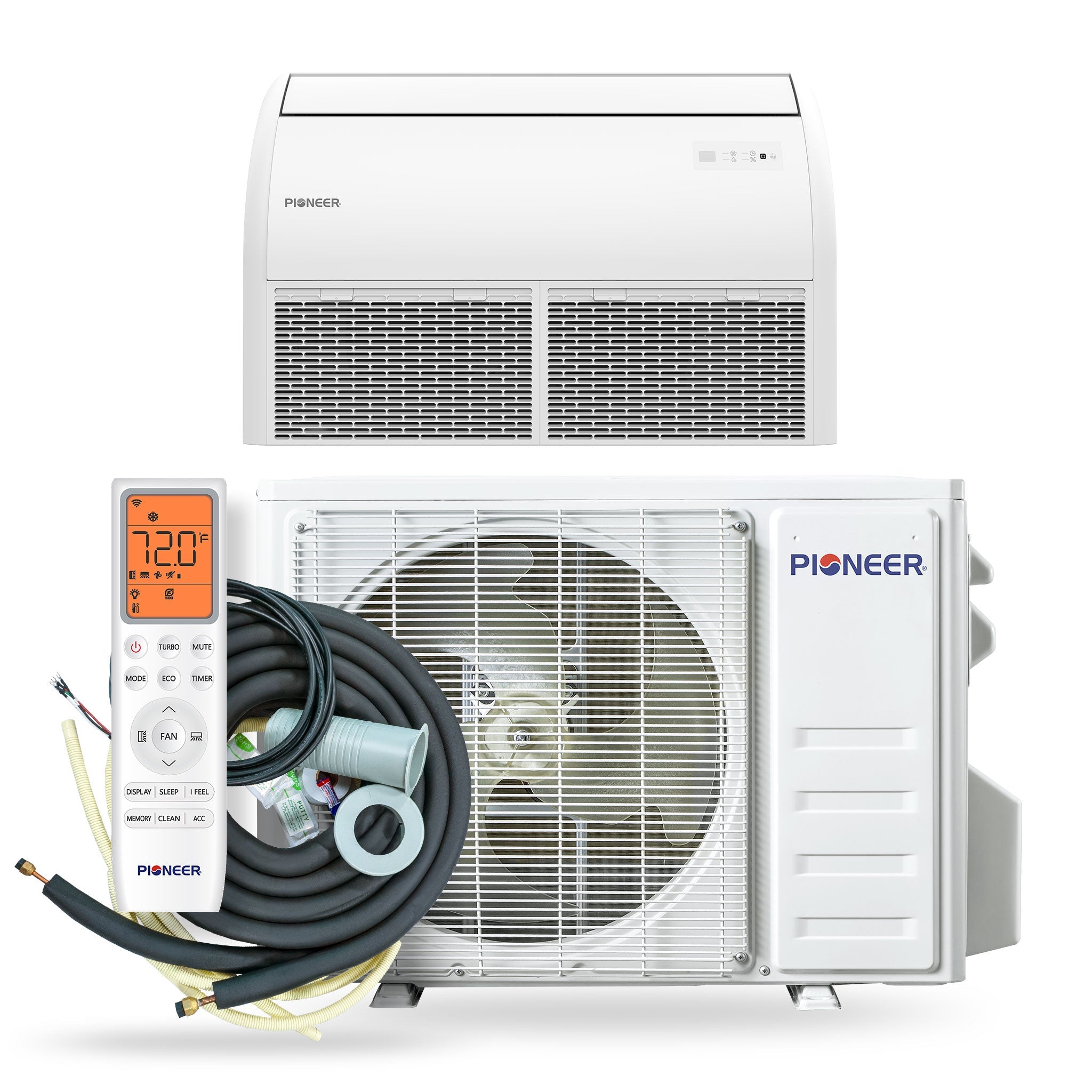

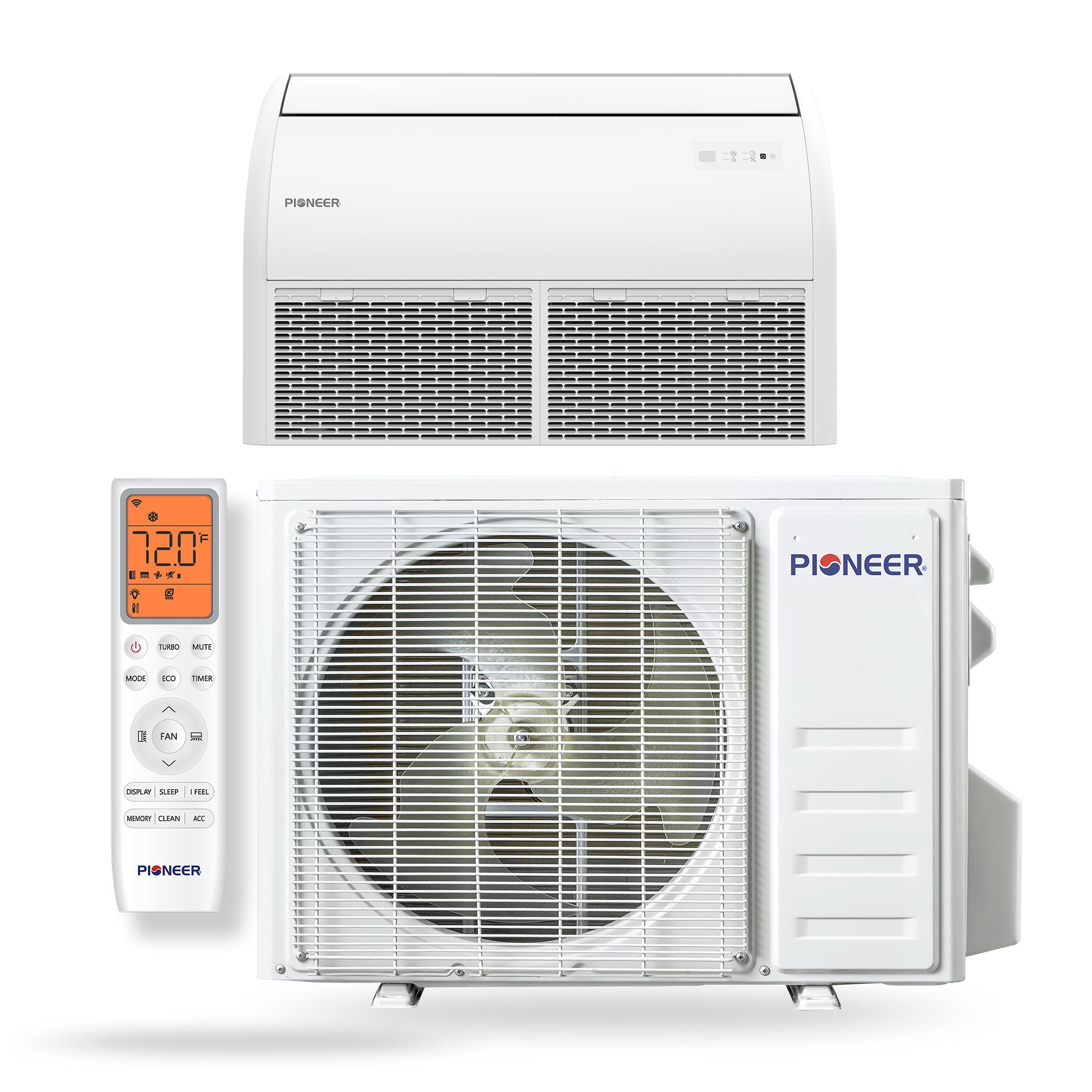

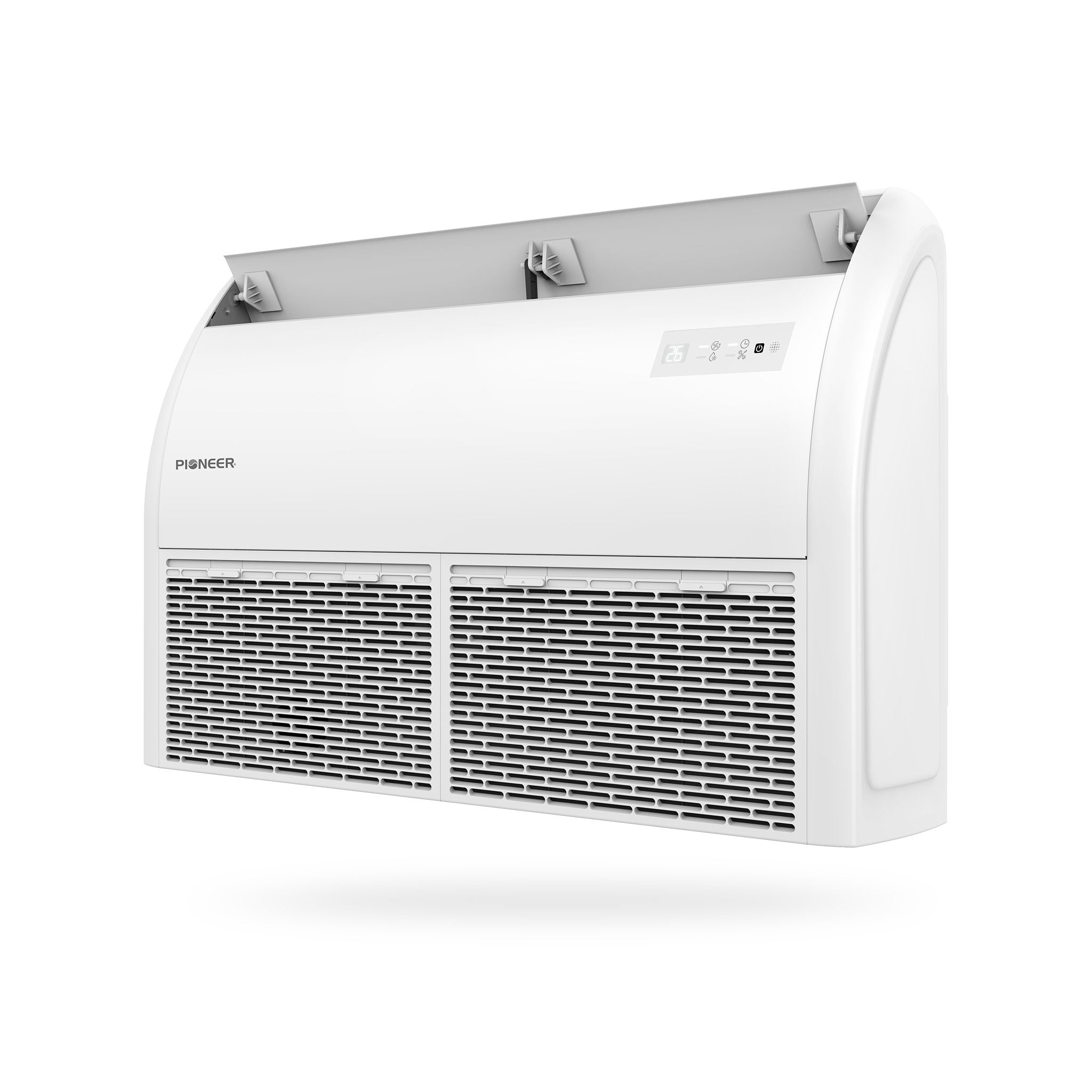

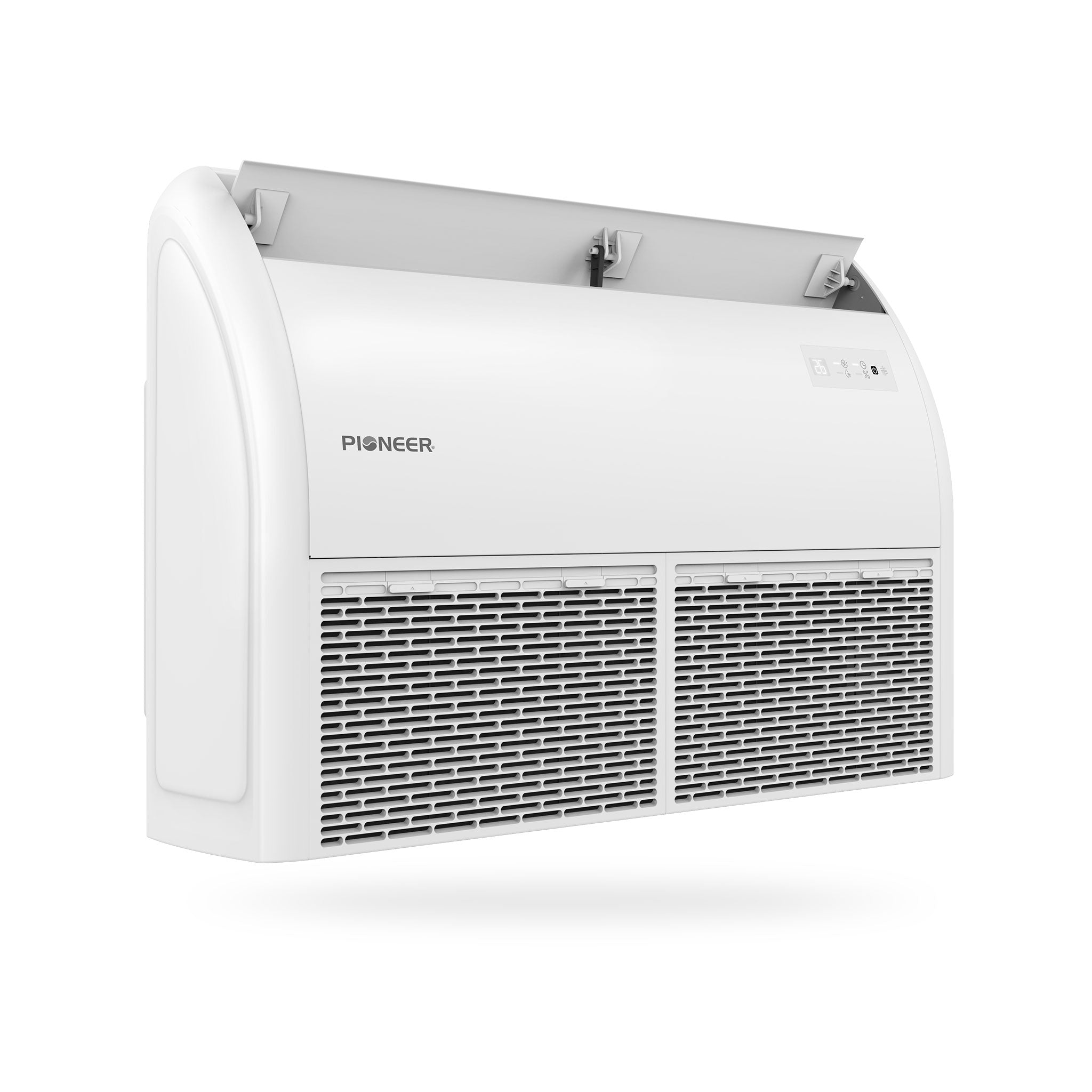

Our flexible floor-ceiling mini split systems are ideal for both homes and commercial spaces. Smaller units can be floor-mounted or installed low on walls, while larger ones support ceiling suspension. Each system features automatic capacity control, air-sweeping louvers, multiple comfort modes, remote control, and fresh air intake, offering versatile, efficient climate control in any setting.

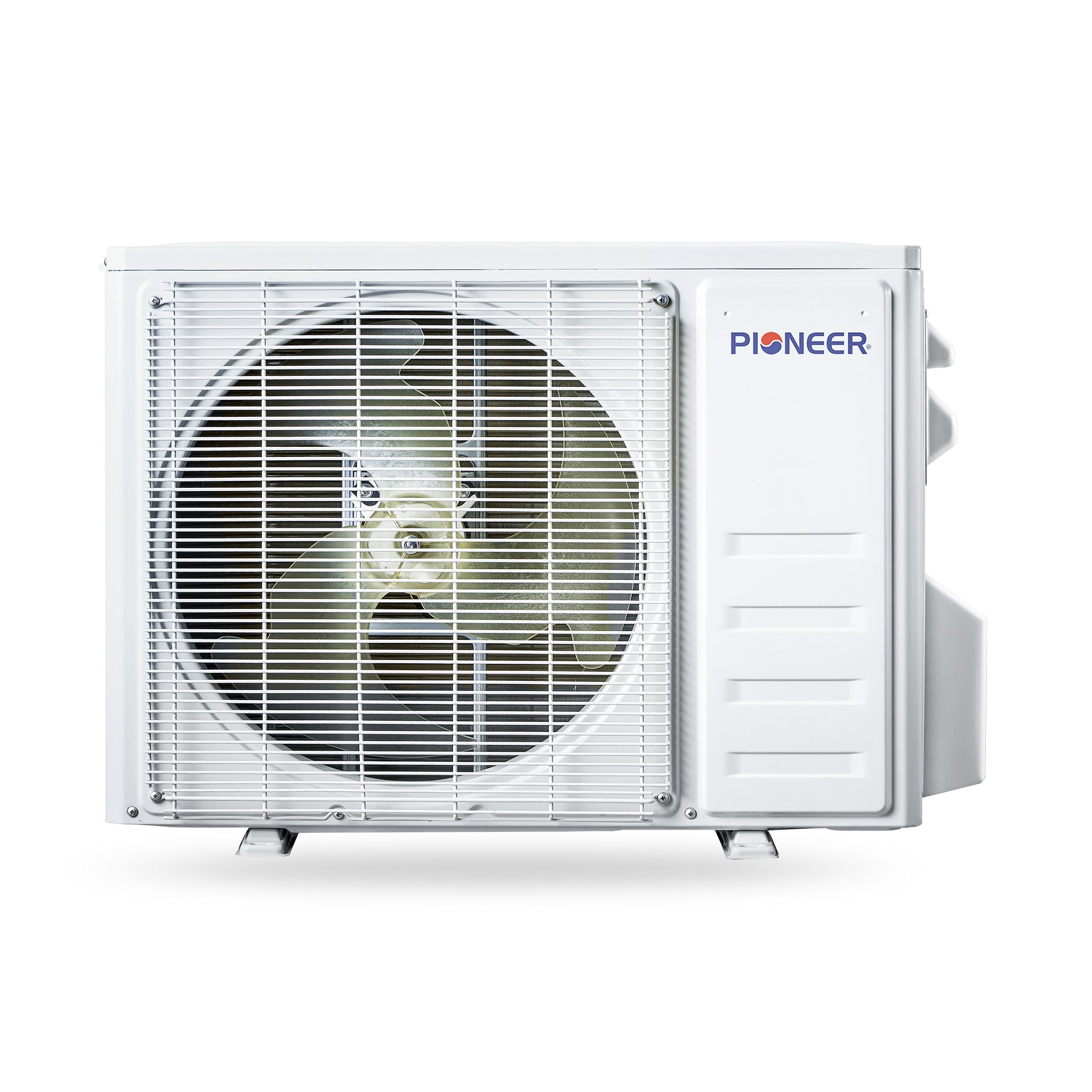

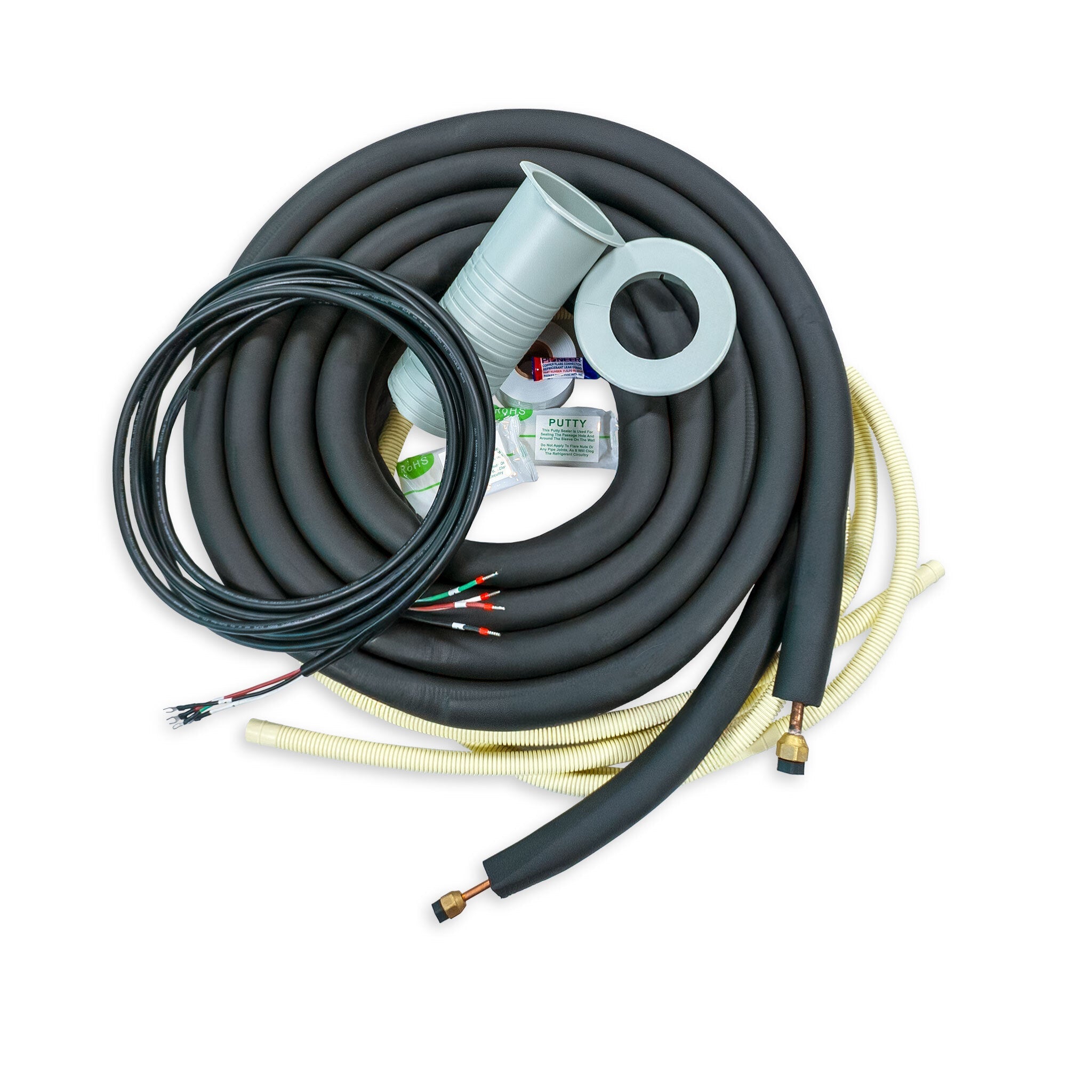

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
| DIMENSIONS & WEIGHT | |
|---|---|
| Product Dimensions (WDH) | 41"-1/2 x 26"-1/2 x 9"-1/4 Inches |
| Carton Dimensions (WDH) | 44"-1/2 x 26"-1/2 x 12" Inches |
| Net / Gross Weight | 57.3 / 68.3 lbs. |
| Net Dimensions (WDH) | 38"-1/2 x 16"-5/8 x 31"-5/8 Inches |
| GENERAL INFORMATION | |
| Power Supply | 208~230V, 60Hz, 1Ph |
| Suitable Area | 750~1,000 Sq.F |
| Part Number | UT024GLSILSFHG |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 647/588/517/470/412 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute) | 53/52/48/44/40 dB(A) |
| Sound Level | 54 dB(A) |
| CAPACITY & PERFORMANCE | |
| Cooling Rated Capacity | 22,200 BTU/h |
| Cooling Capacity Range | 6,010~24,610 BTU/h |
| Cooling SEER2 | 20.0 BTU/W.h |
| Cooling EER2 | 11.7 BTU/W.h |
| Heating Rated Capacity | 24,400 BTU/h |
| Heating Capacity Range | 4,750~28,640 BTU/h |
| Heating HSPF2 (Region IV) | 9.5 / 8.5 BTU/W.h |
| Heating C.O.P.2 (47°F/5°F) | 3.0 / 2.0 W/W |
| ELECTRICAL REQUIREMENTS | |
| Breaker Needed | 20A (double-pole) |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R454b |
| SAFETY | |
| AHRI Reference | 217048767 |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
