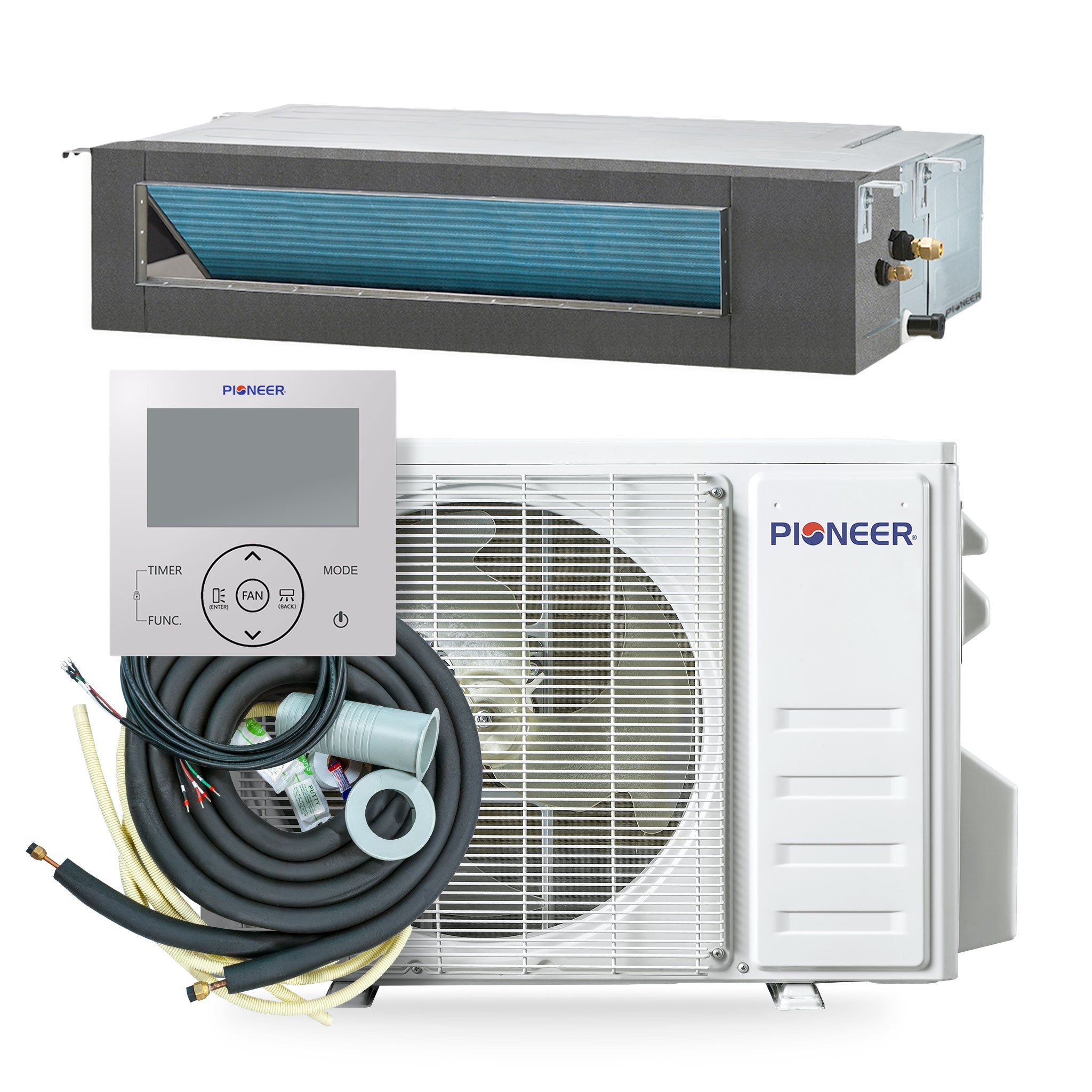

Ceiling concealed ducted mini-split heat pump set with exposed wiring and outdoor condenser

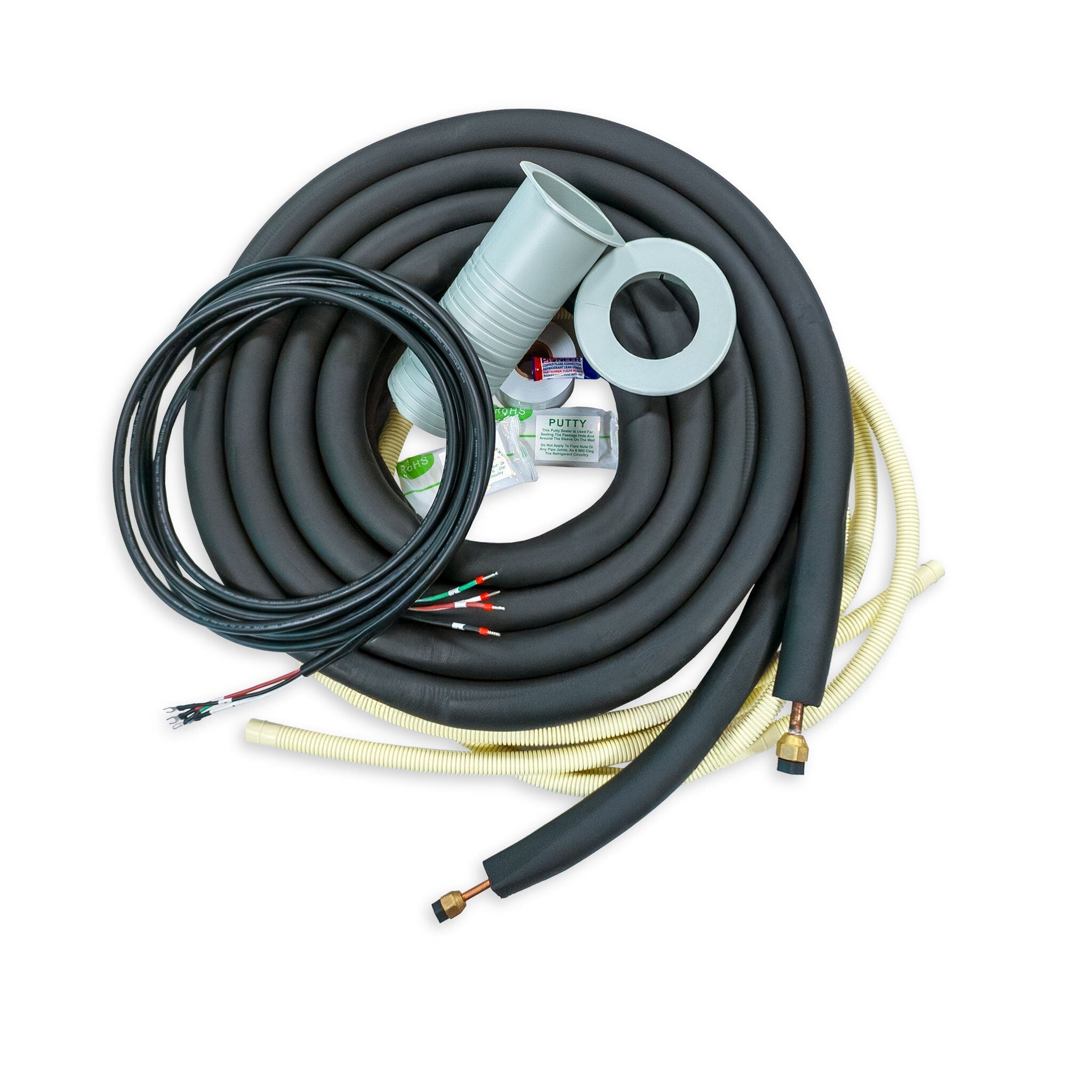

Insulated refrigerant line set with bundled black tubing, wiring, and fittings

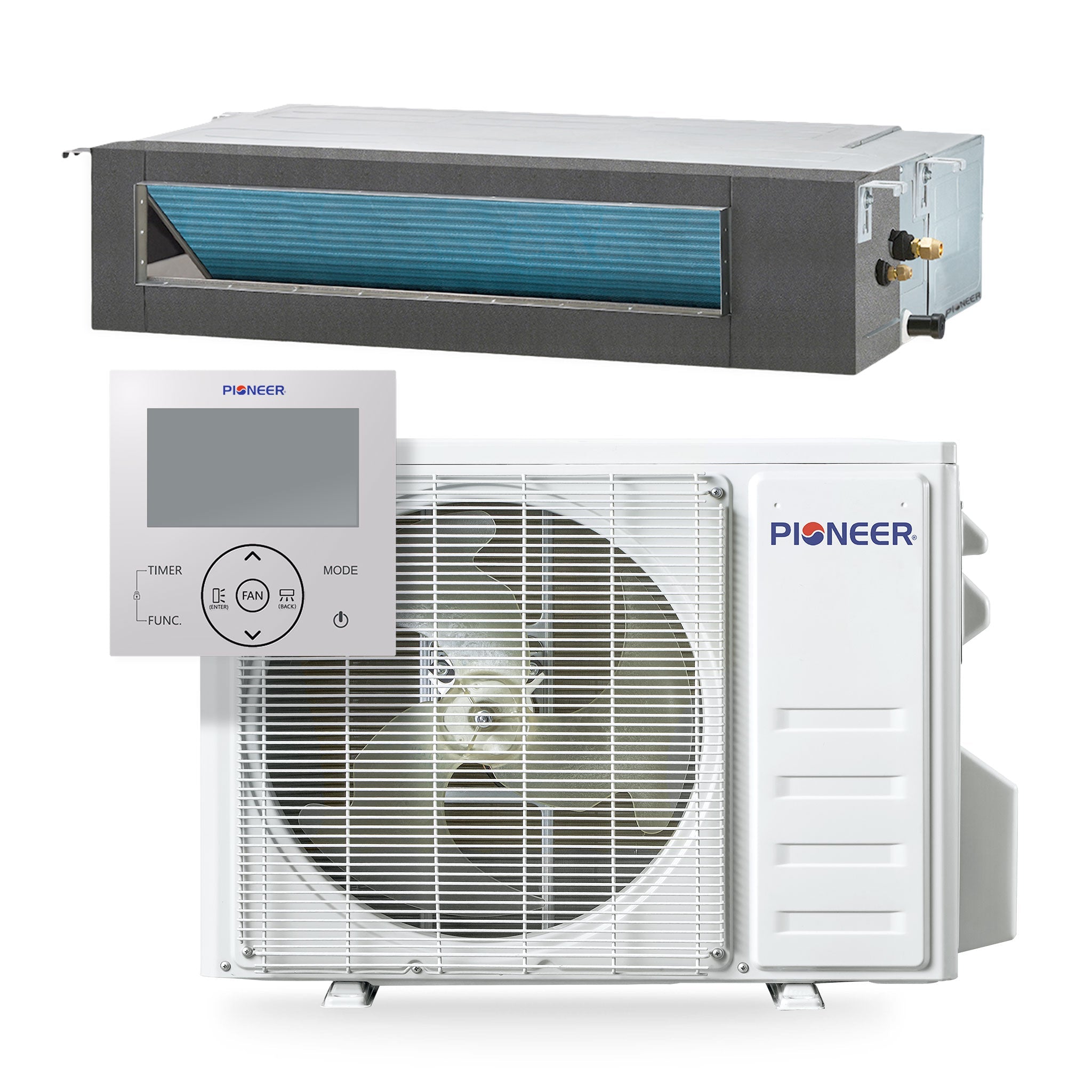

Ceiling concealed ducted mini-split air conditioner set with indoor grille and remote

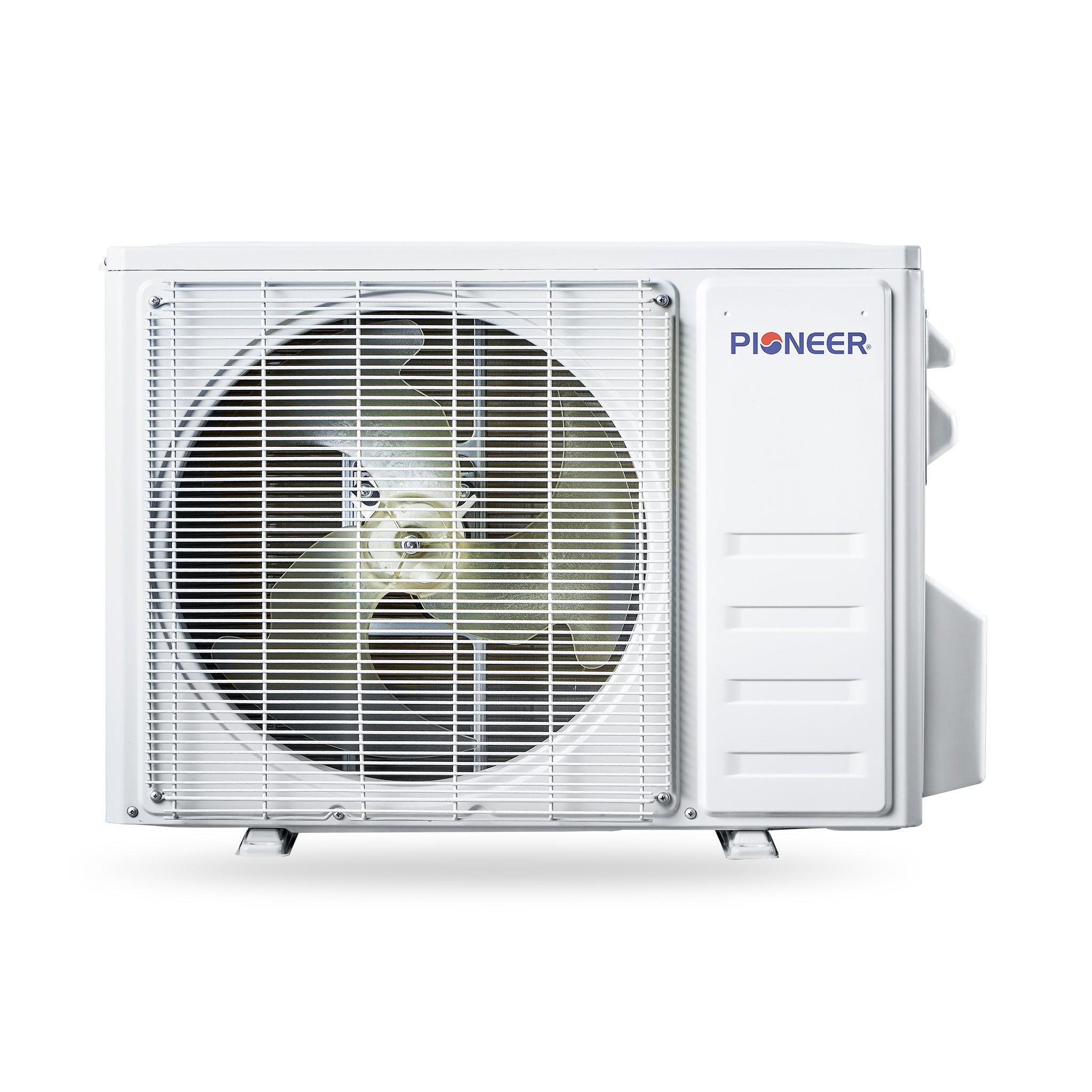

Outdoor condenser unit of ceiling concealed ducted mini-split heat pump with fan grille

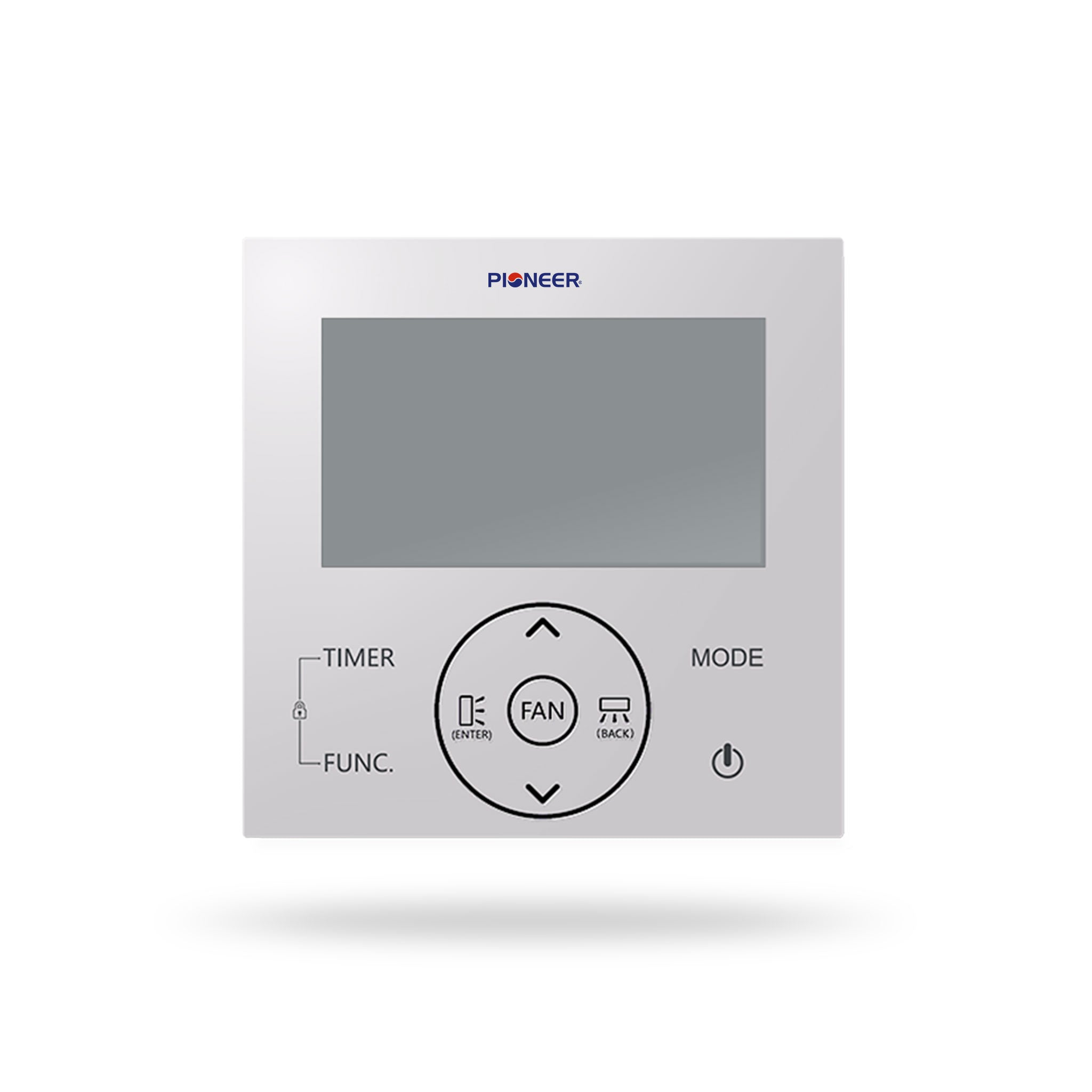

Mini-split remote control with LCD screen, mode, fan, and timer controls
Roll over image to zoom in Click on image to zoom
Ceiling concealed ducted mini-split air conditioner set with remote and outdoor condenserRefrigerant line set with insulated white tubing, wiring bundle, and small accessoriesCeiling concealed ducted mini-split heat pump set with exposed wiring and outdoor condenserInsulated refrigerant line set with bundled black tubing, wiring, and fittingsCeiling concealed ducted mini-split air conditioner set with indoor grille and remoteOutdoor condenser unit of ceiling concealed ducted mini-split heat pump with fan grilleMini-split remote control with LCD screen, mode, fan, and timer controls
Click on image to zoom

Pioneer® Quantum Ultra™ 24,000 BTU 19 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set (RYT024GLSI24RL)

PioneerSKU: RYT024GLSI24RL-10S
3 reviews
Price:
$2,236.00 $3,049.00SAVE 26%
Air Handler Type:
BTU:
In Stock
Estimated delivery: Sep 9th-16th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
  • Cooling capacity: 22,000 BTU/H with 19 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 25,000 BTU/H with 9.5 HSPF2 / 3.2 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Ultra™ Ceiling Concealed

Pioneer® concealed duct mini split systems provide hidden heating and cooling for multiple rooms through a single ducted unit. Ideal for separated zones like master suites, one system can condition sub-areas with uniform comfort. Available in six capacities, including ceiling-concealed and slim duct models, these systems suit zones of all sizes.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Wire Remote Control
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
    Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Product Dimensions (WDH)
43"-1/4 x 17"-3/4 x 7"-7/8 Inches
Carton Dimensions (WDH)
50"-3/4 x 22"-1/4 x 9"-7/8 Inches
Net / Gross Weight
50.7 / 58.4 lbs.
Net Dimensions (WDH)
38"-1/2 x 16"-5/8 x 31"-5/8 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Suitable Area
750~1,000 Sq.F
Part Number
RT024GLSILSFHG
Air Flow (Turbo/Hi/Med/Lo/Mute)
741/623/558/529/470 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
41/38/34 dB(A)
Sound Level
54 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
22,000 BTU/h
Cooling Capacity Range
7,550~24,600 BTU/h
Cooling SEER2
19.0 BTU/W.h
Cooling EER2
11.7 BTU/W.h
Heating Rated Capacity
25,000 BTU/h
Heating Capacity Range
8,700~28,500 BTU/h
Heating HSPF2 (Region IV)
9.5 / 8.5 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.2 / 2.0 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
20A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
SAFETY
AHRI Reference
217048765
Shipping
  • Free Shipping on all orders.
  • Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
  • Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
Full shipping policy
Returns
  • 30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
  • Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
  • Restocking Fee: A restocking fee may apply and varies by brand.
Full returns policy
Authorized Pioneer Dealer
Full manufacturer warranty on every Pioneer product we sell.
Explore Pioneer

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
L
Lascelles B. (Spring, TX)
It is a good unit i like it.

Working good for me i like it.

S
Steve (Davie, FL)
Happy

Happy so far, the system was easy to install and start up and settings were straight forward to navigate.
Cools great on the lowest settings and very quite.

W
William W. (Deltaville, VA)
Split System

I really like the system easy to use and perfect for our needs but one thing i have noticed there needs to be a startup sheet in with the instructions todays contractors do not seem to understand the concept of them when I was in the trade we did them on every system we installed now I am trying to get one from them so I can register the unit before time runs out
