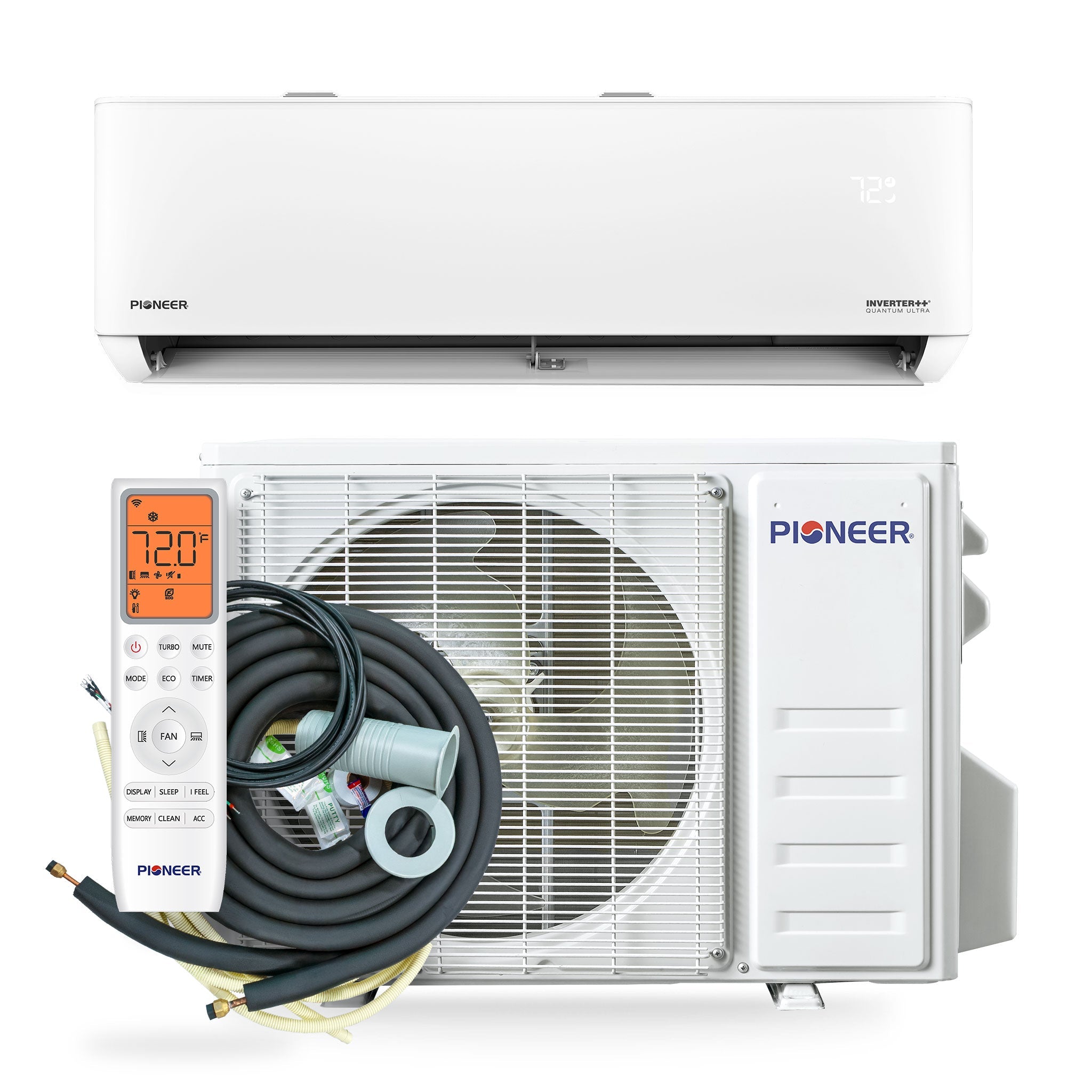

Ductless mini-split air conditioner full set with indoor and outdoor units plus bundled lineset

Outdoor condenser unit for ductless mini-split air conditioner, shown in winter conditions

Ductless mini-split lineset bundle with black tubing, insulated wire, and connectors

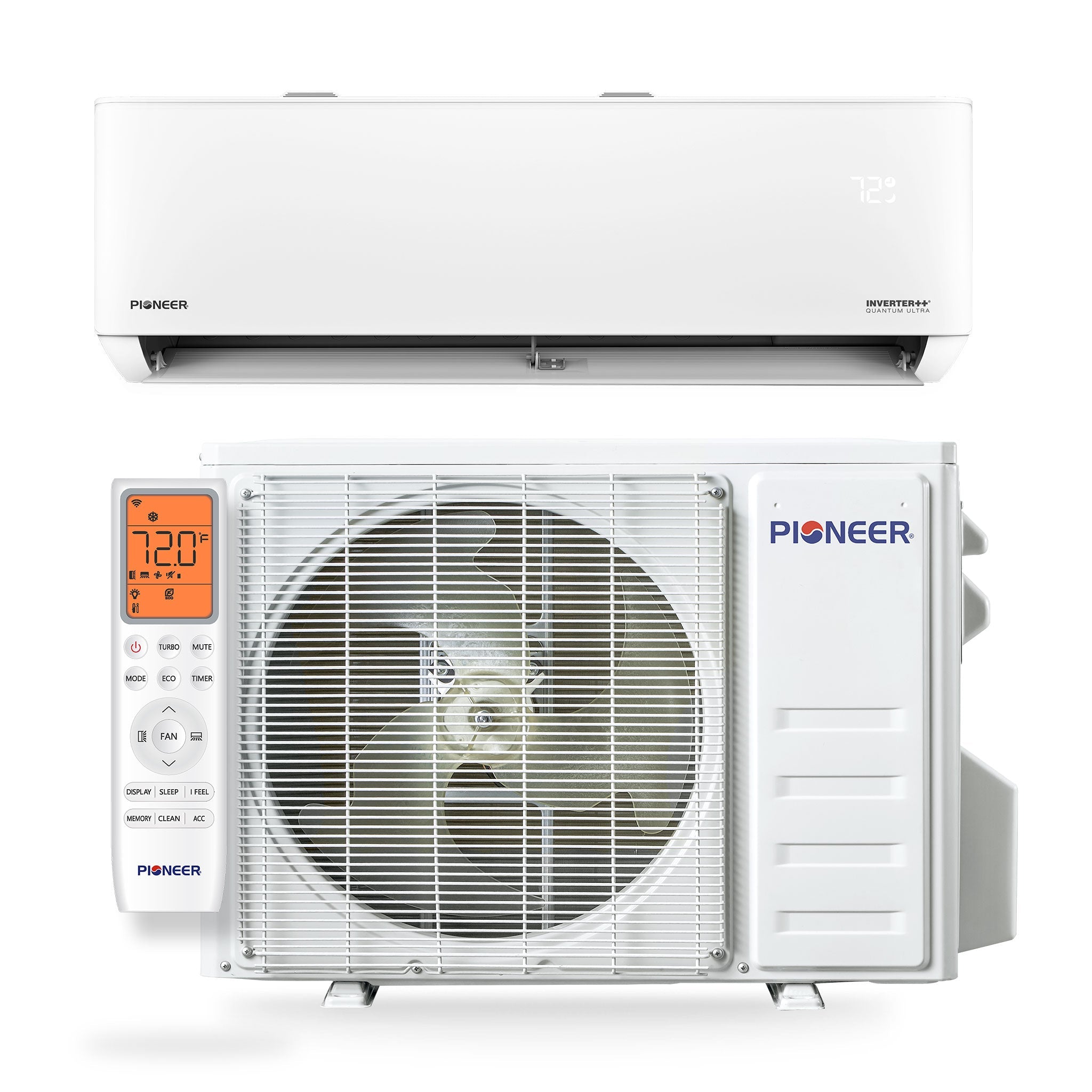

Ductless mini-split air conditioner full set with indoor unit, outdoor unit, and remote

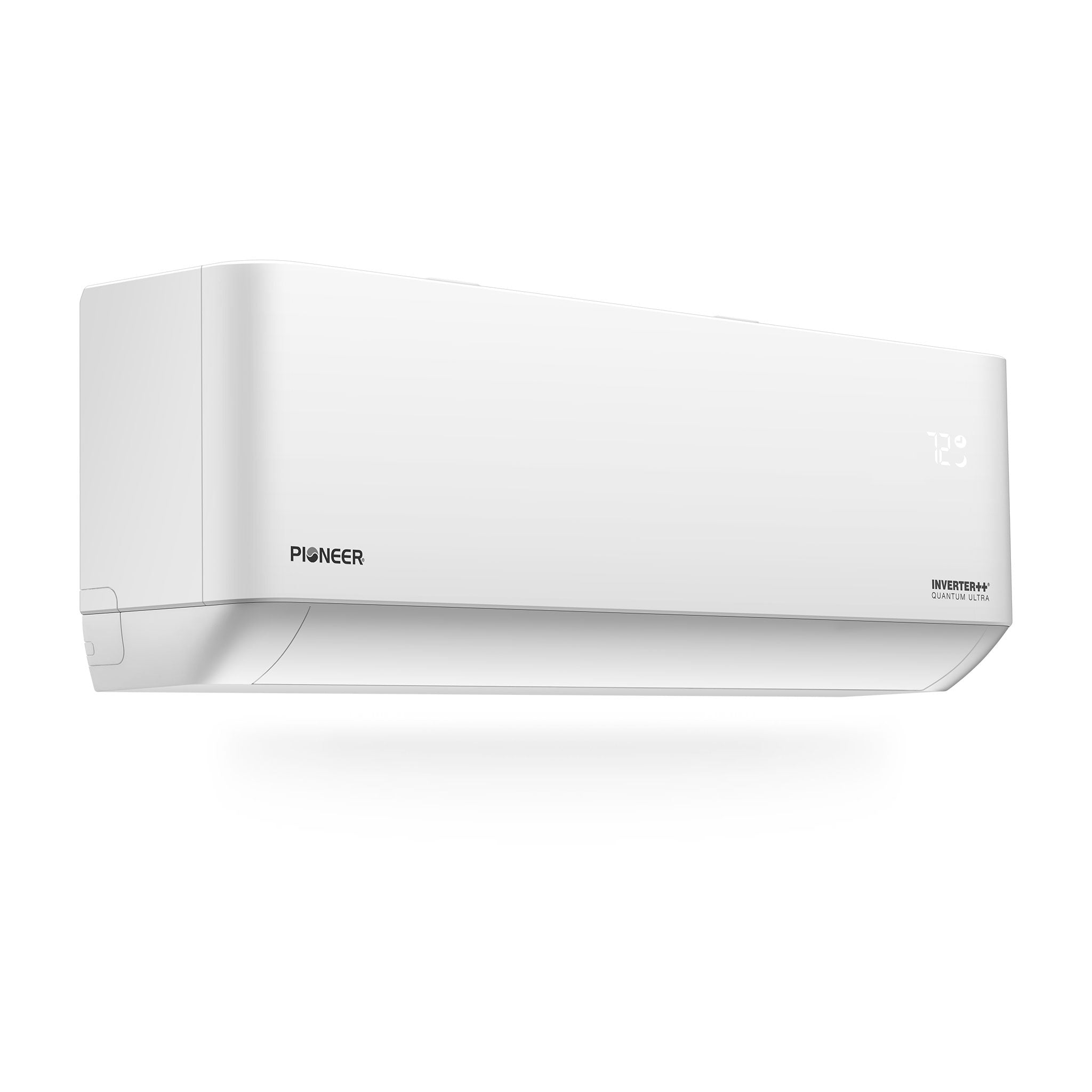

Wall-mounted indoor unit for ductless mini-split air conditioner, white with display

Pioneer Quantum Ultra ductless high-wall mini-split indoor unit, white

Outdoor unit for ductless mini-split air conditioner with grille and fan housing

Pioneer Quantum Ultra mini-split controller with digital display held in hand, smartphone app

Ductless mini-split remote control with orange display and button controls

Ductless mini-split wireless module with USB connector and small circuit board

Pioneer Quantum Ultra ductless mini-split outdoor unit with fan, promo airflow graphic

Roll over image to zoom in Click on image to zoom

Click on image to zoom

Pioneer® Quantum Ultra™ 18,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set (WYT018GLSI24RL)

Name: Pioneer® Quantum Ultra™ 18,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set (WYT018GLSI24RL)
Brand: Pioneer
SKU: WYT018GLSI24RL-10S
Price: 1519.0 USD
Availability: OutOfStock
Rating: 4.67 (3 reviews)

PioneerSKU: WYT018GLSI24RL-10S

3 reviews

Price:

$1,519.00 $2,169.00SAVE 29%

Include System Installation Kit: Add Standard Copper Lineset

Installation Kit Length: 10 Ft.

Air Handler Type:

Ceiling Ceiling
High-Wall High-Wall
Low-Wall Low-Wall
Concealed Ducted Concealed Ducted

BTU:

9K 9K
12K 12K
18K 18K
24K 24K

Out of Stock

Estimated restock: Restock Estimate 2-6 Weeks

Free Curbside Delivery — carrier calls to schedule

In-Home Protection Plan

No plan 2-Year $189.99 5-Year $489.99

Summary

Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
Cooling capacity: 18,000 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
Heating capacity: 19,000 BTU/H with 9.5 HSPF2 / 3.81 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
High Wall-Mounted Ductless Air Conditioning & Heating System

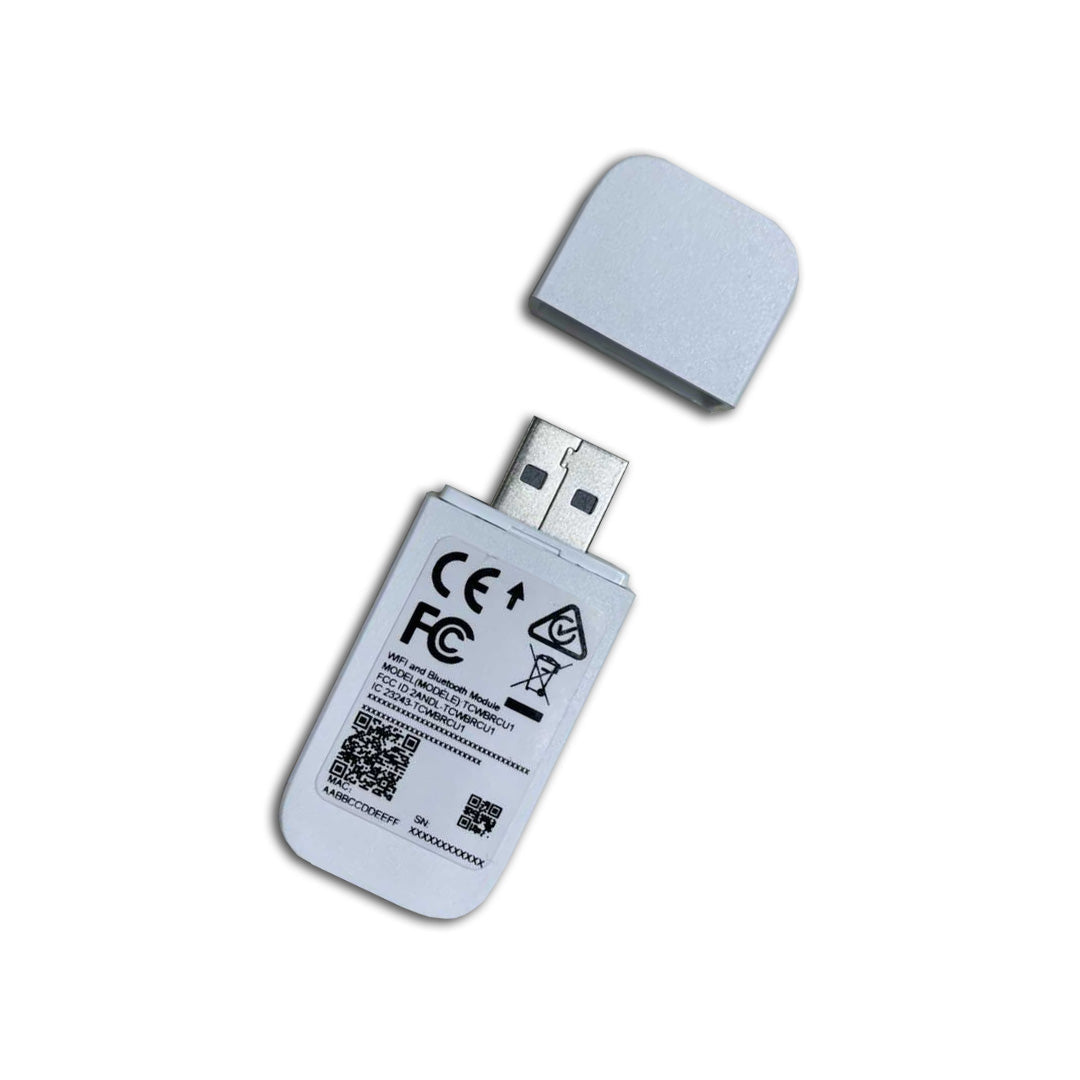

Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

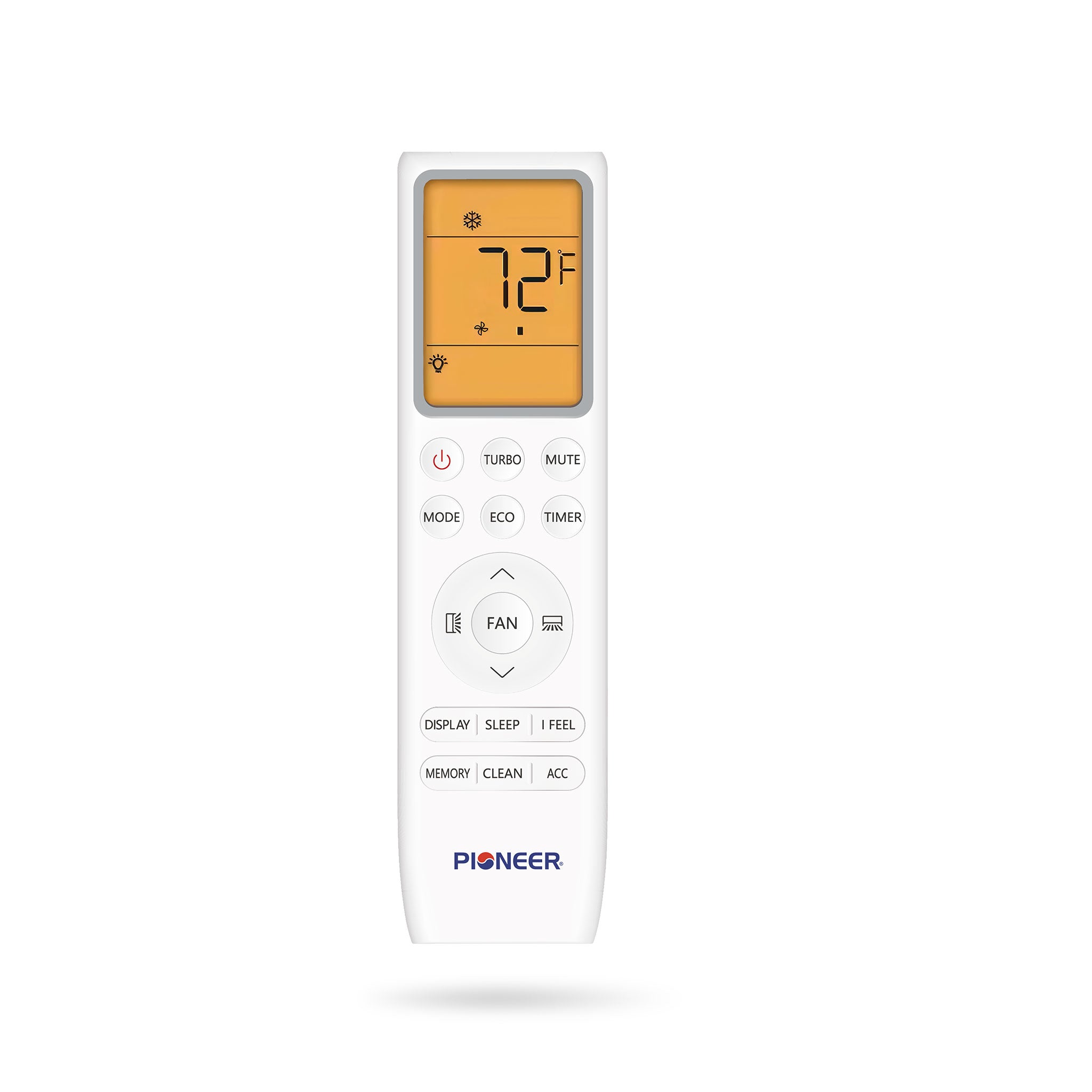

Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature

Quantum Ultra™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

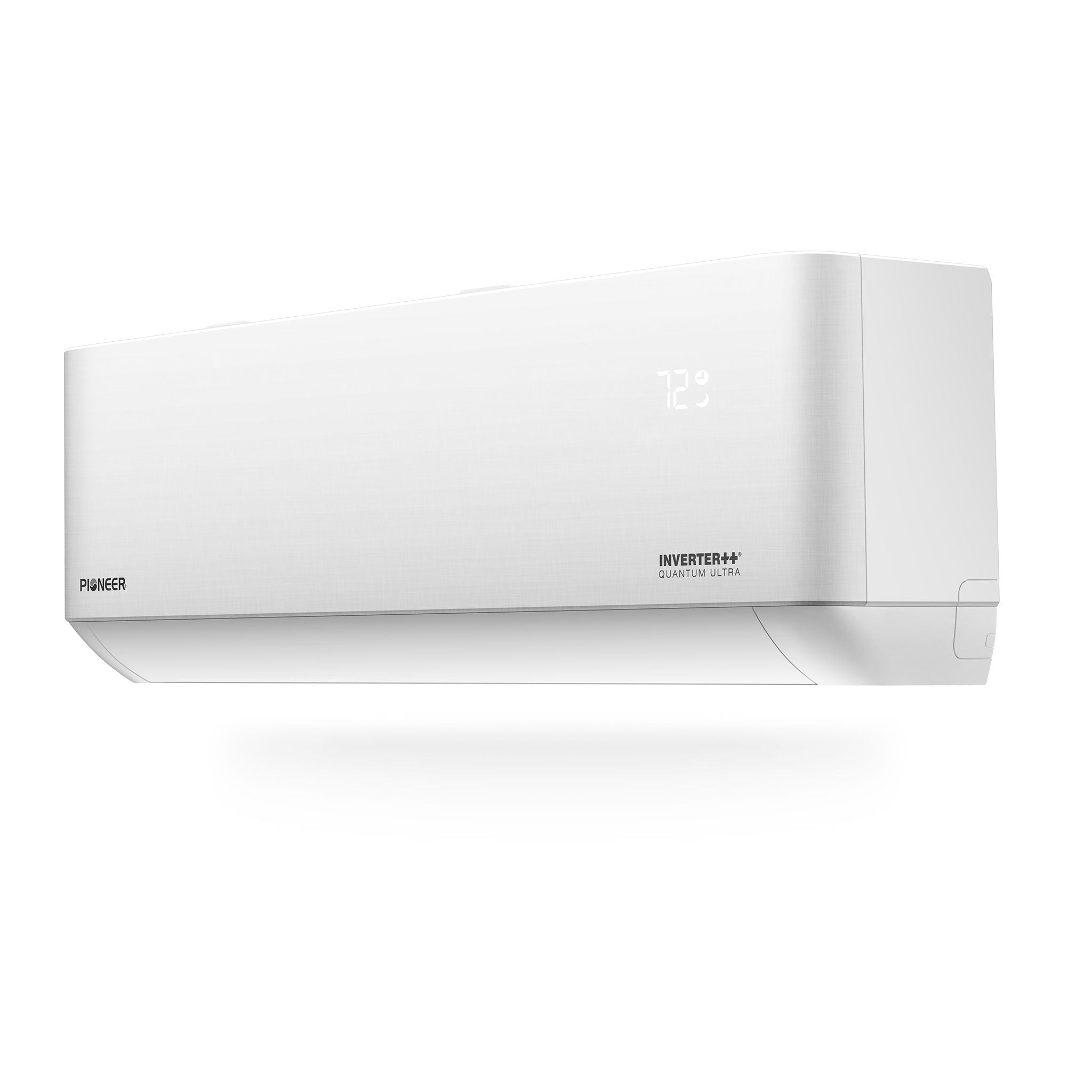

Indoor Unit

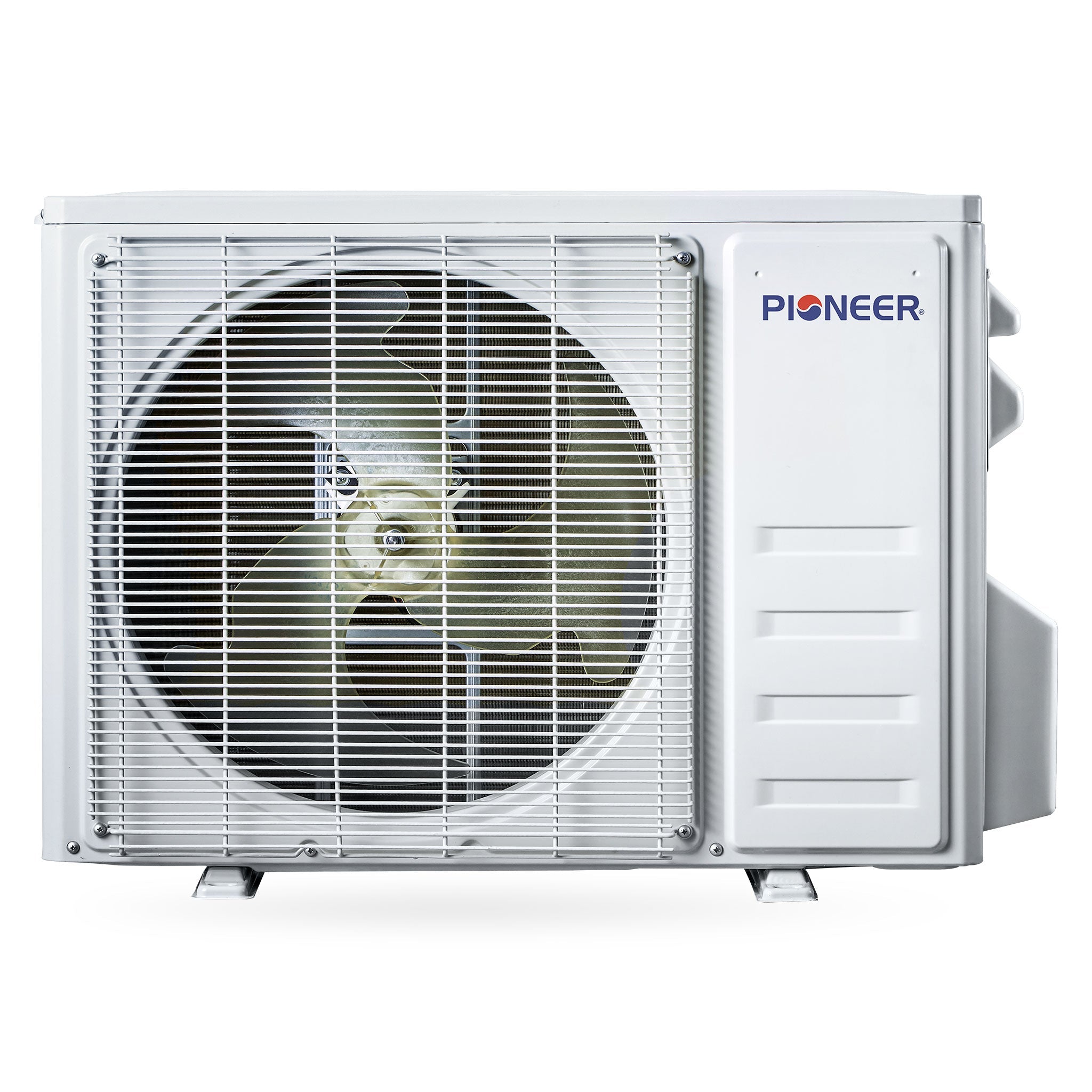

Outdoor Unit
Wireless Remote Control
Remote Control Wall Holder
Remote Control Batteries

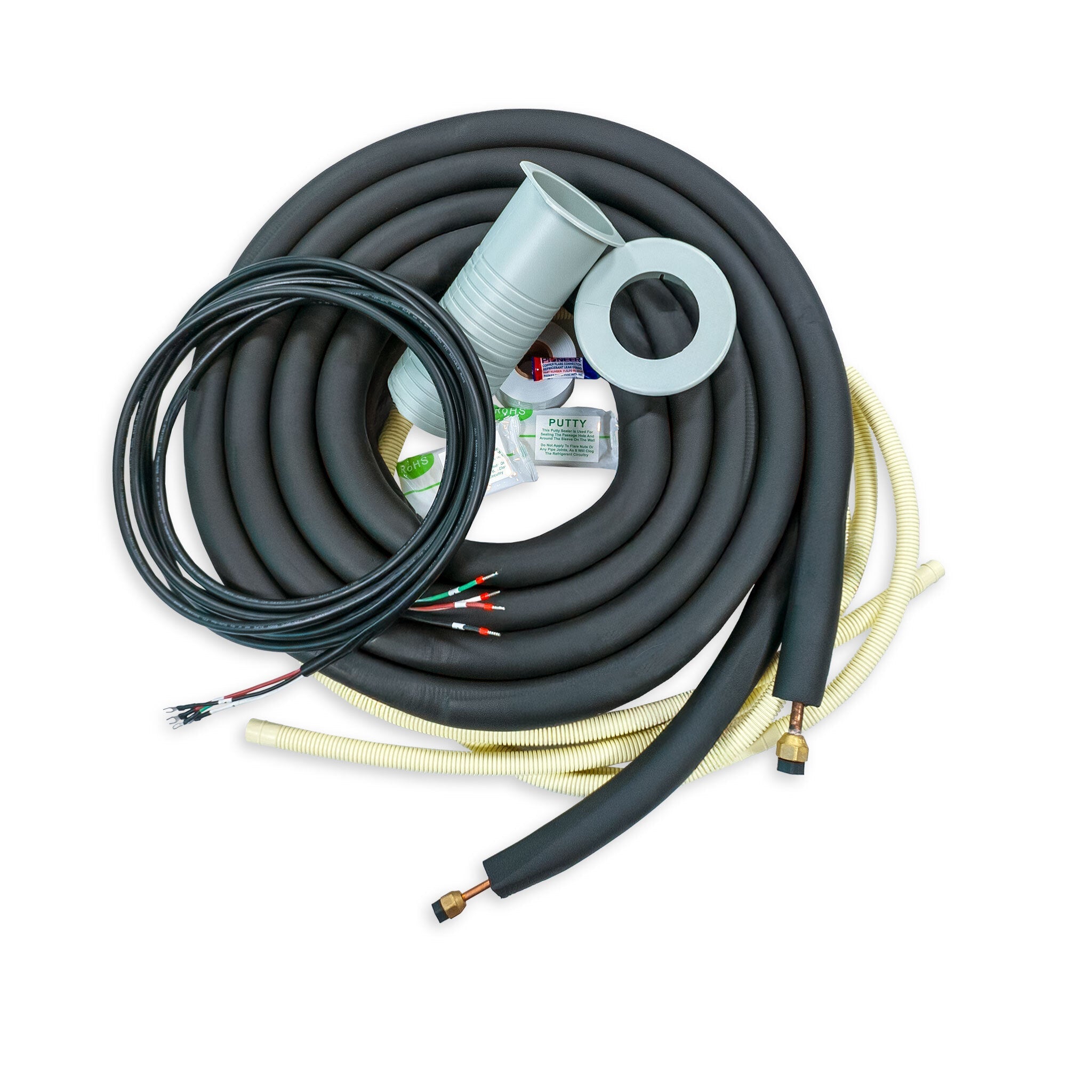

Customizable Length Copper Lines
Customizable Length Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

DIMENSIONS & WEIGHT

Minimum Installation Height: 6 ft
Product Dimensions (WDH): 43"-1/8 x 8"-3/4 x 13" Inches
Carton Dimensions (WDH): 45"-7/8 x 11"-5/8 x 16" Inches
Net / Gross Weight: 30.9 / 35.3 lbs.
Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches

GENERAL INFORMATION

Power Supply: 208~230V, 60Hz, 1Ph
Recommended Room Size: 500~750 Sq.F
Minimum Room Size: 51 sq ft
Part Number: WT018GLSI24HLG
Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
Sound Level: 53 dB(A)

CAPACITY & PERFORMANCE

Cooling Rated Capacity: 18,000 BTU/h
Cooling Capacity Range: 4,000~19,000 BTU/h
Cooling SEER2: 23.0 BTU/W.h
Cooling EER2: 12.5 BTU/W.h
Heating Rated Capacity: 19,000 BTU/h
Heating Capacity Range: 4,000~21,000 BTU/h
Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
Heating C.O.P.2 (47°F/5°F): 3.81 / 1.8 W/W

ELECTRICAL REQUIREMENTS

Breaker Needed: 20A (double-pole)

REFRIGERANT & PIPING

Refrigerant Type: R454b
Piping Diameter: 1/4 x 1/2"

Shipping

Free Shipping on all orders.
Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.

Full shipping policy

Returns

30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
Restocking Fee: A restocking fee may apply and varies by brand.

Full returns policy

Authorized Pioneer Dealer

Full manufacturer warranty on every Pioneer product we sell.

Explore Pioneer

It is a good unit i like it.

Working good for me i like it.

Happy

Happy so far, the system was easy to install and start up and settings were straight forward to navigate.
Cools great on the lowest settings and very quite.

Split System

I really like the system easy to use and perfect for our needs but one thing i have noticed there needs to be a startup sheet in with the instructions todays contractors do not seem to understand the concept of them when I was in the trade we did them on every system we installed now I am trying to get one from them so I can register the unit before time runs out
