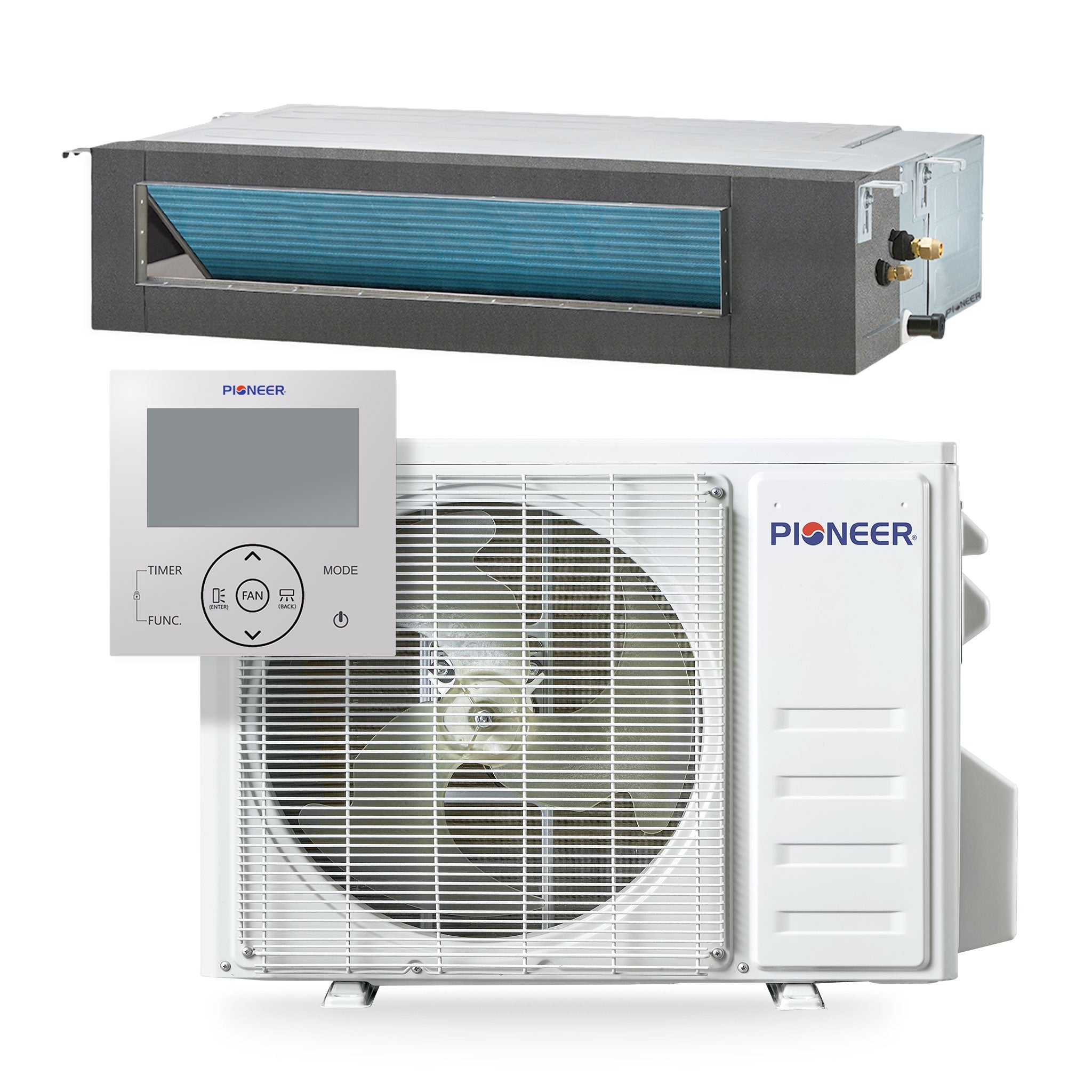

Pioneer® concealed duct mini split systems provide hidden heating and cooling for multiple rooms through a single ducted unit. Ideal for separated zones like master suites, one system can condition sub-areas with uniform comfort. Available in six capacities, including ceiling-concealed and slim duct models, these systems suit zones of all sizes.

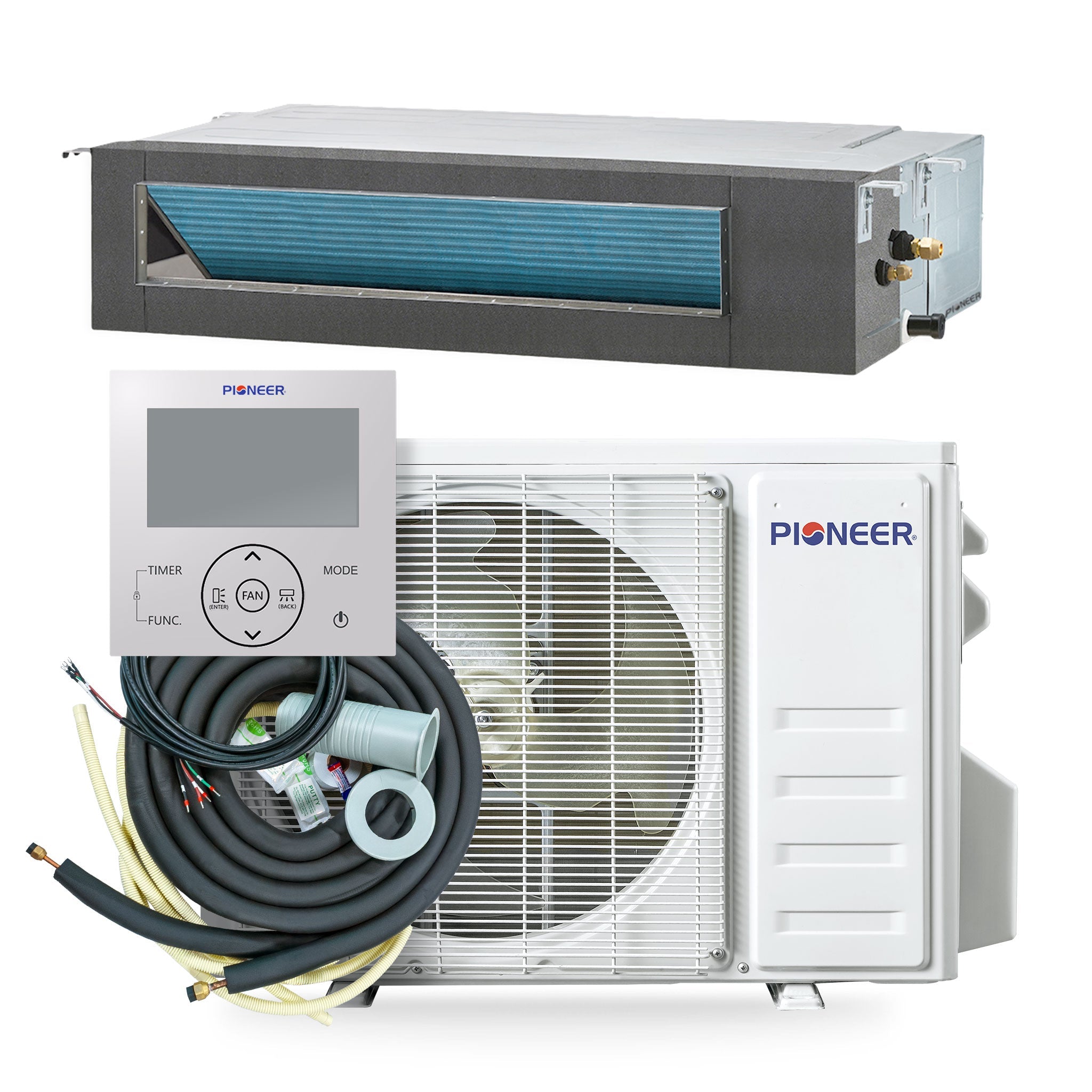

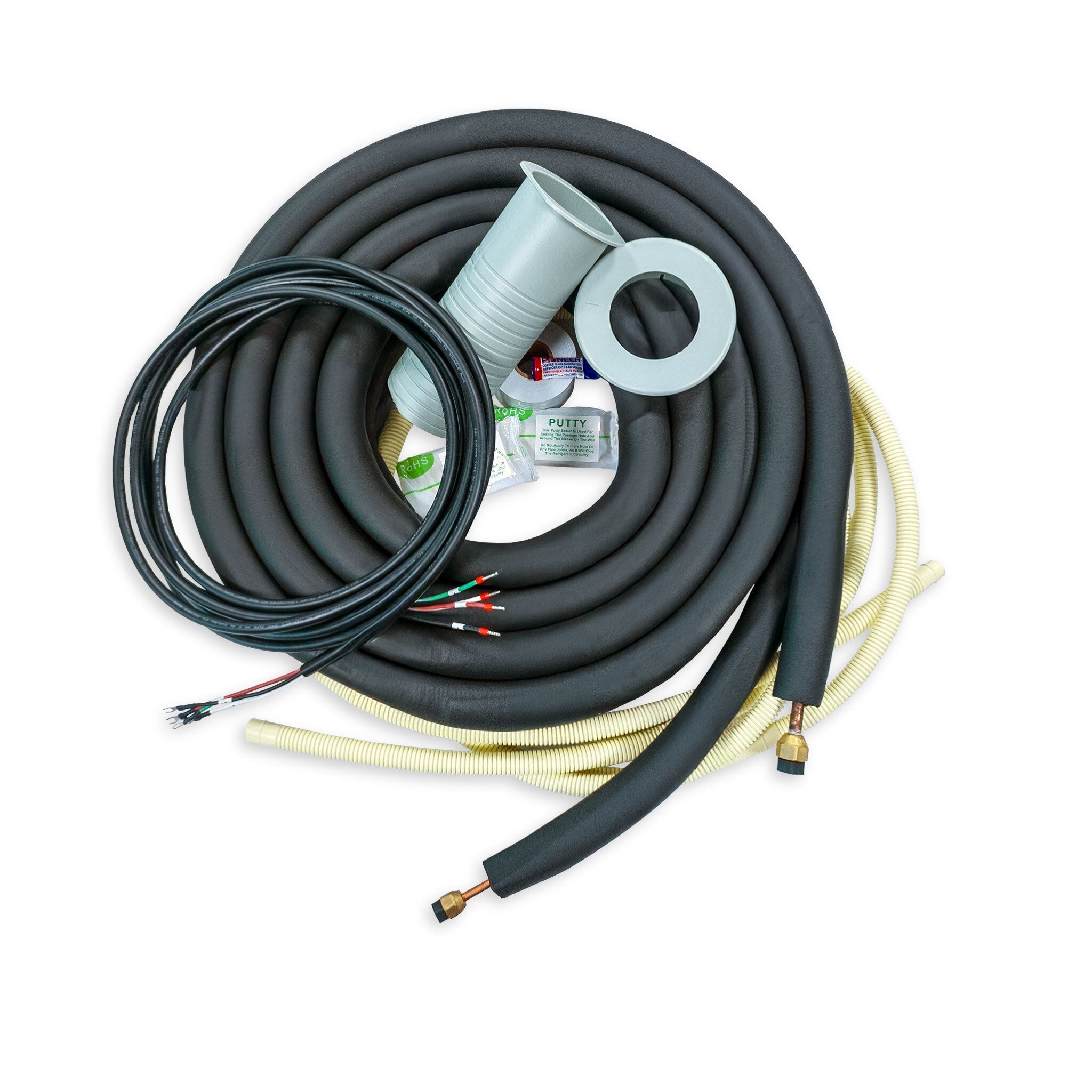

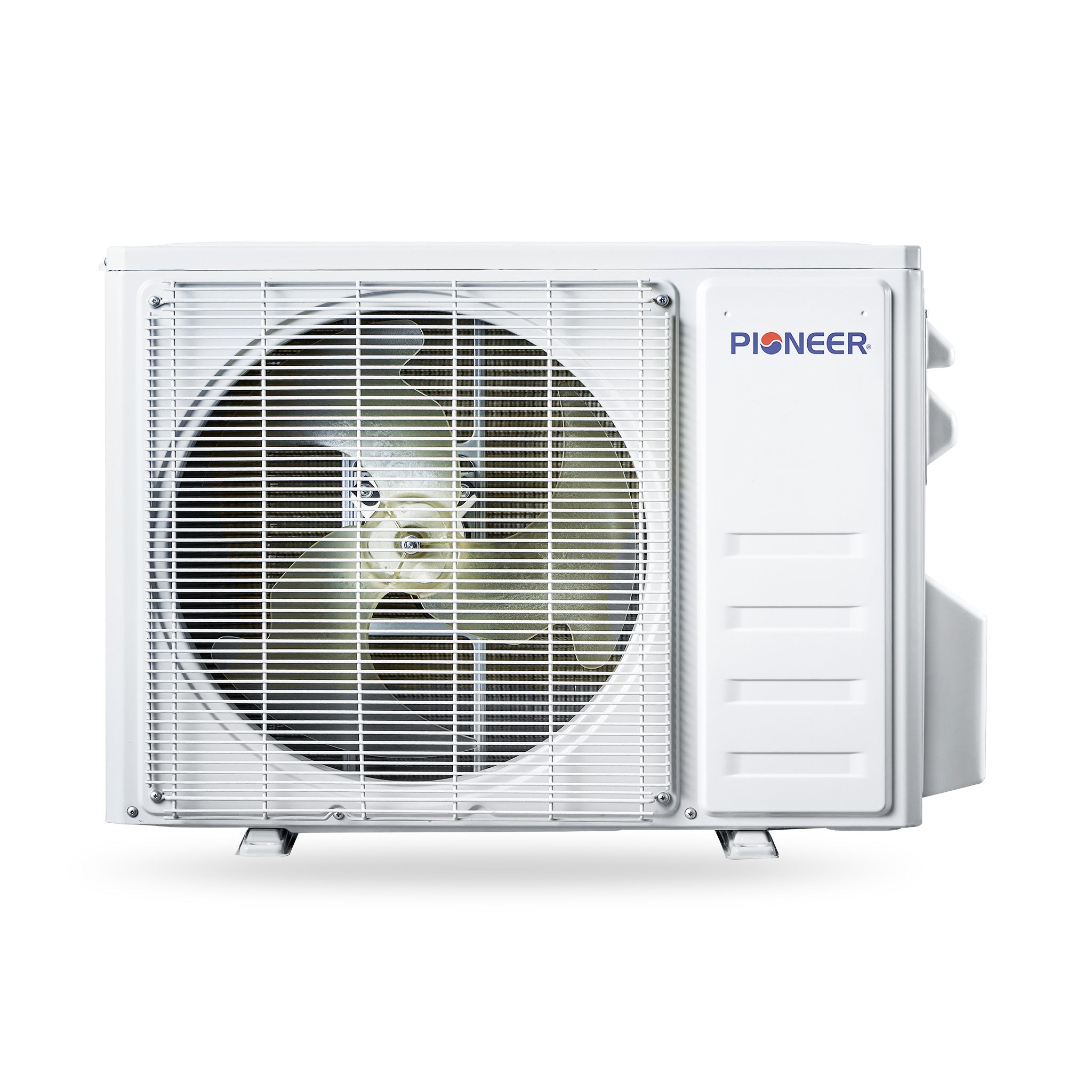

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
| DIMENSIONS & WEIGHT | |
|---|---|
| Product Dimensions (WDH) | 35"-1/2 x 19"-1/4 x 7"-7/8 Inches |
| Carton Dimensions (WDH) | 44"-1/8 x 21"-7/8 x 9"-7/8 Inches |
| Net / Gross Weight | 39.7 / 46.3 lbs. |
| Net Dimensions (WDH) | 36"-1/2 x 15" x 27"-1/2 Inches |
| GENERAL INFORMATION | |
| Power Supply | 208~230V, 60Hz, 1Ph |
| Suitable Area | 500~750 Sq.F |
| Part Number | RT018GLSILCFHG |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 500/426/370/300/283 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute) | 41/38/36 dB(A) |
| Sound Level | 53 dB(A) |
| CAPACITY & PERFORMANCE | |
| Cooling Rated Capacity | 17,000 BTU/h |
| Cooling Capacity Range | 6,000~19,400 BTU/h |
| Cooling SEER2 | 21.0 BTU/W.h |
| Cooling EER2 | 11.7 BTU/W.h |
| Heating Rated Capacity | 18,000 BTU/h |
| Heating Capacity Range | 4,000~21,400 BTU/h |
| Heating HSPF2 (Region IV) | 8.1 / 7.2 BTU/W.h |
| Heating C.O.P.2 (47°F/5°F) | 2.9 / 1.8 W/W |
| ELECTRICAL REQUIREMENTS | |
| Breaker Needed | 20A (double-pole) |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R454b |
| SAFETY | |
| AHRI Reference | 217048764 |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
