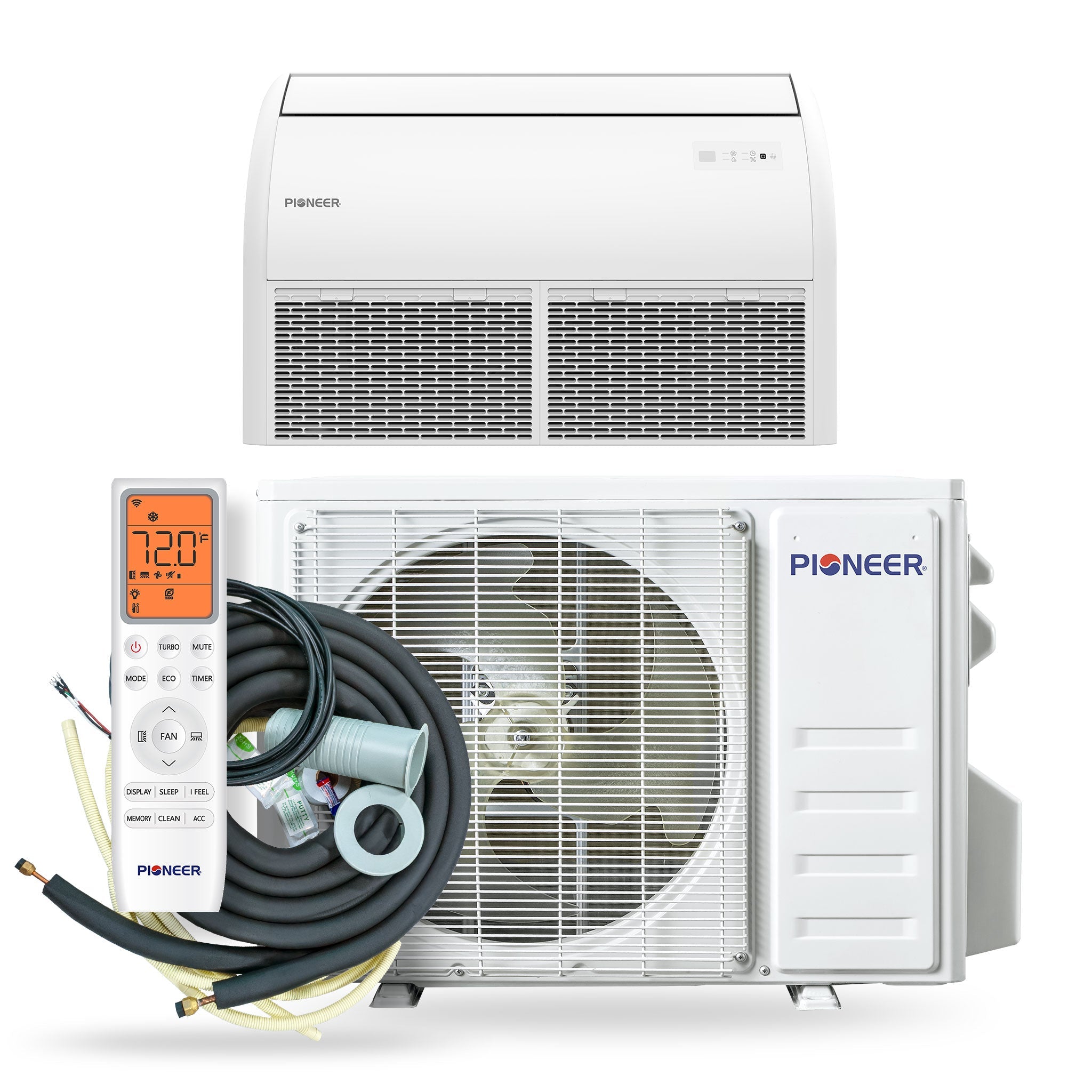

Pioneer Quantum Ultra mini-split set with white indoor unit, outdoor fan and remote control

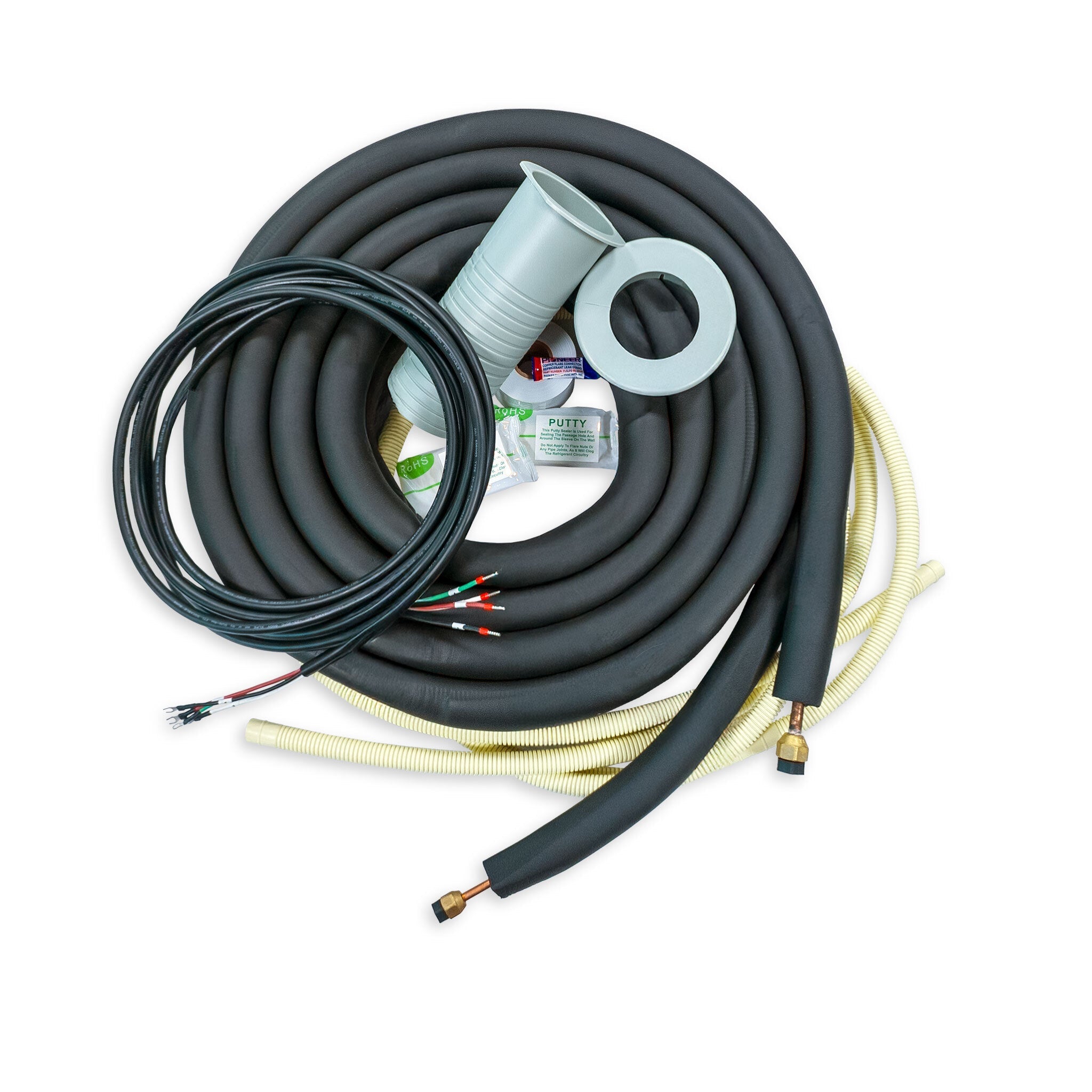

Coiled refrigerant line set with electrical wiring and small fittings in gray and black

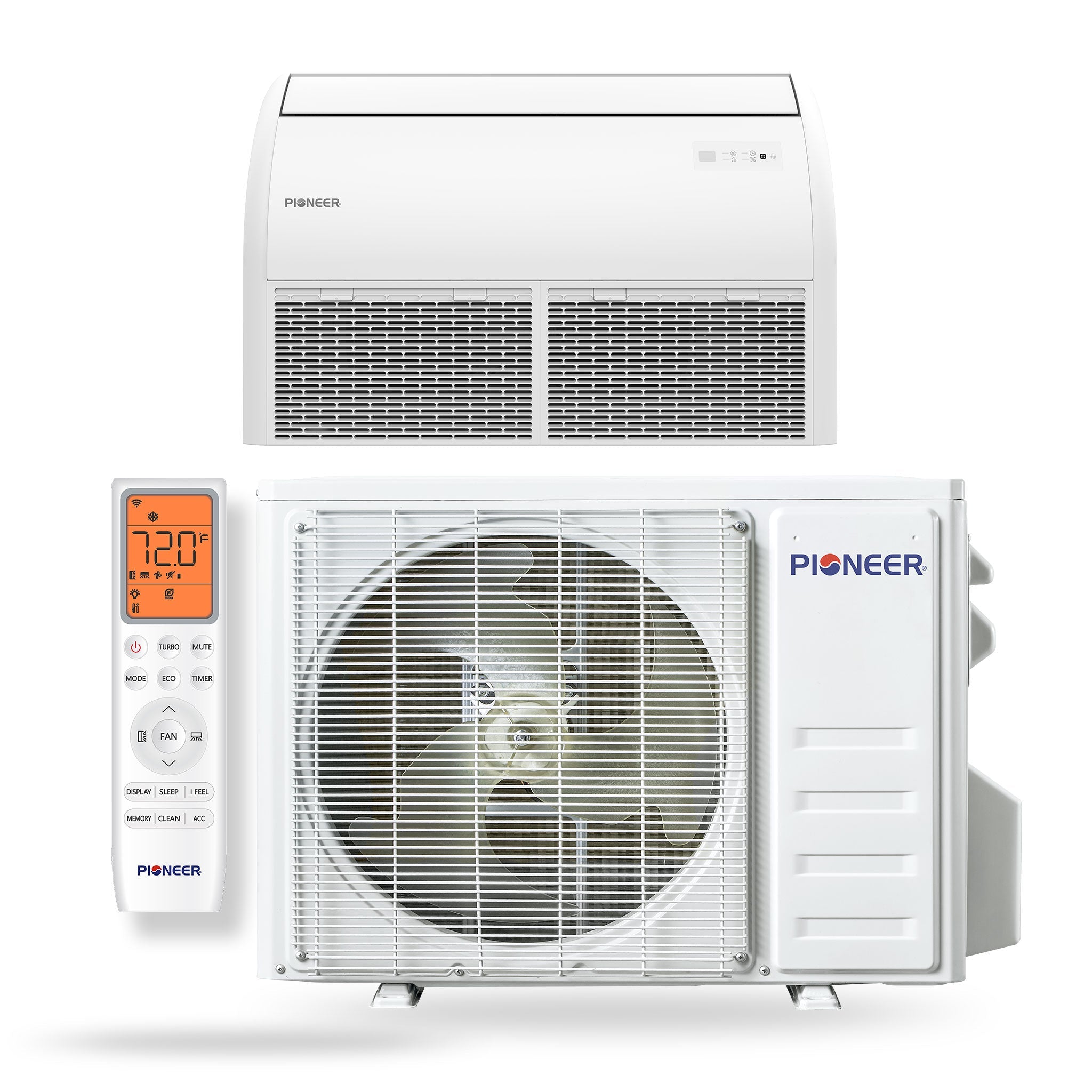

Pioneer Quantum Ultra mini-split indoor air handler, white front grille and top vents

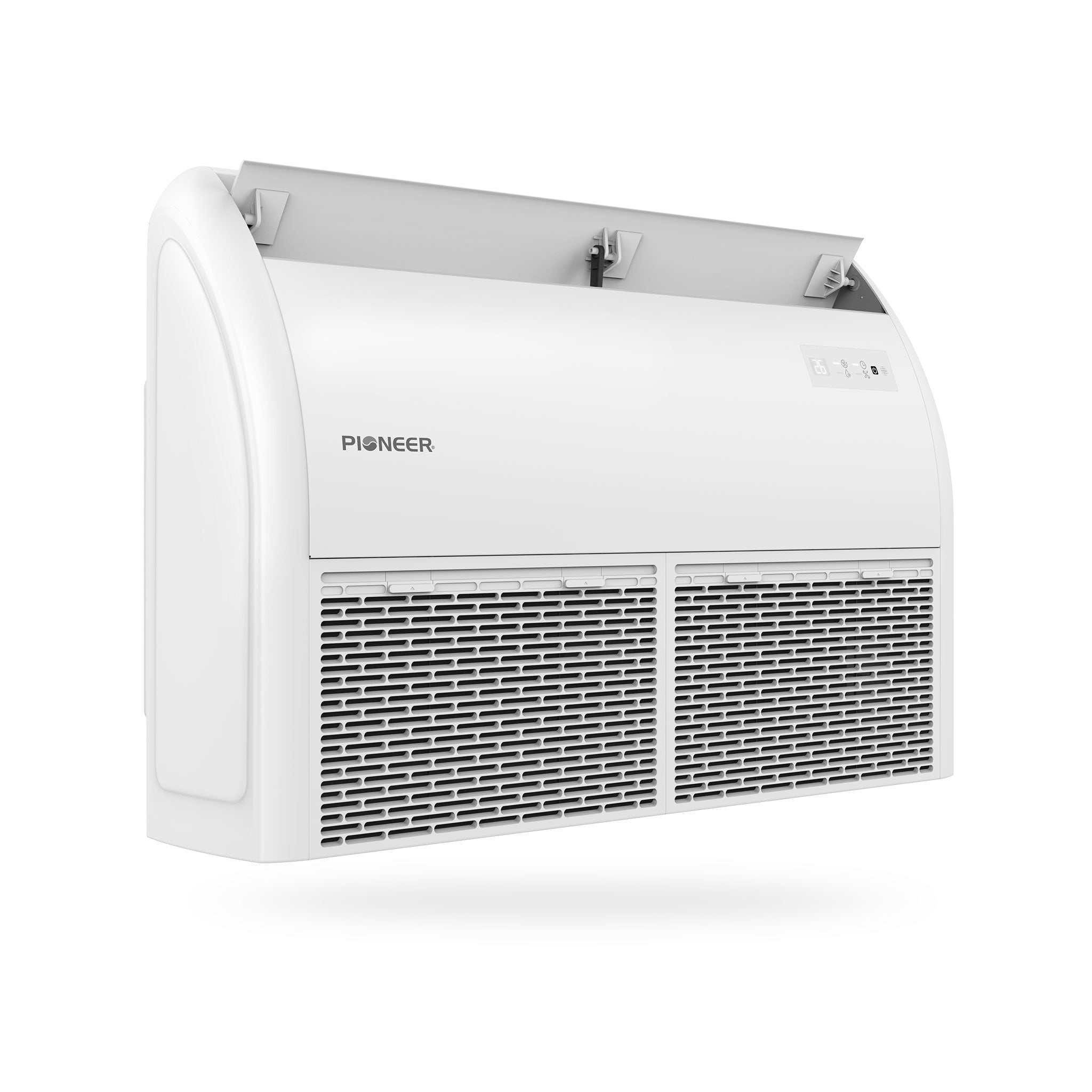

White wall-mounted ductless mini-split indoor unit with front grille and side panels

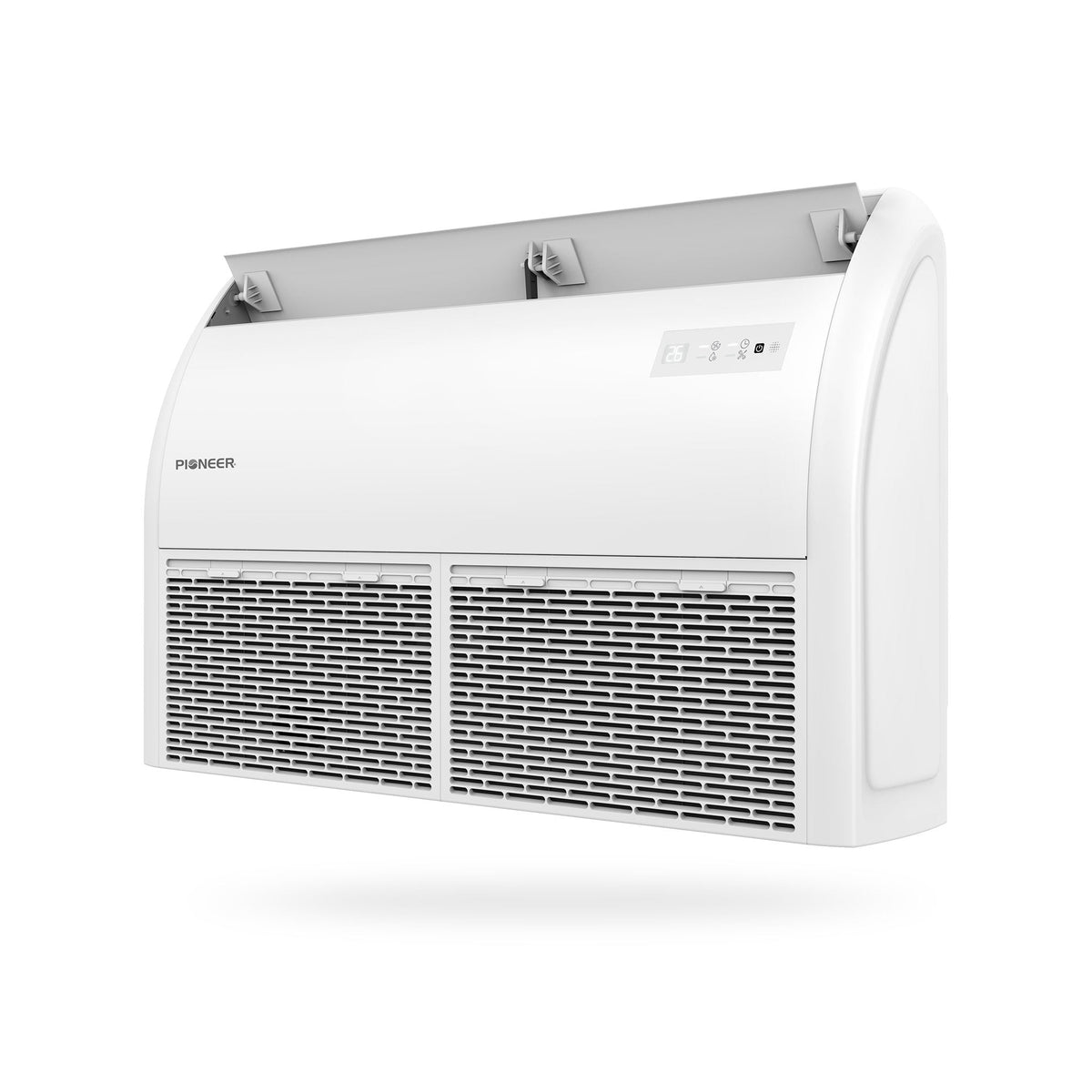

White ductless mini-split indoor unit with front grille and control panel on top edge

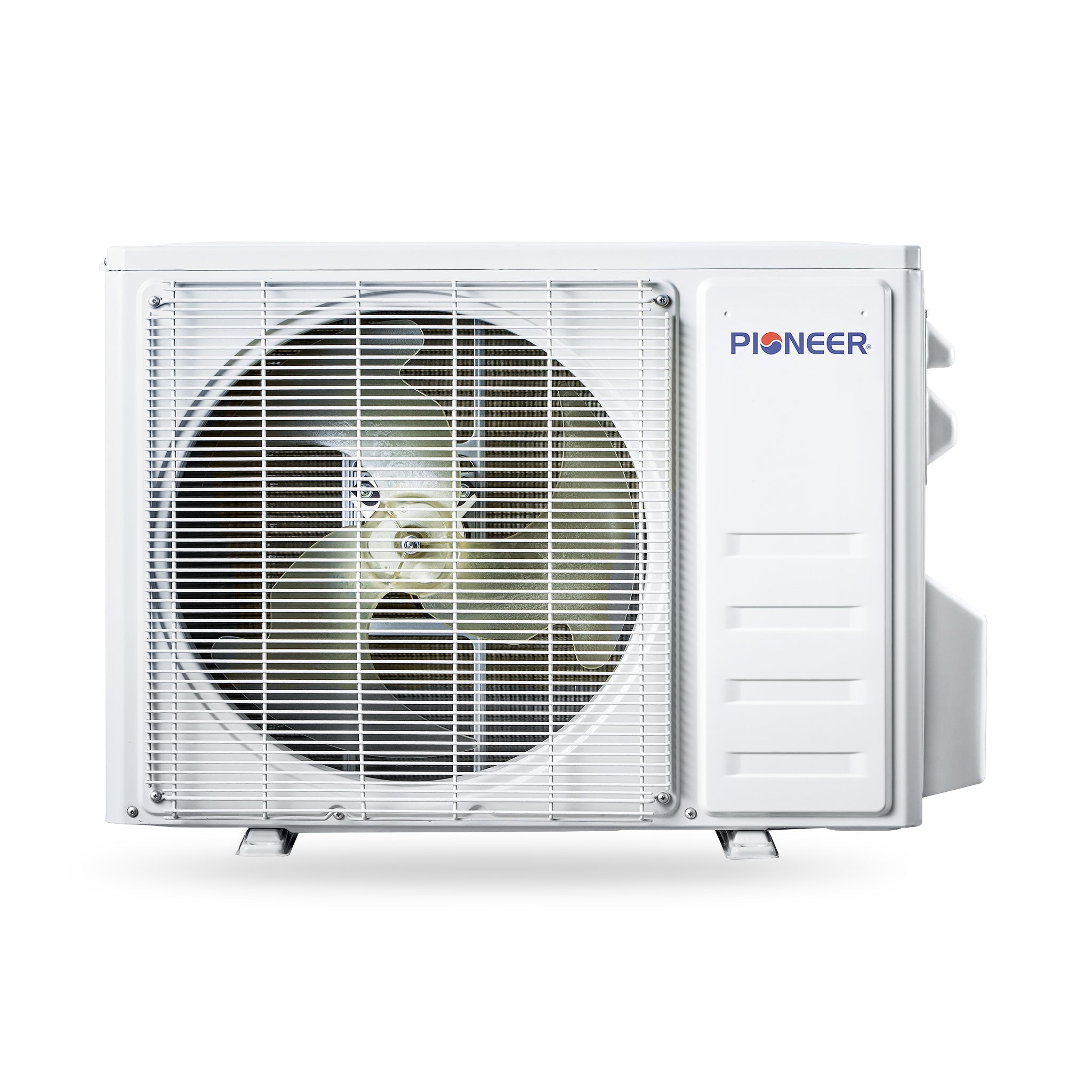

White outdoor ductless mini-split unit with fan grille and Pioneer logo

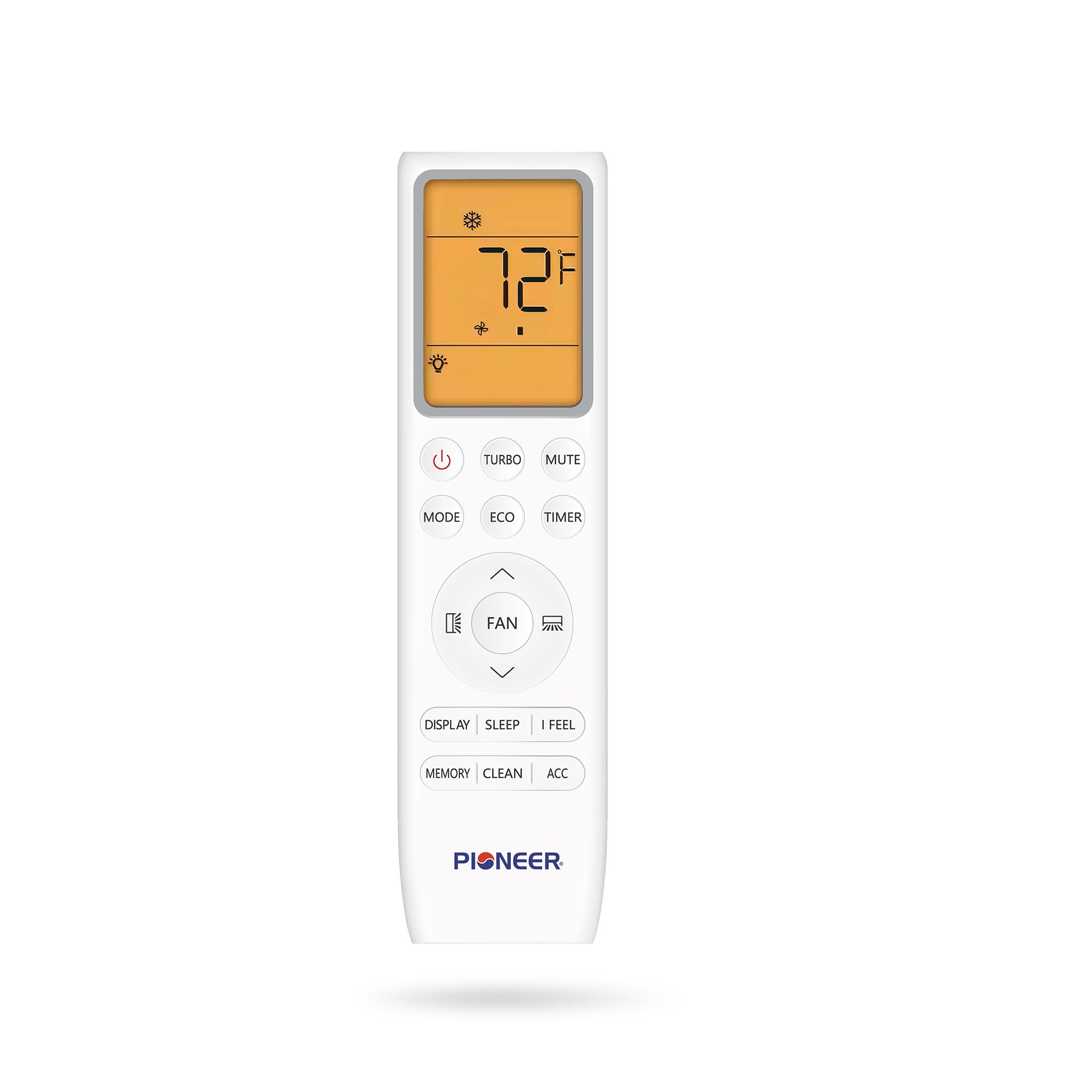

White Pioneer mini-split remote control with orange LCD display and button keypad
Roll over image to zoom in Click on image to zoom
Pioneer Quantum Ultra ductless mini-split indoor unit, white front grille and ventsInsulated refrigerant lineset bundle with fittings and wiring, white and black tubingPioneer Quantum Ultra mini-split set with white indoor unit, outdoor fan and remote controlCoiled refrigerant line set with electrical wiring and small fittings in gray and blackPioneer Quantum Ultra mini-split indoor air handler, white front grille and top ventsWhite wall-mounted ductless mini-split indoor unit with front grille and side panelsWhite ductless mini-split indoor unit with front grille and control panel on top edgeWhite outdoor ductless mini-split unit with fan grille and Pioneer logoWhite Pioneer mini-split remote control with orange LCD display and button keypad
Click on image to zoom

Pioneer® Quantum Ultra™ 18,000 BTU 20.5 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set (UYT018GLSI24RL)

PioneerSKU: UYT018GLSI24RL-10S
4 reviews
Price:
$1,813.00 $2,589.00SAVE 29%
Installation Kit (Required to Install): Standard Copper Lineset Kit
Air Handler Type:
BTU:
Low Stock
Estimated delivery: Oct 23rd-30th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
  • Cooling capacity: 18,000 BTU/H with 20.5 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 19,000 BTU/H with 9.0 HSPF2 / 3.10 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Ultra™ Universal Flex Series

Our flexible floor-ceiling mini split systems are ideal for both homes and commercial spaces. Smaller units can be floor-mounted or installed low on walls, while larger ones support ceiling suspension. Each system features automatic capacity control, air-sweeping louvers, multiple comfort modes, remote control, and fresh air intake, offering versatile, efficient climate control in any setting.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Indoor Panel
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Product Dimensions (WDH)
41"-1/2 x 26"-1/2 x 9"-1/4 Inches
Carton Dimensions (WDH)
44"-1/2 x 26"-1/2 x 12" Inches
Net / Gross Weight
52.9 / 63.9 lbs.
Net Dimensions (WDH)
36"-1/2 x 15" x 27"-1/2 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Suitable Area
500~750 Sq.F
Part Number
UT018GLSILCFHG
Air Flow (Turbo/Hi/Med/Lo/Mute)
588/512/453/353/265 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
50/46/44/40/36 dB(A)
Sound Level
53 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
18,000 BTU/h
Cooling Capacity Range
4,550~20,200 BTU/h
Cooling SEER2
20.5 BTU/W.h
Cooling EER2
11.7 BTU/W.h
Heating Rated Capacity
19,000 BTU/h
Heating Capacity Range
2,910~22,840 BTU/h
Heating HSPF2 (Region IV)
9.0 / 8.2 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.1 / 1.9 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
20A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
SAFETY
AHRI Reference
217048766

Pioneer Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
48K BTU
36K BTU
30K BTU
24K BTU
18K BTU
12K BTU
9K BTU
9K BTU up to 350 sq ft · Bedroom, home office
12K BTU up to 500 sq ft · Large bedroom, den
18K BTU up to 750 sq ft · Living room, master suite
24K BTU up to 1000 sq ft · Open living area
30K BTU up to 1200 sq ft · Large open area
36K BTU up to 1400 sq ft · Great room, small home
48K BTU up to 1800 sq ft · Whole floor, large open space
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
