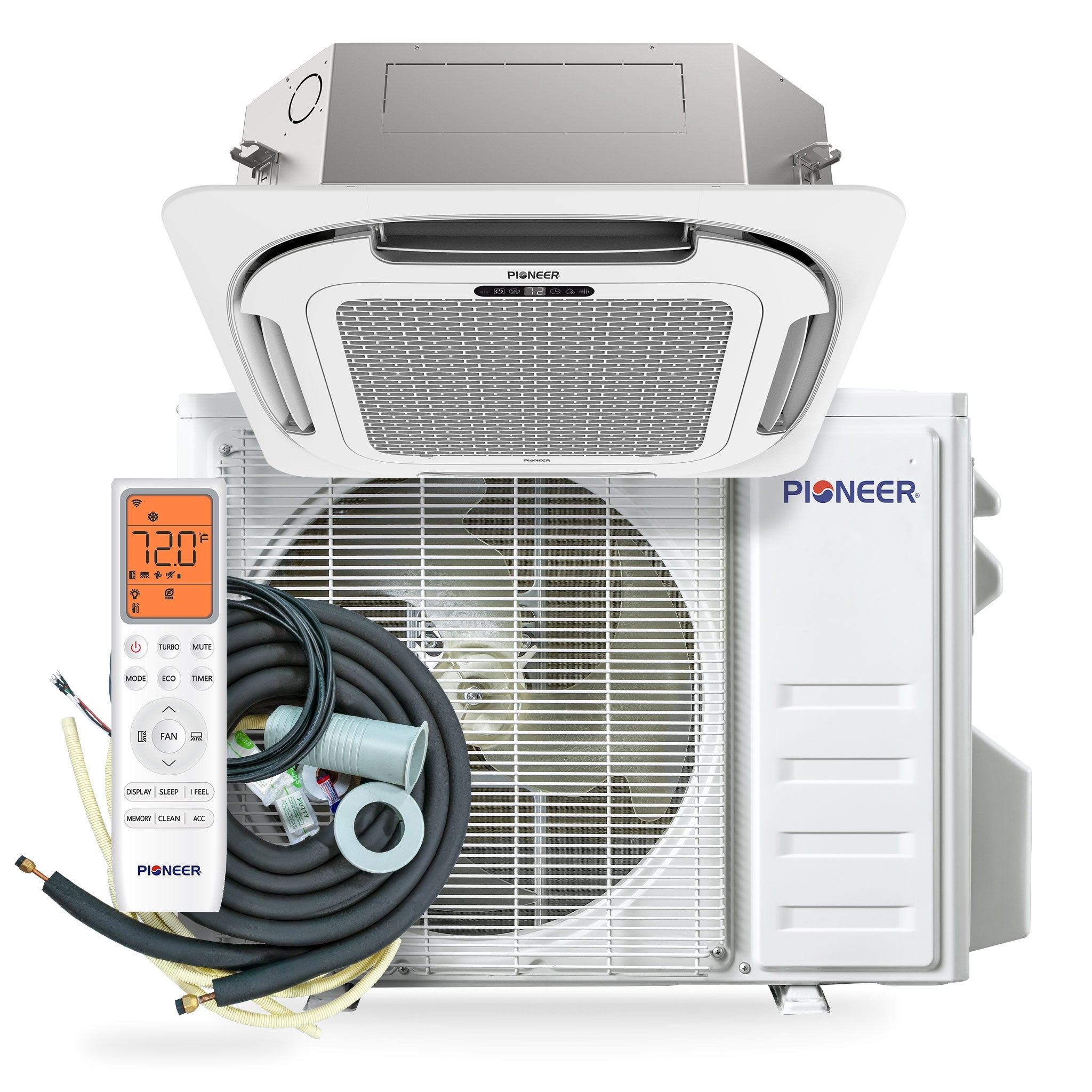

Ceiling cassette ductless mini-split air conditioner with bundled installation tubing and wiring

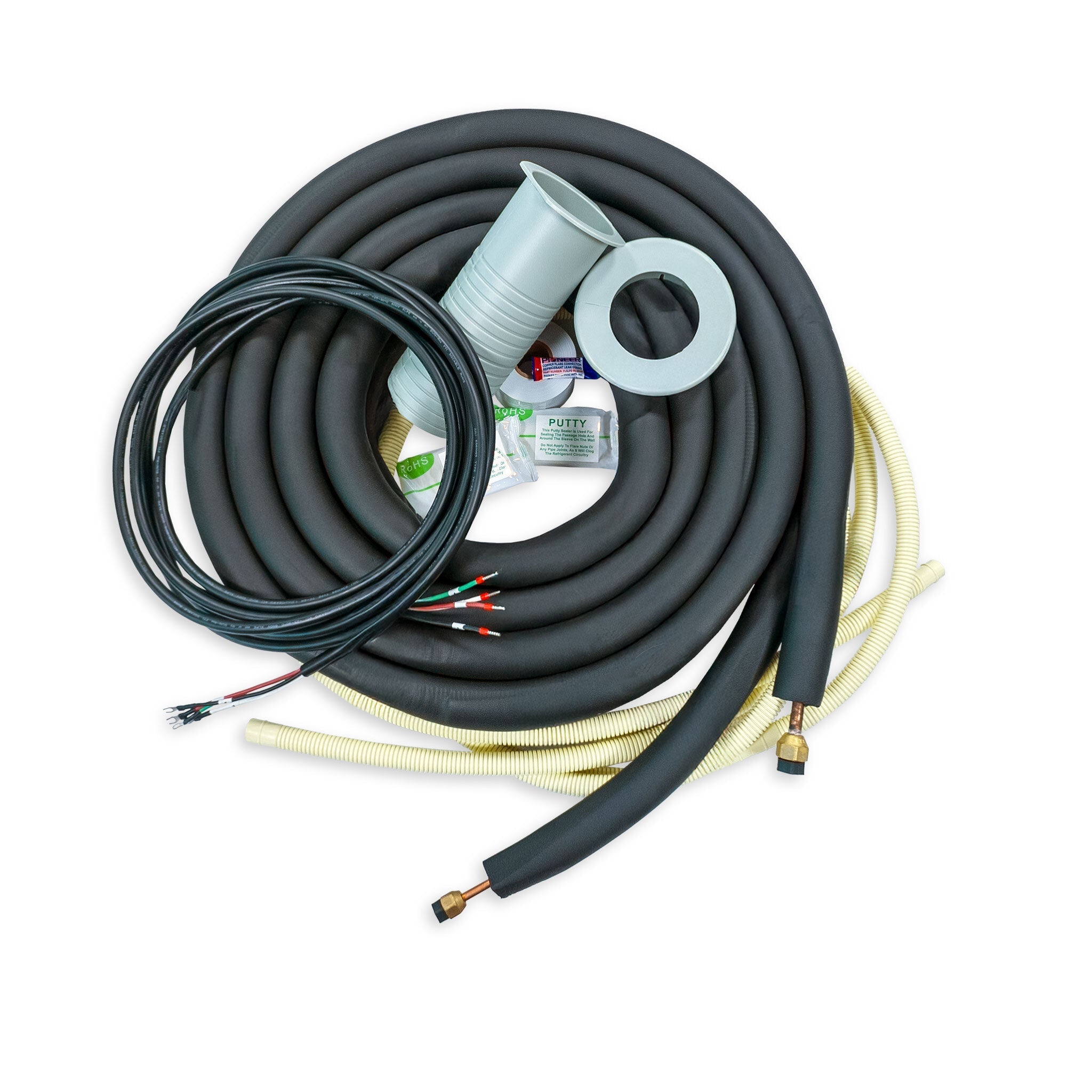

Bundle of dark and white installation tubing with connectors and insulation for mini-split

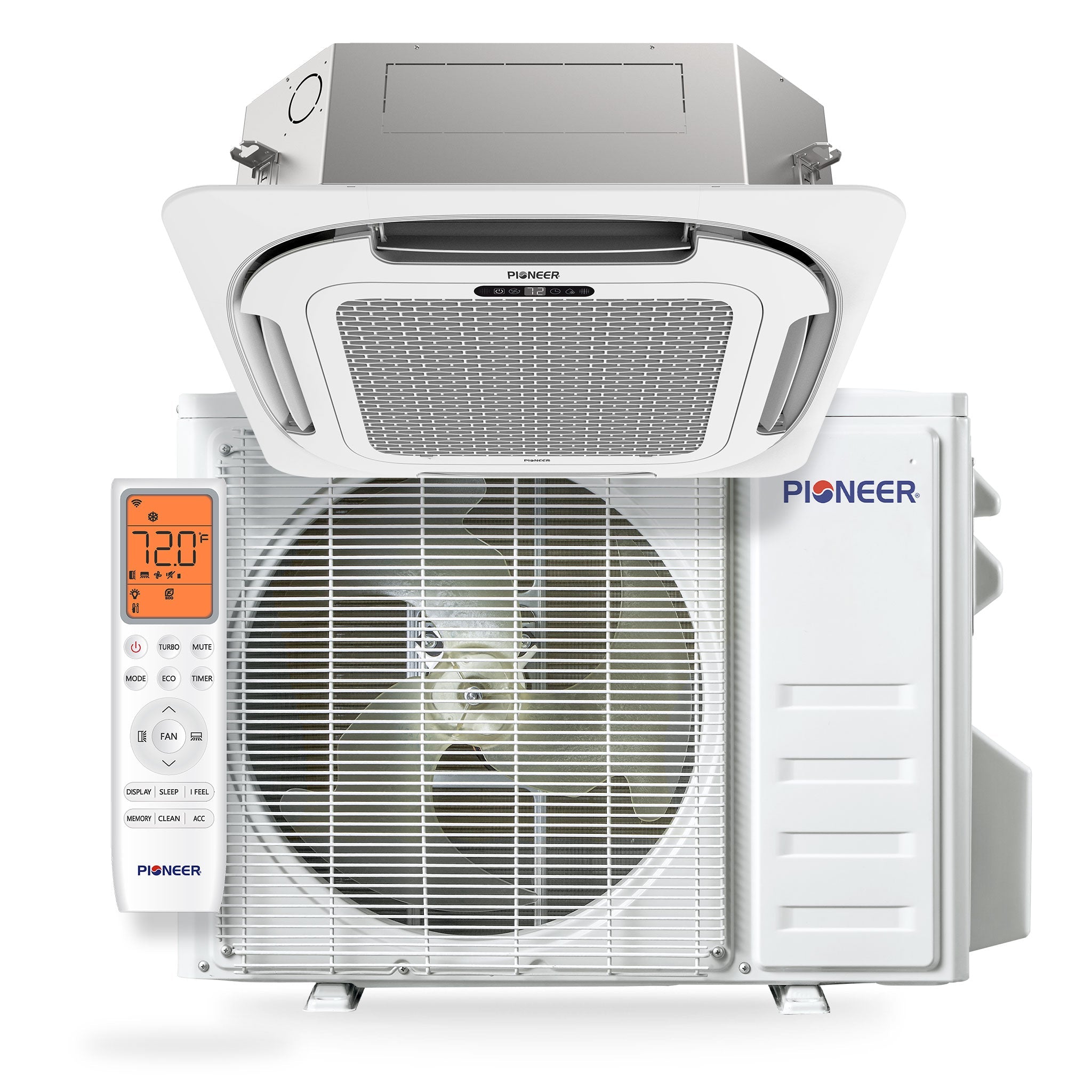

Ceiling cassette ductless mini-split air conditioner with front grille and indoor unit housing

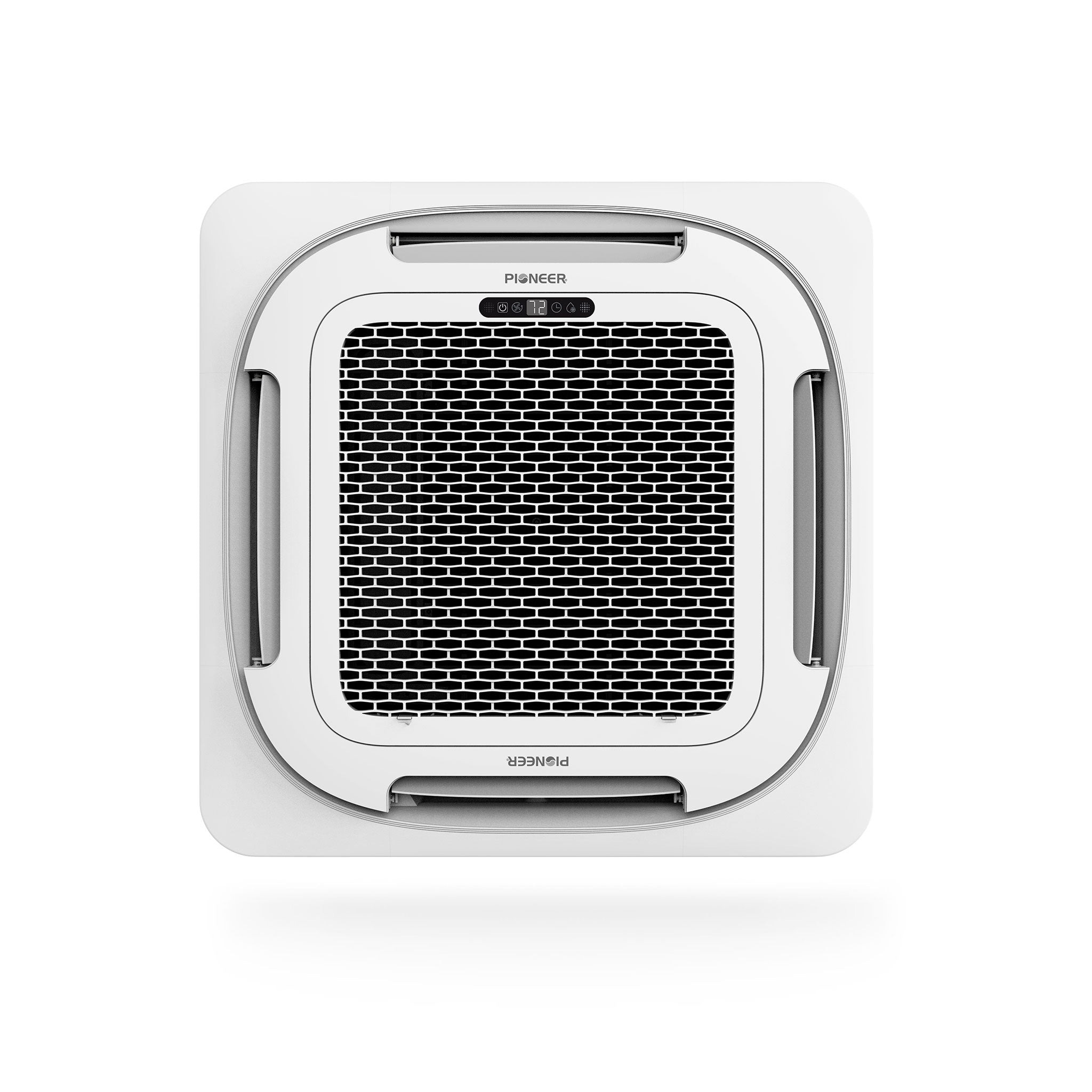

Square ceiling cassette air conditioner indoor grille with mesh filter and side vents

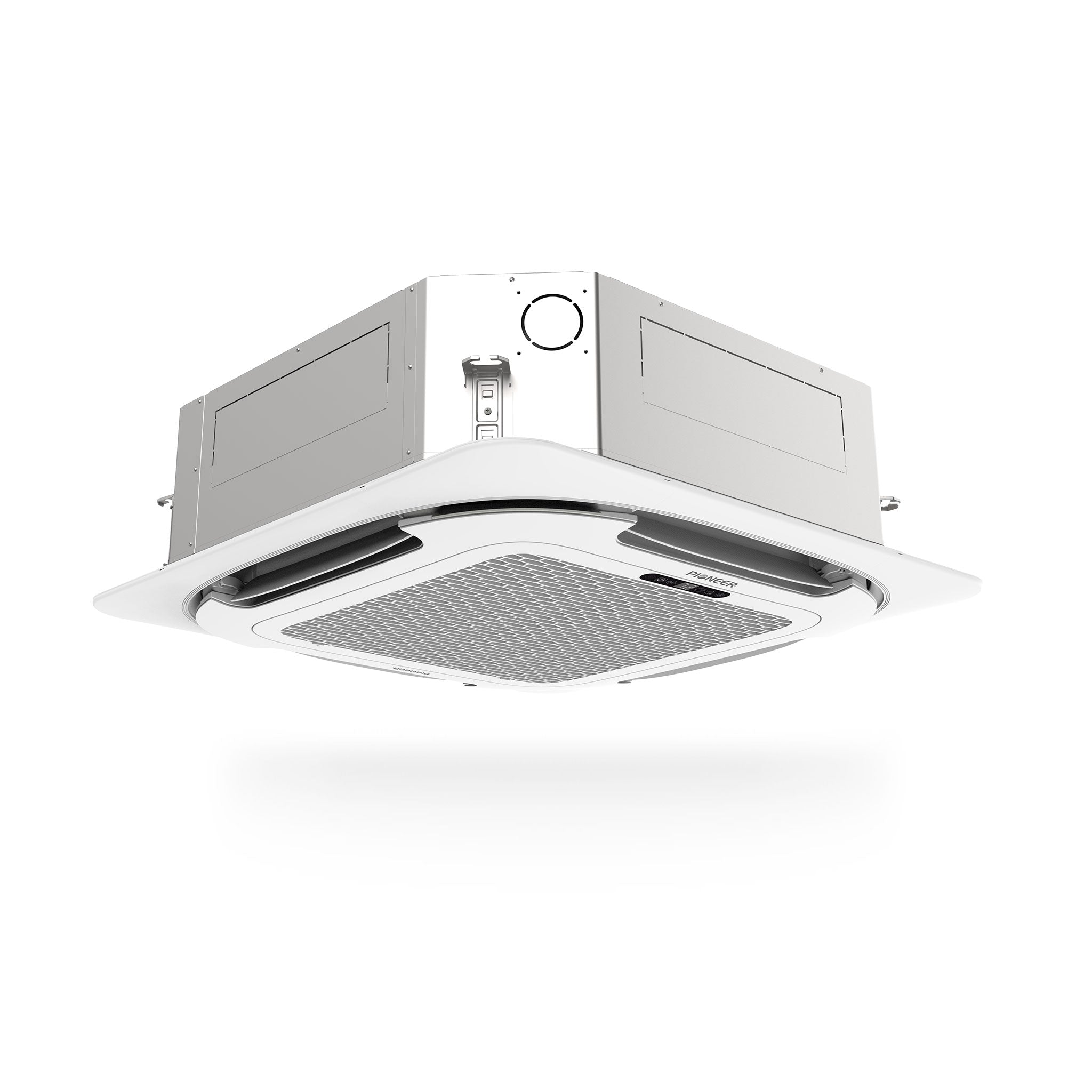

Ceiling cassette ductless mini-split air conditioner from above with circular air outlet

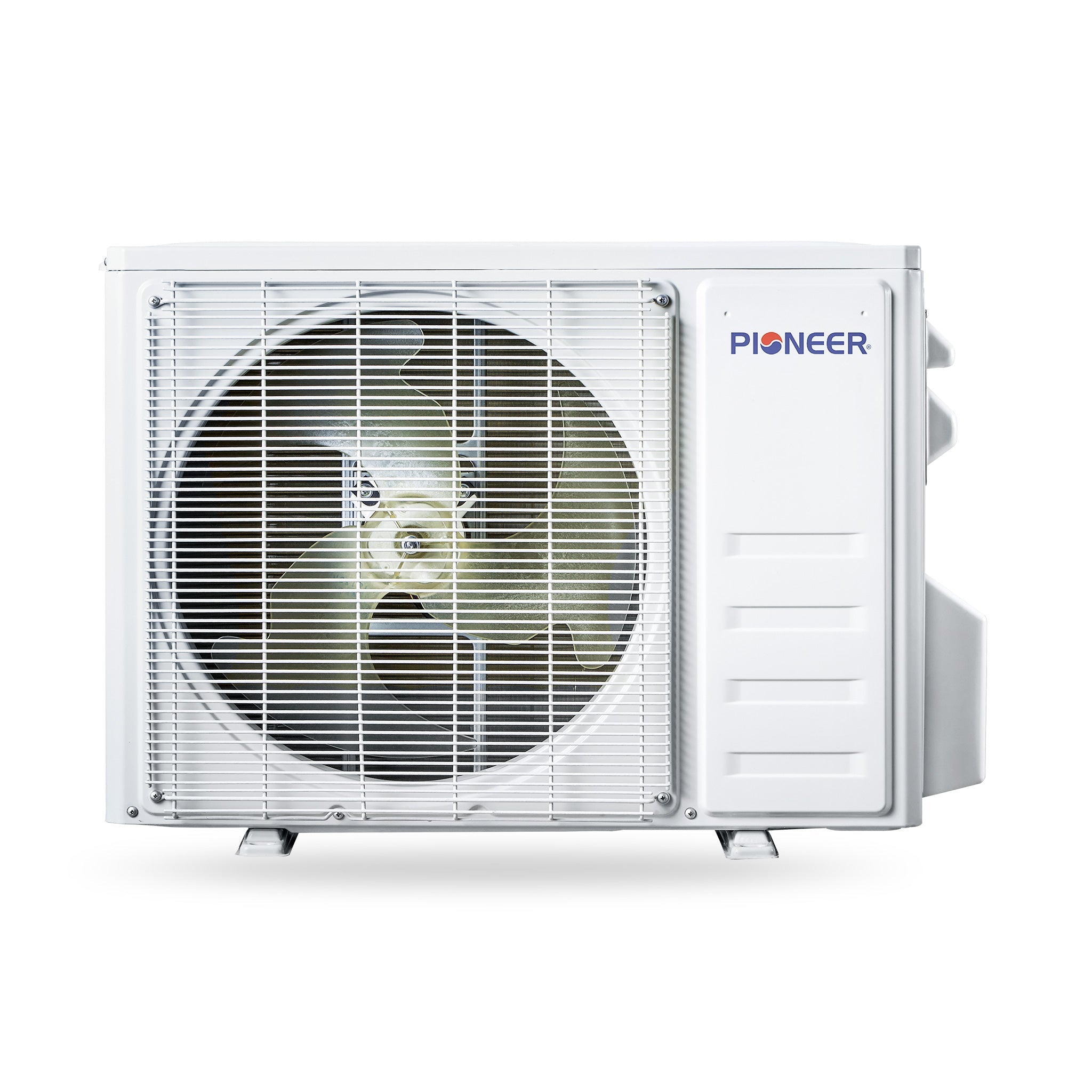

Outdoor mini-split unit with louvered front grille and visible fan inside

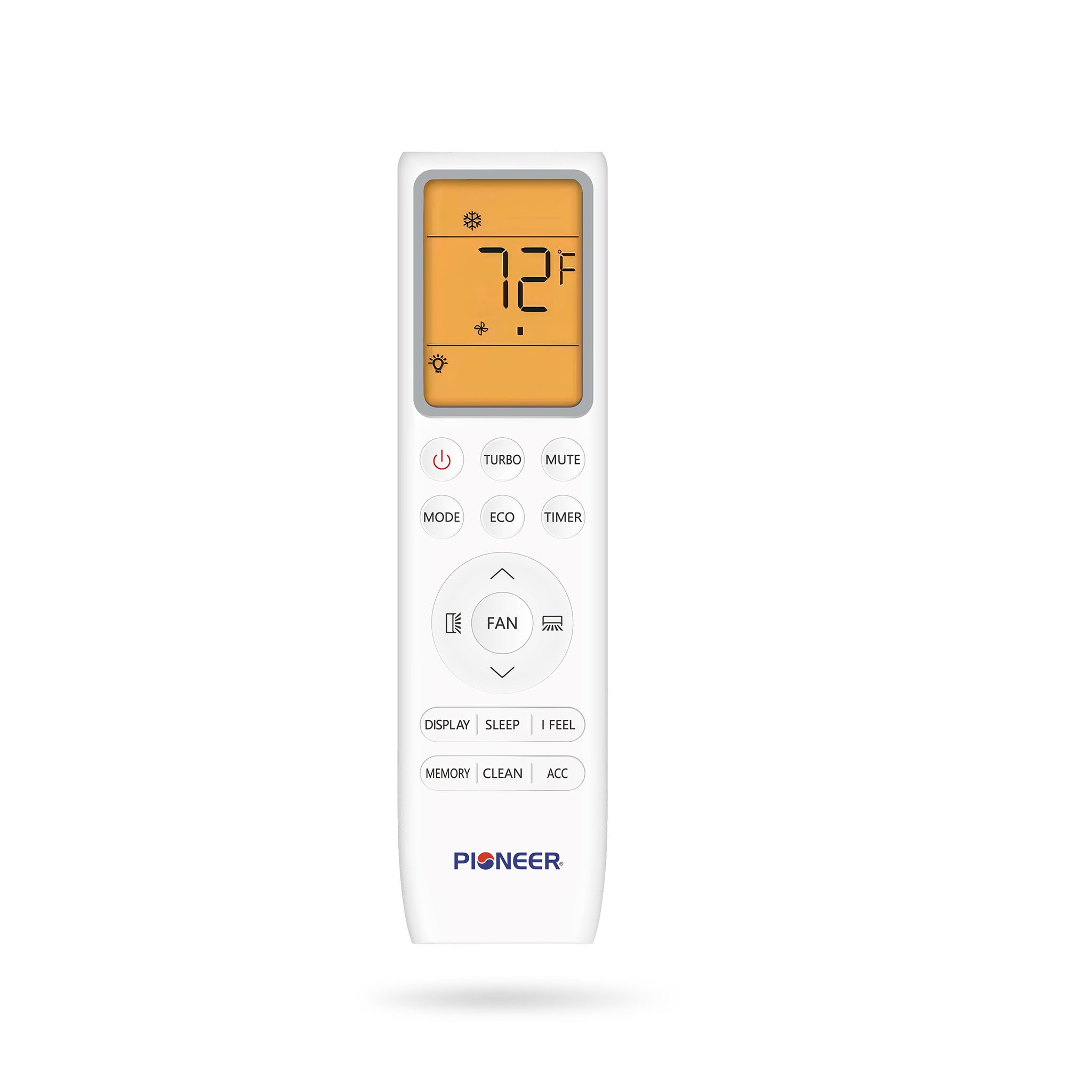

Pioneer mini-split remote control with orange display and button panel
Roll over image to zoom in Click on image to zoom
Ceiling cassette ductless mini-split air conditioner with front grille and open wiring bayCoiled white and black mini-split lineset with insulated pipes, connectors, and sensor cableCeiling cassette ductless mini-split air conditioner with bundled installation tubing and wiringBundle of dark and white installation tubing with connectors and insulation for mini-splitCeiling cassette ductless mini-split air conditioner with front grille and indoor unit housingSquare ceiling cassette air conditioner indoor grille with mesh filter and side ventsCeiling cassette ductless mini-split air conditioner from above with circular air outletOutdoor mini-split unit with louvered front grille and visible fan insidePioneer mini-split remote control with orange display and button panel
Click on image to zoom

Pioneer® Quantum Ultra™ 18,000 BTU 20.5 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set (CYT018GLSI24RL)

PioneerSKU: CYT018GLSI24RL-10S
3 reviews
Price:
$1,849.00 $2,529.00SAVE 26%
Air Handler Type:
BTU:
In Stock
Estimated delivery: Sep 7th-14th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
  • Cooling capacity: 16,000 BTU/H with 20.5 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 18,000 BTU/H with 8.5 HSPF2 / 3.0 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Ultra™ Ceiling Cassette

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Indoor Panel
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Product Dimensions (WDH)
22"-1/2 x 22"-1/2 x 9"-5/8 Inches
Carton Dimensions (WDH)
28"-1/4 x 25"-7/8 x 11"-7/8 Inches
Net / Gross Weight
32.0 / 38.6 lbs
Net Dimensions (WDH)
36"-1/2 x 15" x 27"-1/2 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Suitable Area
500~750 Sq.F
Part Number
CT018GLSILCFHG
Air Flow (Turbo/Hi/Med/Lo/Mute)
735/676/529/423/394 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
50/47/43/38/34 dB(A)
Sound Level
53 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
16,000 BTU/h
Cooling Capacity Range
6,000~19,400 BTU/h
Cooling SEER2
20.5 BTU/W.h
Cooling EER2
11.7 BTU/W.h
Heating Rated Capacity
18,000 BTU/h
Heating Capacity Range
4,000~21,400 BTU/h
Heating HSPF2 (Region IV)
8.5 / 7.4 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.0 / 1.8 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
20A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
SAFETY
AHRI Reference
217048760
