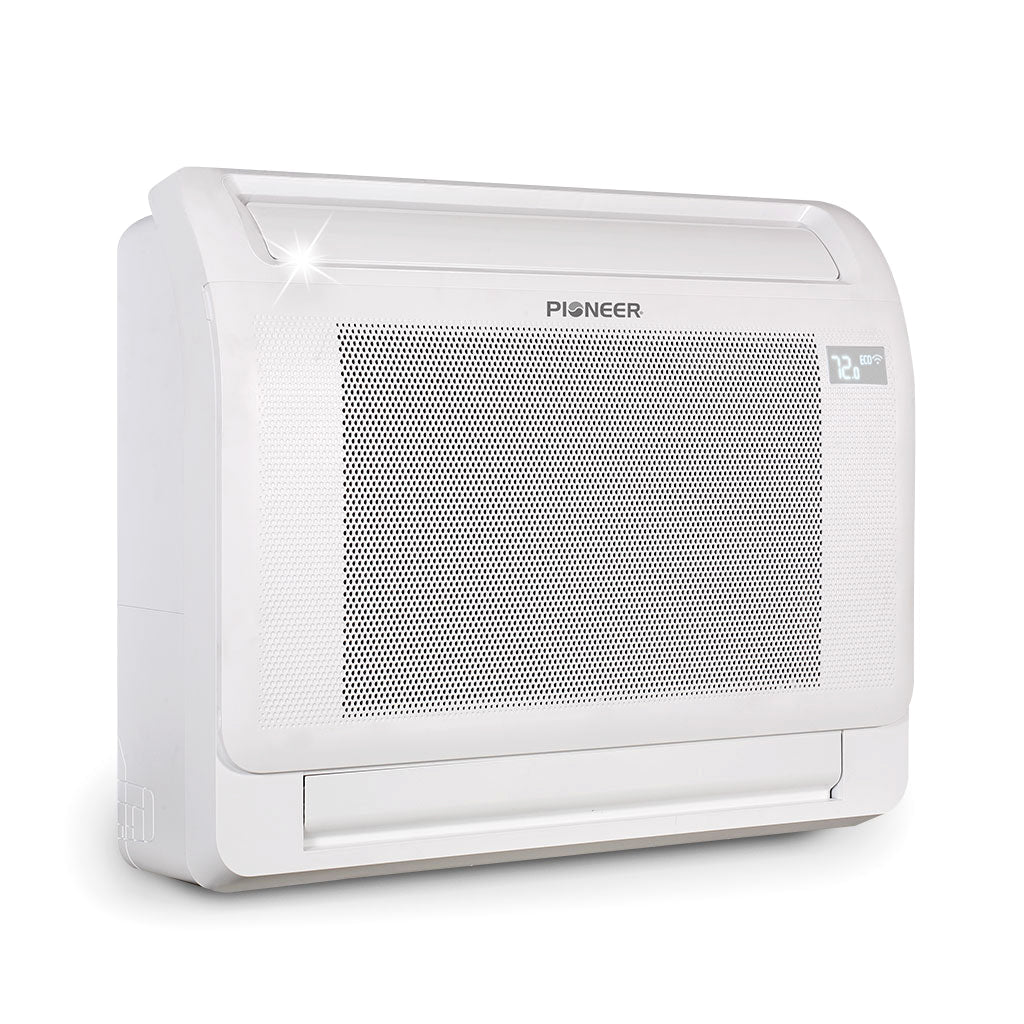

White indoor mini-split air conditioner with front vent grille and display panel

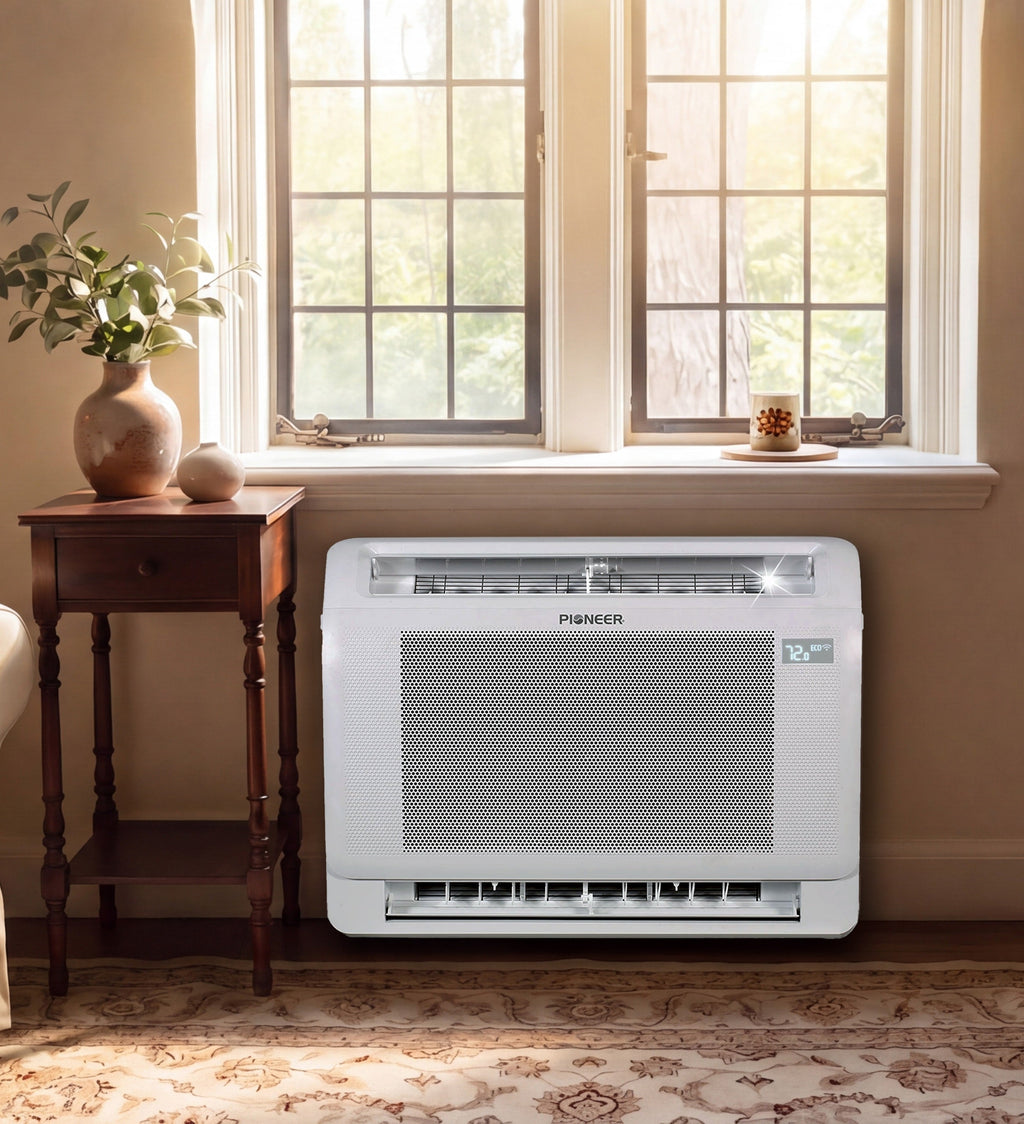

White console ductless mini-split air conditioner indoors near a window
White ductless mini-split indoor console air conditioner with mesh front grille

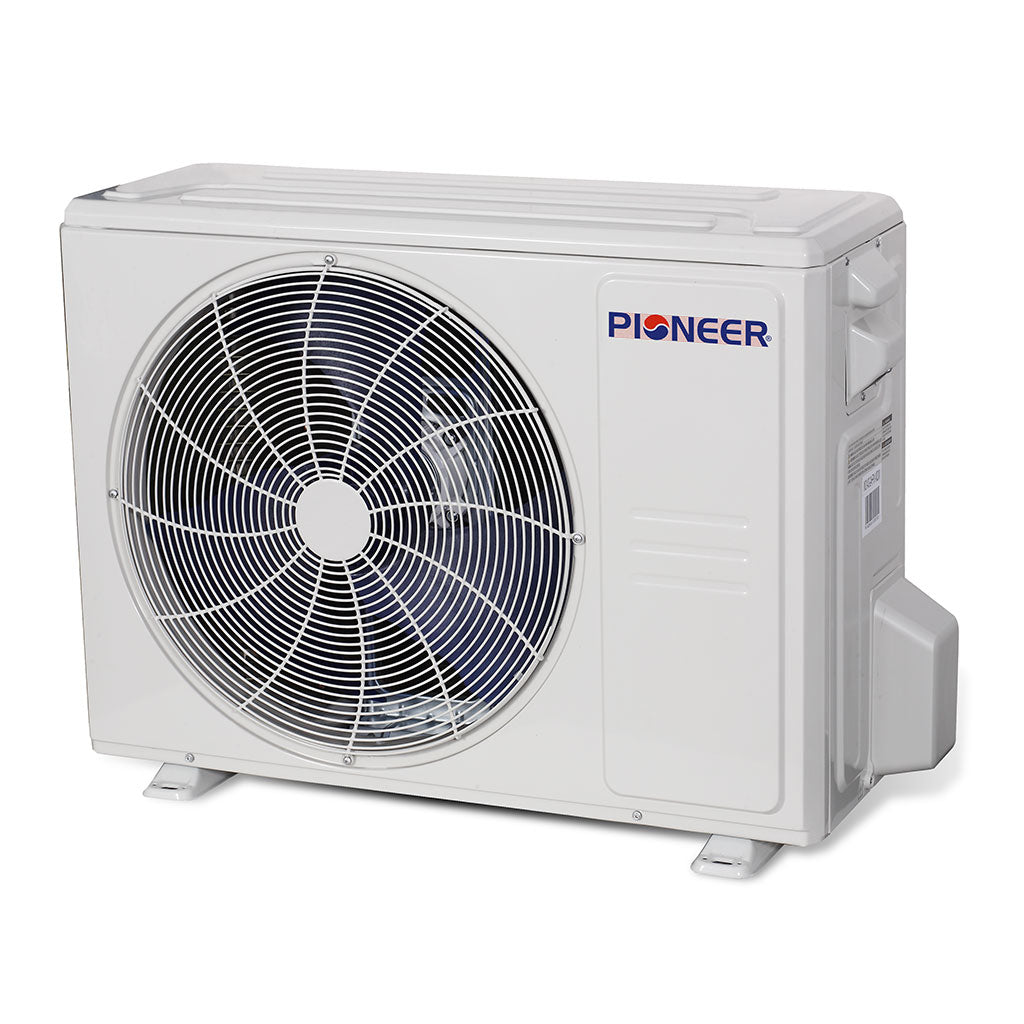

White outdoor condenser for ductless mini-split air conditioner with circular fan grille

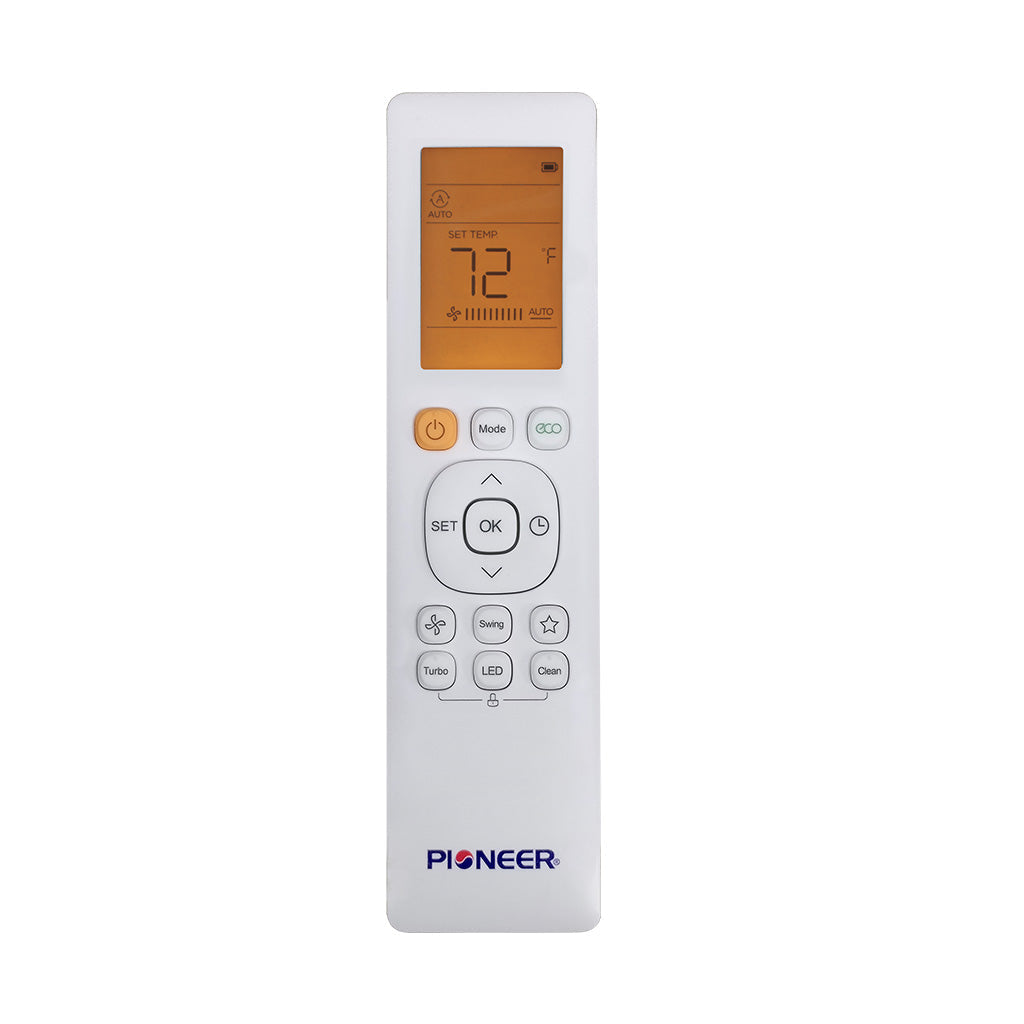

White remote control for ductless mini-split air conditioner with buttons and screen

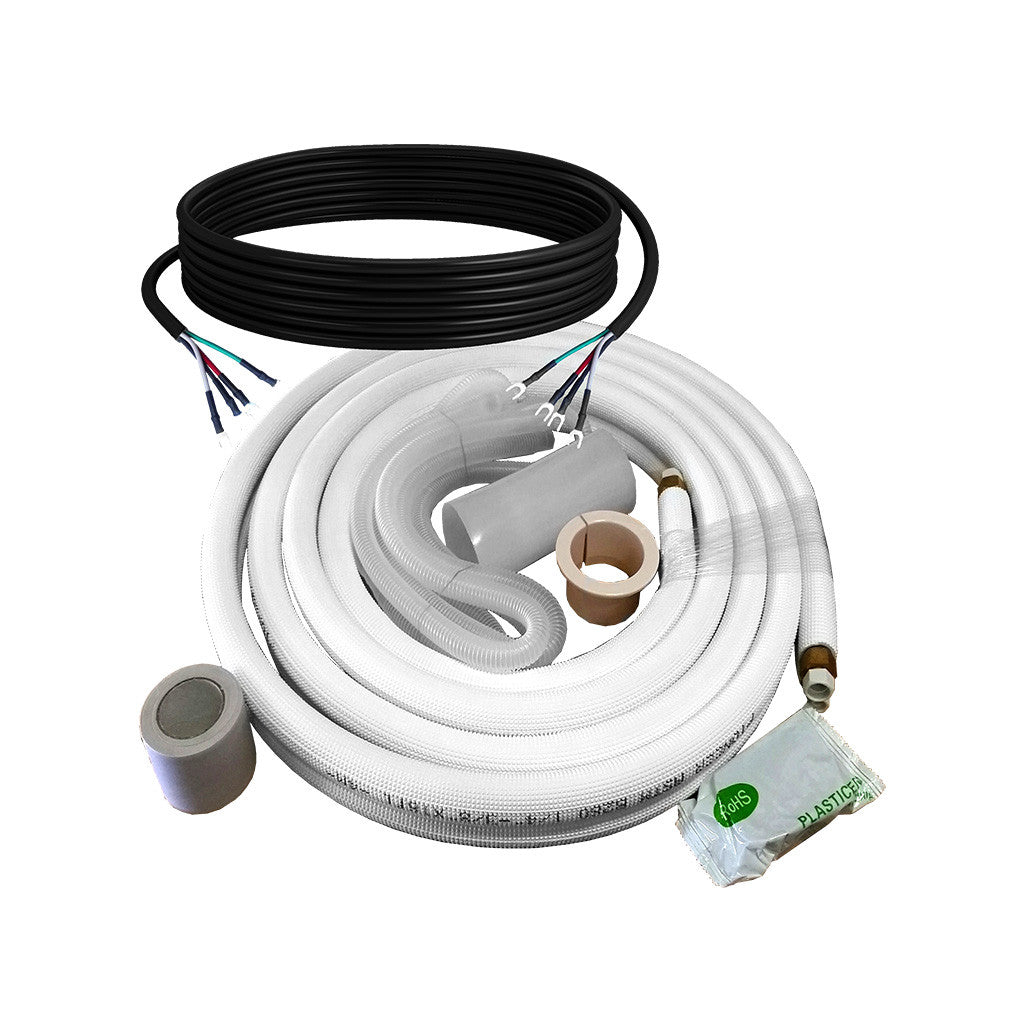

Ductless mini-split installation kit with coiled line set and insulated tubing
Roll over image to zoom in Click on image to zoom
White indoor mini-split unit with vent grille, LCD display, and remote controllerWhite console ductless mini-split air conditioner with front grille and small displayWhite indoor mini-split air conditioner with front vent grille and display panelWhite console ductless mini-split air conditioner indoors near a windowWhite ductless mini-split indoor console air conditioner with mesh front grilleWhite outdoor condenser for ductless mini-split air conditioner with circular fan grilleWhite remote control for ductless mini-split air conditioner with buttons and screenDuctless mini-split installation kit with coiled line set and insulated tubing
Click on image to zoom

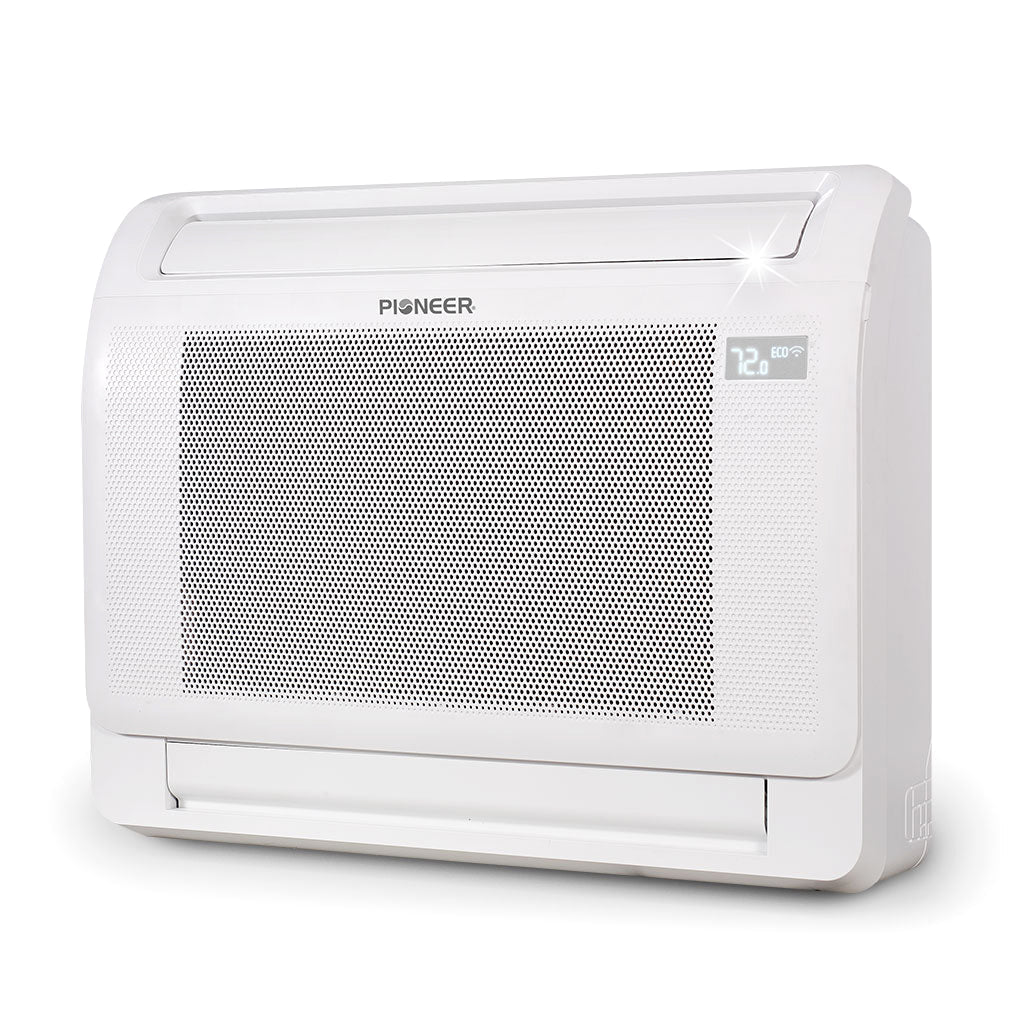

Pioneer® Quantum Ultra™ 16,000 BTU 23.8 SEER2 230V Floor/Low-Wall Mounted Console Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

PioneerSKU: FYB018GMSI24RL-10S
3 reviews
Price:
$2,073.00 $2,959.00SAVE 29%
BTU:
In Stock
Estimated delivery: Sep 7th-14th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Pioneer® Quantum Ultra™ 16,000 BTU Floor/Low-Wall Mounted Console Mini-Split delivers exceptional comfort and industry-leading efficiency with an impressive 23.8 SEER2 cooling rating and 13.5 HSPF2 heating performance down to -13°F.

Its sleek floor-level console design is ideal for rooms with limited wall space or under-window installations, while the variable-speed DC inverter and dual-axis motorized louvers provide precise, whisper-quiet airflow throughout the space.

Factory-precharged with eco-friendly R454b refrigerant and equipped with smart conveniences—ECO, SLEEP, TURBO, Self-Clean, MEMORY, and Follow-Me temperature sensing—this 230V heat pump system combines premium energy savings, reliable year-round performance, and effortless control for residential and light commercial spaces.

Summary

  • High Efficiency Quantum Ultra Floor/Low-Wall Mounted Console Split Heat Pump System
  • Cooling capacity: 16,000 BTU/H with 23.8 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 17,000 BTU/H with 13.5 HSPF2 / 3.4 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Floor/Low-Wall Mounted Console Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • FOLLOW ME, to Detect and Adjust to Local Temperature

Dimension Chart

31¼ 7⅞ 24½ 35 13½ 26½ 2¼ ¾ 8½
DIMENSIONS & WEIGHT
Product Dimensions (WDH)
31-1/4 x 7-7/8 x 24-1/2 Inches
Carton Dimensions (WDH)
34-1/8 x 11 x 28-3/8 Inches
Net / Gross Weight
32.9 / 41.9 lbs
Net Dimensions (WDH)
35 x 13-1/2 x 26-1/2 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
500~750 sq ft
Minimum Room Size
227 sq ft
Part Number
FB018GMSILDFHG
Air Flow (Turbo/Hi/Med/Lo/Mute)
500 / 441 / 382 / 324 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
41.5 / 39 / 28.5 dB(A)
Sound Level
57 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
16,000 BTU/h
Cooling Capacity Range
4,700~18,000 BTU/h
Cooling SEER2
23.8 BTU/W.h
Cooling EER2
12.5 BTU/W.h
Heating Rated Capacity
17,000 BTU/h
Heating Capacity Range
7,300~22,900 BTU/h
Heating HSPF2 (Region IV/V)
13.5 / 9.4 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.4 / 2.16 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
20A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
  • 1/2" (Gas)
  • 1/4" (Liquid)
SAFETY
AHRI Reference
218010990
