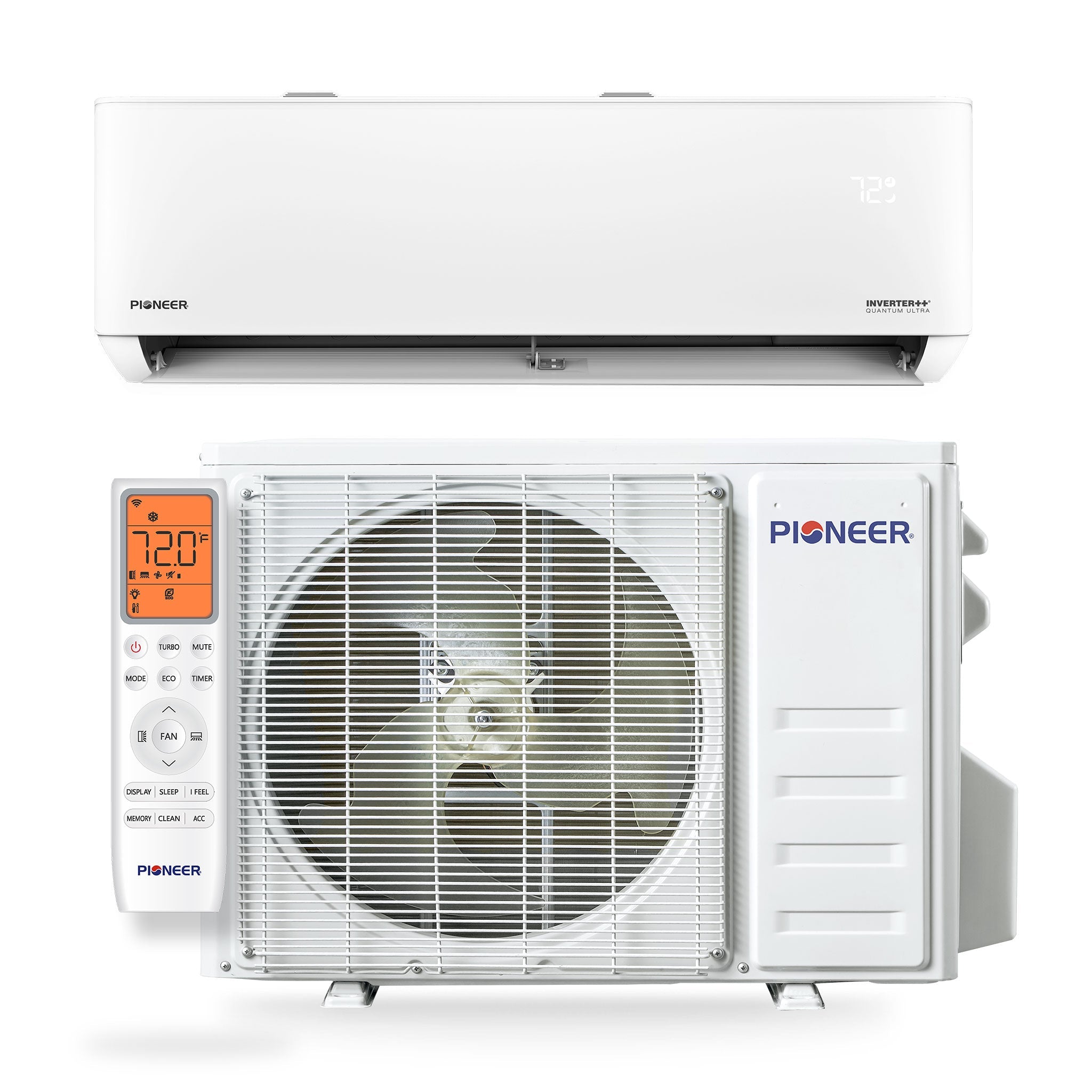

Ductless mini-split air conditioner full set with indoor unit, outdoor unit, and remote
Ductless mini-split installation lineset kit with coiled hoses, cables, and insulation sleeves
Ductless mini-split air conditioner full set with indoor unit, outdoor unit, and bundled lineset
Outdoor condenser unit for ductless mini-split air conditioner with PIONEER logo
Ductless mini-split lineset kit with bundled tubing, wire leads, and insulation accessories
Ductless mini-split air conditioner full set with indoor unit, outdoor unit, and remote
Wall-mounted indoor ductless mini-split air conditioner unit

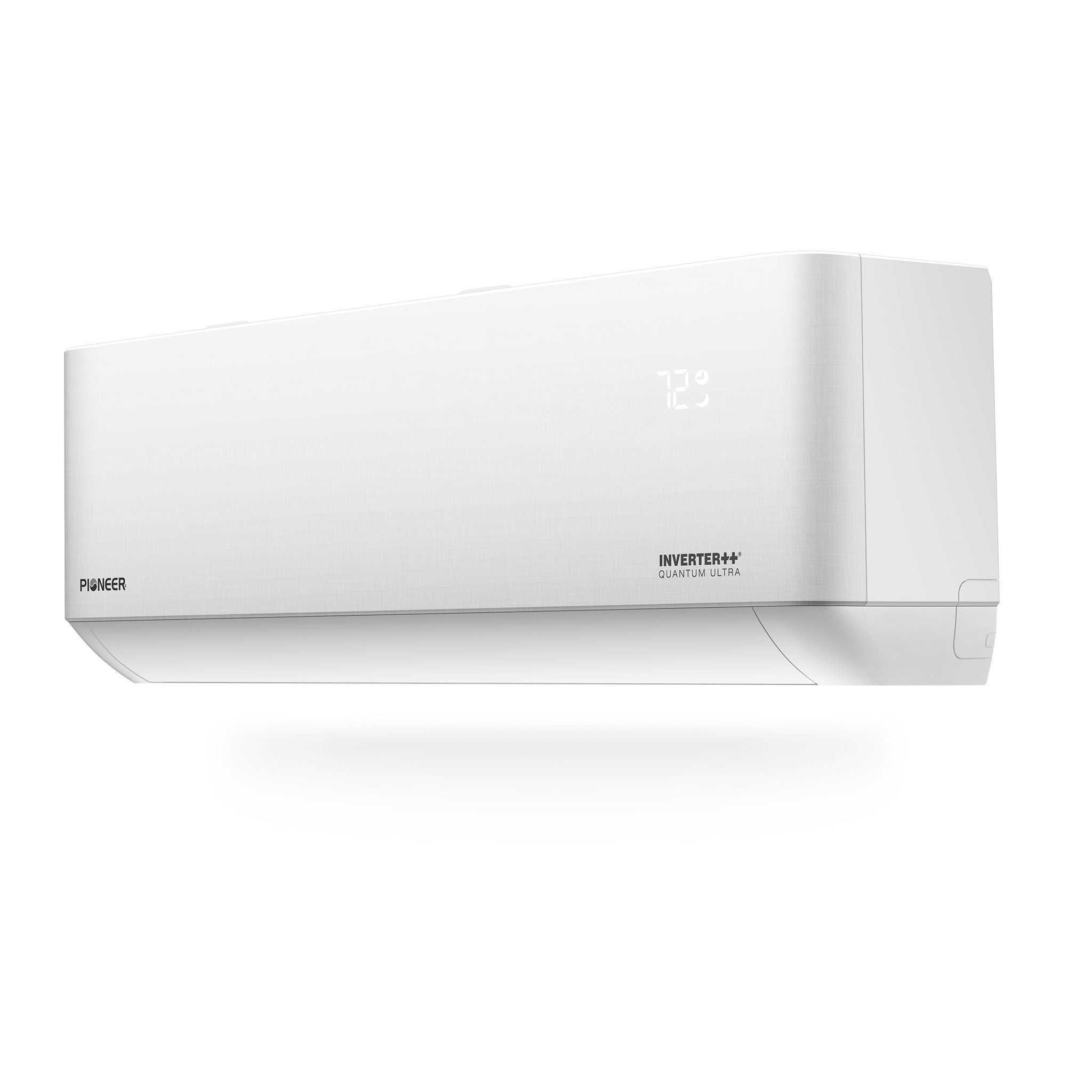

White high-wall ductless mini-split indoor unit with display and inverter markings
Outdoor condenser unit for ductless mini-split air conditioner with fan grille
Smartphone app remote control for ductless mini-split air conditioner, held in hand
Ductless mini-split air conditioner remote control with orange display screen
USB Wi-Fi adapter module with small gray power electronics board
Ductless mini-split outdoor unit with multi-season performance graphic
Roll over image to zoom in Click on image to zoom
Ductless mini-split air conditioner full set with indoor unit, outdoor unit, and remoteDuctless mini-split installation lineset kit with coiled hoses, cables, and insulation sleevesDuctless mini-split air conditioner full set with indoor unit, outdoor unit, and bundled linesetOutdoor condenser unit for ductless mini-split air conditioner with PIONEER logoDuctless mini-split lineset kit with bundled tubing, wire leads, and insulation accessoriesDuctless mini-split air conditioner full set with indoor unit, outdoor unit, and remoteWall-mounted indoor ductless mini-split air conditioner unitWhite high-wall ductless mini-split indoor unit with display and inverter markingsOutdoor condenser unit for ductless mini-split air conditioner with fan grilleSmartphone app remote control for ductless mini-split air conditioner, held in handDuctless mini-split air conditioner remote control with orange display screenUSB Wi-Fi adapter module with small gray power electronics boardDuctless mini-split outdoor unit with multi-season performance graphic
Click on image to zoom

Pioneer® Quantum Ultra™ 12,000 BTU 23 SEER2 115V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set (WYT012ALSI24RL)

PioneerSKU: WYT012ALSI24RL-10S
3 reviews
Price:
$1,163.00 $1,649.00SAVE 29%
Voltage:
BTU:
In Stock
Estimated delivery: Sep 7th-14th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 23 SEER2 / 13 EER2 efficiency
  • Heating capacity: 12,400 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
  • Voltage: 110/120V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System

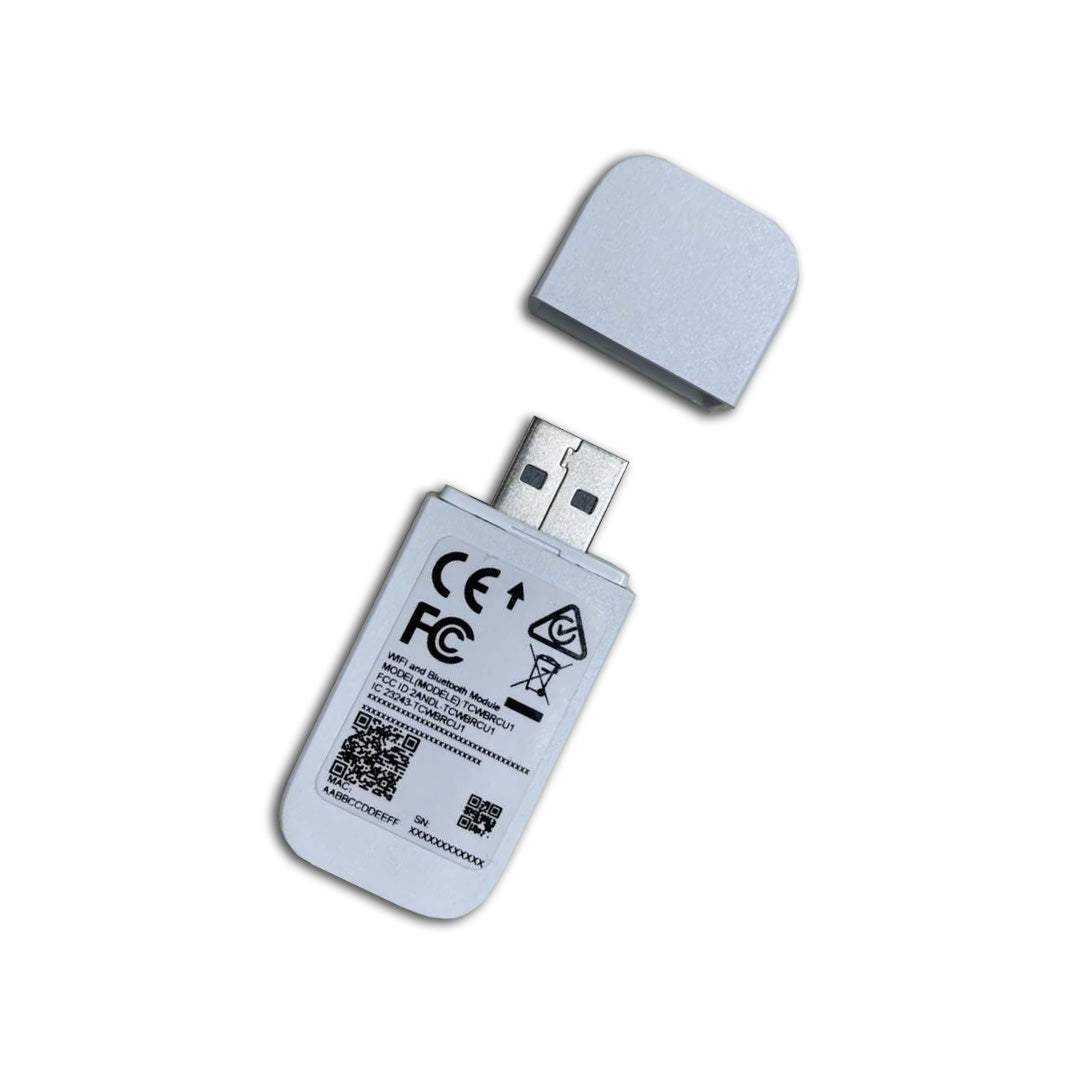

  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant

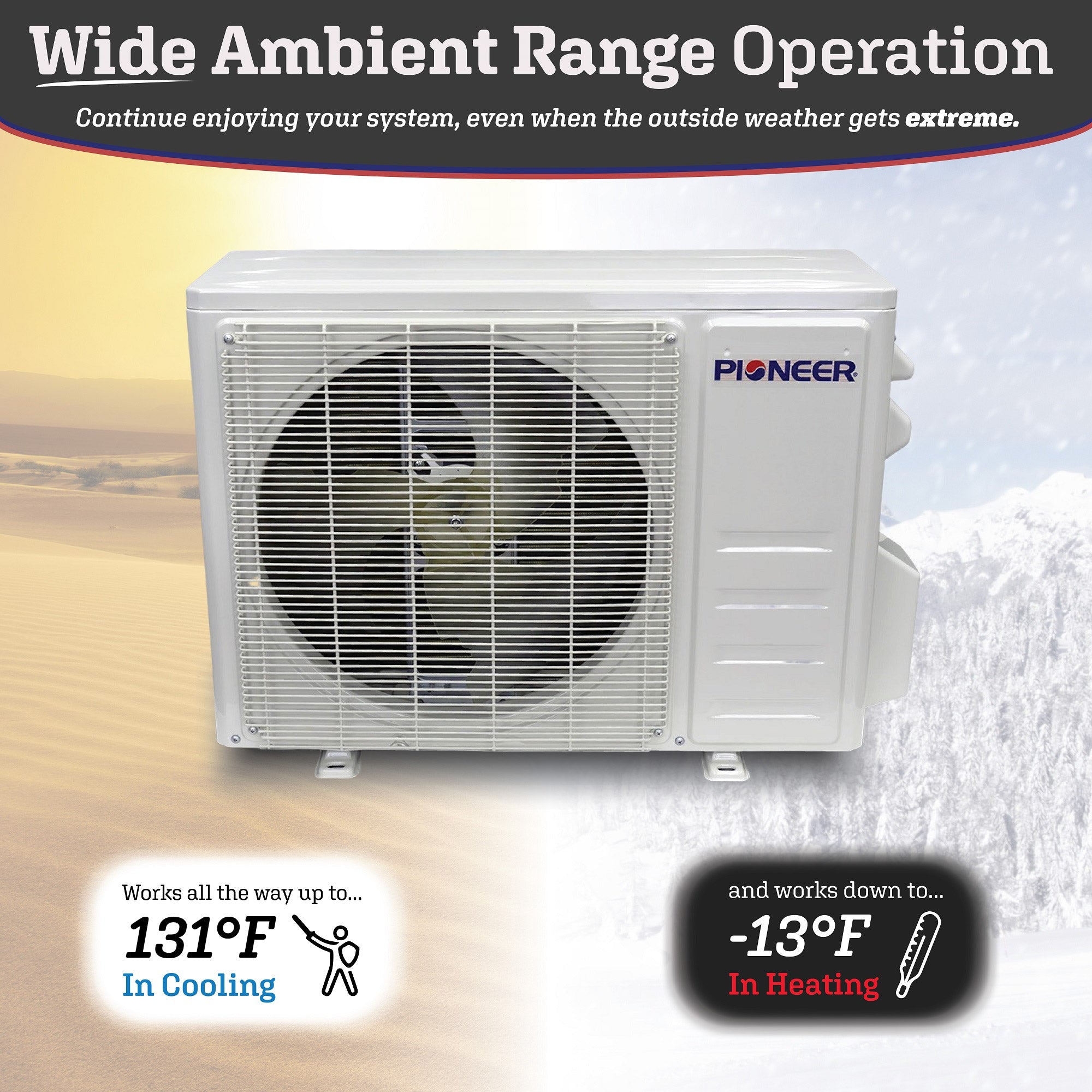

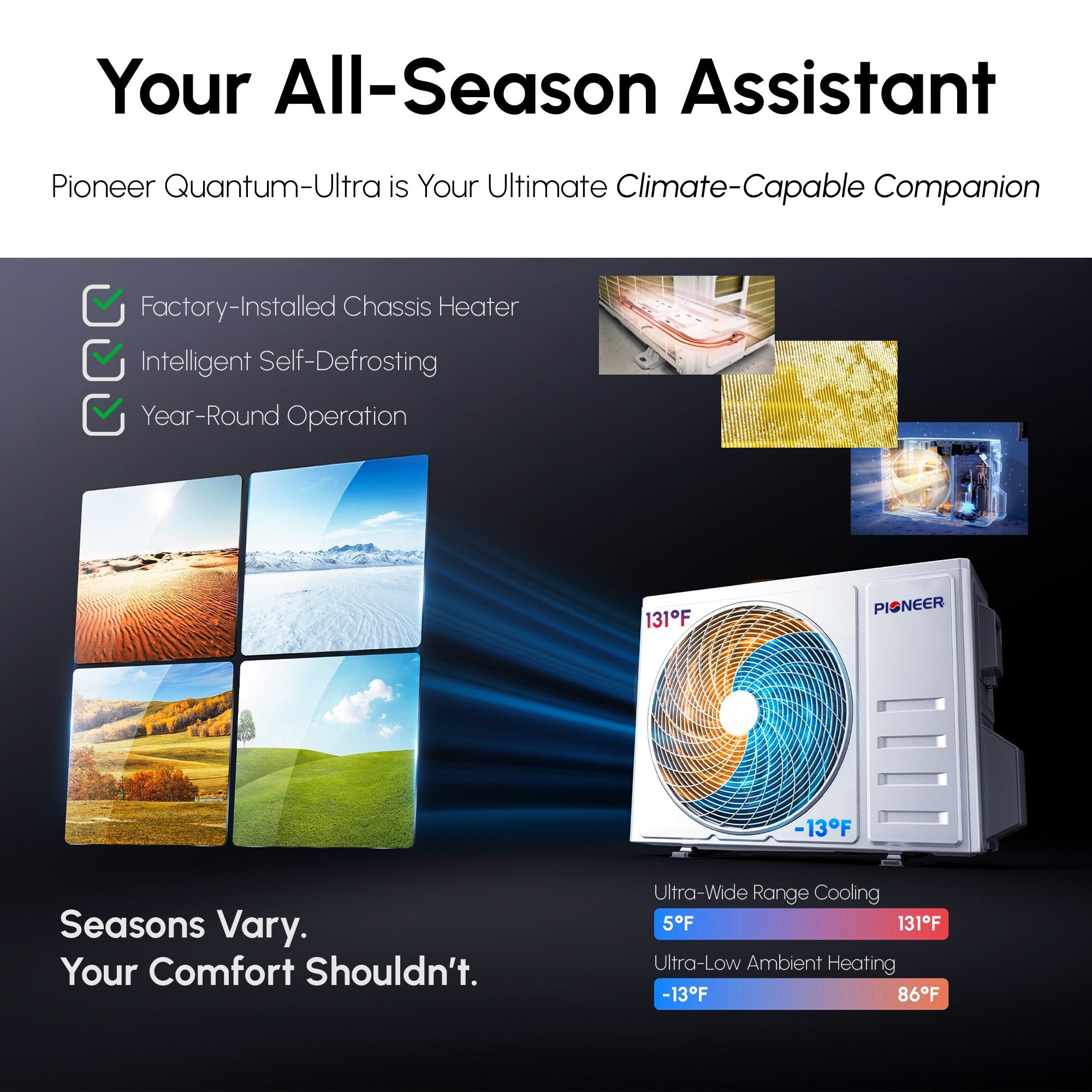

  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Ultra™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

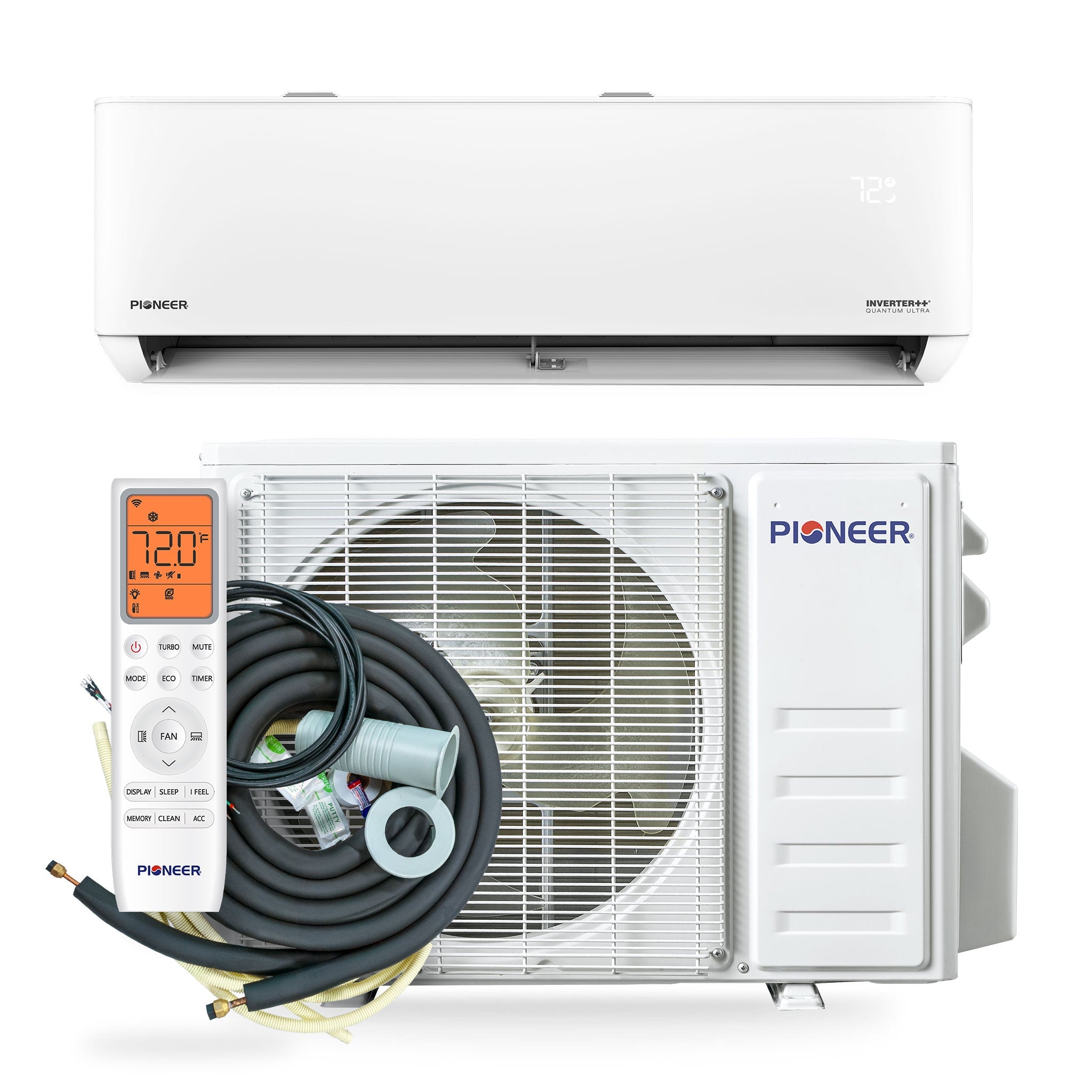

What's Included in Your Purchase

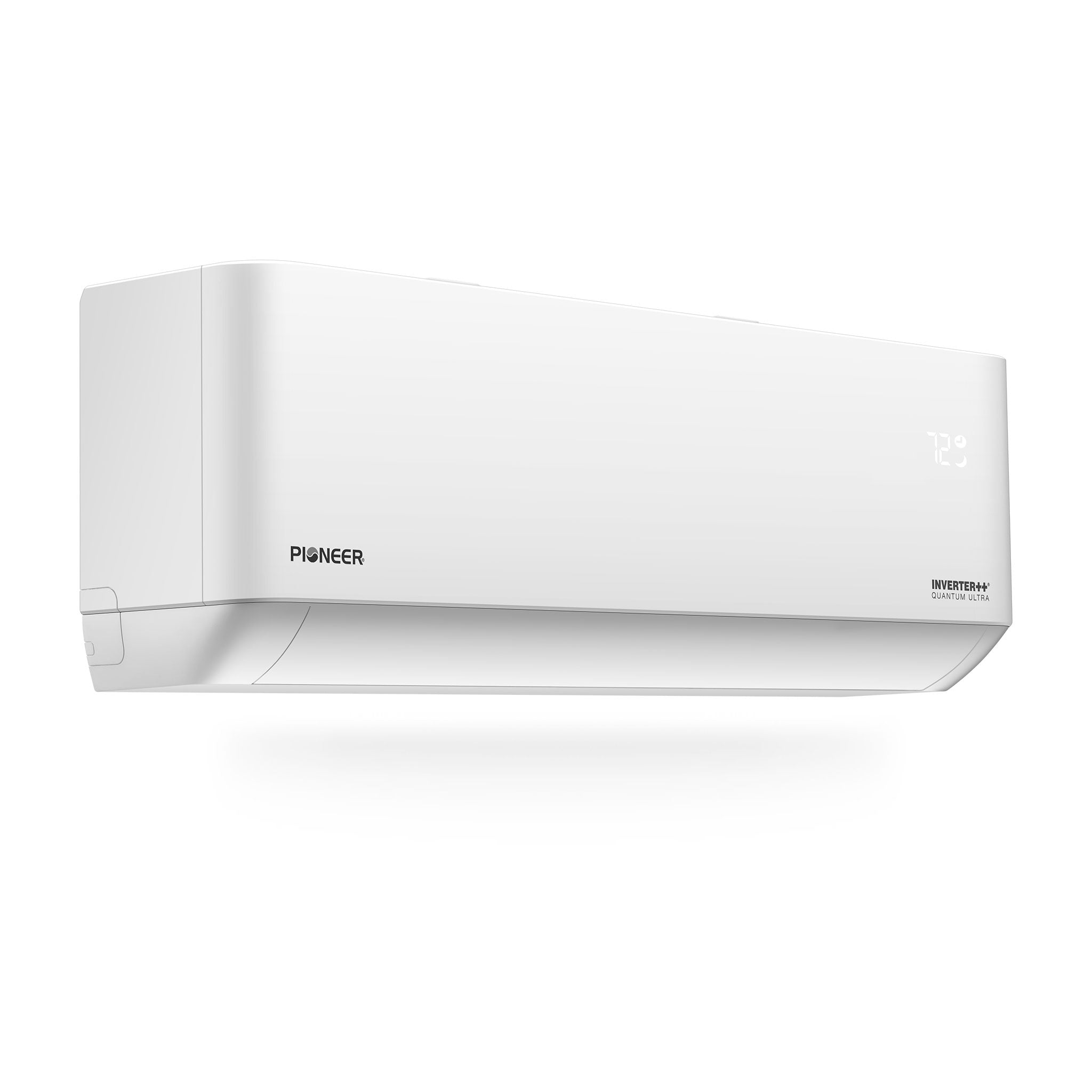

  • Indoor Unit

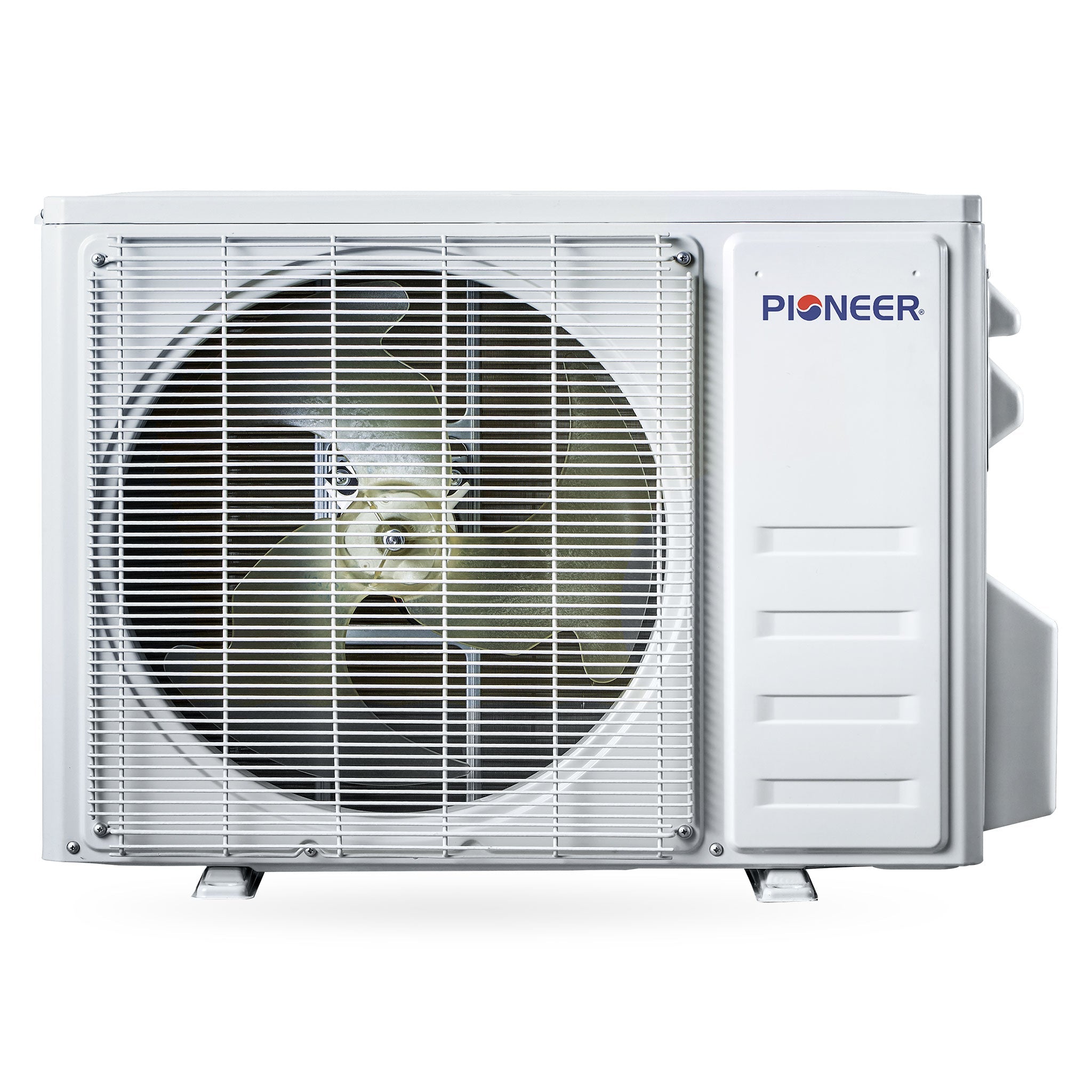

  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries

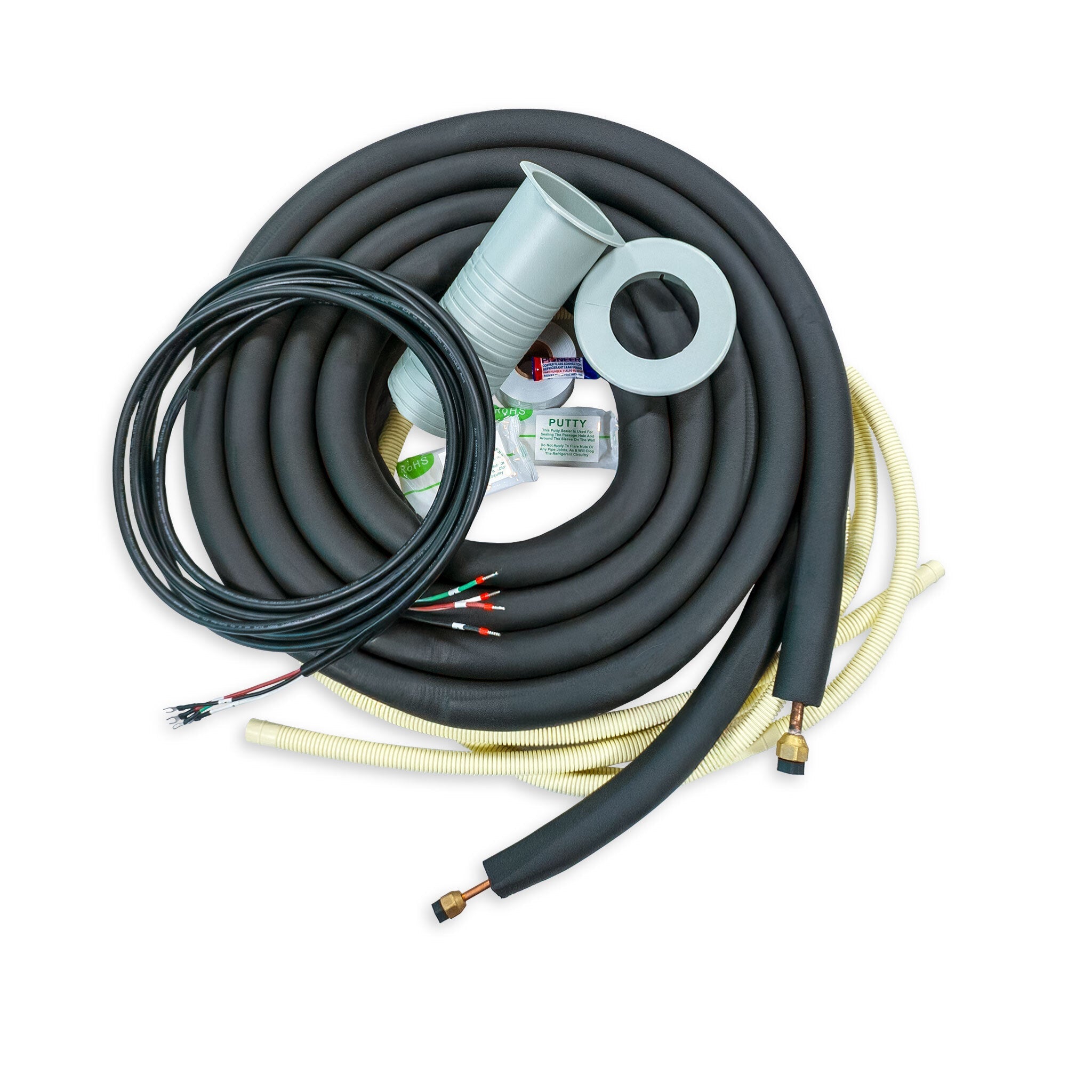

  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Minimum Installation Height
6 ft
Product Dimensions (WDH)
36"-1/2 x 7"-5/8 x 12" Inches
Carton Dimensions (WDH)
39" x 10"-1/2 x 15" Inches
Net / Gross Weight
23.1 / 30.9 lbs.
Net Dimensions (WDH)
31"-7/8 x 12" x 21"-5/8 Inches
GENERAL INFORMATION
Power Supply
110~120V, 60Hz, 1Ph
Recommended Room Size
250~500 Sq.F
Minimum Room Size
40 sq ft
Part Number
WT012ALSI24HLG
Air Flow (Turbo/Hi/Med/Lo/Mute)
500/470/411/323/205 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
46/44/36/32/30 dB(A)
Sound Level
52 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
12,000 BTU/h
Cooling Capacity Range
2,500~12,500 BTU/h
Cooling SEER2
23.0 BTU/W.h
Cooling EER2
13.0 BTU/W.h
Heating Rated Capacity
12,400 BTU/h
Heating Capacity Range
2,500~15,000 BTU/h
Heating HSPF2 (Region IV)
10.0 / 8.6 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.81 / 2.1 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
20A (single-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
1/4 x 3/8"
SAFETY
AHRI Reference
217048750
