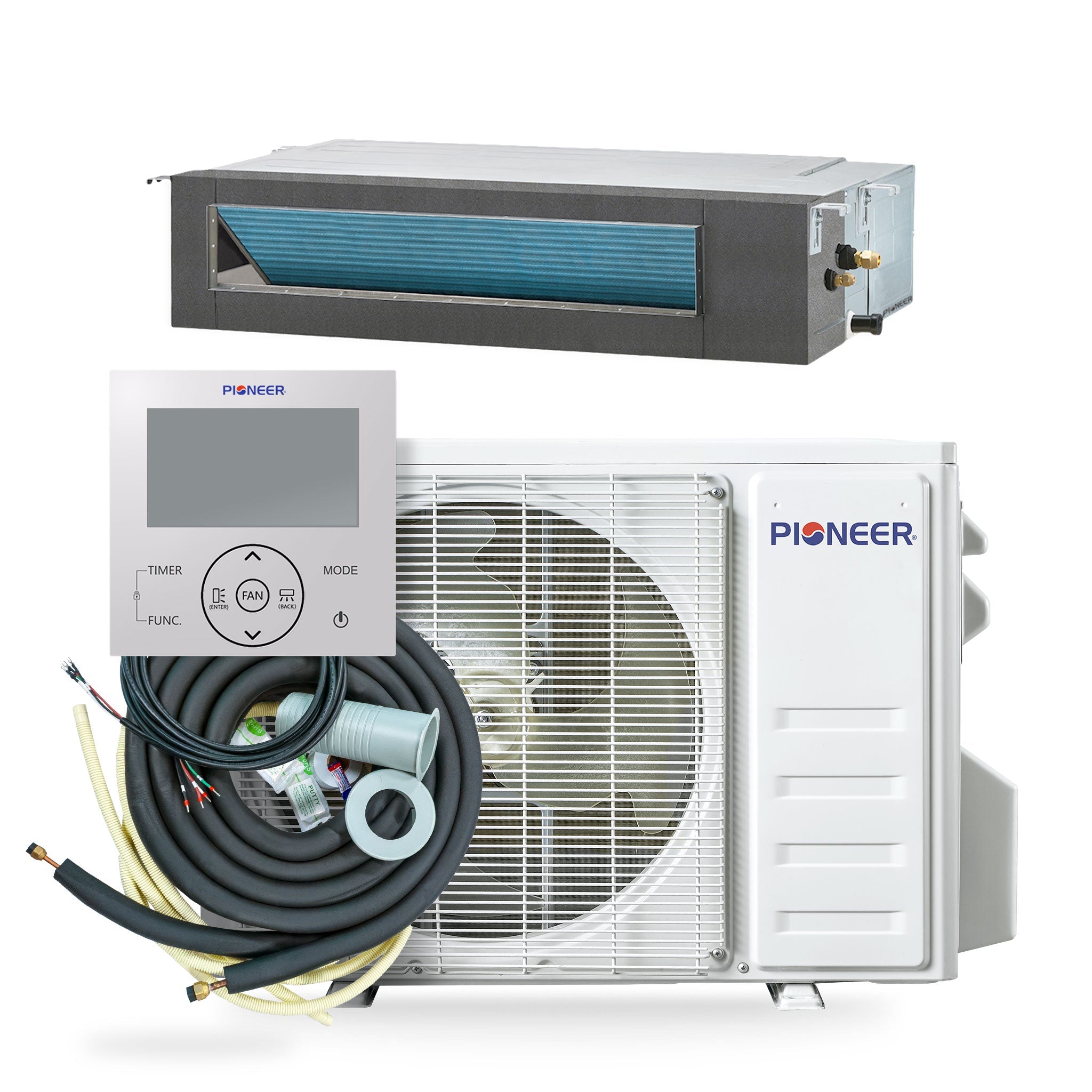

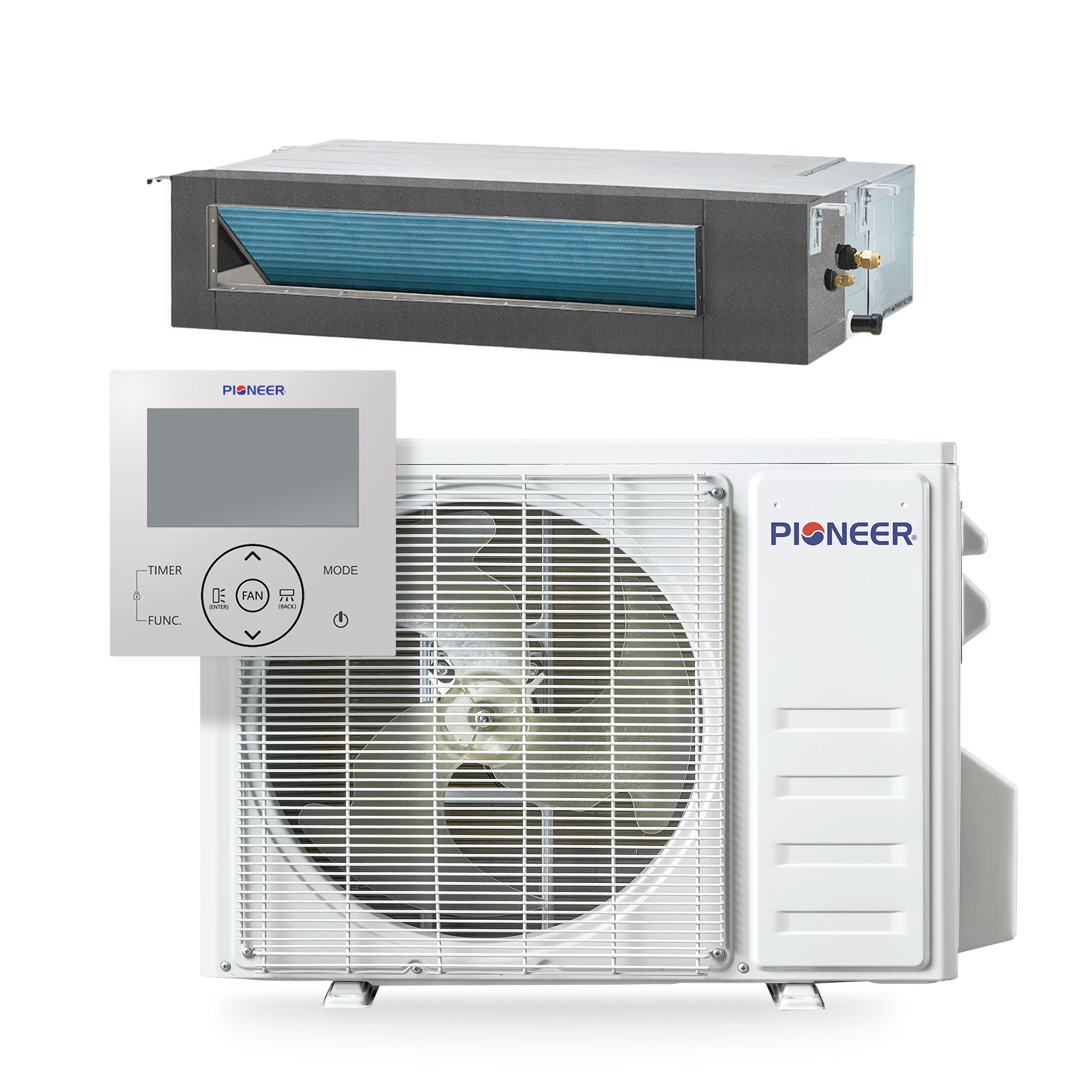

White and gray ceiling-concealed ducted mini-split full set with outdoor unit
White insulated refrigerant line set with wrapped wiring, sensor, and fittings
White ducted mini-split outdoor unit with coiled tubing and wire harness

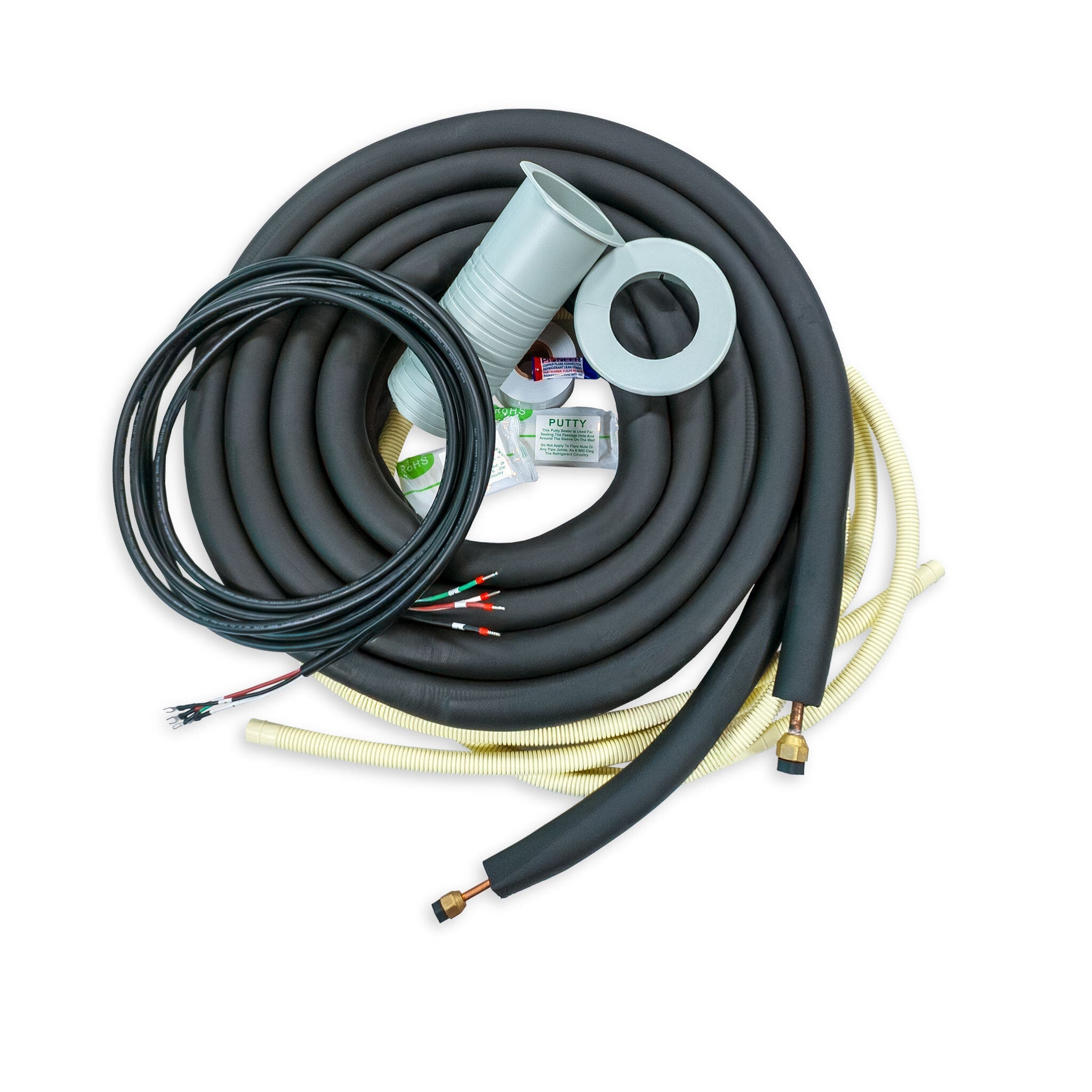

Refrigerant line set with insulated hoses, wire bundle, and metal connectors
White ducted mini-split outdoor condenser with front fan grille and side casing

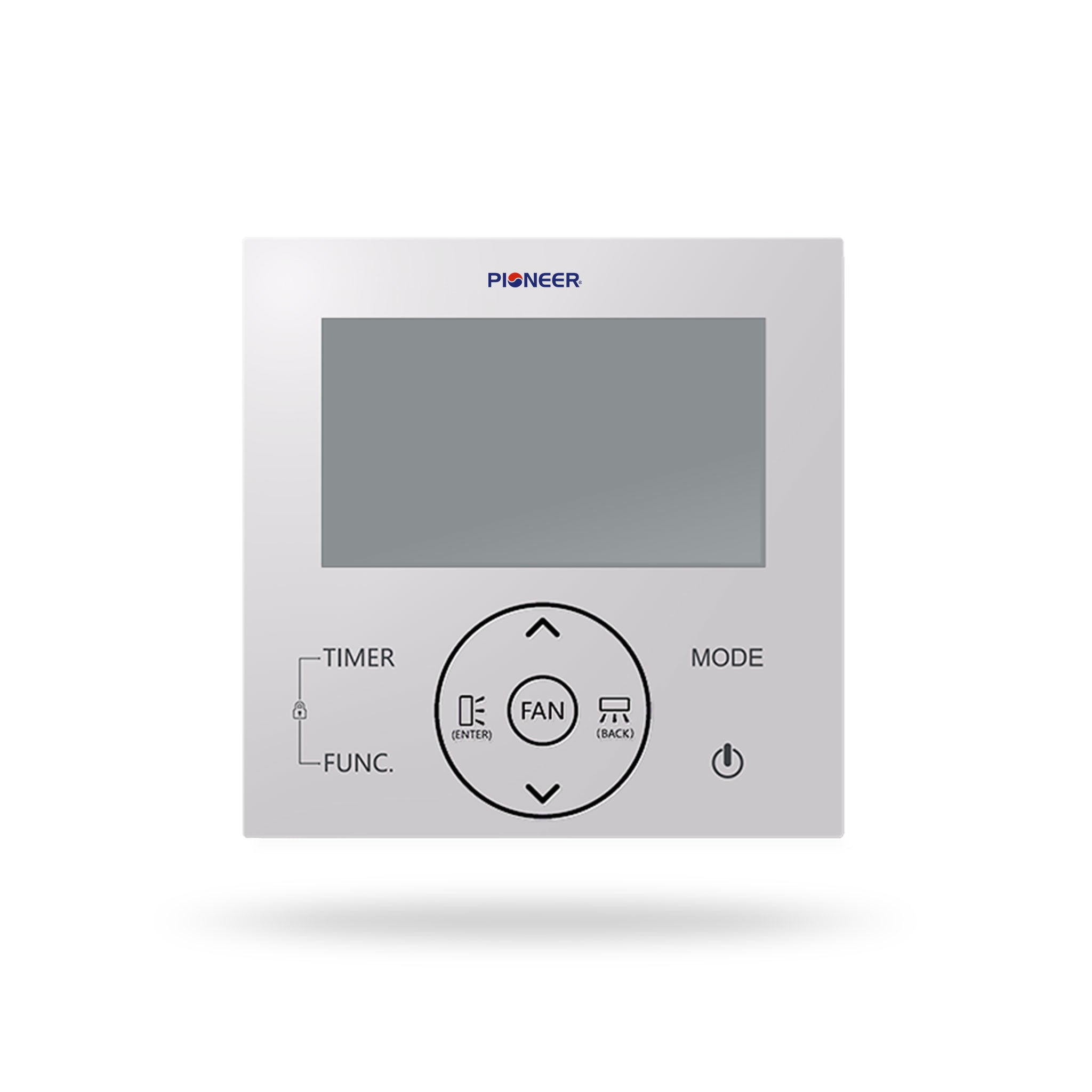

Grey mini-split remote control with LCD screen and mode, fan, timer buttons

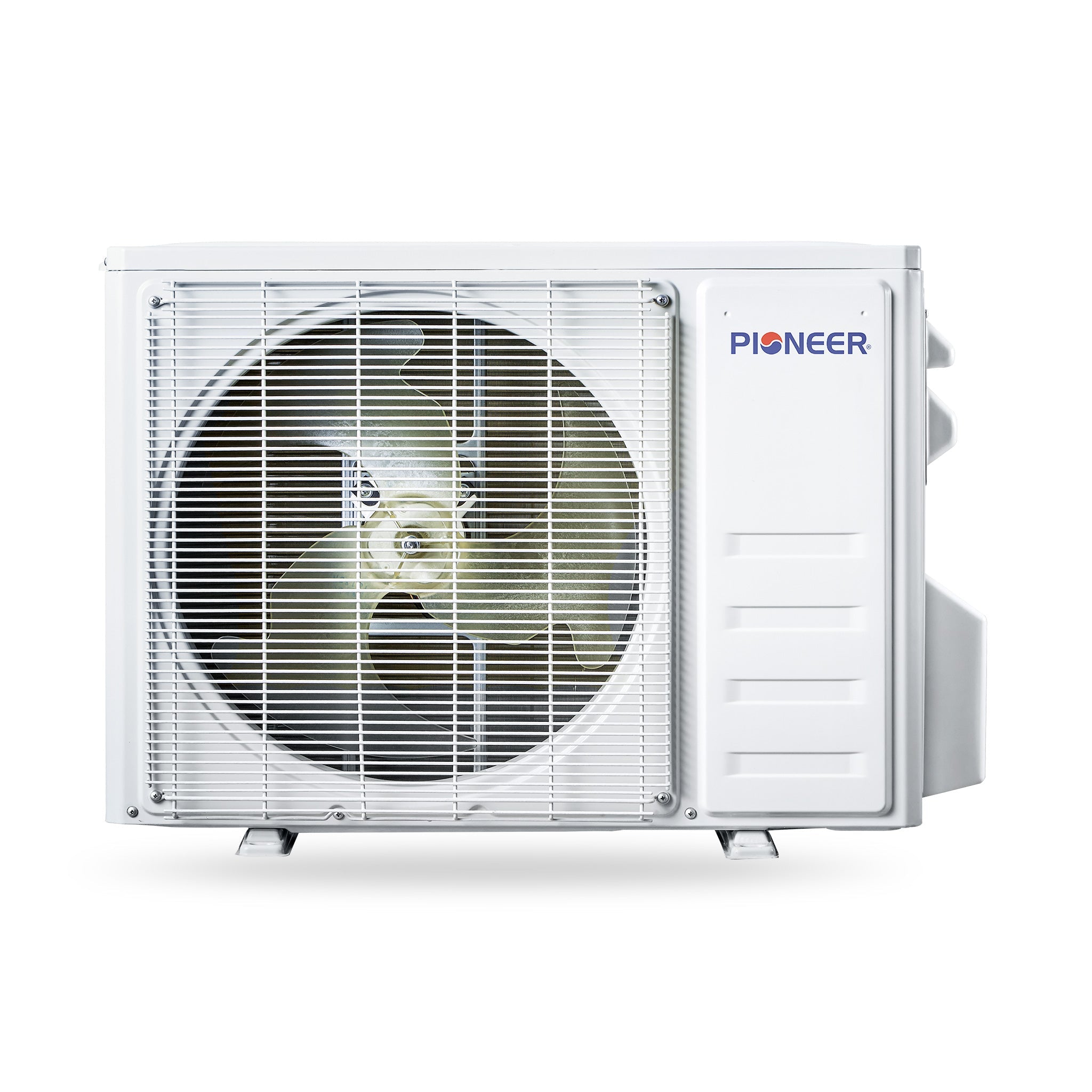

White ducted mini-split outdoor condenser with grille fan and vented side panels
Roll over image to zoom in Click on image to zoom
White and gray ceiling-concealed ducted mini-split full set with outdoor unitWhite insulated refrigerant line set with wrapped wiring, sensor, and fittingsWhite ducted mini-split outdoor unit with coiled tubing and wire harnessRefrigerant line set with insulated hoses, wire bundle, and metal connectorsWhite ducted mini-split outdoor condenser with front fan grille and side casingGrey mini-split remote control with LCD screen and mode, fan, timer buttonsWhite ducted mini-split outdoor condenser with grille fan and vented side panels
Click on image to zoom

Pioneer® Quantum Ultra™ 12,000 BTU 18.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set (RYT012GLSI24RL)

PioneerSKU: RYT012GLSI24RL-10S
4 reviews
Price:
$1,413.00 $2,019.00SAVE 30%
Air Handler Type:
BTU:
In Stock
Estimated delivery: Oct 18th-25th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
  • Cooling capacity: 11,000 BTU/H with 18.5 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 12,000 BTU/H with 8.5 HSPF2 / 3.3 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Ultra™ Ceiling Concealed

Pioneer® concealed duct mini split systems provide hidden heating and cooling for multiple rooms through a single ducted unit. Ideal for separated zones like master suites, one system can condition sub-areas with uniform comfort. Available in six capacities, including ceiling-concealed and slim duct models, these systems suit zones of all sizes.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Wire Remote Control
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Product Dimensions (WDH)
27"-1/2 x 19"-1/4 x 7"-7/8 Inches
Carton Dimensions (WDH)
35"-1/2 x 21"-7/8 x 9"-7/8 Inches
Net / Gross Weight
33.1 / 40.8 lbs.
Net Dimensions (WDH)
31"-7/8 x 12" x 21"-5/8 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Suitable Area
350~500 Sq.F
Part Number
RT012GLSILCFHG
Air Flow (Turbo/Hi/Med/Lo/Mute)
360/330/270/210/180 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
43/41/39 dB(A)
Sound Level
52 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
11,000 BTU/h
Cooling Capacity Range
2,000~12,300 BTU/h
Cooling SEER2
18.5 BTU/W.h
Cooling EER2
11.7 BTU/W.h
Heating Rated Capacity
12,000 BTU/h
Heating Capacity Range
3,100~12,300 BTU/h
Heating HSPF2 (Region IV)
8.5 / 7.5 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.3 / 1.8 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
15A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
SAFETY
AHRI Reference
217048763

Pioneer Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
48K BTU
36K BTU
30K BTU
24K BTU
18K BTU
12K BTU
9K BTU
9K BTU up to 350 sq ft · Bedroom, home office
12K BTU up to 500 sq ft · Large bedroom, den
18K BTU up to 750 sq ft · Living room, master suite
24K BTU up to 1000 sq ft · Open living area
30K BTU up to 1200 sq ft · Large open area
36K BTU up to 1400 sq ft · Great room, small home
48K BTU up to 1800 sq ft · Whole floor, large open space
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
