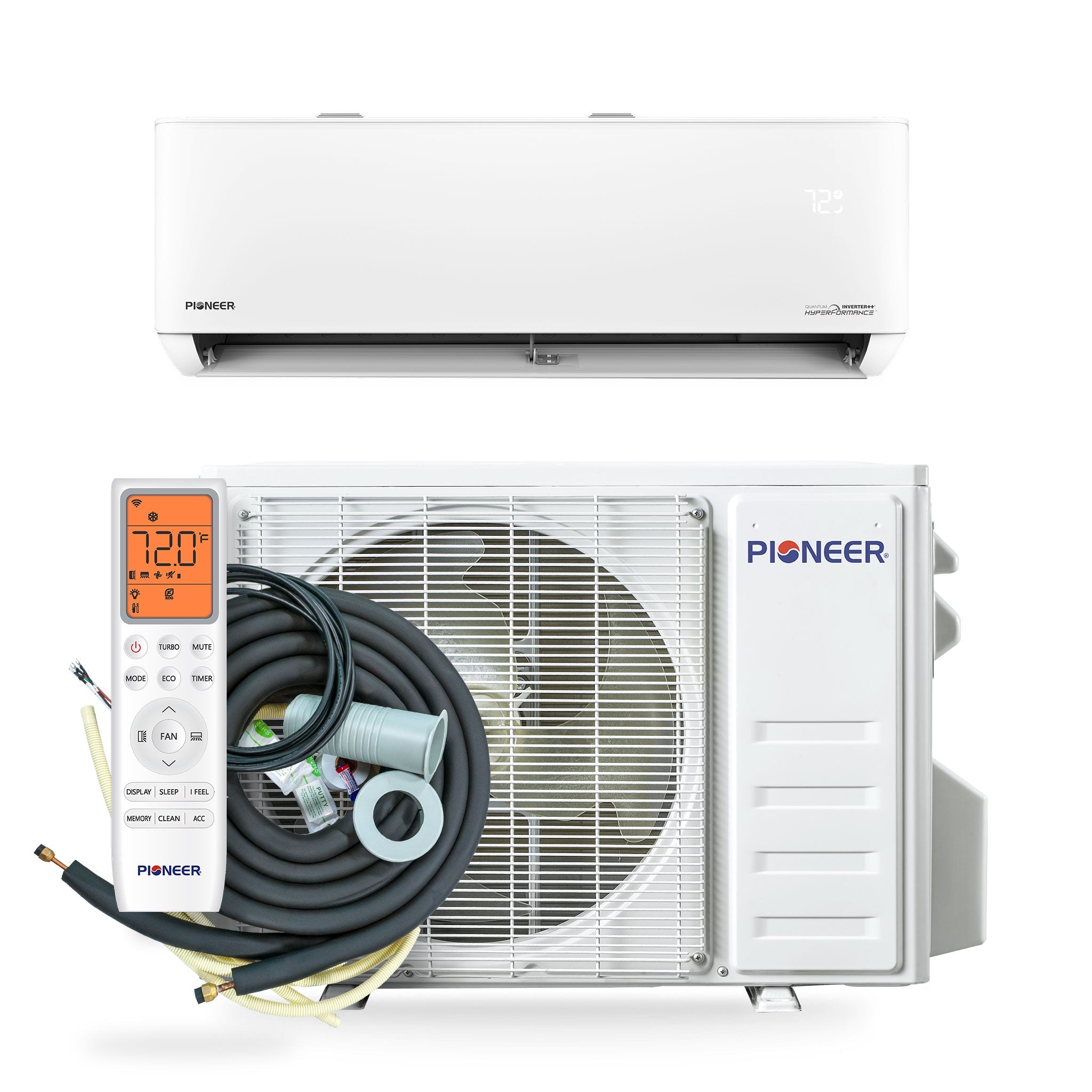

Ductless mini-split indoor unit, outdoor unit, remote, and coiled line set

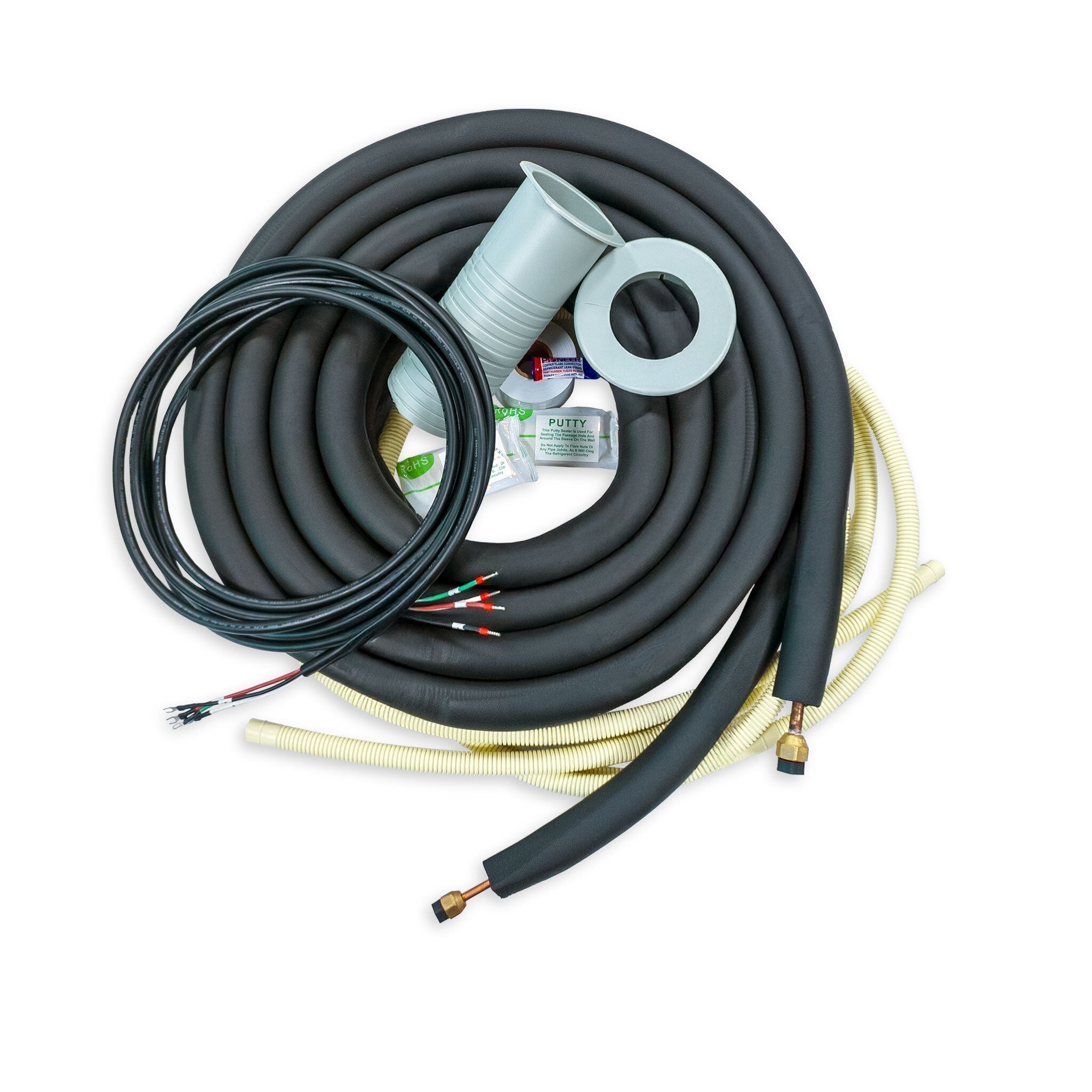

Coiled insulated refrigerant lines with wiring, connectors, and putty pack

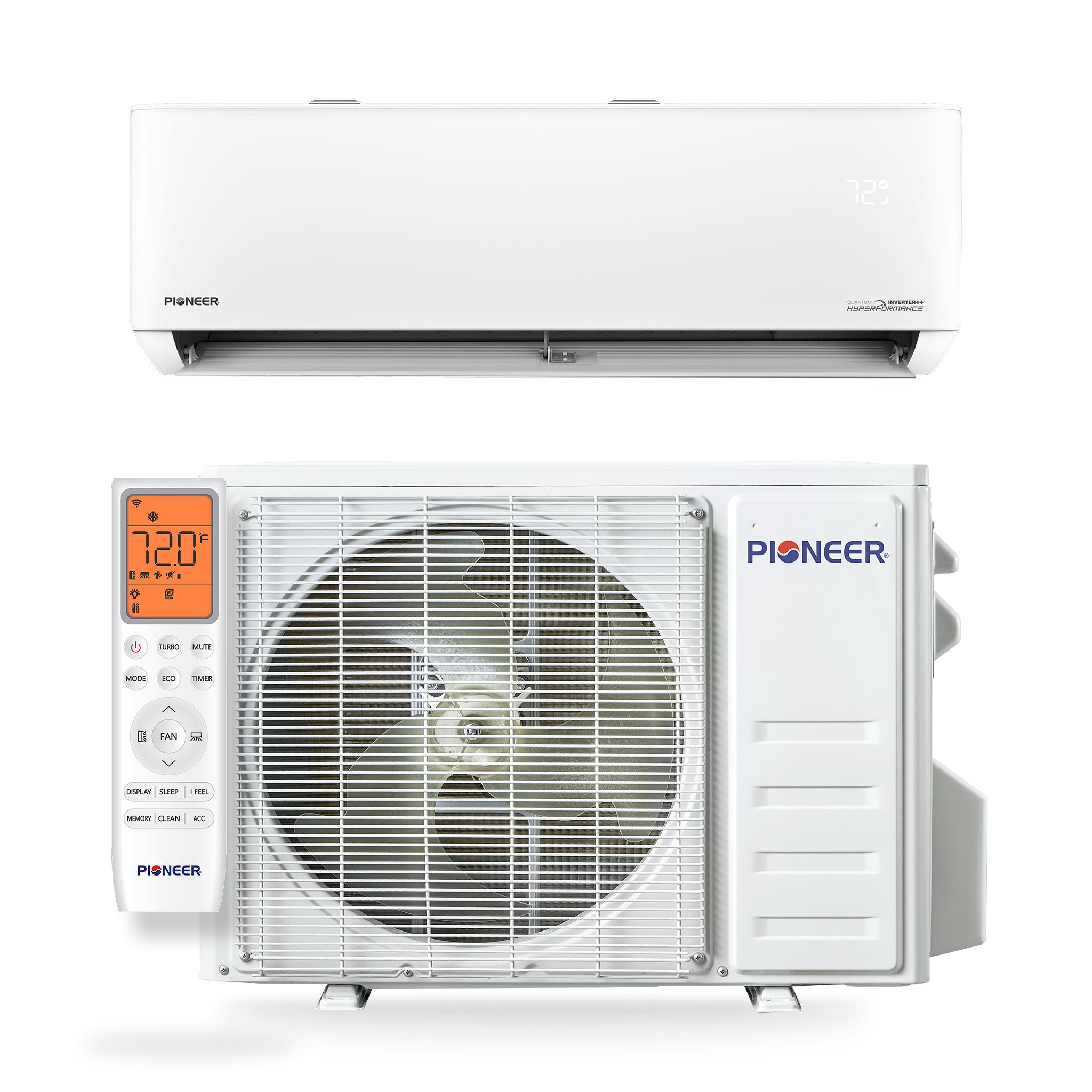

Ductless mini-split indoor unit, outdoor unit, and remote control

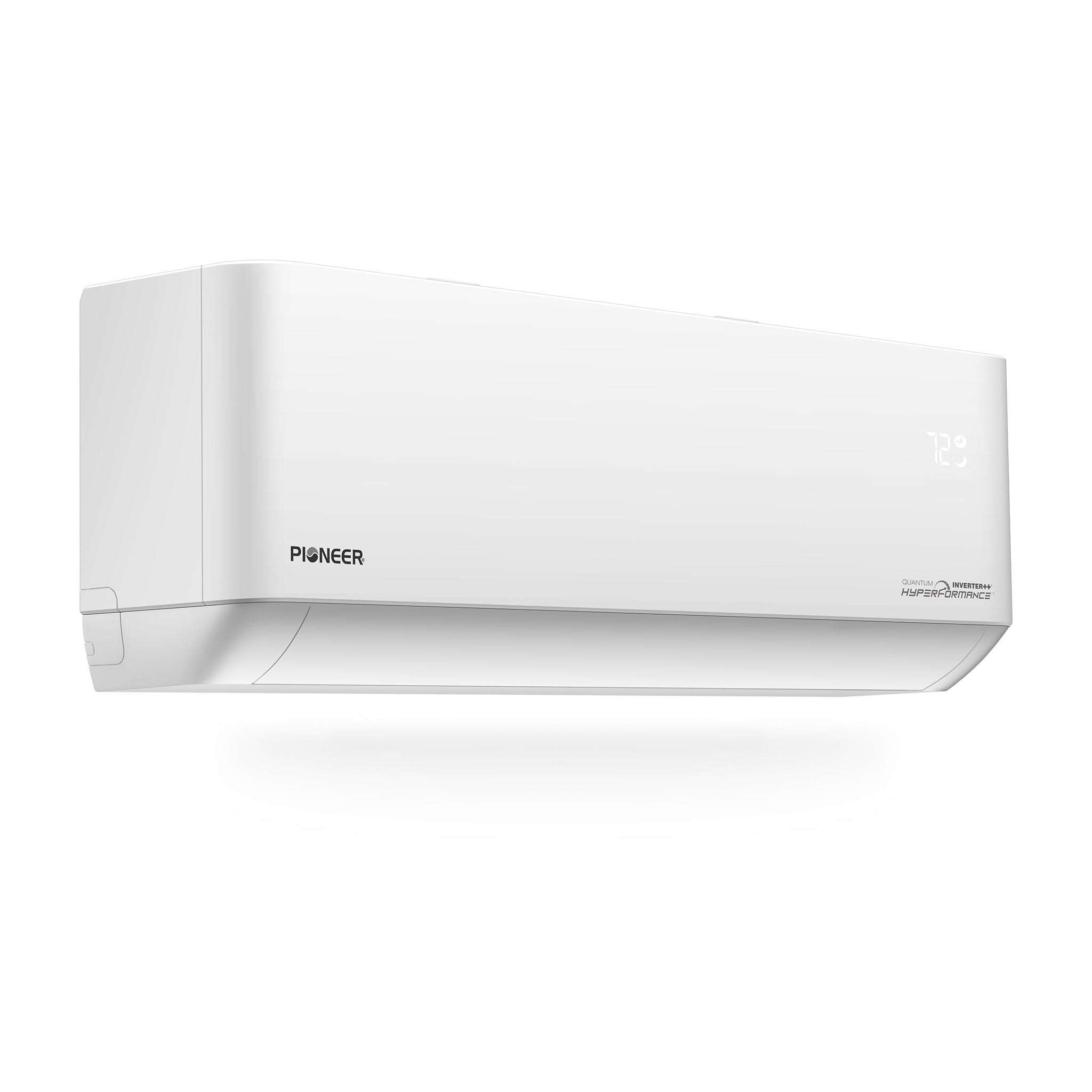

White wall-mounted indoor air conditioner unit with Pioneer logo

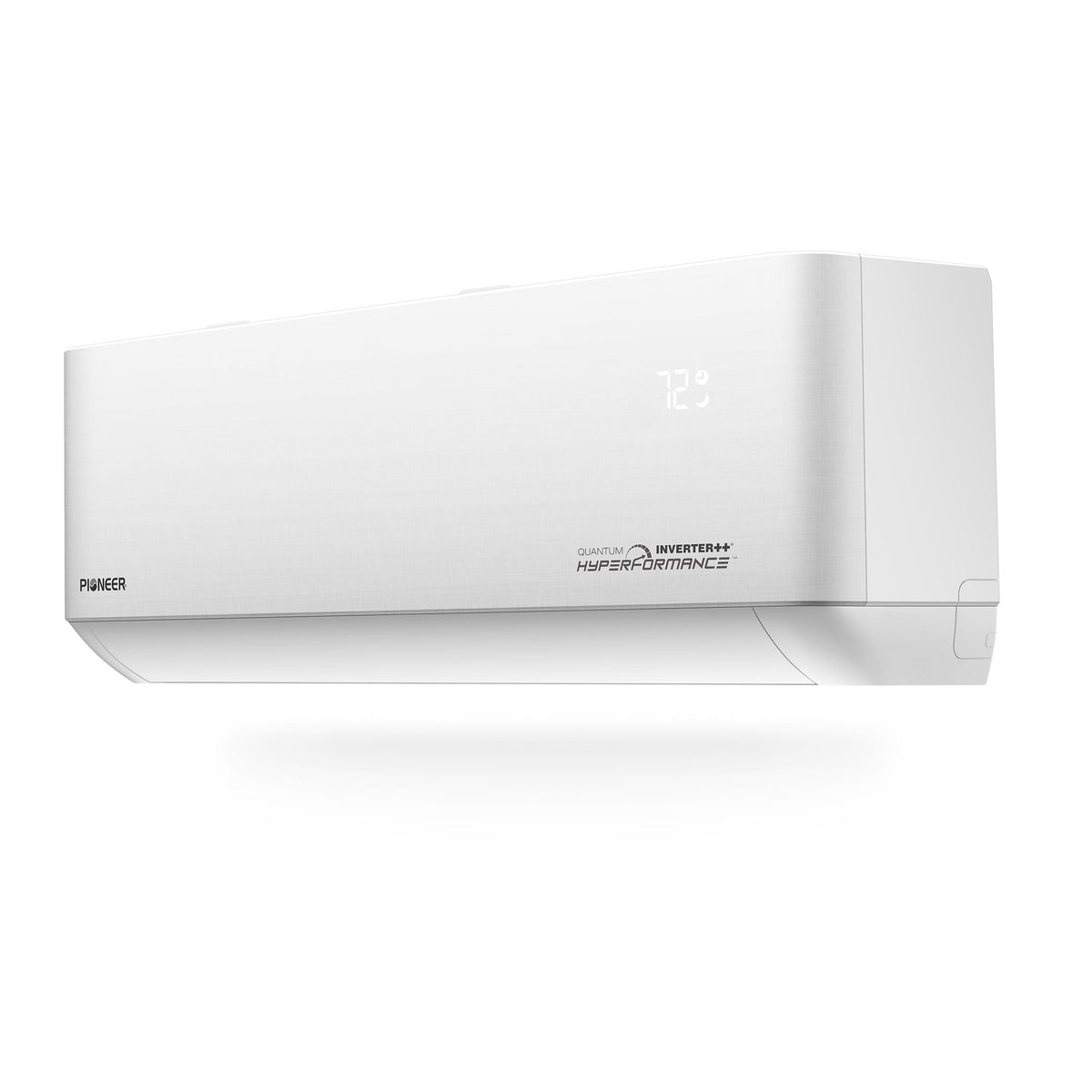

White wall-mounted indoor air conditioner unit with Hyperperformance markings
Ductless mini-split air conditioner smart control remote with 70° display

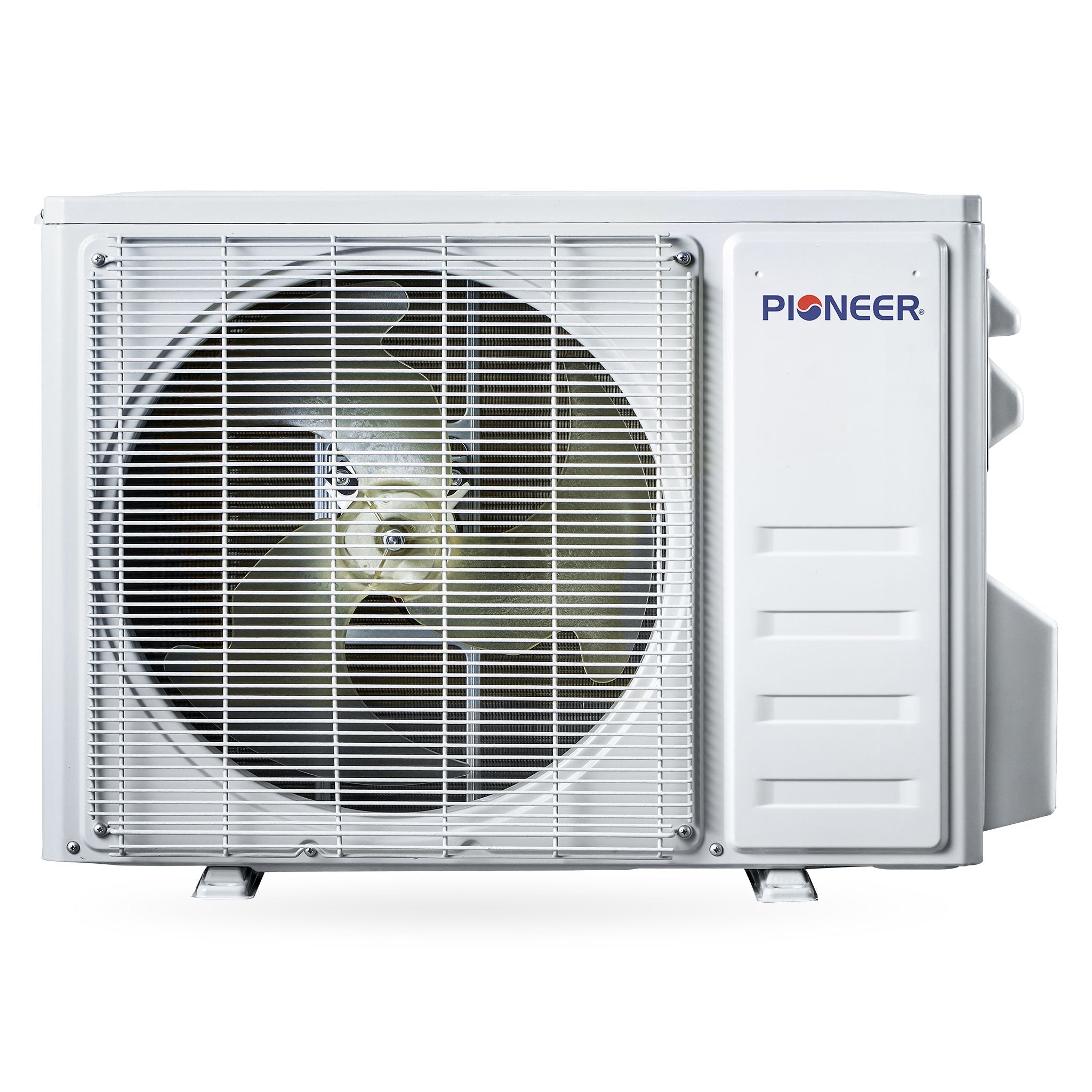

White outdoor condenser unit with Pioneer logo and fan grille

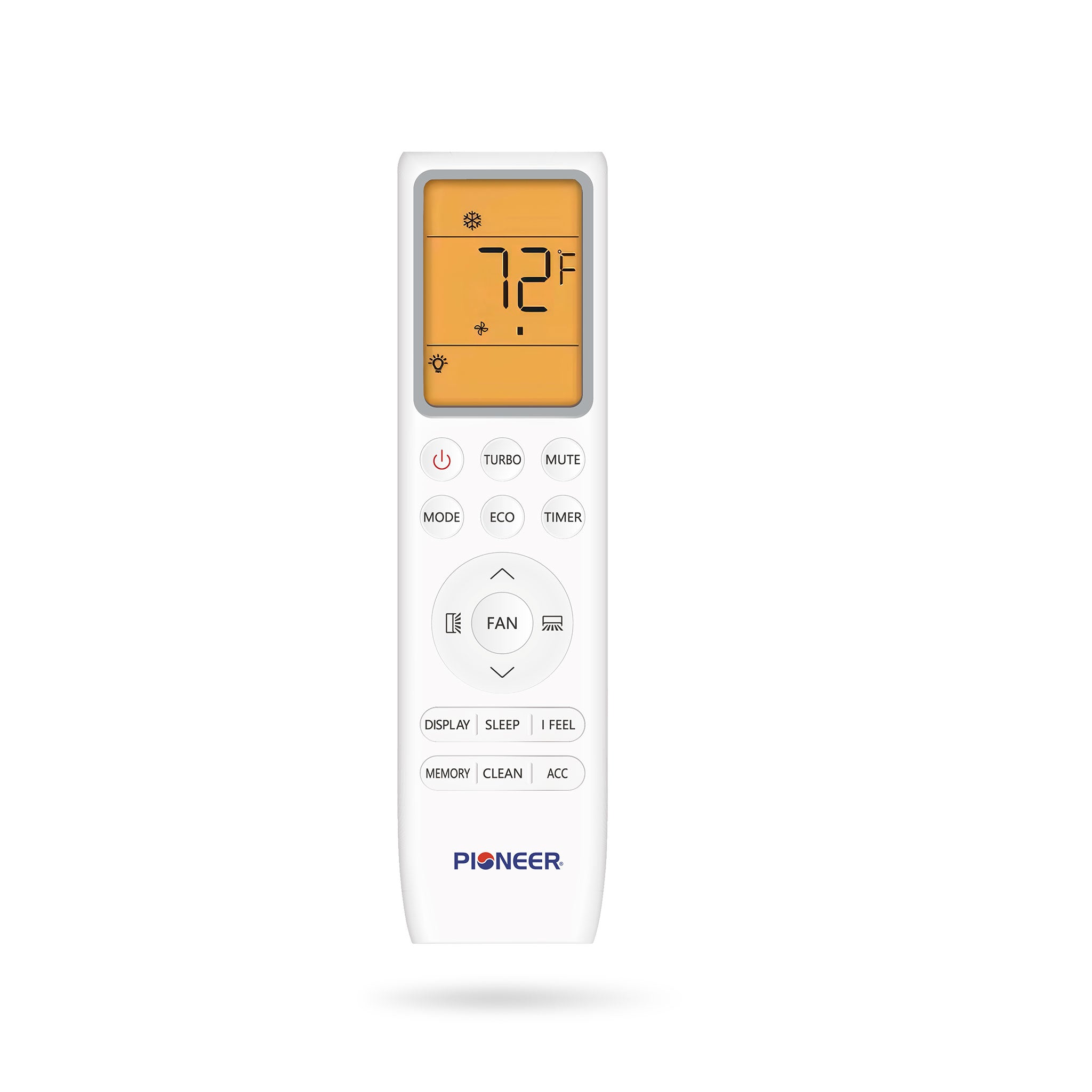

White air-conditioner remote control with backlit display and button panel

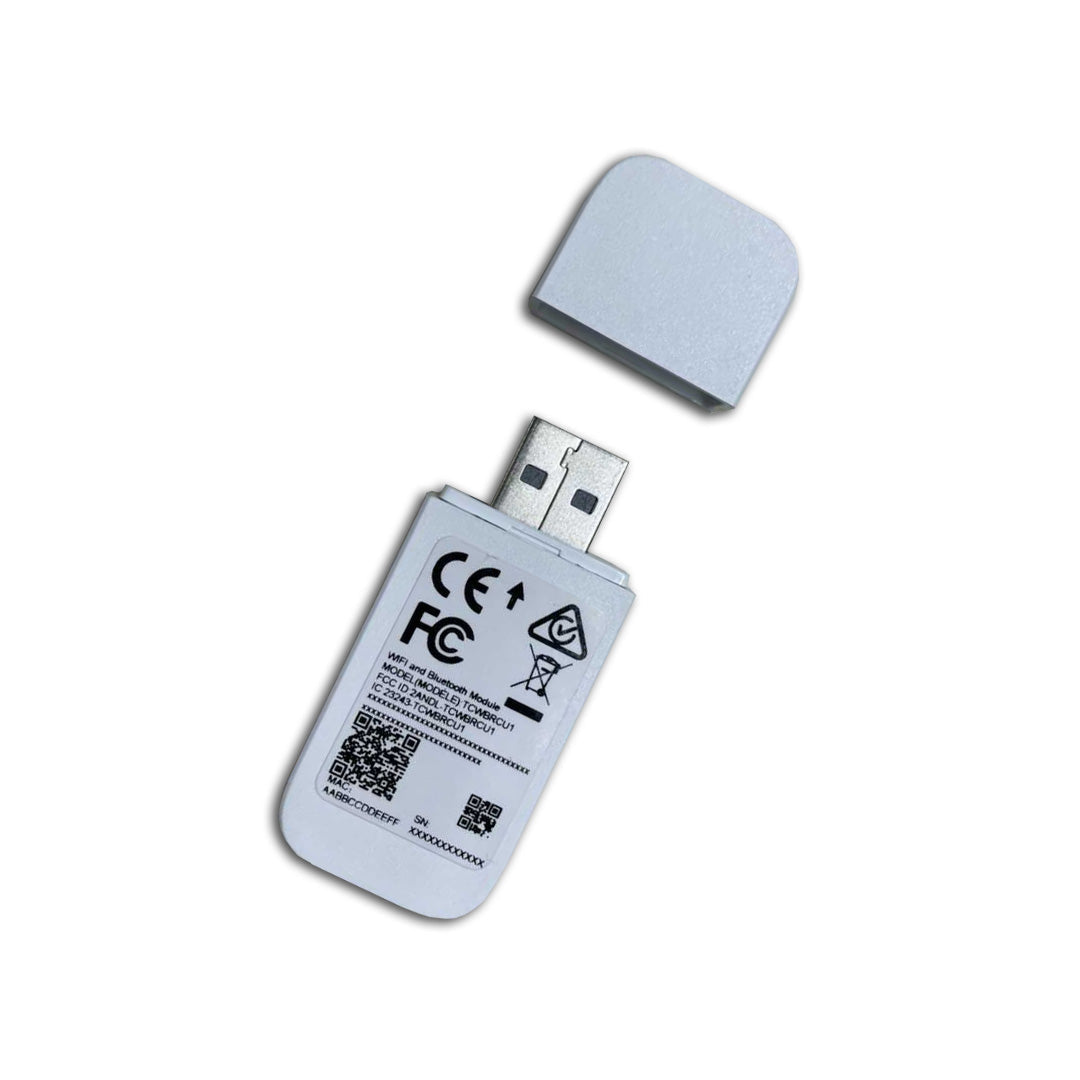

Compact white power module with USB plug and certification labels
Roll over image to zoom in Click on image to zoom
Ductless mini-split indoor unit, outdoor unit, remote, and installation line set kitDuctless mini-split installation line set bundle with insulated tubing and wiringDuctless mini-split indoor unit, outdoor unit, remote, and coiled line setCoiled insulated refrigerant lines with wiring, connectors, and putty packDuctless mini-split indoor unit, outdoor unit, and remote controlWhite wall-mounted indoor air conditioner unit with Pioneer logoWhite wall-mounted indoor air conditioner unit with Hyperperformance markingsDuctless mini-split air conditioner smart control remote with 70° displayWhite outdoor condenser unit with Pioneer logo and fan grilleWhite air-conditioner remote control with backlit display and button panelCompact white power module with USB plug and certification labels
Click on image to zoom

Pioneer® Quantum Hyperformance™ 9,000 BTU 25 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set (WYT009GLSI25RH)

PioneerSKU: WYT009GLSI25RH-10S
3 reviews
Price:
$1,283.00 $1,829.00SAVE 29%
BTU:
In Stock
Estimated delivery: Sep 9th-16th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 9,000 BTU/H with 25 SEER2 / 14.5 EER2 efficiency
  • Heating capacity: 9,500 BTU/H with 10.5 HSPF2 / 4.0 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Hyperformance™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Minimum Installation Height
6 ft
Product Dimensions (WDH)
32"-1/4 x 7"-5/8 x 12" Inches
Carton Dimensions (WDH)
35" x 10"-1/2 x 15" Inches
Net / Gross Weight
20.7 / 25.1 lbs.
Net Dimensions (WDH)
31"-7/8 x 12" x 21"-5/8 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
150~350 Sq. F
Minimum Room Size
38 sq ft
Part Number
WT009GLSI25HLH
Air Flow (Turbo/Hi/Med/Lo/Mute)
326/282/235/188/153 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
42/39/33/29/26 dB(A)
Sound Level
55 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
9,000 BTU/h
Cooling Capacity Range
3,200~12,400 BTU/h
Cooling SEER2
25.0 BTU/W.h
Cooling EER2
14.5 BTU/W.h
Heating Rated Capacity
9,500 BTU/h
Heating Capacity Range
2,100~15,100 BTU/h
Heating HSPF2 (Region IV)
10.5 / 9.0 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
4.0 / 1.8 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
15A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
1/4 x 3/8"
SAFETY
AHRI Reference
217048754
Shipping
  • Free Shipping on all orders.
  • Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
  • Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
Full shipping policy
Returns
  • 30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
  • Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
  • Restocking Fee: A restocking fee may apply and varies by brand.
Full returns policy
Authorized Pioneer Dealer
Full manufacturer warranty on every Pioneer product we sell.
Explore Pioneer

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
L
Lascelles B. (Spring, TX)
It is a good unit i like it.

Working good for me i like it.

S
Steve (Davie, FL)
Happy

Happy so far, the system was easy to install and start up and settings were straight forward to navigate.
Cools great on the lowest settings and very quite.

W
William W. (Deltaville, VA)
Split System

I really like the system easy to use and perfect for our needs but one thing i have noticed there needs to be a startup sheet in with the instructions todays contractors do not seem to understand the concept of them when I was in the trade we did them on every system we installed now I am trying to get one from them so I can register the unit before time runs out
