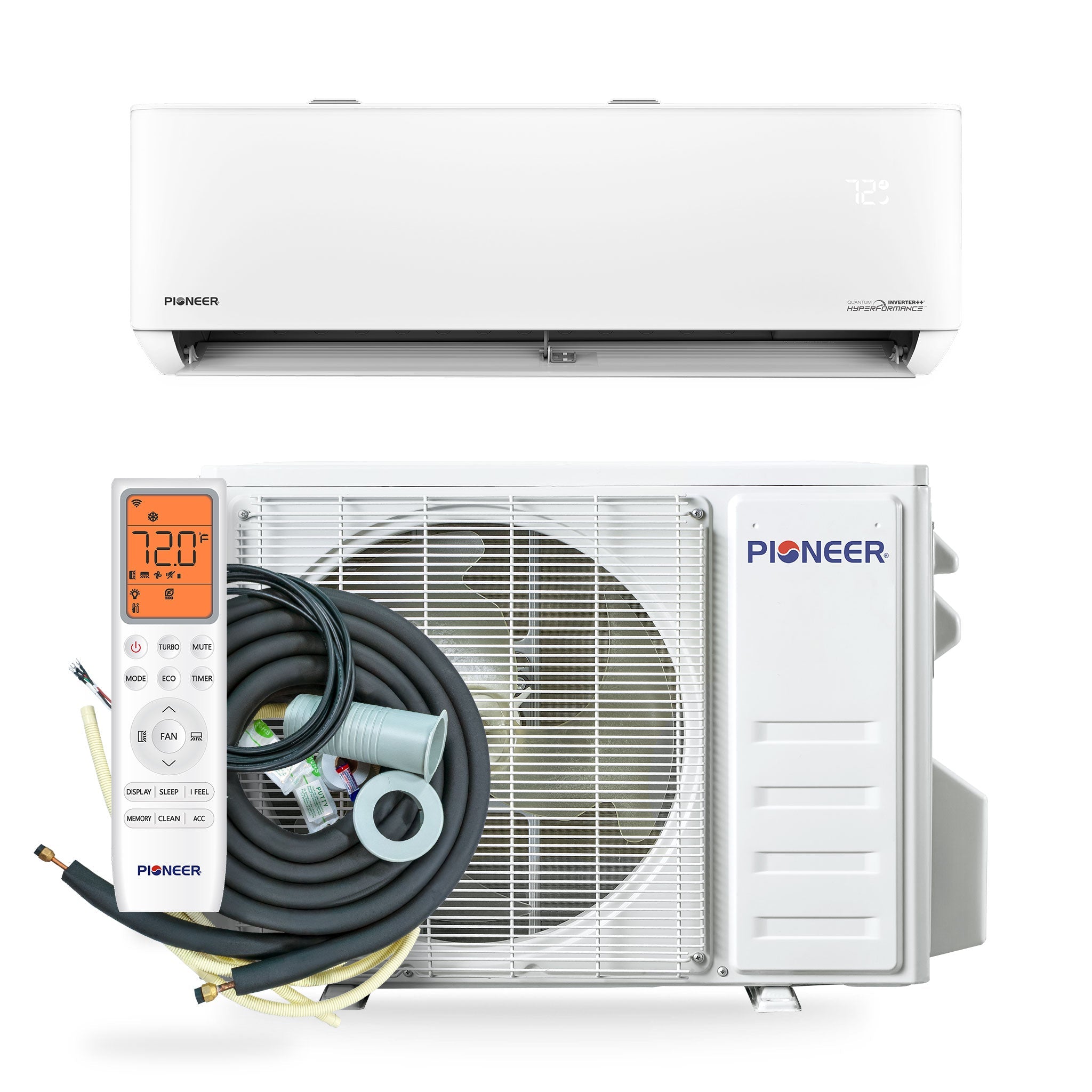

White Pioneer ductless mini-split air conditioner set with outdoor condenser and coiled lines

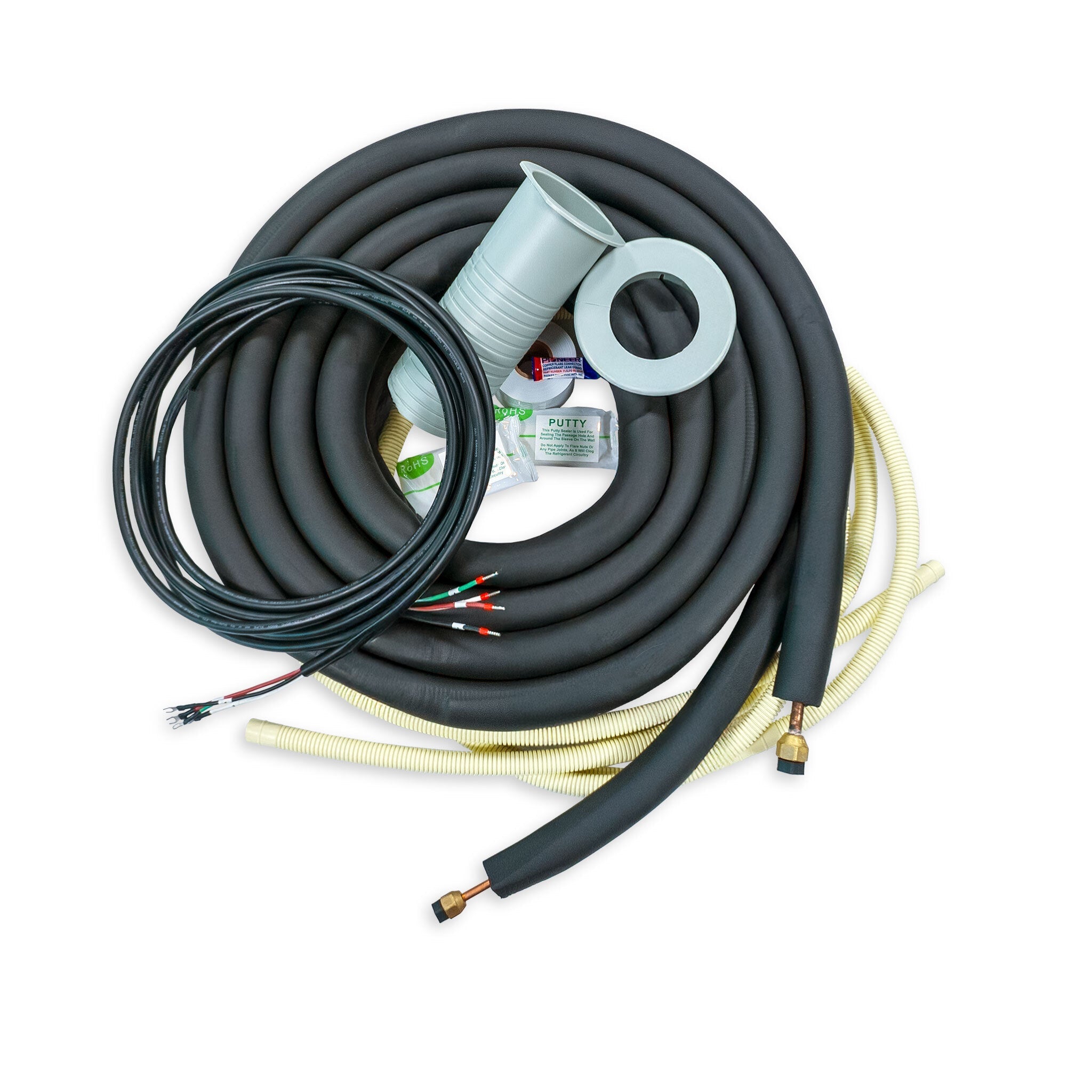

Coiled black refrigerant line set with fittings and insulation pieces for mini-split AC installation

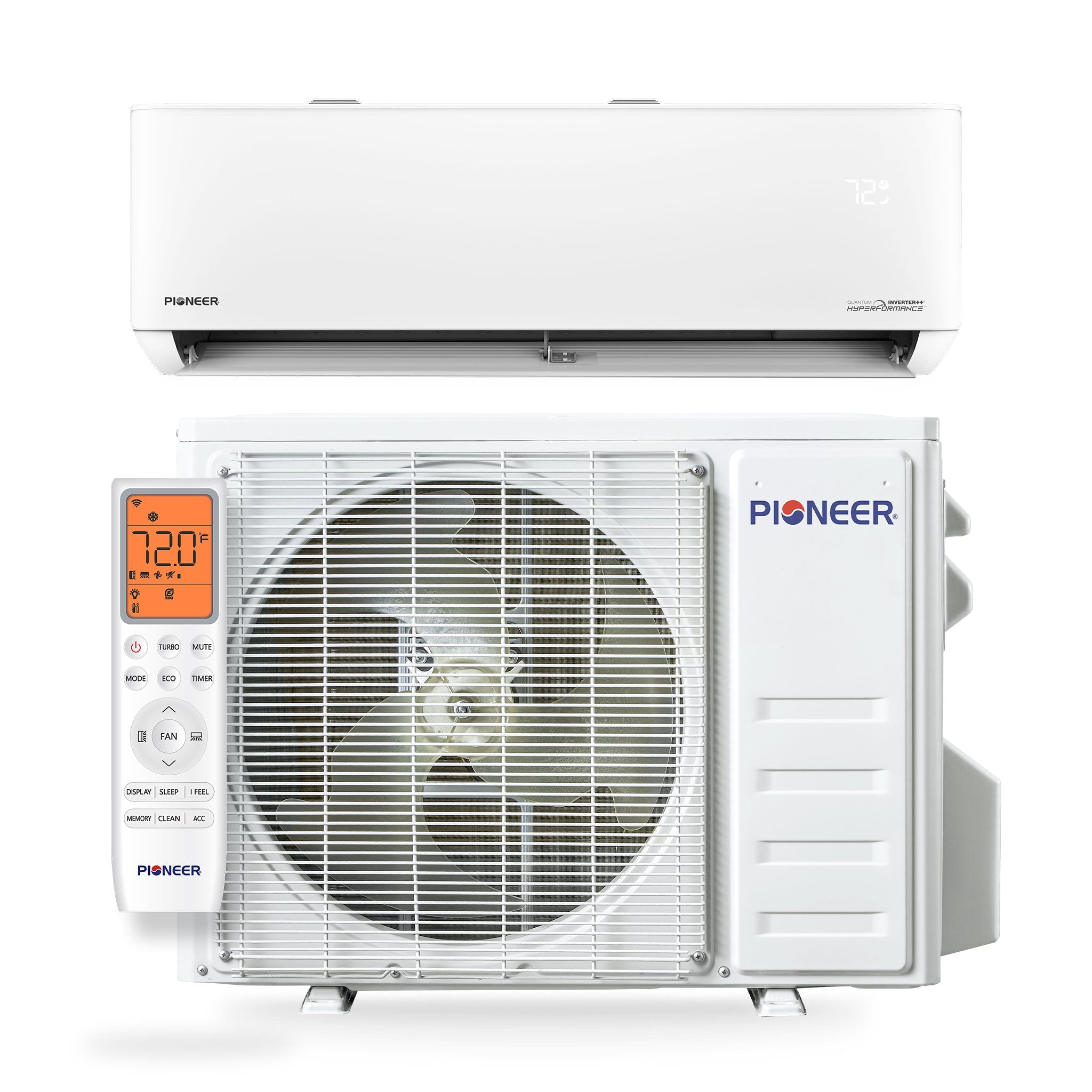

White Pioneer ductless mini-split air conditioner set with outdoor fan grille and remote

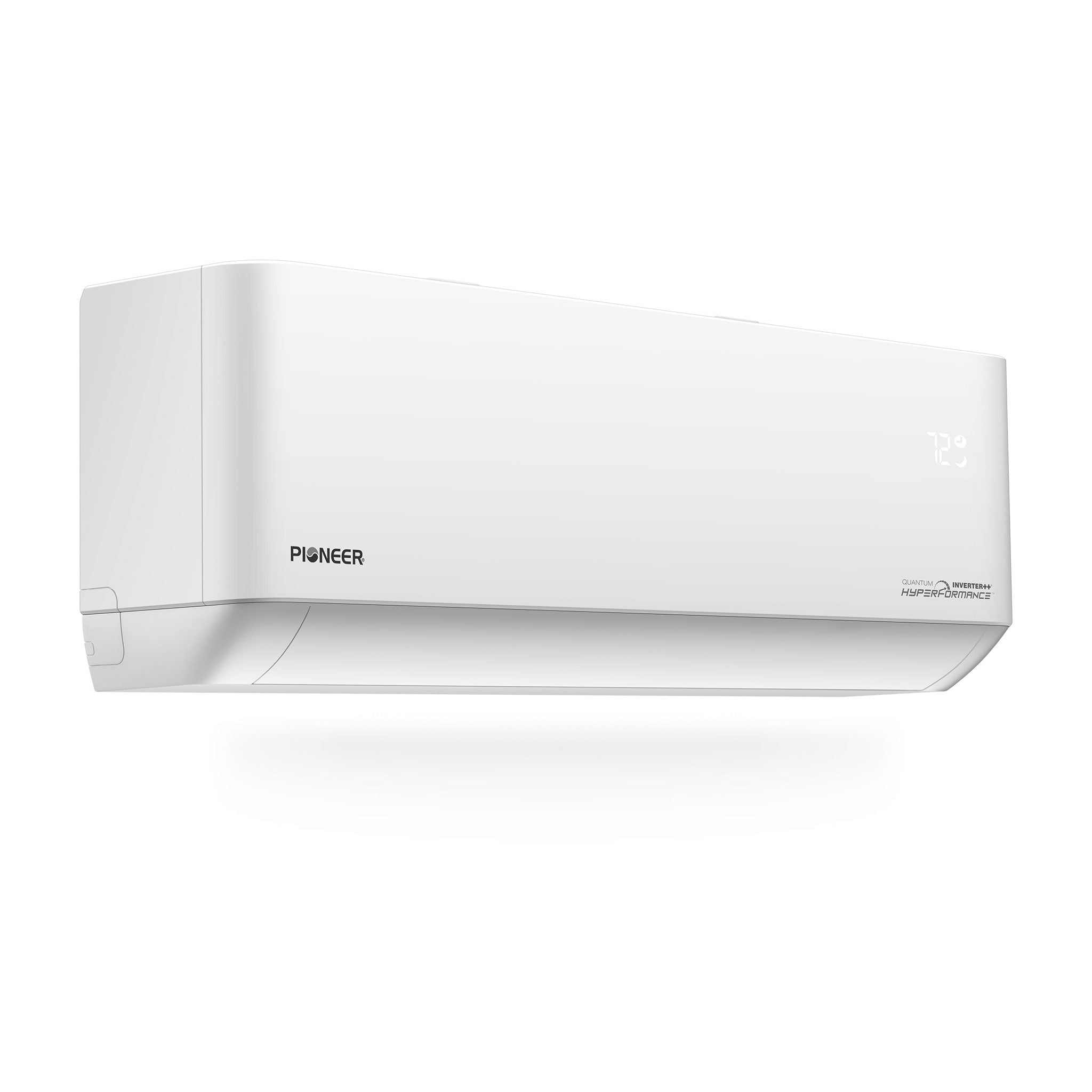

White Pioneer wall-mounted mini-split air conditioner indoor unit with small display panel

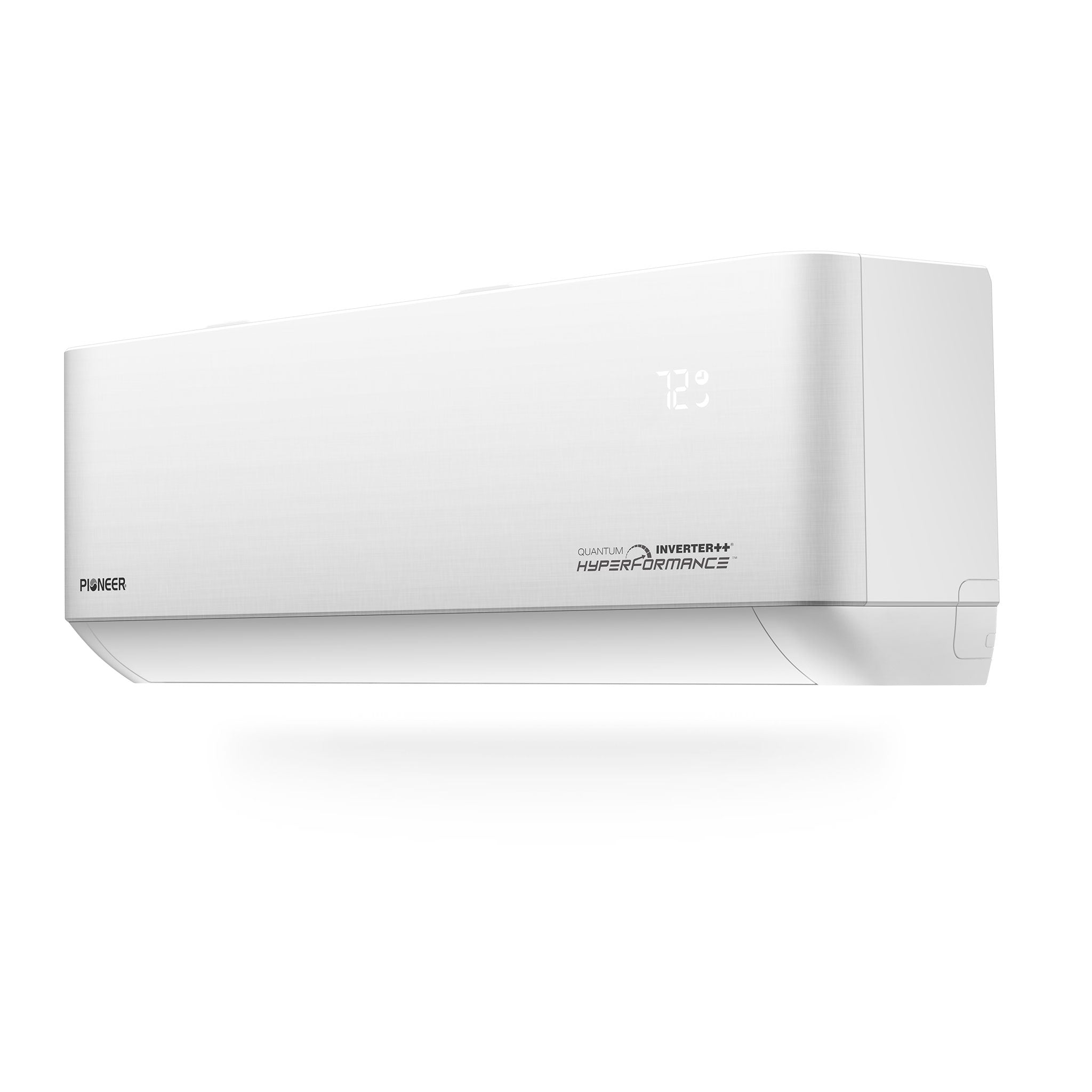

White Pioneer wall-mounted mini-split air conditioner indoor unit side profile
Mini-split AC smartphone remote control interface with WiFi and app icons

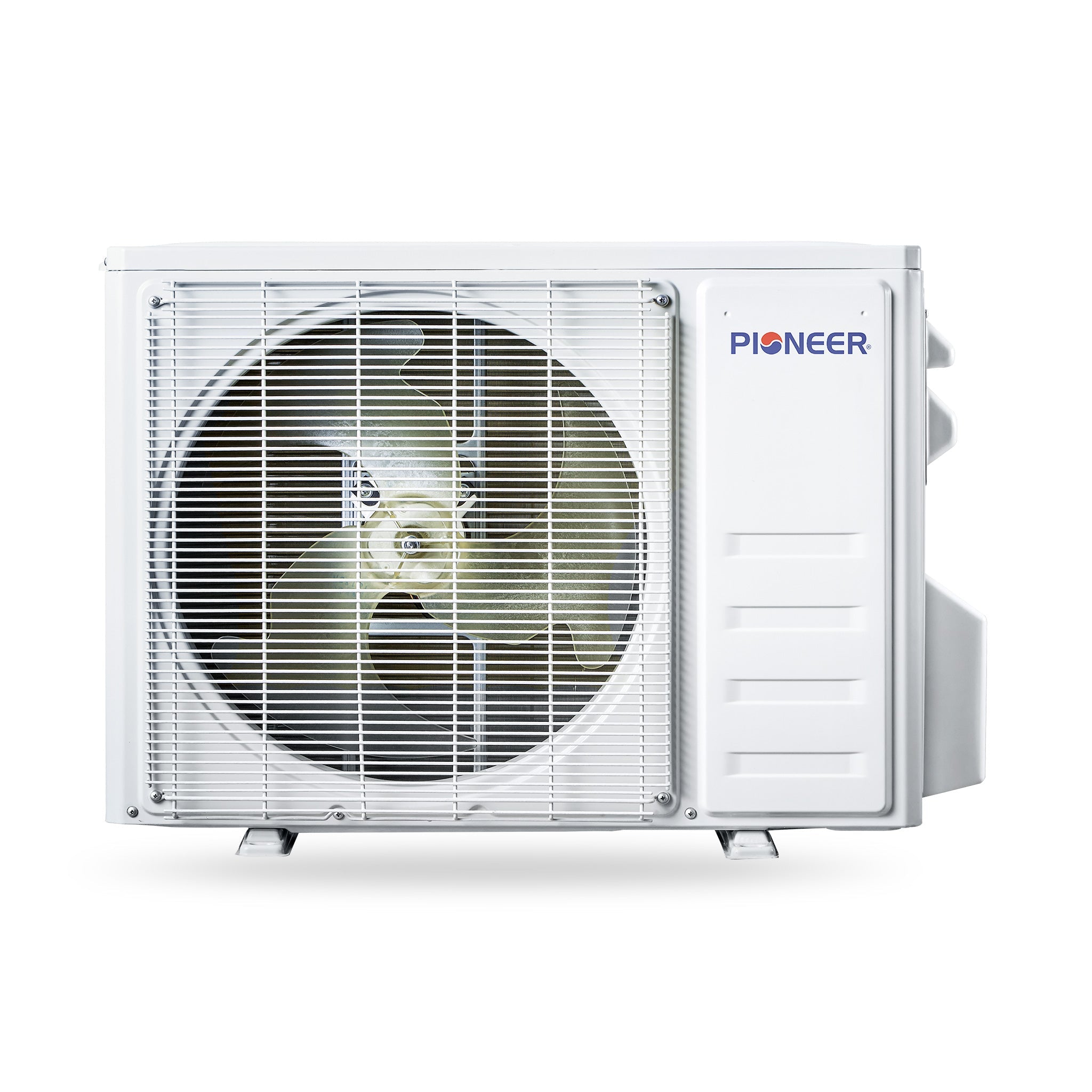

White Pioneer outdoor condenser for ductless mini-split air conditioner with fan grille
Pioneer ductless mini-split air conditioner remote control with LCD display

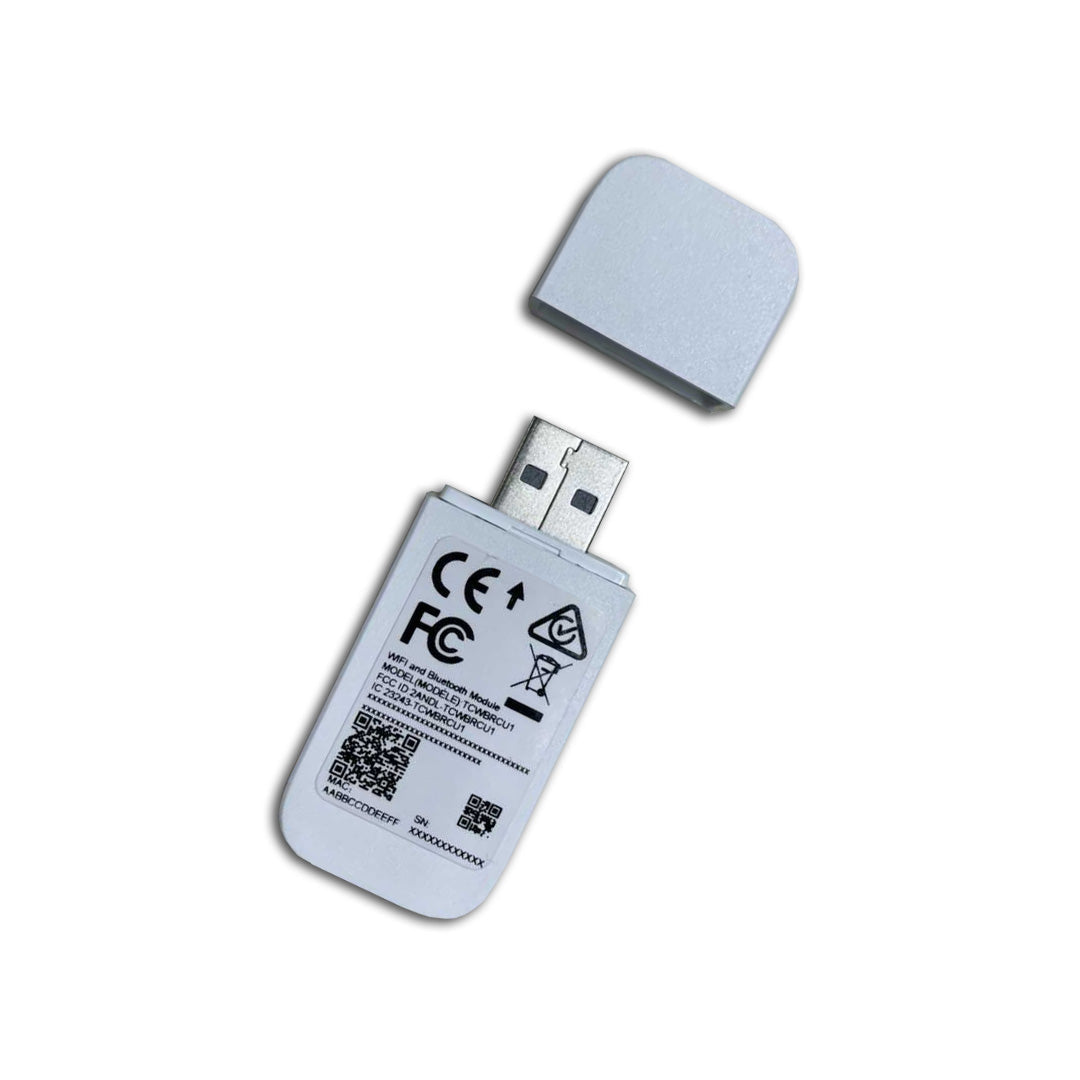

Mini-split AC WiFi module with USB connector and label
Roll over image to zoom in Click on image to zoom
White Pioneer wall mini-split AC indoor unit with outdoor condenser and included accessories kitWhite insulated refrigerant line set with wiring harness and fittings for mini-split ACWhite Pioneer ductless mini-split air conditioner set with outdoor condenser and coiled linesCoiled black refrigerant line set with fittings and insulation pieces for mini-split AC installationWhite Pioneer ductless mini-split air conditioner set with outdoor fan grille and remoteWhite Pioneer wall-mounted mini-split air conditioner indoor unit with small display panelWhite Pioneer wall-mounted mini-split air conditioner indoor unit side profileMini-split AC smartphone remote control interface with WiFi and app iconsWhite Pioneer outdoor condenser for ductless mini-split air conditioner with fan grillePioneer ductless mini-split air conditioner remote control with LCD displayMini-split AC WiFi module with USB connector and label
Click on image to zoom

Pioneer® Quantum Hyperformance™ 24,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set (WYT024GLSI25RH)

PioneerSKU: WYT024GLSI25RH-10S
3 reviews
Price:
$2,276.00 $3,249.00SAVE 29%
BTU:
In Stock
Estimated delivery: Sep 7th-14th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 24,000 BTU/H with 23 SEER2 / 12 EER2 efficiency
  • Heating capacity: 24,000 BTU/H with 10.0 HSPF2 / 3.5 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Hyperformance™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Minimum Installation Height
6 ft
Product Dimensions (WDH)
43"-1/8 x 8"-3/4 x 13"-1/8 Inches
Carton Dimensions (WDH)
45"-7/8 x 11"-5/8 x 16" Inches
Net / Gross Weight
30.9 / 35.3 lbs.
Net Dimensions (WDH)
38"-1/2 x 16"-5/8 x 31"-5/8 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
750~1,000 Sq.F
Minimum Room Size
63 sq ft
Part Number
WT024GLSI25HLH
Air Flow (Turbo/Hi/Med/Lo/Mute)
735/676/529/423/394 CFM
Sound Level
61 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
24,000 BTU/h
Cooling Capacity Range
4,800~25,200 BTU/h
Cooling SEER2
23.0 BTU/W.h
Cooling EER2
12.0 BTU/W.h
Heating Rated Capacity
24,000 BTU/h
Heating Capacity Range
4,800~26,900 BTU/h
Heating HSPF2 (Region IV)
10.0 / 9.0 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.5 / 1.8 W/W
NOISE LEVELS
Sound Level (Turbo/Hi/Med/Lo/Mute): 49/47/42/37/32 dB(A)
735/676/529/423/394 CFM
ELECTRICAL REQUIREMENTS
Breaker Needed
30A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
1/4 x 5/8"
SAFETY
AHRI Reference
217048757
