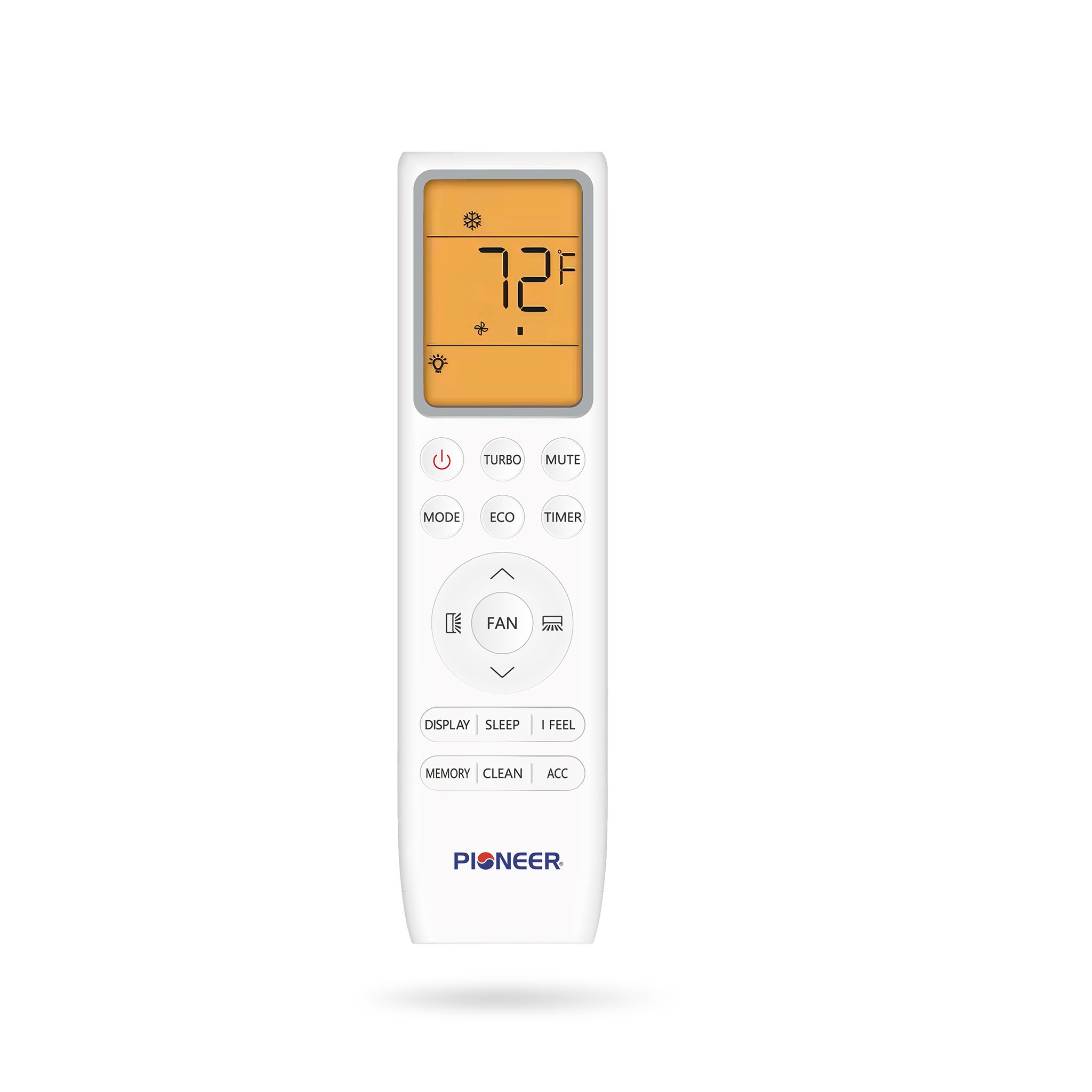

Pioneer ductless mini-split remote control with orange LCD display and buttons
Compact USB-style power module with gray casing and regulatory markings
Roll over image to zoom in Click on image to zoom
Ductless mini-split indoor unit, outdoor unit, remote, and insulated tubing kitDuctless mini-split installation line set with insulated tubing, wiring, and fittingsDuctless mini-split system kit with coiled tubing, remote, and outdoor condenser unitInsulated refrigerant line set with black tubing, wiring, and fittings in kitDuctless mini-split indoor and outdoor units with remote controlWhite ductless mini-split indoor wall unit in side profileWhite ductless mini-split indoor wall unit with inverter and hyperformance markingsBlue-screen mini-split air conditioner remote control with app-style displayPioneer ductless outdoor unit with louvered fan grille and white housingPioneer ductless mini-split remote control with orange LCD display and buttonsCompact USB-style power module with gray casing and regulatory markings
Click on image to zoom

Pioneer® Quantum Hyperformance™ 18,000 BTU 23.5 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set (WYT018GLSI25RH)

PioneerSKU: WYT018GLSI25RH-10S
4 reviews
Price:
$1,843.00 $2,629.00SAVE 29%
BTU:
In Stock
Estimated delivery: Oct 18th-25th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 18,000 BTU/H with 23.5 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 18,000 BTU/H with 10.0 HSPF2 / 3.8 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System

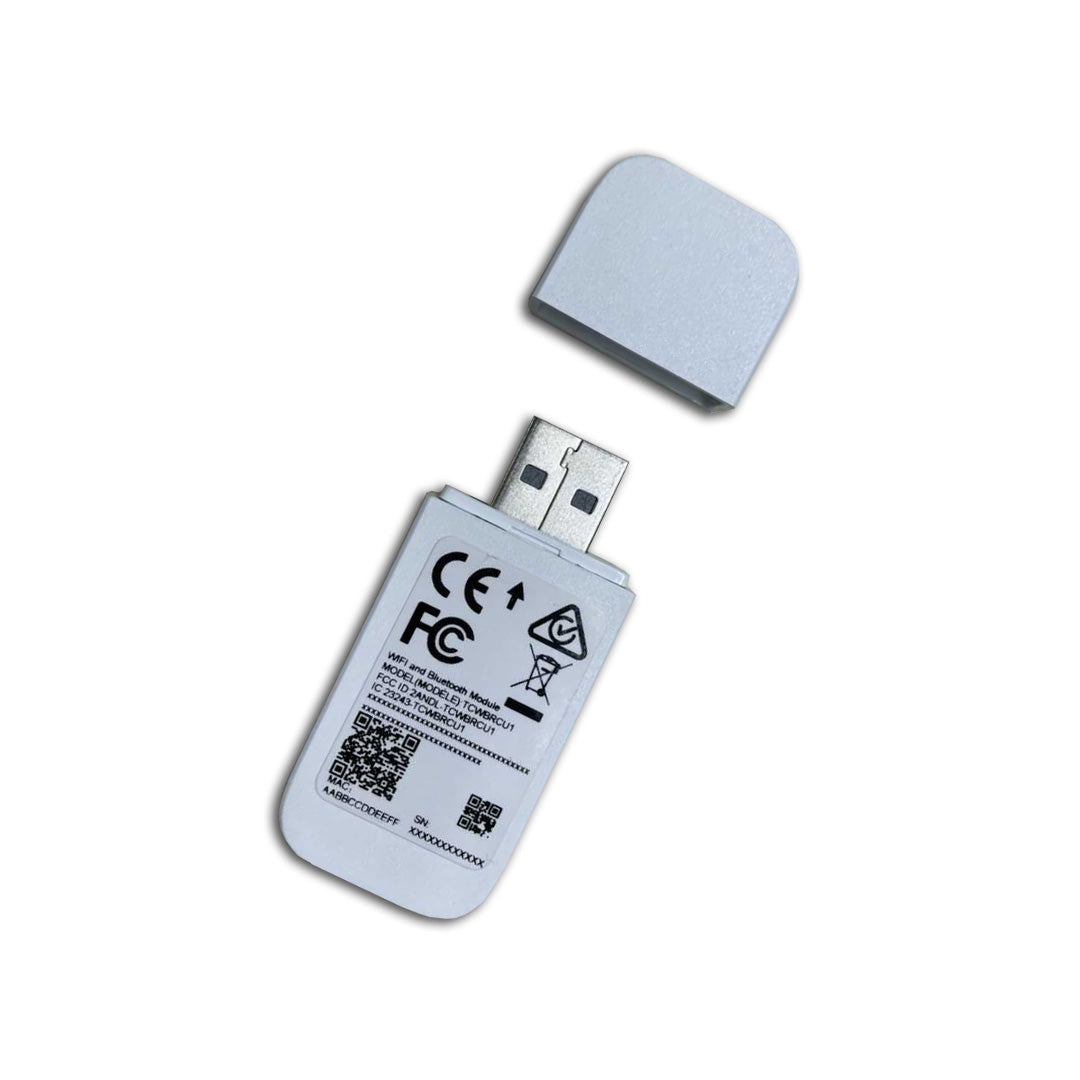

  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Hyperformance™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

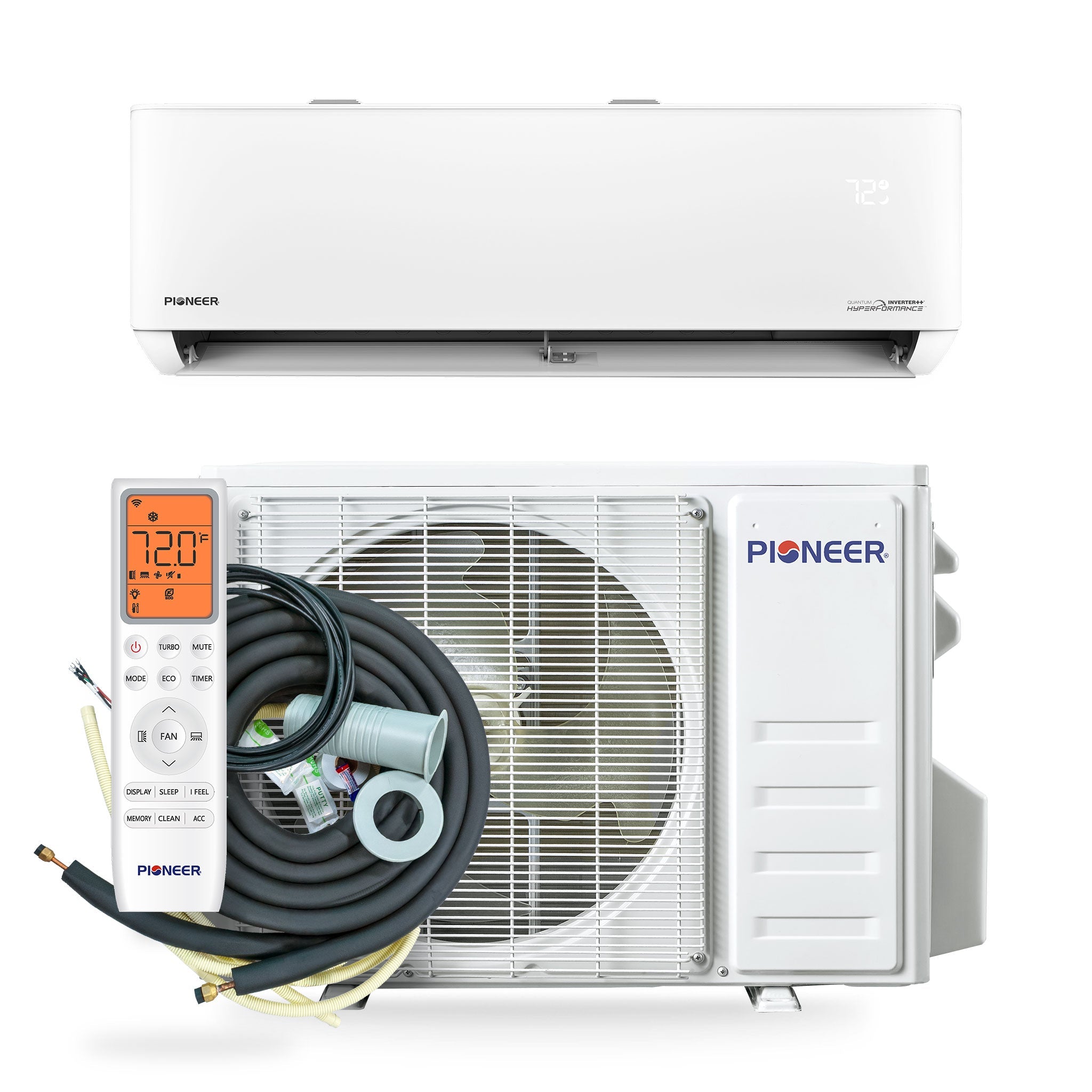

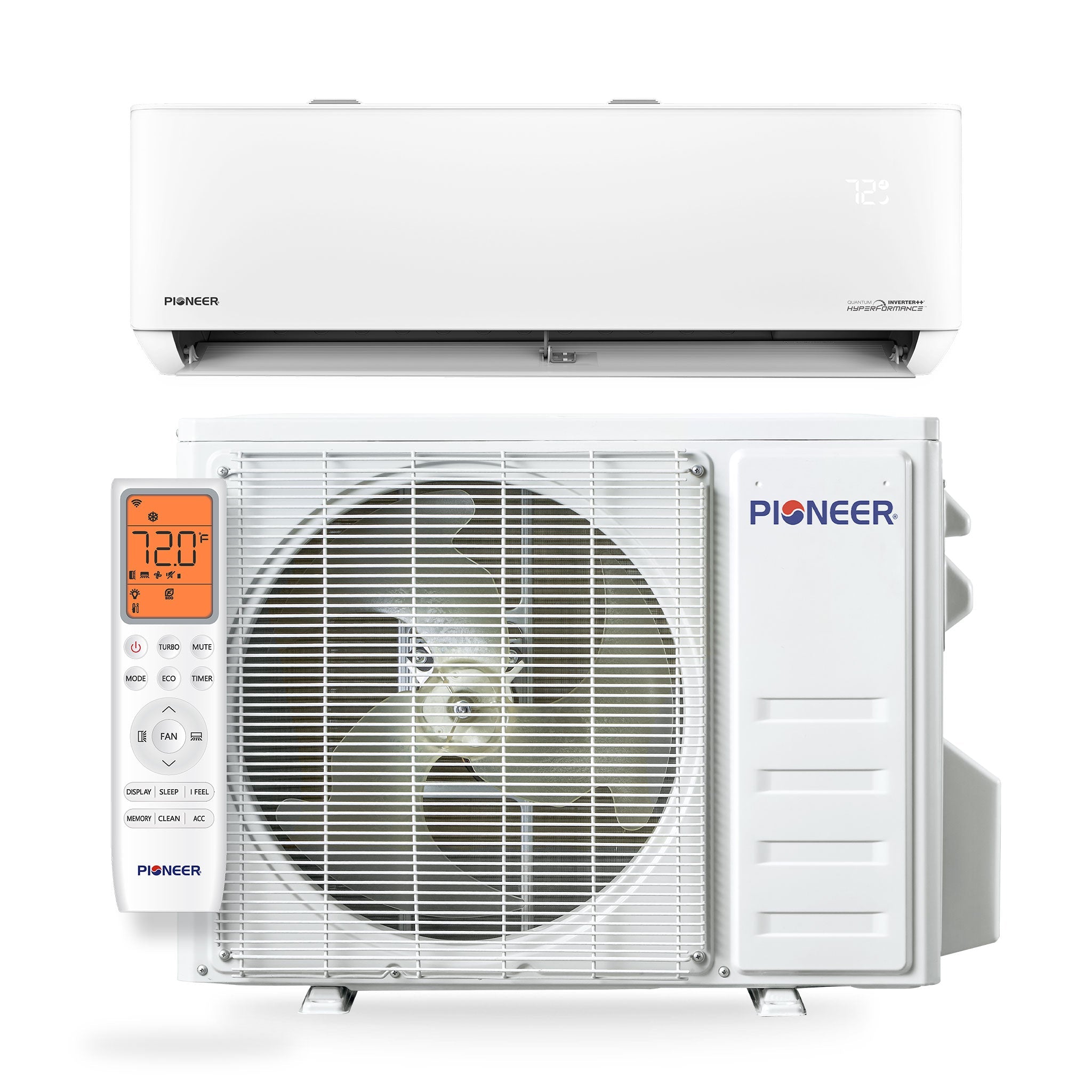

What's Included in Your Purchase

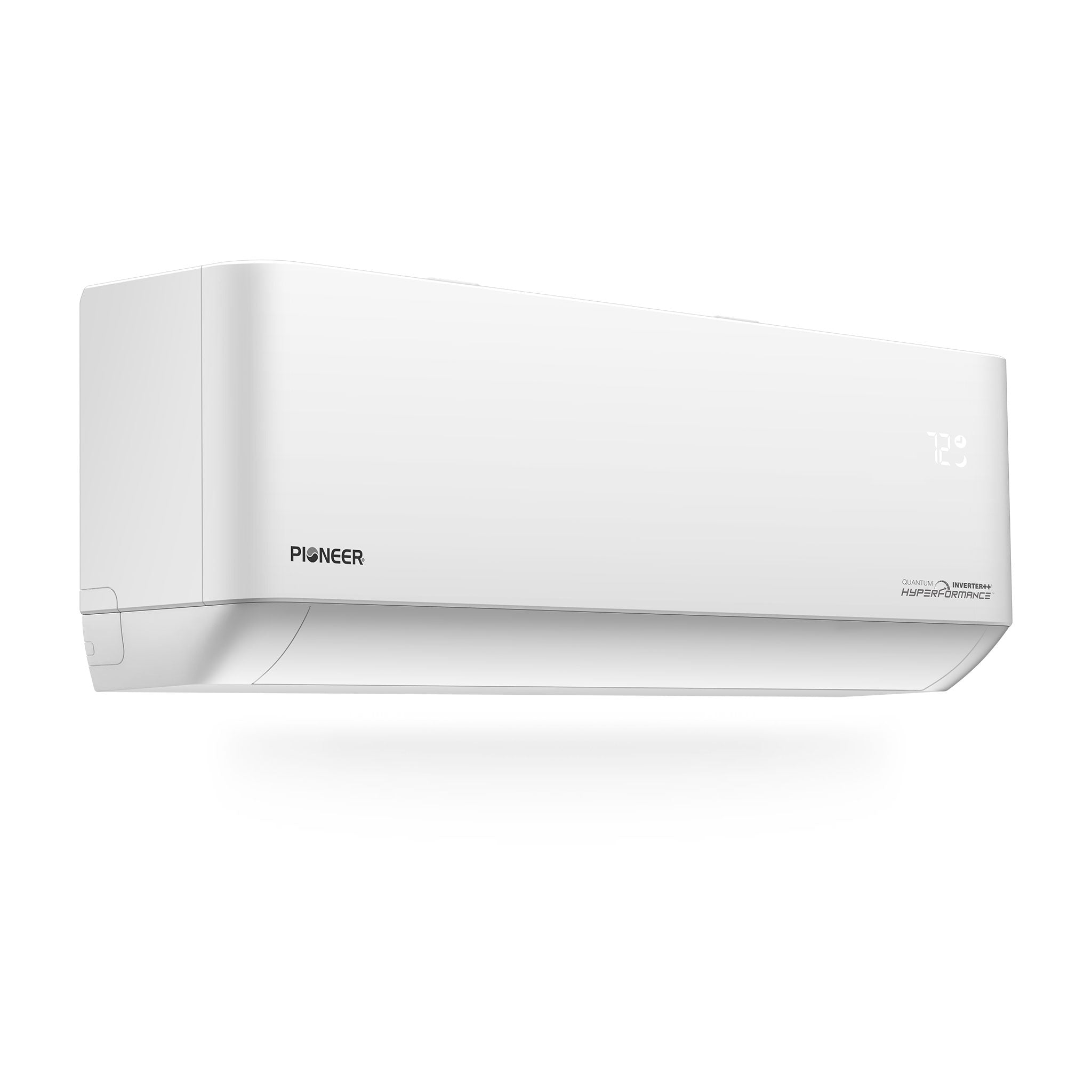

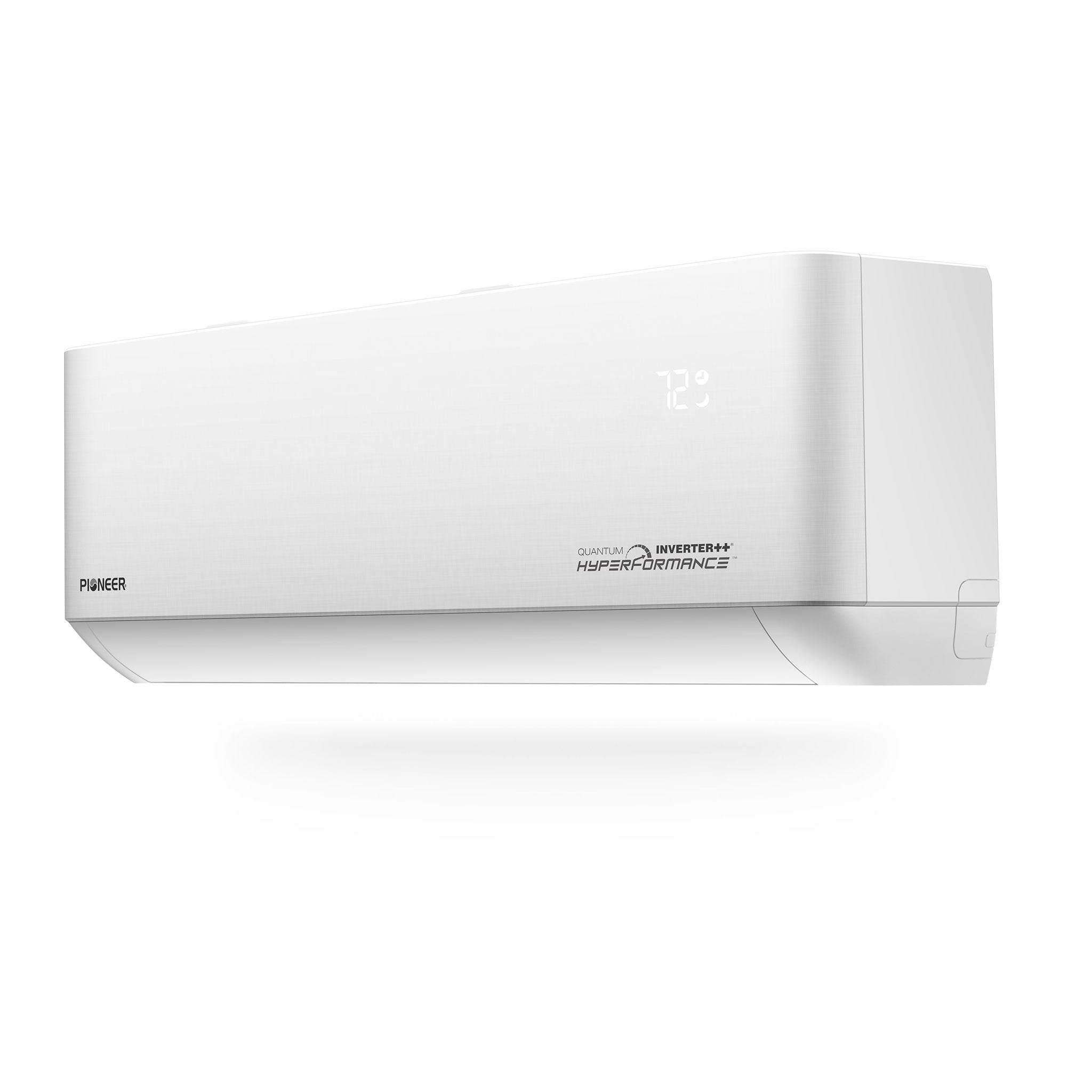

  • Indoor Unit

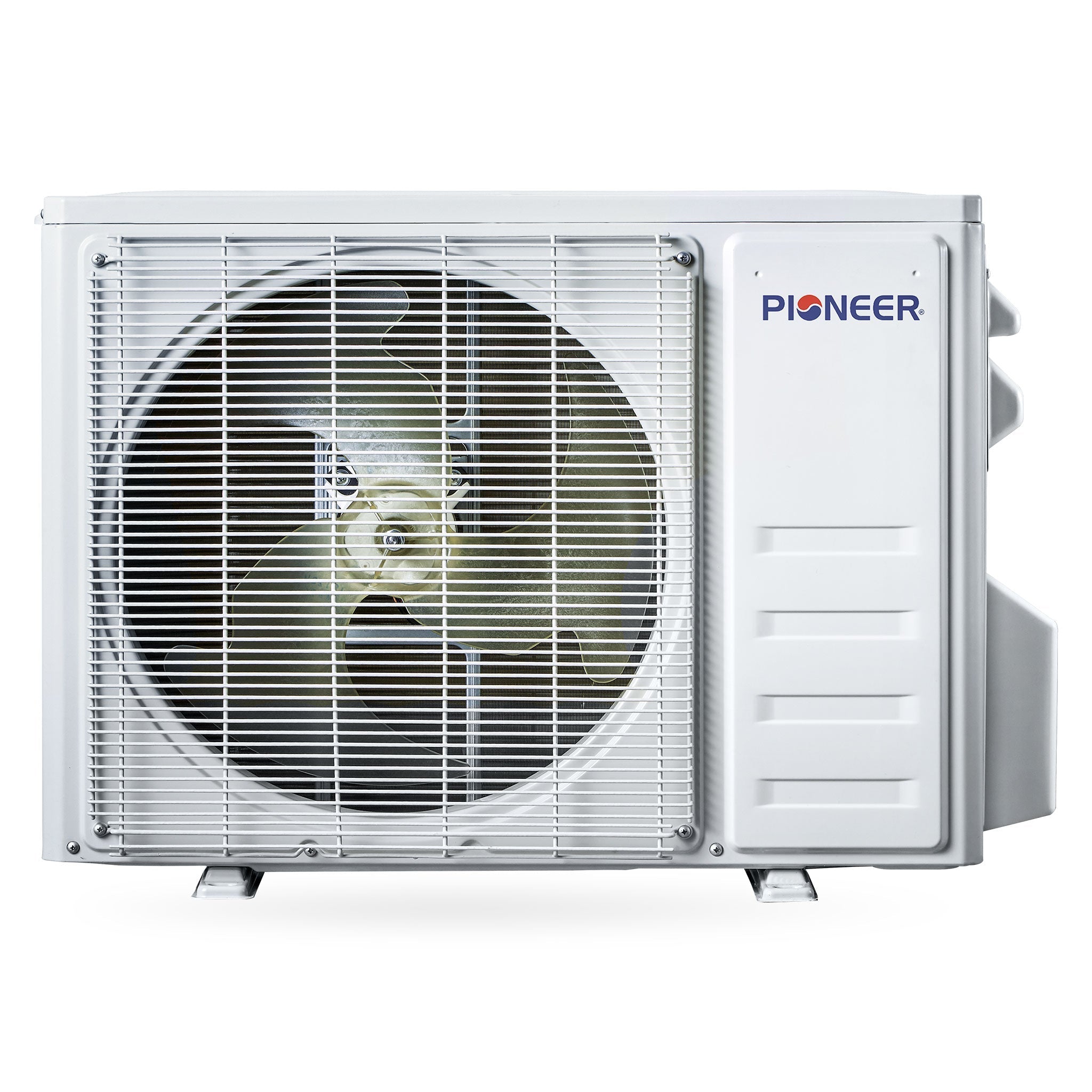

  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries

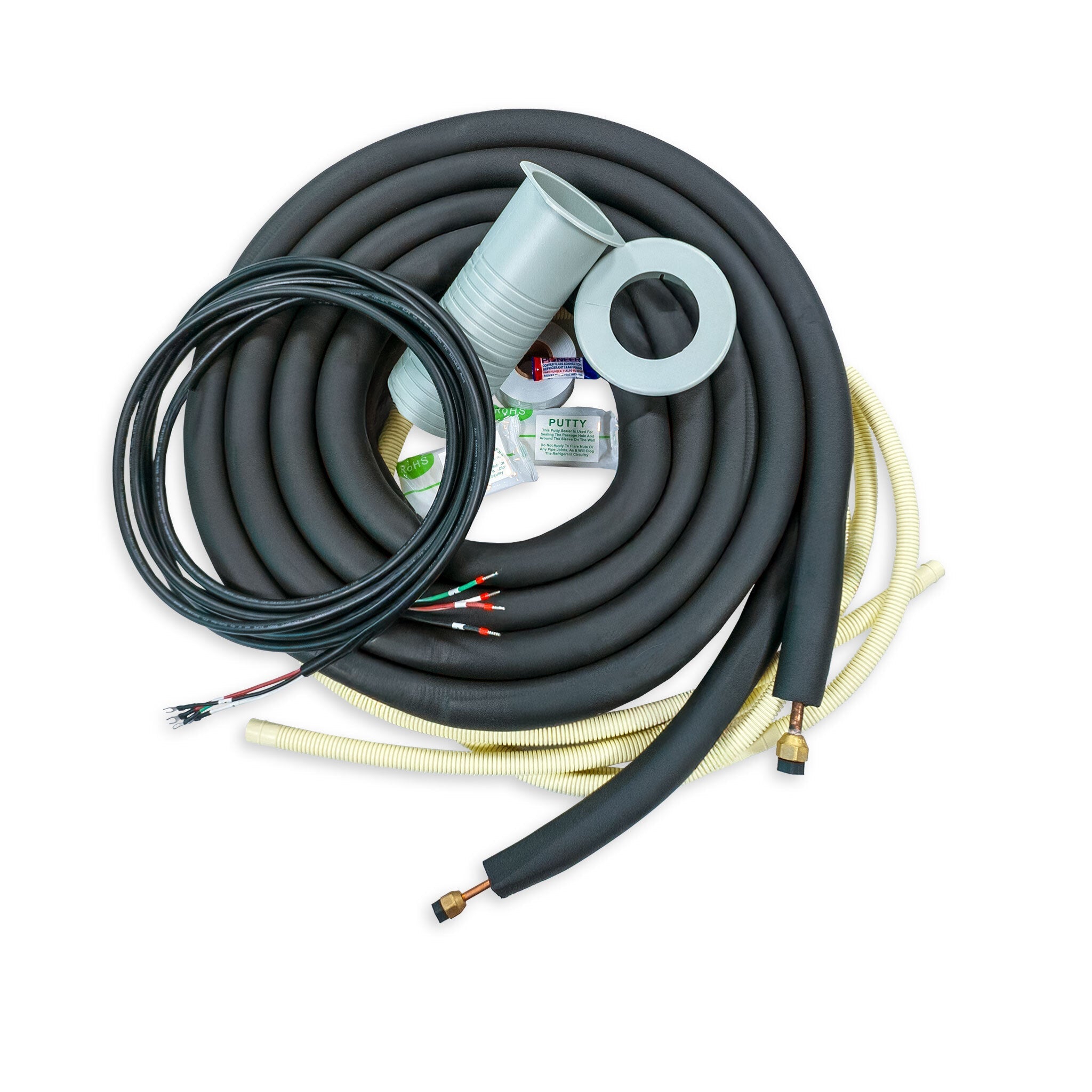

  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Minimum Installation Height
6 ft
Product Dimensions (WDH): Inches
43"-1/8 x 8"-3/4 x 13"
Carton Dimensions (WDH)
45"-7/8 x 11"-5/8 x 16" Inches
Net / Gross Weight
30.9 / 35.3 lbs.
Net Dimensions (WDH)
36"-1/2 x 15" x 27"-1/2 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
500~750 Sq.F
Minimum Room Size
52 sq ft
Part Number
WT018GLSI25HLH
Air Flow (Turbo/Hi/Med/Lo/Mute)
735/676/529/423/394 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
48/45/40/37/34 dB(A)
Sound Level
58 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
18,000 BTU/h
Cooling Capacity Range
4,100~19,400 BTU/h
Cooling SEER2
23.5 BTU/W.h
Cooling EER2
12.5 BTU/W.h
Heating Rated Capacity
18,000 BTU/h
Heating Capacity Range
4,100~21,400 BTU/h
Heating HSPF2 (Region IV)
10.0 / 9.0 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.8 / 1.8 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
20A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
1/4 x 1/2"
SAFETY
AHRI Reference
217048756

Pioneer Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
48K BTU
36K BTU
30K BTU
24K BTU
18K BTU
12K BTU
9K BTU
9K BTU up to 350 sq ft · Bedroom, home office
12K BTU up to 500 sq ft · Large bedroom, den
18K BTU up to 750 sq ft · Living room, master suite
24K BTU up to 1000 sq ft · Open living area
30K BTU up to 1200 sq ft · Large open area
36K BTU up to 1400 sq ft · Great room, small home
48K BTU up to 1800 sq ft · Whole floor, large open space
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
