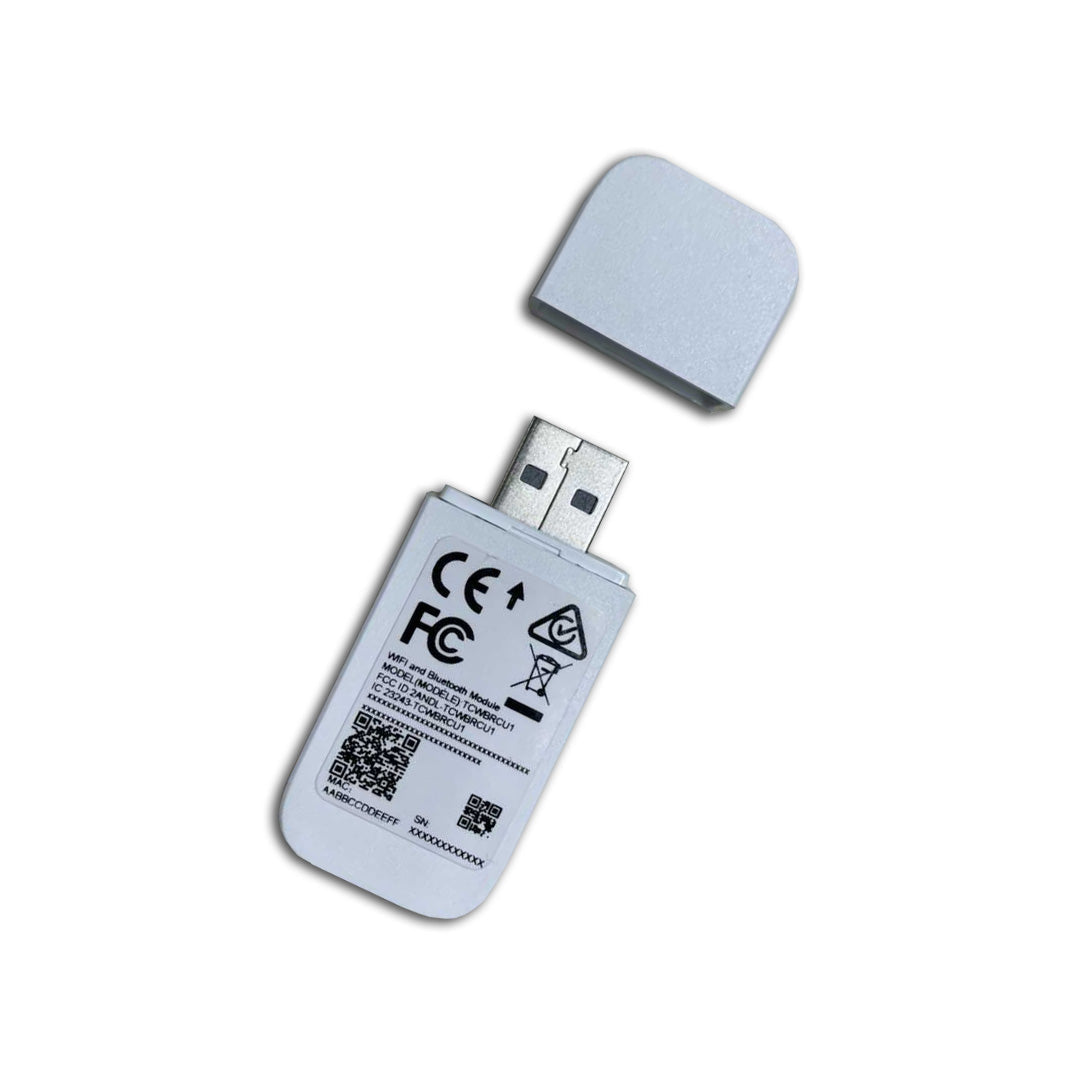

Air conditioner Wi-Fi module adapter with USB connector and regulatory label
Roll over image to zoom in Click on image to zoom
Ductless mini-split AC system with indoor unit, outdoor unit, and controllerInstallation line set with white insulated tubing, connectors, and sensor moduleDuctless mini-split AC system with indoor/outdoor units and bundled line setInsulated refrigerant line set bundle with dark tubing, insulation, and connectorsDuctless mini-split AC system with indoor unit, outdoor unit, and remoteWhite wall-mounted ductless mini-split indoor unit, side viewWhite wall-mounted indoor unit with brand and Hyperperformance markingsDuctless mini-split AC wireless remote thermostat with digital temperature displayOutdoor mini-split unit close-up with fan grille and metal housingWhite air conditioner remote control with orange display and function buttonsAir conditioner Wi-Fi module adapter with USB connector and regulatory label
Click on image to zoom

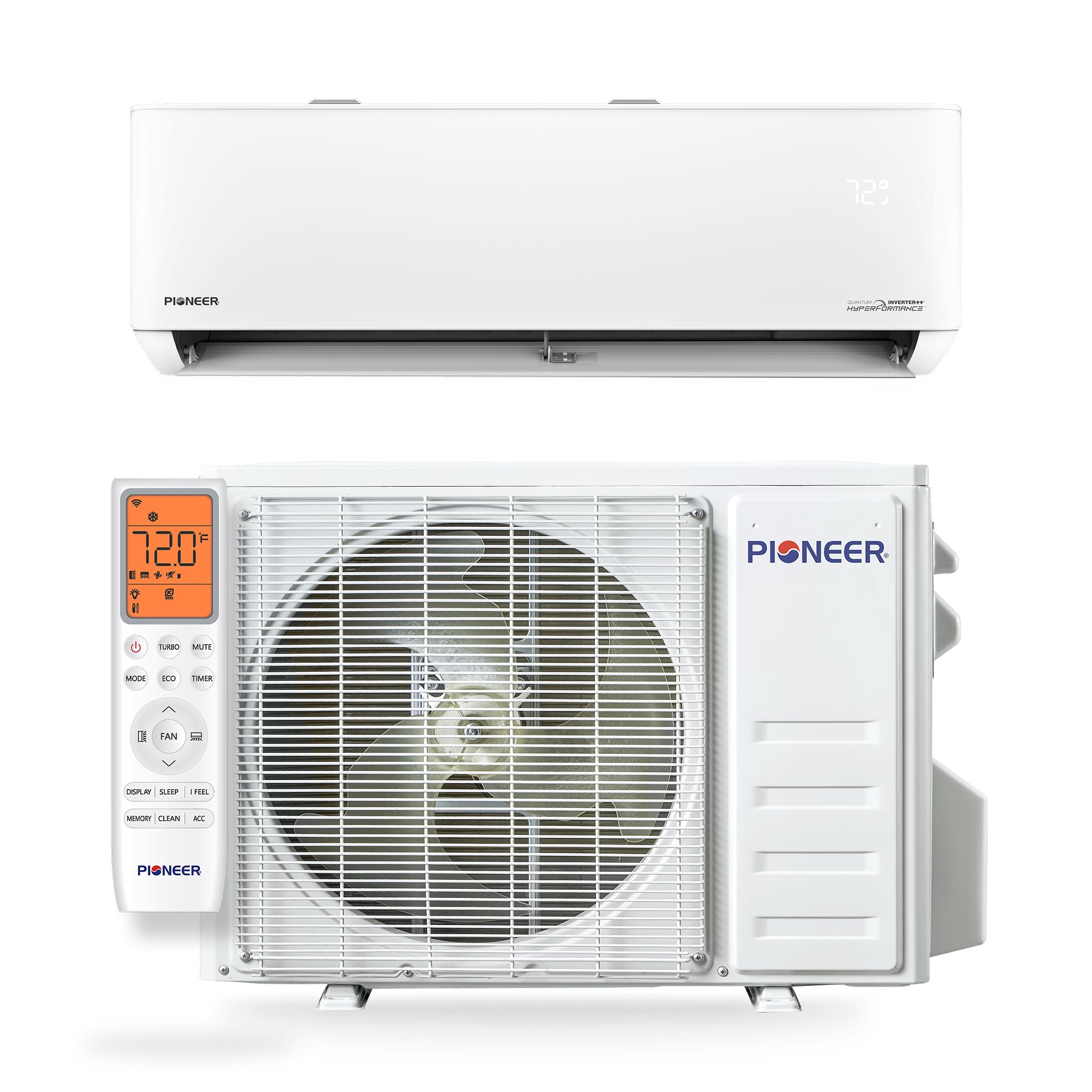

Pioneer® Quantum Hyperformance™ 12,000 BTU 25 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set (WYT012GLSI25RH)

PioneerSKU: WYT012GLSI25RH-10S
3 reviews
Price:
$1,363.00 $1,949.00SAVE 30%
BTU:
In Stock
Estimated delivery: Sep 7th-14th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 25.0 SEER2 / 14.0 EER2 efficiency
  • Heating capacity: 12,000 BTU/H with 10.5 HSPF2 / 4.0 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Quantum Hyperformance™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

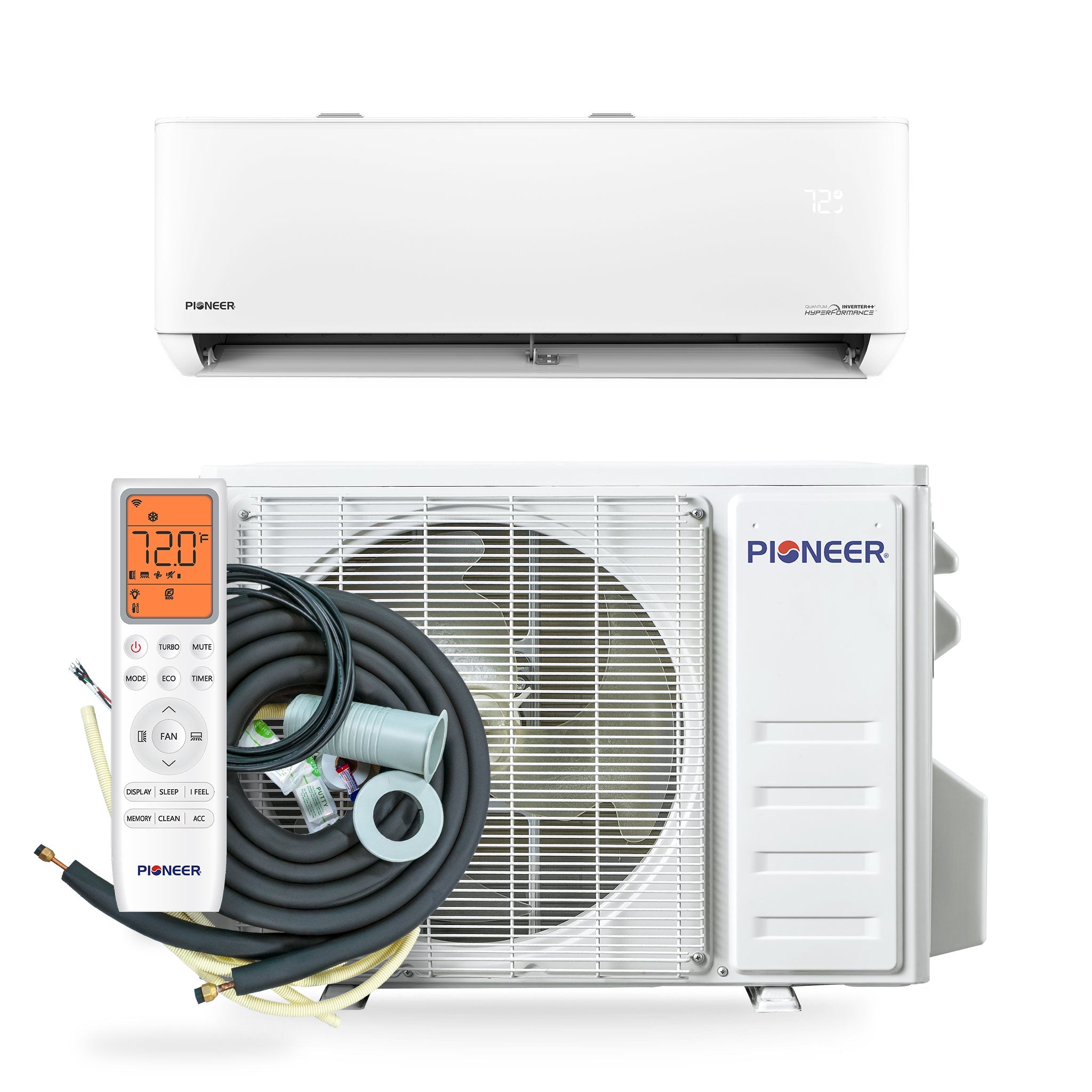

What's Included in Your Purchase

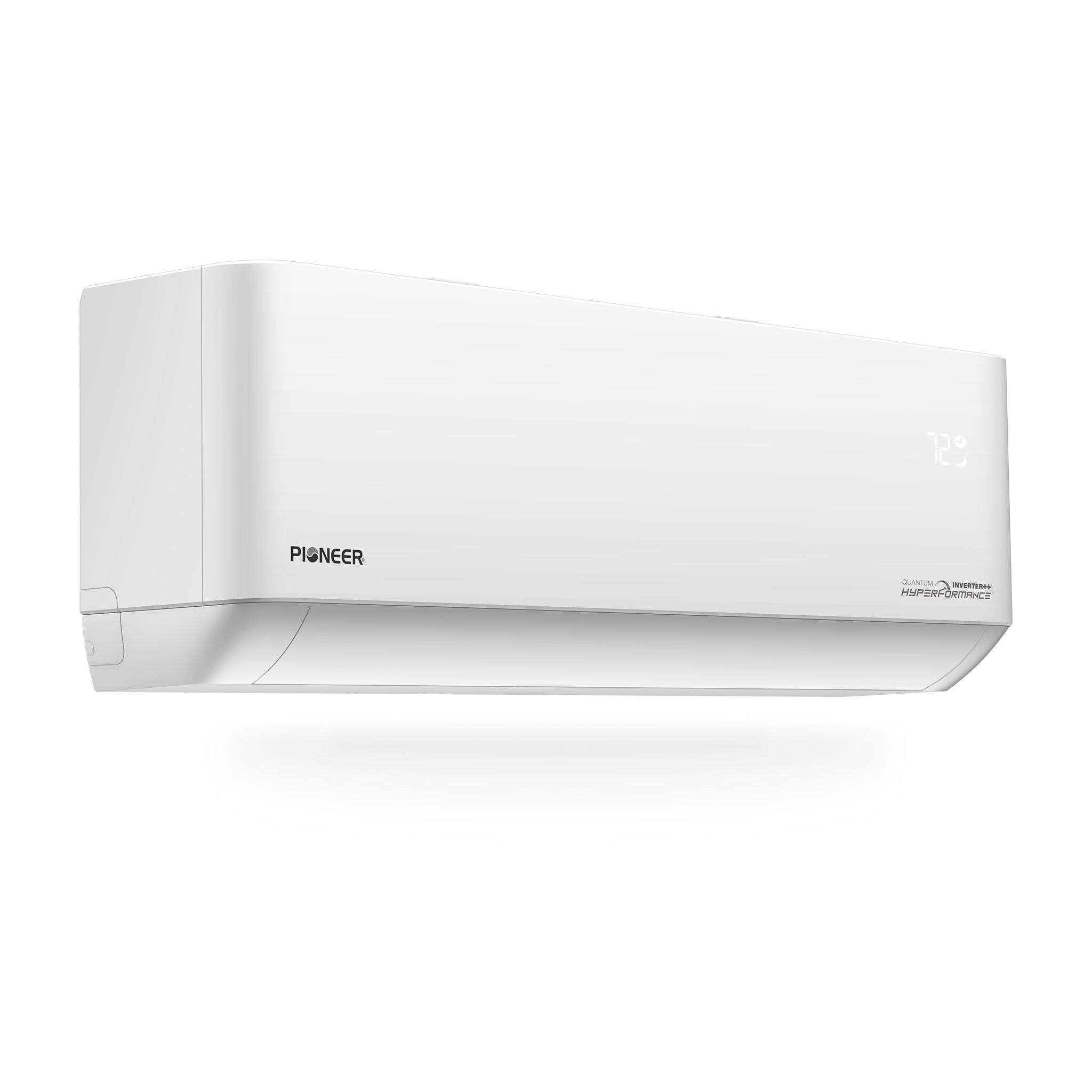

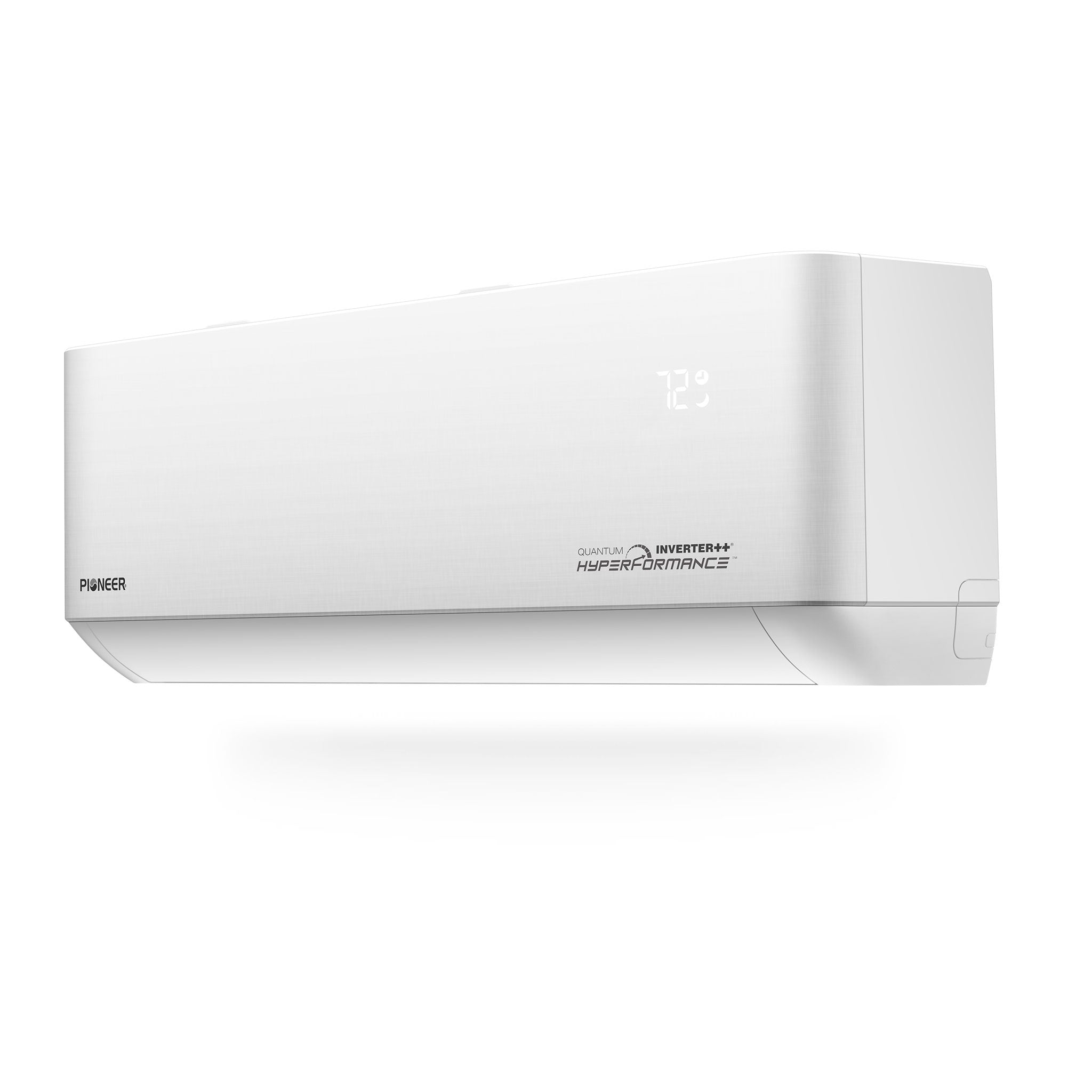

  • Indoor Unit

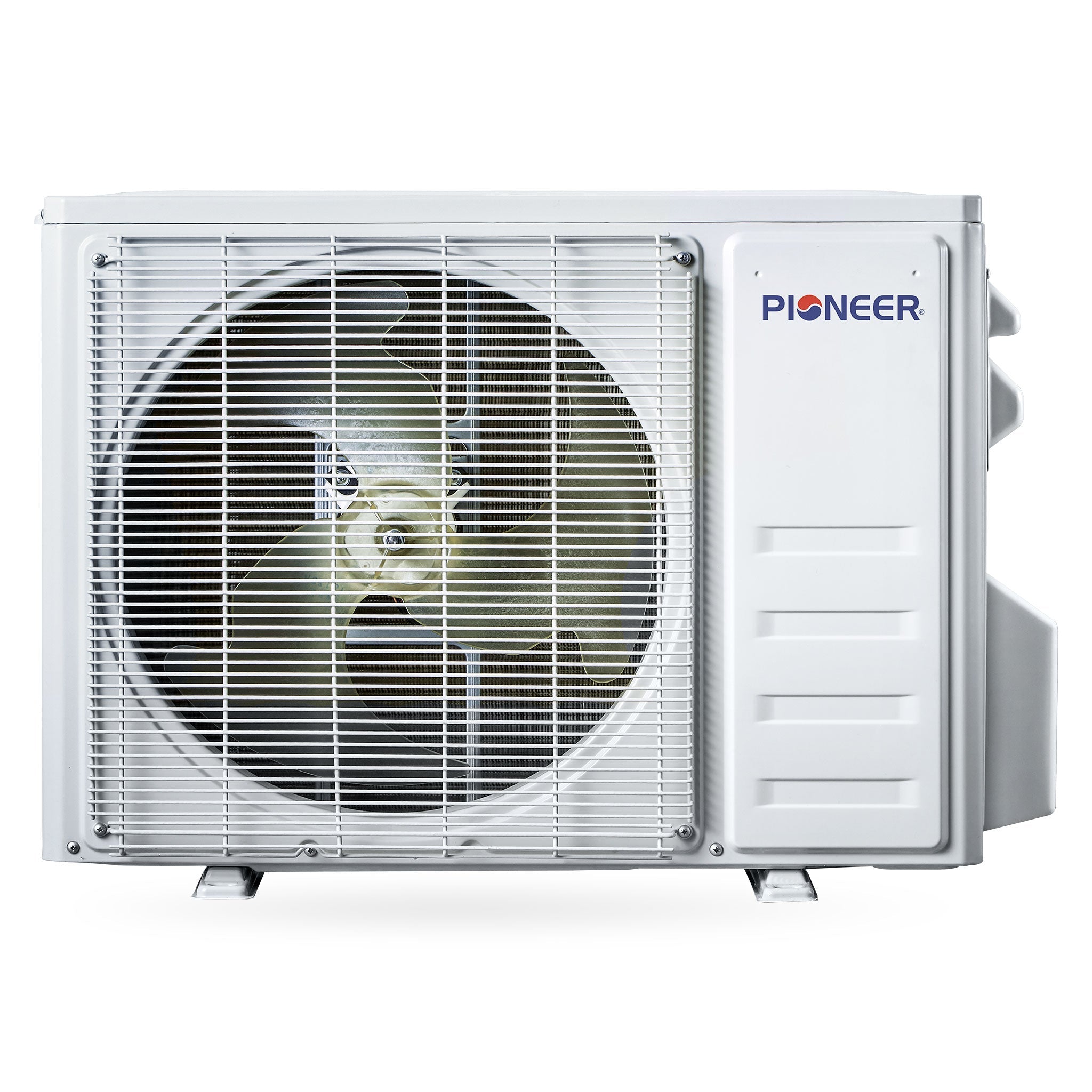

  • Outdoor Unit

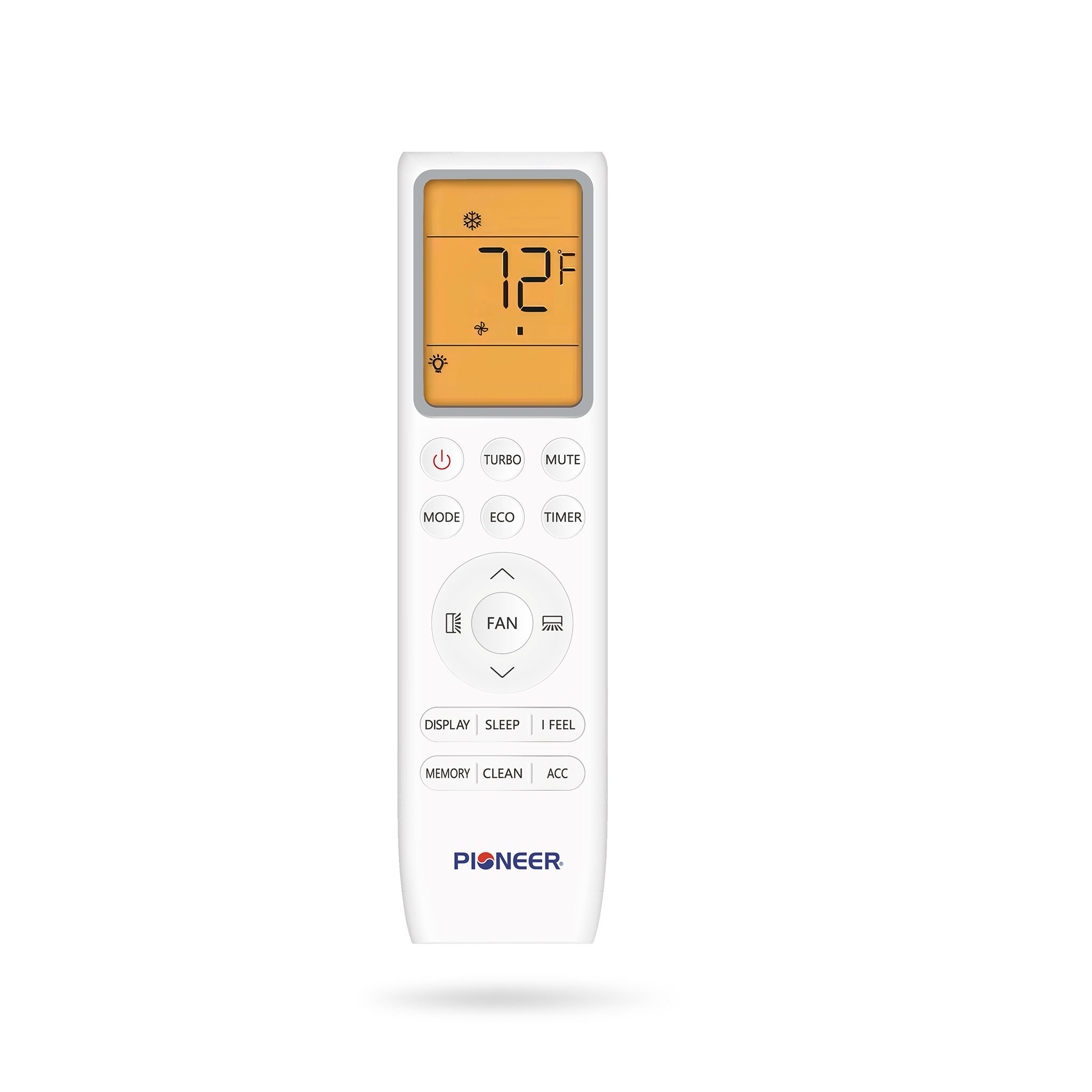

  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries

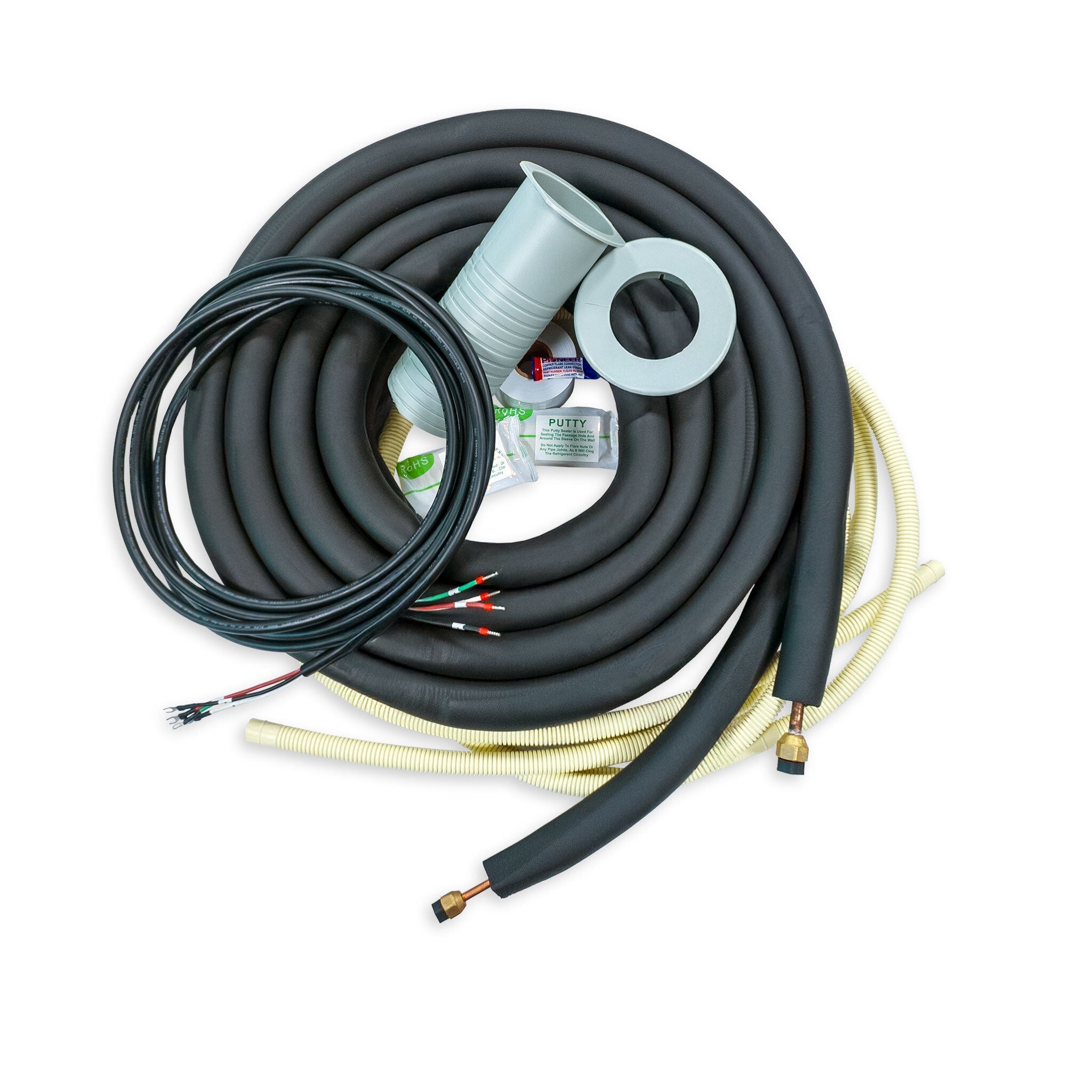

  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Minimum Installation Height
6 ft
Product Dimensions (WDH)
36"-1/4 x 7"-5/8 x 12" Inches
Carton Dimensions (WDH)
39" x 10"-1/2 x 15" Inches
Net / Gross Weight
23.1 / 30.9 lbs.
Net Dimensions (WDH)
34" x 13"-3/4 x 23"-3/4 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
250~500 Sq.F
Minimum Room Size
40 sq ft
Part Number
WT012GLSI25HLH
Air Flow (Turbo/Hi/Med/Lo/Mute)
500/470/411/323/205 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
46/44/36/32/30 dB(A)
Sound Level
57 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
12,000 BTU/h
Cooling Capacity Range
2,500~15,600 BTU/h
Cooling SEER2
25.0 BTU/W.h
Cooling EER2
14.0 BTU/W.h
Heating Rated Capacity
12,000 BTU/h
Heating Capacity Range
2,500~19,700 BTU/h
Heating HSPF2 (Region IV)
10.5 / 9.0 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
4.0 / 1.8 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
20A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
1/4 x 3/8"
SAFETY
AHRI Reference
217048755
