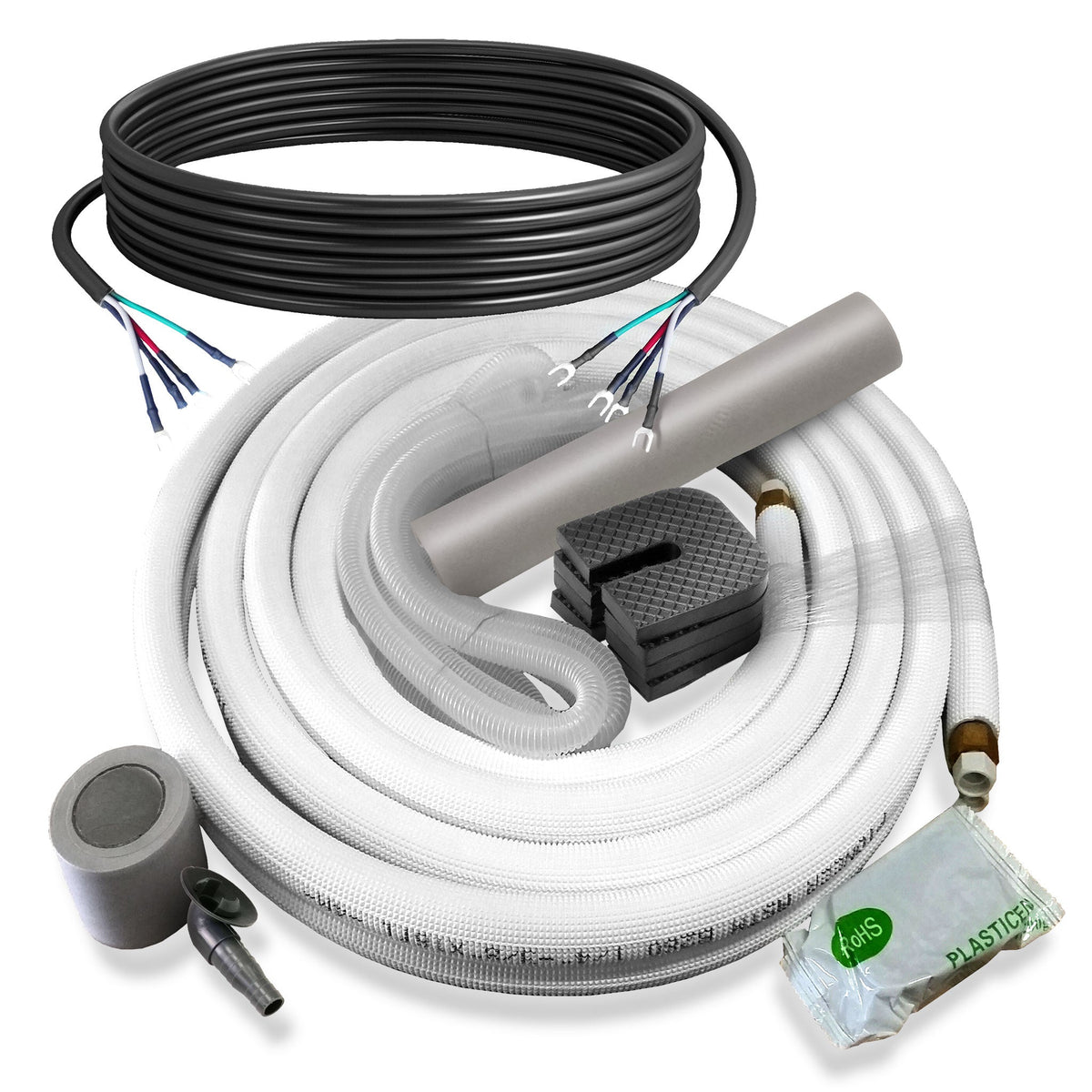

Mini-split installation kit with insulated line set, wiring, and drainage accessories
Wall-mounted ductless mini-split air conditioner with cooling and heating feature icons
Wall-mounted ductless mini-split air conditioner with remote control and airflow diagram graphics
Handheld remote control for a ductless mini-split air conditioner with backlit screen
Roll over image to zoom in Click on image to zoom
Ductless mini-split air conditioner set with wall unit, outdoor unit, and control kitWhite wall-mounted ductless mini-split air conditioner with digital temperature displayWhite wall-mounted ductless mini-split air conditioner with side vents and displayWall-mounted ductless mini-split air conditioner with illuminated display and performance graphicsOutdoor condenser unit for a ductless mini-split air conditioner with fan grilleMini-split installation kit with insulated line set, wiring, and drainage accessoriesWall-mounted ductless mini-split air conditioner with cooling and heating feature iconsWall-mounted ductless mini-split air conditioner with remote control and airflow diagram graphicsHandheld remote control for a ductless mini-split air conditioner with backlit screen
Click on image to zoom

Pioneer® Diamante Pro™ 36,000 BTU 19 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit (WYT036GLSI20RL)

PioneerSKU: WYT036GLSI20RL
3 reviews
Price:
$2,168.00 $3,099.00SAVE 30%
BTU:
Backorder
Estimated restock: 2-4 Weeks
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
  • Cooling capacity: 36,000 BTU/H with 19 SEER2 / 9.0 EER2 efficiency
  • Heating capacity: 36,000 BTU/H with 9.0 HSPF2 / 3.15 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Diamante Pro™ High-Wall Series

Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The copper tubing is included in the outdoor unit box, and the communication wiring kit is included in the indoor unit box. This product set consists of only 2 cartons.

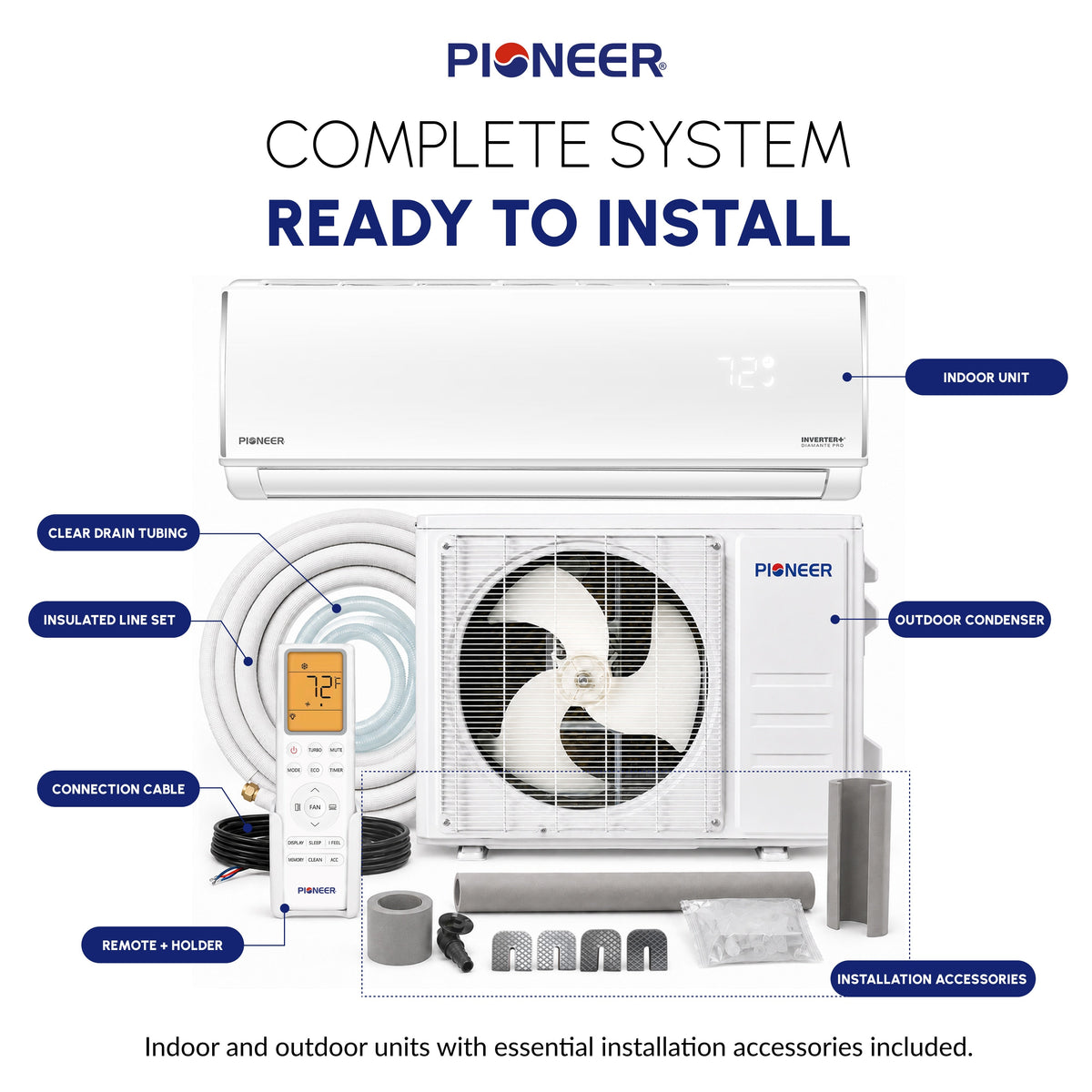

What's Included in Your Purchase

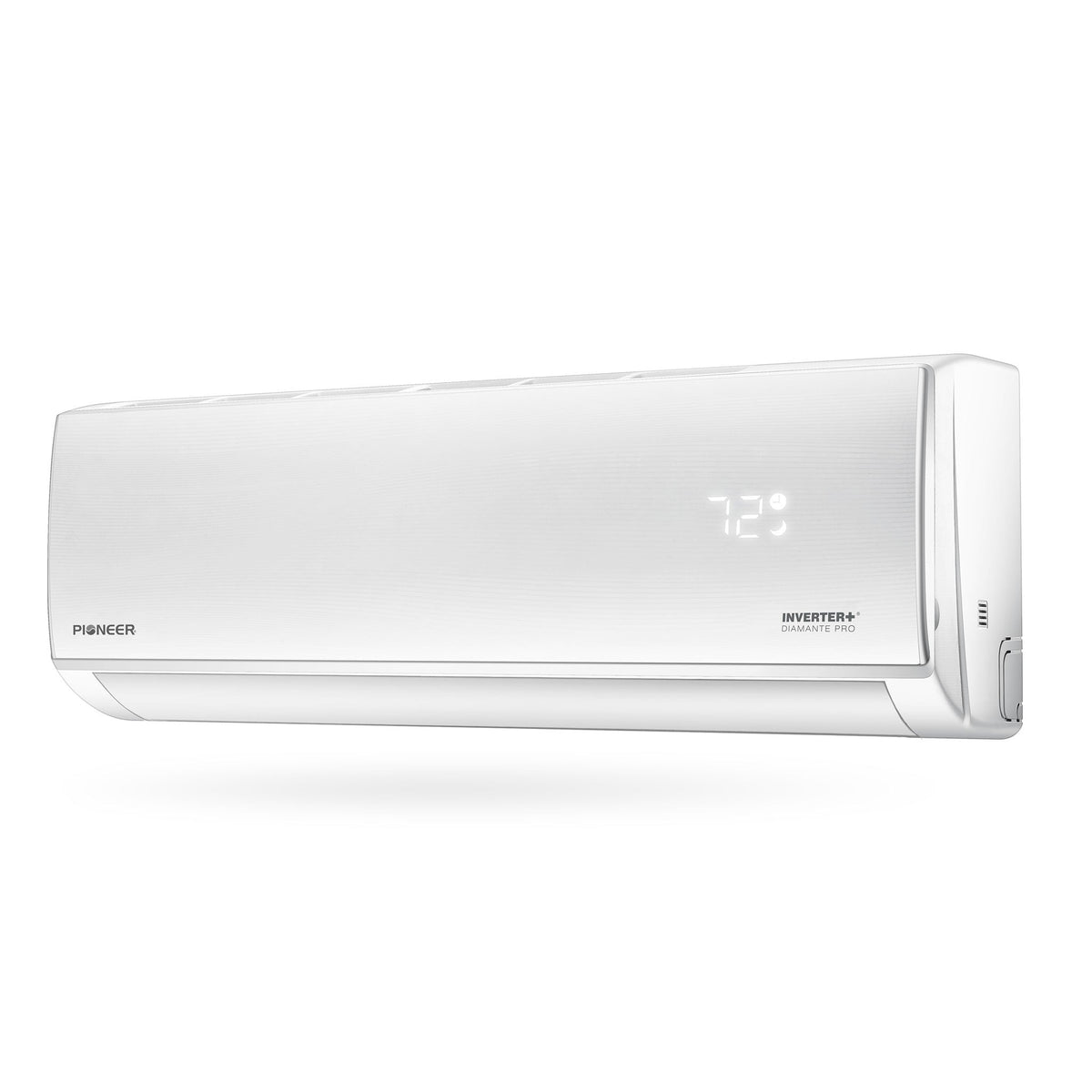

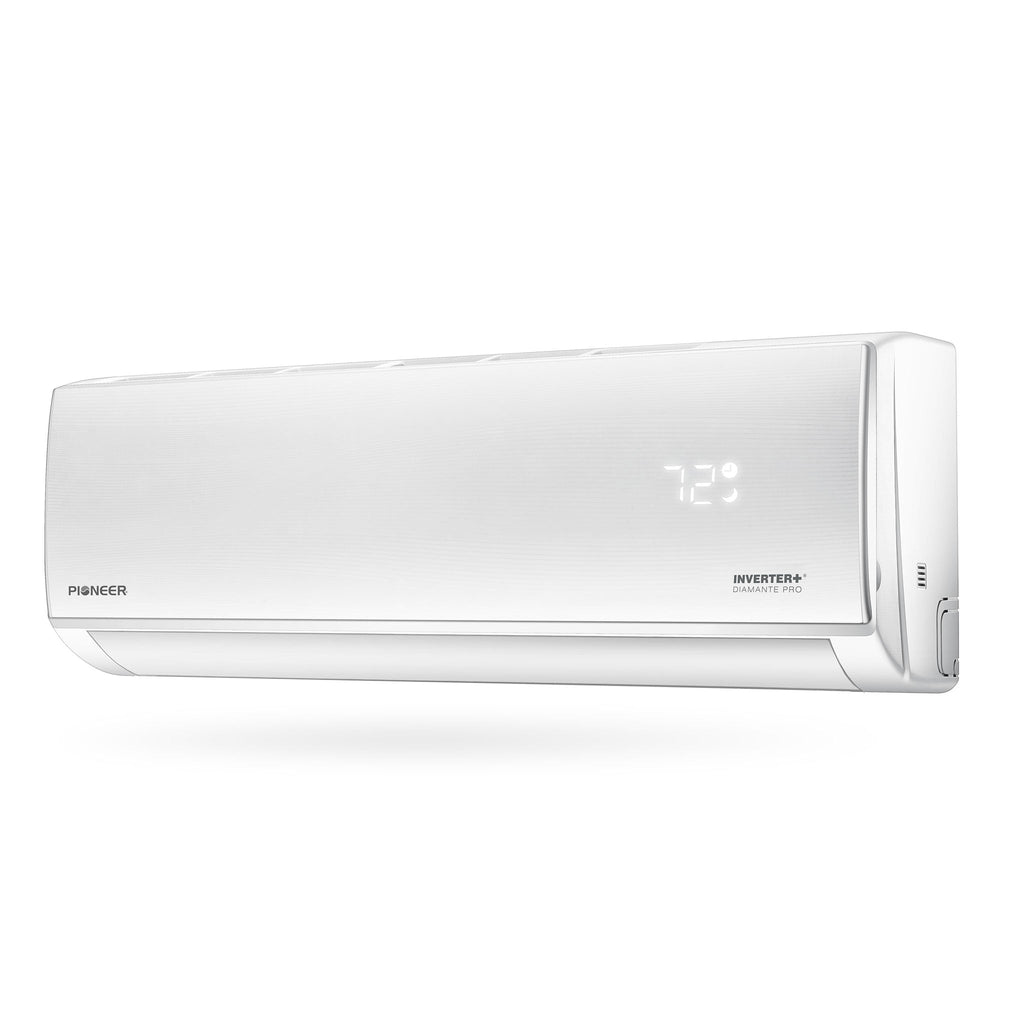

  • Indoor Unit

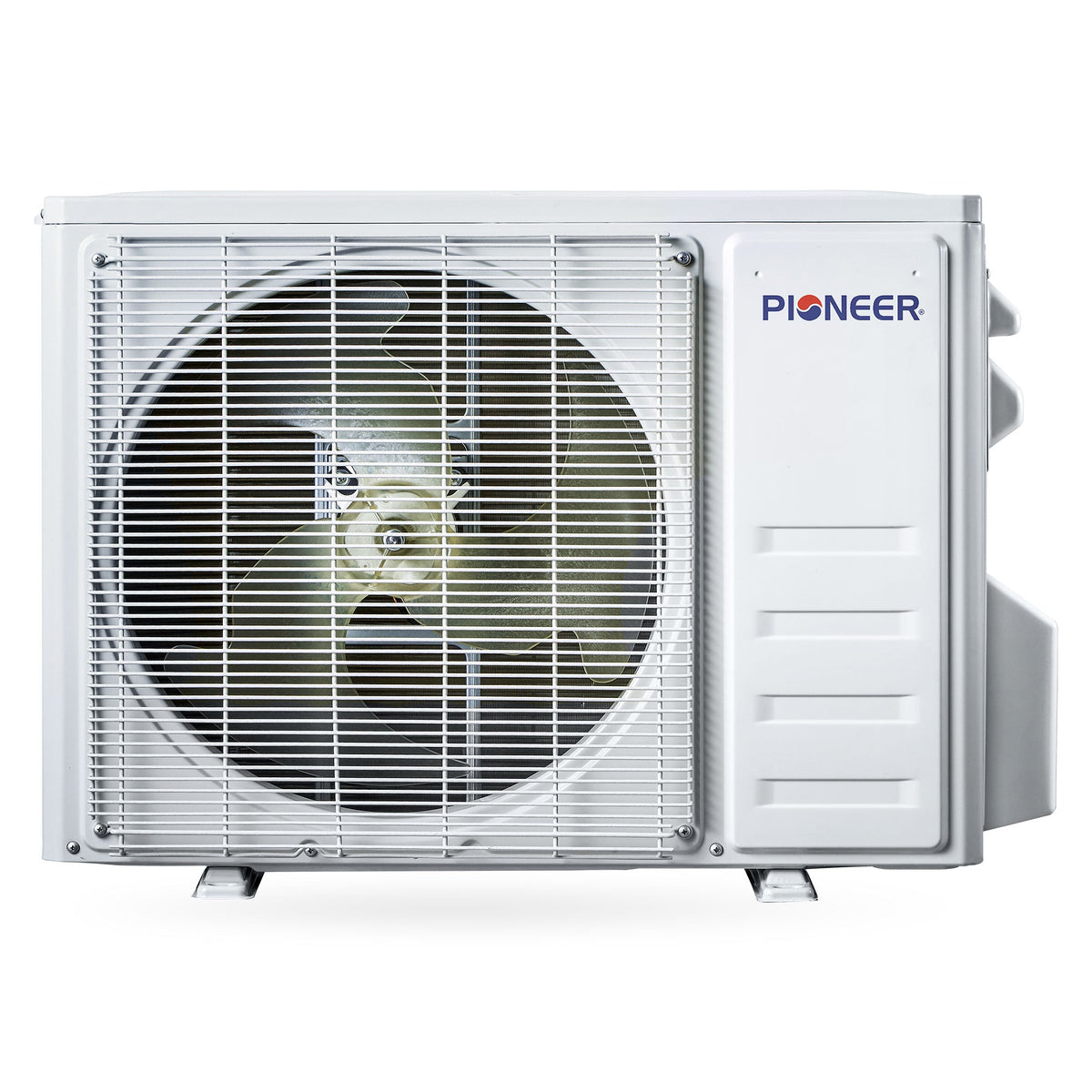

  • Outdoor Unit

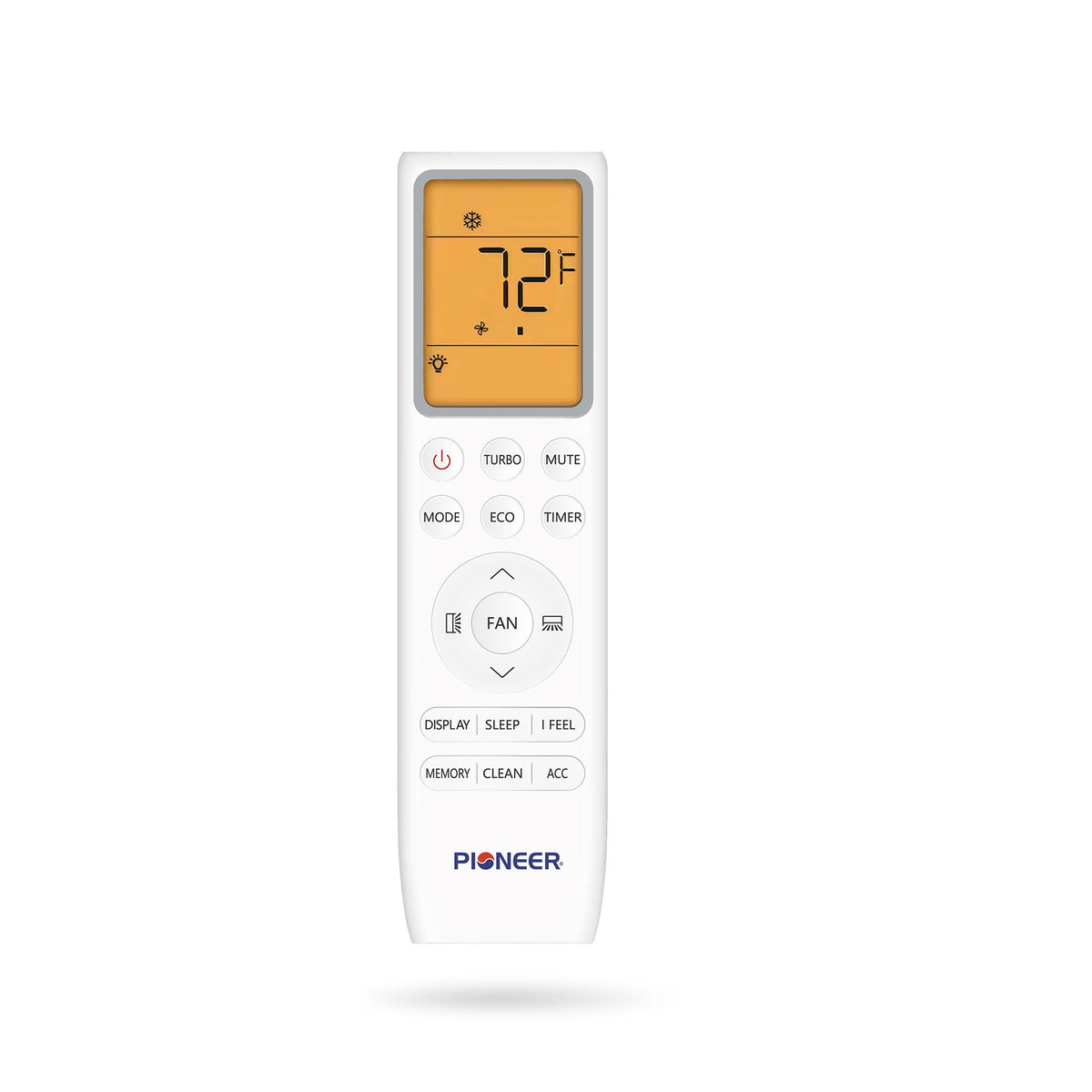

  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Minimum Installation Height
6 ft
Product Dimensions (WDH)
46-7/8 x 10-1/4 x 14-1/4 Inches
Carton Dimensions (WDH)
49-5/8 x 13 x 17 Inches
Net / Gross Weight
39.7 / 48.5 lbs.
Net Dimensions (WDH)
38-1/2 x 16-1/2 x 31-5/8 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
1000~1400 sq ft
Minimum Room Size
63 sq ft
Part Number
WT036GLSI20HLF
Air Flow (Turbo/Hi/Med/Lo/Mute)
847 / 705 / 588 / 470 / 412 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
52 / 49 / 43 / 38 / 36 dB(A)
Sound Level
63 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
36,000 BTU/h
Cooling Capacity Range
7,500~36,000 BTU/h
Cooling SEER2
19.0 BTU/W.h
Cooling EER2
9.0 BTU/W.h
Heating Rated Capacity
36,000 BTU/h
Heating Capacity Range
7,500~36,000 BTU/h
Heating HSPF2 (Region IV)
9.0 / 7.7 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.15 / 2.1 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
30A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
1/4-5/8"
SAFETY
AHRI Reference
217048747
