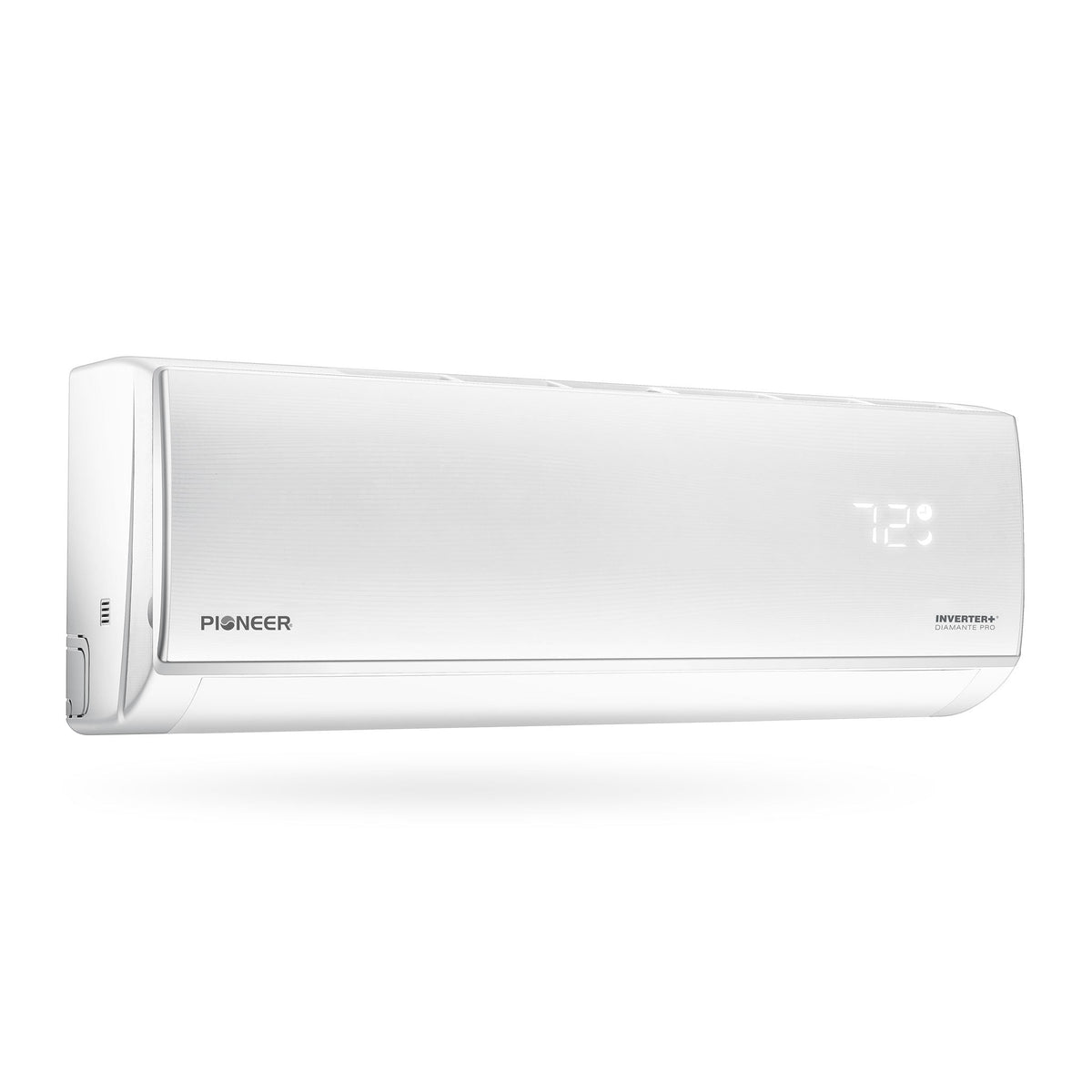

White wall-mounted ductless mini-split indoor unit with digital temperature display

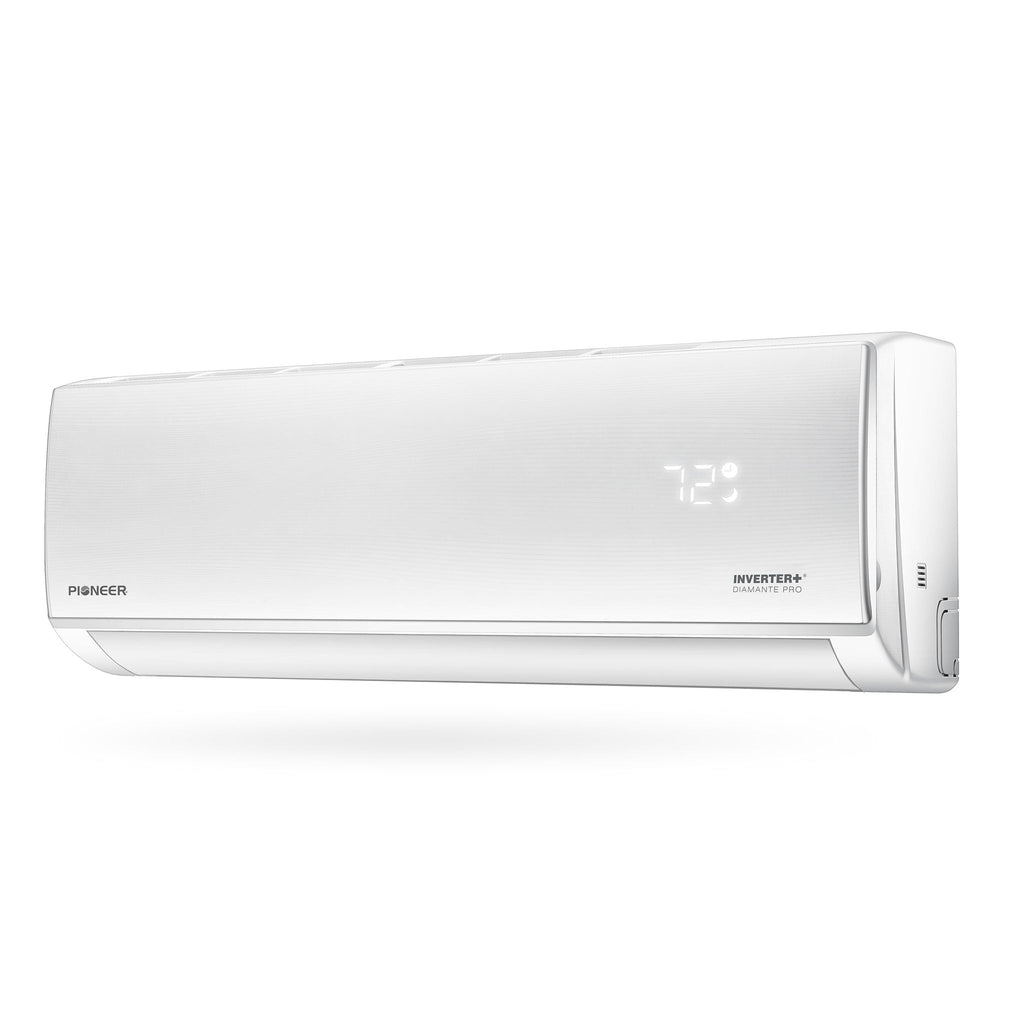

White wall-mounted ductless mini-split indoor unit, angled view with temperature display
Ductless mini-split indoor unit in bedroom scene with performance feature graphic
White outdoor condenser unit for ductless mini-split with fan grille and Pioneer logo

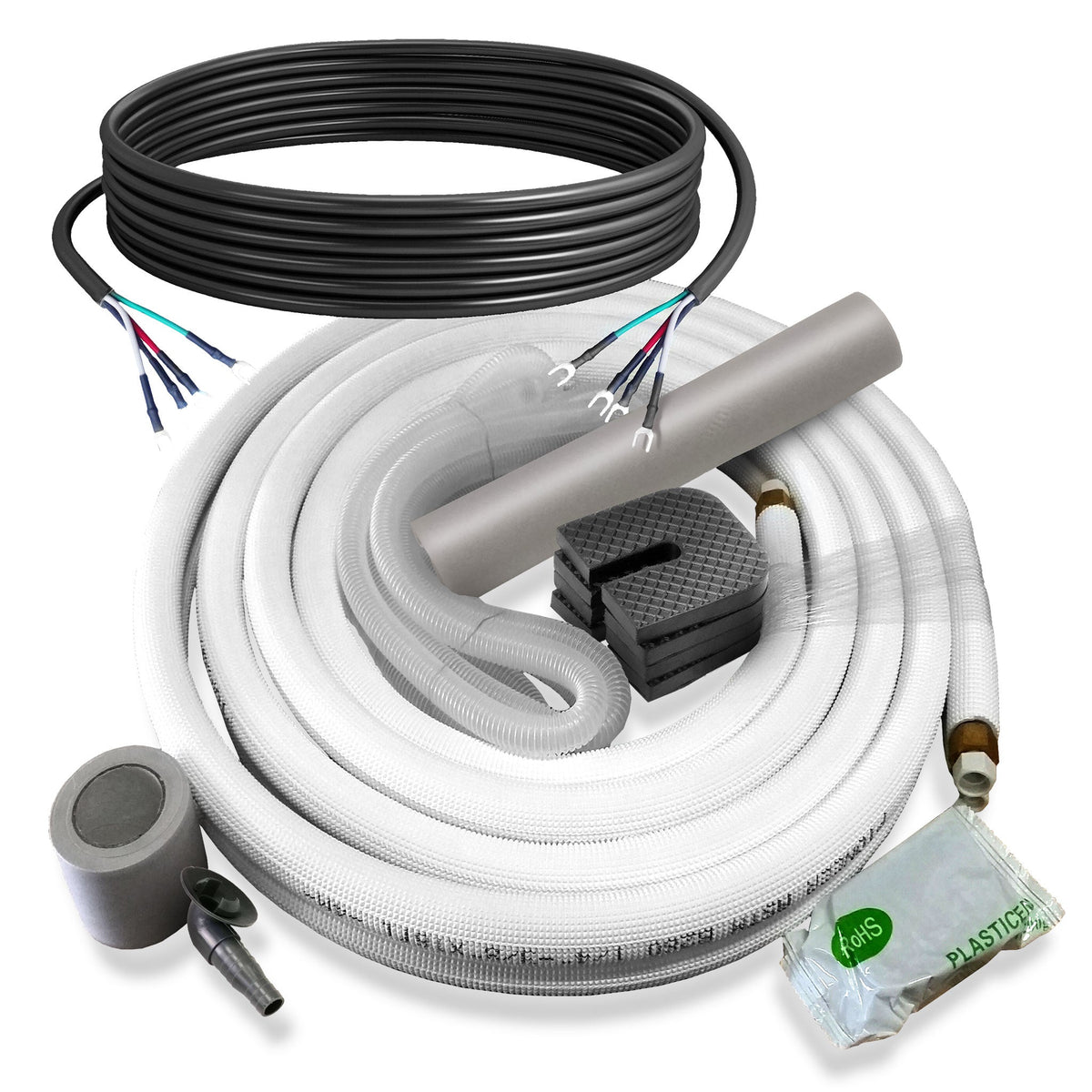

Ductless mini-split installation kit with coiled tubing, wiring, insulation, and fittings
Ductless mini-split system features graphic: cooling, heating, dehumidification, ventilation
Living room scene with ductless mini-split indoor unit and I FEEL mode remote graphic
Pioneer ductless mini-split remote control with orange LCD and white buttons
Roll over image to zoom in Click on image to zoom
Ductless mini-split air conditioner set with white indoor unit, outdoor condenser, and tubing kitWhite wall-mounted ductless mini-split indoor unit with digital temperature displayWhite wall-mounted ductless mini-split indoor unit, angled view with temperature displayDuctless mini-split indoor unit in bedroom scene with performance feature graphicWhite outdoor condenser unit for ductless mini-split with fan grille and Pioneer logoDuctless mini-split installation kit with coiled tubing, wiring, insulation, and fittingsDuctless mini-split system features graphic: cooling, heating, dehumidification, ventilationLiving room scene with ductless mini-split indoor unit and I FEEL mode remote graphicPioneer ductless mini-split remote control with orange LCD and white buttons
Click on image to zoom

Pioneer® Diamante Pro™ 24,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit (WYT024GLSI20RL)

PioneerSKU: WYT024GLSI20RL
3 reviews
Price:
$1,438.00 $2,049.00SAVE 29%
BTU:
Backorder
Estimated restock: 2-4 Weeks
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 24,000 BTU/H with 21 SEER2 / 11 EER2 efficiency
  • Heating capacity: 24,600 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph

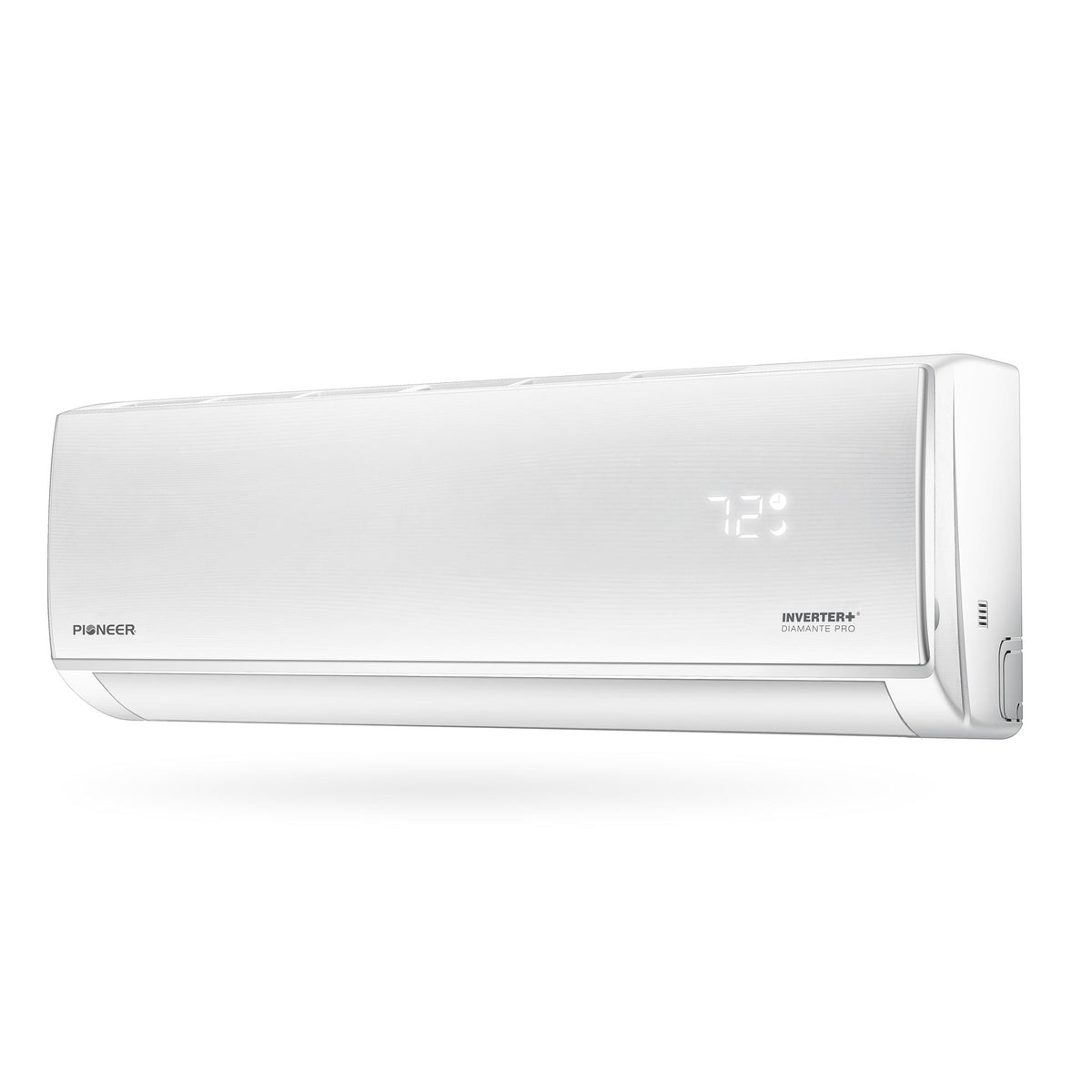

  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Diamante Pro™ High-Wall Series

Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The copper tubing is included in the outdoor unit box, and the communication wiring kit is included in the indoor unit box. This product set consists of only 2 cartons.

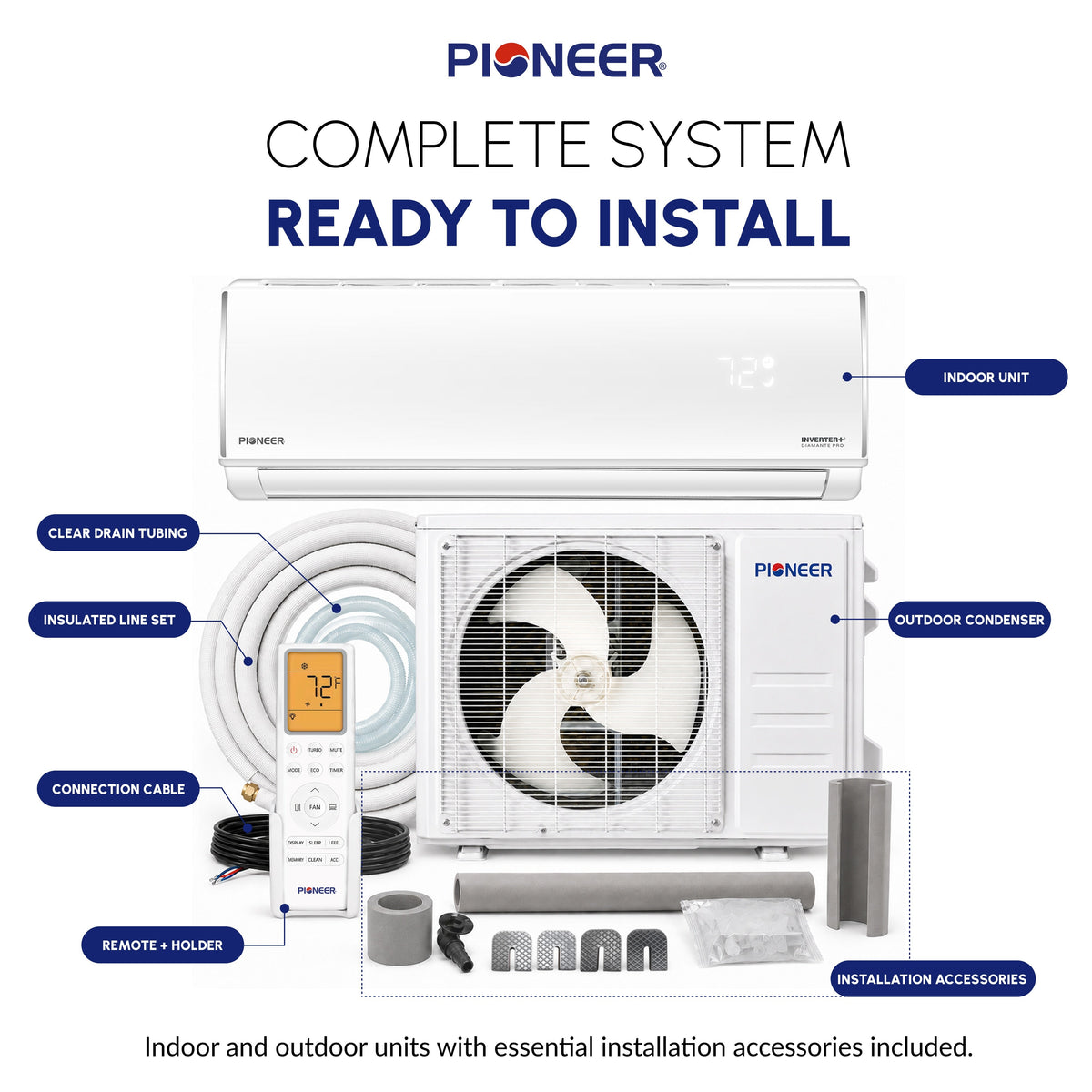

What's Included in Your Purchase

  • Indoor Unit

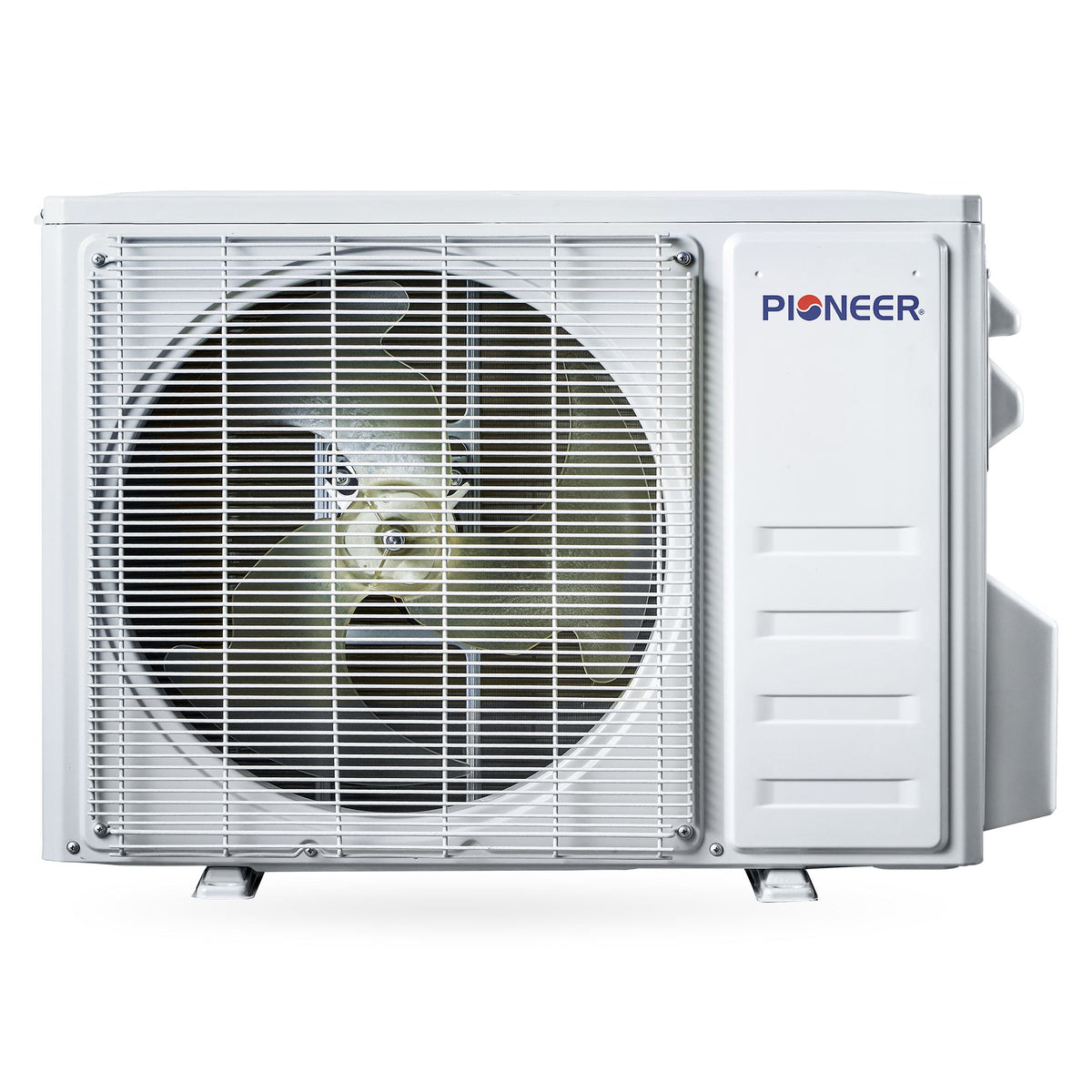

  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Minimum Installation Height
6 ft
Product Dimensions (WDH)
46-7/8 x 10-1/4 x 14-1/4 Inches
Carton Dimensions (WDH)
49-5/8 x 13 x 17 Inches
Net / Gross Weight
36.4 / 43 lbs.
Net Dimensions (WDH)
36-1/2 x 14-7/8 x 27-1/2 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
750~1000 sq ft
Minimum Room Size
51 sq ft
Part Number
WT024GLSI20HLF
Air Flow (Turbo/Hi/Med/Lo/Mute)
847 / 705 / 588 / 470 / 412 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
52 / 49 / 43 / 38 / 36 dB(A)
Sound Level
58 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
24,000 BTU/h
Cooling Capacity Range: 5
,100 ~ 25,200 BTU/h
Cooling SEER2
21.0 BTU/W.h
Cooling EER2
11.0 BTU/W.h
Heating Rated Capacity
24,600 BTU/h
Heating Capacity Range
5,100 ~ 25,900 BTU/h
Heating HSPF2 (Region IV)
9.5 / 8.2 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.41 / 2.1 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
20A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R454b
Piping Diameter
1/4 x 1/2"
SAFETY
AHRI Reference
217048745
