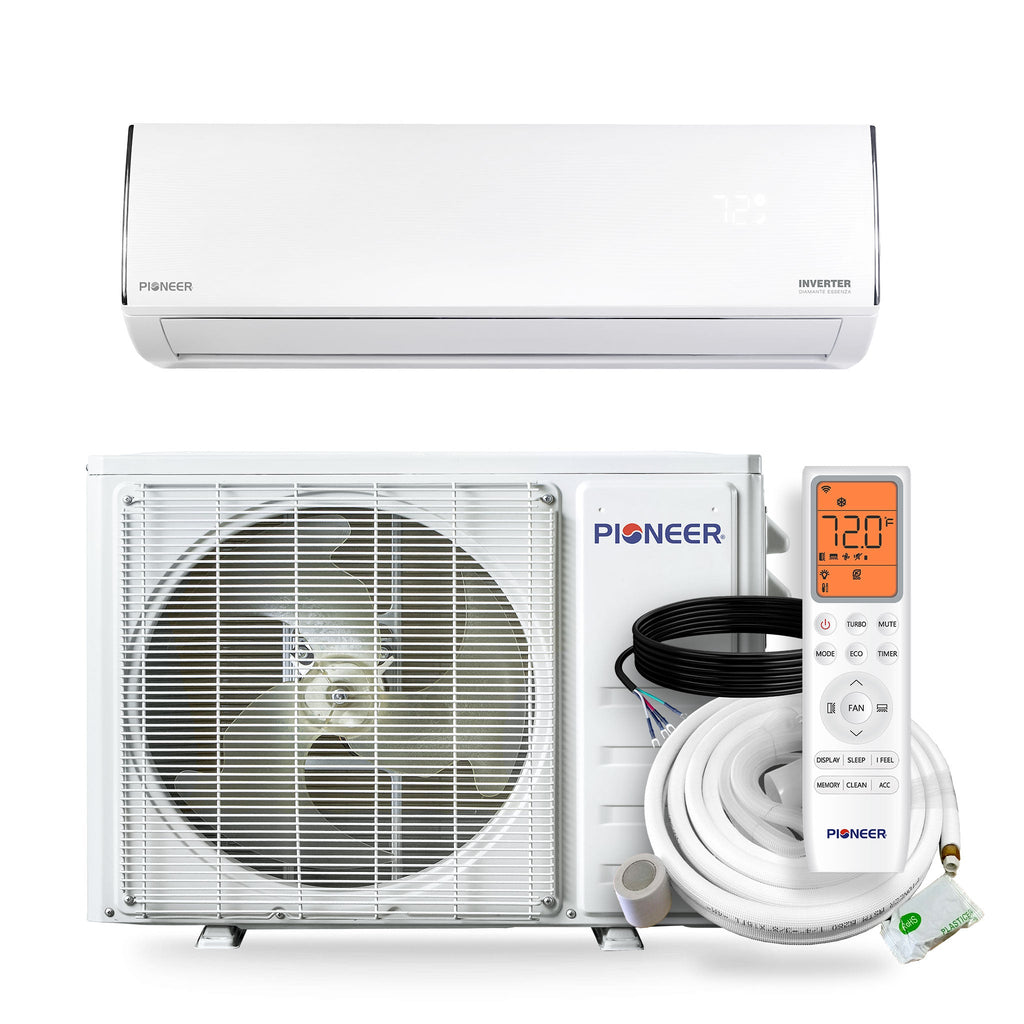

Pioneer® Diamante Essenza™ 11,500 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit (WYT012GLUI17RL)
Wall-mounted Pioneer ductless mini-split air conditioner indoor unit

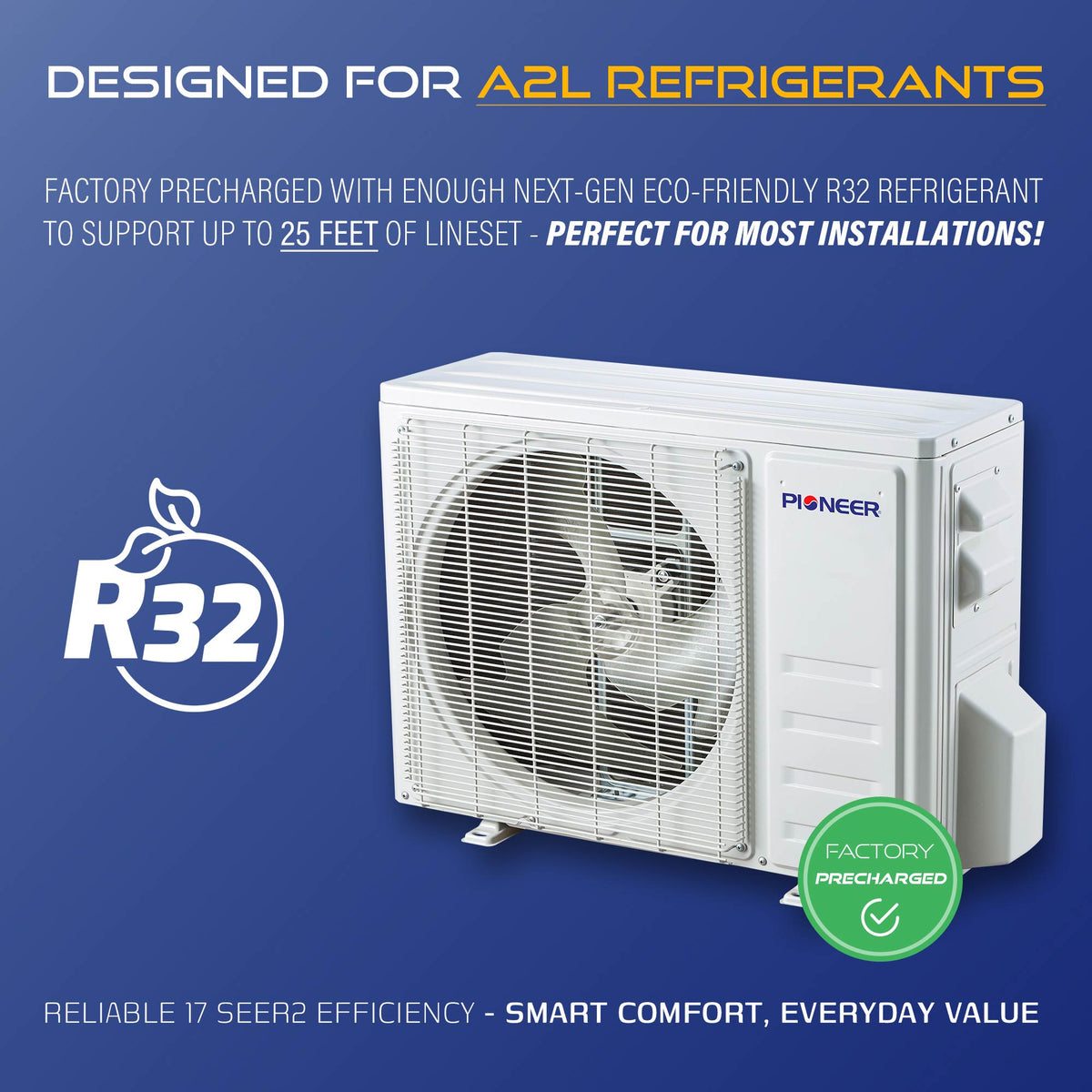

Pioneer R32 refrigerant outdoor unit for ductless mini-split air conditioner

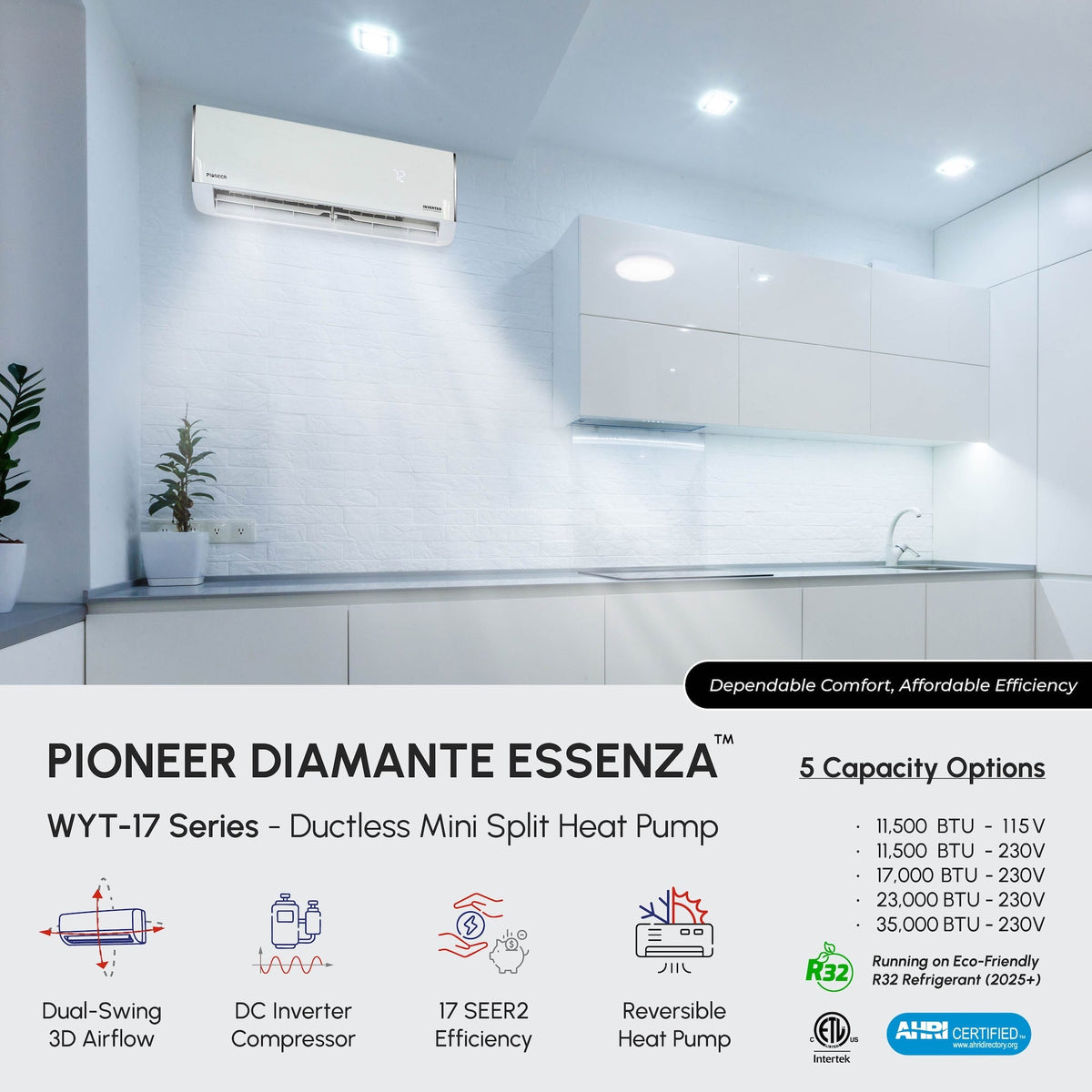

White Pioneer ductless mini-split heat pump indoor unit

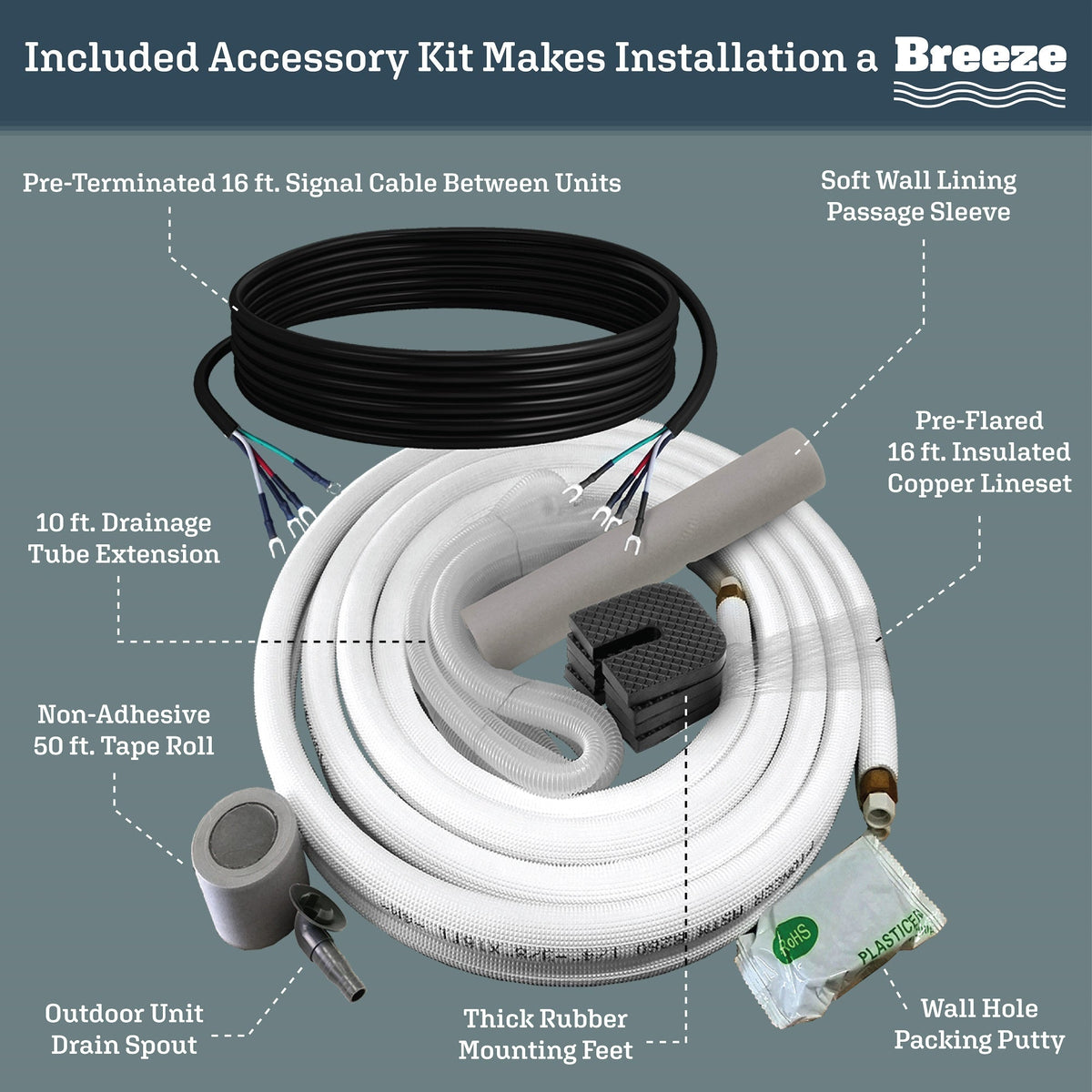

Accessory kit for ductless mini-split: coiled line set and drain tubing

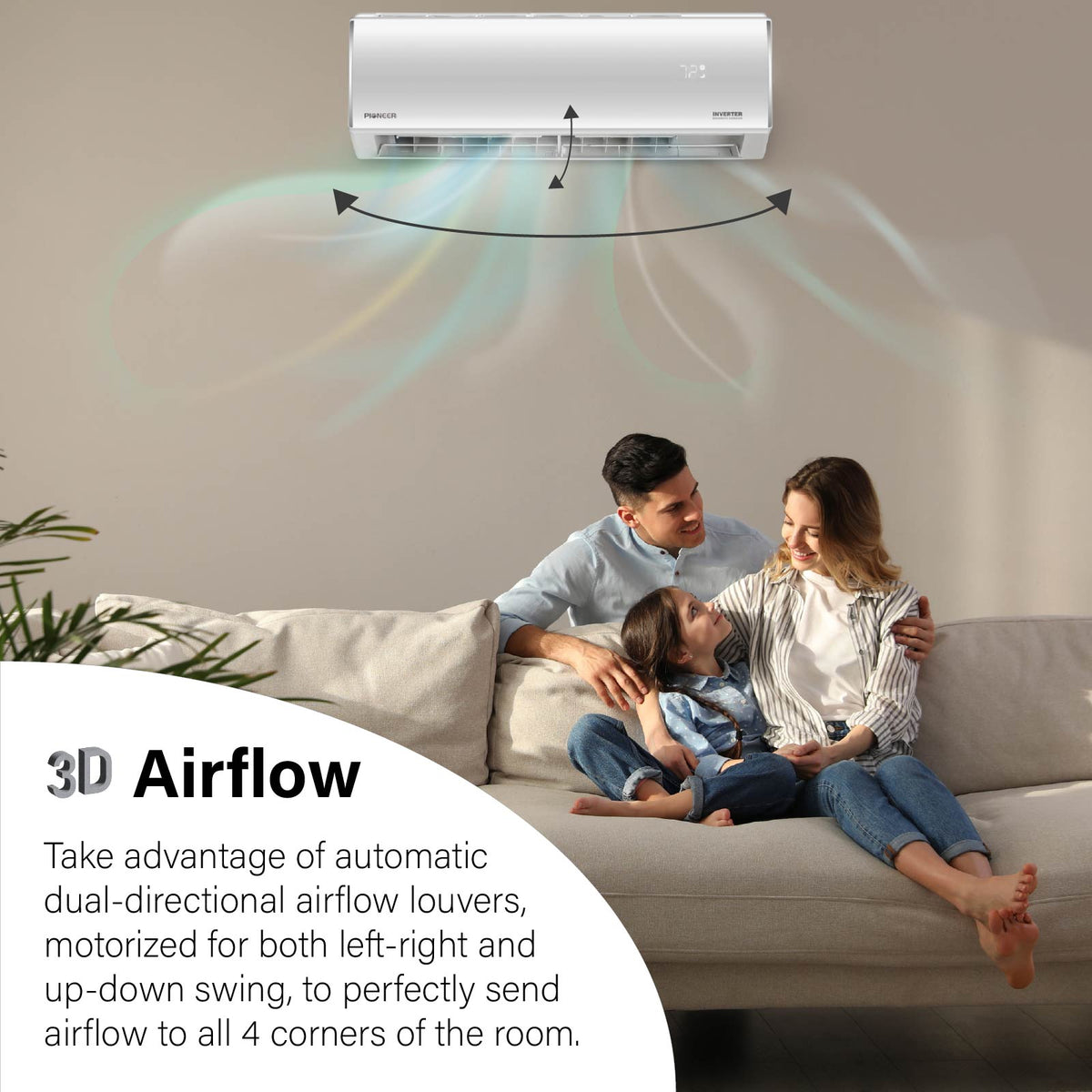

Pioneer ductless mini-split indoor unit with 3D airflow louvers

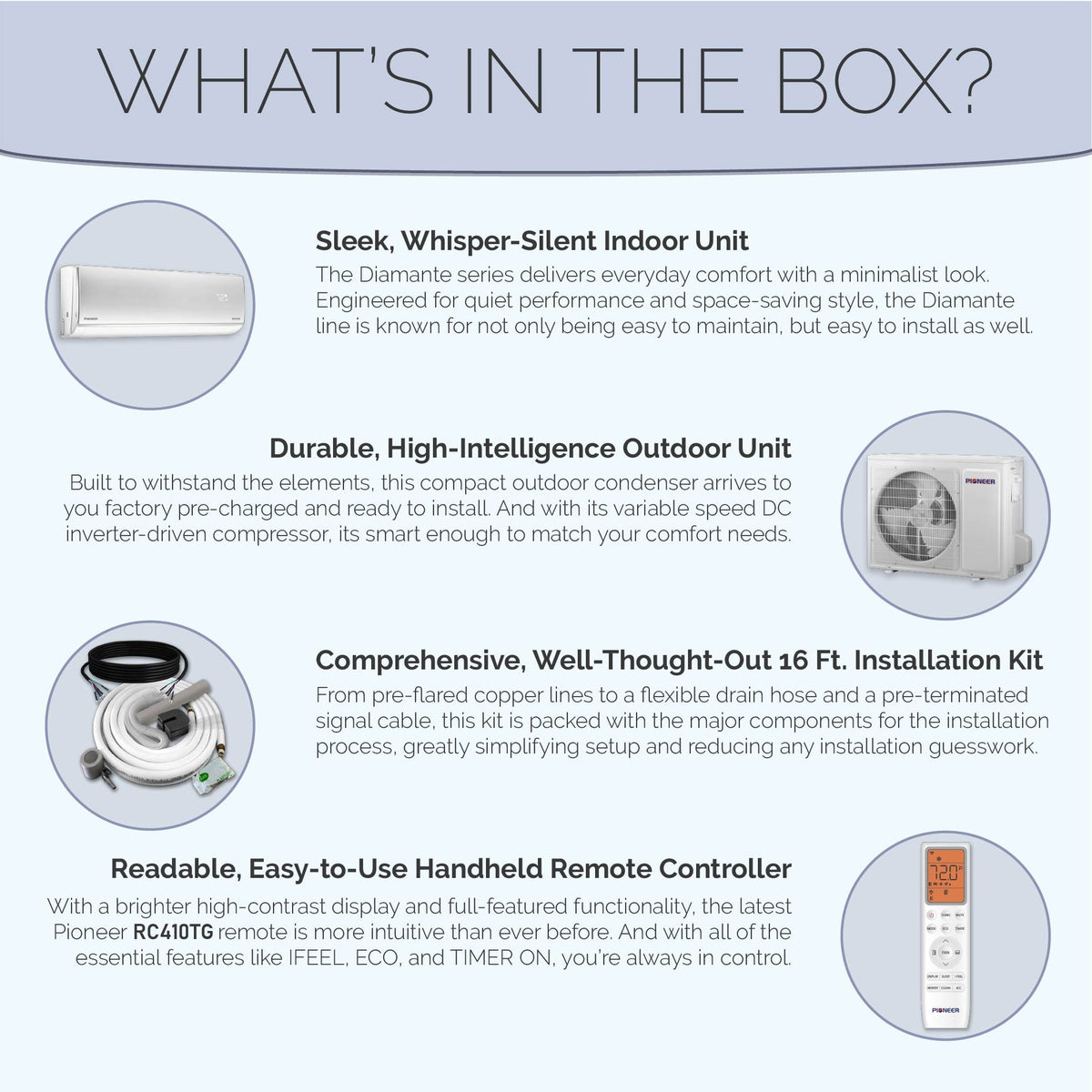

Ductless mini-split package contents: indoor unit, outdoor unit, line kit, remote
Roll over image to zoom in Click on image to zoom
Pioneer® Diamante Essenza™ 11,500 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit (WYT012GLUI17RL)Wall-mounted Pioneer ductless mini-split air conditioner indoor unitPioneer R32 refrigerant outdoor unit for ductless mini-split air conditionerWhite Pioneer ductless mini-split heat pump indoor unitAccessory kit for ductless mini-split: coiled line set and drain tubingPioneer ductless mini-split indoor unit with 3D airflow louversDuctless mini-split package contents: indoor unit, outdoor unit, line kit, remote
Click on image to zoom

Pioneer® Diamante Essenza™ 11,500 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit (WYT012GLUI17RL)

PioneerSKU: WYT012GLUI17RL
4 reviews
Price:
$738.00 $1,049.00SAVE 29%
Voltage:
BTU:
In Stock
Estimated delivery: Oct 28th-Nov 4th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Summary

  • Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
  • Cooling capacity: 11,500 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 11,500 BTU/H with 8.3 HSPF2 / 3.2 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R-32 Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Diamante Essenza™ High-Wall Series

Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.

Important

The outdoor unit is pre-charged with R32 Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The copper tubing is included in the outdoor unit box, and the communication wiring kit is included in the indoor unit box. This product set consists of only 2 cartons.

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
DIMENSIONS & WEIGHT
Minimum Installation Height
6 ft
Product Dimensions (WDH)
30-1/2 x 7-7/8 x 9-3/4 Inches
Carton Dimensions (WDH)
33-1/8 x 10-1/4 x 12-3/8 Inches
Net / Gross Weight
16.5 / 20.9 lbs
Net Dimensions (WDH)
31 x 11-1/2 x 19-3/8 Inches
GENERAL INFORMATION
Power Supply
208~230V, 60Hz, 1Ph
Recommended Room Size
200~450 sq ft
Minimum Room Size
20 sq ft
Part Number
WT012GLUI17HLD
Air Flow (Turbo/Hi/Med/Lo/Mute)
294 / 264 / 235 / 206 / 159 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)
45 / 42 / 39 / 35 / 33 dB(A)
Sound Level
55 dB(A)
CAPACITY & PERFORMANCE
Cooling Rated Capacity
11,500 BTU/h
Cooling Capacity Range
2,050~12,000 BTU/h
Cooling SEER2
17.0 BTU/W.h
Cooling EER2
9.5 BTU/W.h
Heating Rated Capacity
11,500 BTU/h
Heating Capacity Range
2,050~12,500 BTU/h
Heating HSPF2 (Region IV)
8.3 / 7.1 BTU/W.h
Heating C.O.P.2 (47°F/5°F)
3.2 / 1.75 W/W
ELECTRICAL REQUIREMENTS
Breaker Needed
15A (double-pole)
REFRIGERANT & PIPING
Refrigerant Type
R-32
Piping Diameter
1/4-3/8"
SAFETY
AHRI Reference
217048735

Pioneer Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
48K BTU
36K BTU
30K BTU
24K BTU
18K BTU
12K BTU
9K BTU
9K BTU up to 350 sq ft · Bedroom, home office
12K BTU up to 500 sq ft · Large bedroom, den
18K BTU up to 750 sq ft · Living room, master suite
24K BTU up to 1000 sq ft · Open living area
30K BTU up to 1200 sq ft · Large open area
36K BTU up to 1400 sq ft · Great room, small home
48K BTU up to 1800 sq ft · Whole floor, large open space
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
