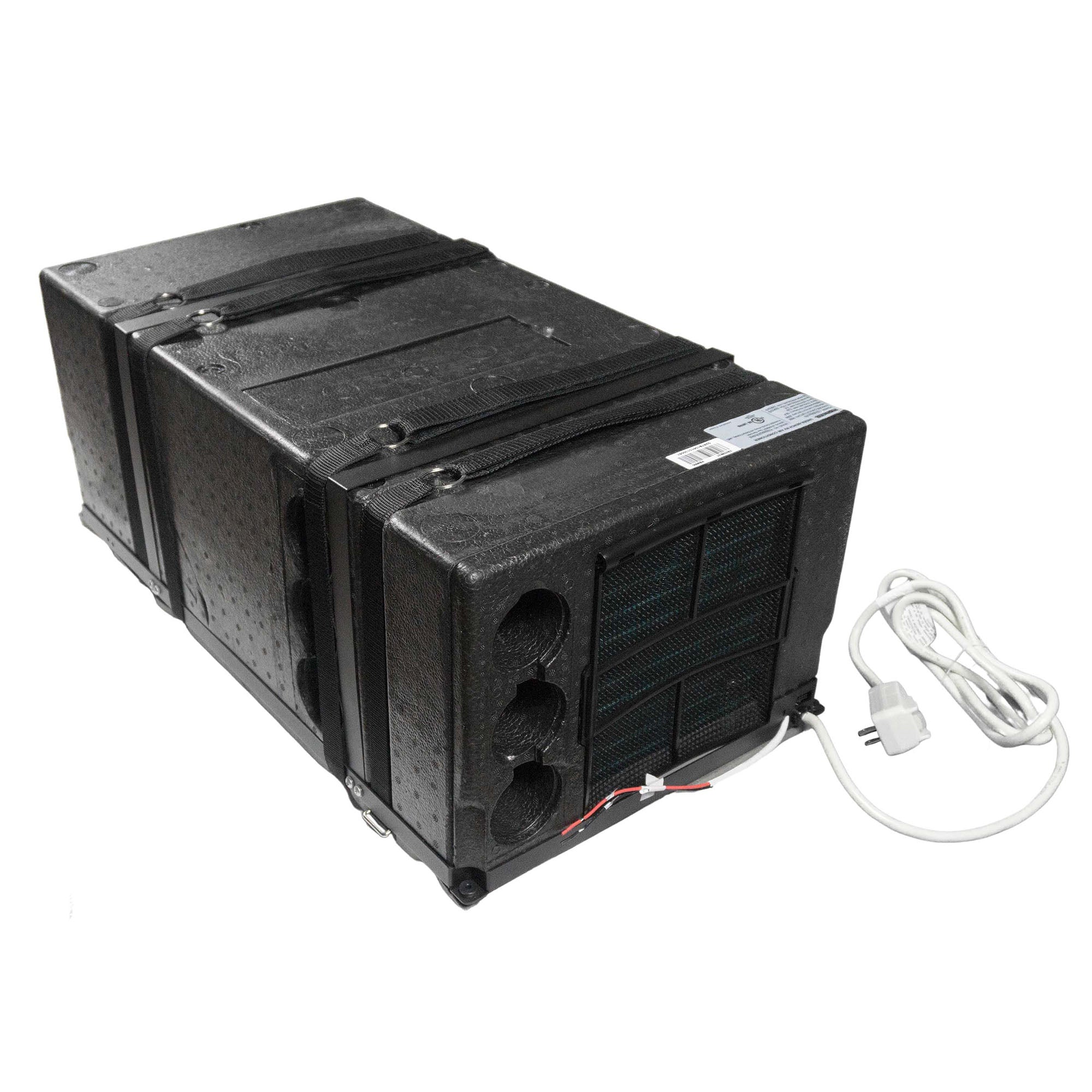

Pioneer under-bench RV inverter heat pump air conditioner unit with power cord

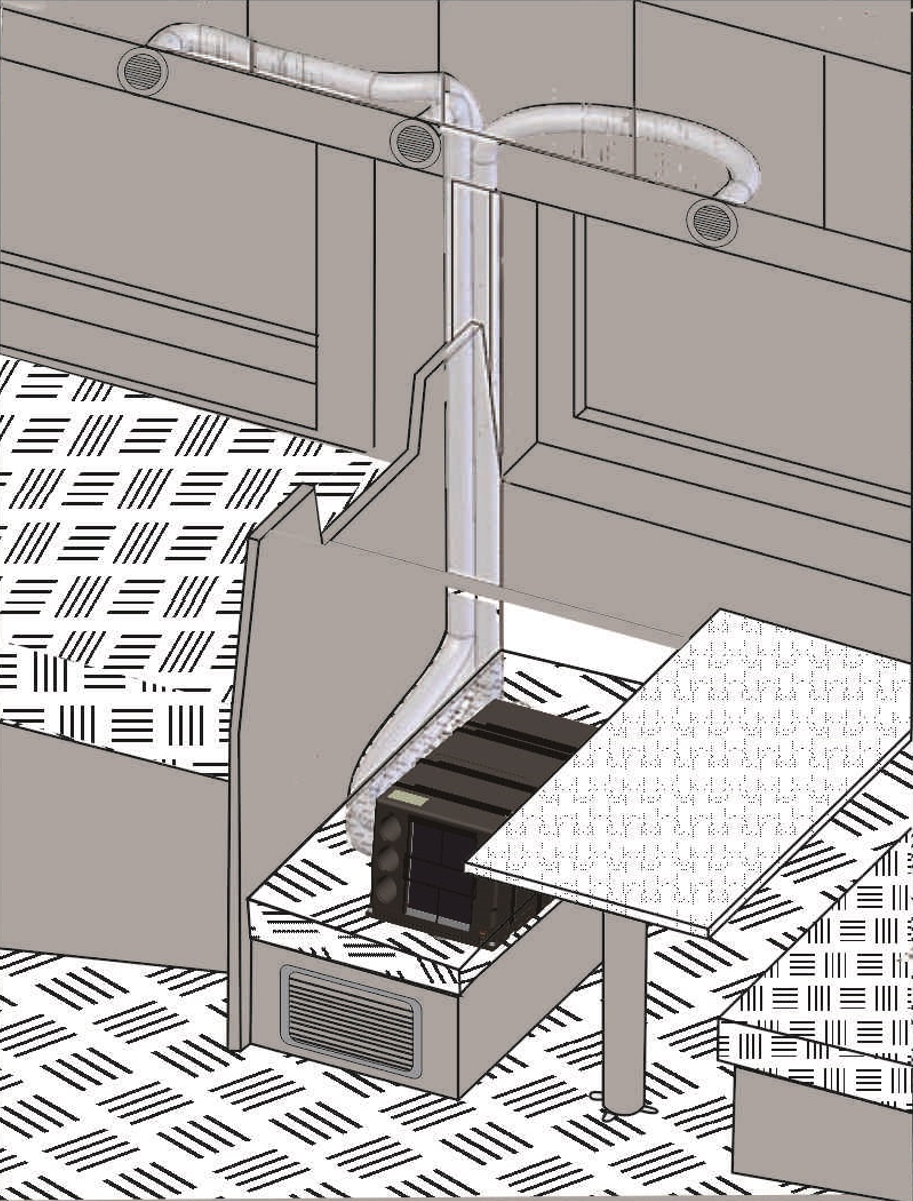

Under-bench RV heat pump air conditioner installed under a platform with vent grille
Black under-bench RV inverter heat pump air conditioner with remote and power cable

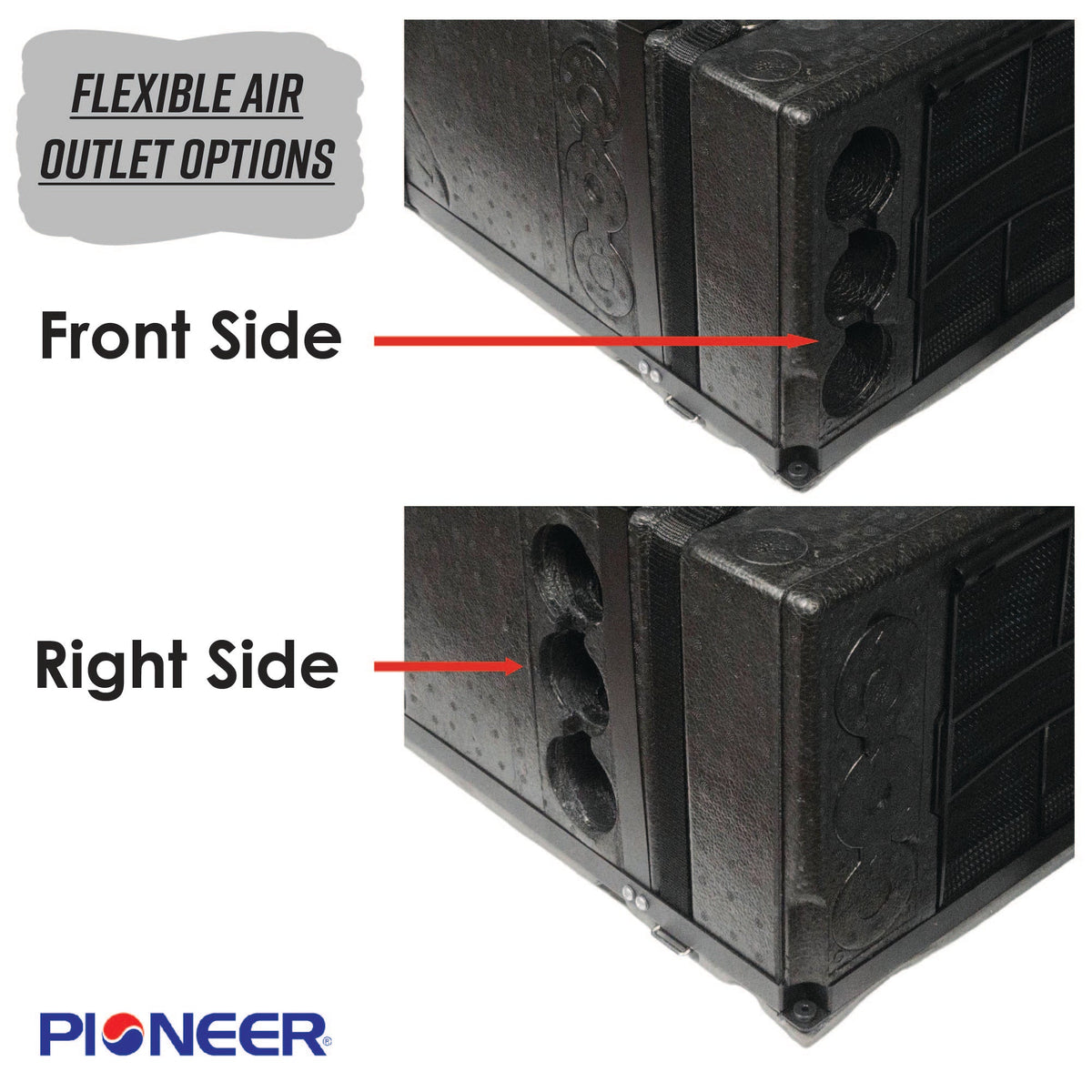

RV under-bench heat pump air conditioner showing front and right side outlet openings

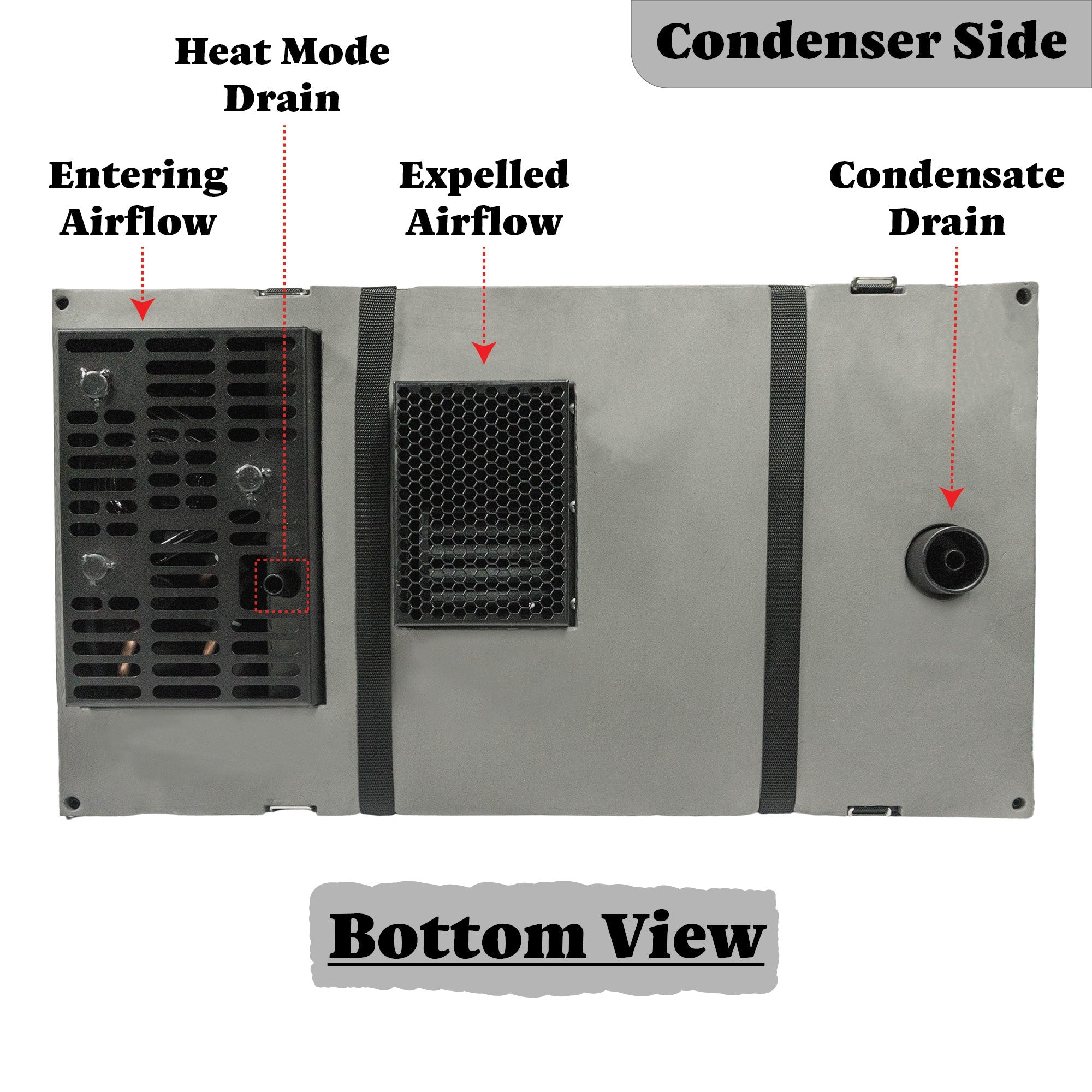

Bottom view of under-bench heat pump air conditioner with drain port and grille vents

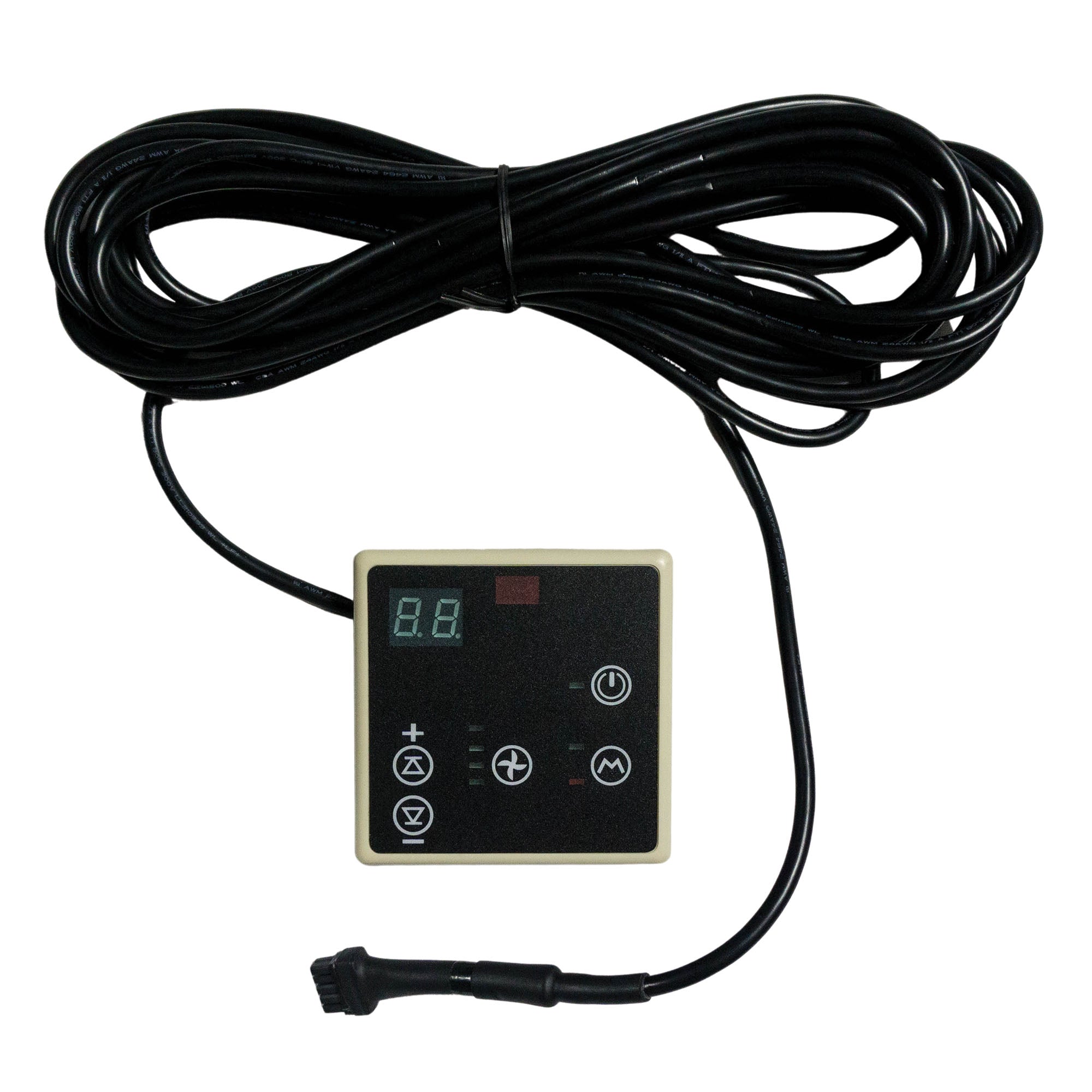

Under-bench AC control sensor module with LCD display, buttons, and black cable

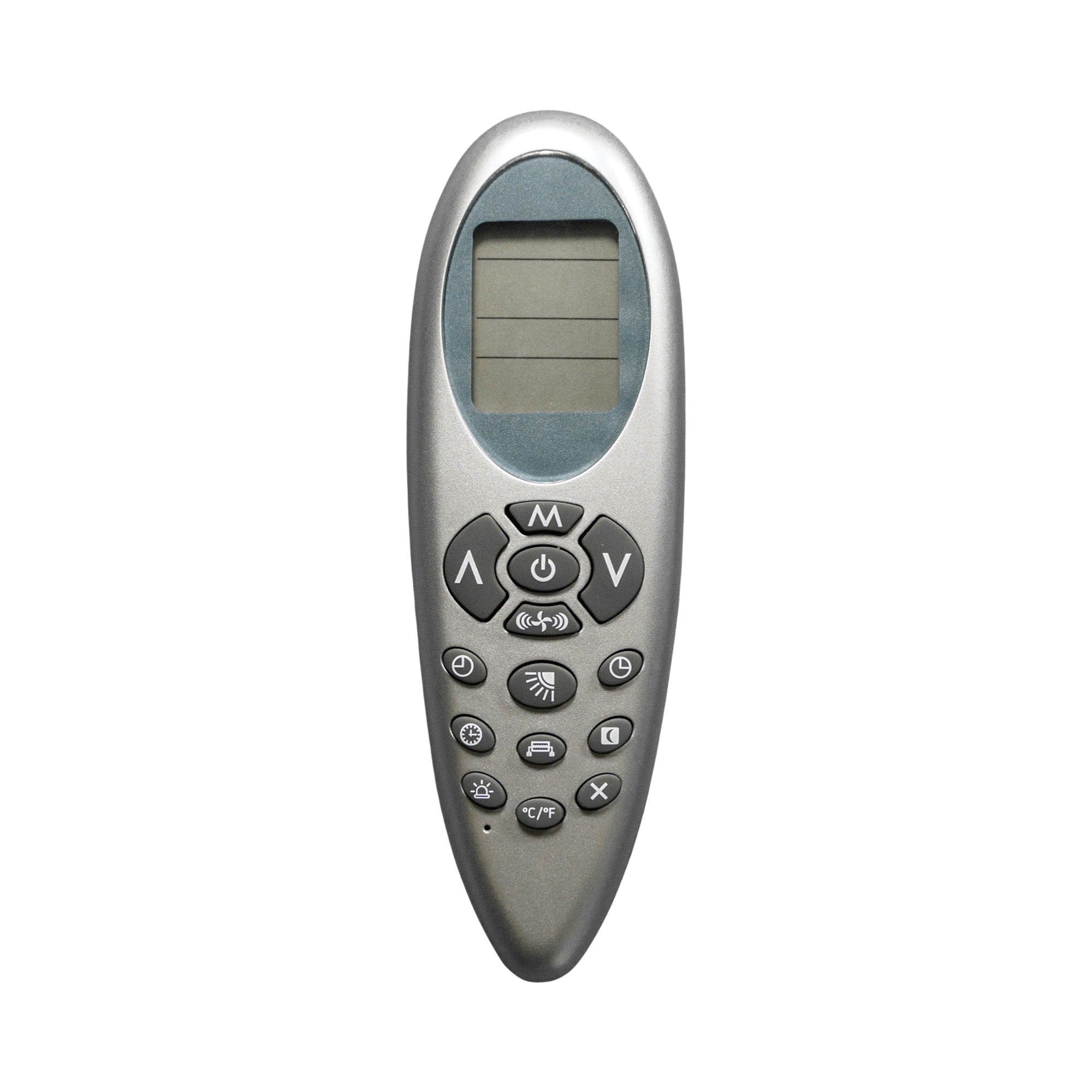

Silver handheld remote control with button keypad for RV inverter heat pump

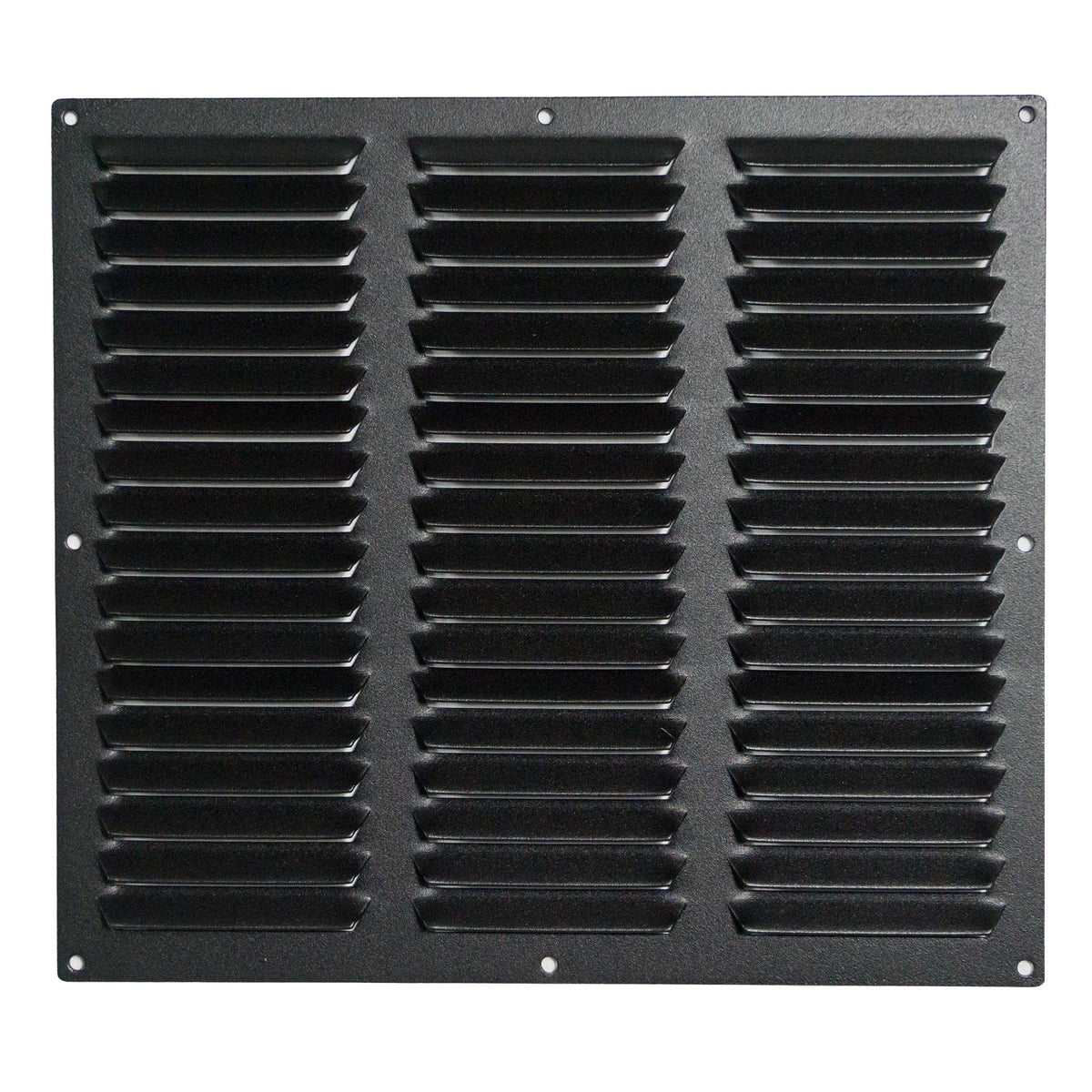

Black vent grille panel with three rows of louvers for air outlet
Roll over image to zoom in Click on image to zoom
Pioneer under-bench RV inverter heat pump air conditioner unit with power cordUnder-bench RV heat pump air conditioner installed under a platform with vent grilleBlack under-bench RV inverter heat pump air conditioner with remote and power cableRV under-bench heat pump air conditioner showing front and right side outlet openingsBottom view of under-bench heat pump air conditioner with drain port and grille ventsUnder-bench AC control sensor module with LCD display, buttons, and black cableSilver handheld remote control with button keypad for RV inverter heat pumpBlack vent grille panel with three rows of louvers for air outlet
Click on image to zoom

Pioneer 10,000 BTU Under-Bench RV Air Conditioner & Heat Pump, Inverter, 115V (PYR009AZUDCIPD)

PioneerSKU: PYR009AZUDCIPD
3 reviews
Price:
$1,398.00 $1,997.00SAVE 29%
In Stock
Estimated delivery: Sep 11th-18th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.

Description

Explore the great open road with Pioneer's newest RV heat pump air conditioner package unit.  Intended for under-the-bench installations, this low-profile and highly durable package system will keep your motor vehicle at a cozy temperature all year round, and do so quietly. Easily attach three ducts to serve separate areas of the dwelling, with options to connect to the front or side of the system. Control the system using the wall-fixed thermostat, or from the comfort of your bed using the convenient handheld remote controller. With ultra-quiet performance, sleek design, and very low input power requirements, this rugged plug-in system will be one of your favorite companions on those long-haul journeys, day-in and day-out.

Features

    • Cooling capacity - 10,000 BTU/H with 10.1 EER efficiency
    • Heating capacity - 9,500 BTU/H with 3.5 C.O.P.
    • Voltage - 110~120V, 60Hz, 1Ph
    • Operational Temperature Range - 19 - 104°F
    • Pre-charged with R32 refrigerant and ready to install
    • UL Listed
    • Perfect for RVs, Skoolies, Tiny Homes, Camper Vans, or any home on wheels

    What's Included

    • Pioneer RV Under-Bench Heat Pump AC System
    • Handheld Remote Controller w/ batteries and cradle
    • Wired Thermostat w/ cradle
    • Highly Durable Metallic Return Air Grille
    • Drainage Tubing
    • Installation Hardware
    • Installation and User's Manual

    Our Guarantee

    • 5 year parts limited warranty
    • 5 year compressor limited warranty
    DIMENSIONS & WEIGHT
    Dimensions (LDH)
    28"-7/8 x 16" x 11"-5/8
    Weight
    61 lbs
    GENERAL INFORMATION
    Power Supply
    110~120V, 60Hz, 1Ph
    Suitable Volume
    1,060 m3
    Treated Volume of Air (Max)
    206 CFM
    Water Protection Class
    IPX-5
    CAPACITY & PERFORMANCE
    Cooling Rated Capacity
    10,000 BTU/h
    Cooling EER
    10.1 BTU/w.hr
    Maximum Cooling Consumption
    8.6A / 989W
    Heating Rated Capacity
    9,500 BTU/h
    Heating C.O.P.
    3.51 W/W
    Maximum Heating Consumption
    6.9A / 794W
    COMPRESSOR & MOTORS
    Fan Speeds
    3 (Low/Med/High)
    NOISE LEVELS
    Noise Level
    < 40 dB(A)
    REFRIGERANT & PIPING
    Refrigerant Type
    R32
