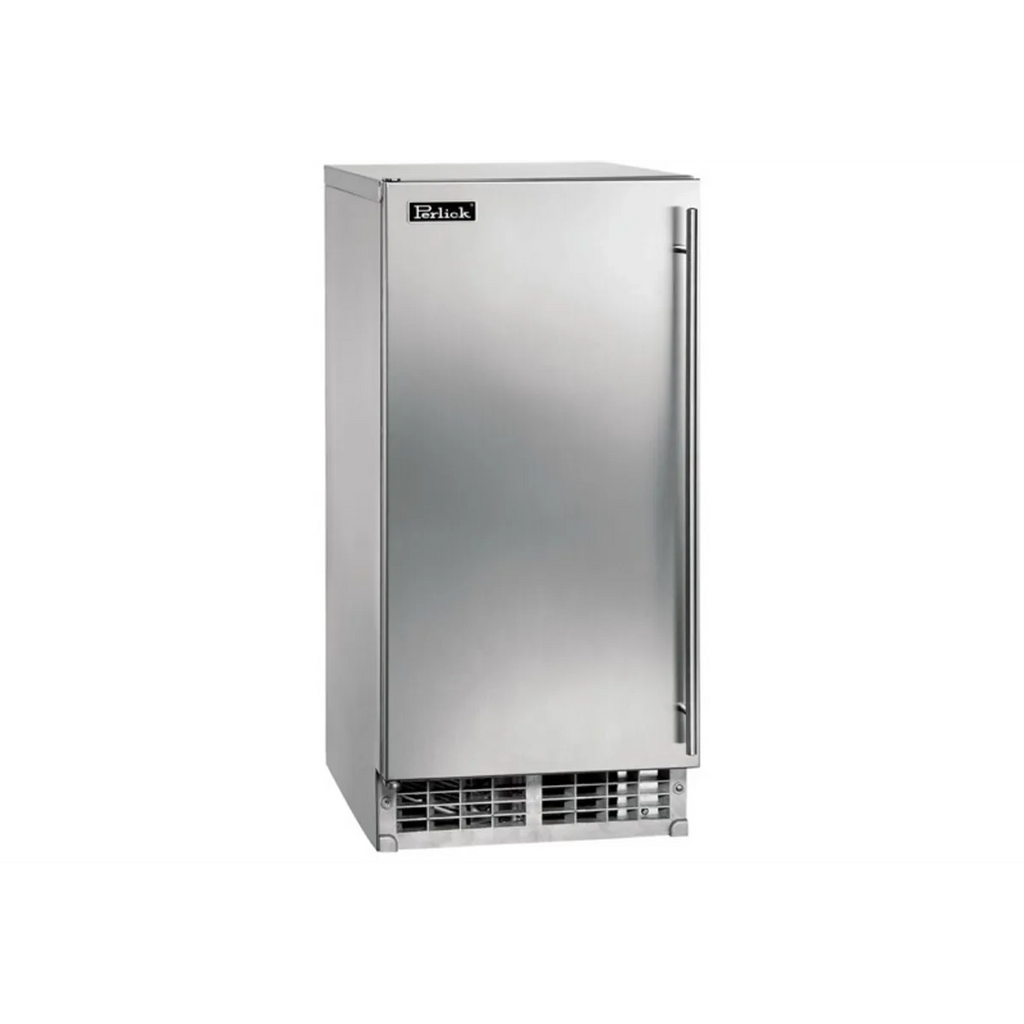

Perlick's ADA height compliant cubelet ice maker produces chewable, nugget-shaped ice. This ice is compacted to easily absorb the flavors of the beverages you pour over it and makes it easy to crunch. It's the perfect addition to any indoor or outdoor entertainment space.
| Dimensions | |
|
Overall Dimensions
|
14 7/8" W x 22 9/16" D x31 1/2" H |
|
Opening Dimensions
|
15" W x 24 7/8" D x32 1/4" H |
|
Technical Information
|
|
| Product Series |
ADA Compliant
|
|
Commercial / Residential
|
Residential
|
|
Indoor / Outdoor
|
Both
|
|
Type
|
Freestanding/built-in
|
|
Top Finish
|
Stainless Steel
|
|
Interior Material
|
Stainless Steel
|
|
Sides Finish
|
Stainless Steel
|
|
Back Finish
|
Galvanized Steel
|
|
Undercounter
|
Yes
|
|
Hinge Side
|
Left Hinge
|
|
Field Reversible Door
|
No
|
|
Accepts Custom Panels
|
No
|
|
Daily Ice Production
|
80 lbs.
|
|
Type of Cubes
|
Nugget
|
|
Ice Storage
|
22 lbs.
|
|
Defrost
|
Automatic
|
|
Factory Installed Pump
|
Yes
|
|
UL
|
Yes
|
|
NSF Rated
|
Yes
|
|
Palletized
|
Yes
|
|
Leveling Legs
|
Yes
|
|
Number of doors
|
1 |
|
Interior Capacity cu. ft.
|
3.4
|
|
Door Swing Clearance
|
14"
|
|
Electrical Supply
|
115V/60 Hz/1 Ph
|
|
Running Load Amps
|
4.0 amps
|
|
Electrical Connection
|
15 amp dedicated circuit
|
|
Cord Plug Type
|
NEMA 3 Prong 5-15P
|
|
Cord length
|
6.5 ft
|
|
Refrigerant
|
R-290 Refrigerant
|
|
Plumbing
|
1/2" FTP water Inlet, 1/2" FTP Drain
|
|
Ambient Temp Range
|
45-100°F
|
|
Water Temp Range
|
45-90°F
|
|
Water Pressure
|
7-113 psig
|
|
Voltage Range
|
104-127V
|
|
Type
|
Freestanding/Built In |
|
Color
|
Stainless Steel |
|
Door Color
|
Stainless Steel |
|
Cabinet Color
|
Stainless Steel |
|
Undercounter
|
Yes |
|
Hinge Side
|
Left |
|
Field Reversible Door
|
No |
|
Accepts Custom Panels
|
No |
|
Clear Ice
|
No |
|
Daily Ice Production
|
80 Lbs. |
|
Type of Cubes
|
Nugget |
|
Ice Storage
|
22 Lbs. |
|
Defrost
|
Automatic |
|
Factory Installed Pump
|
Yes |
|
WiFi Connected
|
No |
|
nergy Star Rated
|
No |
|
ADA Compliant
|
Yes |
|
Drain Required
|
Yes |
|
Approved for Outdoor Use
|
Yes |
|
Approved For Commercial Use
|
No |
|
Warranty
|
|
| Parts and Labor |
2 Years
|
