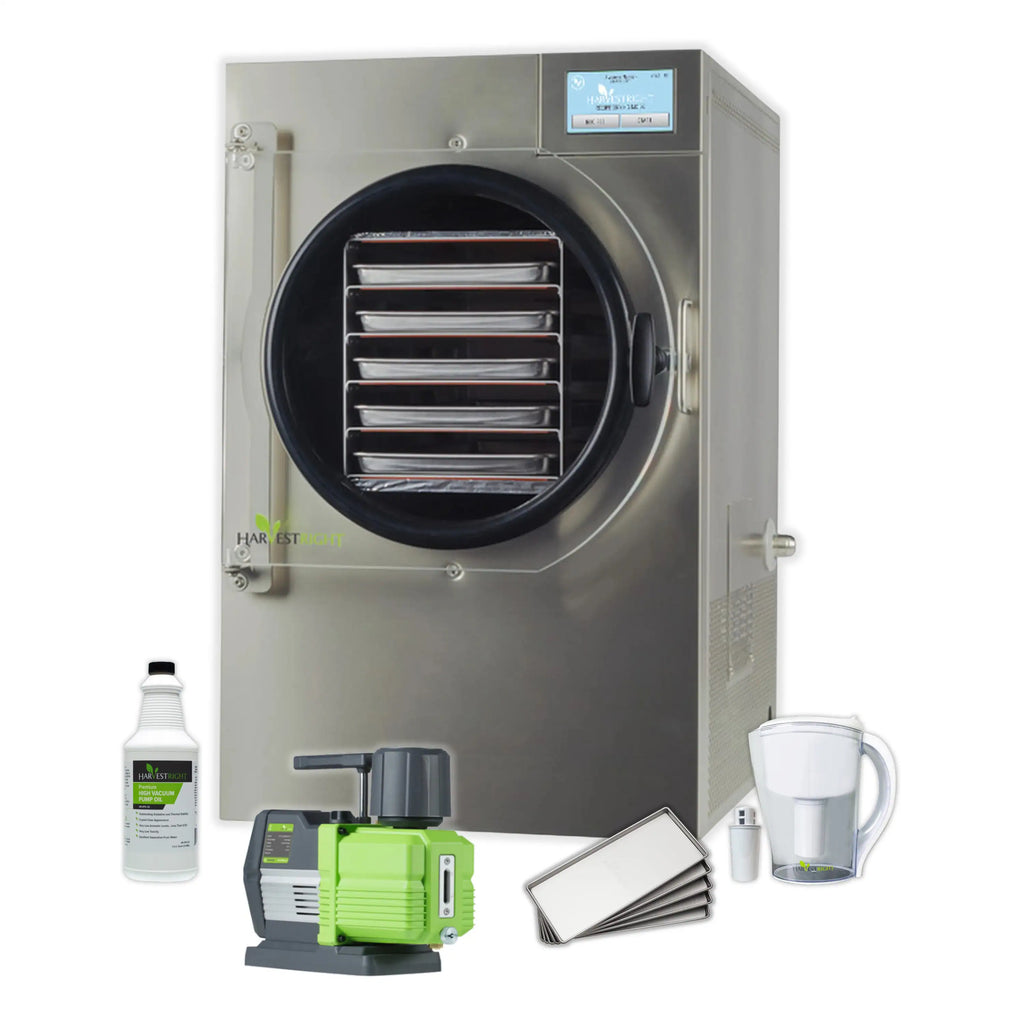

Freeze dryer with vacuum pump, accessories and bottles on floor beside the machine
Stainless steel freeze dryer with round drying chamber door and black interior seal

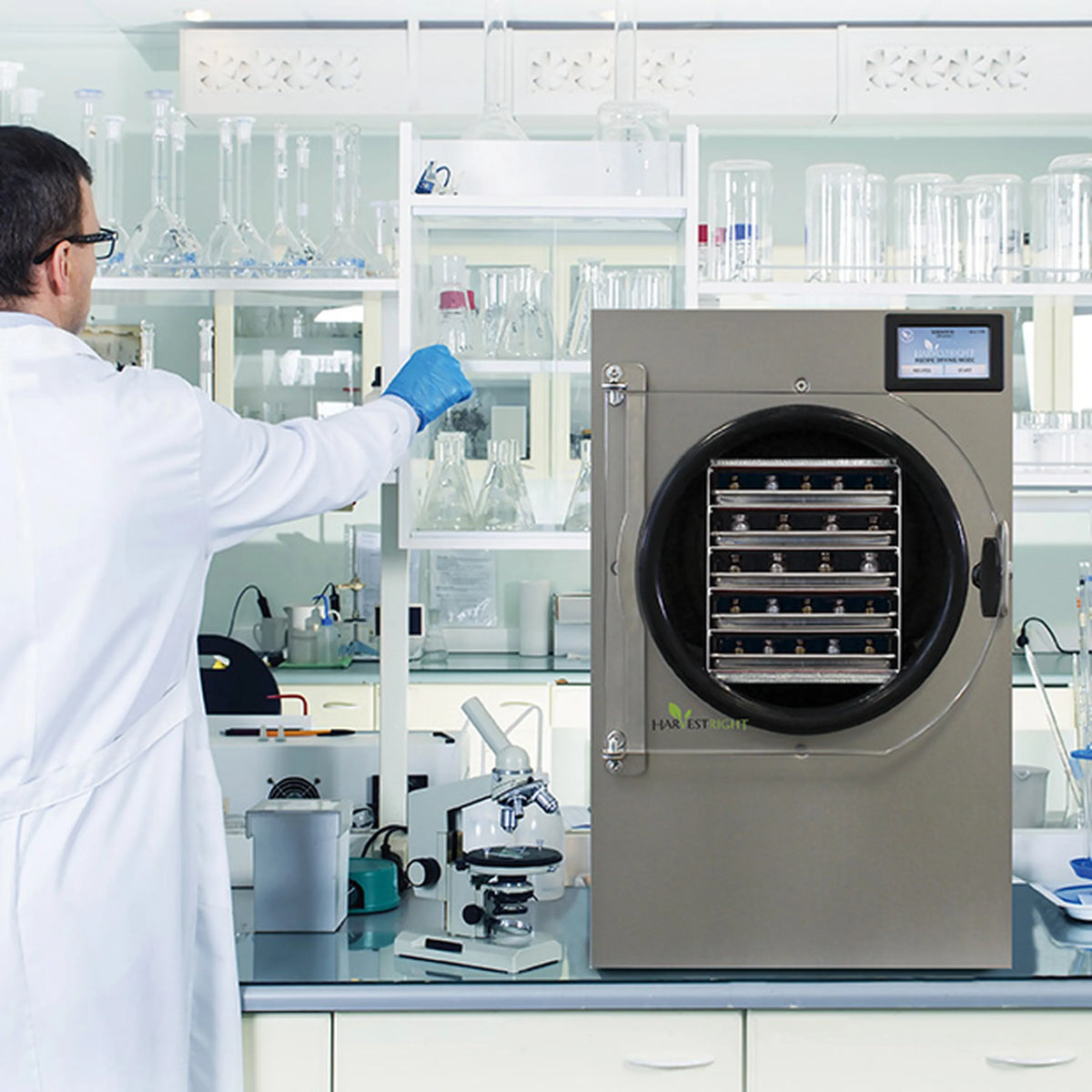

Laboratory freeze dryer unit with technician reaching toward the round chamber door

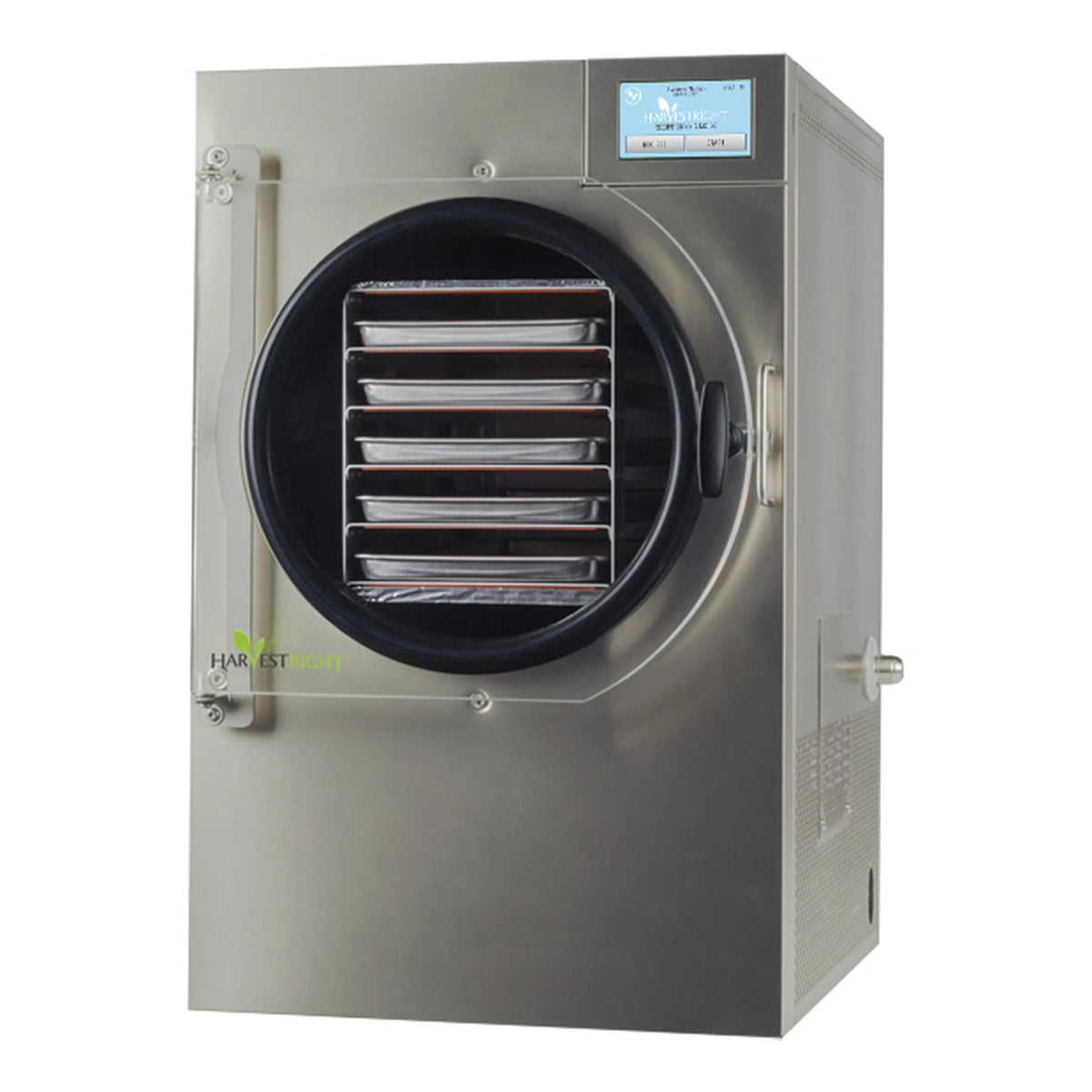

Stainless steel freeze dryer cabinet with round door, view into black drying chamber

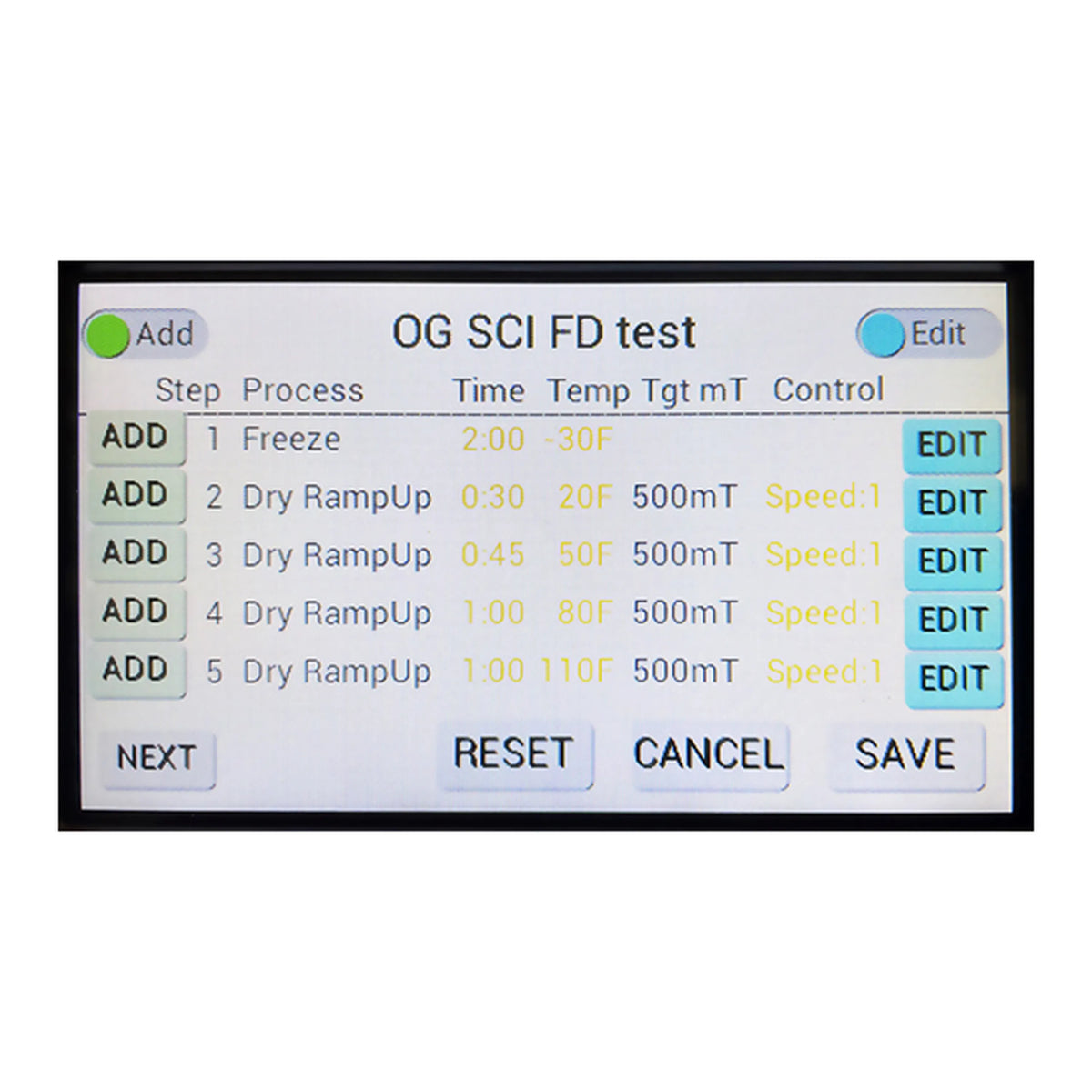

Freeze dryer control panel screen showing step process, time and temperature settings

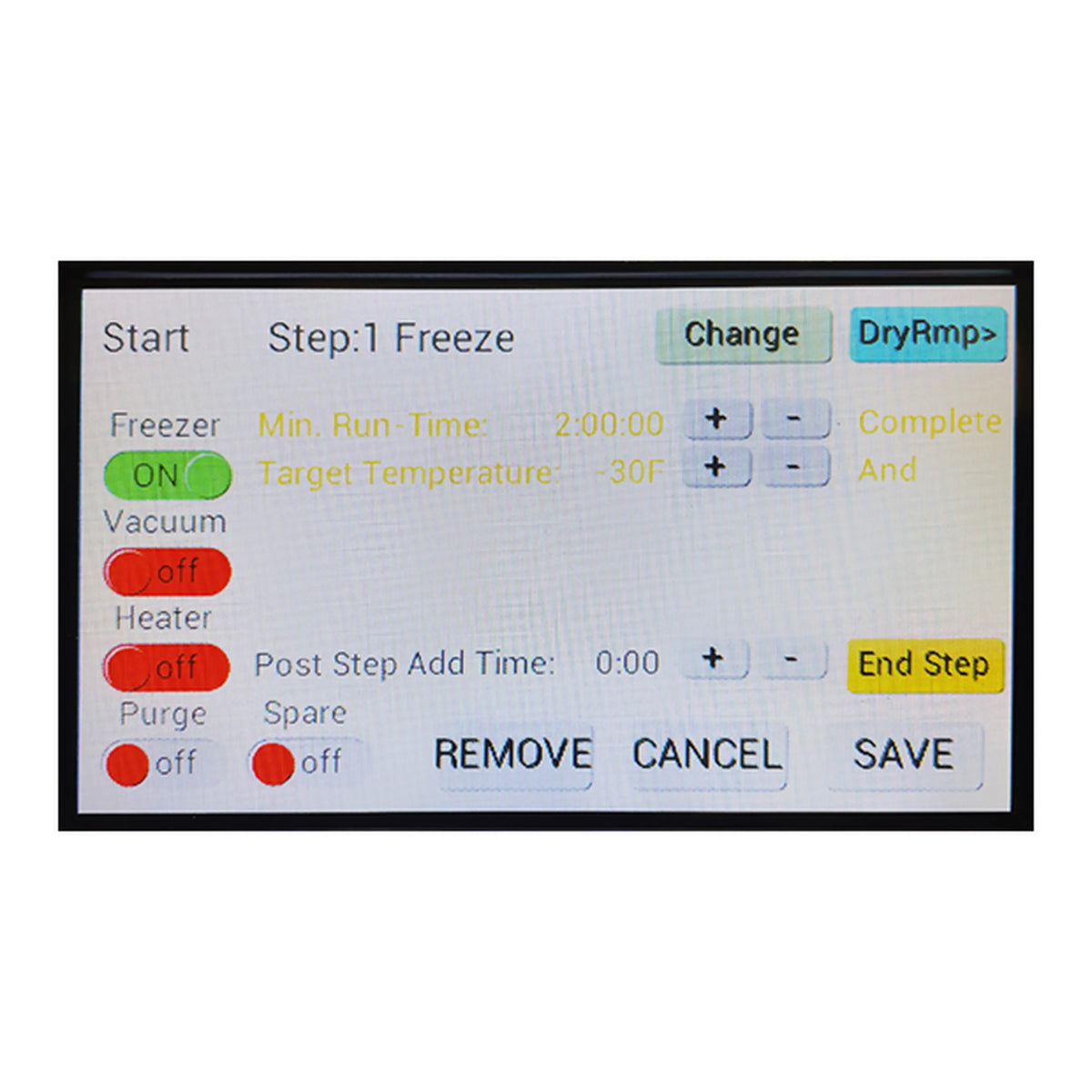

Freeze dryer touchscreen display with start controls and freeze or dry ramp parameters

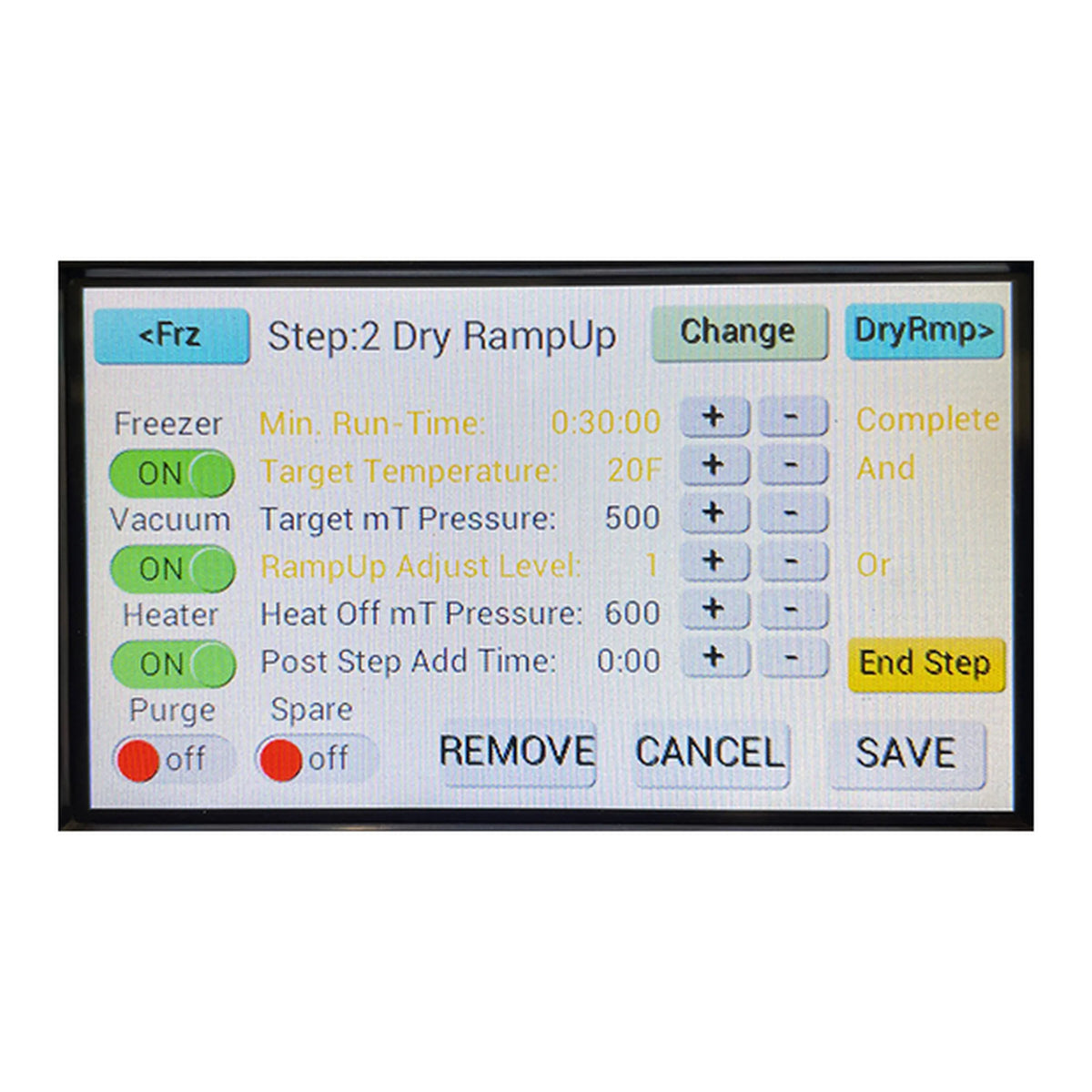

Freeze dryer control screen showing dry ramp-up step and vacuum timing parameters
Green and gray industrial vacuum pump with handle and status display
Roll over image to zoom in Click on image to zoom
Freeze dryer with vacuum pump, accessories and bottles on floor beside the machineStainless steel freeze dryer with round drying chamber door and black interior sealLaboratory freeze dryer unit with technician reaching toward the round chamber doorStainless steel freeze dryer cabinet with round door, view into black drying chamberFreeze dryer control panel screen showing step process, time and temperature settingsFreeze dryer touchscreen display with start controls and freeze or dry ramp parametersFreeze dryer control screen showing dry ramp-up step and vacuum timing parametersGreen and gray industrial vacuum pump with handle and status display
Click on image to zoom

Harvest Right Scientific Freezer Dryer with Premier Industrial Pump in Stainless Steel, Medium (HRFDMSC)

Harvest RightSKU: HRFDMSC
1 review
Price:
$3,395.00 $3,995.00SAVE 15%
Size:
In Stock
Estimated delivery: Sep 28th-Oct 12th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.

Description

Harvest Right’s lyophilizer/freeze dryer is the perfect addition to any laboratory. The scientific freeze dryer can be completely customized with your preferred processes. You can have multiple manageable profiles, each providing the ability to automatically power on and off the condensing unit and the vacuum pump in conjunction with ascending, controlled temperature and time settings.

Features

  • Convenience of 5-tray dryer in a table top unit.
  • Full-color, touch-screen display.
  • 2 gallons ice condensing capacity.
  • Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).
  • Control of the rate of freeze. This means that the rate of freeze can be speeded up or slowed down.
  • Control of the ultimate final freeze temperature.
  • Control of the amount of time a material is held at the ultimate freeze temperature before the drying cycle is started.
  • Control of the shelf temperature during the dry cycle. This includes setting as many as five different shelf temperatures, thus allowing the material to dry in phases, at different temperatures. For instance, you might have the material begin drying at 10ºF and increase the temperature in phases until the ultimate final dry temperature is 70ºF.
  • The shelf heaters can be set to automatically control the rate of sublimation during the primary drying cycle. Through this process, the unit has control of the attendant vacuum pressure.
  • The system records and maintains a log of the pressure and temperature during all parts of the freeze-dry cycle.
  • Provides ongoing, real-time display of pressure and temperature.

Includes

  • Medium Scientific Pro Freeze Dryer
  • Premier Industrial Vacuum Pump
  • Vacuum Pump Oil
  • Oil Filter
  • Stainless Steel Trays (set of 5)
DIMENSIONS
Freeze dryer exterior dimensions
19″ W x 25″ D x 29″ H
Dimensions (without door or vacuum fitting)
18" W x 21.25" D x 29" H
Holding Capacity
2 Gallons of Sublimated Ice
GENERAL INFORMATION
Item
Freeze Dryer/Lyophilizer
Min. Temp. Rating
Collector Cools to -46ºF
Drying Chamber
Included (Stainless Steel)
Purge Valve
Included
Electronics
Includes a Full Color Touch Screen (4.3″ diagonal)
Operation
Manual / Automated
Vacuum Pump
Premier Industrial Vacuum Pump
DESIGN & FINISH
Style
Bench/Table Top
Collector Material
Stainless Steel
Exterior
Stainless Steel or Powder Coated Aluminum
TECHNICAL DETAILS
Voltage
115 VAC
AMPS
15 A
