Our Freeze Dryers Just Work Better!
If you’re looking to freeze-dry at home with the highest quality equipment, you’ve come to the right place! Blue Alpine provides the fastest speeds and highest quality for home use. Freeze-drying candy in just a few hours! The user-friendly software comes pre-programmed with food recipes for a quick start, but is also fully customizable for a tailored experience. We put care into every detail to provide the best machine on the market.
A freeze dryer is a large investment, so we have included many details below to help. Every one of our machines comes with amazing customer service and support.

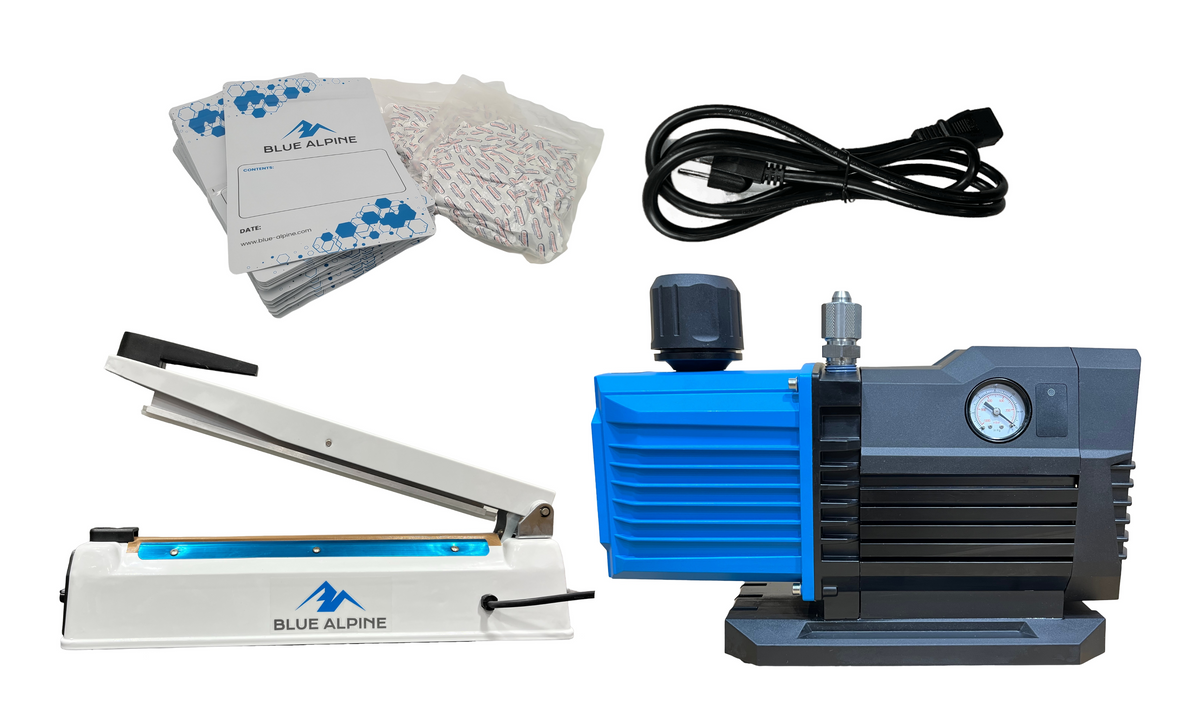

This product now includes an Advanced 3-Stage Oil Mist Filter when purchased with a Commercial Freeze Dryer Vacuum Pump!

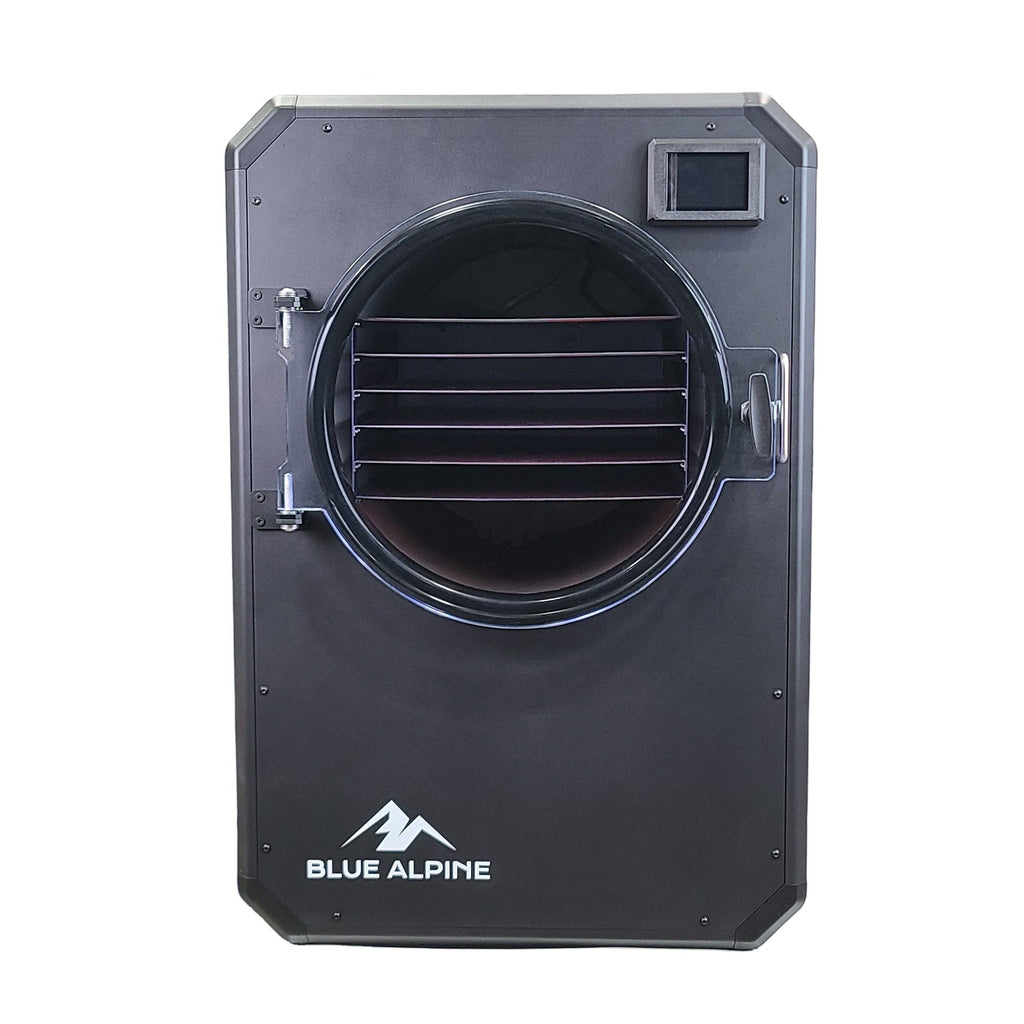

The Large Freeze Dryer uses a 20-amp Receptacle. Most receptacles in a house are 15 amps. So you will need a 20-amp breaker and a 20-amp receptacle. Below is a link to the receptacle that is needed.
| DIMENSIONS | |
|---|---|
| Weight (with pump) | 130 lbs. |
| GENERAL INFORMATION | |
| Spec | Large |
| Tray Size | Five 18"x13" trays |
| Avg. Load | Avg 16 lbs. per 24hrs |
| Max Load | Up to 25 lbs. or 2 gallons |
| Size | 24" x 25.5" x 34" WxDxH |
| Solenoid in the vacuum pump | prevents backflow of oil into the chamber |
| Average freeze-drying cycles | take 12-20 hours |

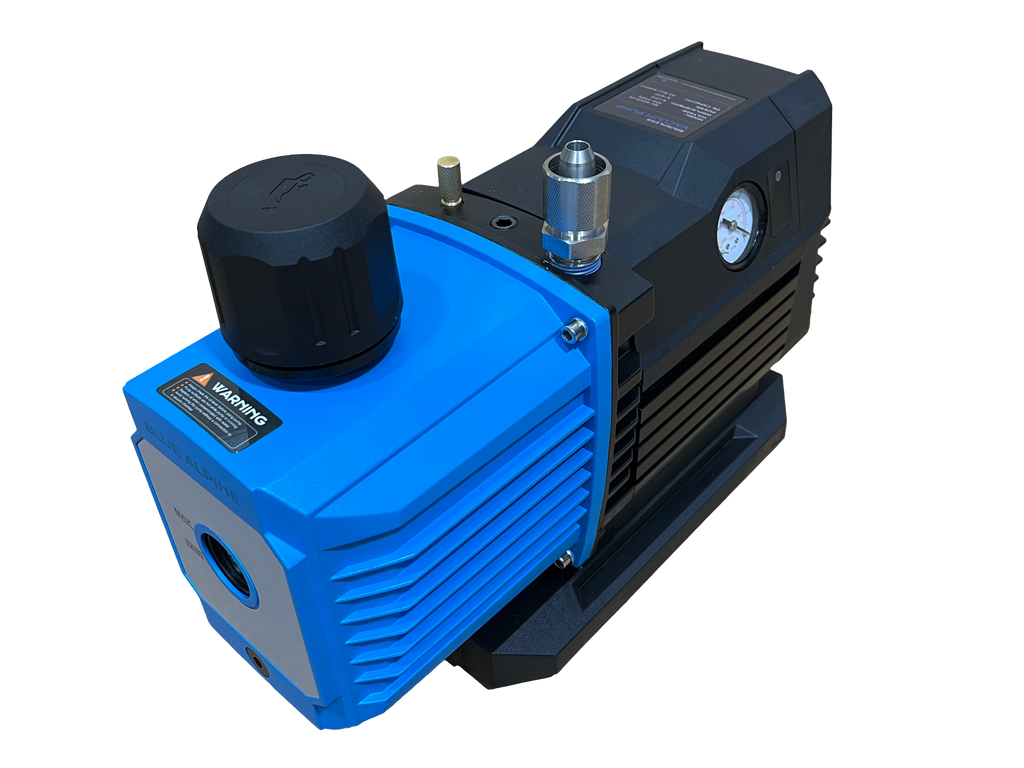

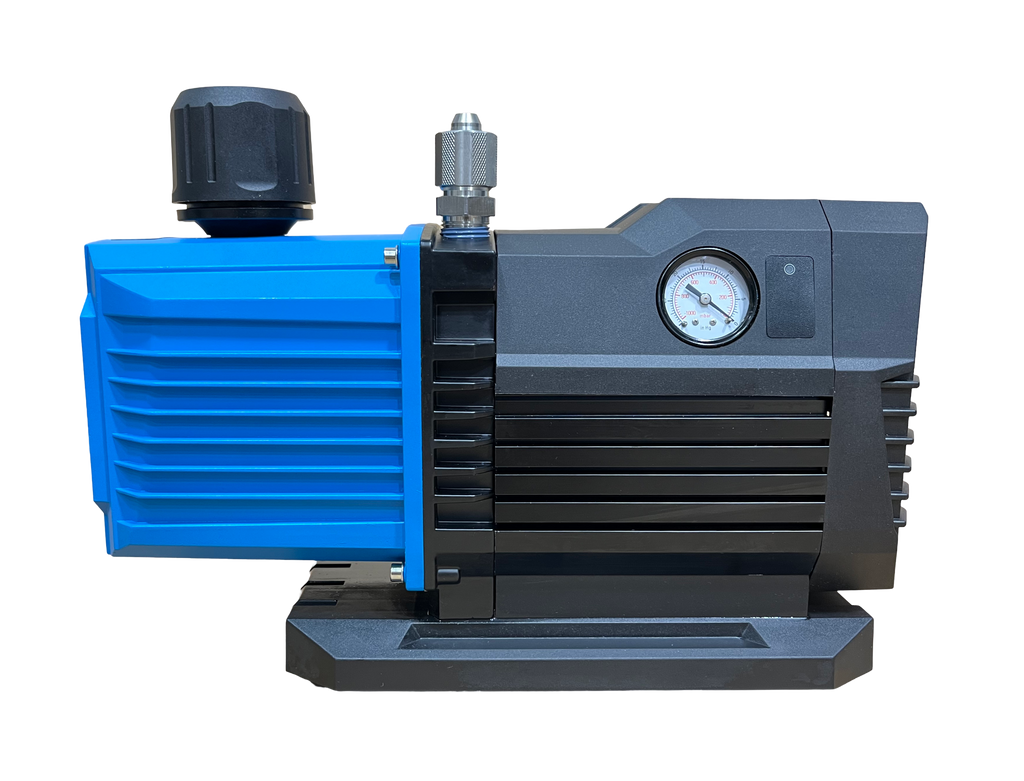

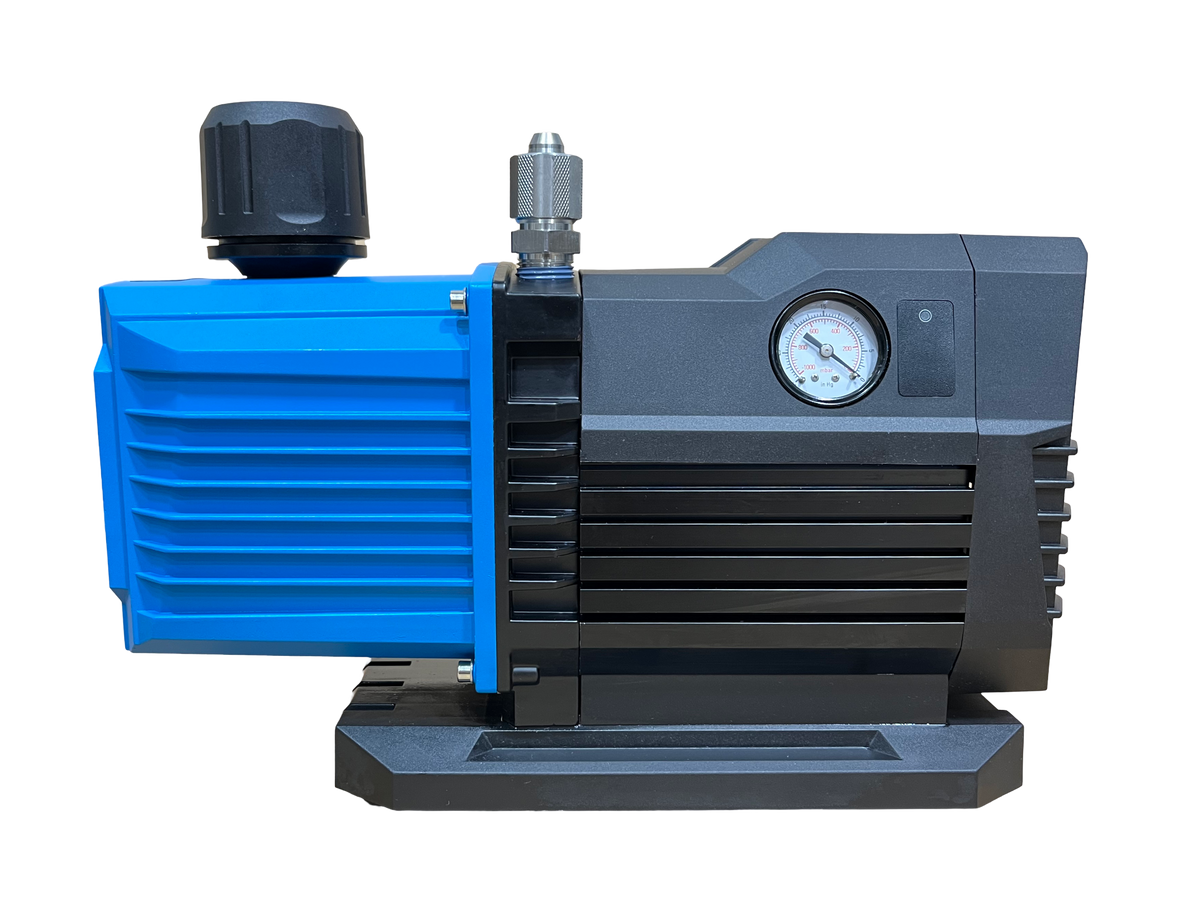

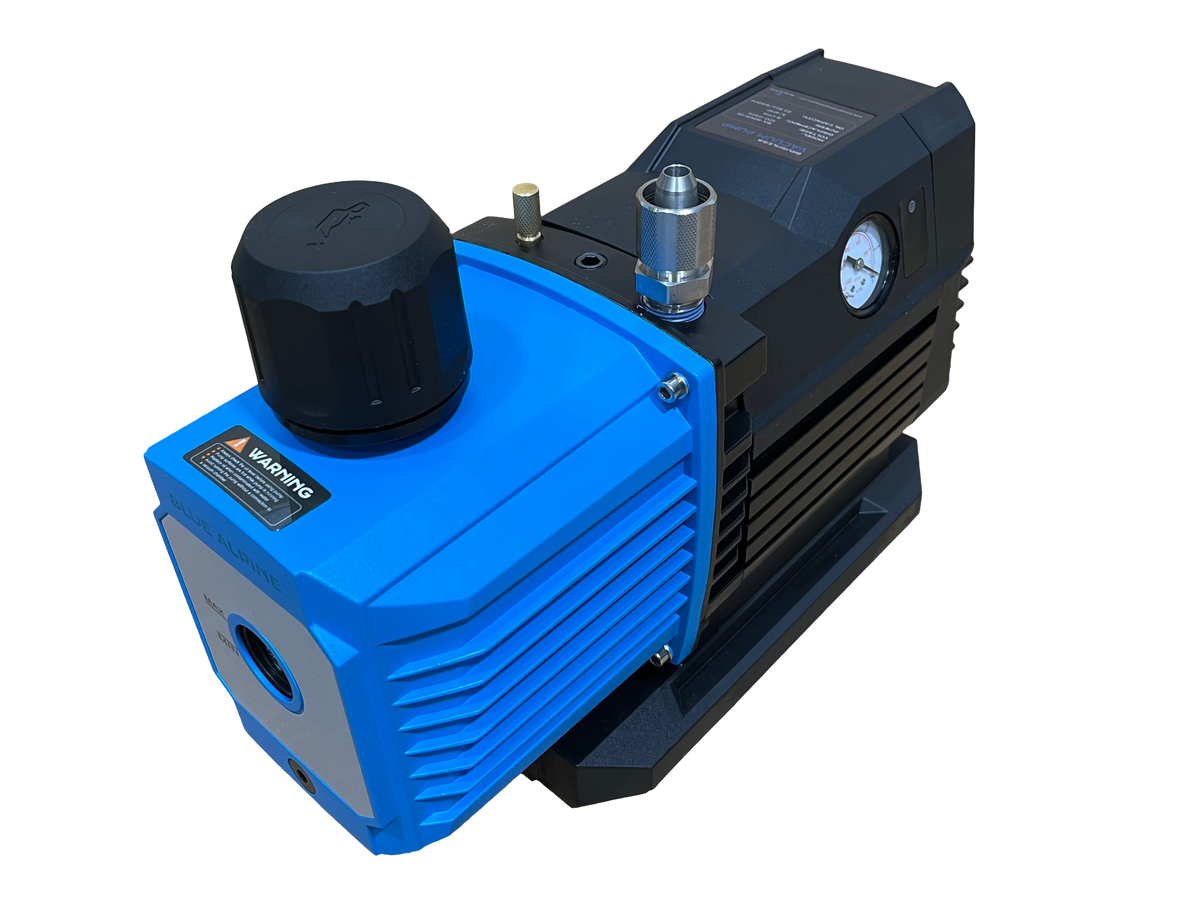

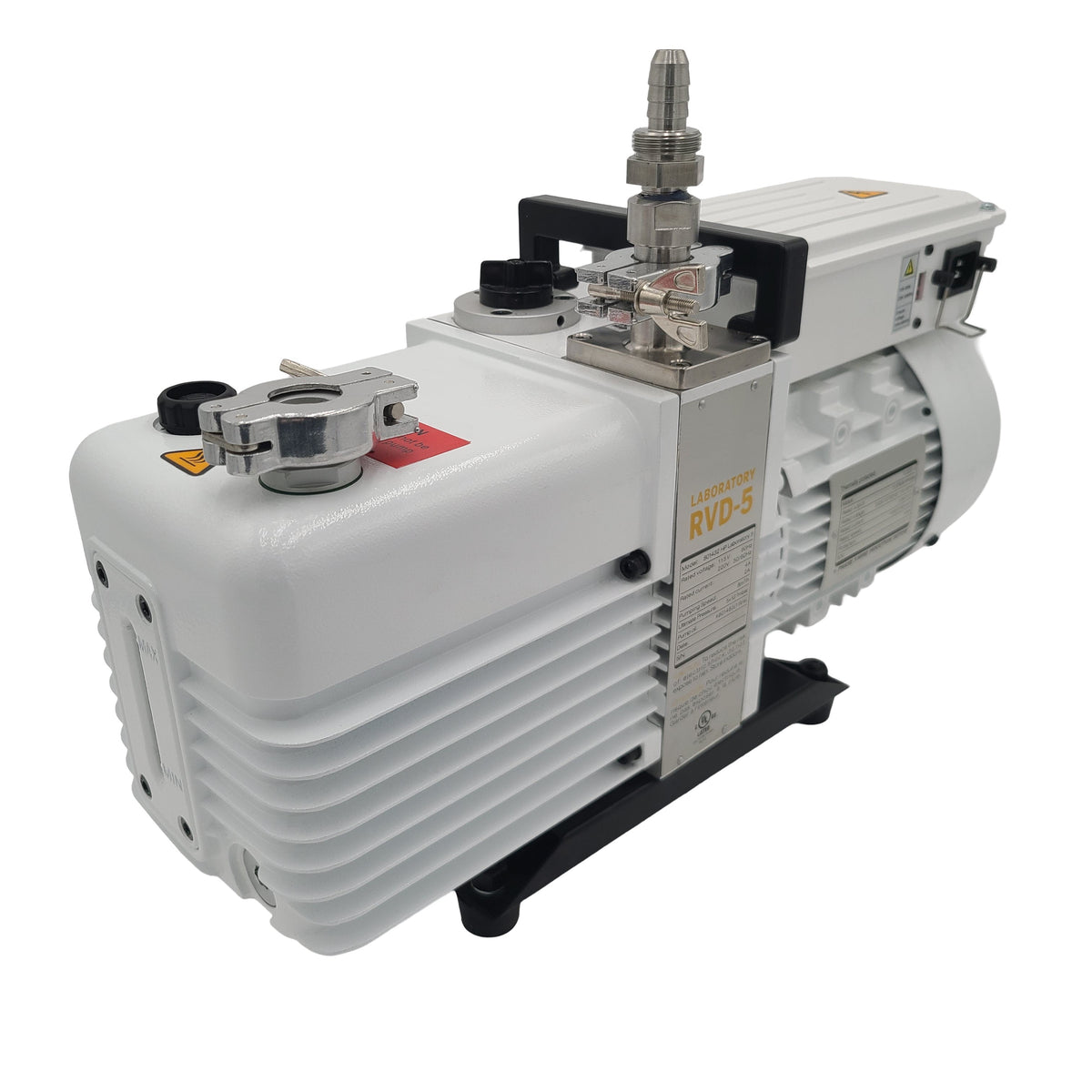

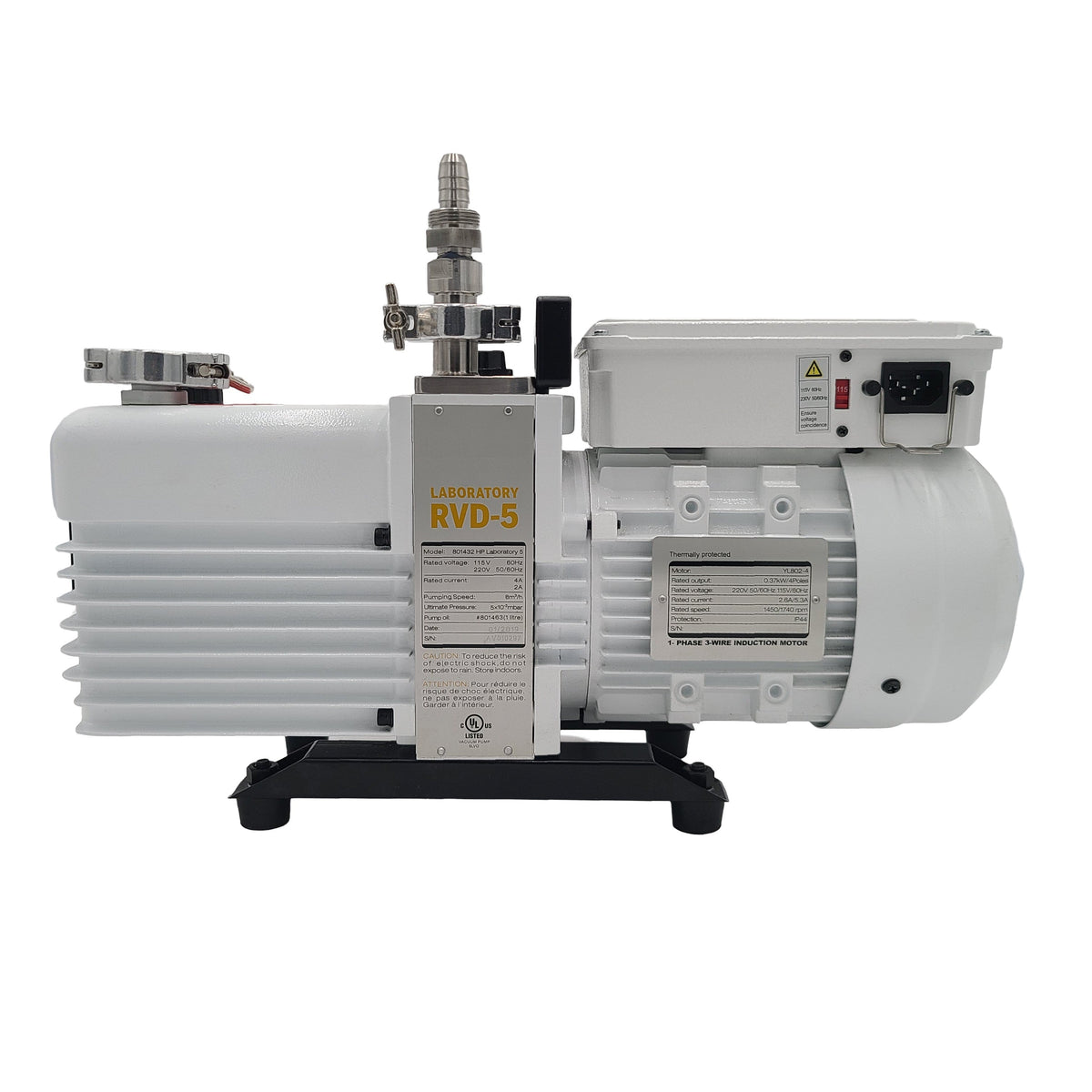

| Vacuum Pump | Premium Rotary Vane Style, 10-12 CFM, 1 HP |
| DESIGN & FINISH | |
| Plexiglass Door Thickness | 1 inch |
| TECHNICAL DETAILS | |
| Electrical Requirements | 120V, 20A Breaker 17 Amps Maximum Power Draw (2040W max) 12 Amps Average Power Draw (1440W average) |
| Cubigel Compressor (R1270) | 1/2 HP compressor with 14.3cc displacement (larger compressor = higher cooling capacity = faster batches). This is approximately 28-43% more cooling capacity than competitor brands. |
