Description

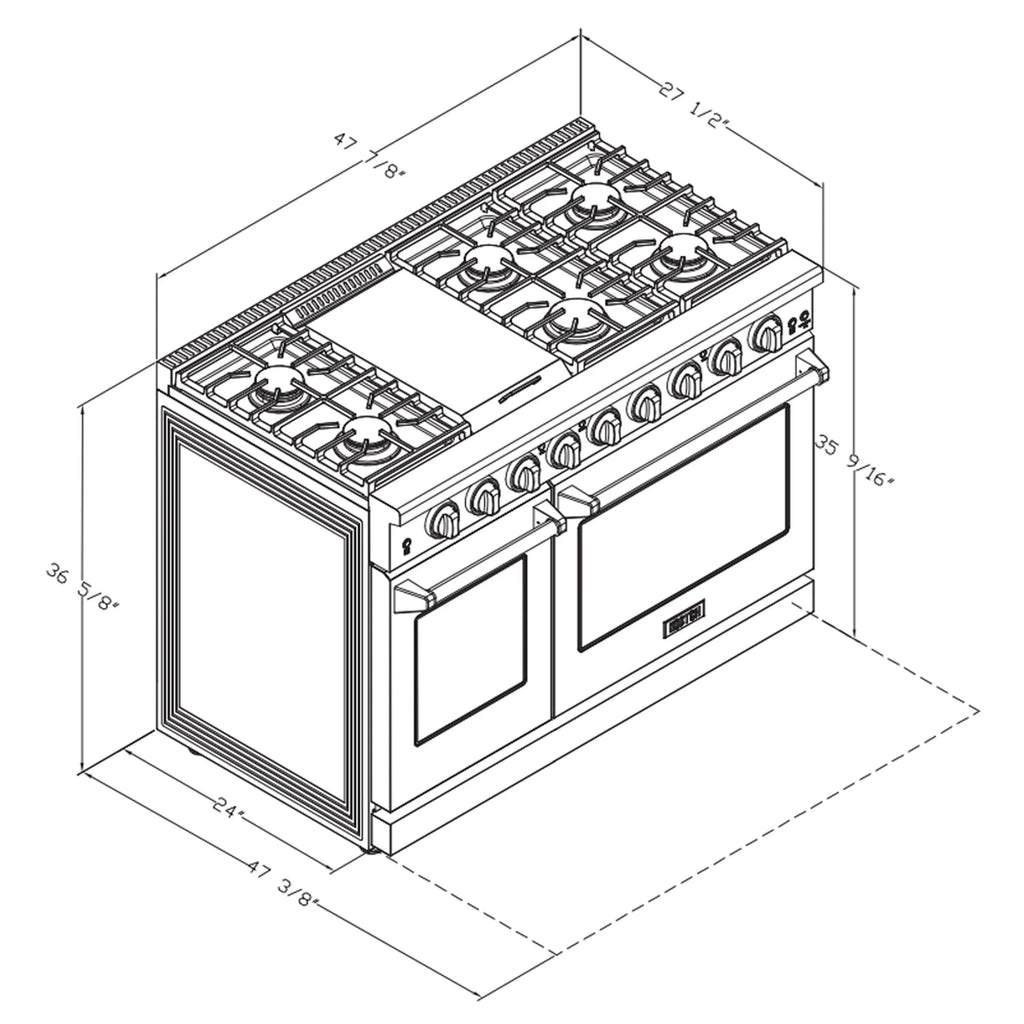

DIMENSIONS
- Range Size (In)
- 48
- Product Dimensions (In)
- 27.6 D x 47.875 W
- Cutout Dimensions
- 26 D x 36 H x 488 W
- Adjustable Height
- Yes
- Maximum Assembled Height (Inches)
- 37.625
- Minimum Assembled Height (Inches)
- 36.625
- Usable Primary Interior (H x W x D)
- 17.99 x 23.74 x 19.3 in
- Usable Secondary Interior (H x W x D)
- 17.99 x 12.64 x 19.3 in
GENERAL INFORMATION
- Type
- Freestanding
- Drip Pans
- Yes
- Professional
- Yes
DESIGN & FINISH
- Color
- White
- Finish
- White
- Available Colors
- Red/Black/White/Stainless steel
- Control Location
- In front of elements
- Interior Light(s) Type
- Halogen
- Light(s) Control
- Oven light switch
- Range Configuration
- Side-by-Side
TECHNICAL DETAILS
- Fuel Type
- Natural Gas
- Installation Type
- Freestanding
- LP Conversion Kit Included
- Yes
- LP Convertible
- Yes
- Power Cord Included
- Yes
- Power Source
- Gas

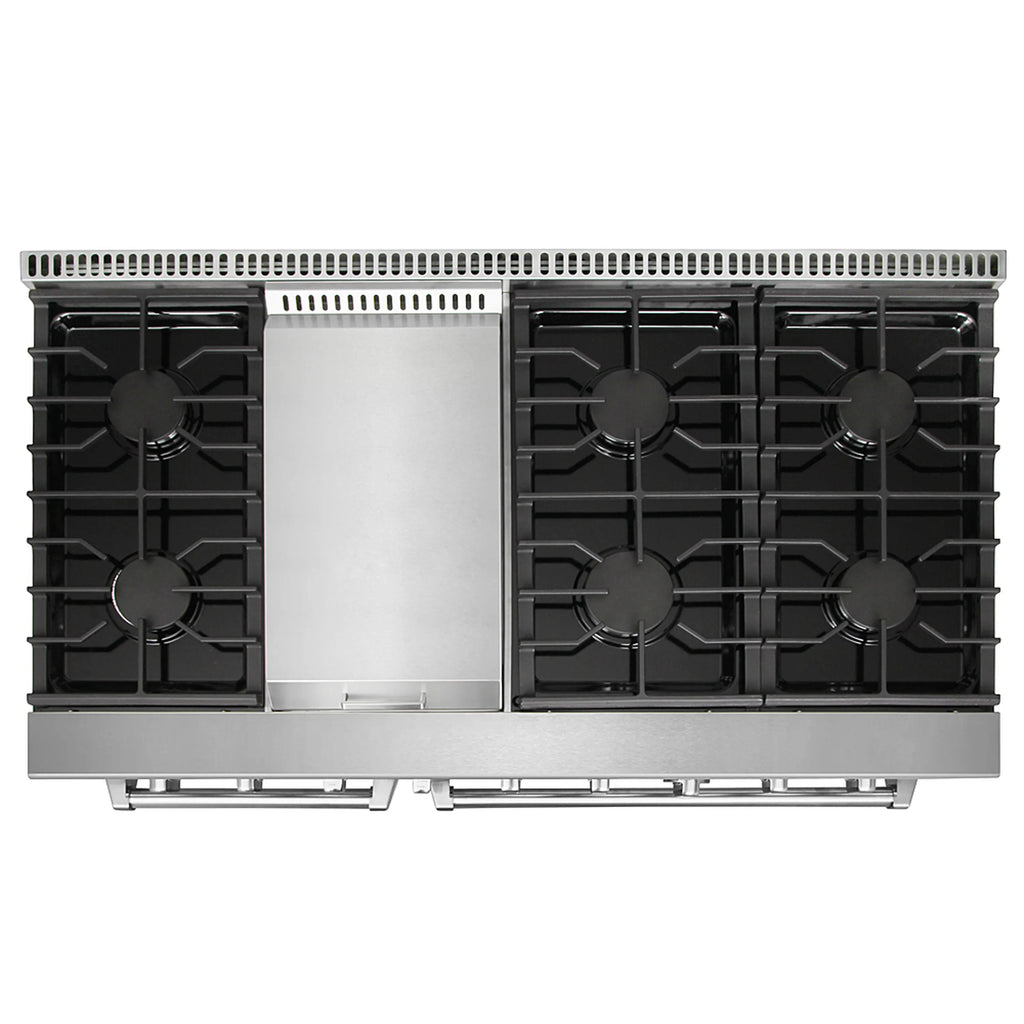

COOKTOP FEATURES
- Burner #1 Max BTU
- 18000
- Burner #2 Max BTU
- 15000
- Burner #3 Max BTU
- 12000
- Burner #4 Max BTU
- 12000
- Burner #5 Max BTU
- 12000
- Burner #6 Max BTU
- 12000
- Burner #7 Max BTU
- 12000

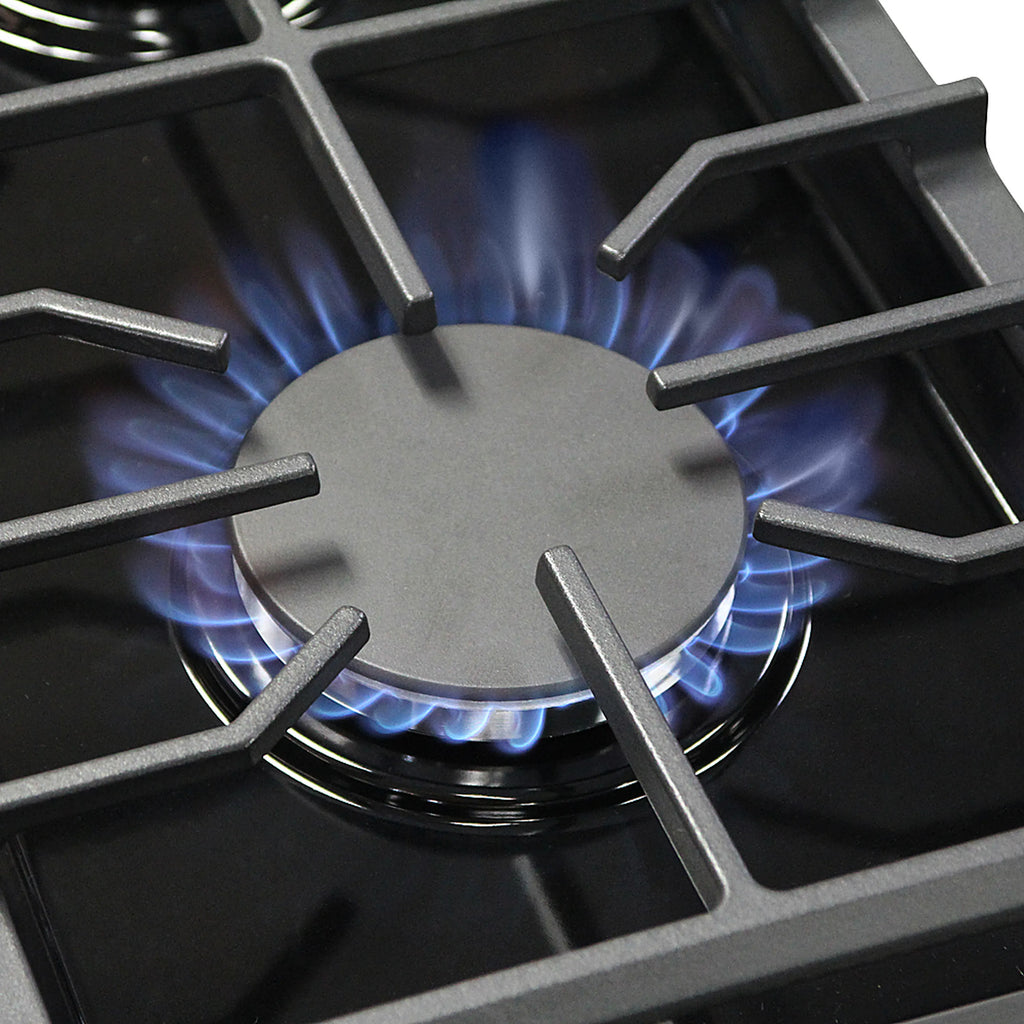

- Burner Grate Material
- Matte cast iron
- Continuous Grates
- Yes
- Convection Element Type
- Single-fan
- Cooking Surface Control Type
- Knobs
- Cooking Surface Type
- Deep recessed
- Ignition Type
- Electronic
- Integrated Griddle
- Yes (Included)
- Number of Cooking Zones
- 7 burners
- Oval Burner
- No
- Power Burner (15,000 BTU+)
- Yes
- Sealed Burners
- Yes
- Wok Grate Included
- No
OVEN FEATURES
- Capacity (Primary Oven) (Cu. Feet)
- 4.6
- Capacity (Secondary Oven) (Cu. Feet)
- 2.2
- Cleaning Method
- Manual cleaning
- Convection Oven
- Yes
- Number of Oven Rack Positions
- 6
- Number of Racks
- 4
- Oven Control Type
- Knobs
- Single/Double Oven
- Double
WARRANTY & CERTIFICATIONS
- Warranty
- 3-year
- CSA
- Yes
