Description

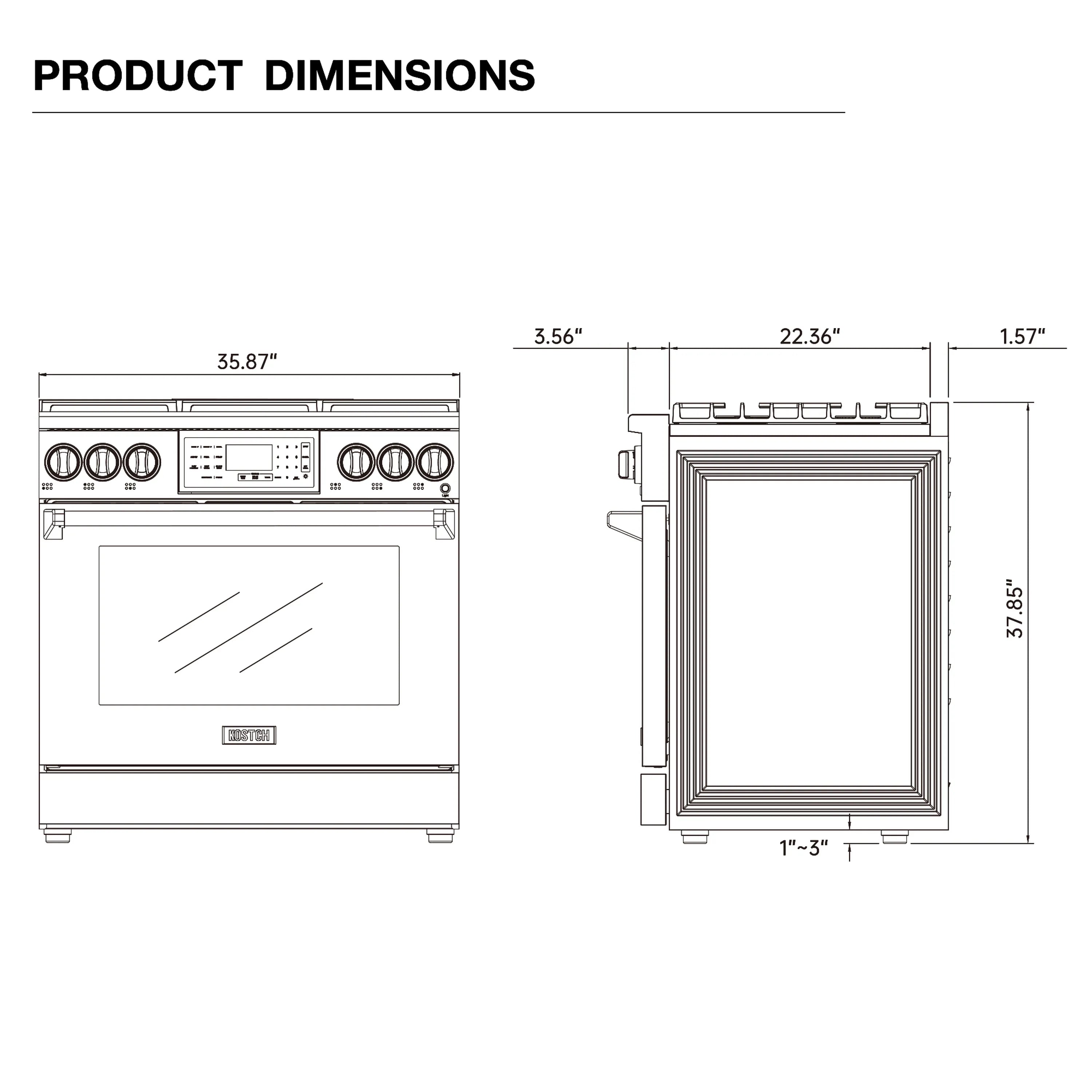

DIMENSIONS
- Range Size
- 36 in
- Dimensions (W x D)
- 35.875 in x 27.12 in
- Maximum Assembled Height
- 39 in
- Minimum Assembled Height
- 36 in
- Cutout (W x D x H)
- 36 in x 24 in x 39.1 in
- Popular Widths
- 36 in
- Usable Oven Interior (H x W x D)
- 19.3 in x 29.5 in x 18 in

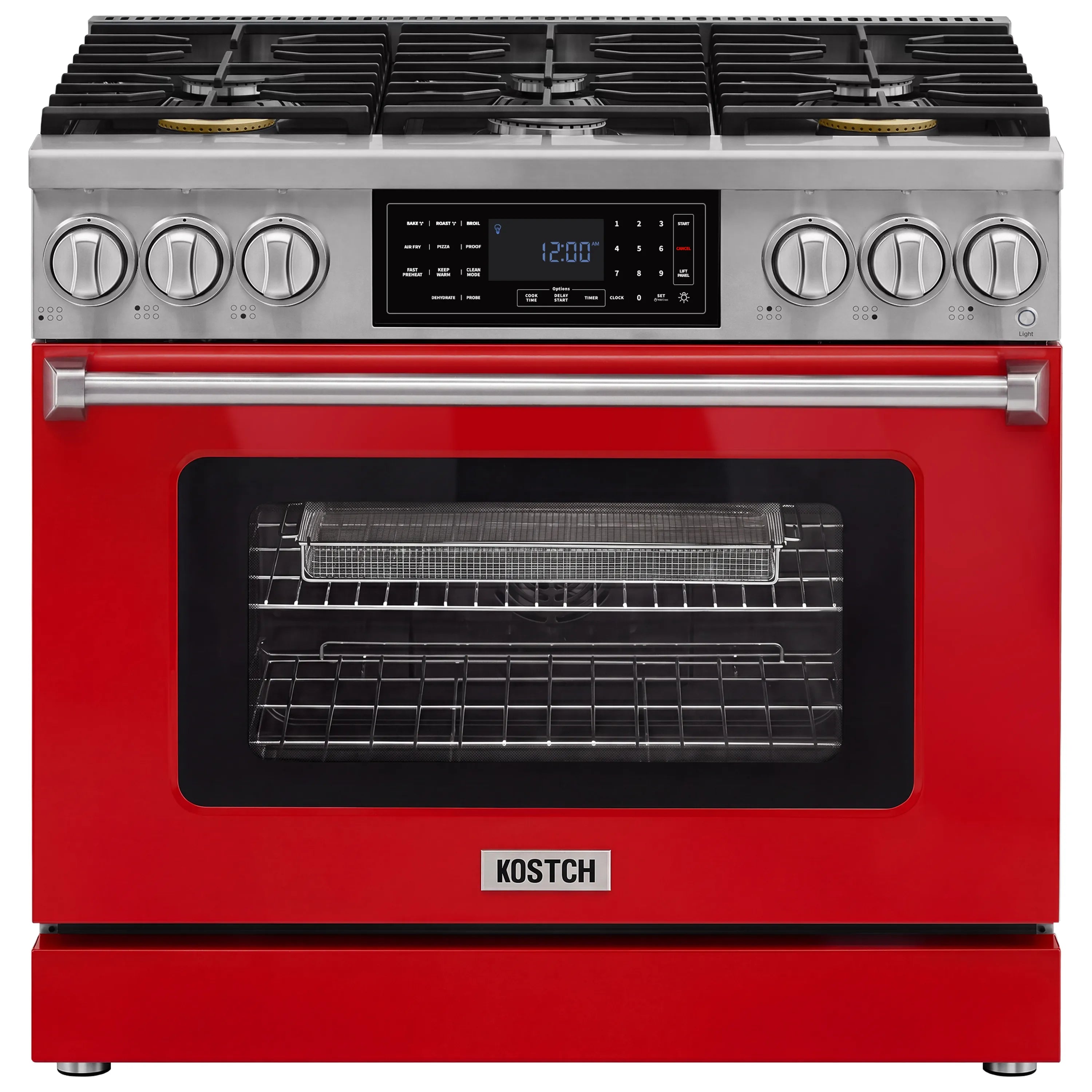

GENERAL INFORMATION
- Appliance Type
- Single Oven Gas Range
- Type
- Freestanding
DESIGN & FINISH
- Color
- Red
- Finish
- Red
- Control Location
- In front of elements

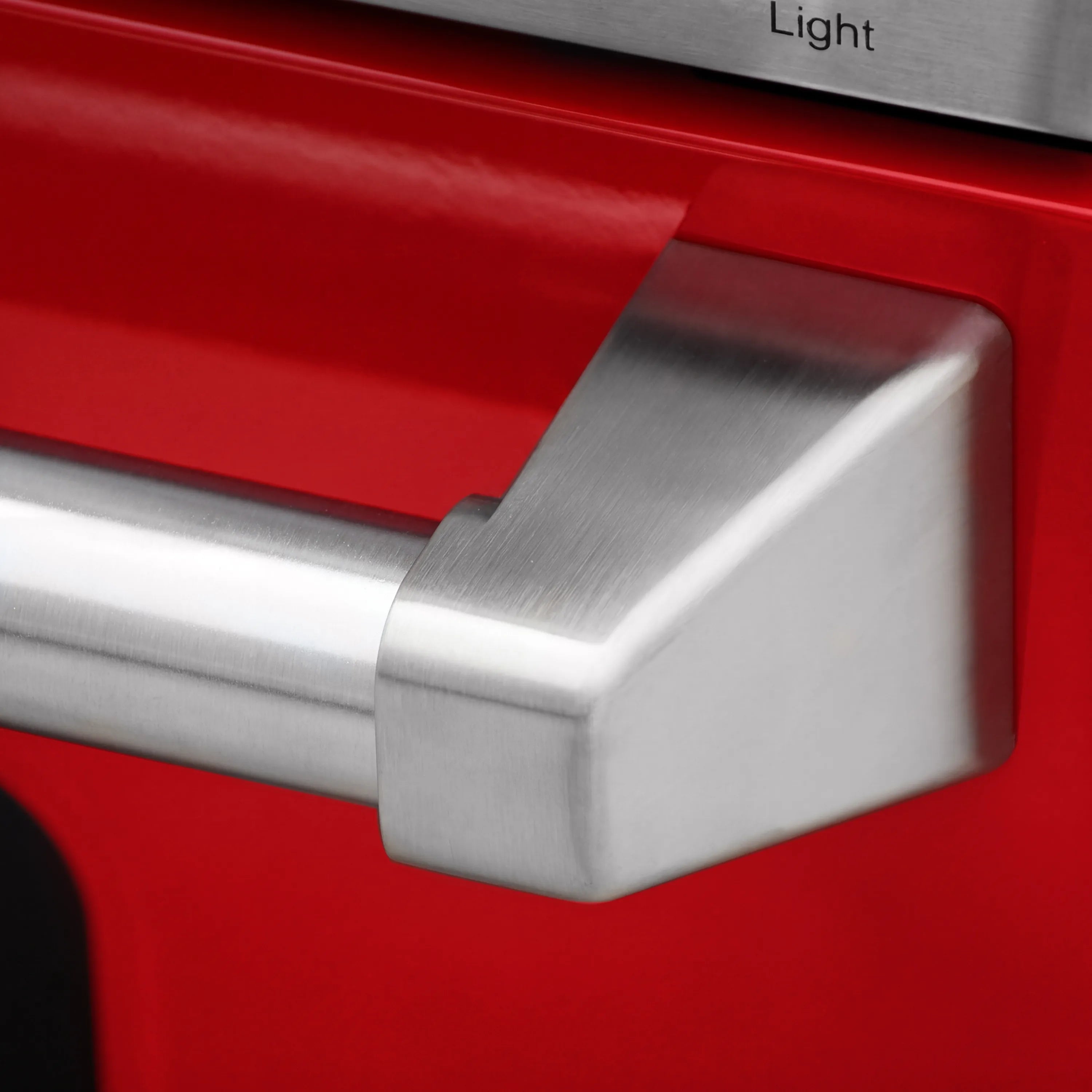

- Handle Color
- Stainless Steel
TECHNICAL DETAILS
- Installation Type
- Freestanding
- Power Source
- Gas
- Current
- 5.0 A

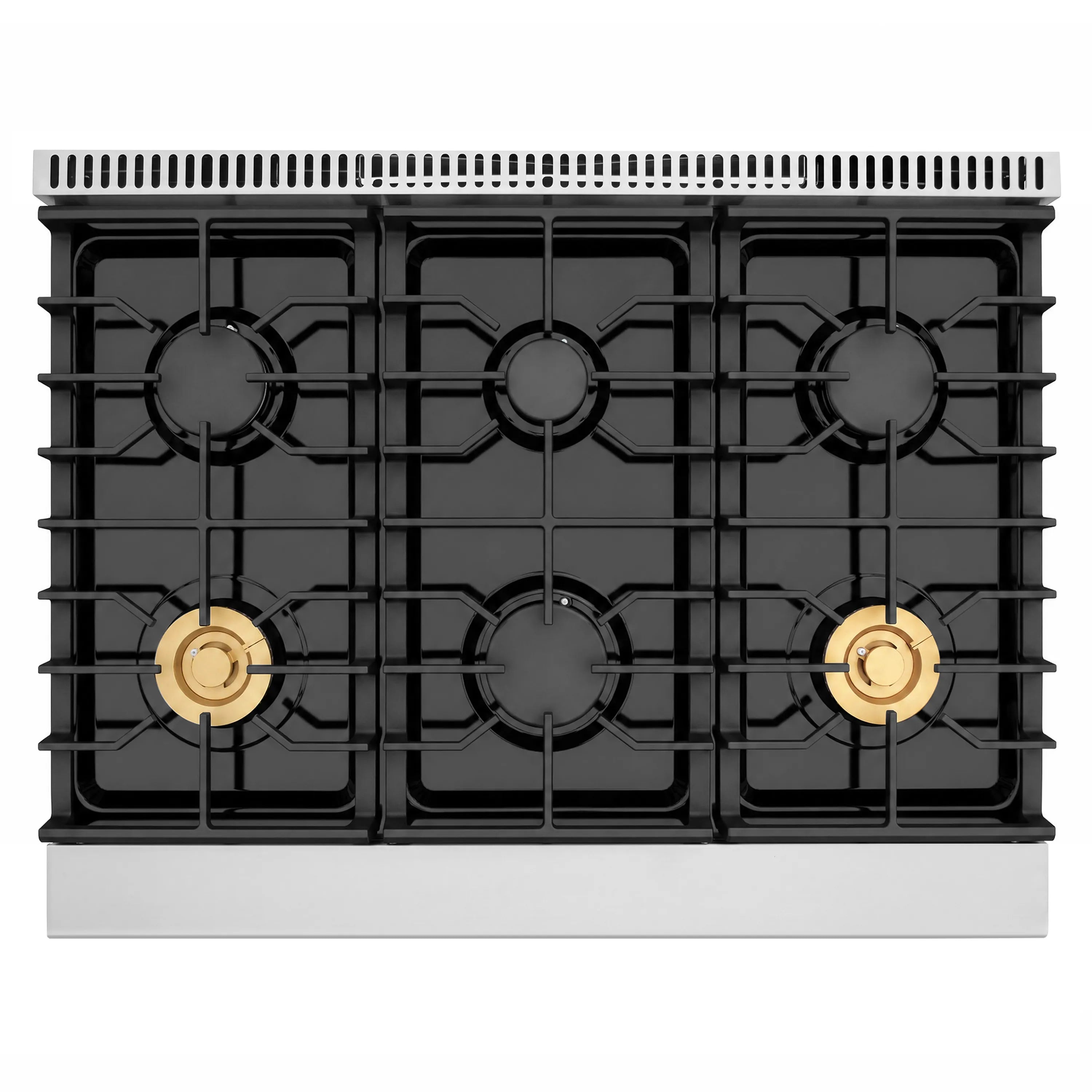

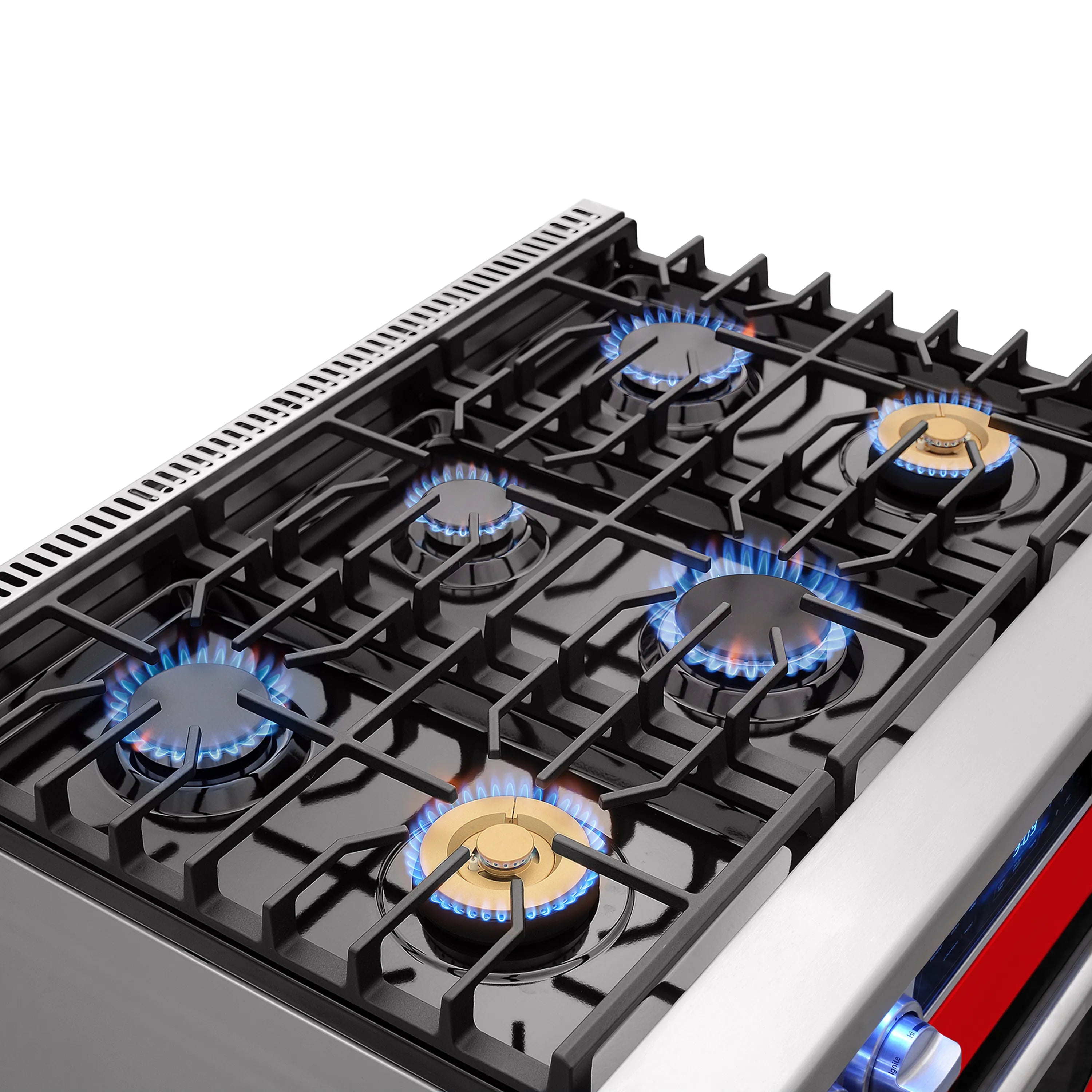

COOKTOP FEATURES
- Burner Grate Material
- Porcelain-coated Cast Iron
- Ignition Type
- Electronic
- Number of Cooking Zones
- 6 Burners
- Cooking Surface Type
- Deep recessed

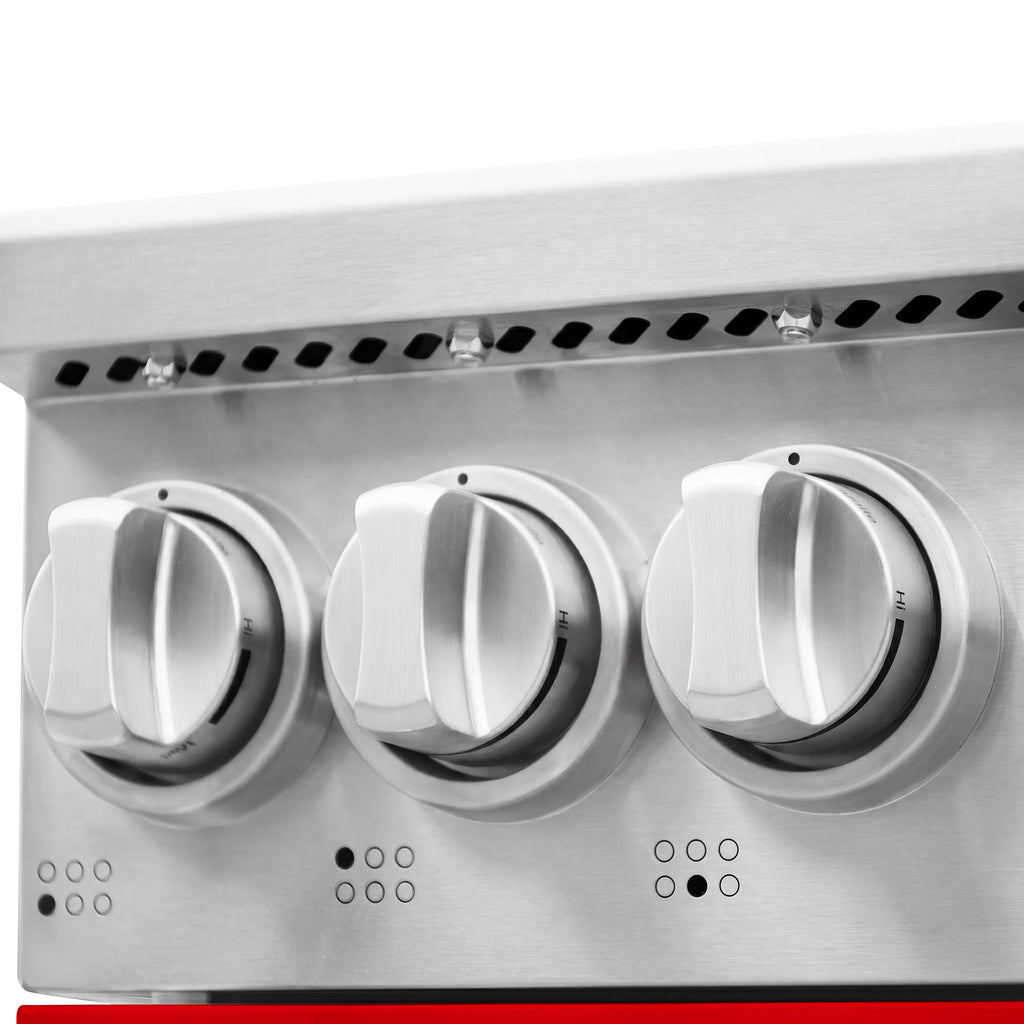

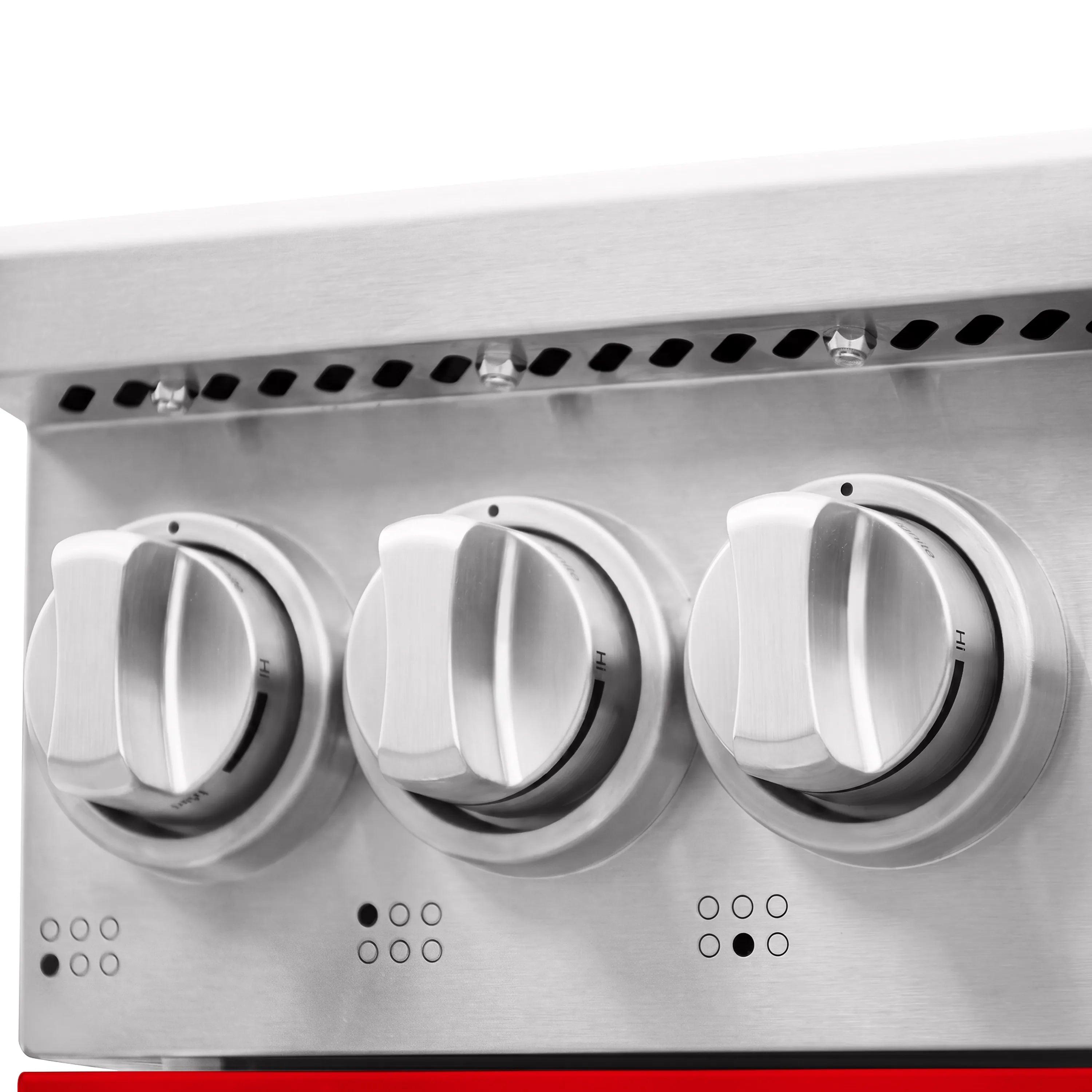

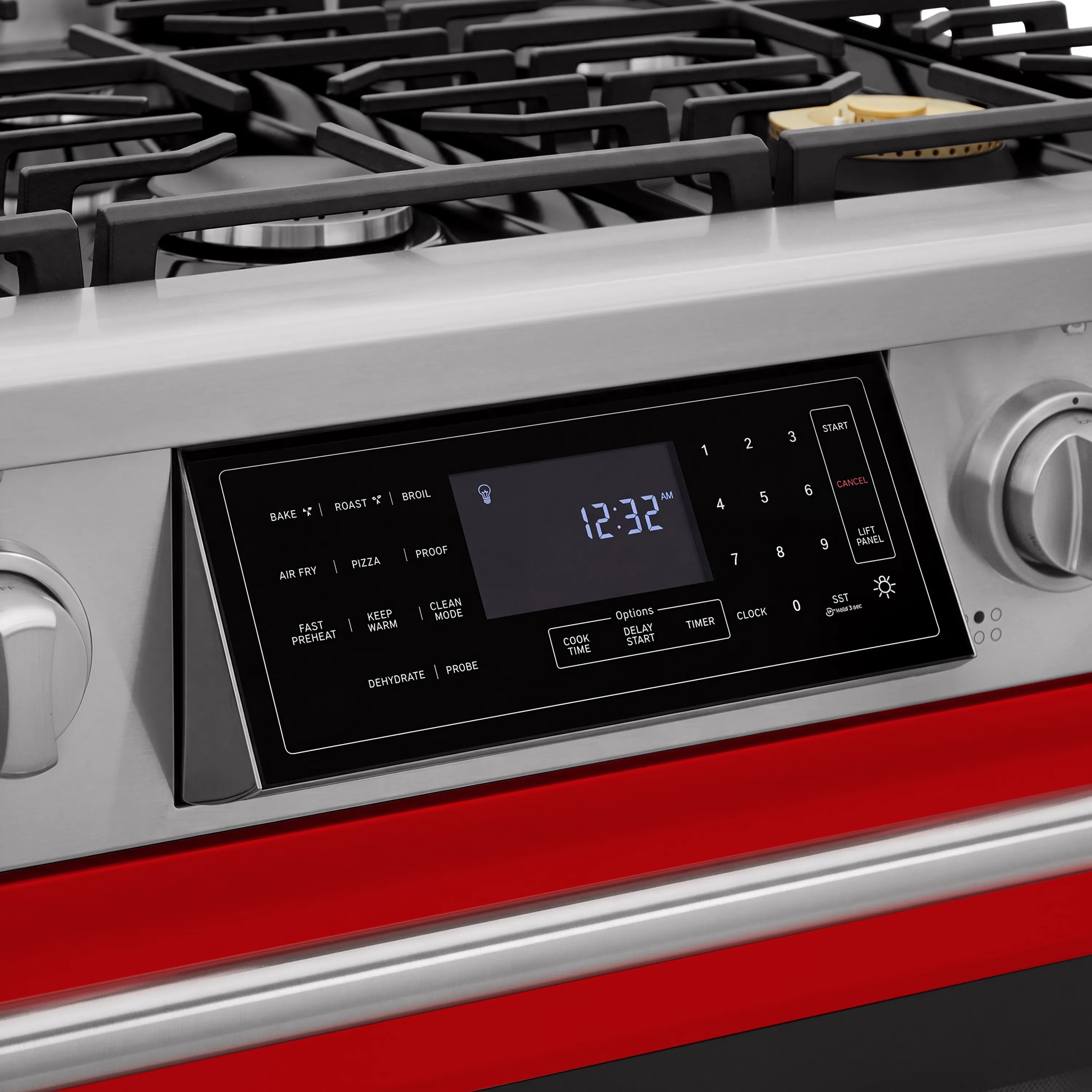

- Cooking Surface Control Type
- Knobs + Touchscreen
- Power Burner (15,000 BTU+)
- Yes
- Burner #1 Max BTU
- 18000
- Burner #2 Max BTU
- 15000
- Burner #3 Max BTU
- 15000
- Burner #4 Max BTU
- 12000
- Burner #5 Max BTU
- 12000
- Burner #6 Max BTU
- 6000
- Total BTU
- 113500
- Lower Burner Power
- 22000 BTU
- Top Burner Power
- 13500 BTU
- Convection Element Type
- Single-fan

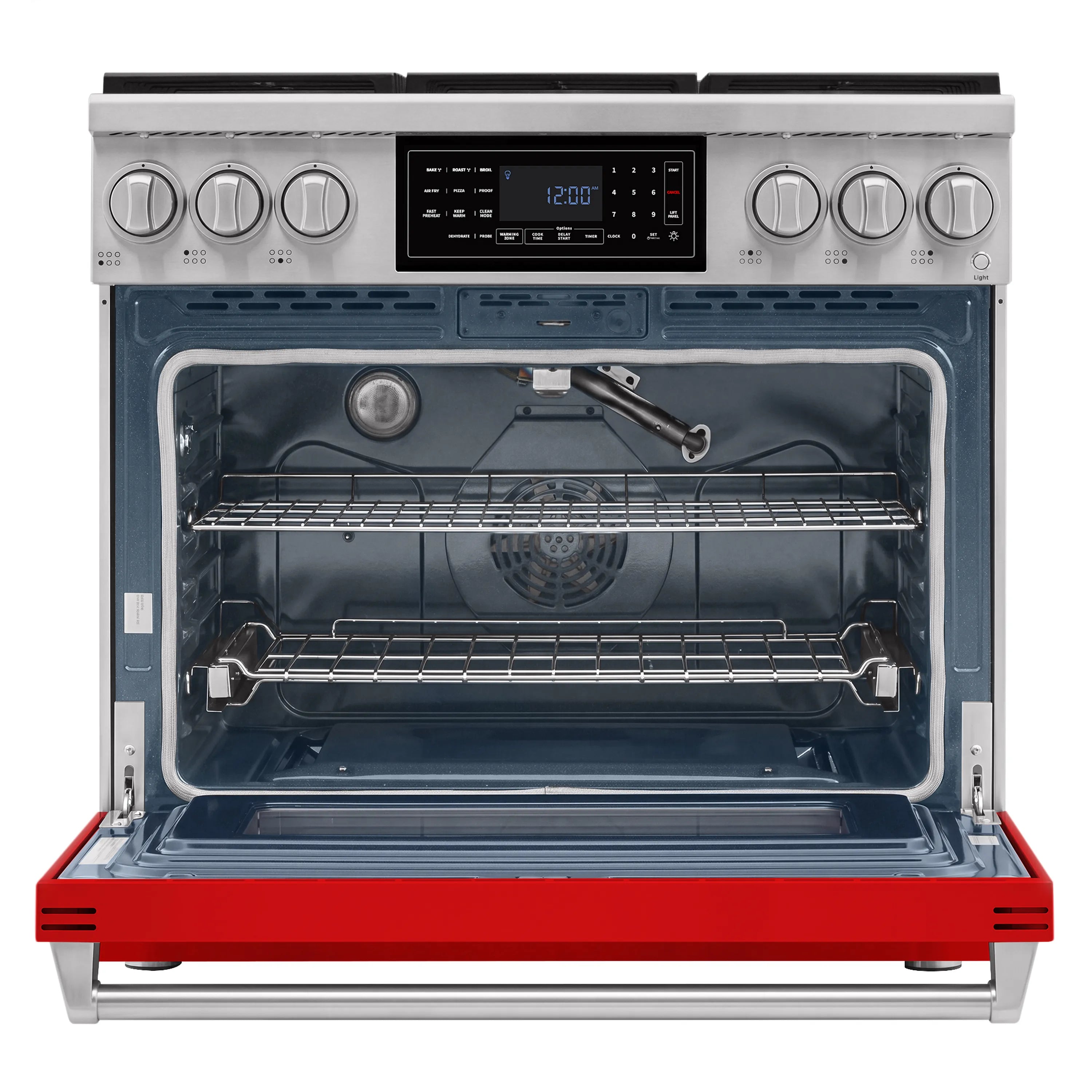

OVEN FEATURES
- Capacity (cu. ft.)
- 6
- Number of Racks
- 2
- Single/Double Oven
- Single
- Cleaning Method
- Self-cleaning and Steam Cleaning
WARRANTY & CERTIFICATIONS
- CSA
- Yes
- Warranty
- 3-Year
