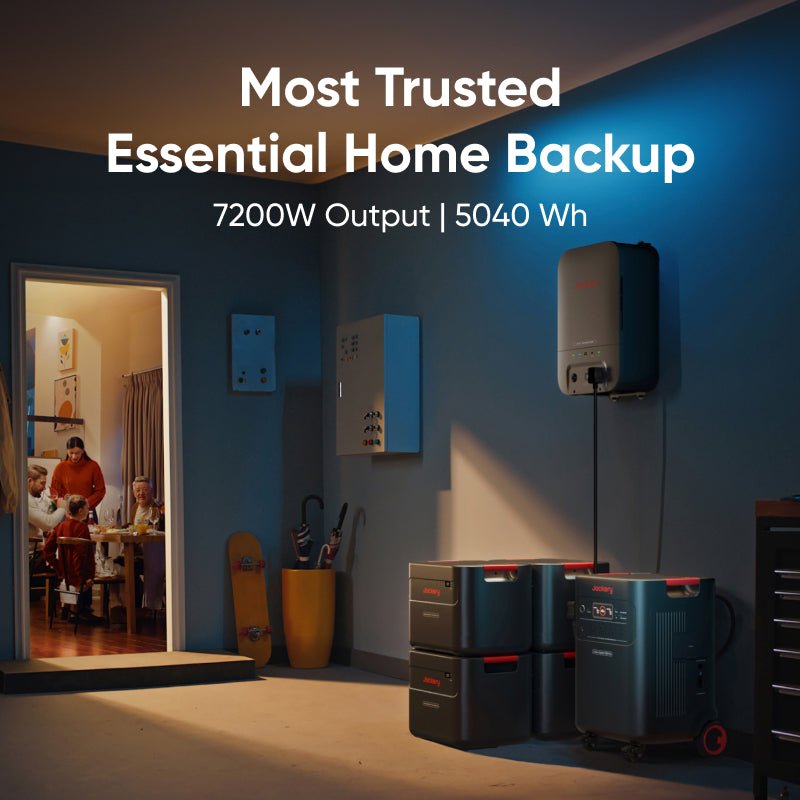

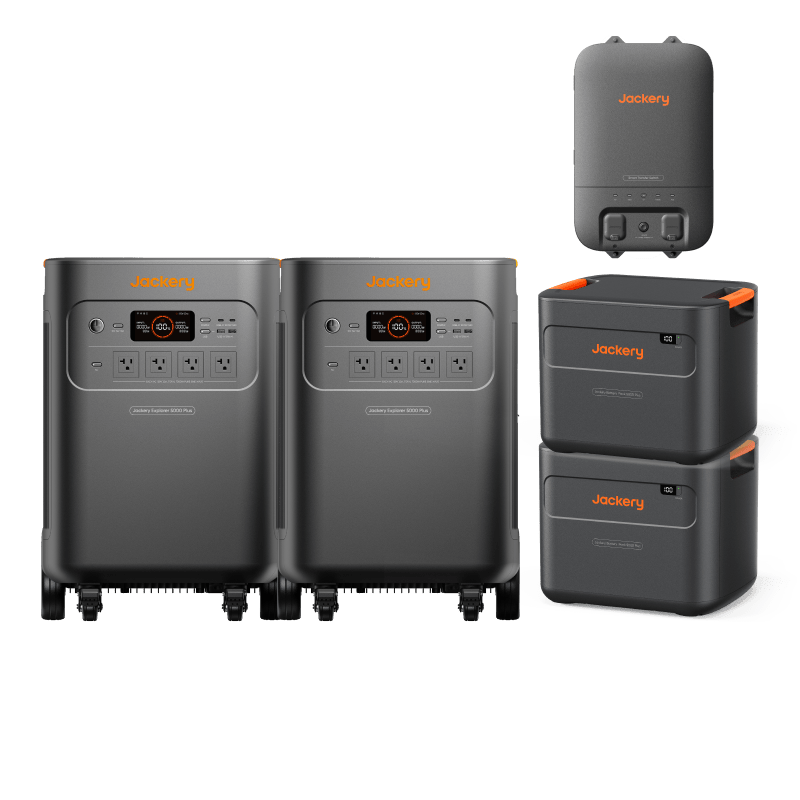

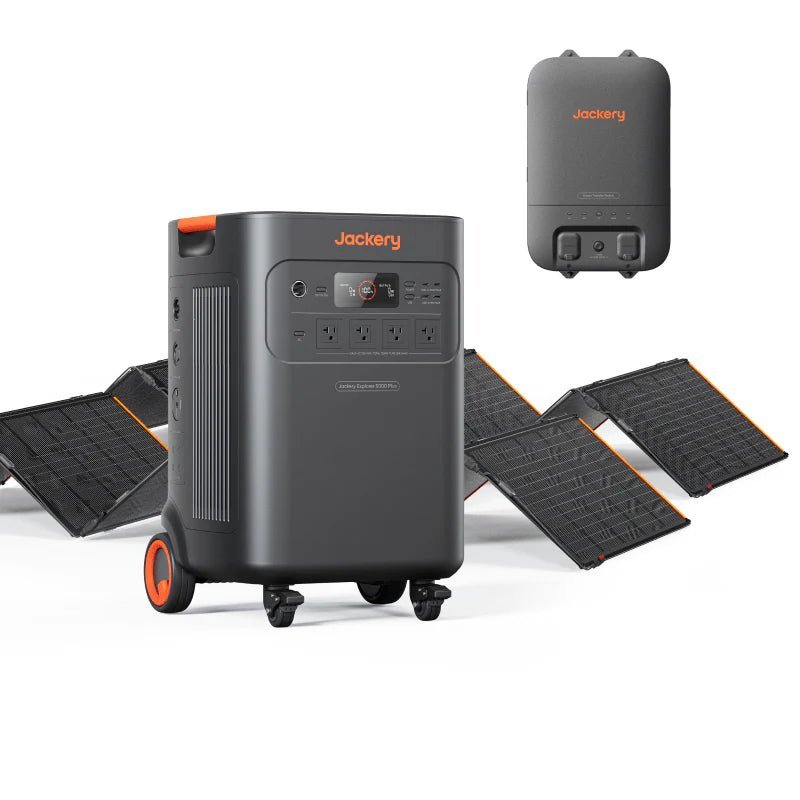

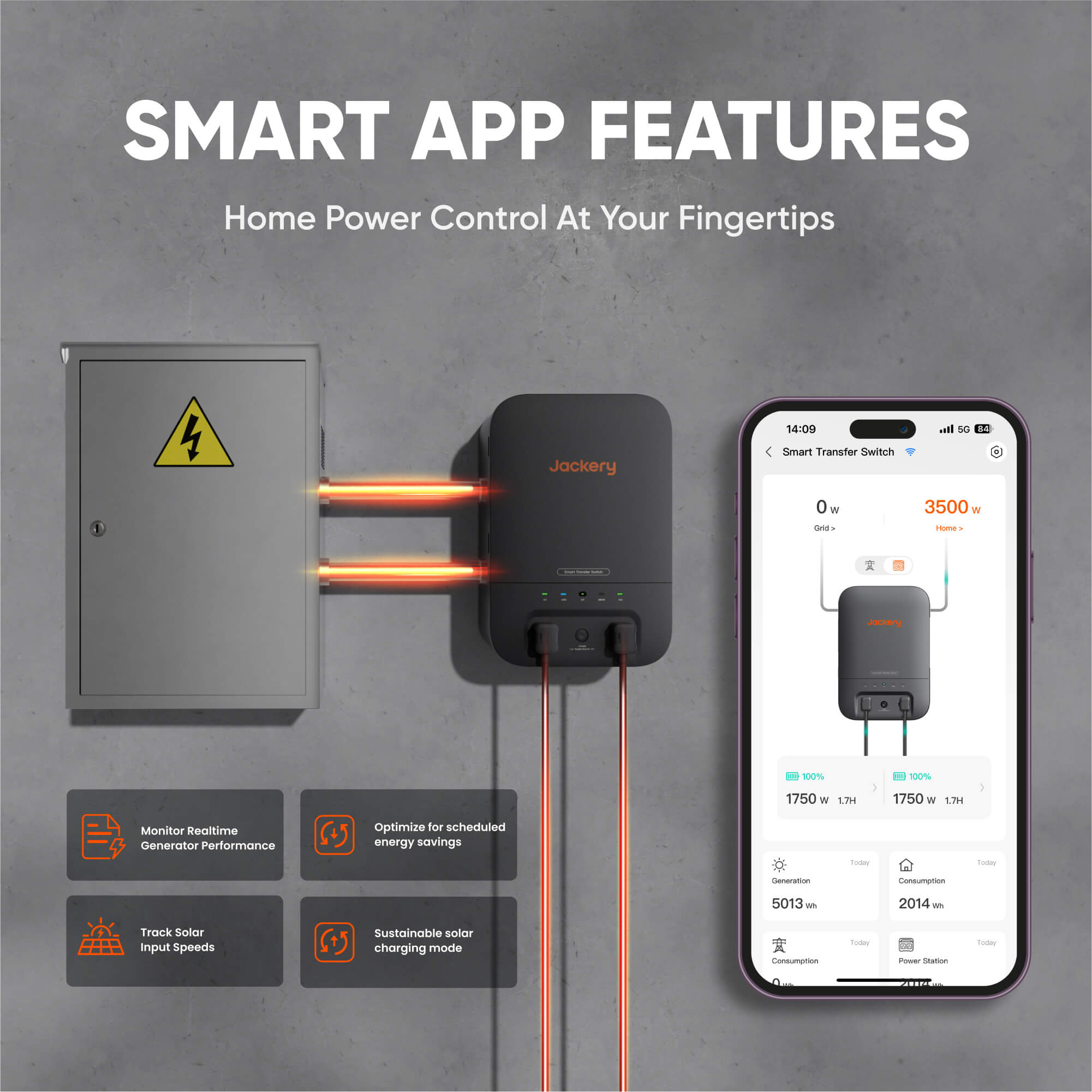

Stay powered through hurricanes, thunderstorms, and blackouts with the Jackery Whole-Home Backup Kit 5000 Plus 20kWh, delivering 5–60kWh of expandable capacity and 7200–14400W of output to keep essential appliances running for up to 30 days. With 0ms power transition, your fridge stays cold and your Zoom calls stay connected without missing a beat, while the included Smart Transfer Switch ensures uninterrupted power to the rooms that matter most.

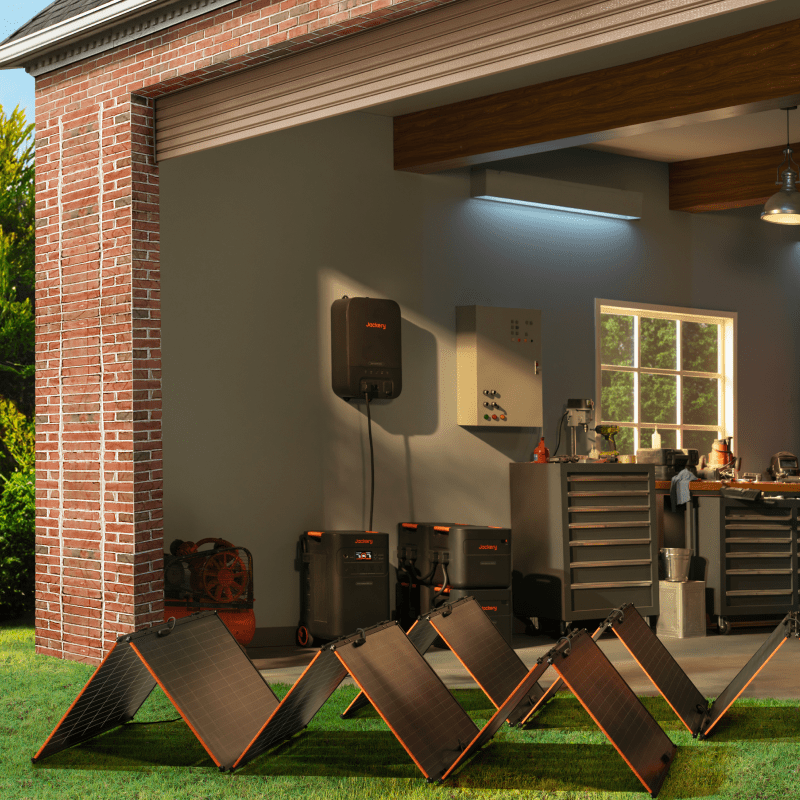

Its 120V/240V dual voltage broadens compatibility for both indoor and outdoor loads, and with 4000W solar input plus 5 ways to charge, the system fully recharges in just 1.7 hours — giving you reliable, long-lasting backup power whenever you need it.
| DIMENSIONS | |
|---|---|
| Weight | About 134.5 lbs (61 kg) |
| Dimensions |
|
| GENERAL INFORMATION | |
| Charge Temperature | 32~113 °F (0~45°C) |
| Discharge Temperature | 5~113°F (-15~45°C) |
| Cell Chemistry | LiFePO4 |

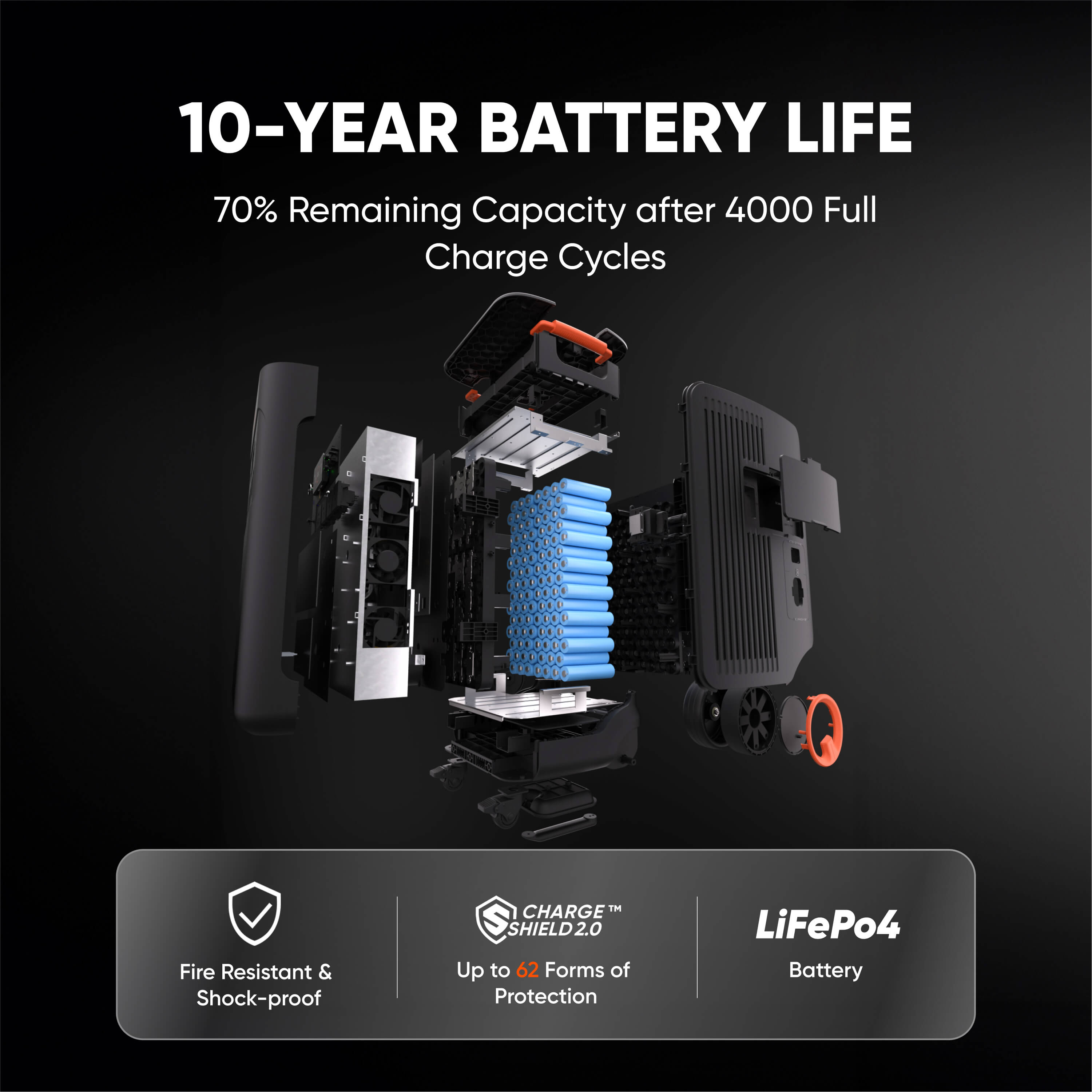

| Cycle life | 4000 cycles to 70%+ capacity |

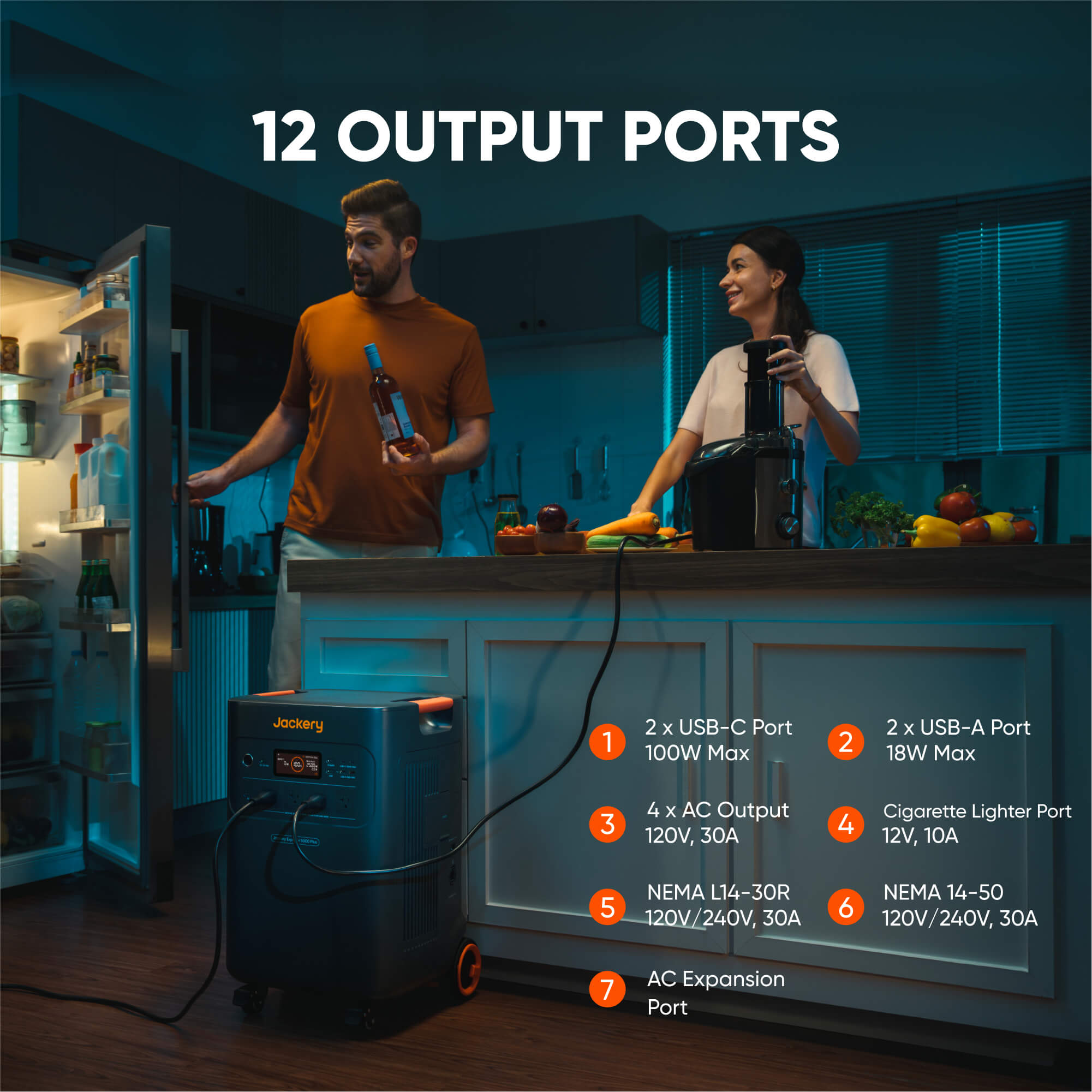

| AC Output | (4x) 120V, 20A, 2400W (1x) NEMA L14-30R/14-50: 120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output | 7200W Max, 14400W Surge |
| USB-C Output | (2x) 100W Max, 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A |
| USB-A Output | (2x) 18W Max, 5-6V=3A, 6-9V=2A, 9-12V=1.5A |
| AC Expansion Port | 240V~60Hz, 30A, 7200W |
| DC Expansion Port | 80.5V-126V=41A Max |
| AC Expansion Port (Input) | 240V~60Hz, 16.7A Max |
| DC Input | DC Expansion Port (Input): 80.5V-126V=98A Max |
| High-PV | 135V-450V=15A Max |
| Low-PV |
|
| UPS |
|
| Inverter Topology | Non-isolated |
| Entire Unit | Type 1 |
| Battery Lifecycles | 4000 cycles to 70%+ capacity |
| DC Expansion Port (Input) | 80.5V-126V=41A Max |
| DC Extension Ports (Output) | 80.5V-126V=98A Max |
| Operating Temperature | -4°F~113°F (-20°C~45°C) |
| Feed-In Type | Split Phase |
| Maximum Input Current | 100A Grid / 60A Power Station |
| Maximum Output Current | 60A Home Load / 33.4A Power Station |
| Maximum Input Short-Circuit Current | 10KA |
| Enclosure Type (Distribution Panel) | NEMA Type 1 |
| Number of Load Branches | 12 |
| Main Circuit | 2 AWG |
| Branch Circuit | 14 AWG, 12 AWG, 10 AWG |
| Communication | Wi-Fi and Bluetooth |
| DESIGN & FINISH | |
| Cigarette Lighter Port | 12V=10A |
| TECHNICAL DETAILS | |
| Power Factor | ≥0.98 |
| AC Voltage (Nominal) | 120V/240V~ 60Hz |
| Overvoltage Category | IV |
| FEATURES | |
| Capacity | 45Ah/112V DC (5040 Wh) |
| Charge Mode AC Input | 120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output |
|
| WARRANTY & CERTIFICATIONS | |
| Warranty | 5 Years |
| AC Adapter | 3.5 Hours |
| Car Adapter | NO |
