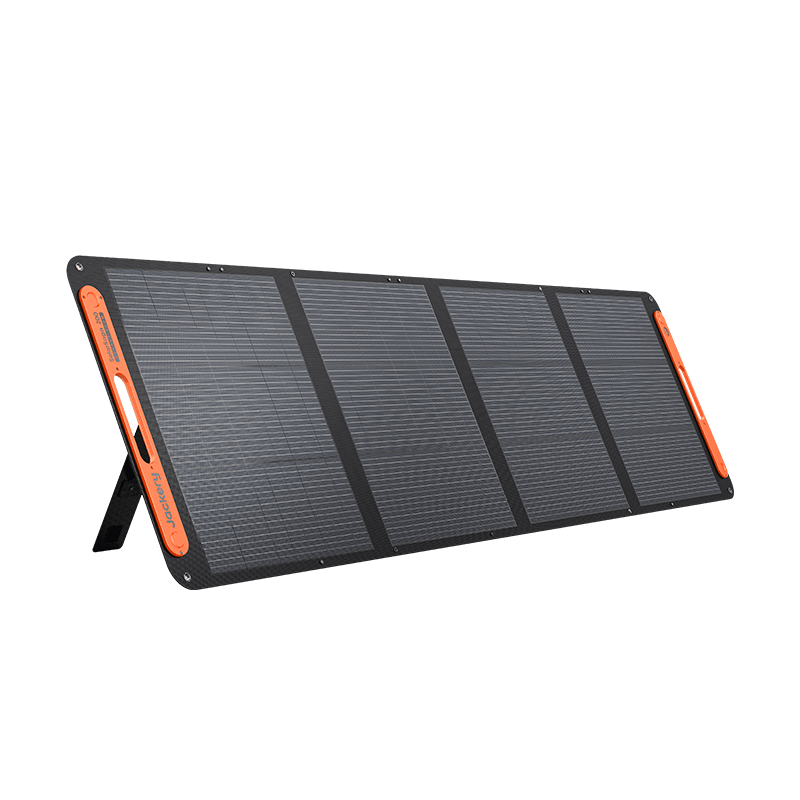

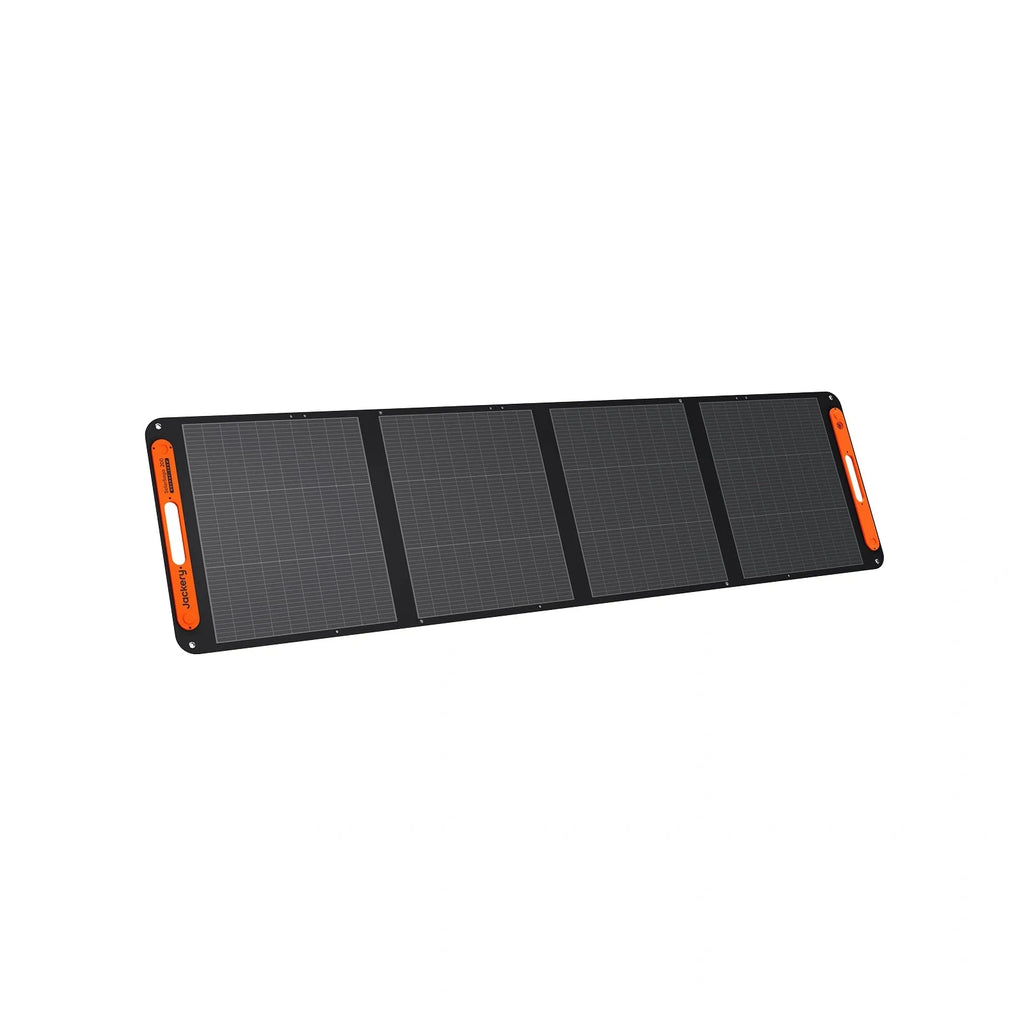

Power your off-grid adventures with the Jackery SolarSaga 200W Solar Panel, featuring high-efficiency Topcon monocrystalline cells with up to 25% conversion rate and a bifacial design that captures extra energy from reflected sunlight. Built tough with an IP68 rating, it stands up to rain, snow, dust, and sand, while operating reliably across a wide temperature range of -10°C to 65°C (14°F to 149°F) for year-round performance.
Its lightweight, fold-and-go design with adjustable stands makes setup quick and easy, and built-in USB-A and USB-C ports let you charge small electronics directly from the panel. Paired with Jackery's SolarTarget for optimal sun alignment, the SolarSaga 200W is your reliable companion for faster recharging and extended outdoor freedom.
| SolarSaga 200W Solar Panel | |
|---|---|
| General | |
| Weight | 14.33 lbs ± 0.66 lbs (6.5 kg±0.3 kg) |
| Protection Class Against Electric Shock | Class II |
| Waterproof | IP68 |
| Operating Temperature Range | -4~149°F (-20~65°C) |
| Warranty | 3+2 Years |
| Ports | |
| USB-A Output | 5V=2.4A |
| USB-C Output | 5V=3A |
| Solar | |
| Maximum System Voltage | 60V |
| Maximum Reverse Current | 15A |
| Bifaciality Coefficient (back/front) | Pmax≥70%, Voc≥95%, Isc≥65% |
| Voltage Temperature Coefficient | -(0.27±0.03)%/°C |
| Power Temperature Coefficient | -(0.33±0.02)%/°C |
| STC (1000W/㎡, 25°C, AM 1.5) | |
| Peak Power (Pmax) | 200W±5% |
| Open Circuit Voltage (VOC) | 22V±5% |
| Short Circuit Current (Isc) | 12.5A±5% |
| Power Voltage (Vmp) | 18V±5% |
| Power Current (Imp) | 11.5A±5% |
| BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5) | |
| Peak Power (Pmax) | 225W±5% |
| Open Circuit Voltage (Voc) | 22V±5% |
| Short Circuit Current (Isc) | 13.5A±5% |
| Power Voltage (Vmp) | 18V±5% |
| Power Current (Imp) | 12.6A±5% |
| Dimensions | |
| Folded | 23.62 × 23.50 × 1.57 in (600 × 597 × 40 mm) |
| Unfolded | 89.76 × 23.50 × 0.98 in (2279 × 597 × 25 mm) |
