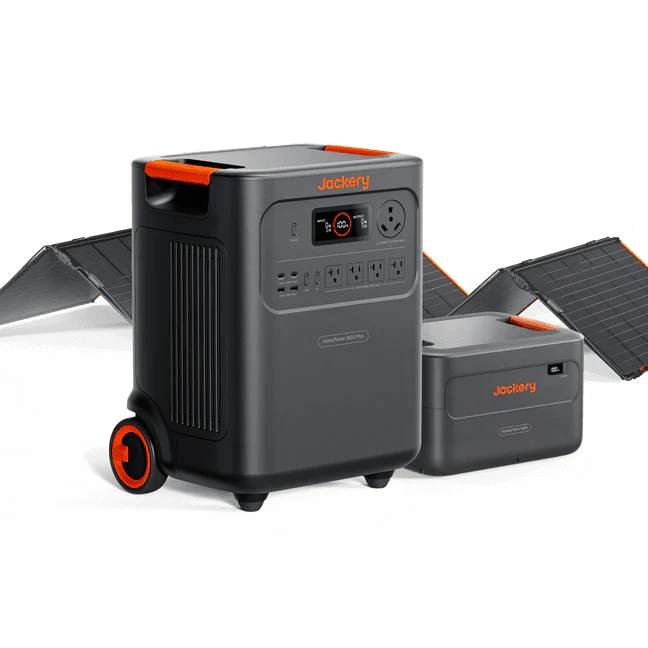

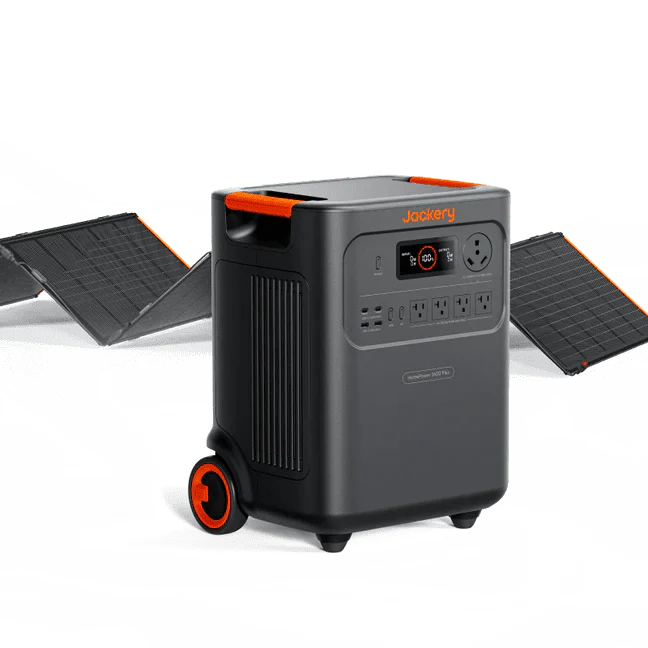

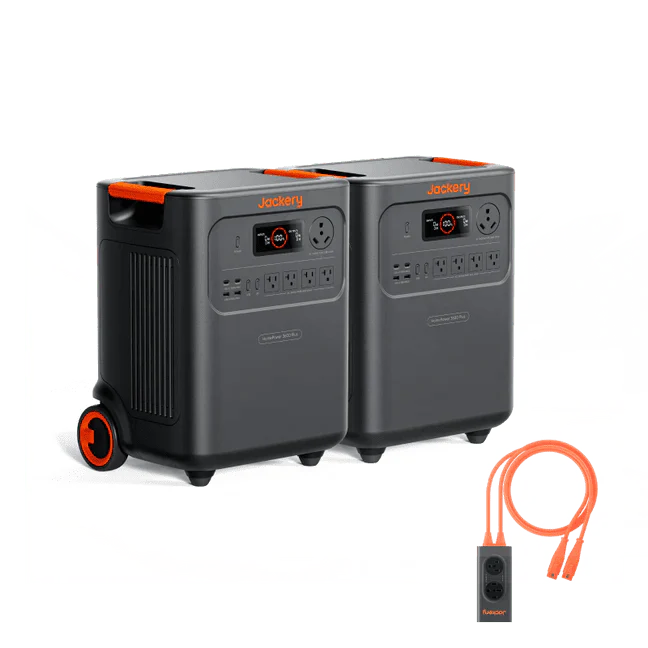

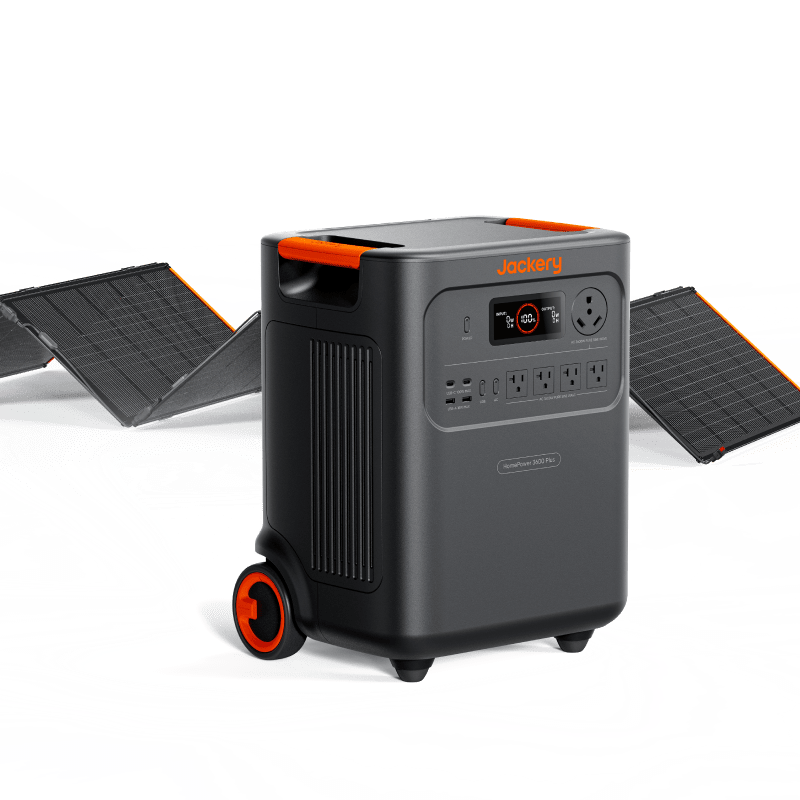

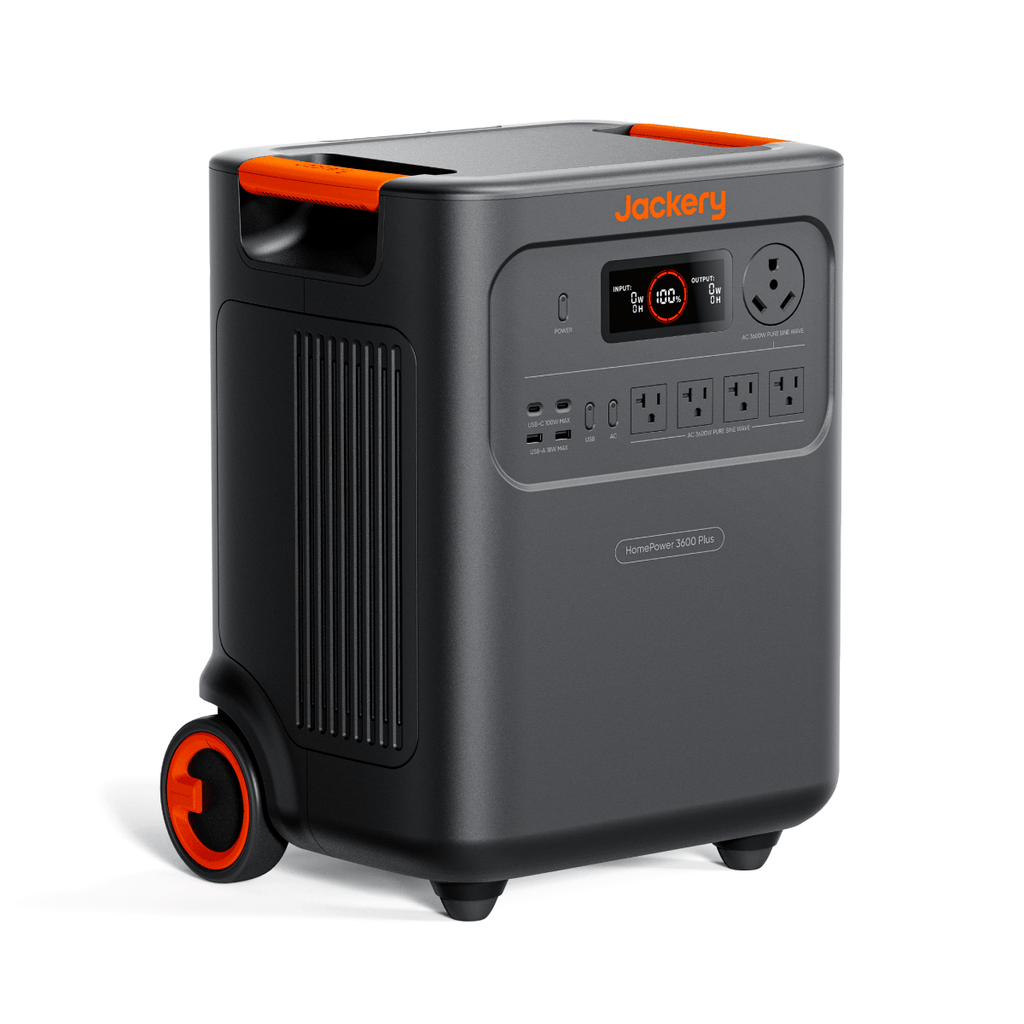

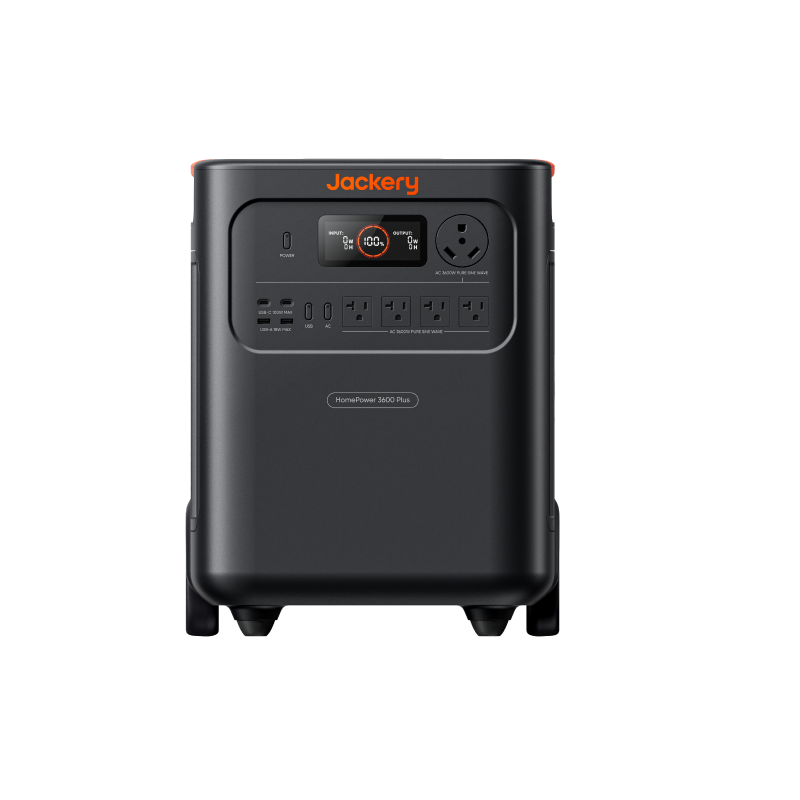

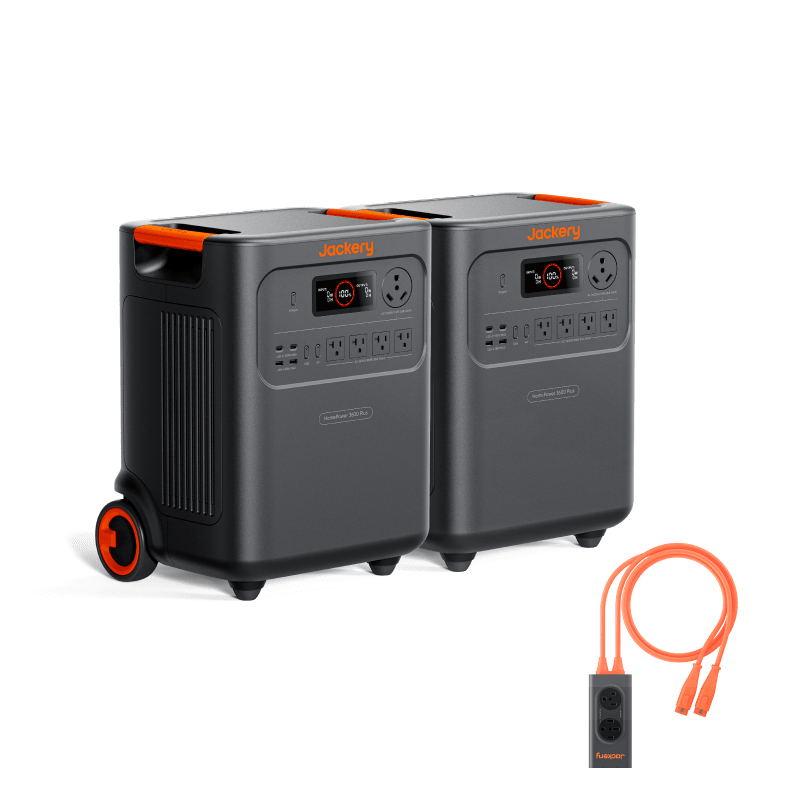

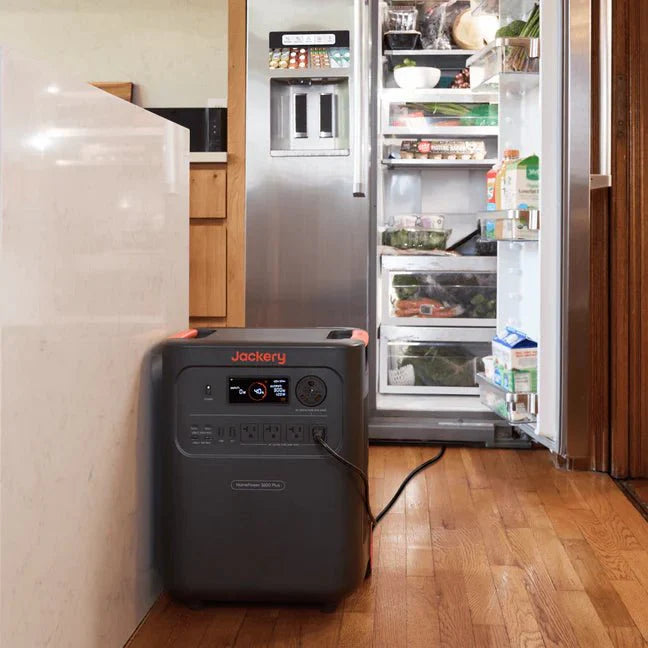

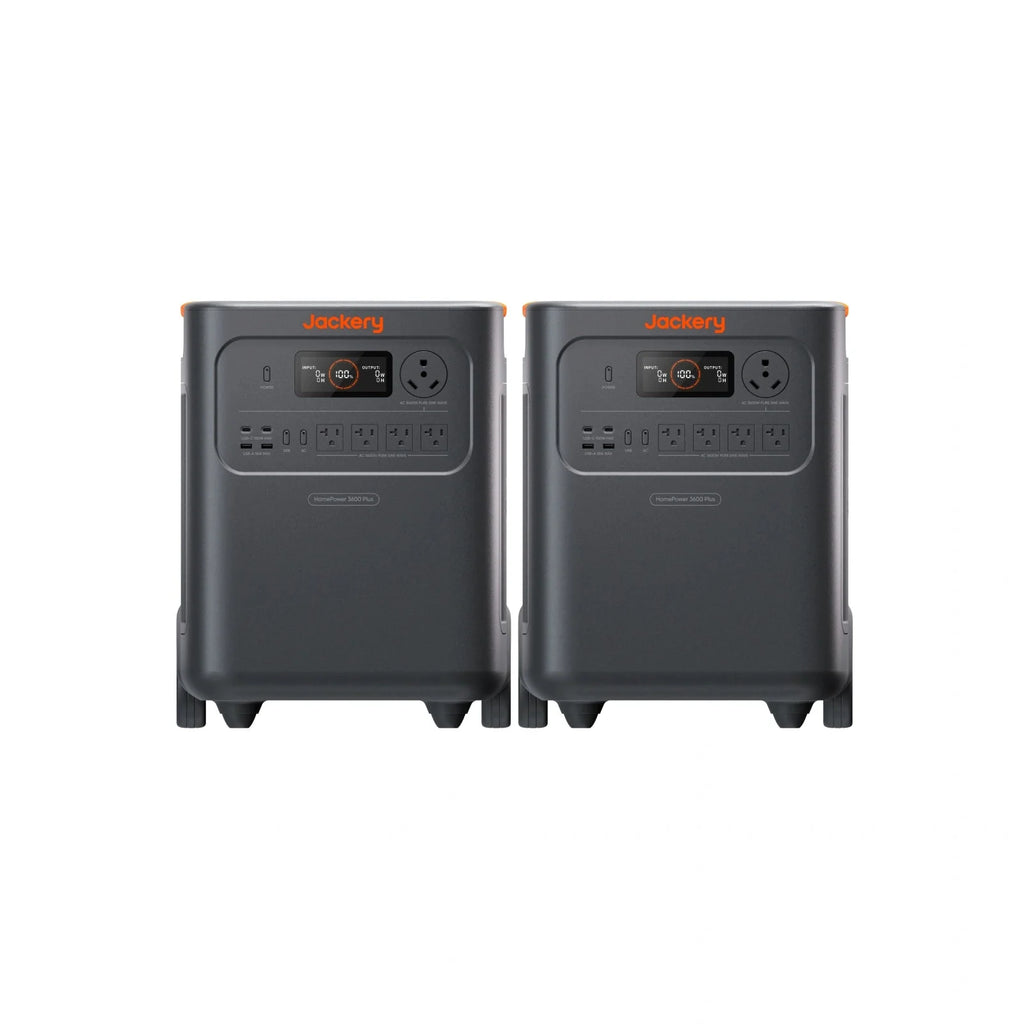

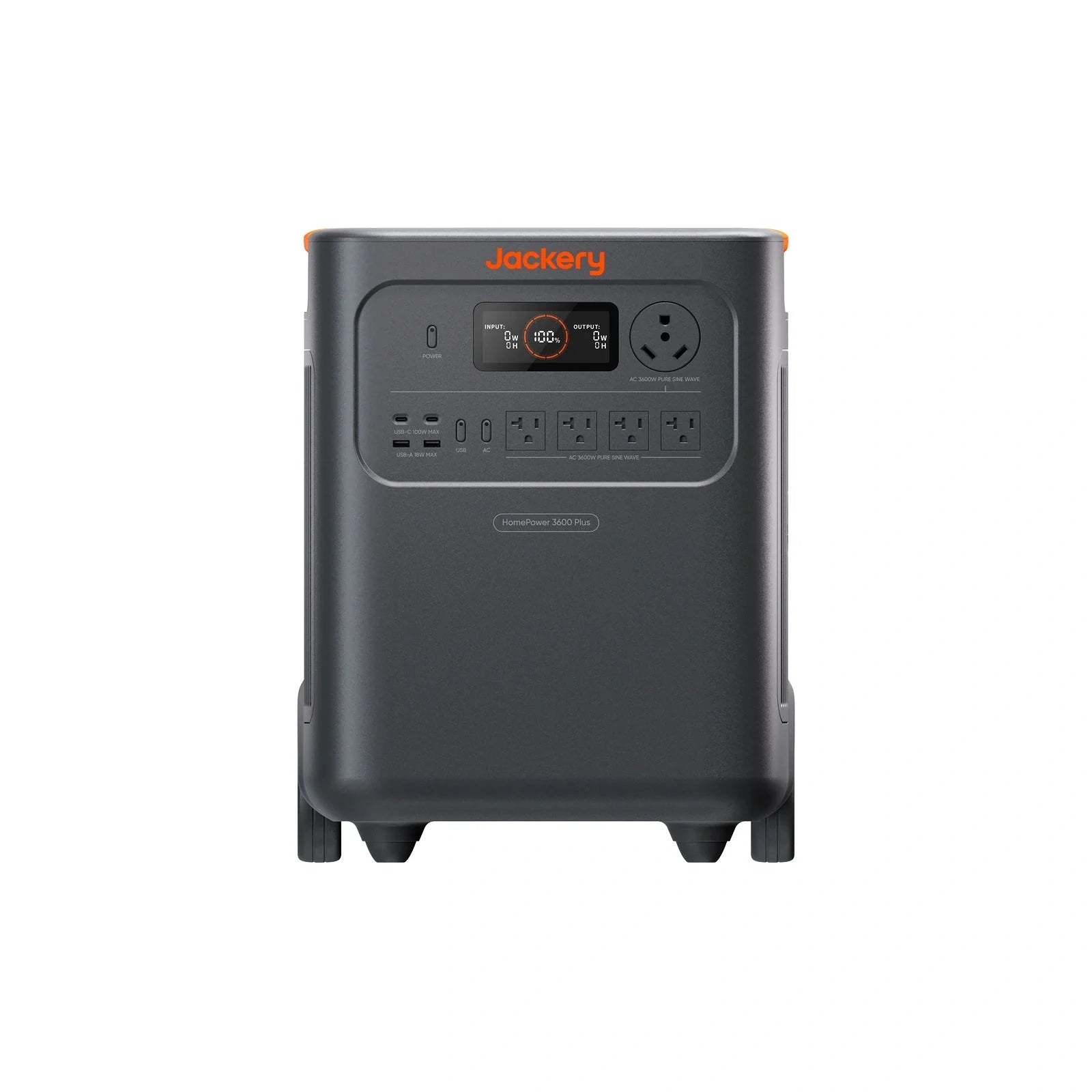

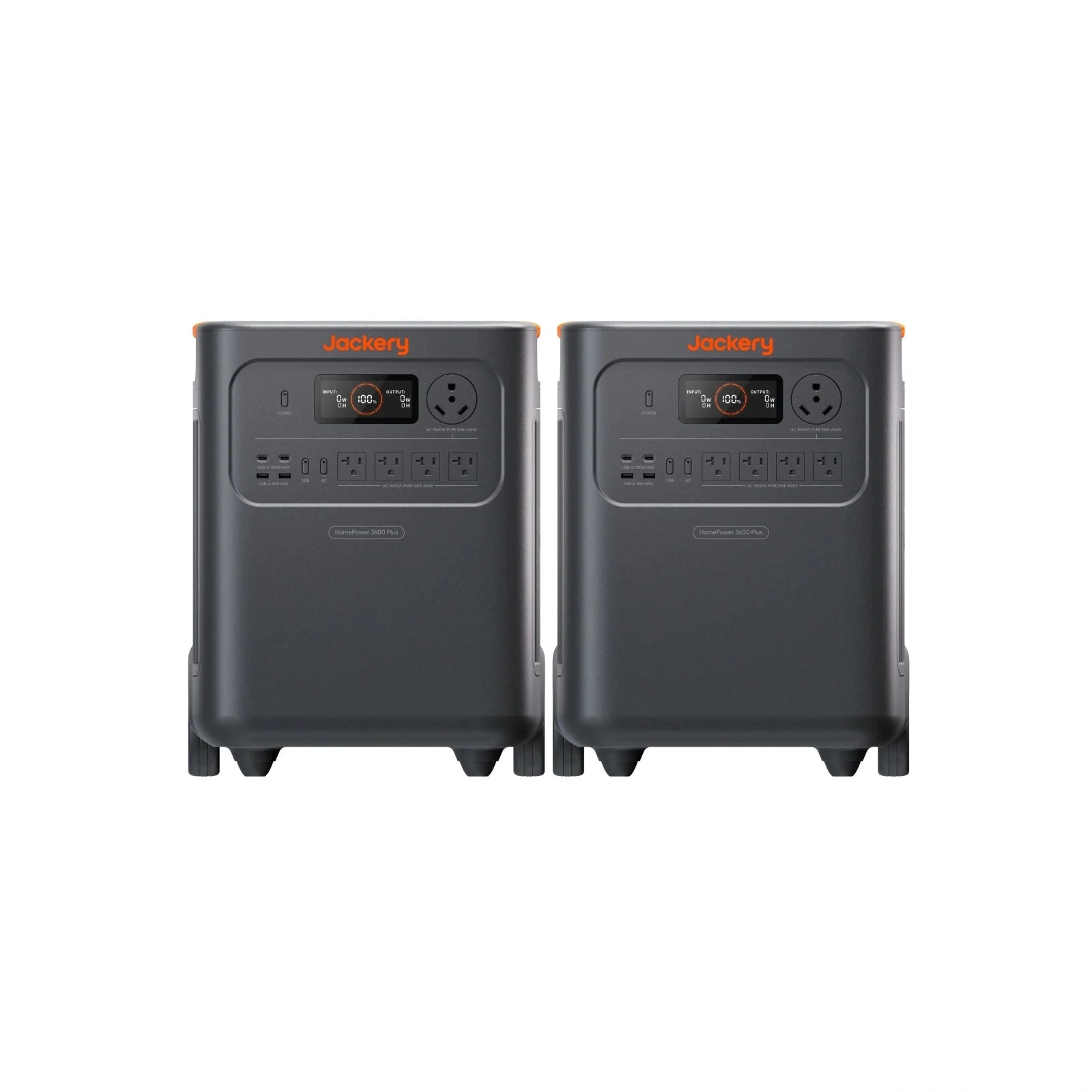

Keep your home powered through any outage with the Jackery Solar Generator HomePower 3600 Plus, delivering 3584Wh of capacity (expandable up to 21kWh) and 3600W of output for 15 hours to 9 days of dependable backup. A single unit easily handles 120V essentials like refrigerators, portable AC units, and coffee makers, while connecting two units unlocks 240V power for larger appliances such as well pumps and dryers.
EV-grade LiFePO₄ battery cells with 6,000 cycles deliver up to 16 years of reliable performance for just 30 cents a day, backed by a 5-year warranty. Whisper-quiet at only 30dB, it runs comfortably indoors or overnight without disturbing your household, and built-in wheels with a pull handle make it easy to roll wherever power is needed. With true plug-and-play simplicity, your home stays protected the moment you press start.
| HomePower 3600 Plus | |
|---|---|
| Battery | |
| Capacity | 80Ah / 44.8V DC (3584 Wh) |
| Cell Chemistry | LiFePO4 |
| Cycle life | 6000 cycles to 70%+ capacity |
| General | |
| Weight | About 77.16 lbs (35 kg) |
| Dimensions | 15.2×12.2×19.3 in / 38.5×30.9×49.1 cm |
| Charge Temperature | -4°F to 113°F (-20°C to 45°C) |
| Discharge Temperature | -4°F to 113°F (-20°C to 45°C) |
| Warranty | 3+2 Years |
| Output Ports | |
| AC Output | (4x) 120V~ 60Hz, 20A Max, 2400W, 3600W in Total (1x) 120V~ 60Hz, 30A Max, 3600W |
| AC Total Output | 3600W Rated, 7200W Surge peak |
| USB-C Output | (2x) 100W Max, 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A |
| USB-A Output | (2x) 18W Max, 5-6V=3A, 6-9V=2A, 9-12V=1.5A |
| AC Expansion Port | 240V~ 60Hz, 30A, 7200W Max, 14400W Surge peak |
| DC Expansion Port | 36.4V-50.4V=100A Max |
| Input Ports | |
| Charge Mode AC Input | 100V-120V~ 60Hz, 15A Max |
| Bypass Mode AC Input/Output | 120V~ 60Hz, 12A Max, 1440W |
| DC Input | (2x) DC 8mm Ports: 12-16V (Working Voltage)=8A Max, Double to 8A Max; 16-60V (Working Voltage)=12A Max, Double to 24A/1000W Max |
| Charging Time | |
| AC Adapter | 2.5 Hours |
| Car Adapter (12V) | Supported |

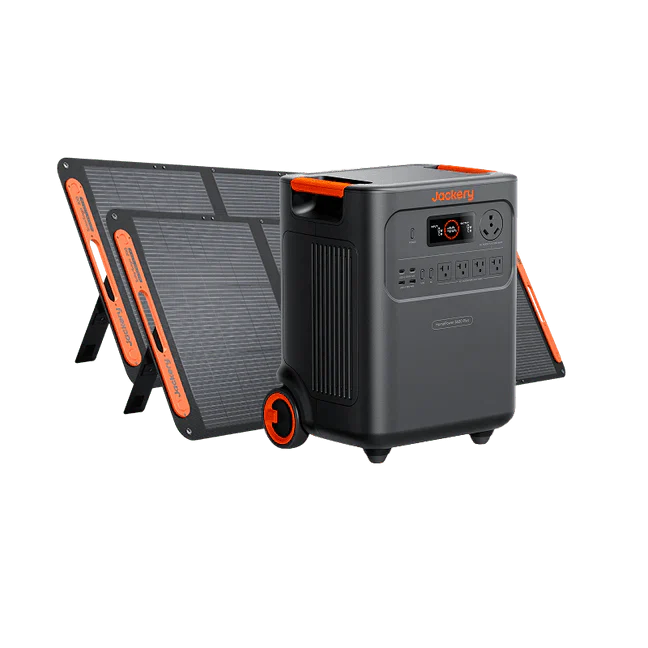

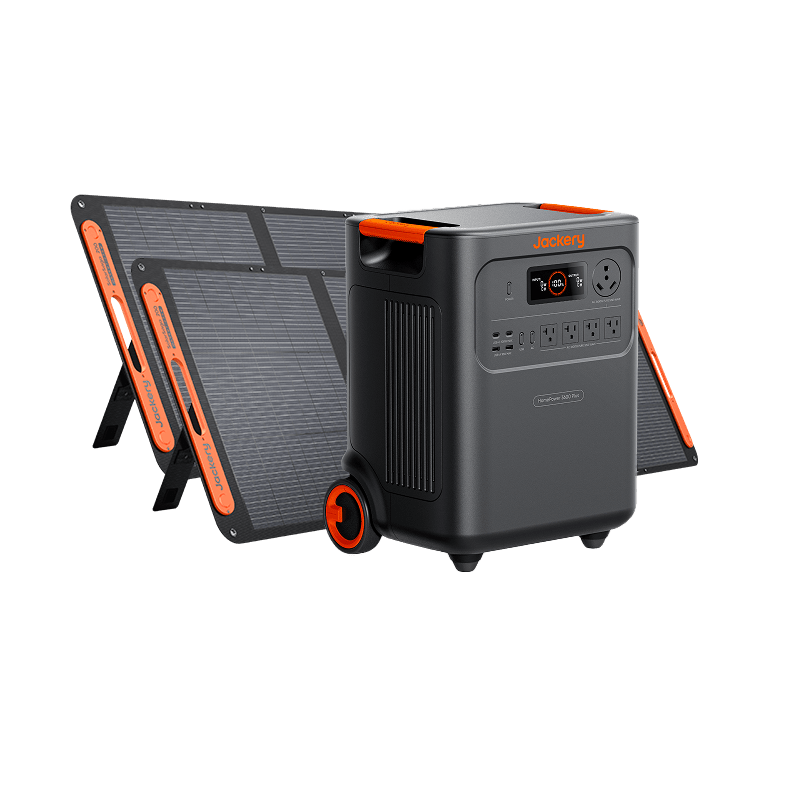

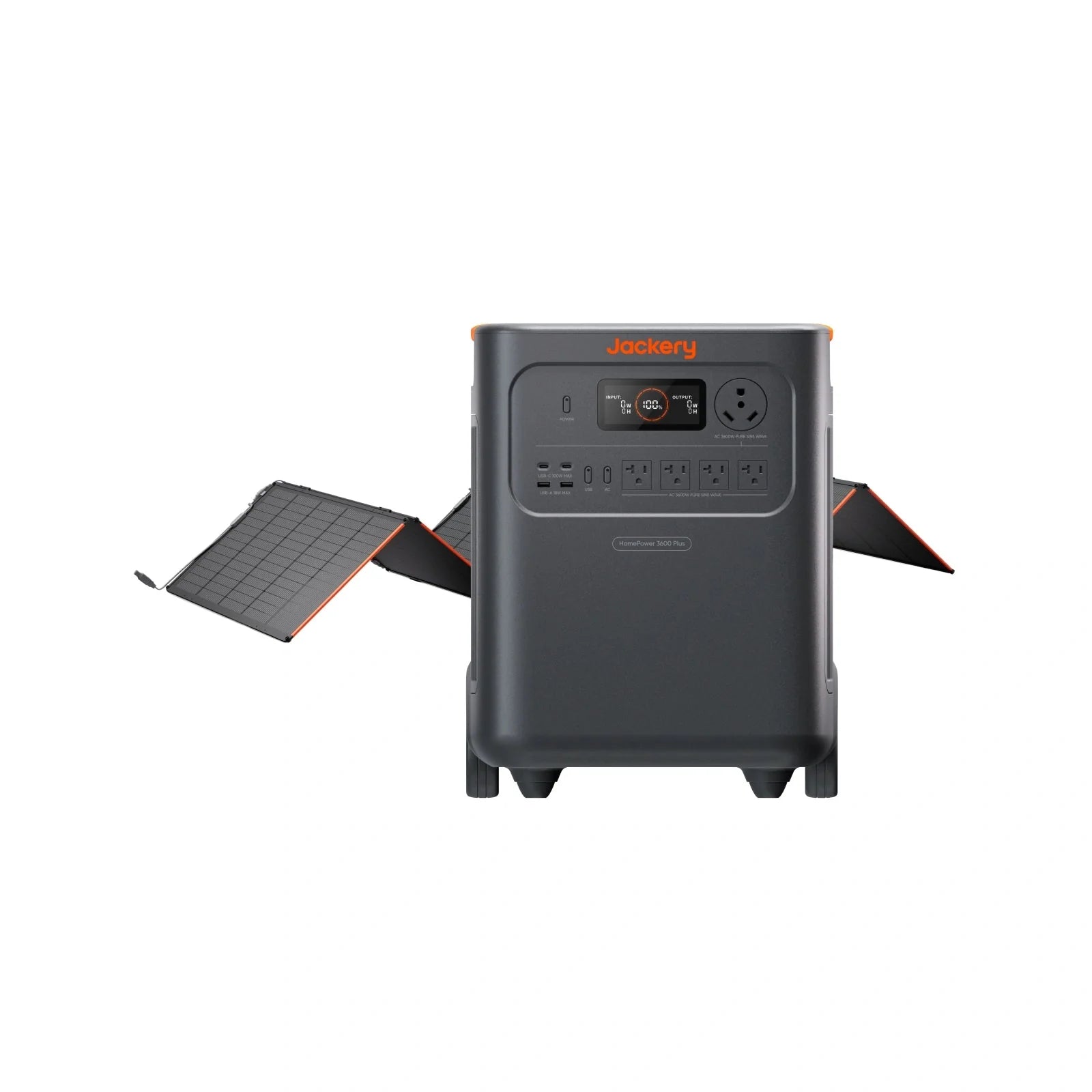

| SolarSaga 500 X | |
| General | |
| Weight | 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg) |
| Protection Class Against Electric Shock | Class II |
| Waterproof | IP68 |
| Operating Temperature Range | -40~185°F (-40~85°C) |
| Warranty | 5 Years |
| Solar | |
| Maximum System Voltage | 600V DC |
| Maximum Reverse Current | 15A |
| Bifaciality Coefficient (back/front) | Pmax≥80%, Voc≥97%, Isc≥80% |
| Voltage Temperature Coefficient | -0.26%/°C |
| Power Temperature Coefficient | -0.32%/°C |
| STC (1000W/㎡, 25°C, AM 1.5) | |
| Peak Power (Pmax) | 500W±5% |
| Open Circuit Voltage (VOC) | 48.5V±5% |
| Short Circuit Current (Isc) | 13.02A±5% |
| Power Voltage (Vmp) | 41.7V±5% |
| Power Current (Imp) | 12.0A±5% |
| BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5) | |
| Peak Power (Pmax) | 545W±5% |
| Open Circuit Voltage (Voc) | 49.2V±5% |
| Short Circuit Current (Isc) | 13.86A±5% |
| Power Voltage (Vmp) | 42.5V±5% |
| Power Current (Imp) | 12.84A±5% |
| Dimensions | |
| Folded | Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm) |
| Unfolded | Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm) |
