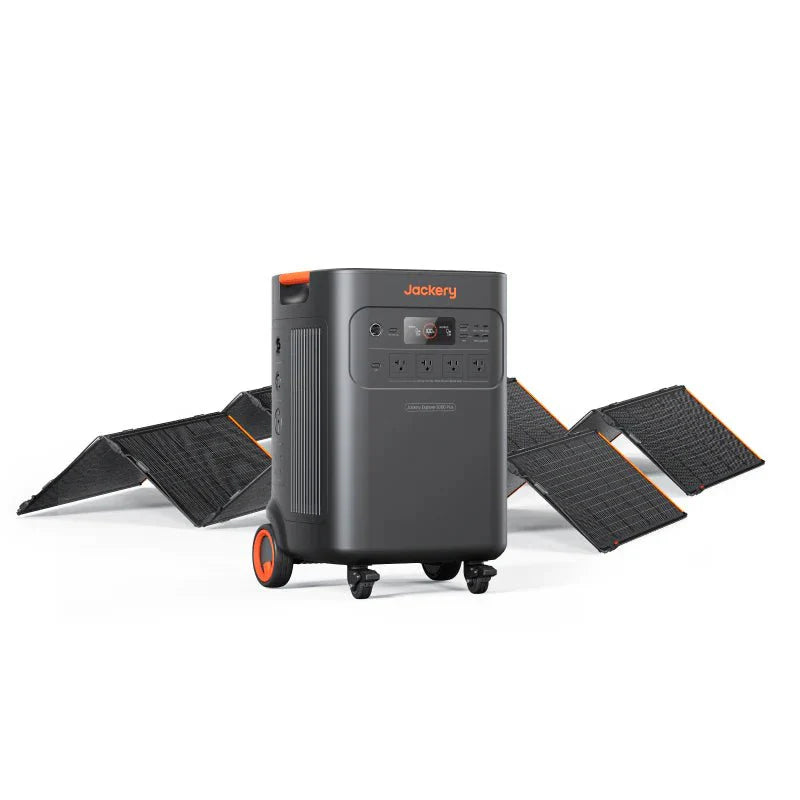

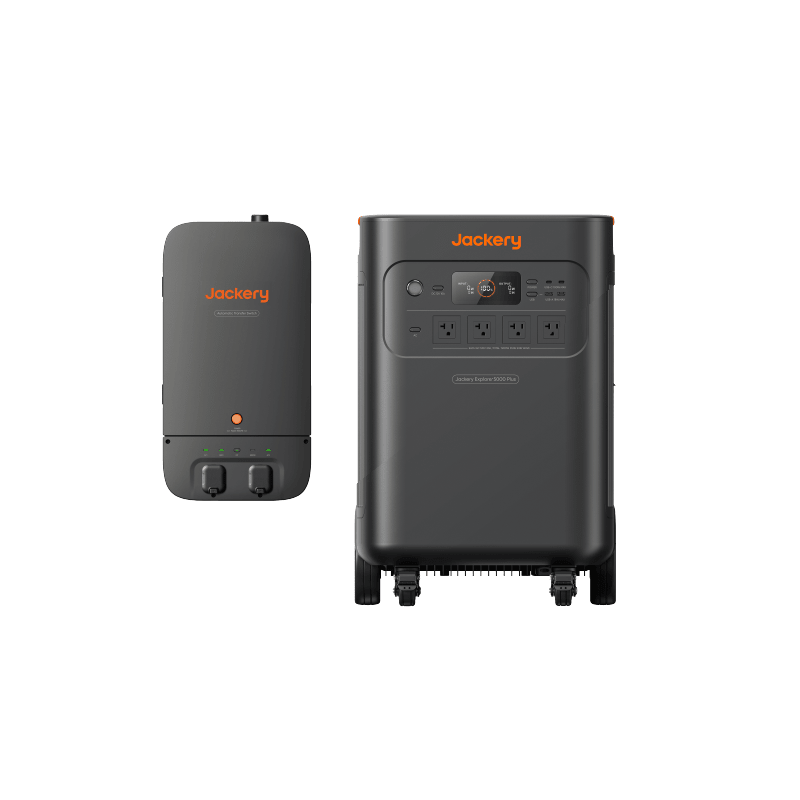

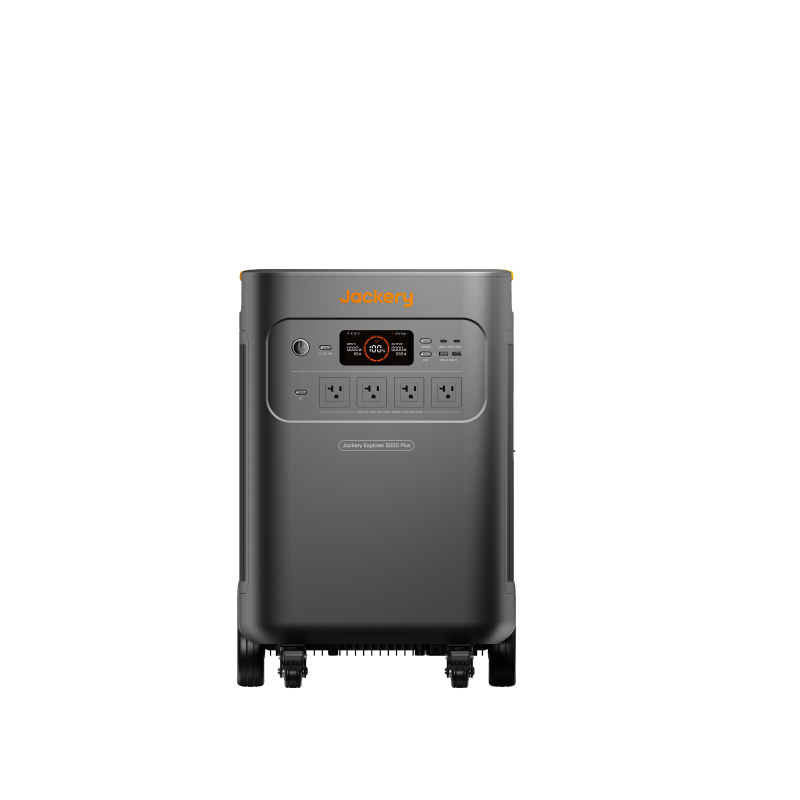

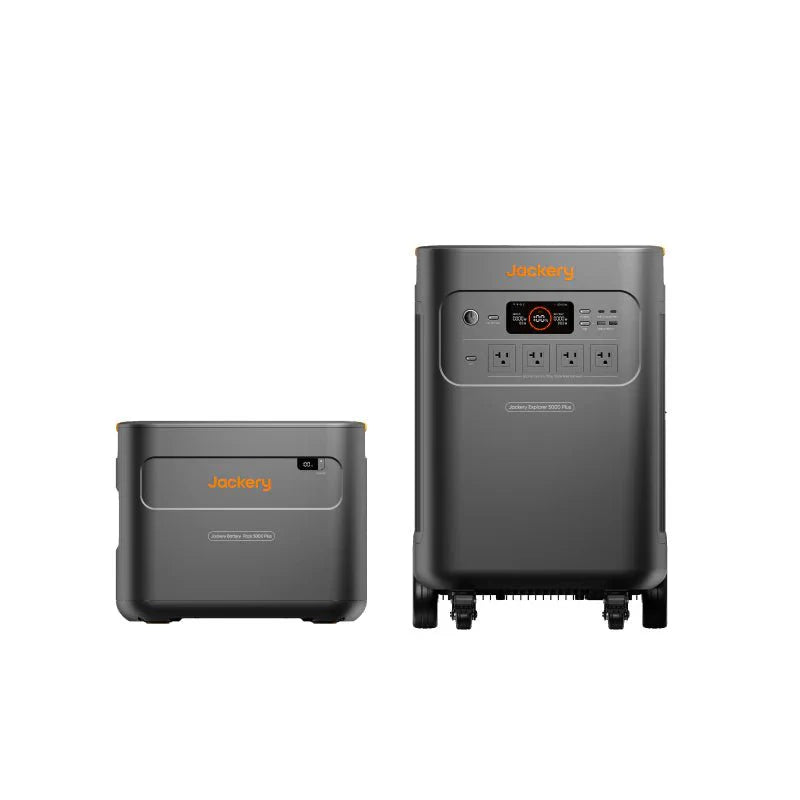

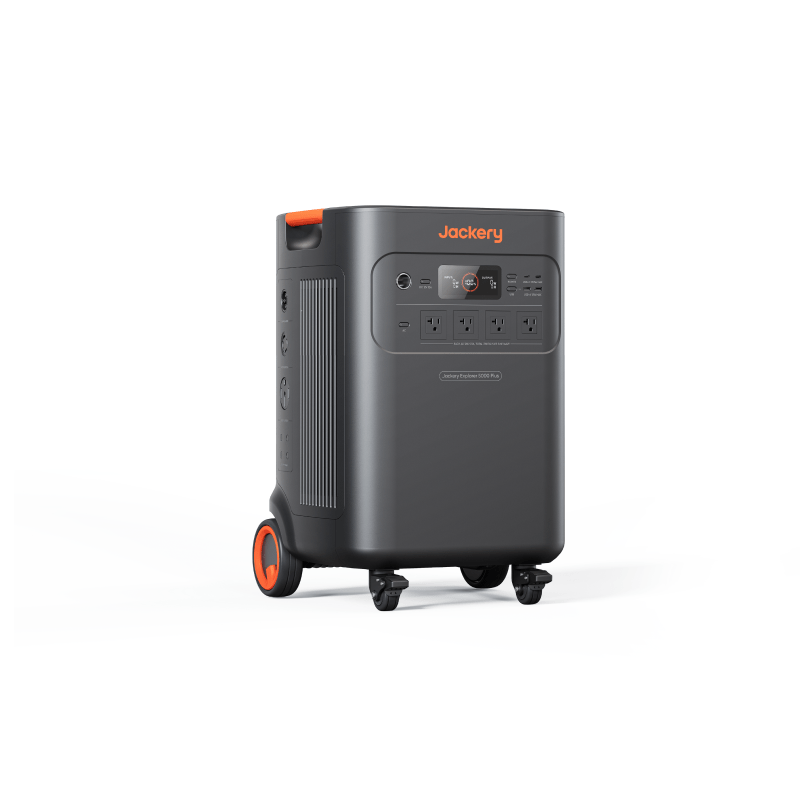

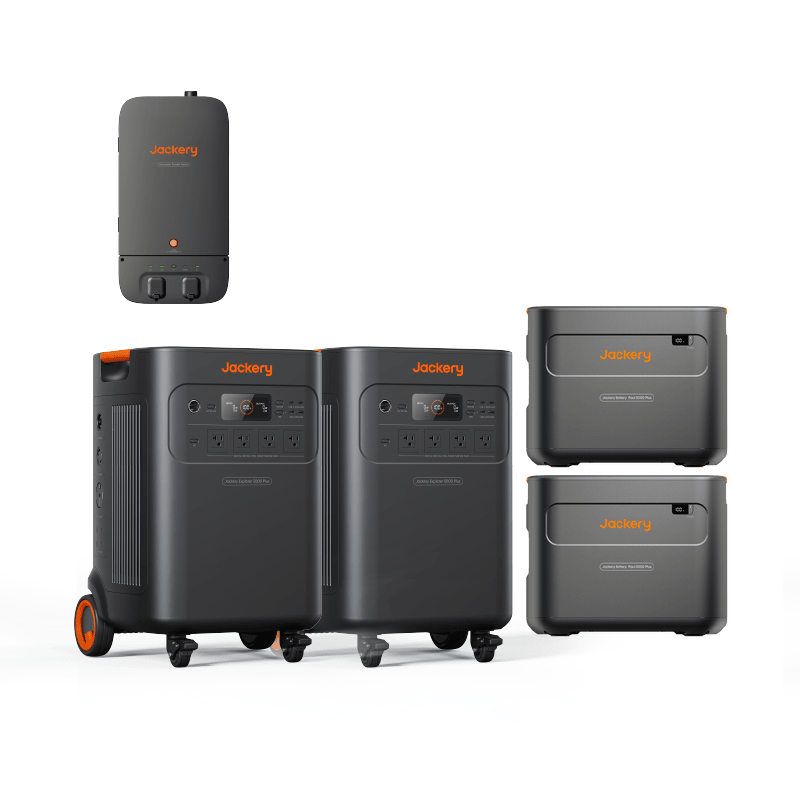

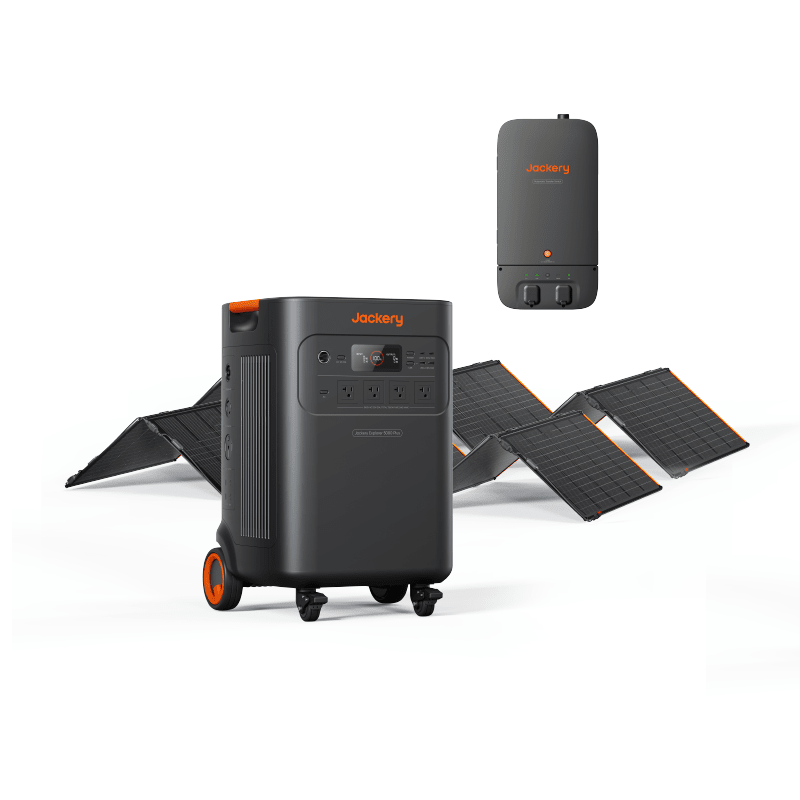

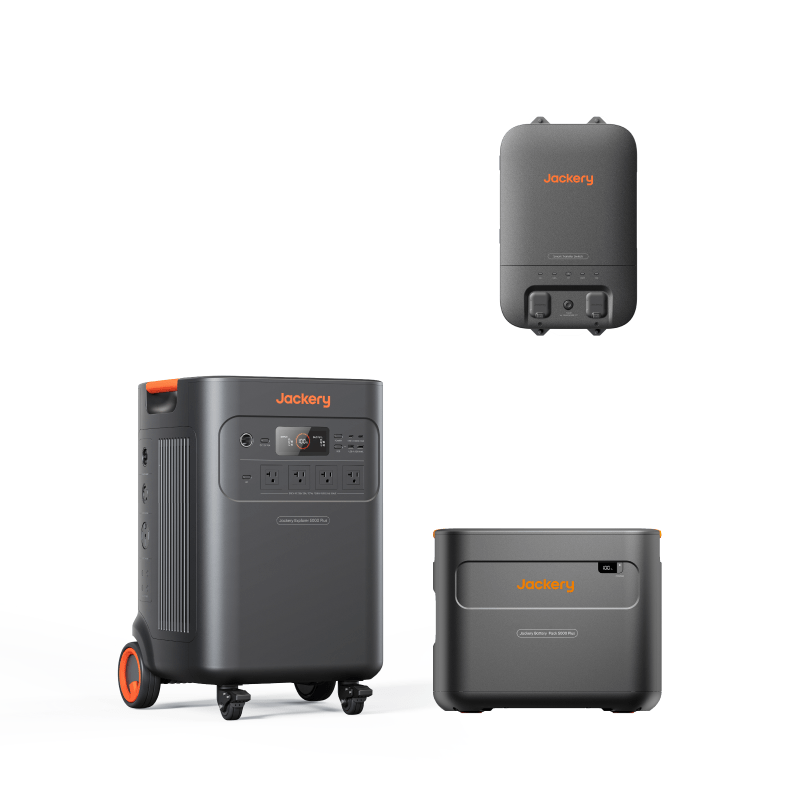

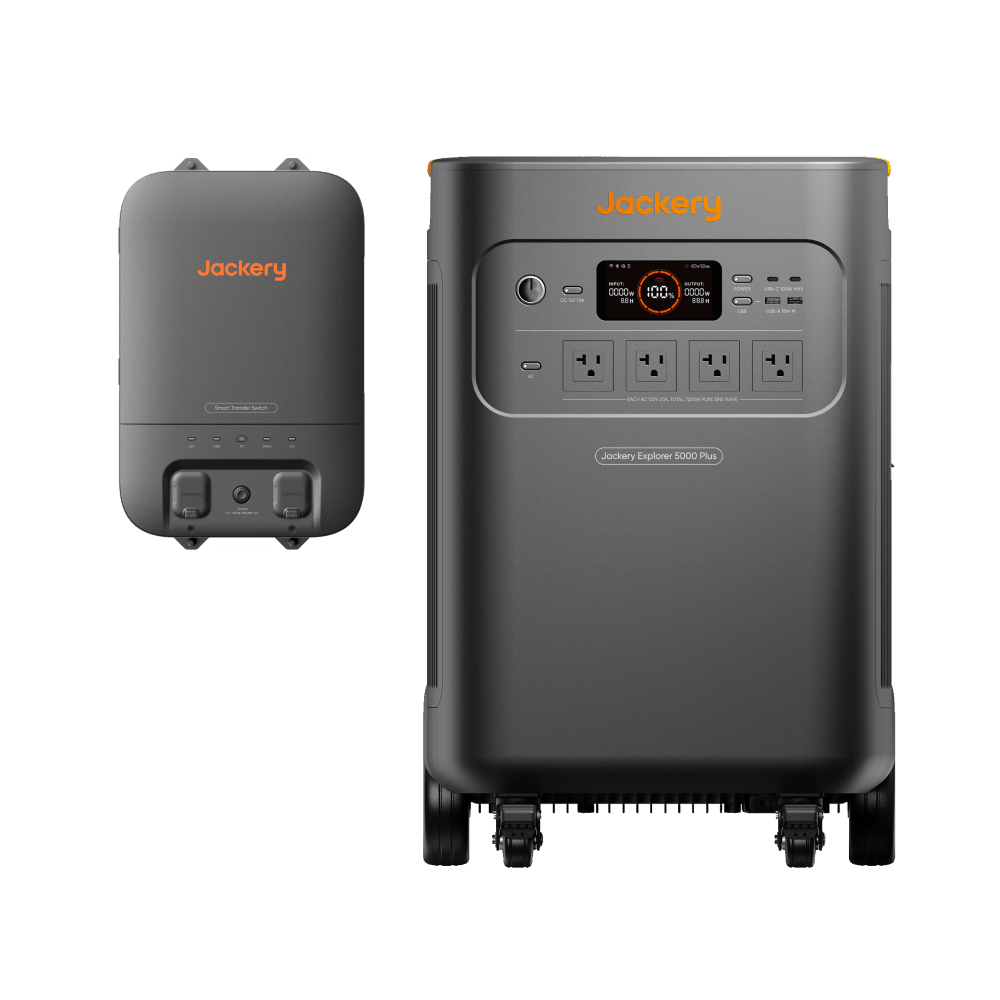

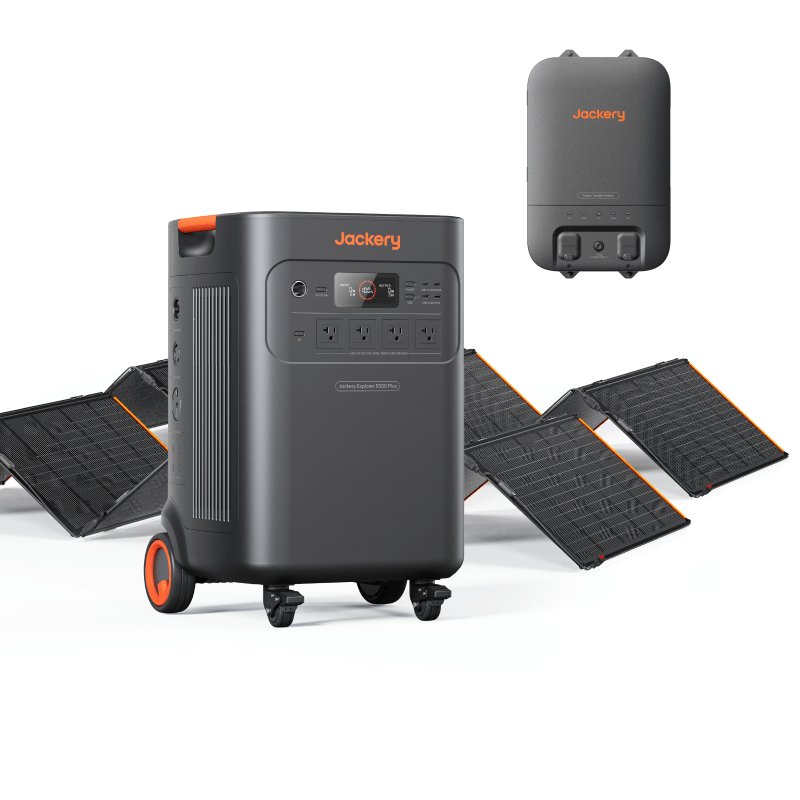

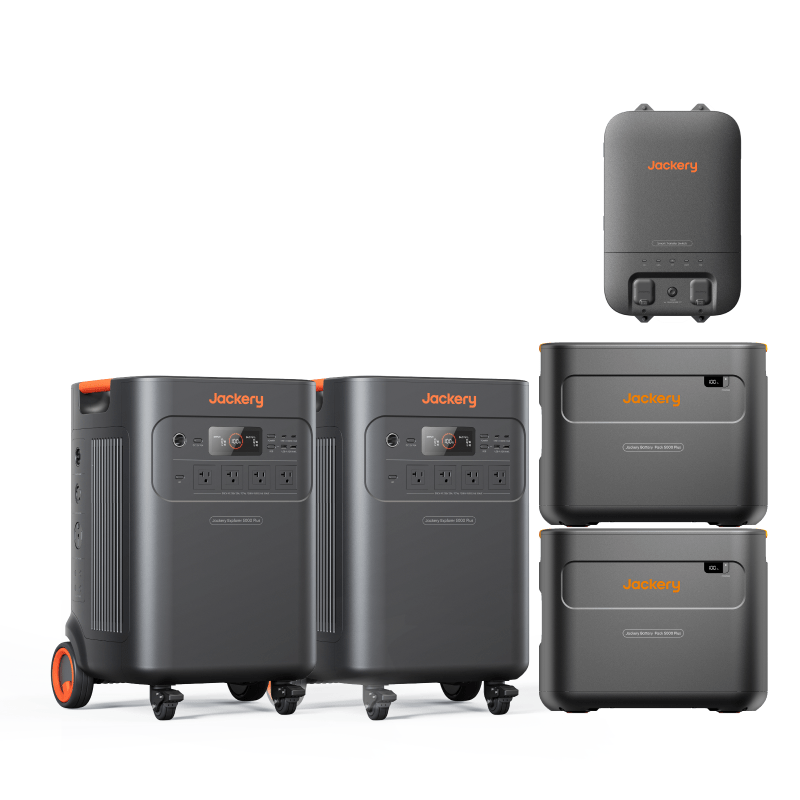

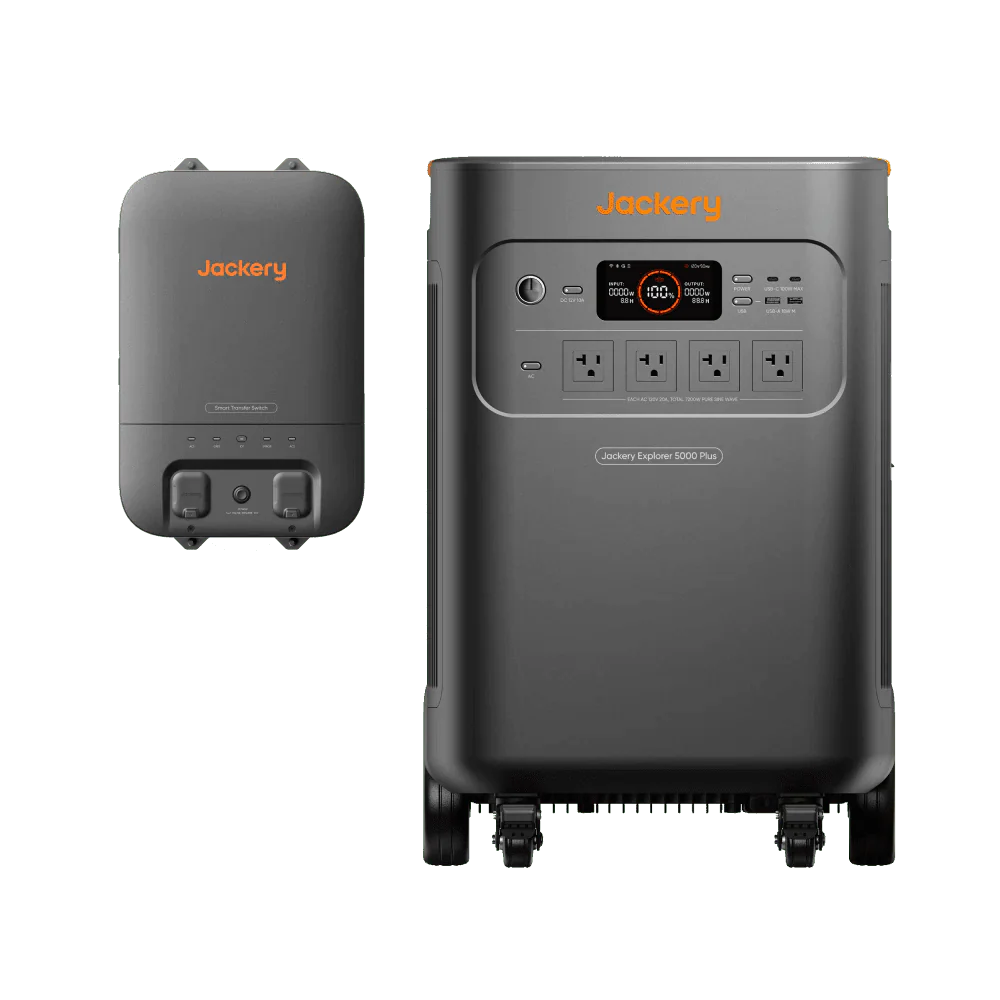

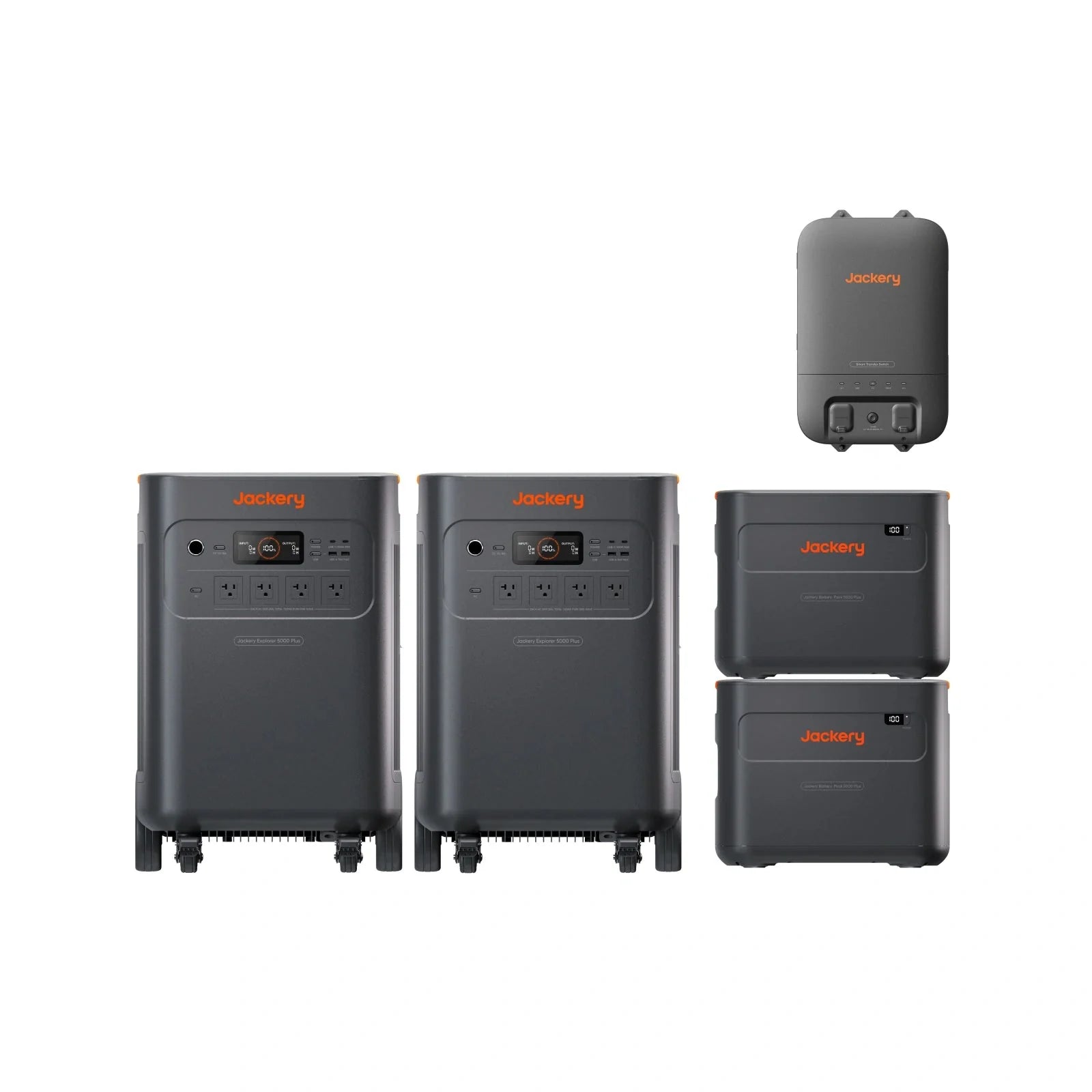

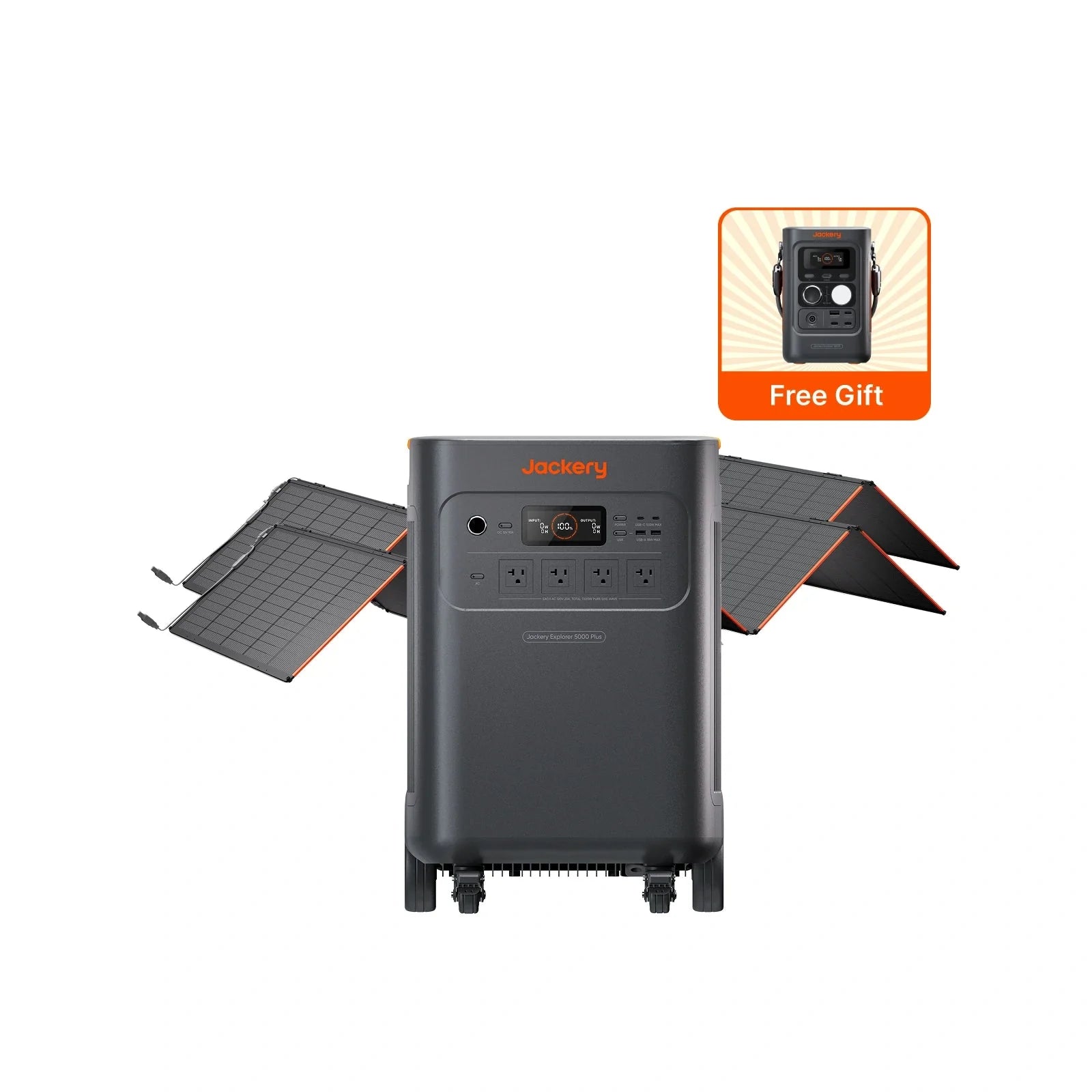

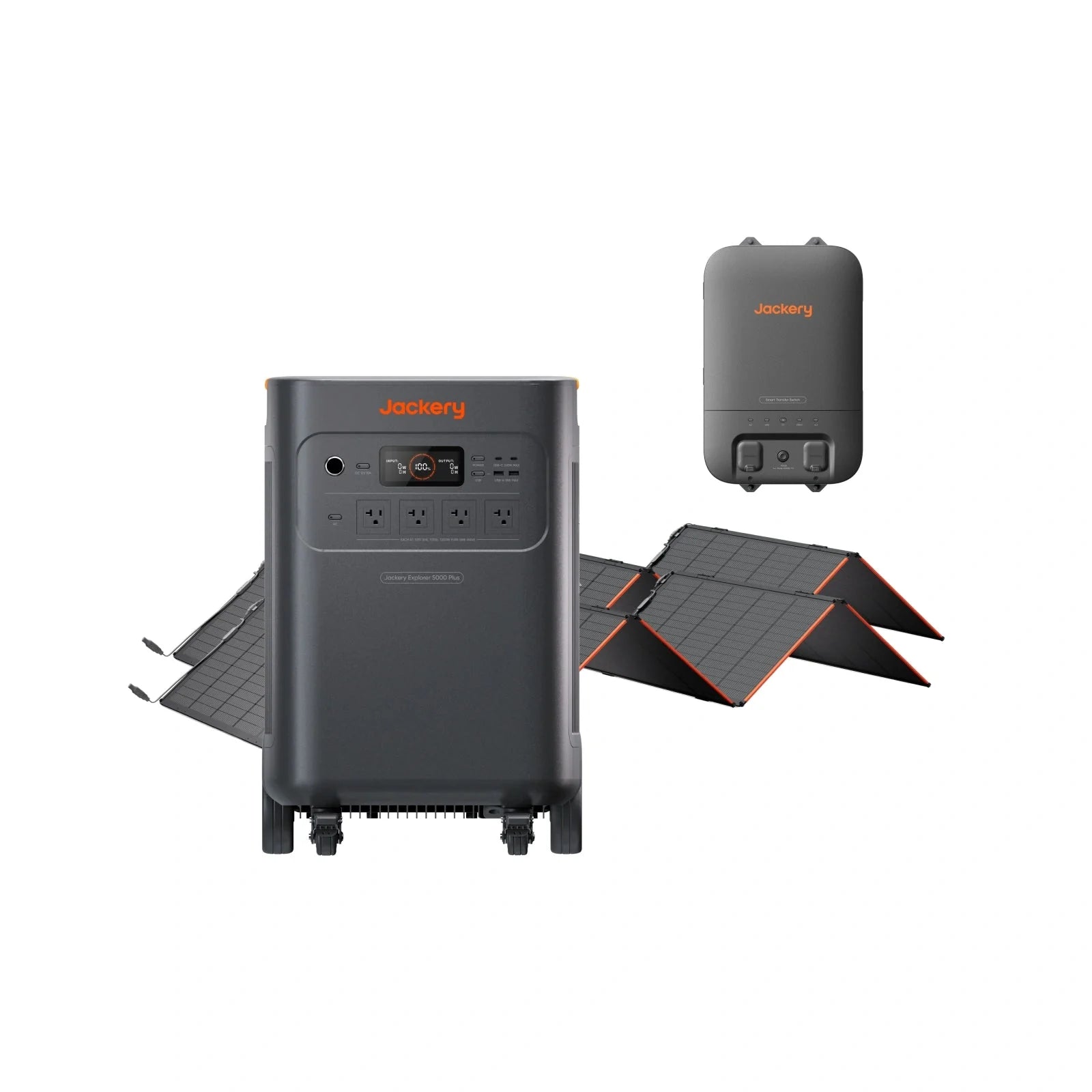

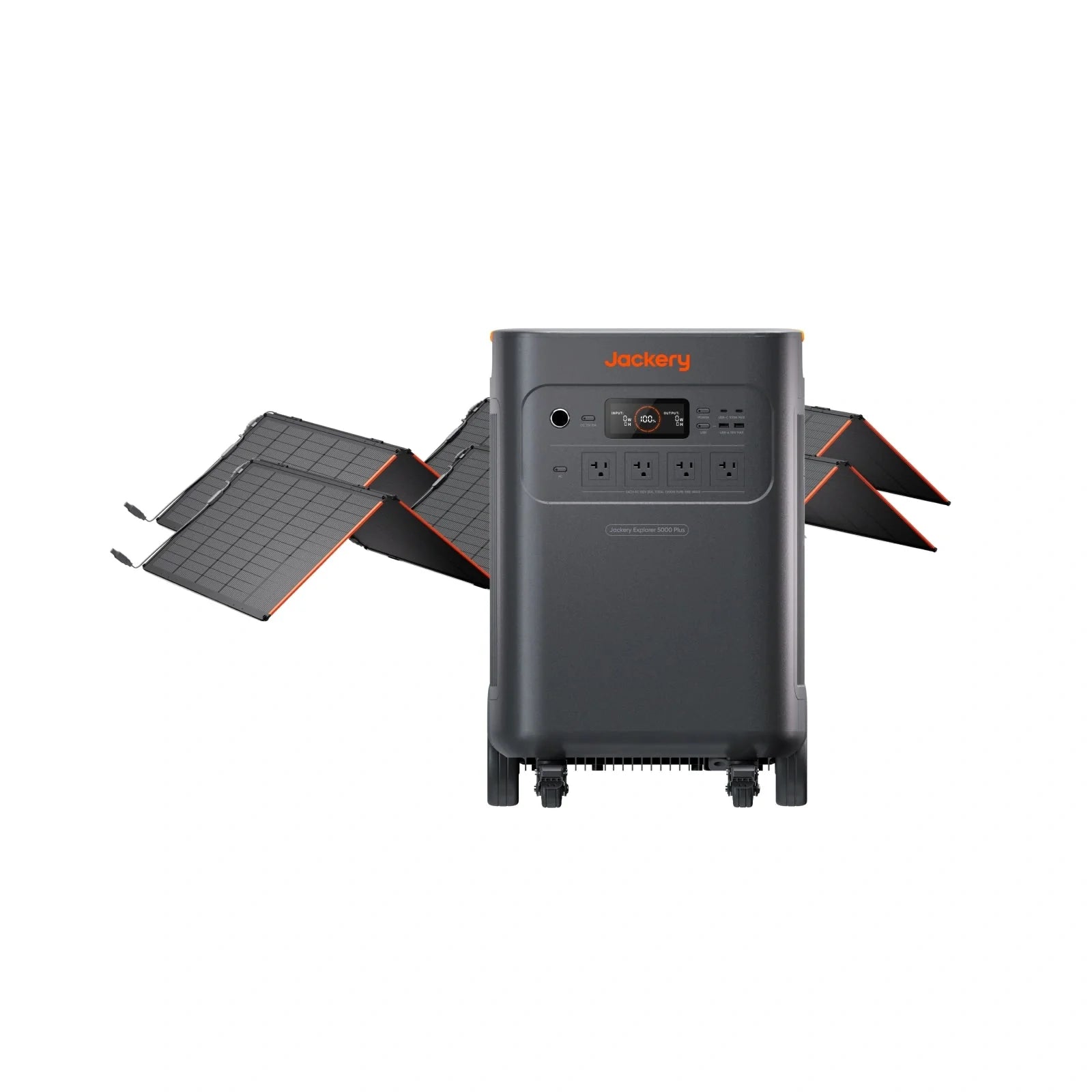

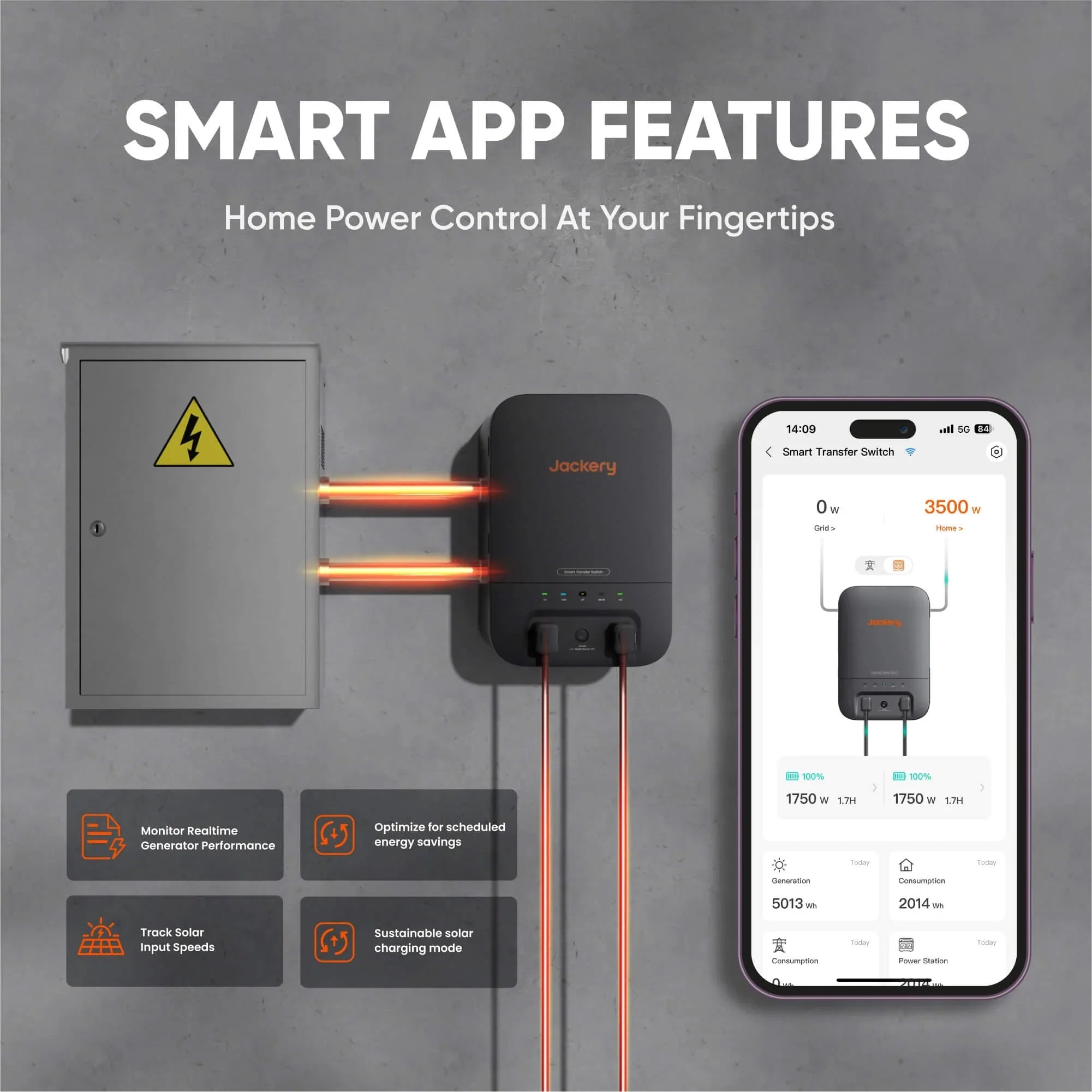

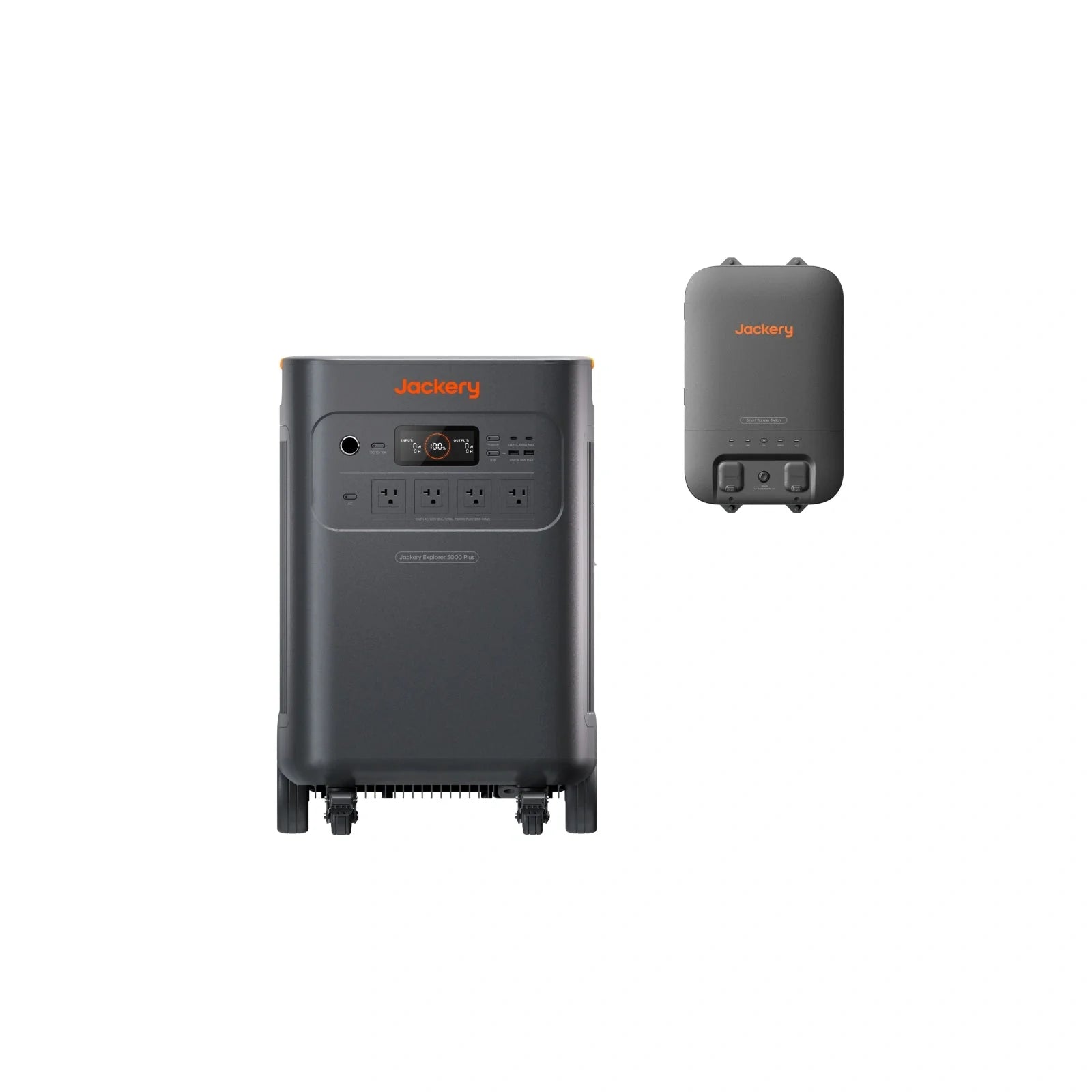

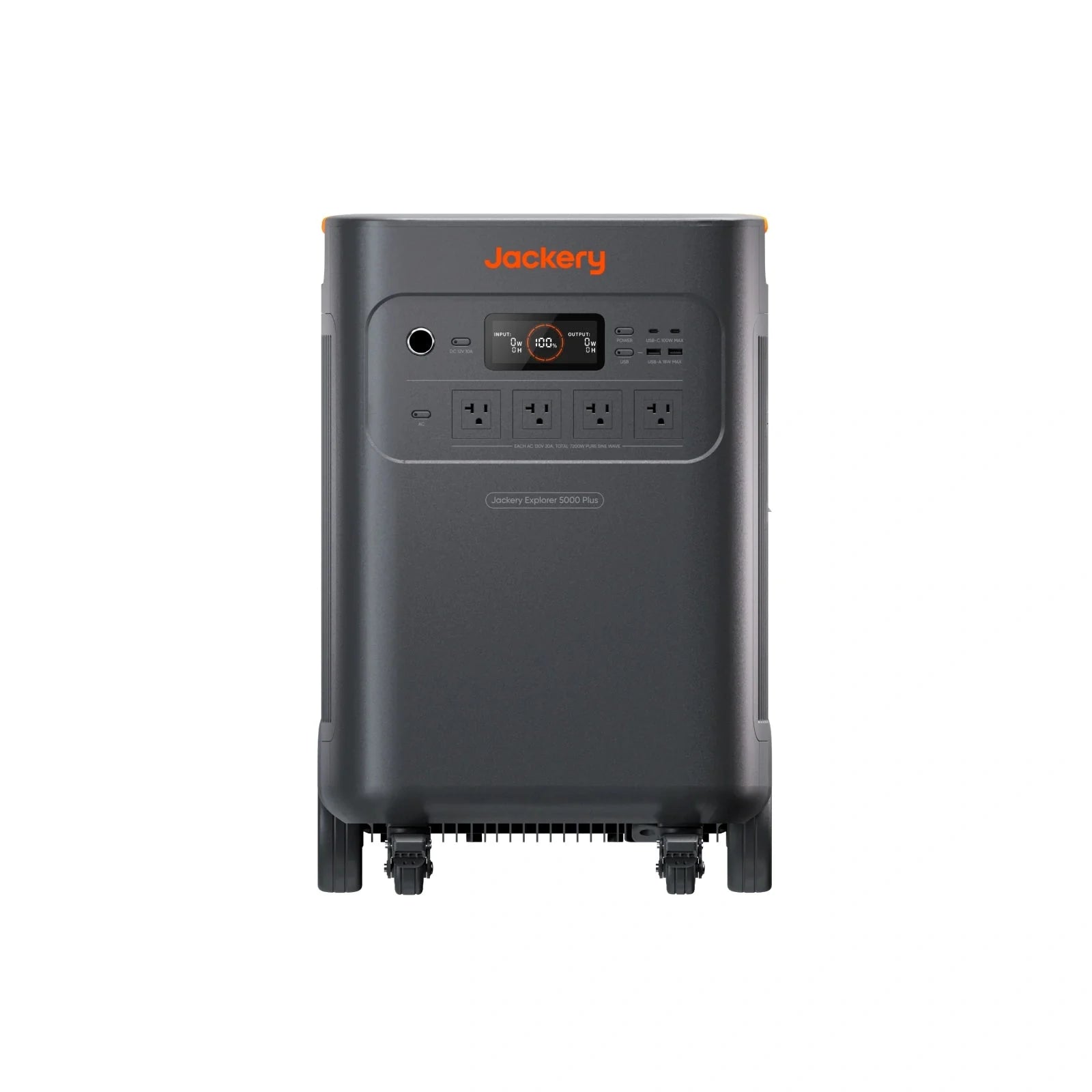

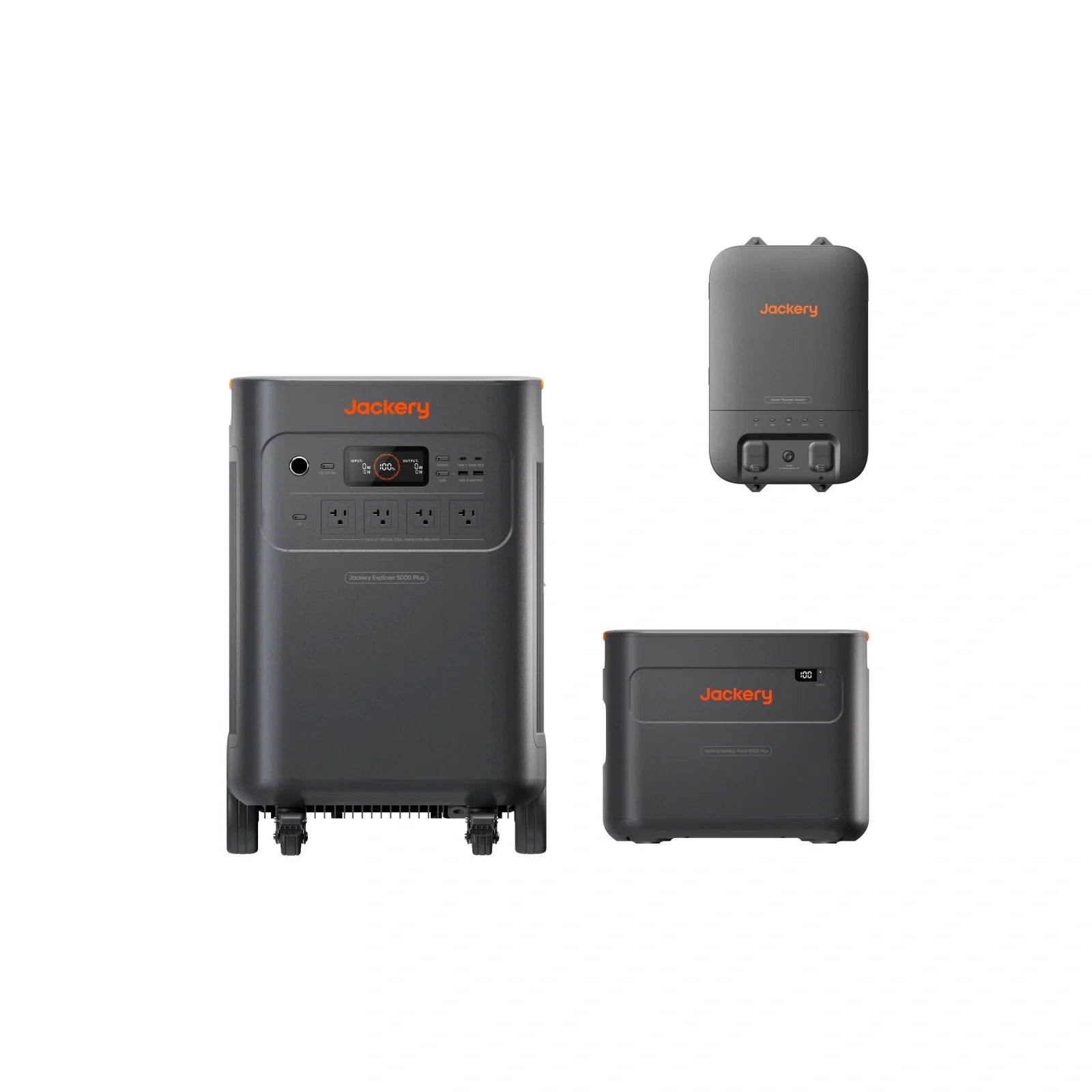

Built to handle even the biggest appliances, the Jackery Explorer 5000 Plus delivers 7200W of rated power (14,400W surge) with 120V/240V dual voltage support, running everything from a 5-ton AC unit to a water heater with ease. Its 5040Wh capacity is expandable up to 60kWh, providing reliable backup for up to 13 days during extended outages, while compatibility with both high- and low-voltage solar panels lets you recharge in about 2 hours with up to 4000W of solar input. Pair it with the Jackery 60A Smart Transfer Switch to protect up to 12 circuits at 120V or 6 circuits at 240V, and rest easy knowing true 0ms UPS switching keeps computers and critical devices running without interruption. Built with durable LiFePO₄ battery cells and ChargeShield™ 2.0 protection, it offers up to 11 years of dependable performance — at less than $1 a day for long-term peace of mind.
| Explorer 5000 Plus | |
|---|---|
| Battery | |
| Capacity | 45Ah/112V DC (5040 Wh) |

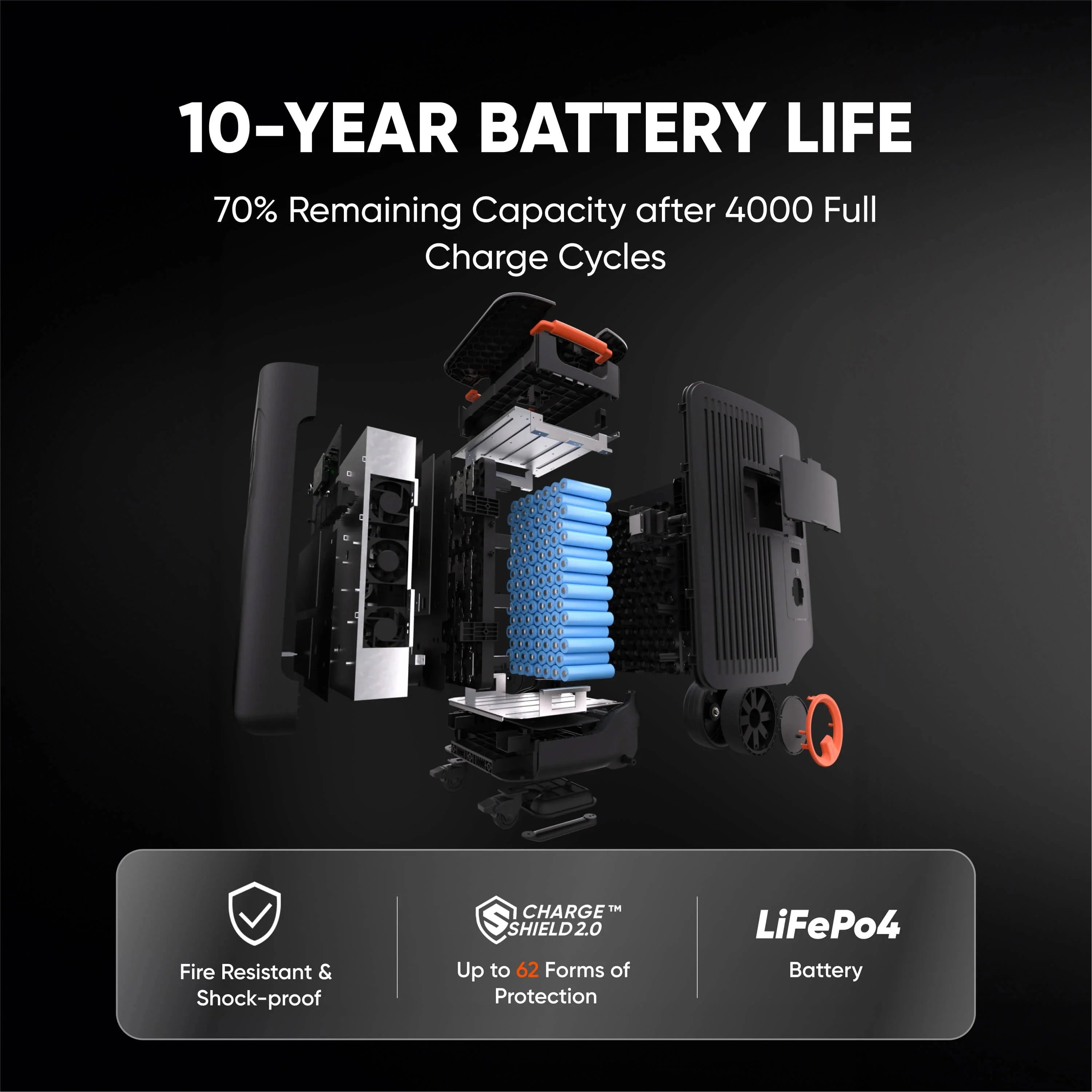

| Cell Chemistry | LiFePO4 |
| Cycle life | 4000 cycles to 70%+ capacity |
| General | |
| Weight | About 134.5 lbs (61 kg) |
| Dimensions | 16.5×15.5×25 in / 41.8×39.5×63.5 cm |
| Charge Temperature | 32~113 °F (0~45°C) |
| Discharge Temperature | 5~113°F (-15~45°C) |
| Warranty | 5 Years |
| Output Ports | |
| AC Output | (4x) 120V, 20A, 2400W (1x) NEMA L14-30R/14-50: 120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output | 7200W Max, 14400W Surge |
| USB-C Output | (2x) 100W Max, 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A |
| USB-A Output | (2x) 18W Max, 5-6V=3A, 6-9V=2A, 9-12V=1.5A |
| Cigarette Lighter Port | 12V=10A |
| AC Expansion Port | 240V~60Hz, 30A, 7200W |
| DC Expansion Port | 80.5V-126V=41A Max |
| Input Ports | |
| Charge Mode AC Input | 120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output | 120V~60Hz, 12A Max; 240V~60Hz, 16.7A Max |
| AC Expansion Port (Input) | 240V~60Hz, 16.7A Max |
| DC Input | DC Expansion Port (Input): 80.5V-126V=98A Max |
| High-PV | 135V-450V=15A Max |
| Low-PV | (2x) DC 8mm Ports; 16V-60V=10.5A Max, Double to 21A/1200W Max; 11V-16V (Working Voltage)=8A Max, Double to 8A Max |
| Charging Time | |
| AC Adapter | 3.5 Hours |
| Car Adapter | NO |
| Other Specifications | |
| UPS | Backup UPS: <20ms, Online UPS: 0ms |
| Inverter Topology | Non-isolated |
| Power Factor | ≥0.98 |
| Entire Unit | Type 1 |
