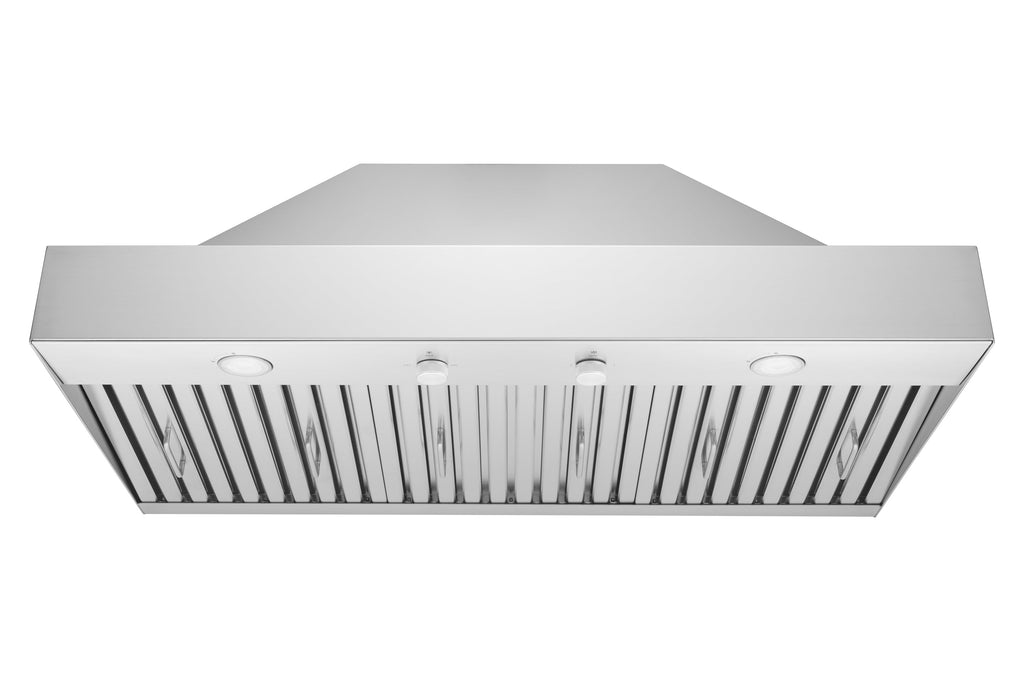

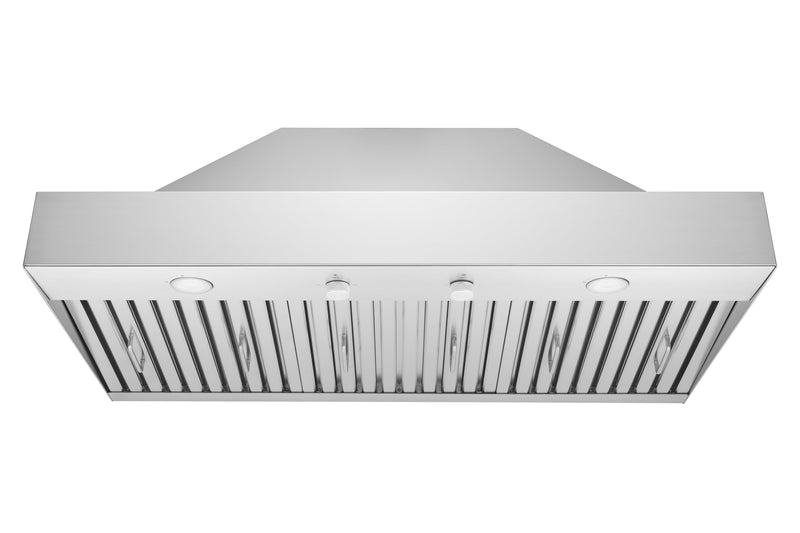

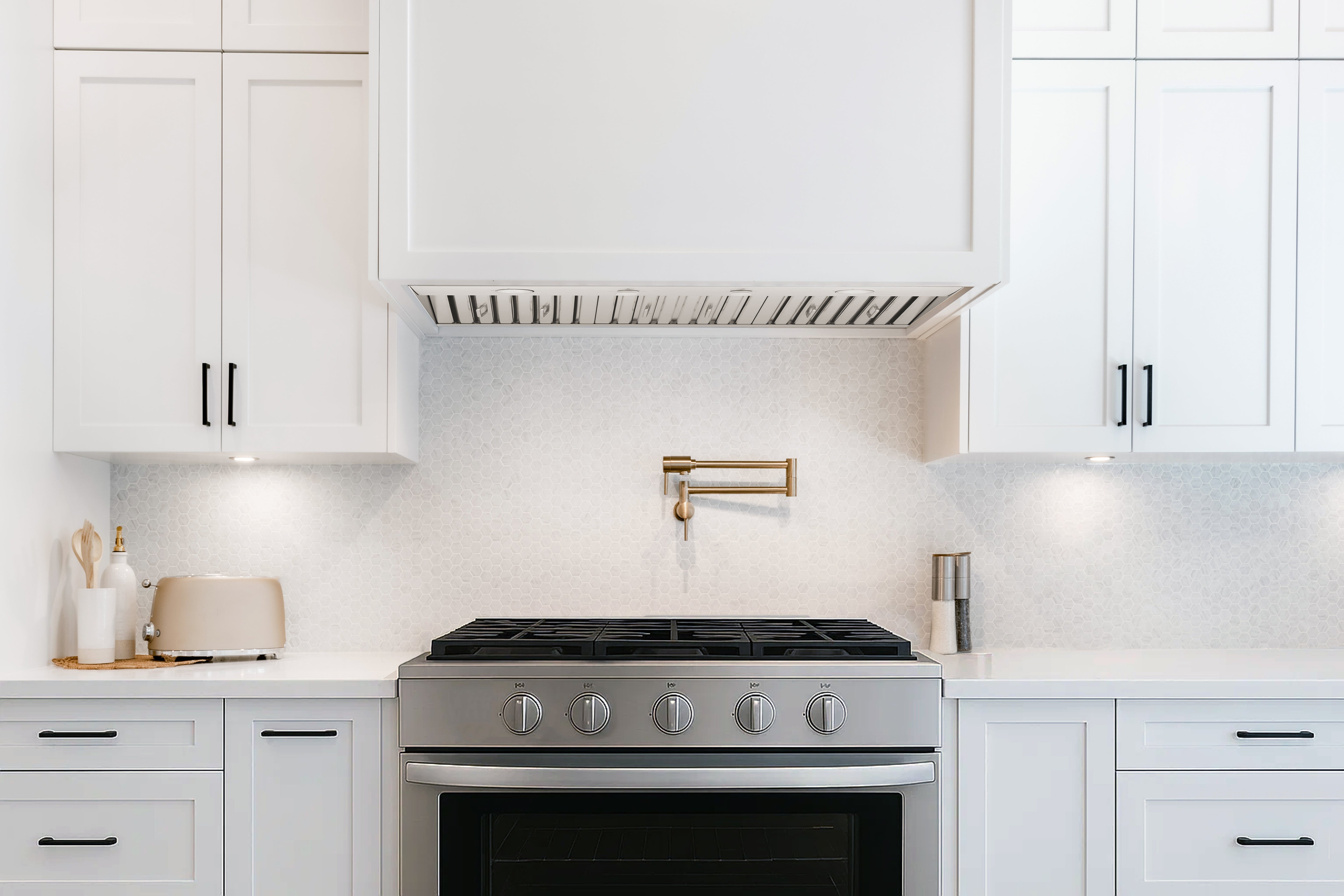

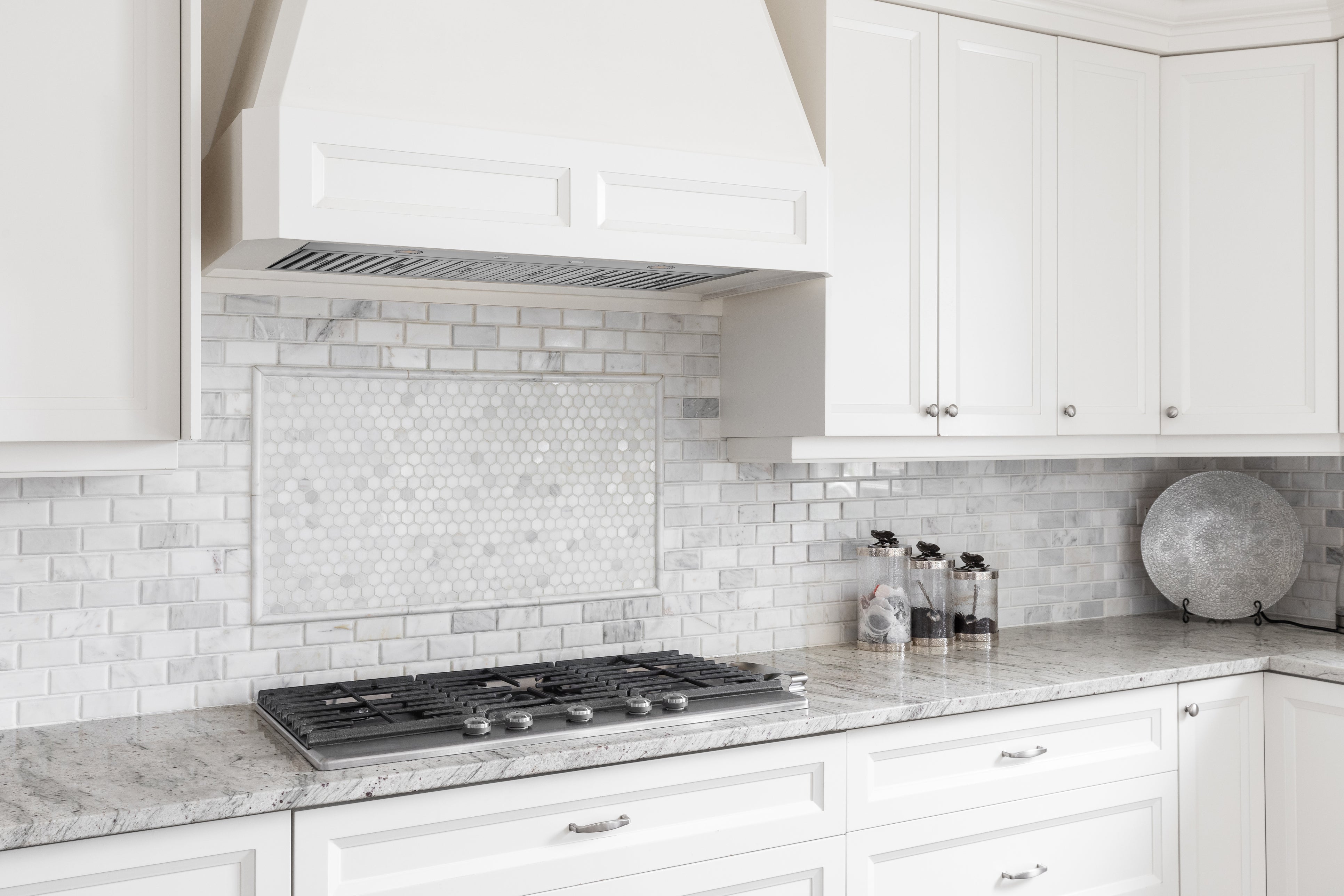

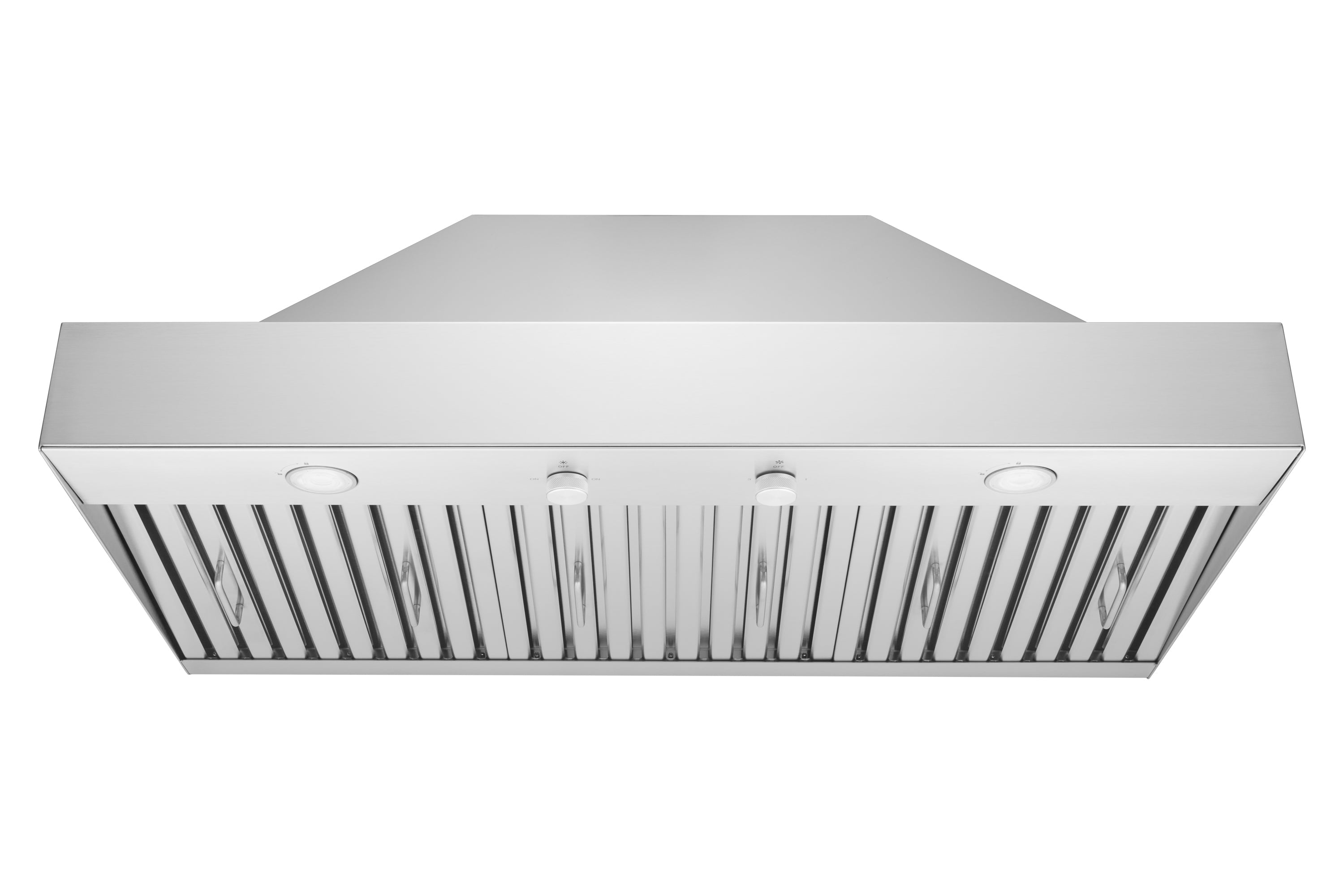

This insert was engineered to disappear into your custom cabinet opening with true flush-mount precision. No visible lips, gaps, or awkward transitions that scream "afterthought."
The IN-R230's uniquely designed duct system and efficient motor deliver professional-grade ventilation at conversation-friendly noise levels. You can chat with dinner guests, listen to music, or actually hear the sizzle of your perfectly seared salmon while your range hood works in the background.

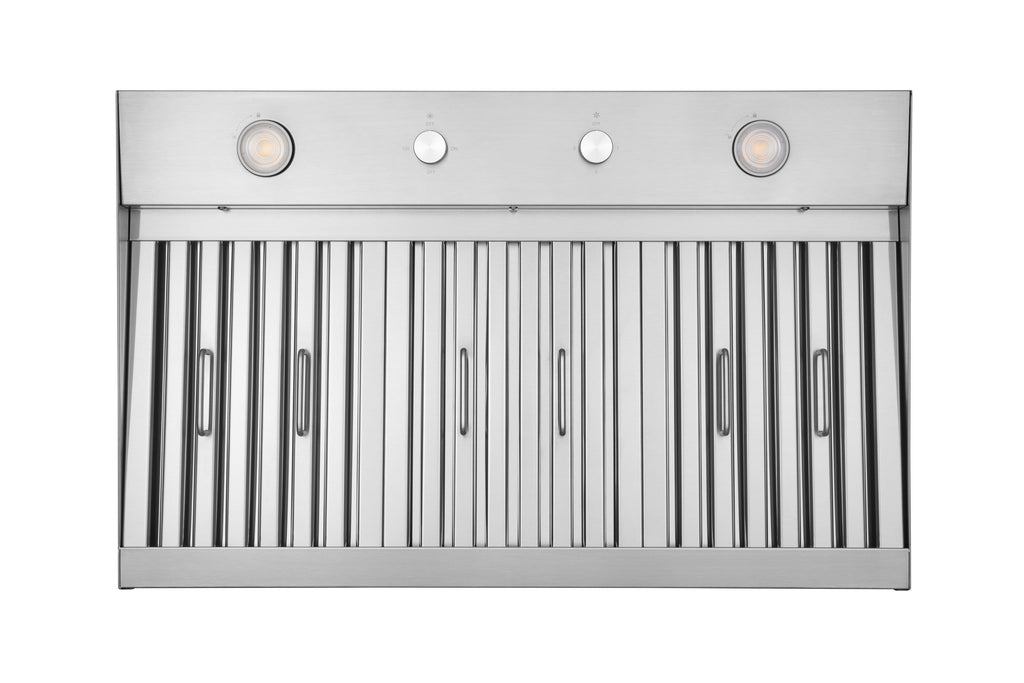

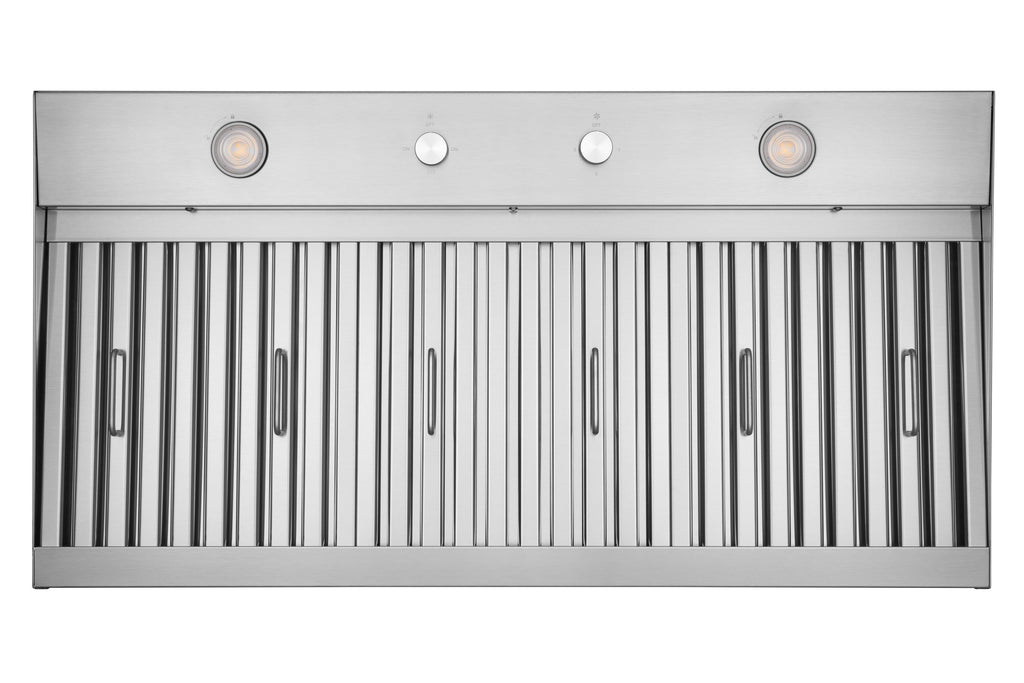

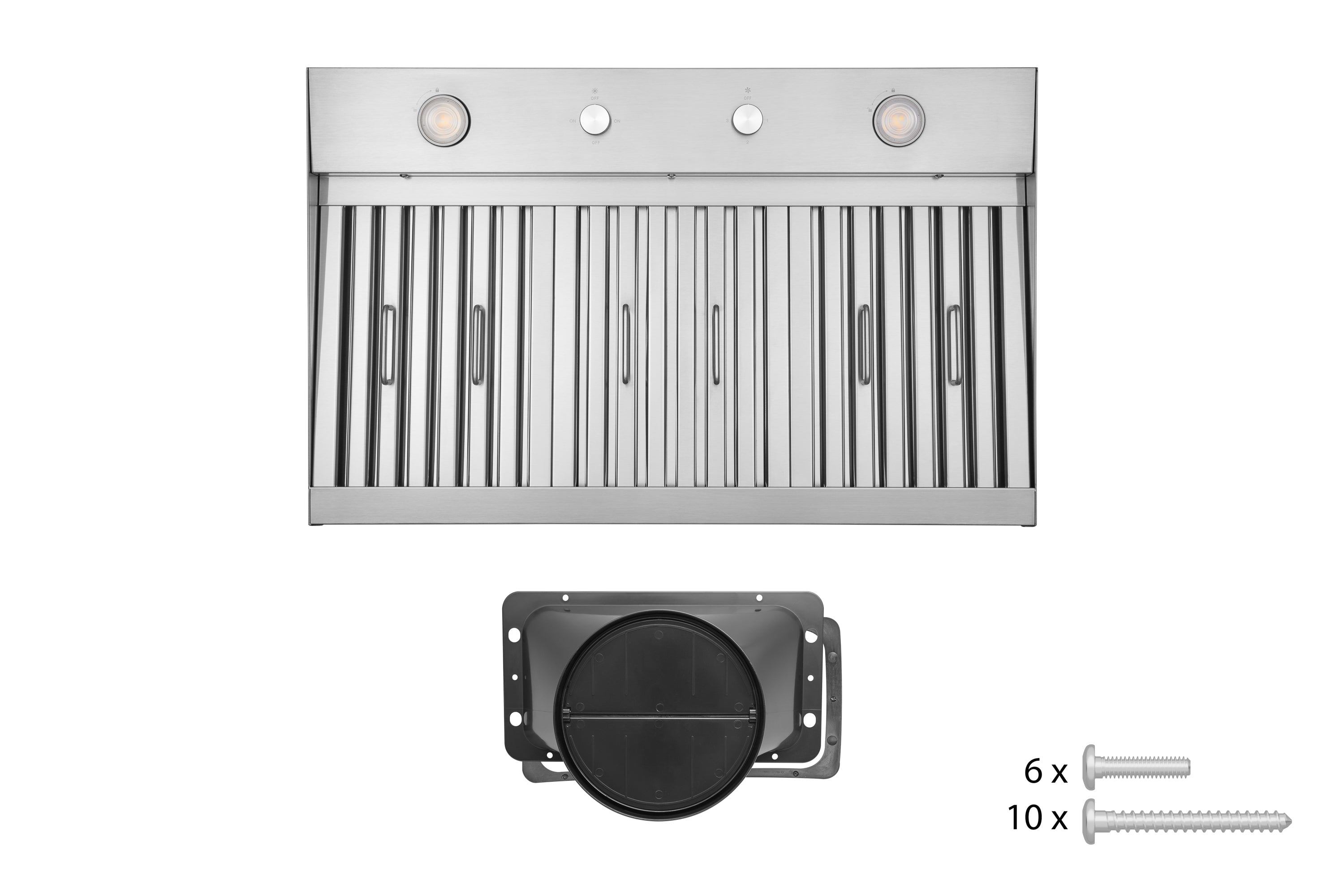

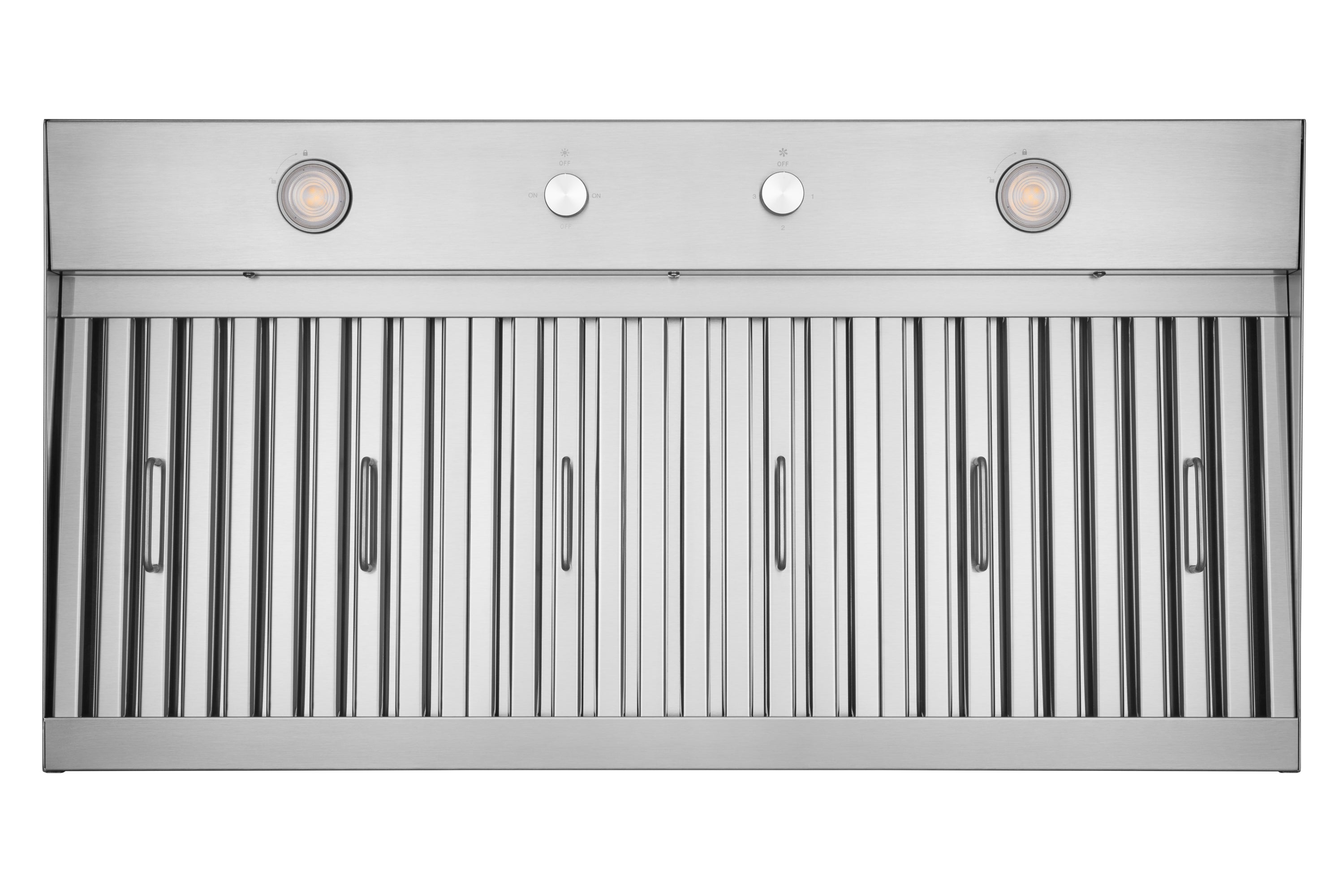

Easy-clean baffle filters come with full-size handles that actually make sense. No more wrestling with tiny tabs or playing hot potato with greasy filters. When it's time for cleaning, just slide them out and into the dishwasher they go.
| DIMENSIONS | |
|---|---|

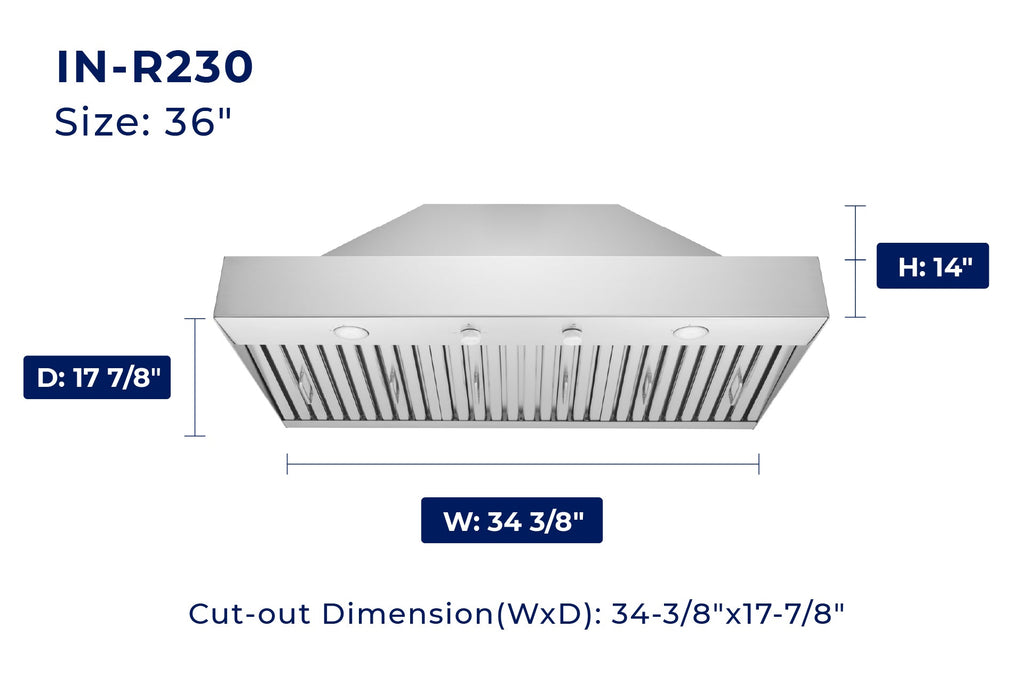

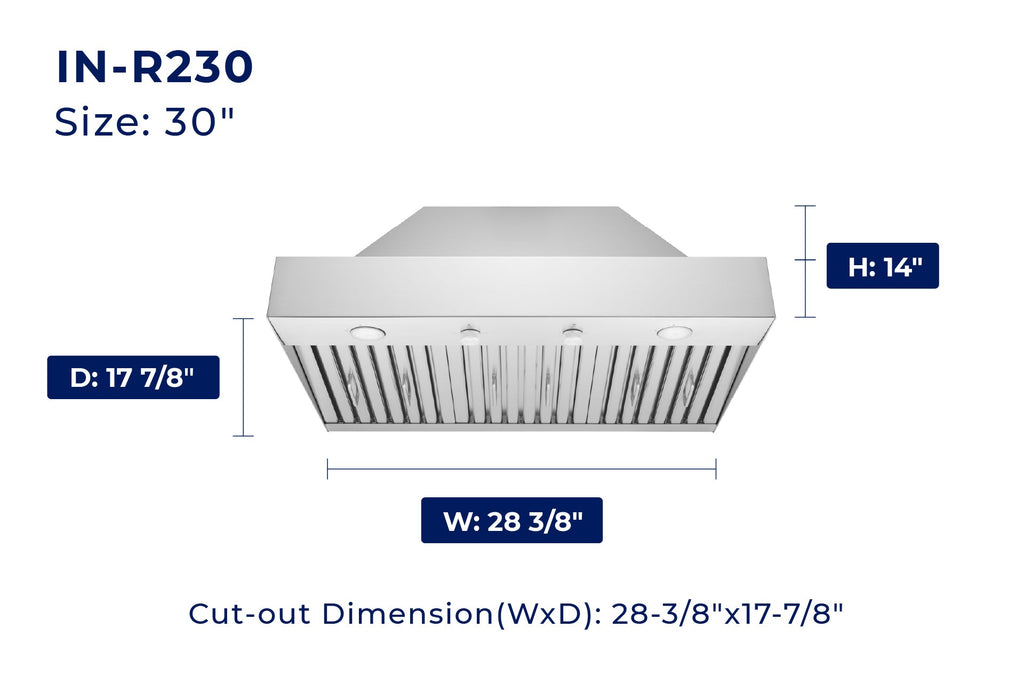

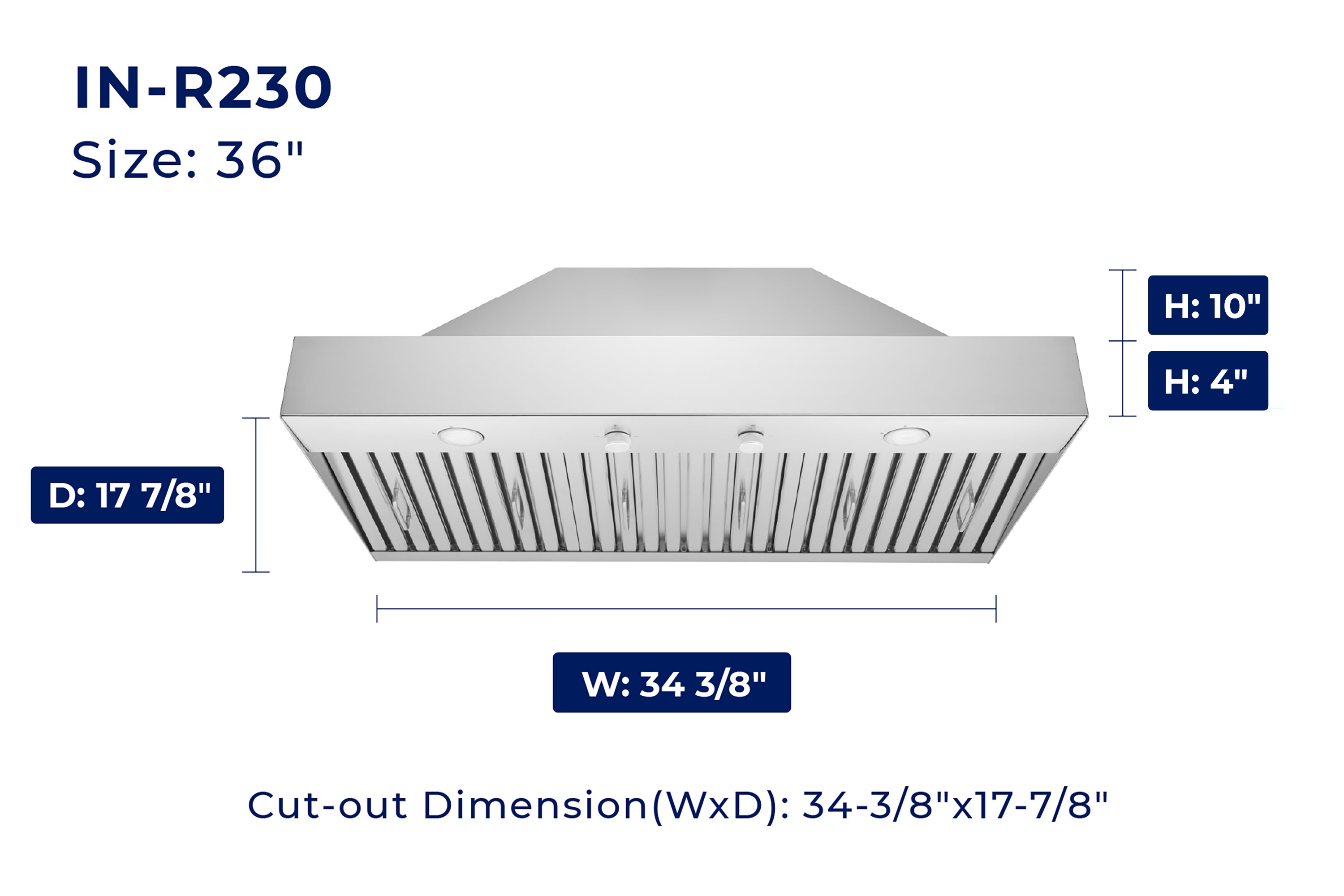

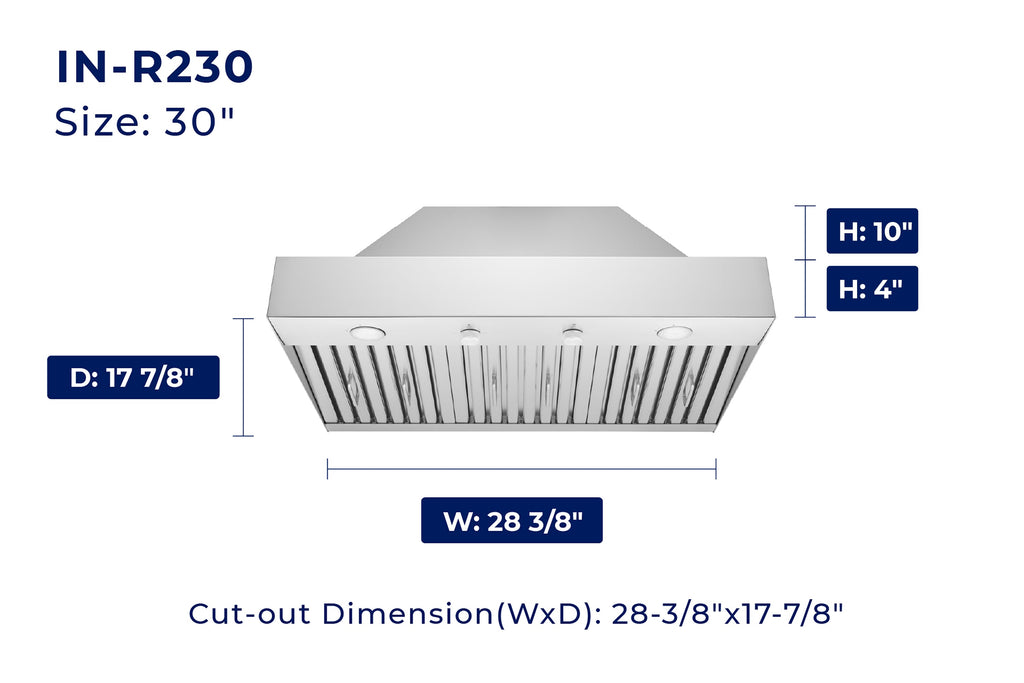

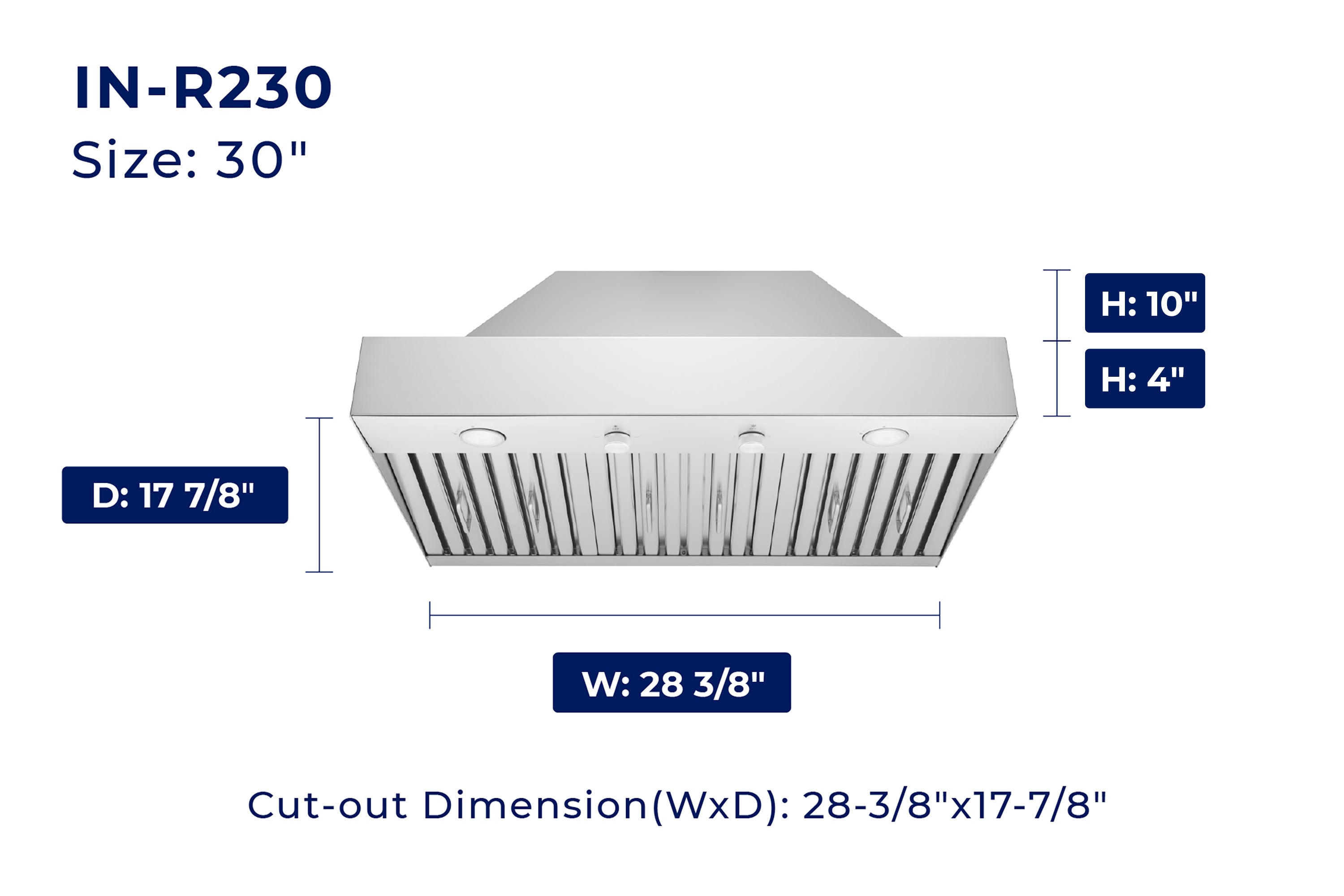

| Dimensions (WxDxH) | 30": 28-3/8" x 17-7/8" x 14" 36": 34-3/8" x 17-7/8" x 14" |
| Gross Weight (Lbs.) | 30": 41 | 36": 46 |
| Net Weight (Lbs.) | 30": 34 | 36": 38 |
| GENERAL INFORMATION | |
| Style | Built-in / Insert |
| Recirculating | Yes (Charcoal Filters Needed) |
| Cooking Style | Heavy-Duty |
| Top Venting | 6" Round |
| Rear Venting | No |
| DESIGN & FINISH | |
| Light Color Temp. | Warm / 3000 Kelvin |

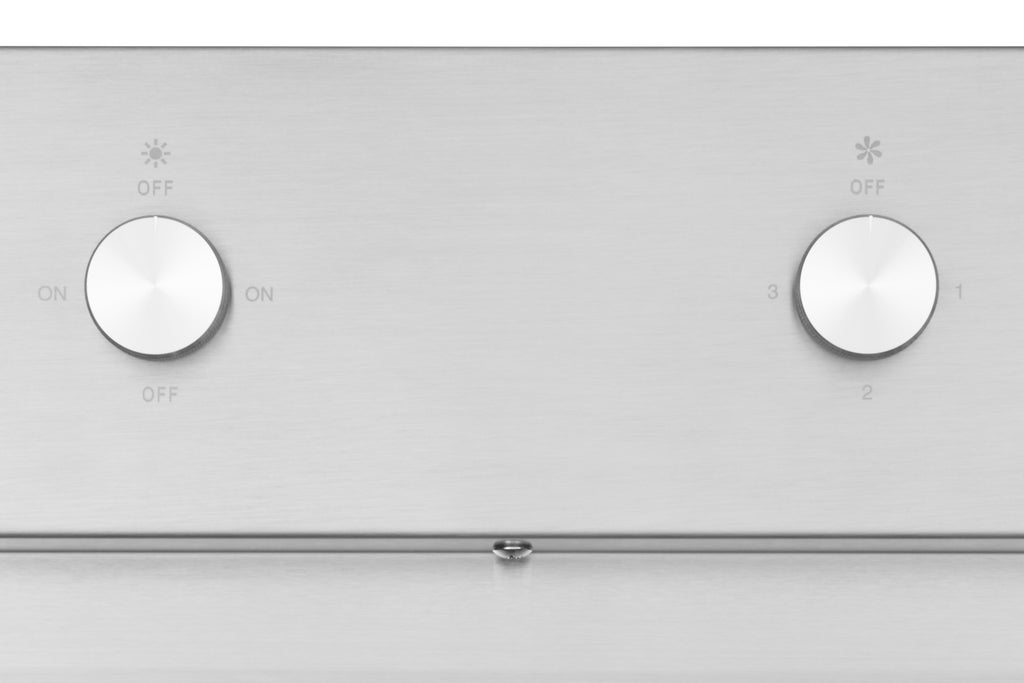

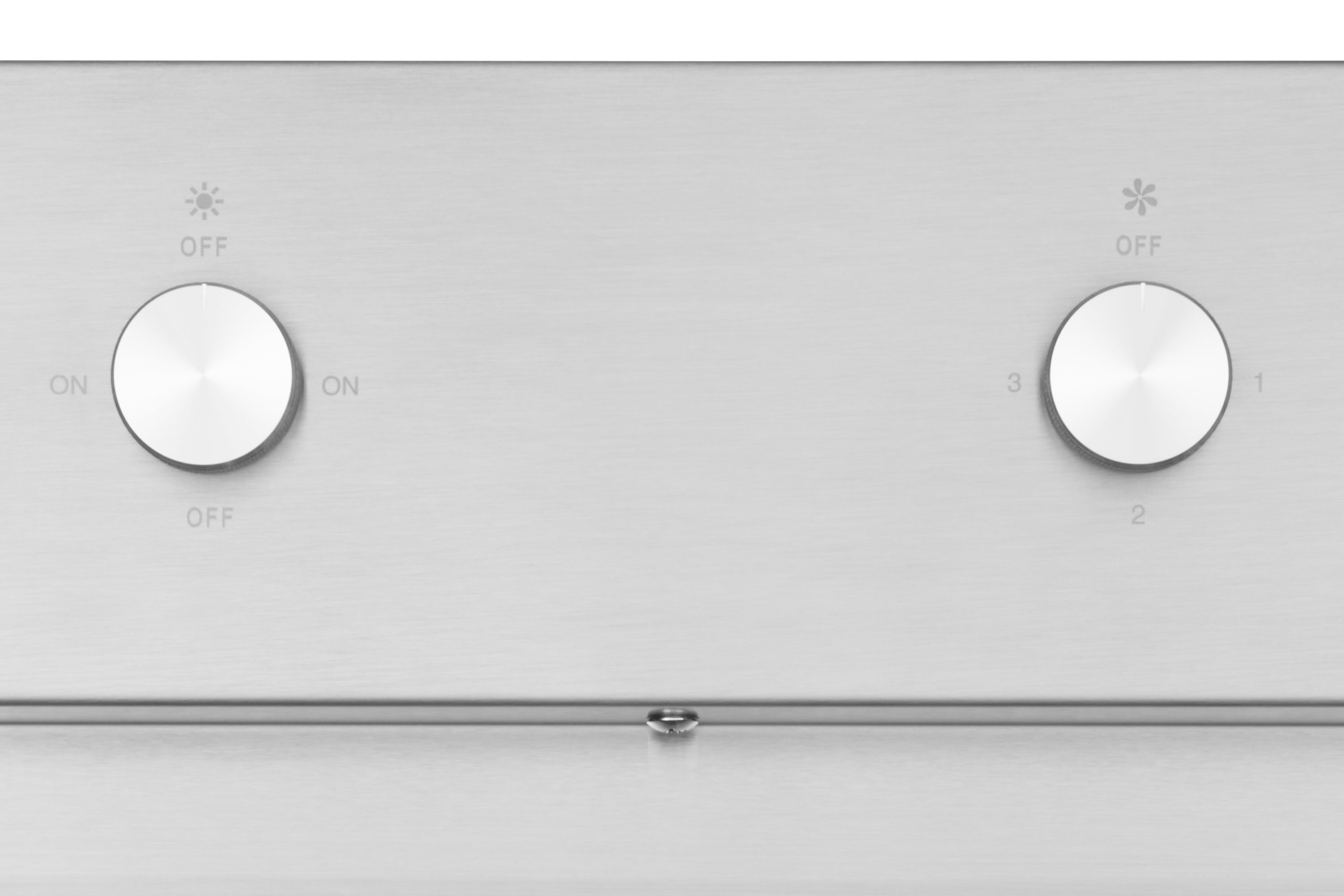

| Control | Mechanical Knob |
| TECHNICAL DETAILS | |
| Noise Level | 1.5 to 6.0 Sones |
| Speed Selections | 3 Levels |
| Equivalent Airflow (CFM) | N/A |
| Laboratory Airflow (CFM) | 390 |
| Motor | Single |
| Wattage | 120W |
| Voltage | 120v |
| Amperage | 1.0 Amp |
| FEATURES | |
| Size | 30" I 36" |
| Cleaning Function | No |
| Lumens | 200 |

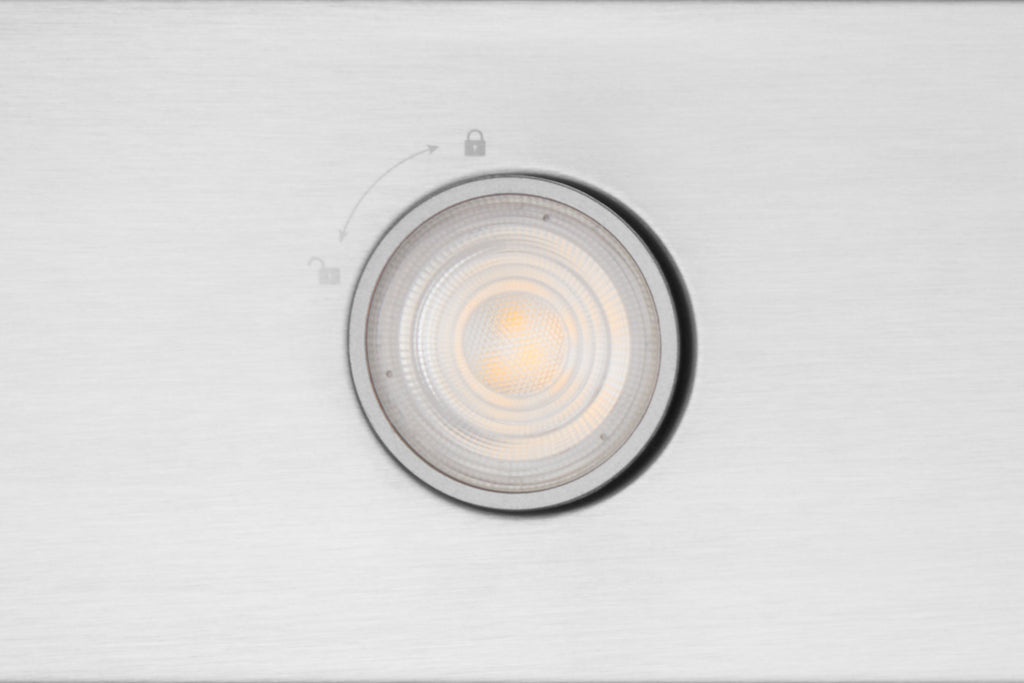

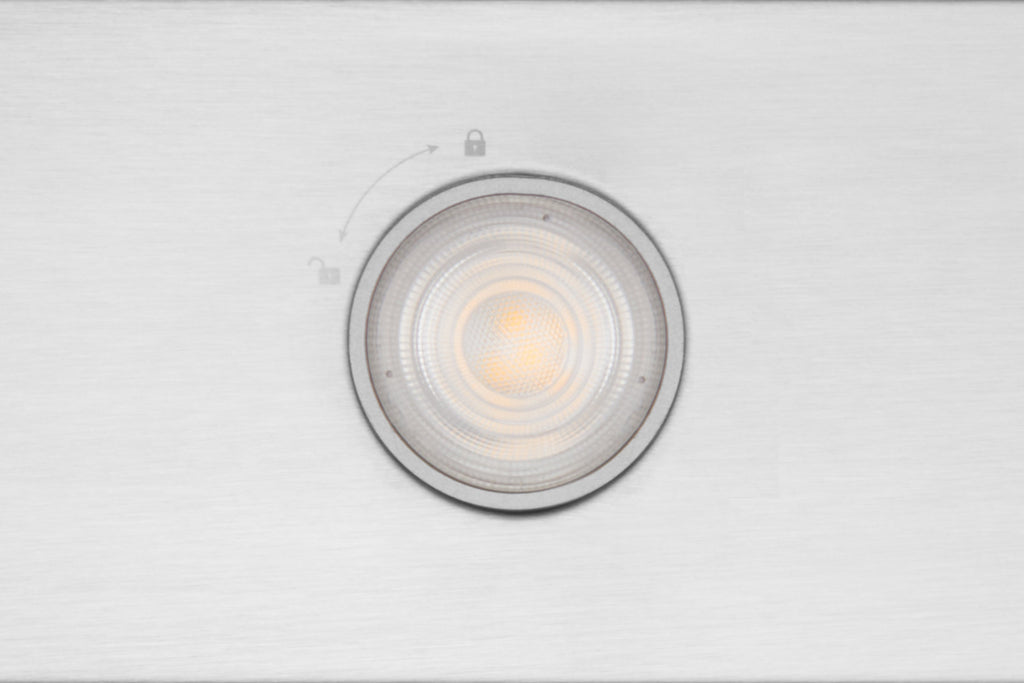

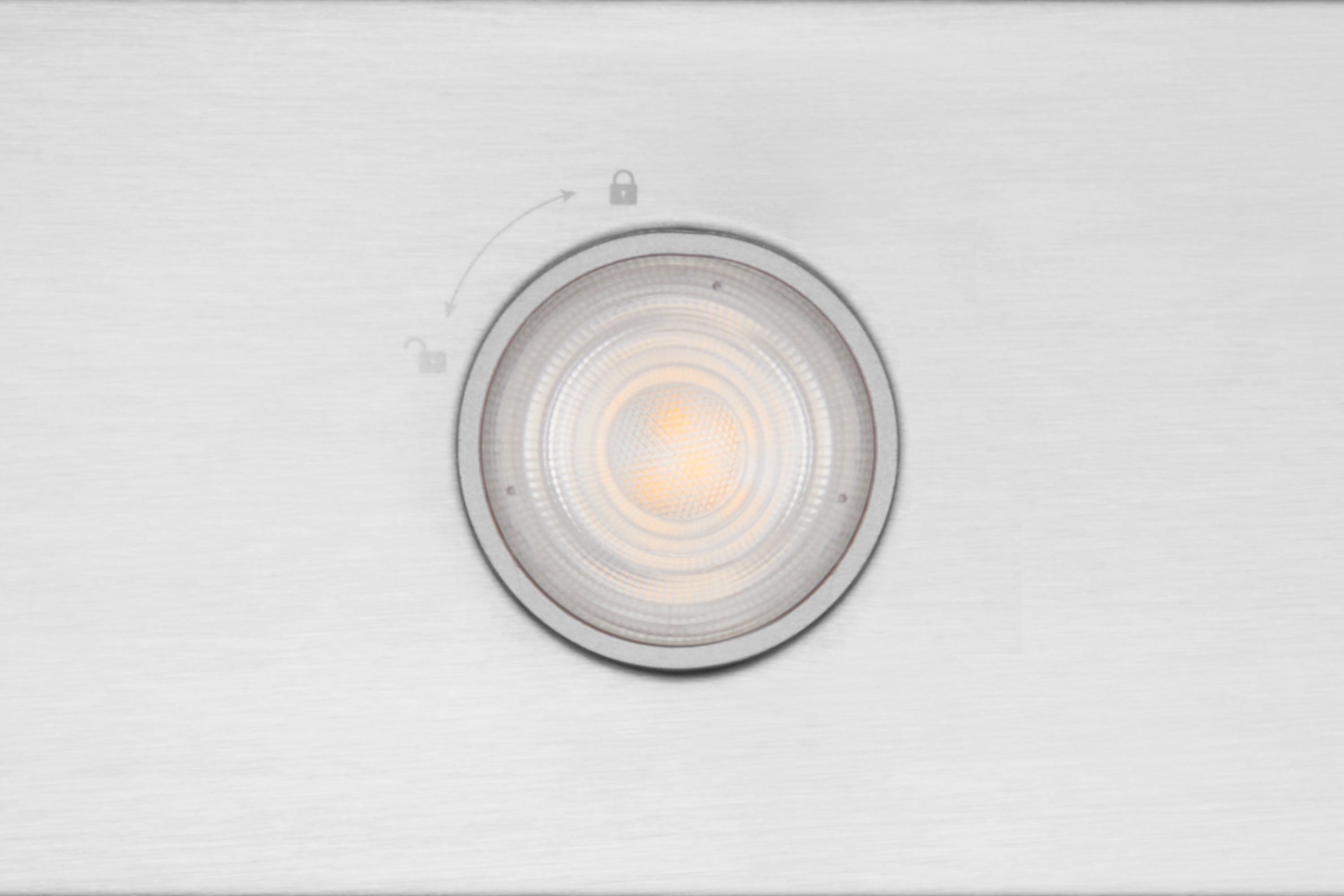

| Light Bulb | 3W LED (GU10 Base) |
| Light Intensity | 1 Level |
| Delay Function | No |
| Convertible | Yes |
| Connection | Plug-in |
