Description
DIMENSIONS
- Exterior Width
- 48"
- Product Dimensions
- 47 7/8" W x 38 1/2" H x 27″ D
- Product Weight (lbs)
- 377 - 397
DESIGN & FINISH

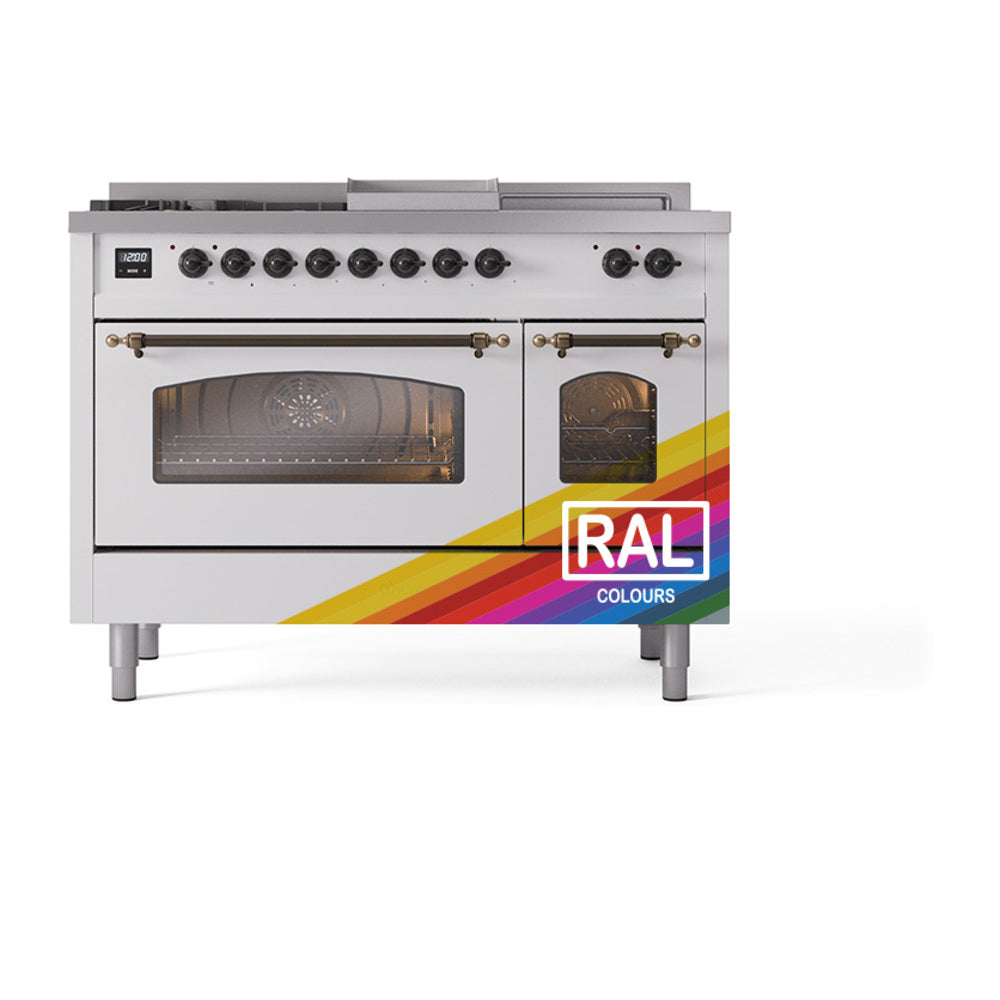

- Color
- Custom
- Finish
- Custom RAL
- Trim
- Bronze
- Noblesse Frames
- No
- Drawer Type
- Storage Drawer
- Display Type
- LCD Display
TECHNICAL DETAILS
- Volts
- 240
- Amps
- 25.8
- Fuel Type
- Dual Fuel
- Gas Type
- Natural Gas
- Installation Type
- Freestanding
- Voltage
- 240

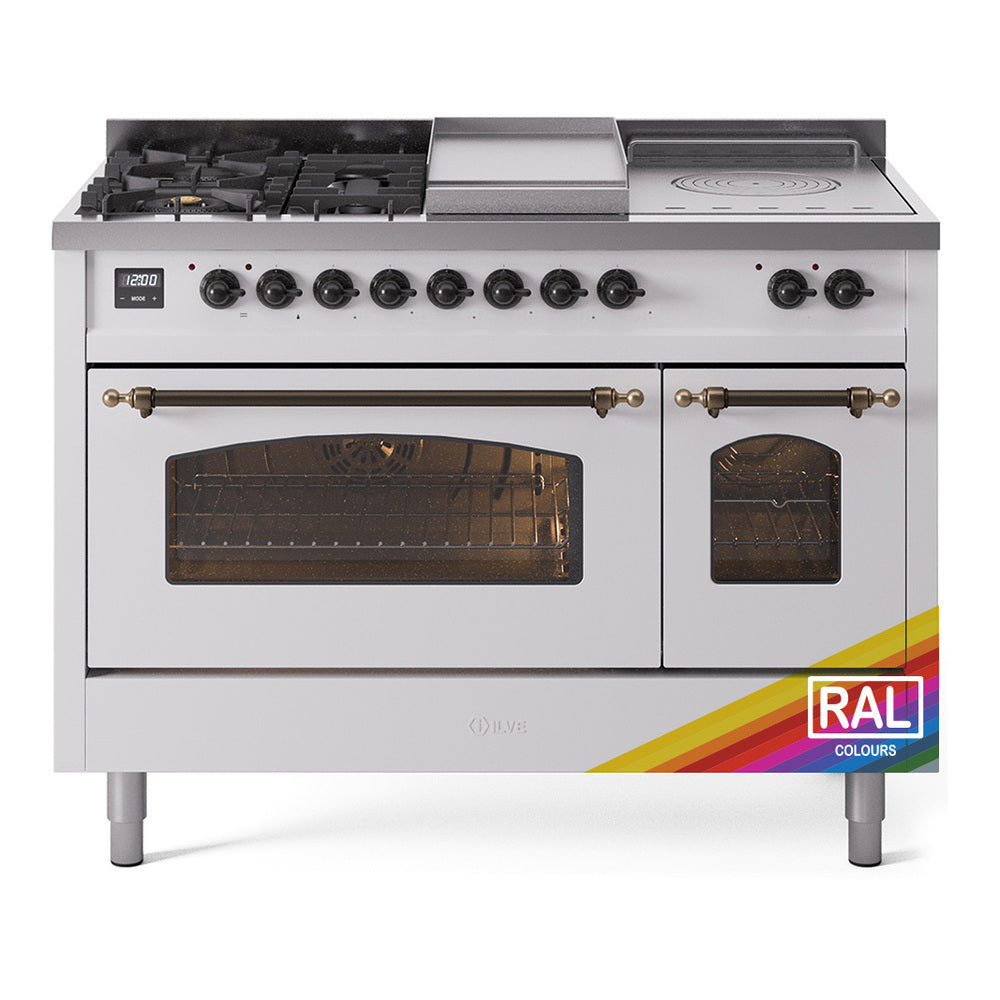

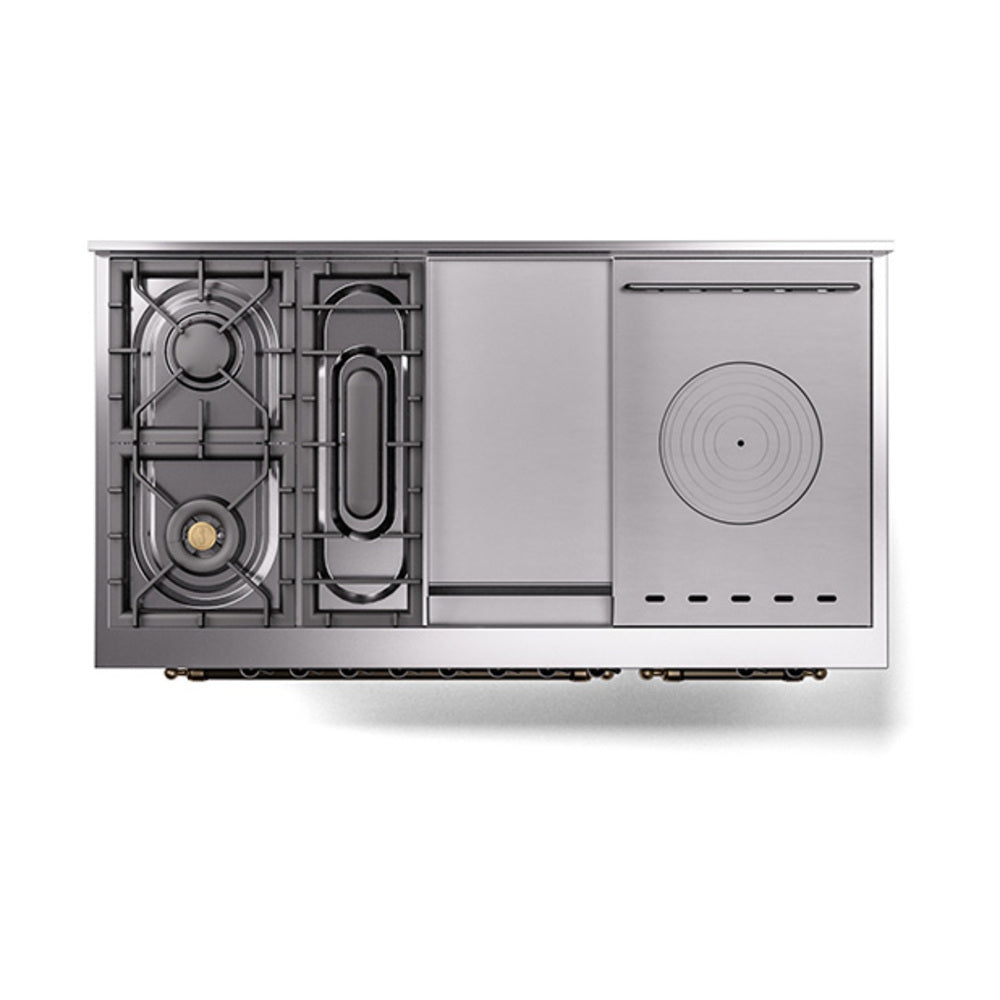

COOKTOP FEATURES
- Cooktop Configuration
- 5 Sealed Burners + Griddle + French Top
- Burner/Element Type
- Sealed Burner
- Griddle
- Yes
- Grill
- No
- Number of Burners/Elements
- 5
- French Top
- Yes

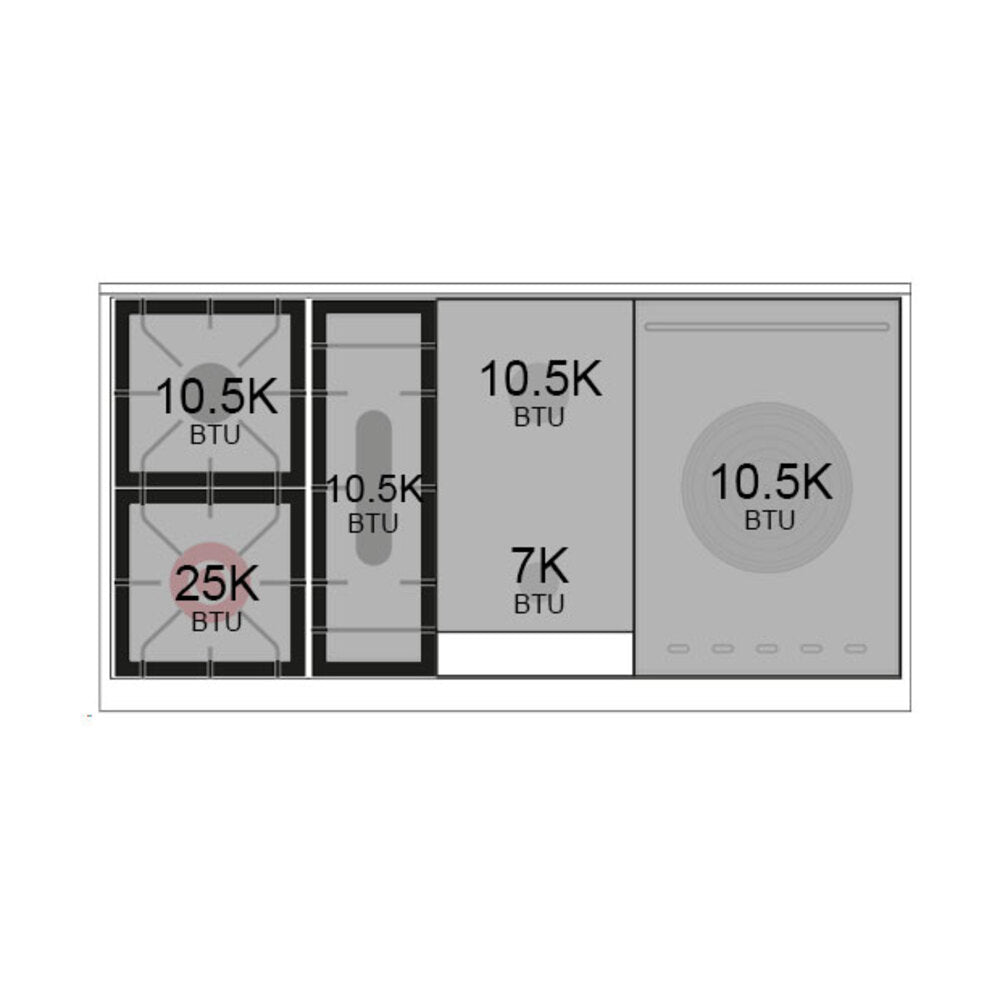

- Highest Burner Output
- 25000 BTU
- Burner/Element Output N1
- 25000 BTU
- Burner/Element Output N2
- 10500 BTU
- Burner/Element Output N3
- 10500 BTU
- Burner/Element Output N4
- 10500 BTU
- Burner/Element Output N5
- 7000 BTU

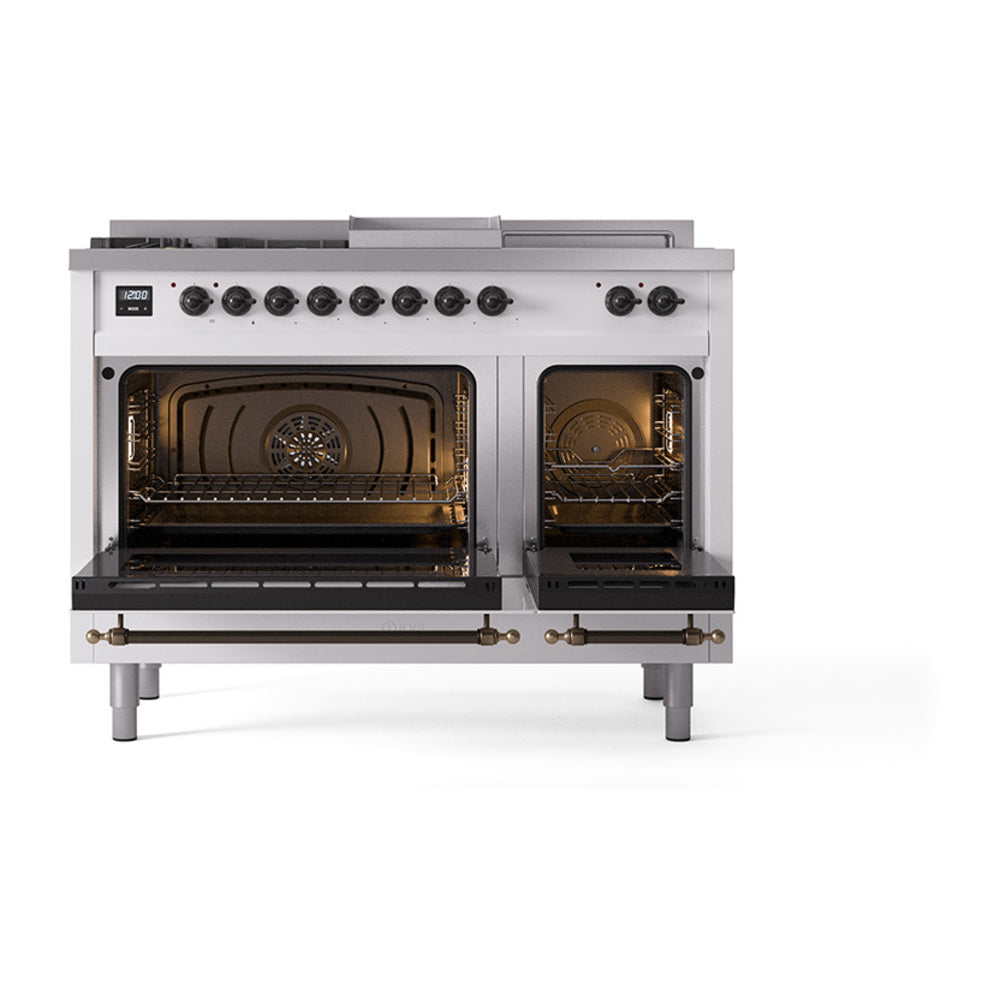

OVEN FEATURES
- Oven Control Type
- Knobs
- Oven Door Type
- Triple Glass Solid Door
- Number of Ovens
- Double Oven
- Main Oven Capacity (cu. ft.)
- 3.5
- Second Oven Capacity (cu. ft.)
- 1.52
- Oven Cleaning Type
- Easy Clean Enamel Cavities
- Main Oven Type
- UOV 80 M
- Second Oven Type
- UOV 30 E
- Oven Total Capacity (cu. ft.)
- 5.02
- Sabbath Mode
- No
- Number of Racks
- 2
- Timer
- Yes
- Cooking Probe
- Yes
- Rotisserie
- Yes
- Soft Close Door
- Yes
WARRANTY & CERTIFICATIONS
- ADA Compliant
- No
- Star-K Certified
- No
- Cleaning & Maintenance
- ILVE USA Brochure
- User Manual
- Spec Sheet
- Dimensions Guide
- Electrical Configuration
- Overview
- Warranty
- Gas Cooktop Guide
- Installation Guide - Easy Glide Installation
- Installation Guide - Handle & Knob Replacement
- Installation Guide - Leg Installation
- Installation Guide - Ring Reducer
- Installation Guide - Rotisserie Installation
