Description
DIMENSIONS
- Exterior Width
- 48"
- Dimensions (W x D x H)
- 47.875" x 26.5" x 38"
- Weight
- 330 lbs
- Exterior Width (2)
- 36"
- Width (2)
- 35.75"
GENERAL INFORMATION
- Handcrafted from Italy
- Yes
- High-End Workmanship
- Yes
- Luxury
- Yes

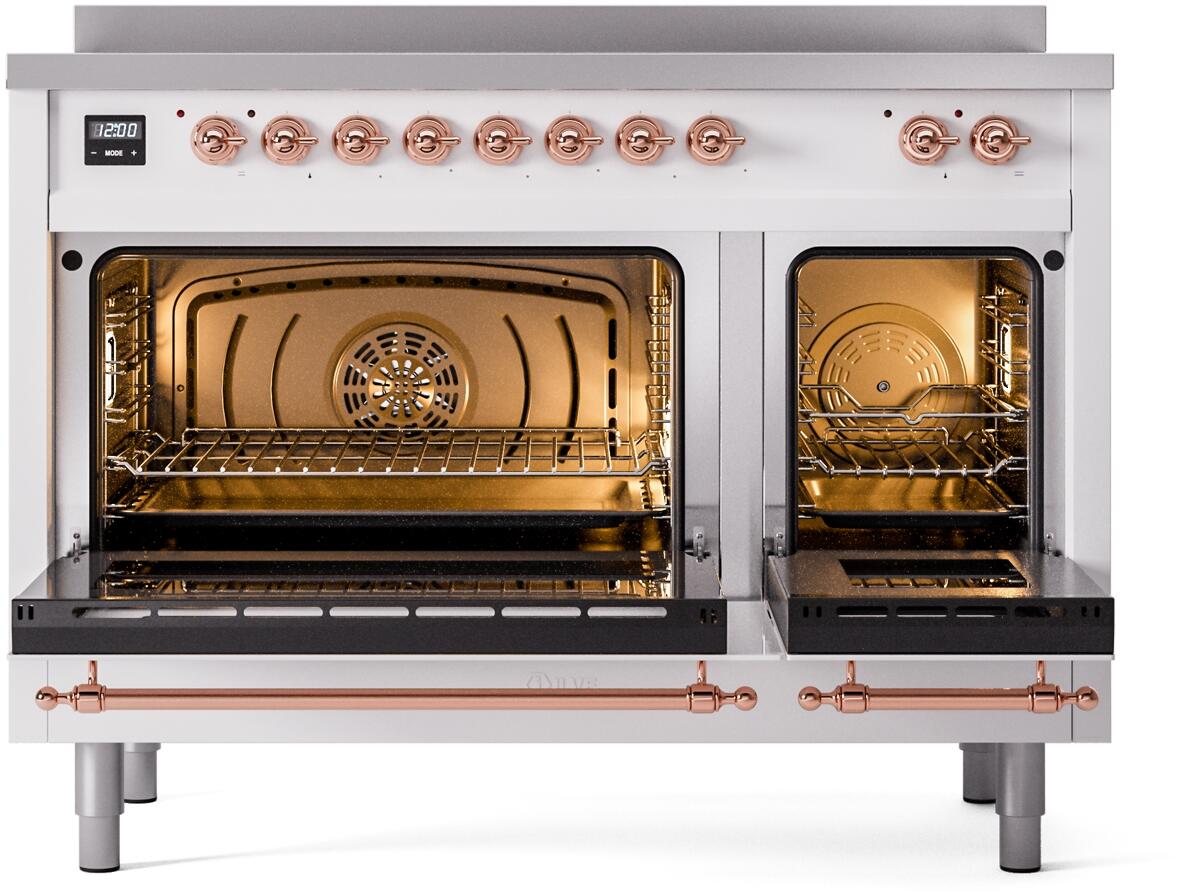

DESIGN & FINISH
- Color
- White
- Finish
- White
- Style
- Freestanding
- Drawer
- Storage

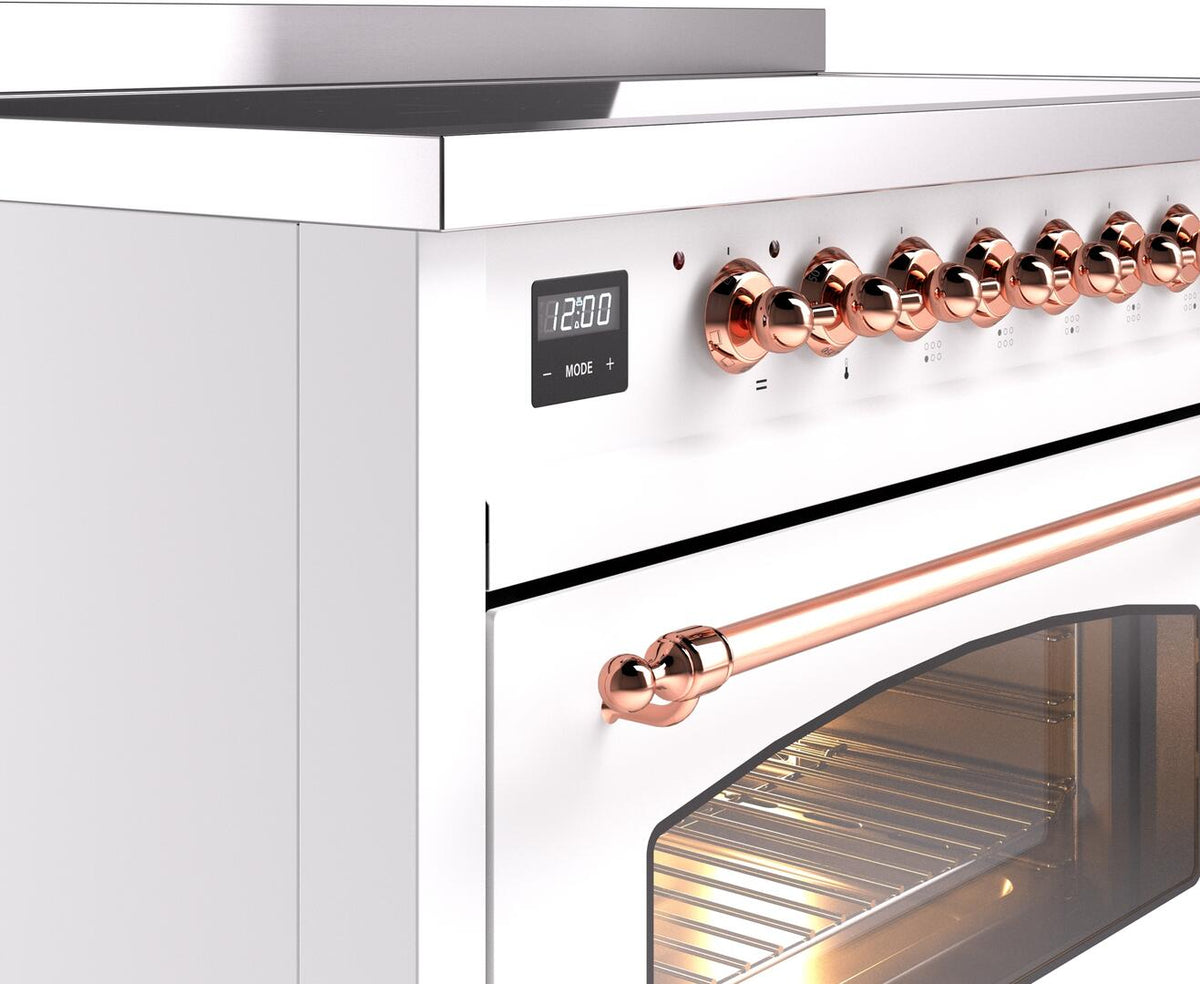

- Digital Clock
- Yes
- Trim
- Copper
- Handle Shape
- Tubular
- Handle Type
- Bar
- Digital Temperature Display
- Yes
- Color (2)
- Matte Graphite
- Trim (2)
- Brass
TECHNICAL DETAILS
- Fuel Type
- Electric
- Downdraft Ventilation
- No
- Volts
- 240 Volts
- Amps
- 40 Amps
- Frequency
- 60 Hz

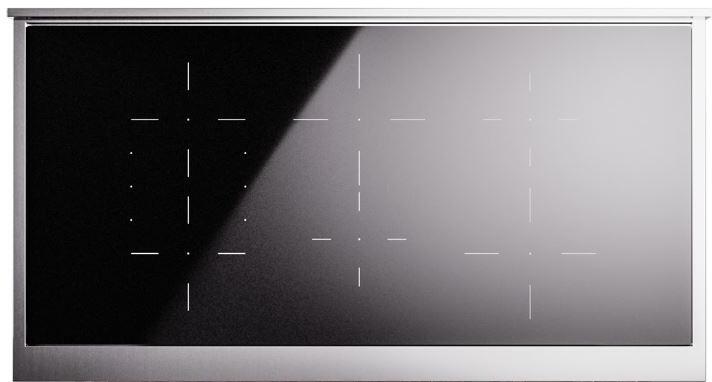

COOKTOP FEATURES
- Cooktop
- Smoothtop
- Induction Technology
- Yes
- Residual Heat Indicator
- Yes
- Booster Function
- Yes
- Induction
- Yes
- Burners / Elements
- 6
- Elements
- 6
- Cooktop Control Type
- Knobs
- Hot Surface Indicator Light
- Yes
- Griddle
- No
- Grill
- No
- French Top
- No
- Highest Element Output
- 3200 Watts
- Front Left Output
- 2500
- Back Left Output
- 2500
- Back Right Output
- 1800
- Front Right Output
- 3200
- Middle Back Output
- 3200
- Middle Front Output
- 1800
- Cooktop Configuration
- Induction
- Burner/Element Output N1
- 2500 Watts
- Burner/Element Output N2
- 1800 Watts
- Burner/Element Output N3
- 3200 Watts
- Burner/Element Output N4
- 2500 Watts
- Burner/Element Output N5
- 3200 Watts
- Burner/Element Output N6
- 1800 Watts

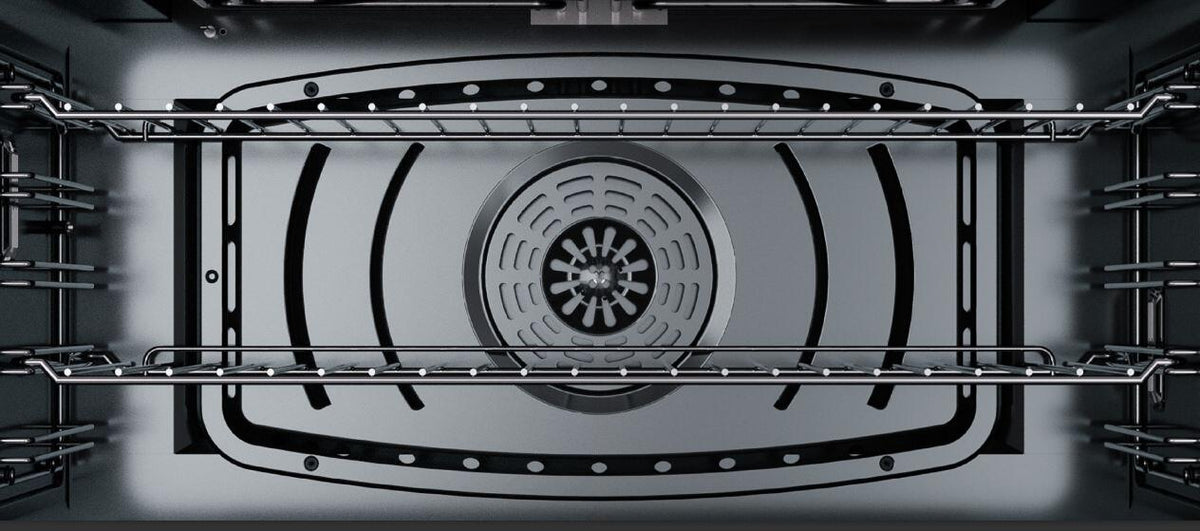

OVEN FEATURES
- Rotisserie
- Yes
- Soft Close Door System
- Yes
- Total Capacity
- 5.02 cu. ft.
- Primary Oven Capacity
- 3.5 cu.ft.
- Secondary Oven Capacity
- 1.52 cu. ft.
- Dual Door
- Yes
- Steam-Clean
- No
- Broiler
- Yes
- Sabbath Mode
- No
- Self-Cleaning
- No
- Convection
- Yes
- Oven Control Type
- Digital
- Steam Oven
- No

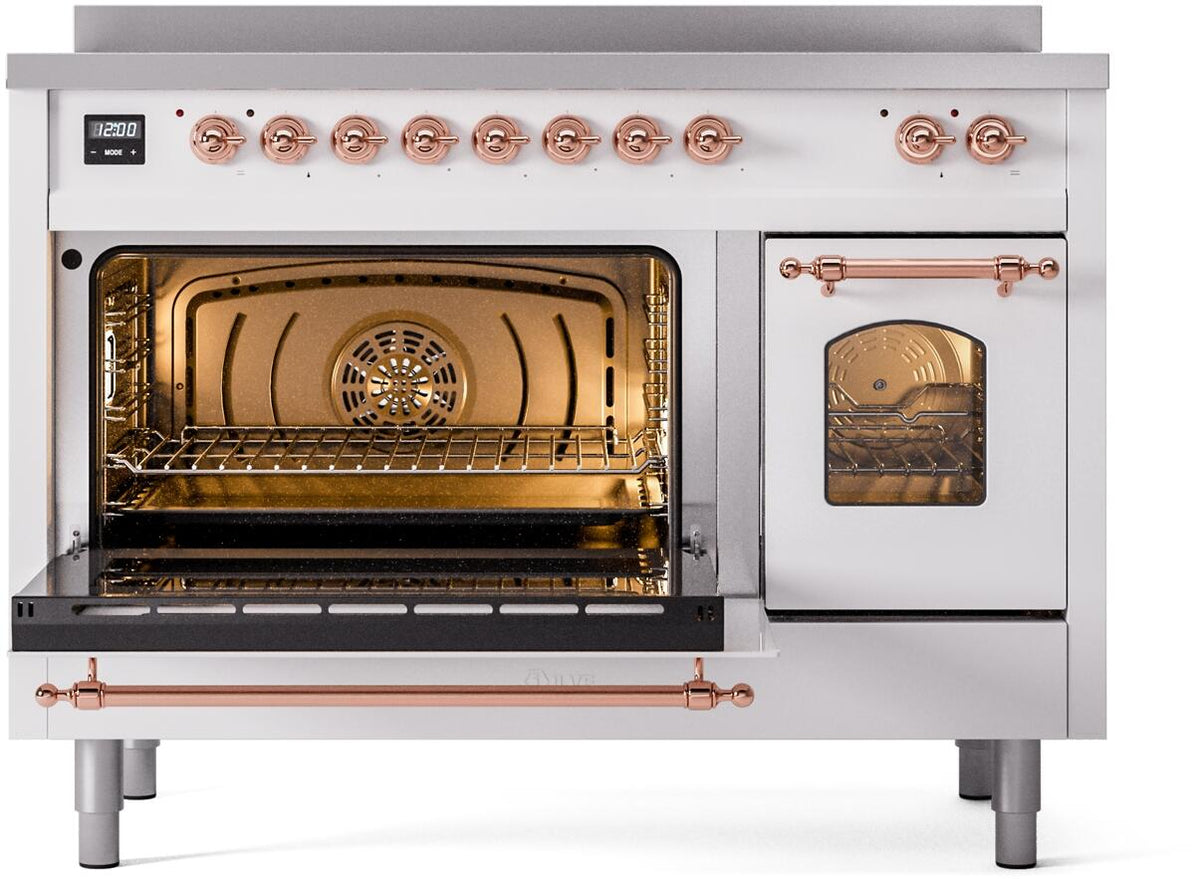

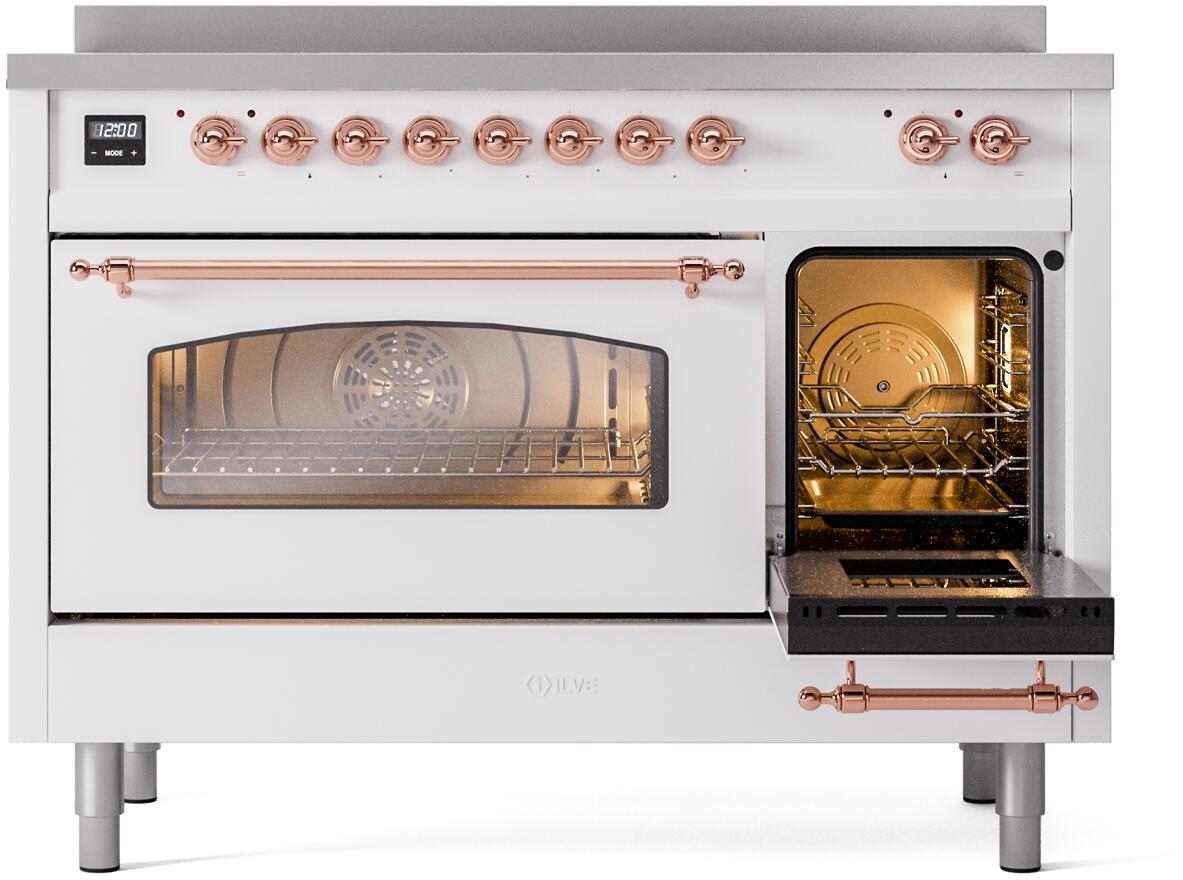

- Double Oven
- Yes
- Temperature Probe
- No
- Interior Oven Light
- Yes
- Total Capacity (2)
- 3.5 cu. ft.
- Dual Door (2)
- No
- Number of Ovens
- Double Oven
- Oven Door Type
- Triple Glass Door
- Main Oven Type
- UOV 80 M
- Second Oven Type
- UOV 30 E
WARRANTY & CERTIFICATIONS
- ETL
- Yes
- ADA Compliant
- No
- Star-K Certified
- No
