Description
DIMENSIONS
- Exterior Width
- 40″
- Product Dimensions
- 39 3/8″ W x 27″ D x 38 1/2″ H
- Interior (W x D x H)
- 19 1/8″ x 16 1/8″ x 14 1/8″
- Secondary Interior (W x D x H)
- 14 3/8″ x 17 1/3″ x 14″
- Product Weight (lbs)
- 327
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Trim
- Chrome
- Noblesse Frames
- No
- Display Type
- LCD Display
- Drawer
- Storage
TECHNICAL DETAILS
- Volts
- 240
- Amps
- 26
- Fuel Type
- Dual Fuel
- Gas Type
- Natural Gas
- Installation Type
- Freestanding
- Voltage
- 240
COOKTOP FEATURES
- Cooktop Configuration
- 6 Sealed Burners + Griddle
- Burner/Element Type
- Sealed Burner
- Number of Burners/Elements
- 6
- Grill
- No
- Griddle
- Yes
- French Top
- No
- Highest Burner Output
- 25000 BTU

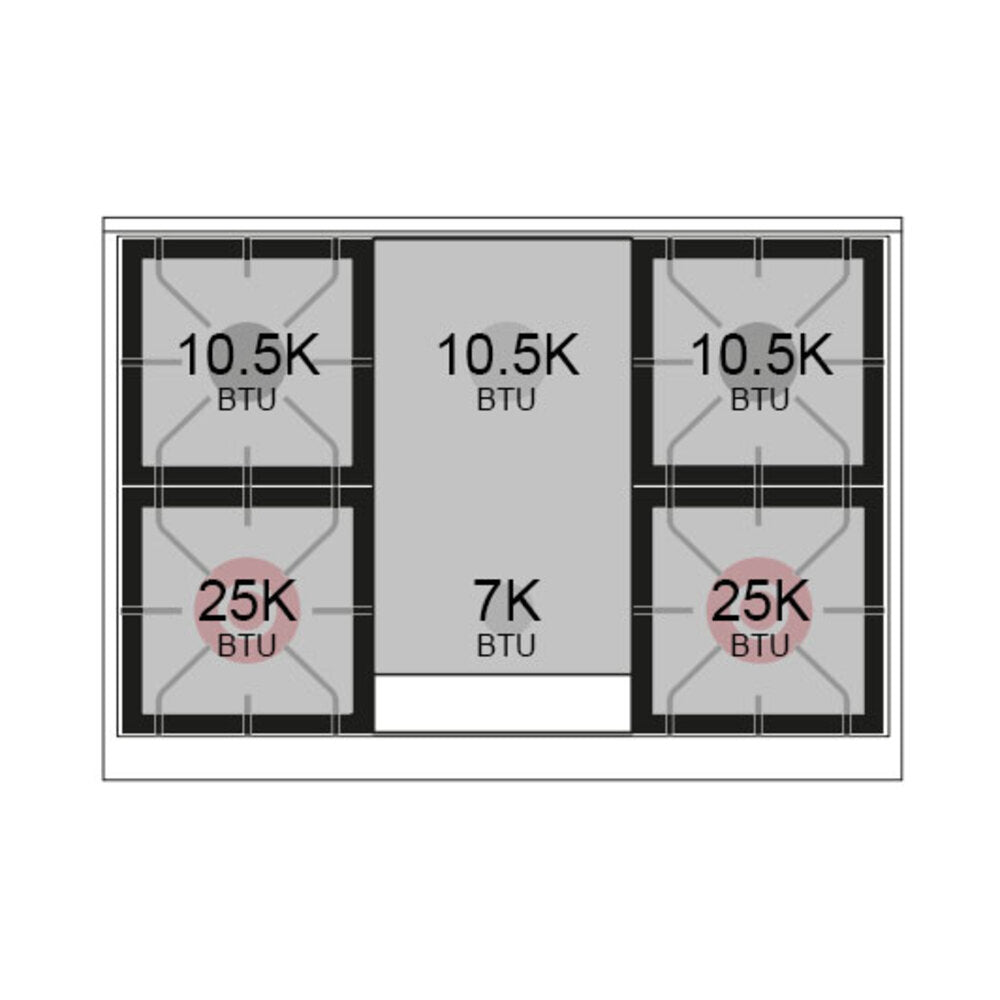

- Burner/Element Output N1
- 25000 BTU/h – 900 BTU
- Burner/Element Output N2
- 7000 BTU – 1400 BTU
- Burner/Element Output N3
- 25000 BTU – 900 BTU
- Burner/Element Output N4
- 10500 BTU – 2000 BTU
- Burner/Element Output N5
- 10500 BTU – 2000 BTU
- Burner/Element Output N6
- 10500 BTU – 2000 BTU
OVEN FEATURES
- Oven Control Type
- Knobs
- Oven Door Type
- Solid Door
- Number of Ovens
- Double Oven
- Oven Cleaning Type
- Easy Clean Enamel Cavities
- Main Oven Type
- UOV 60 M
- Second Oven Type
- UOV 40 E
- O ven Racks
- 2
- Oven Total Capacity (cu. ft.)
- 4.3
- Main Oven Capacity (cu. ft.)
- 2.3
- Second Oven Capacity (cu. ft.)
- 2
- Sabbath Mode
- No
- Timer
- Yes
- Temperature Probe
- Yes
- Rotisserie
- Yes
- Soft Close Door
- Yes
WARRANTY & CERTIFICATIONS
- ADA Compliant
- No
- Star-K Certified
- No
- Cleaning & Maintenance
- ILVE USA Brochure
- User Manual
- Spec Sheet
- Dimensions Guide
- Electrical Configuration
- Warranty
- Gas Cooktop Guide
- Installation Guide - Easy Glide Installation
- Installation Guide - Handle & Knob Replacement
- Installation Guide - Leg Installation
- Installation Guide - Ring Reducer
- Installation Guide - Rotisserie Installation
