Description
DIMENSIONS
- Product Dimensions (WxDxH)
- 35-3/4" x 24" x 36"
- Product Height (From Bottom To Top Of Back Splash)
- 36-1/8"
- Product Height (From Bottom To Top Of Side Panel)
- 34-9/16"
- Product Depth (From Back Panel To Bullnose)
- 28-1/4"
- Product Depth (From Back Panel To Control Panel)
- 27"
- Product Depth (From Back Panel To Side Panel Front)
- 24"
- Packaging Dimensions (WxDxH)
- 39" x 30-1/8" x 44-1/2"
- Adjustable Height
- 1"
- Net Weight
- 227 lbs
- Gross Weight
- 268 lbs
- Power Cord Length (in.)
- Canada only. Not included in USA/Mexico
- Oven Internal (W x D x H)
- 29-3/4" x 19-1/2" x 18"
GENERAL INFORMATION
- Baking Sheet Size
- Fits Standard Three-Quarter Sheet Pan
DESIGN & FINISH
- Color
- Black
- Finish
- Black

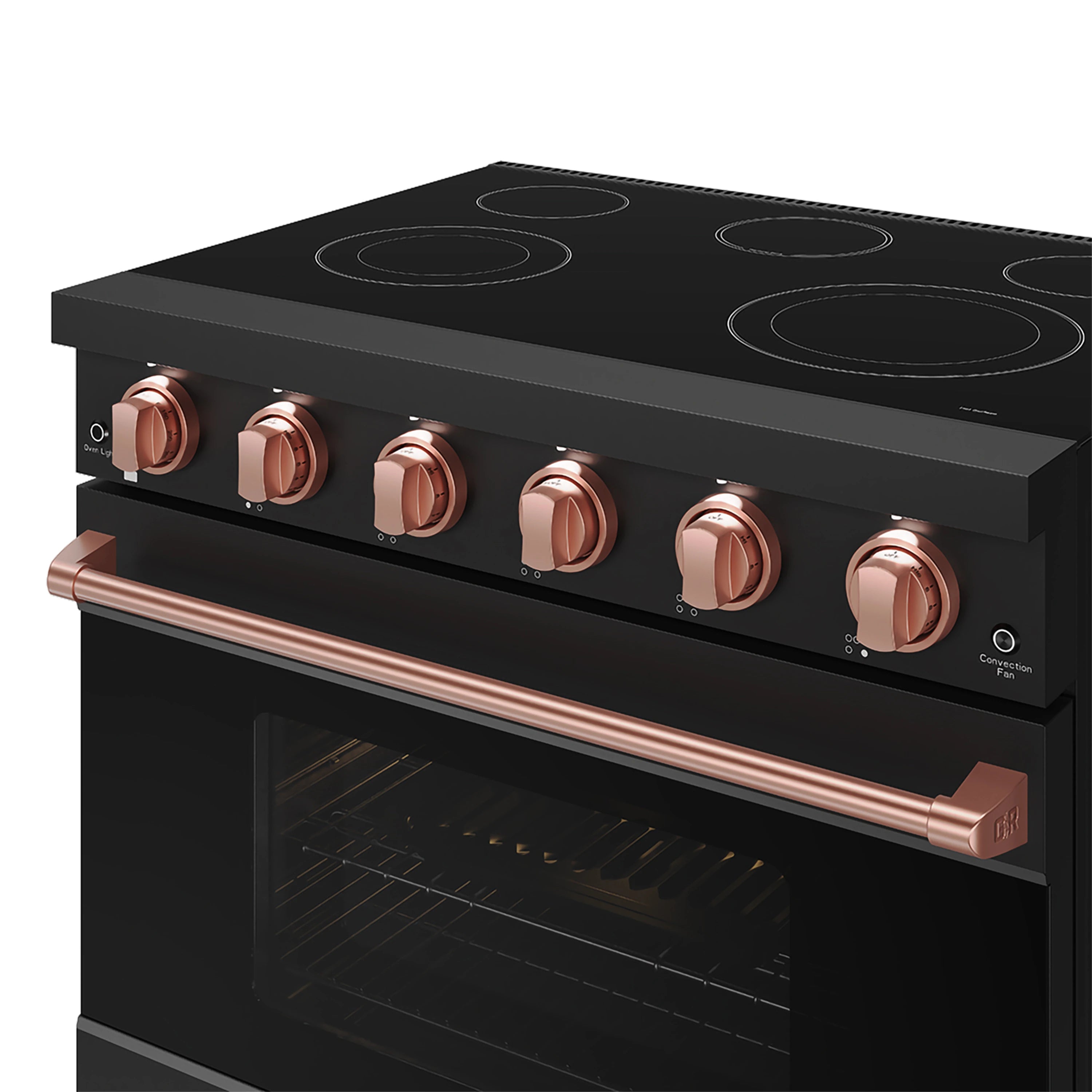

- Control Type
- Knob
TECHNICAL DETAILS
- Fuel Type
- Electric
- Installation Type
- Freestanding
- Required Circuit
- 50A
- Volts (V)
- 240V
- Frequency (Hz)
- 60Hz
- Plug Type
- nema 14-50p

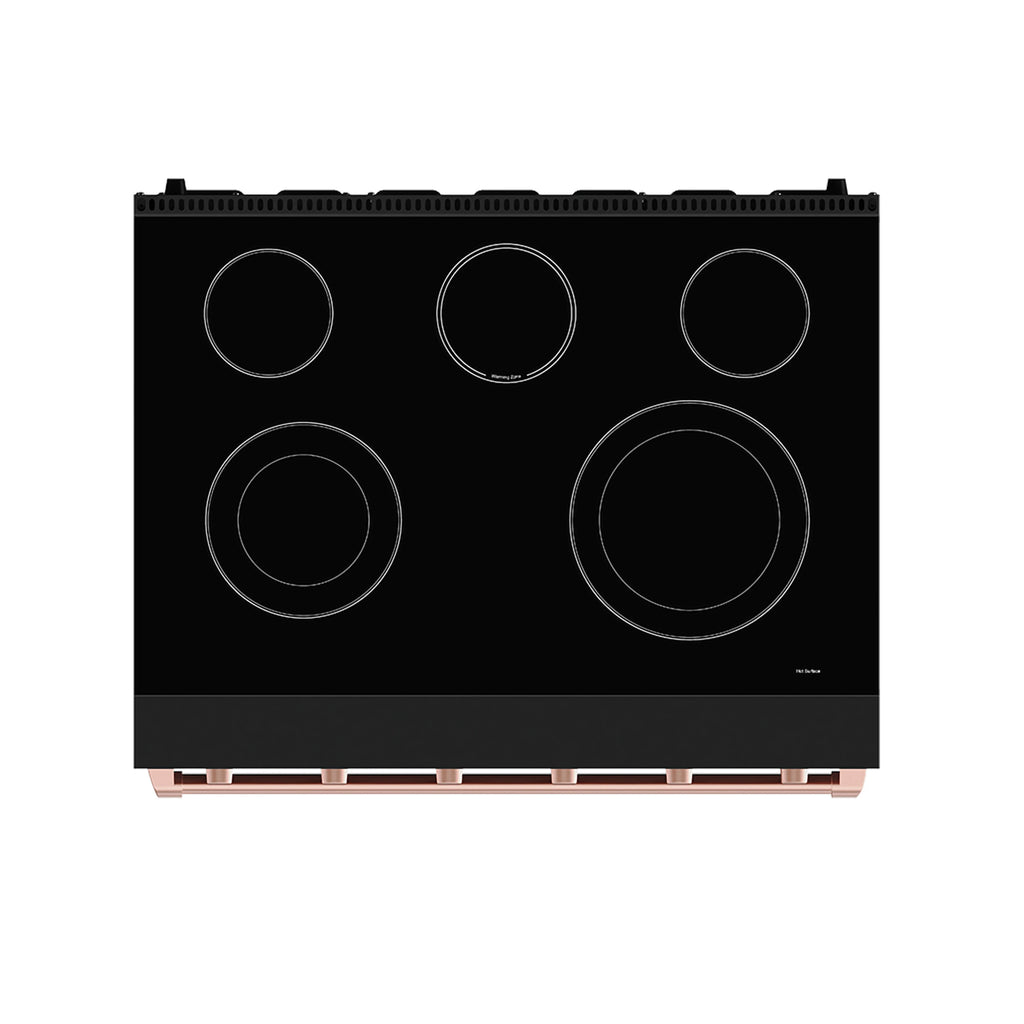

COOKTOP FEATURES
- Burner Type
- Radiant
- Type of Grate
- Glass-Ceramic
- Total Number Of Cooktop Elements
- 5
- (1) Front Left Burner 6"/9"
- 3,000W (Dual)
- (2) Front Right Burner 9"/12"
- 3,000W (Dual)
- (3) Rear Left Burner 6"
- 1,200W
- (4) Rear Center Burner 6"
- 100W
- (5) Rear Right Burner 6"
- 1,200W
- Bake Element Power
- 3,500W
- Broil Element Power
- 3,500W

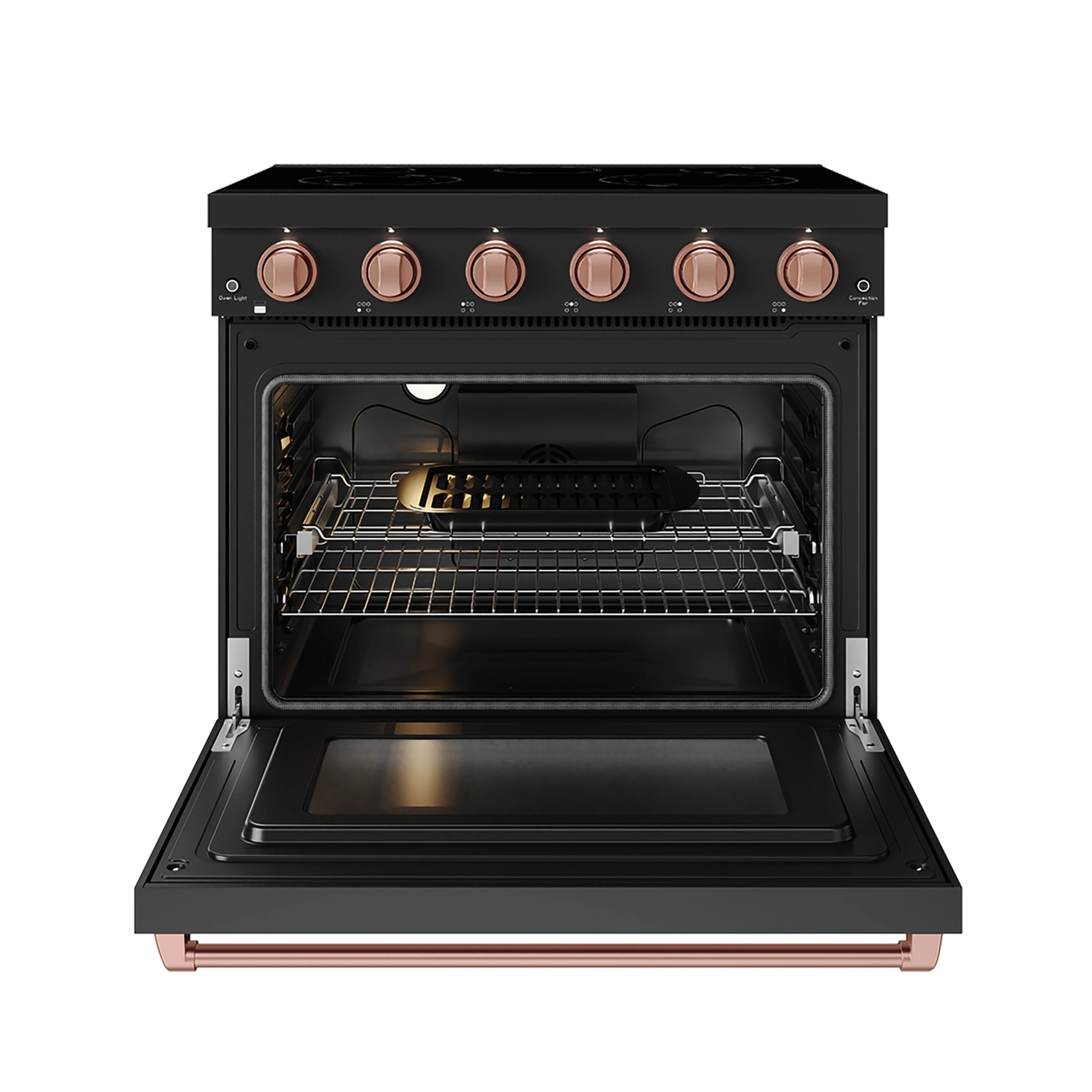

OVEN FEATURES
- Oven Capacity
- 6.0 cu. ft.
- Oven Control Features
- Light on/off
- Convection Fan
- Oven Cooking Modes
- Bake, Broil
- Convection
- True Convection 1300 W
- Oven Lights
- Yes

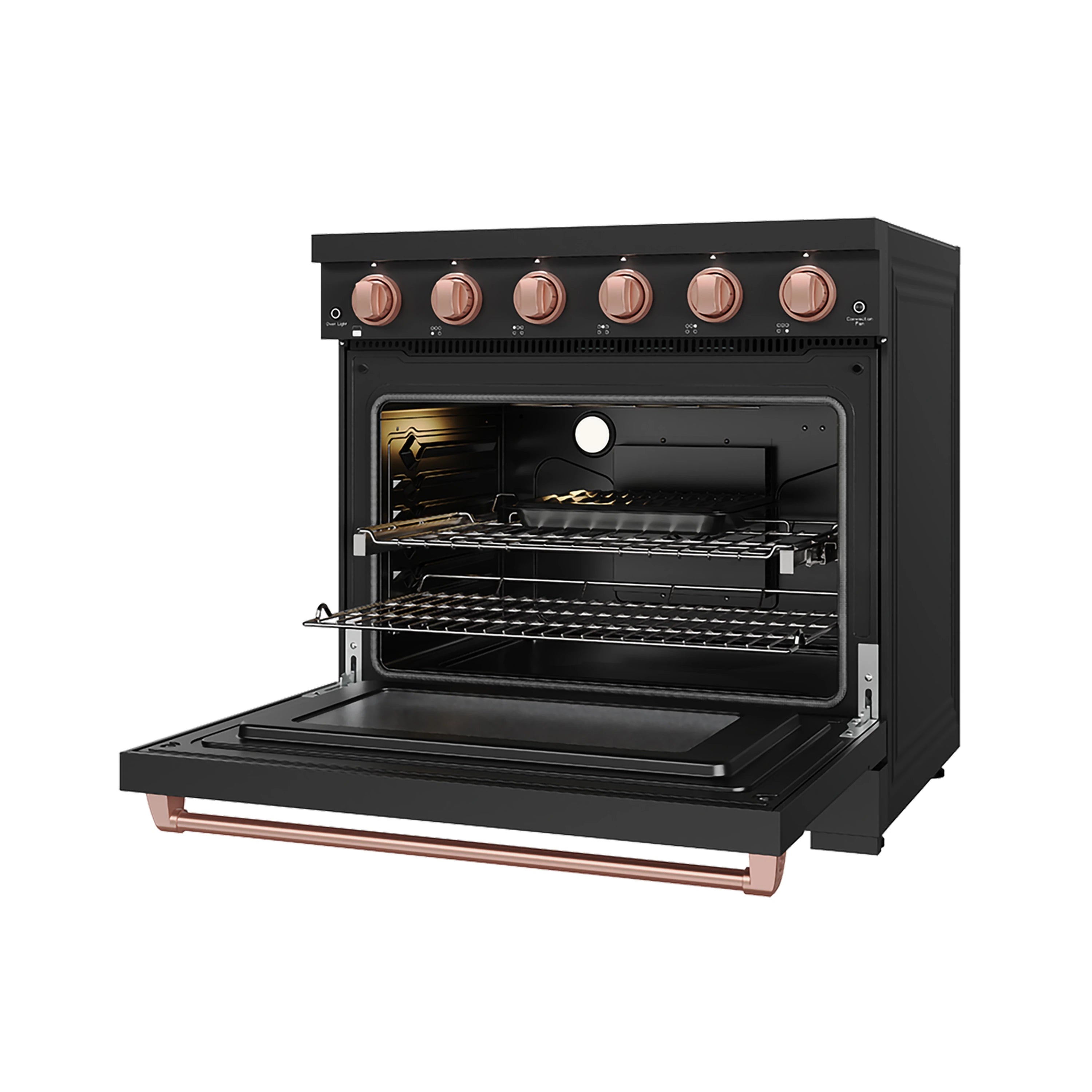

- Oven Racks (Standard)
- 1
- Oven Racks (Telescopic)
- 1
- Self Clean
- No
