Description
DIMENSIONS
- Product Dimensions (W x D x H) (in)
- 14-19/32" x 25-3/16" x 33-19/32"
- Product Depth Excluding Handles (in)
- 22-19/32"
- Product Depth Including Handles (in)
- 25-3/16"
- Product Depth Excluding Door (in)
- 20-23/32"
- Product Depth With Door Open 90° (in)
- 36-5/32"
- Product Height to Top of Door Hinge (in)
- 33-19/32"
- Cutout Dimensions (W x D x H) (in)
- 15-3/32" x 33-13/16" (~34-13/16" adjustable height) x 25-7/16"
- Package Dimensions (W x D x H) (in)
- 17-13/16" x 27-5/8" x 38"
- Net Weight (lbs)
- 79
- Gross Weight (lbs)
- 93
- Ice Dimensions / Shape
- 7/8" x 7/8" x 7/8"
- Cube
GENERAL INFORMATION
- Self Clean
- Yes
- Cleaning Reminder
- Yes
- Included

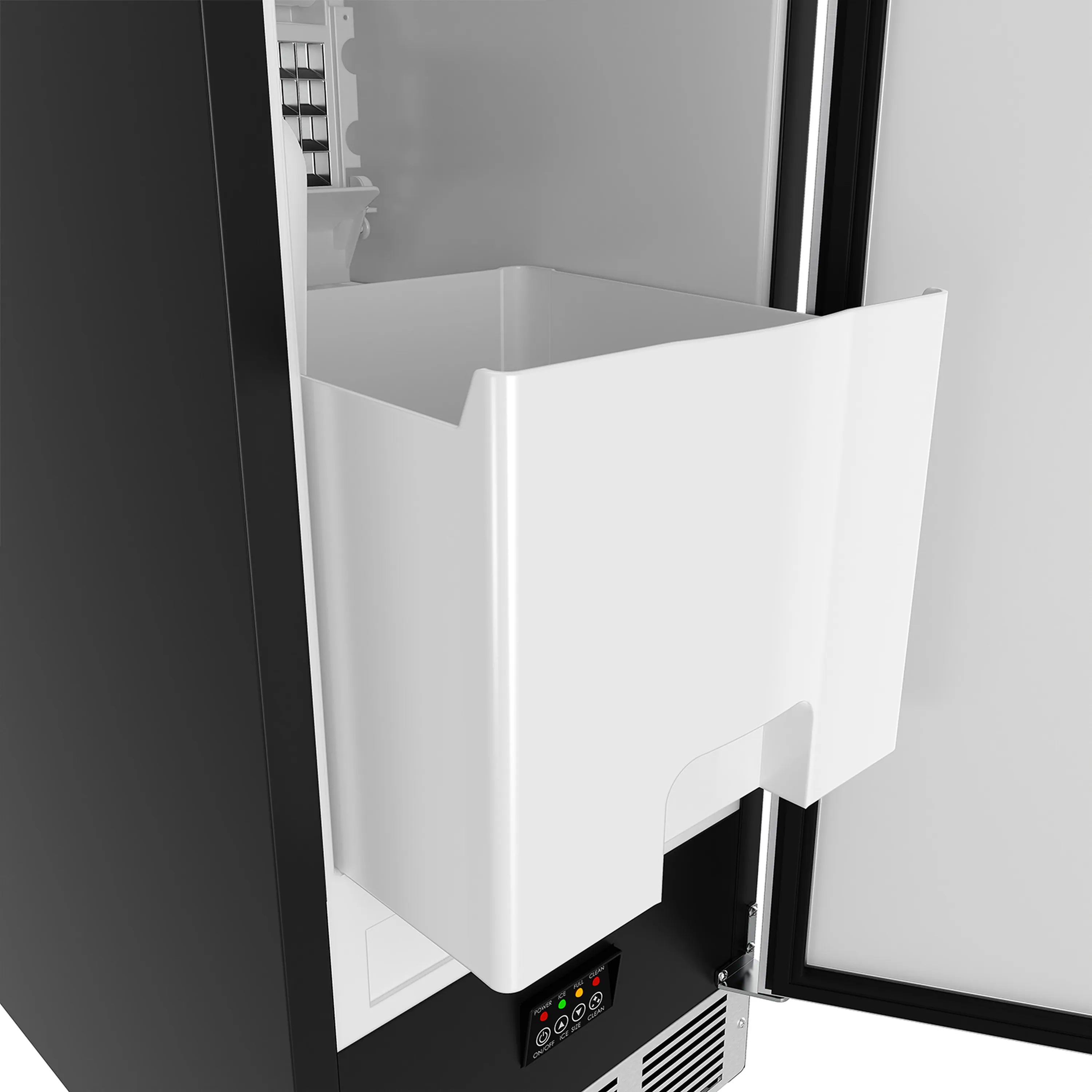

- Ice Storage Box
- Ice Scoop
- Drain Hose
DESIGN & FINISH
- Ice Scoop / Material
- Yes / Plastic

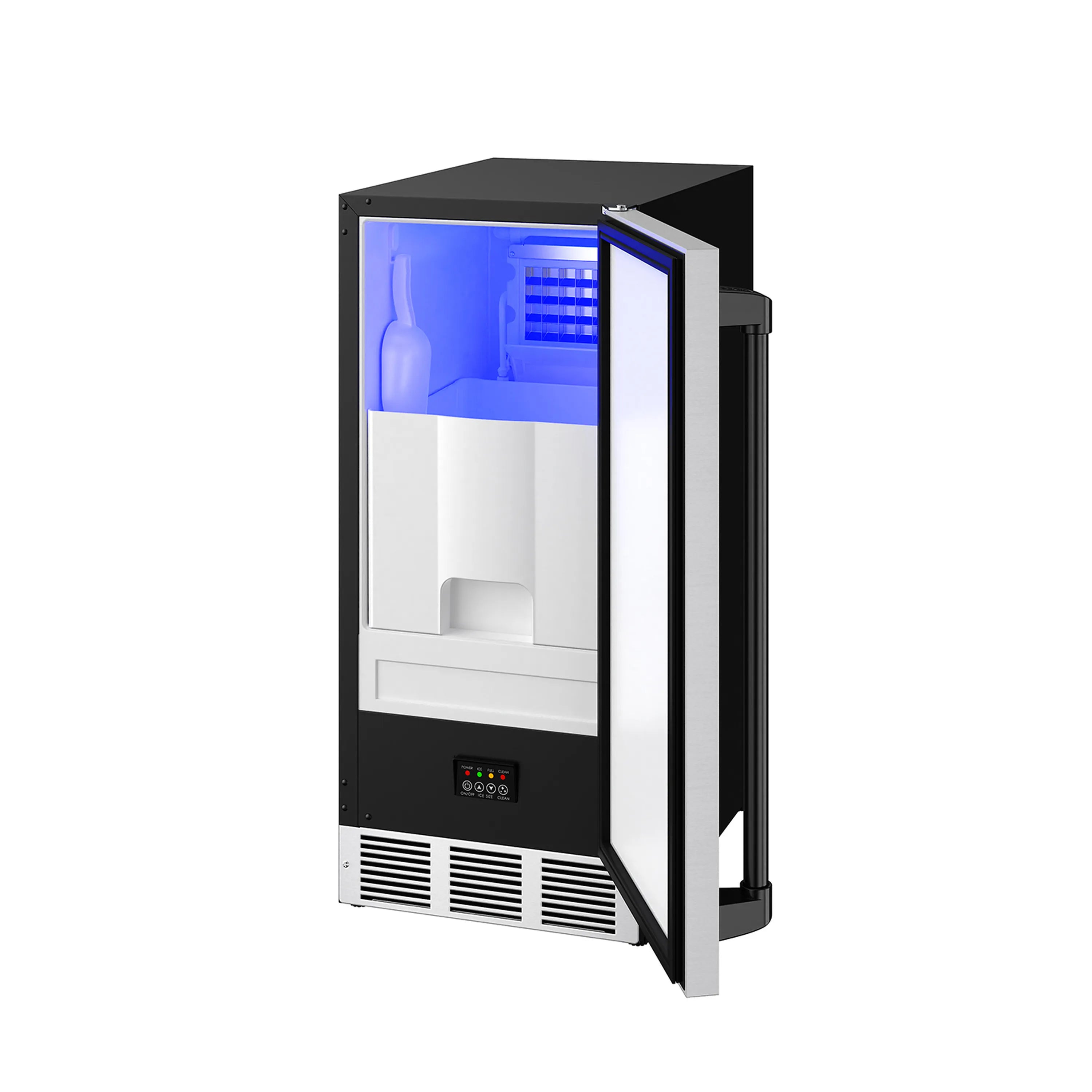

- LED Light
- Yes
TECHNICAL DETAILS
- Rated Energy Consumption (kWh/100 lbs)
- 10.6
- Electrical Supply
- 115V / 60 Hz
- Circuit
- 15A (Dedicated)
- Running Load Amps
- 2.5 Amps
- Electrical Connection
- Cord Connected
- Cord Plug Type
- NEMA 5-15P
- Cord Length
- 6.2 ft.
- Refrigerant
- R290
- Water Supply
- 1/4" OD Water Inlet Pipe
- Ambient Temp Range
- 50–100°F
- Water Temp Range
- 50–90°F
- Water Pressure
- 15–80 PSI
REFRIGERATOR FEATURES
- Maximum Ice Capacity (lbs./day)
- 58 lbs. (70/50 °F)
- Ice Storage (lbs.)
- 25 lbs.
- Open Door Alarm
- Yes
- Ice Full Indicator
- Yes
- Rated Water Consumption (Gal/100 lbs)
- 12.8
