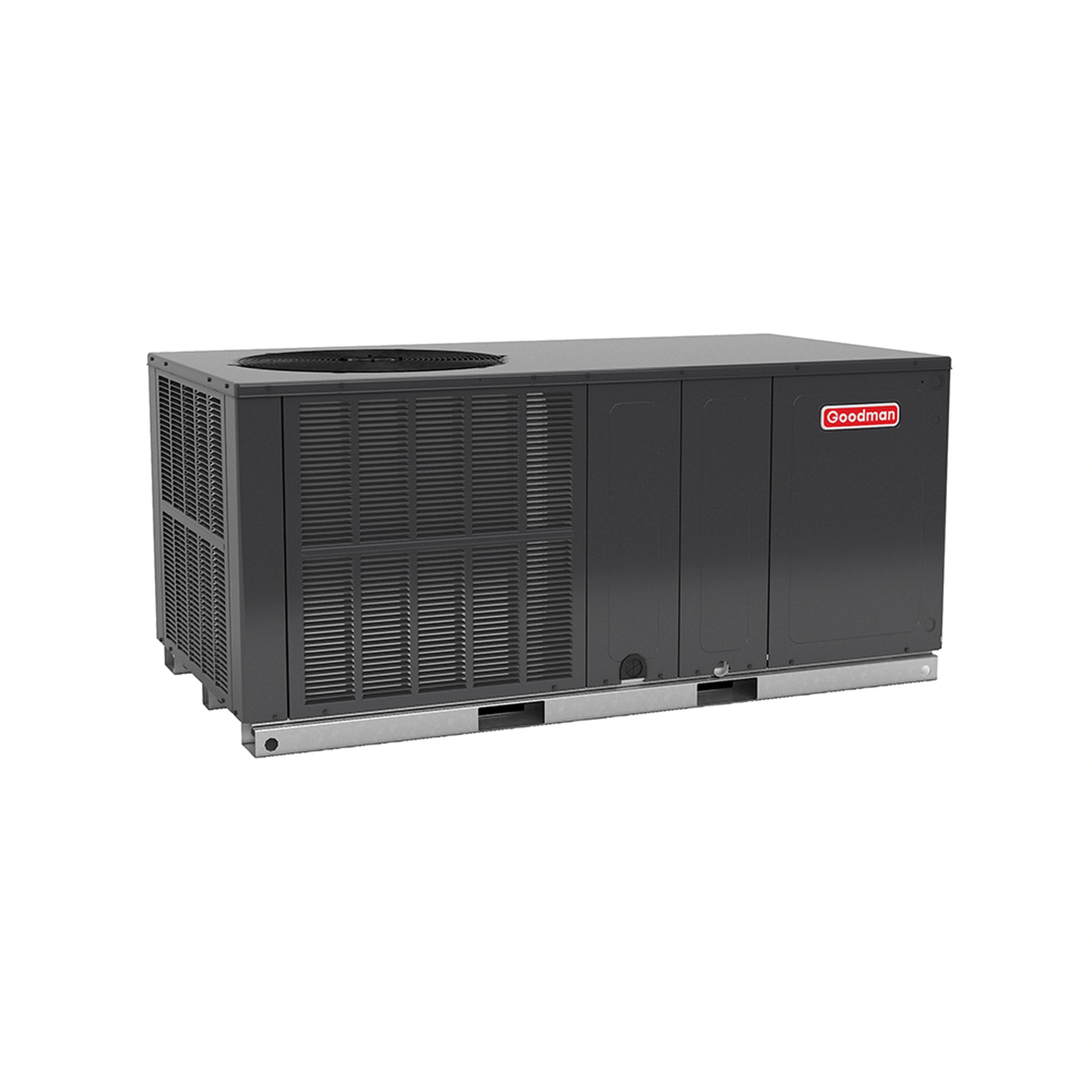

The Goodman GPHH5 delivers premium 15.2 SEER2 / 7 HSPF2 efficiency in a 2 Ton horizontal packaged heat pump with quiet horizontal discharge. Features a high-efficiency scroll compressor, multi-speed ECM blower motor, and all-aluminum evaporator coil with compressor sound blanket. Built in a heavy-gauge galvanized steel cabinet with Nickel Gray finish meeting strict ASHRAE air leakage standards. AHRI Certified and ETL Listed.
Features| DIMENSIONS & WEIGHT | |
|---|---|
| Height | 30 in |
| Width | 66 in |
| Weight | 350 lb |
| GENERAL INFORMATION | |
| Brand | Goodman |
| SKU | GPHH52431 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electric Backup Heat Capabilities (Optional) | 9.5 kW |
| Product Features |
|
| CAPACITY & PERFORMANCE | |
| Tonnage | 2.0 |
| Cooling BTU | 23600 Btu/H |
| Heating BTU | 24000 Btu/H |
| Maximum CFM | 875 ft³/min |
| SEER2 | 15.0 |
| HSPF2 | 7.0 |
| EER2 | 11.2 |
| COMPRESSOR & MOTORS | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| NOISE LEVELS | |
| Decibel Level (dBA) | 76 dBA |
| ELECTRICAL REQUIREMENTS | |
| Voltage/Phase/Hz | 208-230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 25 A |
| Min. Breaker Size | 18.03 A |
| REFRIGERANT & PIPING | |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 98 oz |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| SAFETY | |
| ENERGY STAR® Certified | No |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Warranty | ALL PARTS - 5 YEARS PARTS |
