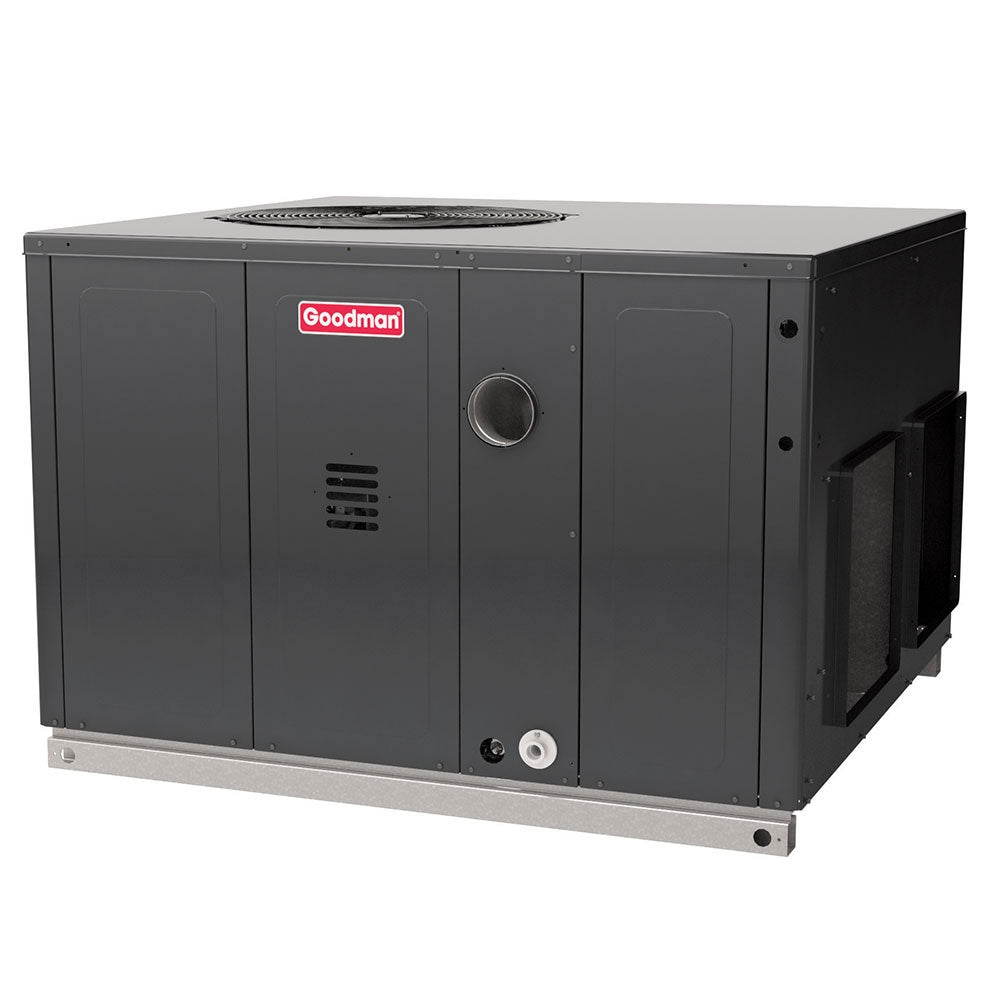

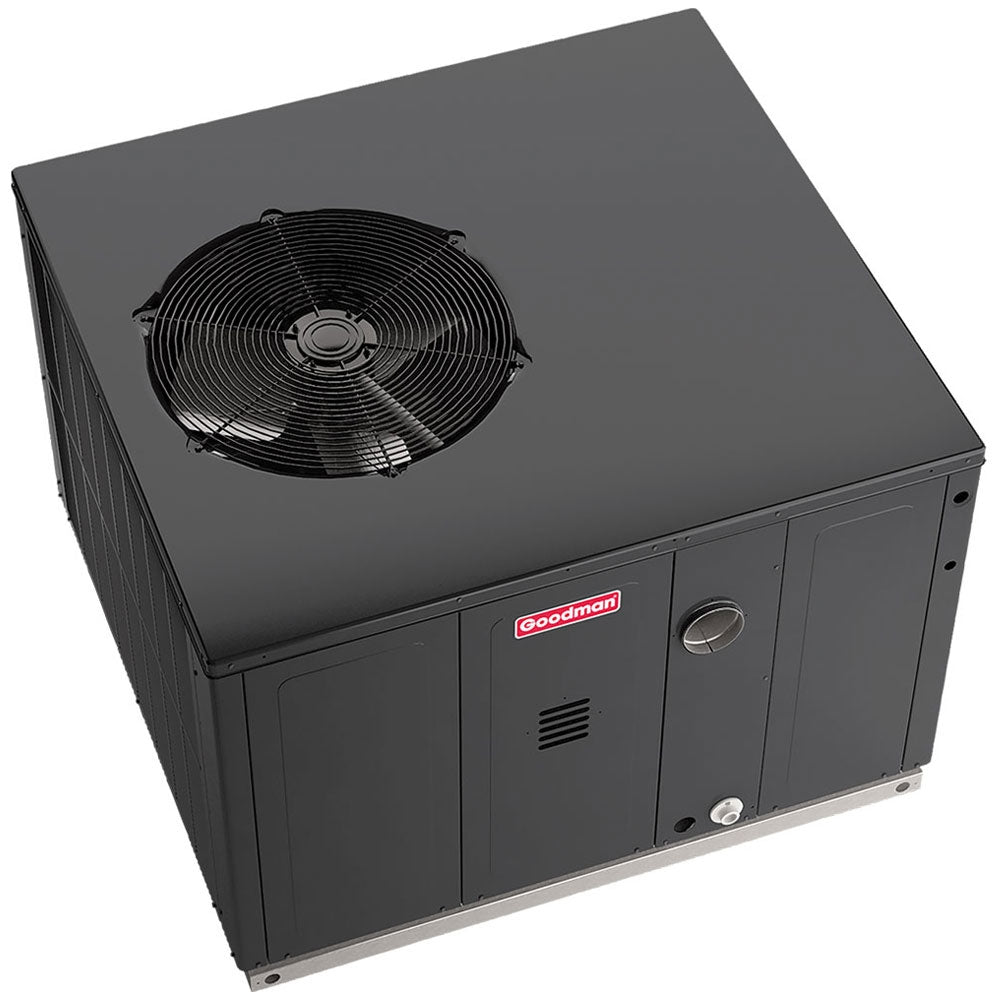

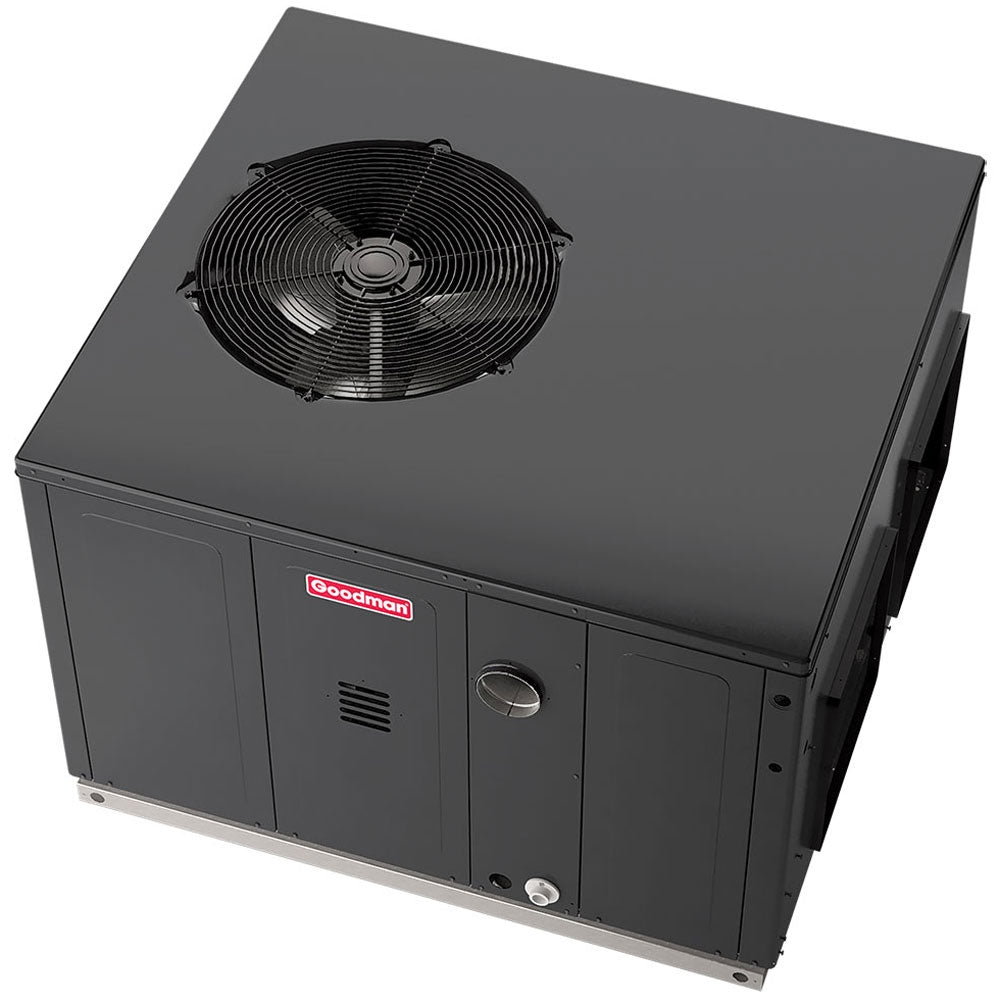

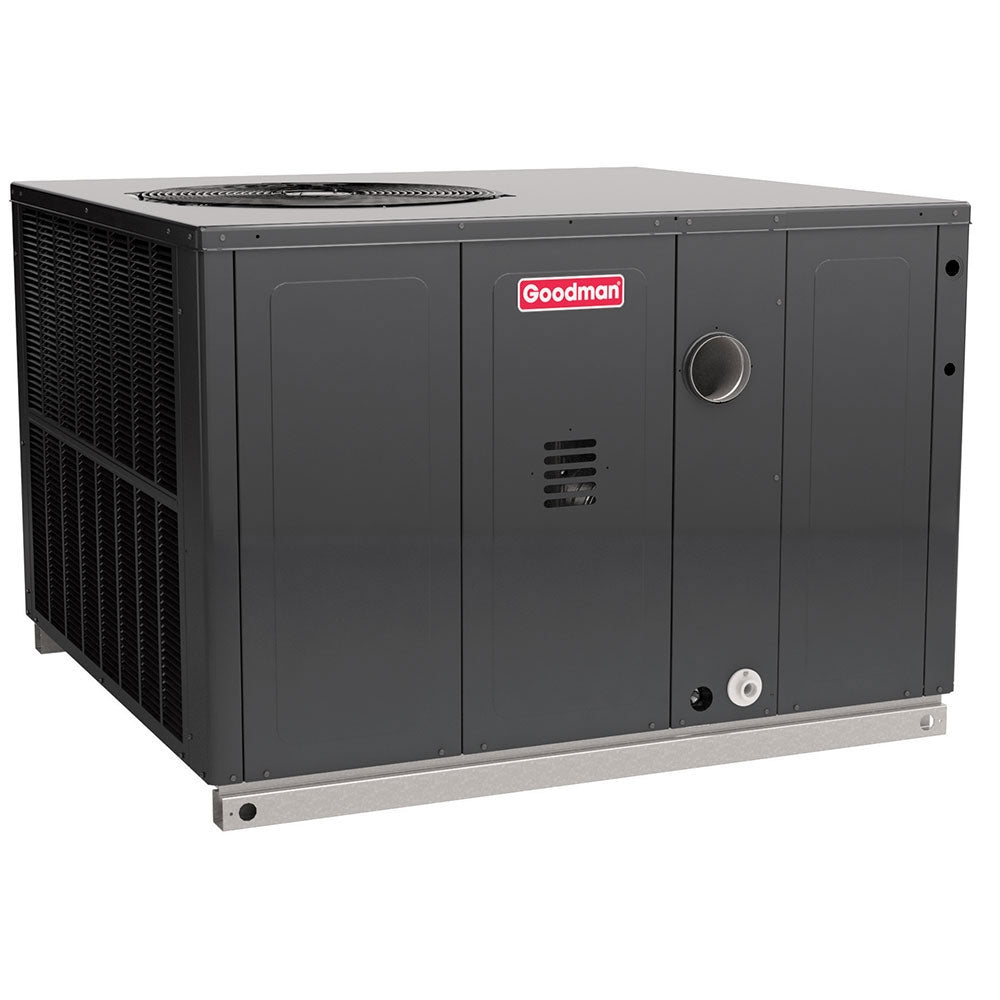

The Goodman GPGM5 delivers premium 15.2 SEER2 cooling efficiency with two-stage operation and gas heating in a powerful 5 Ton packaged design with Sandstone Beige finish. Features a high-efficiency two-stage scroll compressor, multi-speed ECM blower motor, and aluminum-copper evaporator coil. Built in a fully insulated zinc-coated steel cabinet. Meets Florida Building Code requirements when properly anchored. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| SKU | GPGM56014031 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208-230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 70 A |
| Min. Breaker Size | 43.3 A |
| Capacity & Performance | |
| Tonnage | 5.0 |
| Cooling BTU | 59000 Btu/H |
| Heating BTU | 135000 Btu/H |
| Maximum CFM | 2000 ft³/min |
| Decibel Level (dBA) | 78 dBA |
| Efficiency Ratings | |
| SEER2 | 15.4 |
| EER2 | 11.5 |
| AFUE | 0.81 % |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Two Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 100 oz |
| Liquid Line | 3/8 in |
| Suction Line | 1/2 in |
| Dimensions & Weight | |
| Height | 42-1/2 in |
| Width | 47-5/8 in |
| Depth | 73-3/8 in |
| Weight | 400 lb |
| Additional Information | |
| Product Features | High-efficiency two-stage scroll compressor;Convertible airflow: horizontal or downflow application;Multi-speed ECM indoor blower motor;Copper tube/aluminum fin condenser coil;All-aluminum evaporator coil on 2- to 4-ton units;Aluminum-copper evaporator coil on 5-ton units;Power-assisted combustion;High and low-pressure switch protection ;Direct spark ignition system includes a microprocessor- based control for the entire ignition sequence;All blower operation and all safety circuits complete with self-diagnostics;All models comply with California Low NOx emission standards (40ng/J NOx);This furnace does not comply with the SCAQMD Rule 1111 nor the SJVAPCD Rule 4905 14 ng/J NOx emission limit and therefore is not eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) nor the San Joaquin Valley Air Pollution Control District (SJVAPCD);AHRI Certified; ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| Proposition 65 Warning | Yes |
