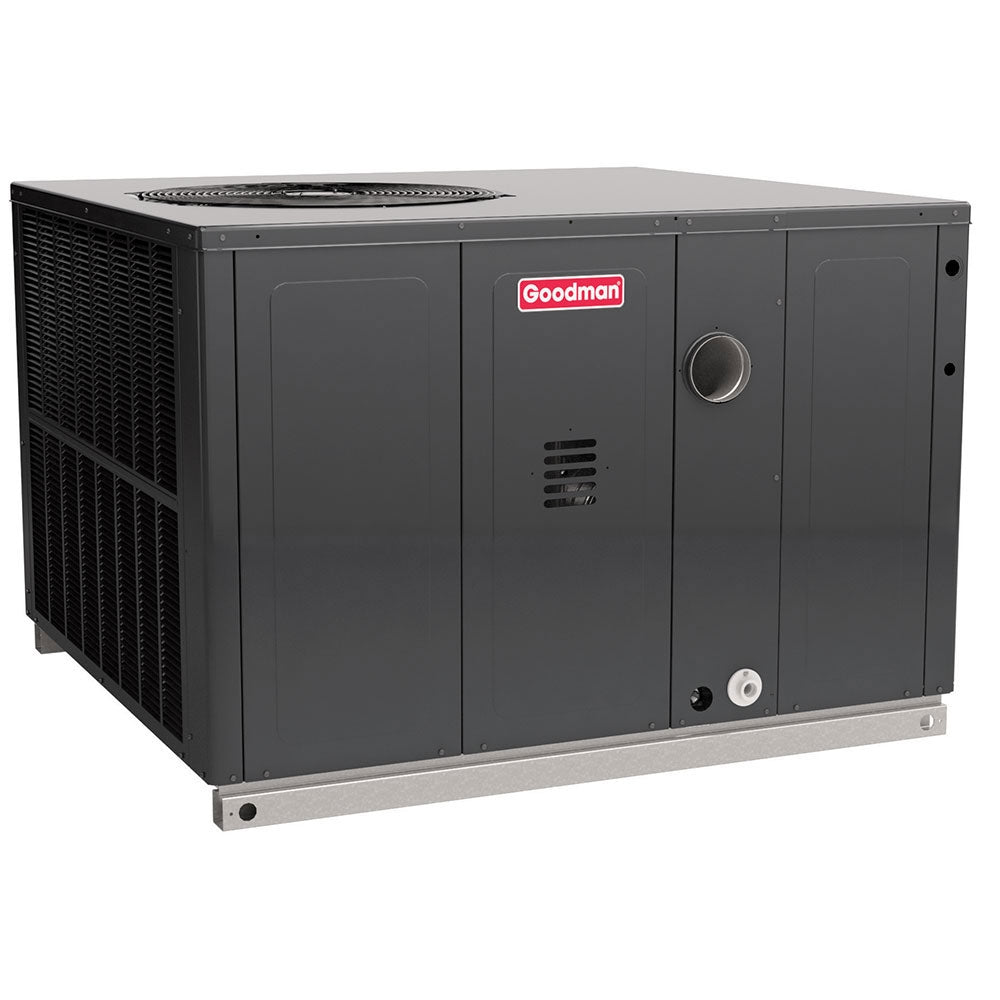

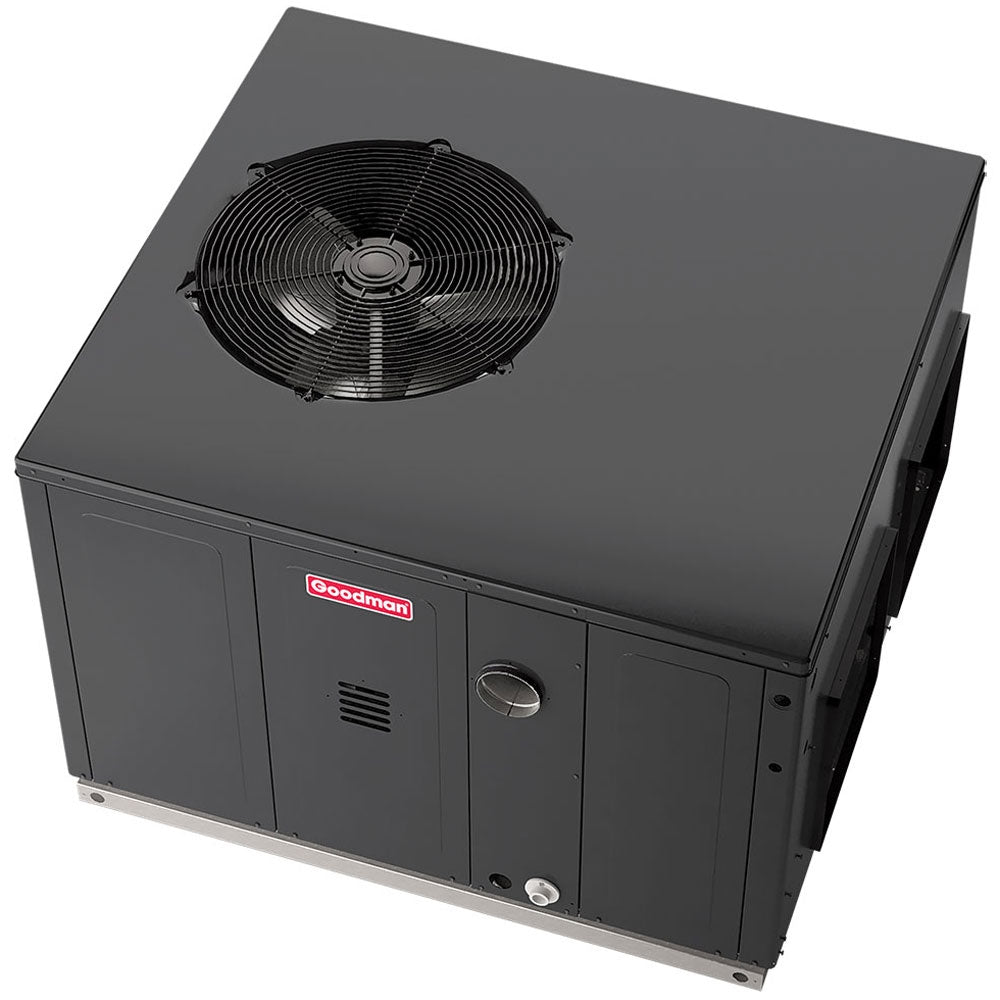

The Goodman GPUM packaged gas/electric unit delivers 13.4 SEER2 cooling efficiency with California Ultra-Low NOx compliant gas heating in a 2.5 Ton design. Features a heavy-duty stainless-steel heat exchanger, energy-efficient scroll compressor, and multi-speed ECM blower motor. Eligible for SCAQMD Clean Air Furnace Rebate Program. Built in a fully insulated zinc-coated steel cabinet. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| SKU | GPUM33006031 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208-230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 30 A |
| Min. Breaker Size | 21.2 A |
| Capacity & Performance | |
| Tonnage | 2.5 |
| Cooling BTU | 28600 Btu/H |
| Heating BTU | 60000 Btu/H |
| Maximum CFM | 1000 ft³/min |
| Decibel Level (dBA) | 76 dBA |
| Efficiency Ratings | |
| SEER2 | 13.4 |
| EER2 | 10.6 |
| AFUE | 0.81 % |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 57 oz |
| Liquid Line | 3/8 in |
| Suction Line | 1/2 in |
| Dimensions & Weight | |
| Height | 34-1/2 in |
| Width | 47 in |
| Depth | 51 in |
| Weight | 380 lb |
| Additional Information | |
| Product Features | Heavy-duty stainless-steel heat exchanger;Energy-efficient scroll compressor;Multi-speed ECM indoor blower motor;Convertible airflow: horizontal or downflow application;All-aluminum evaporator coil;Power-assisted combustion;Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, andall safety circuits complete with self-diagnostics;California Ultra-Low NOx emissions compliant;Eligible for installation in California’s South Coast Air QualityManagement District (SCAQMD) and San Joaquin Valley AirPollution Control District (SJVUAPCD). This gas packaged unitfurnace complies with the 14 ng/J NOx emission limitin SCAQMD Rule 1111 and SJVUAPCD Rule 4905. This gaspackaged unit furnace is eligible for the SCAQMD Clean AirFurnace Rebate Program: www.CleanAirFurnaceRebate.com;AHRI Certified; ETL Listed |
| Warranty | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
