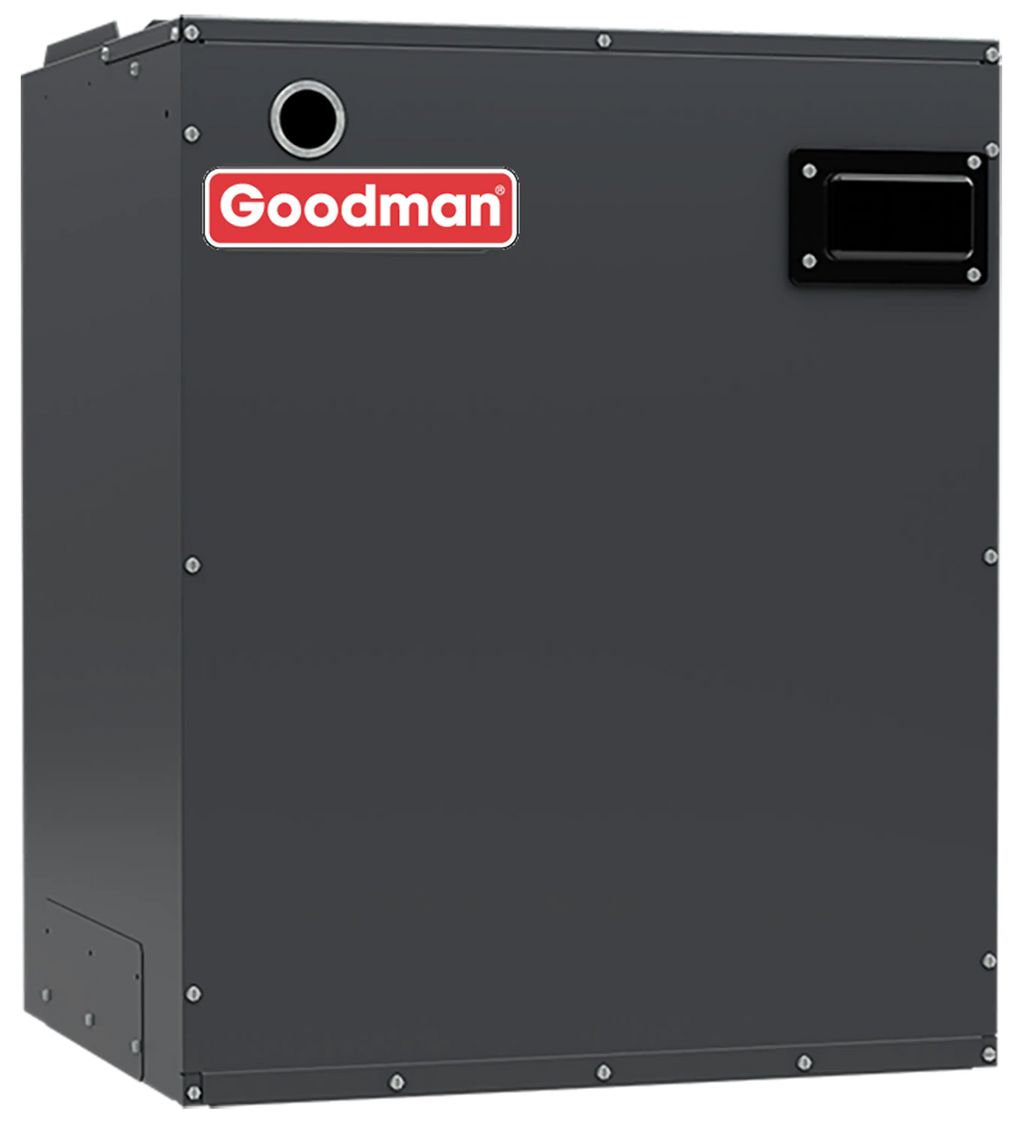

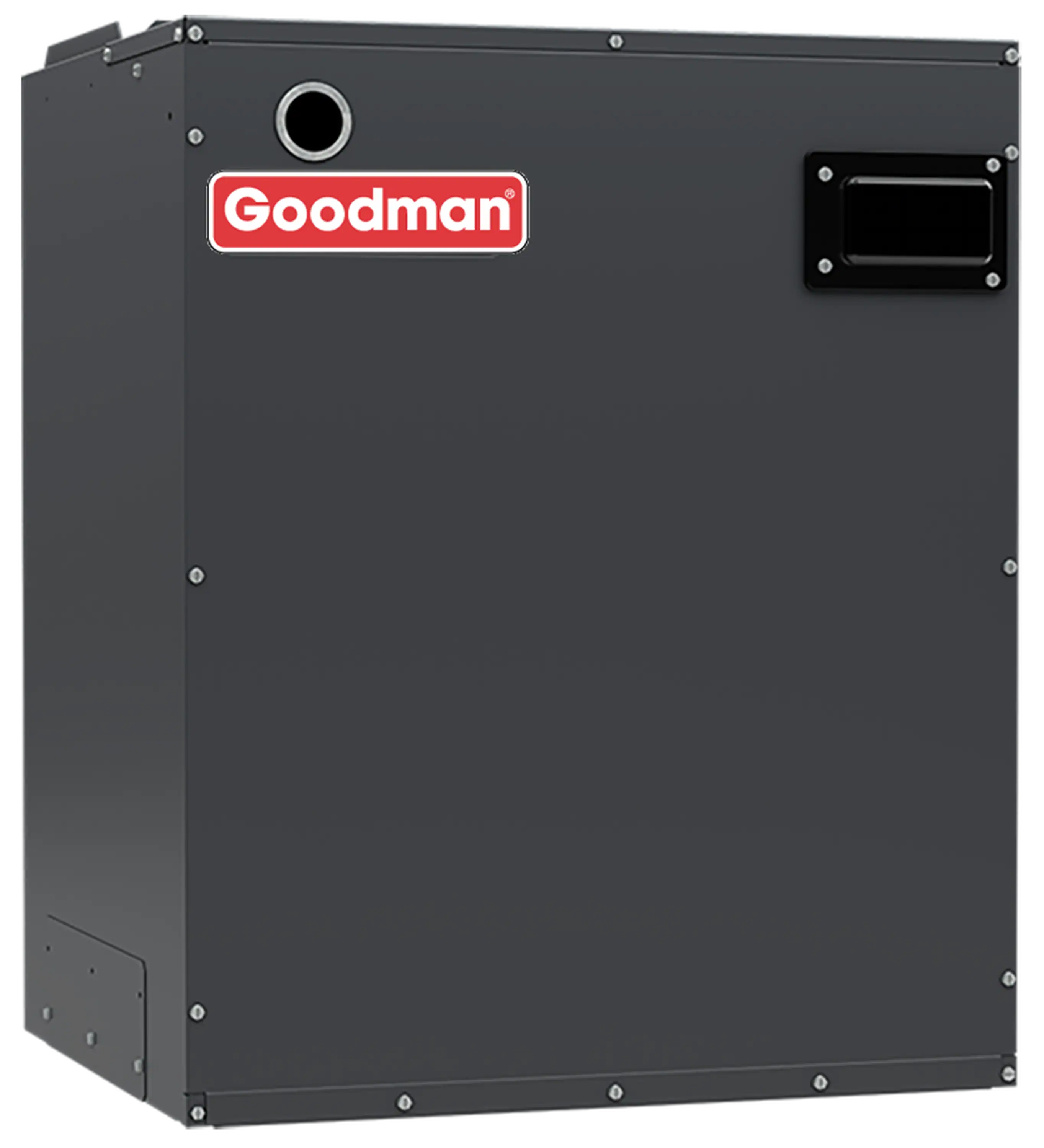

Goodman 13.4 SEER2, 3 Ton Modular Air Handle / Blower 230V (MBVK16CH1X00)

GoodmanSKU: MBVK16CH1X00
Price:
$1,039.88 $1,295.00SAVE 19%
In Stock
Estimated delivery: Sep 9th-23rd
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.

Description

Revolutionary ComfortBridge™ technology is factory-installed into select Goodman brand gas furnaces and air handlers to ensure that the entire system operates at peak, energy-efficient performance. Simply put, communications technology that is typically located in a thermostat was moved from the wall and securely placed into the HVAC equipment!

Features

  • Vertical or horizontal installation
  • Variable-speed motor
  • Field-installed heat strips
  • Blower section usable as
    electric heater
  • Compatible with the Goodman smart thermostat
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Built-in dehumidification feature
  • Blower section usable as an electric furnace
  • 21 inch deep cabinet for easier attic access
  • Control board includes a blower time-delay in the cooling mode
  • Foil-faced insulation lines the cabinet to help reduce operating sound and cabinet condensation
  • AHRI Certified; ETL Listed
  • UL60335 2-40 Compatible
DIMENSIONS & WEIGHT
Depth
21"
GENERAL INFORMATION
Brand
Goodman
Product Line
MBVK
Product Type
Multi-Position, Variable-Speed ECM-Based, Modular Blower
Communication
Communicating (ComfortNet Technology)
Communicating
Yes (ComfortNet Technology)
Fault Recall
6 Most Recent Faults
Dehumidification
Built-In
Blower Time Delay
Yes (Cooling Mode)
Flame Adjustment
Continuously Adjustable Low CFM for Fan-Only Operation
Configuration
Horizontal or Vertical
Insulation
Foil-Faced Internal Casing
Finish
  • Galvanized
  • Leather Grain-Embossed
Cabinet Air Leakage (1.0" H₂O)
Less than 2%
Cabinet Air Leakage (0.5" H₂O)
Less than 1.4%
CAPACITY & PERFORMANCE
CFM Indicator
Yes
COMPRESSOR & MOTORS
Motor Type
Variable-Speed ECM
REFRIGERANT & PIPING
Refrigerant Compatibility
R-410A, R-32
FILTER & HEATING
Electric Heater Kits
3 kW – 20 kW (230V Models Only)
SAFETY
AHRI Certified
Yes
ETL Listed
Yes
UL Compliance
UL 60335 2-40
SEER2 Compatibility
Up to 19 SEER2
WARRANTY
Warranty
10-Year Parts Limited Warranty (with registration within 60 days)
