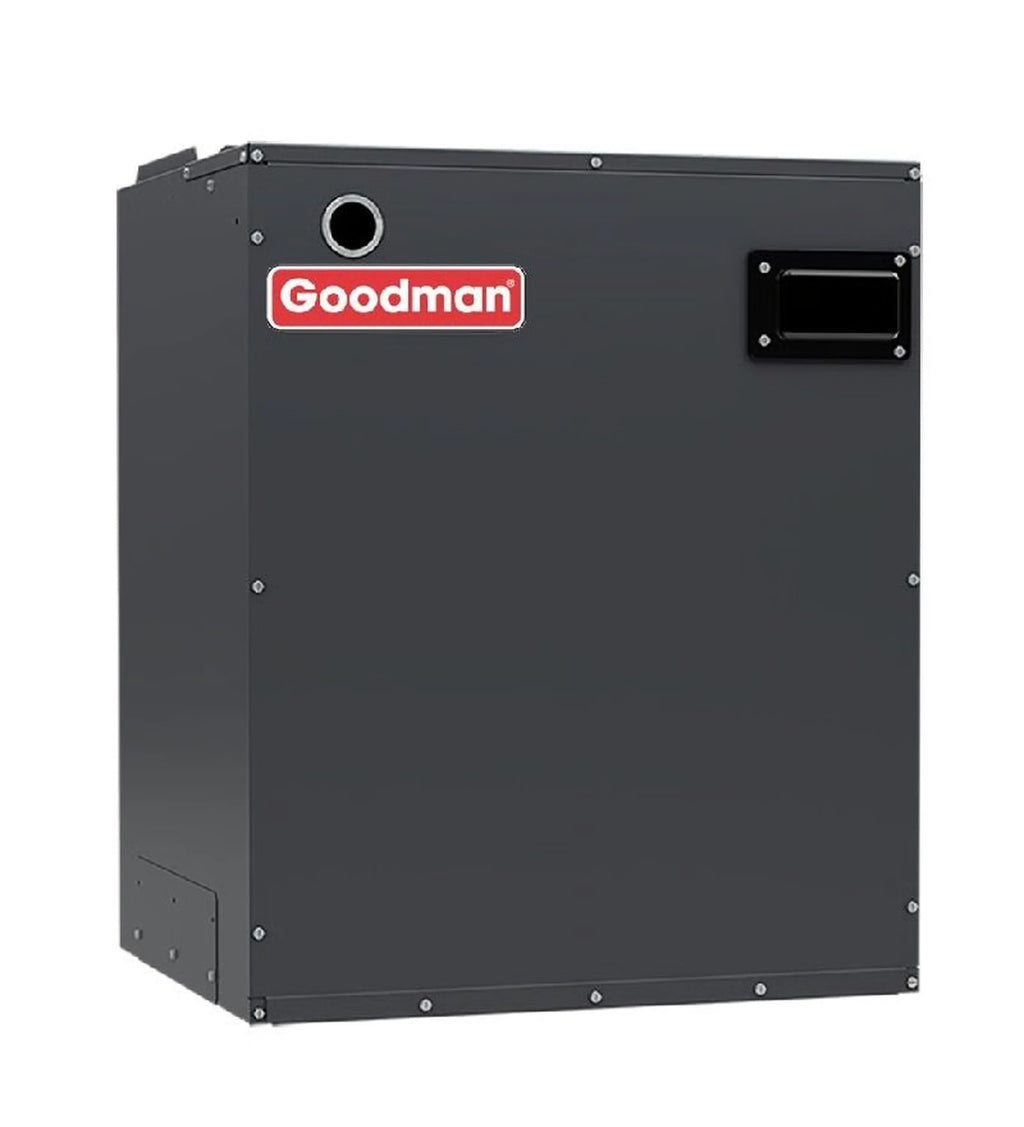

The Goodman MBVB Modular Blower is designed to deliver efficient, reliable airflow and enhanced indoor comfort for modern HVAC systems. Equipped with a variable-speed ECM blower motor, this unit maintains consistent airflow by automatically adjusting to changing static pressure conditions within the duct system. Its ability to provide constant CFM across a wide range of operating conditions helps improve system efficiency, comfort, and overall performance. The blower also supports multi-stage heat pump and cooling applications, allowing it to integrate seamlessly into a variety of residential HVAC setups while providing improved humidity control and more consistent temperature management.
This modular blower also features integrated ComfortBridge™ Technology, which enables advanced communication and configuration for optimized system performance. With built-in Bluetooth connectivity and Goodman’s CoolCloud™ mobile application, installers can easily commission, configure, and diagnose the system directly from a phone or tablet. Additional features such as advanced airflow and tonnage configuration, a CFM indicator, adjustable low-CFM fan operation, and fault recall for the six most recent system issues make maintenance and troubleshooting straightforward. The MBVB modular blower is AHRI certified, ETL listed, and compliant with UL 60335-2-40 standards, ensuring dependable performance and safety for long-term home comfort.
| General Information | |
|---|---|
| Model | MBVB Series |
| Type | Modular Blower |
| Energy Certified | No |
| ComfortBridge™ Compatible | Yes |
| Voltage | 208/230V, 1 Phase, 60 Hz |
| Certifications | AHRI Certified, ETL Listed, UL 60335 2-40 |
| Cabinet Features | |
| Configuration | Multi-position (Horizontal or Vertical) |
| Cabinet Finish | Galvanized, Leather Grain-Embossed |
| Insulation | Foil-Faced |
| Depth | 21" |
| Air Leakage at 1.0 inch H₂O | Less than 2% |
| Air Leakage at 0.5 inch H₂O | Less than 1.4% |
| Motor | |
| Motor Type | Variable-Speed ECM |
| ComfortBridge™ Technology | Yes |
| Bluetooth Commissioning | Yes (CoolCloud™ App) |
| CFM Indicator | Yes |
| Fault Recall | 6 Most Recent Faults |
| Electric Heat Kits | |
| Field Installed | Yes |
| Available Capacities | 3 kW – 20 kW |
| Compatible Kits | HKTAN031, HKTAN051, HKTAD051, HKTAN061, HKTAN081, HKTAD081, HKTAN101, HKTAD101, HKTAD151, HKTAD201 |
| Warranty | |
| Parts Limited Warranty | 10 Years |
| Registration Required | Yes, within 60 days of installation |
| Exceptions | Online registration not required in California or Quebec |
