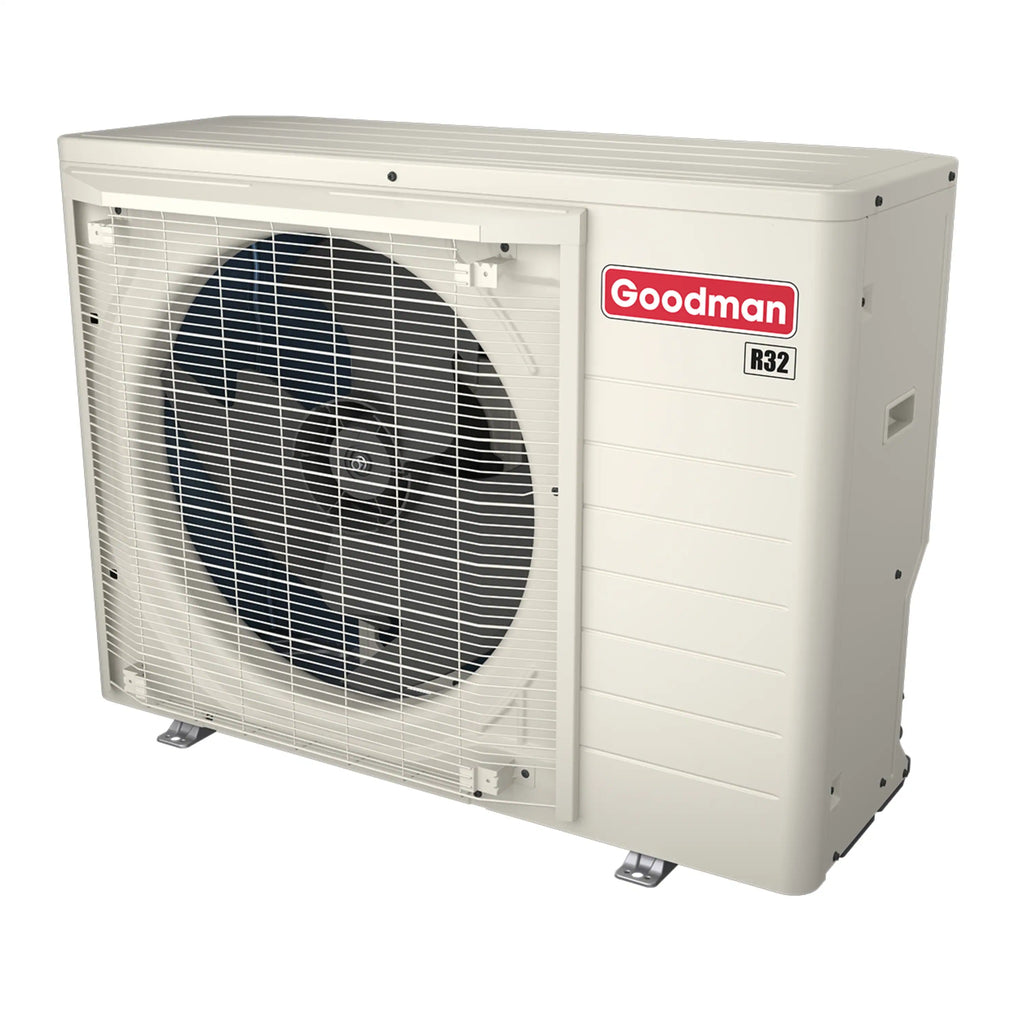

Goodman GXV9S Split Air Conditioner 19.2 SEER2 R-32 (GXV9SA2410)

Name: Goodman GXV9S Split Air Conditioner 19.2 SEER2 R-32 (GXV9SA2410)
Brand: Goodman
SKU: GXV9SA2410
Price: 5010.0 USD
Availability: InStock

SKU: GXV9SA2410

$5,010.00 $6,513.00

In Stock Estimated delivery: Jul 29th-12th

Secure Payment

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Shipping*
30-Day Return Policy⁺

The Goodman GXV9S Split System Air Conditioner delivers premium 19.2 SEER2 efficiency with R-32 refrigerant at 2 Ton capacity. Features variable-speed inverter compressor for maximum efficiency and precise comfort control. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

Features

Variable-speed swing compressors
Quiet digitally commutated fan motor
High-density compressor sound blanket
Compatible with Goodman connected thermostatand other Goodman communicating equipment
Propietary control algorithmic logic
In communicating mode, only two lowvoltagewires to outdoor unit required
Diagnostic indicator lights, seven-segment
LED display, and fault code storage
Propietary Inside intelligence for diagnostics
Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
Field-selectable boost mode increasescompressor speed during unusually high loads
Field-installed filter drier
Coil and ambient temperature sensors
Suction pressure transducer
Sweat connection service valves witheasy access to gauge ports
AHRI Certified
ETL Listed

Cabinet Features

Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
Custom Ivory white powder-paint finish
High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
500-hour salt-spray tested
Wire fan discharge grille
Top and side maintenance access
When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

DIMENSIONS & WEIGHT
Height	27.375 in
Width	36-5/8 in
Depth	13.75 in
Weight	129 lb
GENERAL INFORMATION
Brand	Goodman
Series	GXV9S
SKU	GXV9SA2410
Product Category	Unitary
Unit Type	Outdoor
Manufacturer	Goodman
Product Features	Variable-speed swing compressors Quiet digitally commutated fan motor High-density compressor sound blanket Compatible with Goodman connected thermostatand other Goodman communicating equipment Propietary control algorithmic logic In communicating mode, only two lowvoltagewires to outdoor unit required Diagnostic indicator lights, seven-segment LED display, and fault code storage Propietary Inside intelligence for diagnostics Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA) Field-selectable boost mode increasescompressor speed during unusually high loads Field-installed filter drier Coil and ambient temperature sensors Suction pressure transducer Sweat connection service valves witheasy access to gauge ports AHRI Certified ETL Listed
CAPACITY & PERFORMANCE
Cooling BTU	23200 Btu/H
Cooling Operating Range	0 °F to 115 °F
SEER2	19.0
EER2	11.0
COMPRESSOR & MOTORS
Compressor Type	Inverter
Compressor Stages	Variable
NOISE LEVELS
Decibel Level (dBA)	66 dBA
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz	208/230 V / 1 Ph / 60 Hz
Max Breaker Size	25 A
Min. Breaker Size	22.4 A
REFRIGERANT & PIPING
Refrigerant	R-32
Factory Refrigerant Charge	76 oz
Liquid Line	3/8 in
Suction Line	7/8 in
Max Line Set Length	100 ft
SAFETY
ENERGY STAR® Certified	No
Proposition 65 Warning	Yes
WARRANTY
Warranty	ALL PARTS - 5 YEARS PARTS
