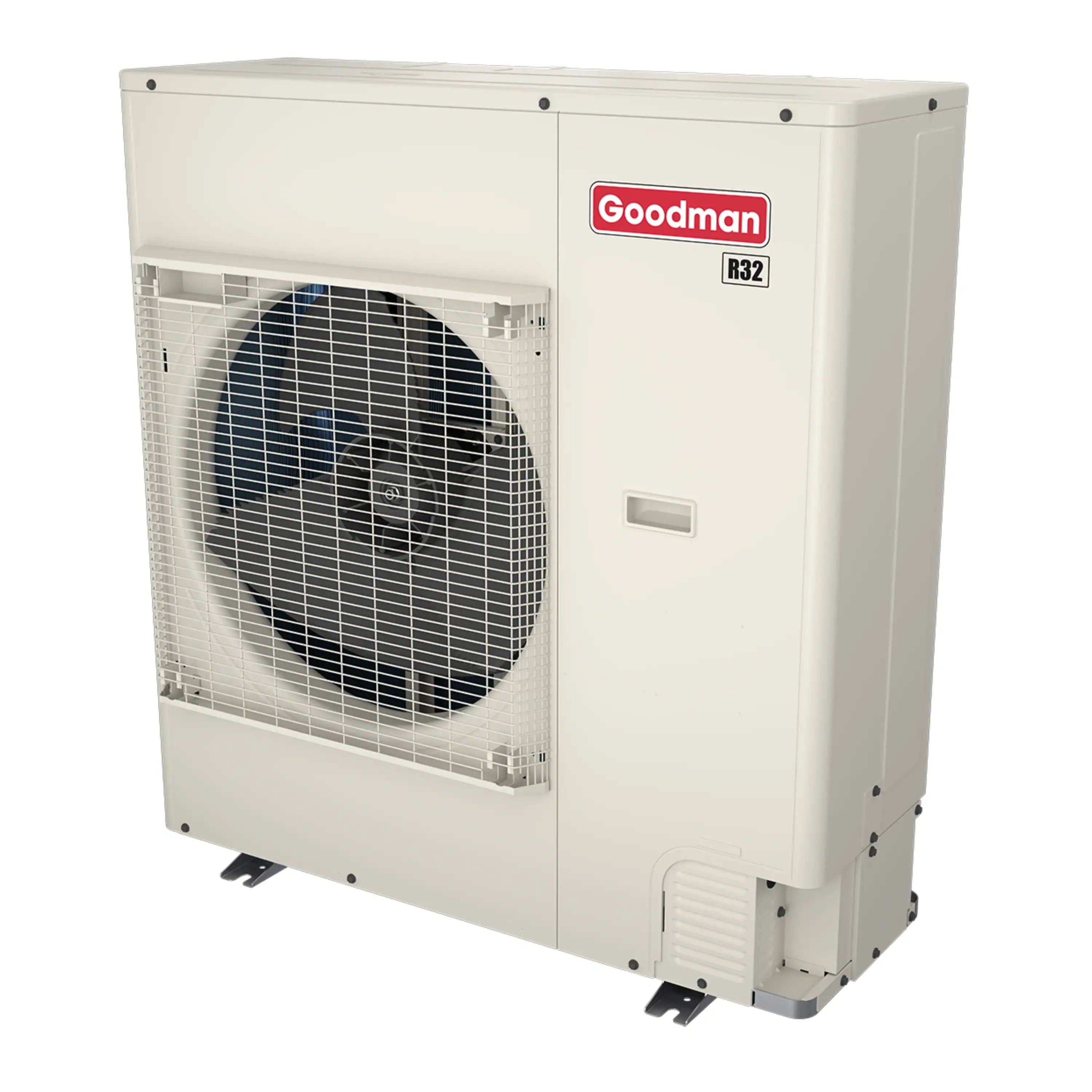

The Goodman GSV7SA is a premium 3.5 Ton variable-speed split system heat pump delivering 17.5 SEER2 efficiency with strong heating capacity. Features variable-speed swing compressors, quiet digitally commutated fan motor, and Quiet-mode with sound levels as low as 45dBA. Compatible with Goodman GTST connected thermostat. Built in a heavy-gauge galvanized steel cabinet with Ivory white finish. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GSV7SA |
| SKU | GZV7SA4210 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 40 A |
| Min. Breaker Size | 37.5 A |
| Capacity & Performance | |
| Tonnage | 3.5 |
| Cooling BTU | 41000 Btu/H |
| Heating BTU | 41000 Btu/H |
| Cooling Operating Range | 0 °F to 115 °F |
| Heating Operating Range | -10 °F to 70 °F |
| Decibel Level (dBA) | 71 dBA |
| Efficiency Ratings | |
| SEER2 | 17.5 |
| HSPF2 | 8.8 |
| EER2 | 10.0 |
| ENERGY STAR® Certified | Yes |
| Compressor & Refrigerant | |
| Compressor Type | Inverter |
| Compressor Stages | Variable |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 118 oz |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Max Line Set Length | 100 ft |
| Dimensions & Weight | |
| Height | 39 in |
| Width | 37 in |
| Depth | 12.625 in |
| Weight | 179 lb |
| Additional Information | |
| Product Features | Variable-speed swing compressors;Strong heating capacity;Quiet digitally commutated fan motor;High-density compressor sound blanket;Compatible with Goodman GTST connected thermostat and otherGoodman communicating equipment;Proprietary control algorithmic logic;In communicating mode, only two low-voltage wires to outdoor unit required;Diagnostic indicator lights, seven-segmentLED display, and fault code storage;Propietary Inside intelligence for diagnostics;Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA);Field-selectable boost mode increases compressor speed during unusually high loads;Field-installed bi-flow filter drier;Coil and ambient temperature sensors;Suction pressure transducer;Sweat connection service valves with easyaccess to gauge ports;AHRI Certified; ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Safety Information | R32 Outdoor |
| Proposition 65 Warning | Yes |
